Simpson PSK3200 User manual

INSTRUCTION
MANUAL
MANUAL DE
INSTRUCCIONES
Part No. 7105491 Rev. 0 FEB 2012
If your pressure washer is not working properly or if there are parts missing or broken,
please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our customer
service department at www.simpsoncleaning.com
Si su lavadora a presión no trabaja correctamente ó encuentra partes rotas
ófaltantes, por favor NO LA REGRECE AL LUGAR DONDE LA COMPRO.
Contáctese con nuestro Departamento de Servicio al Cliente llamando al
www.simpsoncleaning.com
Save thiS manual for future reference
3200 PSI
2.8 GPM
IMPORTANT: Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before operating.
IMPORTANTE: Aségurese por favor de que la persona que vaya a utilizar este equipo lea
con cuidado y comprenda estas instrucciones antes de operar.
VEA EL ESPAÑOL EN LA CONTRAPORTADA. INSTRUCTIVO DE OPERACIÓN,
CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA:
LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
PROFESSIONAL PRESSURE WASHER
MODEL
MODELO
PSK3200

2- ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided,
may result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
DANGER: Carbon Monoxide. Using an engine indoors can kill you in
minutes. Engine exhaust contains high levels of carbon monoxide (CO), a
poisonous gas you cannot see or smell. You may be breathing CO even if you
do not smell engine exhaust.
• NEVER use an engine inside homes, garages, crawlspaces or other partly
enclosed areas.Deadlylevelsofcarbonmonoxidecanbuildupintheseareas.
Usingafanoropeningwindowsanddoorsdoes NOTsupplyenoughfreshair.
• ONLY useoutdoorsandfarawayfromopenwindows,doorsandvents.These
openingscanpullinengineexhaust.
• Evenwhentheengineisusedcorrectly,COmayleakintoyourhome.ALWAYS use
abattery-poweredorbatterybackupCOalarminyourhouse.Read and follow all
directions for CO alarm before using. Ifyoufeelsick,dizzyorweakatanytime,
move to fresh air immediately. See a doctor. You could have carbon monoxide
poisoning.
WARNING: Do not operate this unit until you read this instruction manual and
the engine instruction manual for safety, operation and maintenance instructions. If
you have any questions regarding the product, please contact our customer
service department at www.simpsoncleaning.com
DANGER: Risk of injection or severe injury. Keep clear of nozzle. do not
direct discharge stream at persons or live animals. This product is to be used
only by trained operators.
WARNING: This product and its exhaust contain chemicals known to the State
of California to cause cancer, and birth defects or other reproductive harm. In
addition, some cleaning products and dust contain chemicals known to the State
of California to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling.

3- ENG
WARNING: This product may not be equipped with a spark-arresting muffler.
If the product is not equipped and will be used around flammable materials or
on land covered with materials such as agricultural crops, forest, brush, grass
or other similar items, then an approved spark arrester must be installed and
is legally required in the state of California. It is a violation of California statutes
section 130050 and/or sections 4442 and 4443 of the California
Public Resources Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in effective
working order. Spark arresters are also required on some U.S. Forest Service land
and may also be legally required under other statutes and ordinances.
Save theSe inStructionS
DANGER: RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it’s vapors can
becomeignitedfromcigarettesparks,
electrical arcing, exhaust gases and
hotenginecomponentssuchasthe
muffler.
• Shutoffengineandallowittocoolbefore
addingfueltothetank.
• Usecareinfillingtanktoavoidspillingfuel.
Movepressurewasherawayfromfueling
areabeforestartingengine.
• Heatwillexpandfuelinthetankwhich
could result in spillage and possible
fireexplosion.
• Keepmaximumfuellevel1/2"(12.7mm)
below bottom of filler neck to allow for
expansion.
• Operatingthepressurewasherinan
explosiveenvironmentcouldresultin
afire.
• Operateandfuelequipmentinwell-venti-
latedareasfreefromobstructions.Equip
areas with fire extinguisher suitable for
gasolinefires.
• Materials placed against or near the
pressure washer can interfere with
itsproperventilationfeaturescausing
overheating and possible ignition of
thematerials.
• Neveroperatepressurewasherinanarea
containingdrybrushorweeds.
• Muffler exhaust heat can damage
painted surfaces, melt any material
sensitive to heat (such as siding,
plastic, rubber, vinyl or the pressure
hose,itself),anddamageliveplants.
• Alwayskeeppressurewasheraminimum
of4'(1.2m)awayfromsurfaces(suchas
houses, automobiles or live plants) that
could be damaged from muffler exhaust
heat.
• Improperly stored fuel could lead to
accidental ignition. Fuel improperly
securedcouldgetintothehandsof
childrenorotherunqualifiedpersons.
• StorefuelinanOSHAapprovedcontain-
er, in a secure location away from work
area.
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with
this product could result in serious
injuryordeath.
• Donotsprayflammableliquids.

4- ENG
DANGER: RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Breathing exhaust fumes will cause
serious injury or death! Engine
exhaust contains carbon monoxide,
anodorlessanddeadlygas.
• Operate pressure washer in a well-
ventilated area. Avoid enclosed areas
suchasgarages,basements,etc.
• Never operate unit in or near a location
occupiedbyhumansoranimals.
• Some cleaning fluids contain
substanceswhichcouldcauseinjury
toskin,eyesorlungs.
• Use only cleaning fluids specifically rec-
ommended for high-pressure washers.
Followmanufacturersrecommendations.
Donotusechlorinebleachoranyother
corrosivecompound.
DANGER: RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Yourpressurewasheroperatesatfluid
pressuresandvelocitieshighenough
topenetratehumanandanimalflesh,
which could result in amputation or
other serious injury. Leaks caused
byloosefittingsorwornordamaged
hoses can result in injection injuries.
DO NOT TREAT FLUID INJECTION
ASASIMPLECUT!Seeaphysician
immediately!
• Inspect the high-pressure hose regularly.
Replace the hose immediately if it is
damaged, worn, has melted from
contactingtheengine,orshowsanysigns
of cracks, bubbles, pinholes, or other
leakage. Never grasp a high-pressure
hosethatisleakingordamaged.
• Nevertouch,grasporattempttocovera
pinholeorsimilarwaterleakonthehigh-
pressure hose. The stream of water IS
underhighpressureandWILLpenetrate
skin.
• Neverplacehandsinfrontofnozzle.
• Directsprayawayfromselfandothers.
• Makesurehoseandfittingsaretightened
and in good condition. Never hold onto
thehoseorfittingsduringoperation.
• Donotallowhosetocontactmuffler.
• Never attach or remove wand or hose
fittingswhilesystemispressurized.
• Whenusingreplacementlancesorguns
with this pressure washer, DO NOT use
a lance and/or lance/gun combination
that is shorter in length than what was
provided with this pressure washer as
measured from the nozzle end of the
lancetotheguntrigger.
• Injuriescanresultifsystempressure
is not reduced before attempting
maintenanceordisassembly.
• To relieve system pressure, shut off
engine,turnoffwatersupplyandpullgun
triggeruntilwaterstopsflowing.
• Use only accessories rated equal to or
higher than the rating of the pressure
washer.

5- ENG
DANGER: RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
• High-velocity fluid spray can cause
objects to break, propelling particles
athighspeed.
• Always wear ANSI-approved Z87.1
safety glasses. Wear protective clothing
toprotectagainstaccidentalspraying.
• Neverpointwandatorspraypeopleor
animals.
• Light or unsecured objects can
becomehazardousprojectiles. • Always secure trigger lockwhen wand is not in service to prevent accidental
operation.
• Neverpermanentlysecuretriggerinpull-
back(open)position.
DANGER: RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure
washercouldleadtoseriousinjuryor
deathtoyouorothers.
• Donotusechlorinebleachoranyother
corrosivecompound.
• Become familiar with the operation and
controlsofthepressurewasher.
• Keepoperatingareaclearofallpersons,
petsandobstacles.
• Donotoperatetheproductwhenfatigued
orundertheinfluenceofalcoholordrugs.
Stayalertatalltimes.
• Never defeat the safety features of this
product.
• Do not operate machine with missing,
brokenorunauthorizedparts.
• Neverleavewandunattendedwhileunitis
running.
• If proper starting procedure is not
followed,enginecankickbackcausing
serioushandandarminjury.
• If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistanceisfelt.Thenpullcordrapidlyto
avoidkickbackandpreventhandorarm
injury.
• The spray gun/wand is a powerful
cleaningtoolthatcouldlooklikeatoy
toachild.
• Keep children away from the pressure
washeratalltimes.
• Reactiveforceofspraywillcausegun/
wand to kickback, and could cause
theoperatortosliporfallormisdirect
the spray. Improper control of gun/
wandcanresultininjuriestoselfand
others.
• Donotoverreachorstandonanunstable
support.
• Do not use pressure washer while
standingonaladder.
• Grip gun/wand firmly with both hands.
Expect the gun to kickback when
triggered.

6- ENG
DANGER: RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Fueloroilcanleakorspillandcould
resultinfireorbreathinghazard.Seri-
ousinjuryordeathcanresult.Fuelor
oilleakswilldamagecarpet,paintor
othersurfacesinvehiclesortrailers.
• Oilcouldfillthecylinderanddamage
theengineiftheunitisnotstoredor
transportedinanuprightposition.
• Ifpressurewasherisequippedwithafuel
shut-offvalve,turnthevalvetotheOFF
positionbeforetransportingtoavoidfuel
leaks.Ifpressurewasherisnotequipped
with a fuel shut-off valve, drain the fuel
fromtankbeforetransporting.Onlytrans-
portfuelinanOSHA-approvedcontainer.
 Always place pressure washer on a
protective mat when transporting to
protect against damage to vehicle from
leaks.
 Always transport and store unit in an
upright position. Remove pressure
washer from vehicle immediately upon
arrivalatyourdestination.
DANGER: RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical outlets or
switches,orobjectsconnectedtoan
electricalcircuit,couldresultinafatal
electricalshock.
• Unpluganyelectricallyoperatedproduct
beforeattemptingtocleanit.Directspray
awayfromelectricoutletsandswitches.
WARNING: RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Over inflation of tires could result in
seriousinjuryandpropertydamage.
• Use a tire pressure gauge to check the
tires pressure before each use and while
inflating tires; see the tire sidewall for the
correcttirepressure.
NOTE: Airtanks,compressorsandsimilar
equipmentusedtoinflatetirescanfillsmall
tires similar to these very rapidly. Adjust
pressureregulatoronairsupplytonomore
thantheratingofthetirepressure.Addair
insmallincrementsandfrequentlyusethe
tiregaugetopreventoverinflation.
• High-velocity fluid spray directed at
pneumatic tire sidewalls (such as
found on automobiles, trailers and
the like) could damage the sidewall
resultinginseriousinjury.
• Onpressurewashersratedabove1600
psi(11032kPa)usethewidestfanspray
(40ºnozzle)andkeepthesprayaminimum
of 8" (20cm) from the pneumatic tire
sidewall.Donotaimspraydirectlyatthe
jointbetweenthetireandrim.

7- ENG
WARNING: RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Contact with hot surfaces, such as
engines exhaust components, could
resultinseriousburn.
• During operation, touch only the control
surfaces of the pressure washer. Keep
childrenawayfromthepressurewasher
at all times. They may not be able to
recognizethehazardsofthisproduct.
WARNING: RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
anykindofflammablesolventwiththis
productcouldresultinseriousinjuryor
death.
• Do not spray acids, gasoline, kerosene,
oranyotherflammablematerialswiththis
product.Useonlyhouseholddetergents,
cleaners and degreasers recommended
forusewithpressurewashers.
• Wear protective clothing to protect
eyesandskinfromcontactwithsprayed
materials.
WARNING: RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result from
attemptingtolifttooheavyanobject. • Thepressurewasheristooheavytobe lifted by one person. Obtain assistance
fromothersbeforelifting.
Save theSe inStructionS
for future uSe

8- ENG

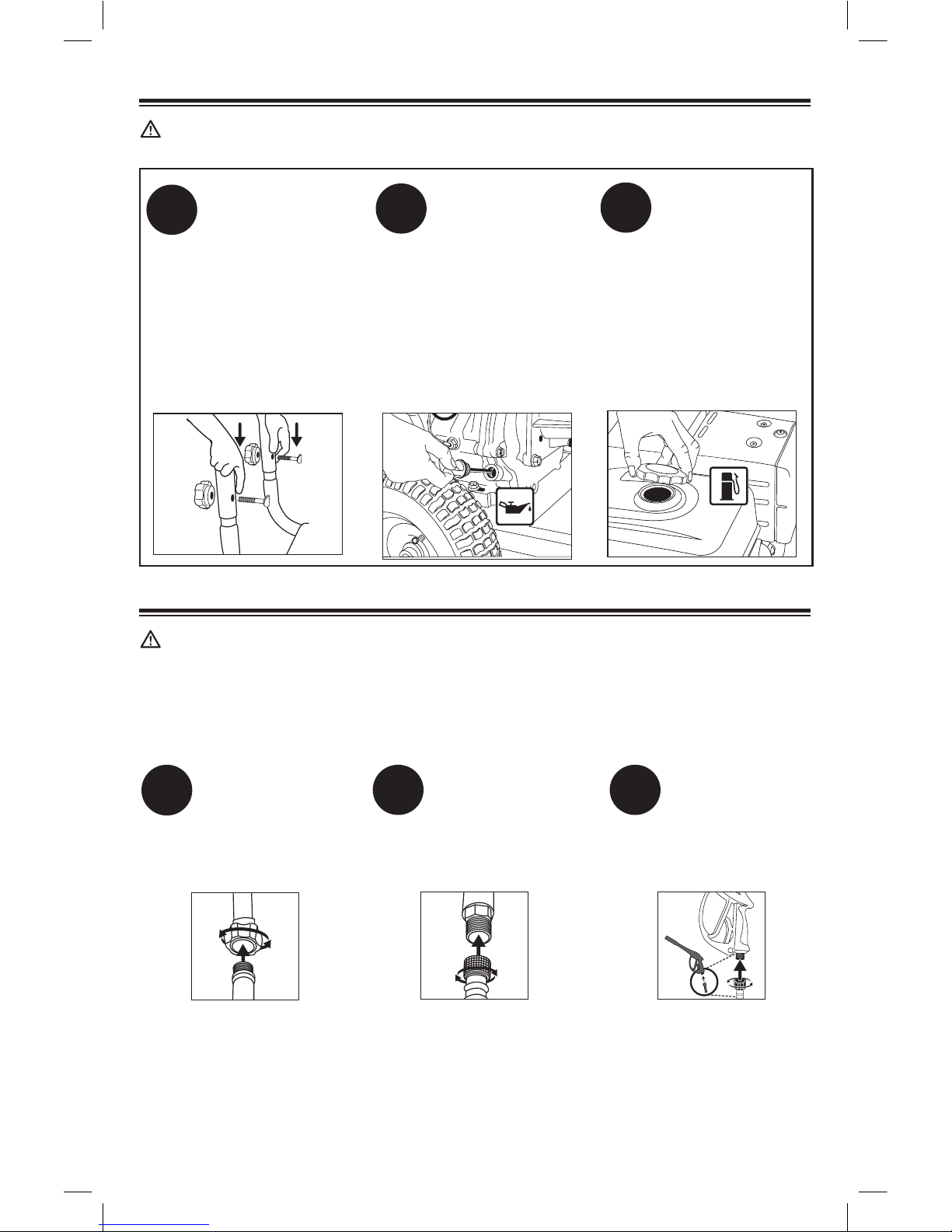

qUICK SETUP GUIDE
WARNING: To reduce the risk of injury, read the pressure washer instruction manual and
the engine instruction manual before operating pressure washer.
aInstall the Handle
Slide the handle
assembly onto
the frame and secure with
saddle bolts and knobs.
BAdd/Check Oil
The engine is
shipped without
oil. Before starting engine,
add the oil provided.
Check oil level prior to
each use. Refer to Engine
Owner’s Manual for
complete procedure.
cAdd Gasoline
In a well ventilated
outdoor area
add fresh, high quality,
unleaded gasoline with a
pump octane rating of 86
or higher. Do not overfill.
Wipe up spilled fuel before
starting the engine. Refer
to Engine Owners Manual
for complete procedure.
qUICK START GUIDE
DANGER:
• Neverrunengineindoorsorinenclosed,poorlyventilatedareas.Engineexhaustcon-
tains carbon monoxide, an odorless and deadly gas.
• Riskoffluidinjectionandlaceration.Whenusingthehigh-pressuresetting,DONOT
allow the high-pressure spray to come in contact with unprotected skin, eyes or with
any pets or animals. Serious injury will occur.
1Connect Garden
Hose to Pump
Thread the garden
hose to the pump inlet.
See Label#1 on the pump.
2Connect High
Pressure Hose to
Pump
Thread the high pressure
hose to the pump outlet.
See Label #2 on the pump.
3Connect High
Pressure Hose to
Spray Gun
Thread the other end of
the high pressure hose
to the spray gun.

9- ENG
4Connect Spray
Wand to Spray
Gun
Thread the spray wand into
the end of the spray gun.
5Connect QC
Nozzles to Spray
Wand
Pull quick connect cou-
pler back and insert
nozzle. Release quick
connect coupler and
twist nozzle to make sure
it is secure in coupler.
6Turn Water
Faucet
Completely On
Do not run the unit
without water supply
connected and turned on.
Use Cold Water Only.
7Release Air from
System
Release all air from
pump and high pressure
hose by depressing
trigger until a steady
stream of water is present.
Approximately 30 seconds.
30 S
8Verify the Fuel
Switch is in the
ON Position
See Label #8 on
the engine.
9Verify the Engine
Switch is turned
to the ON
Position
See Label #9 on
the engine.
OFF
ON
10 Move the Choke
to the CLOSED
Position
See label #10 on
the engine.
11 Pull the Recoil
Starter Grip
Pull the
recoil starter grip to
start the engine.
See Label #11 on
the engine.
12 Move the Choke
to the OPEN
Position
Gradually move the Choke
to the OPEN Position
after engine starts.
See Label #12 on
the engine.
WARNING: This Guide is not a substitute for reading the operator's manual. User must
read and understand operator's manual before using this product.

10- ENG
GET TO KNOW THE PRESSURE WASHER
NOTE: Photographs and line drawings used in this manual are for reference
only and do not represent a specific model.
Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
G
B
1
D
KL
E
H
I
J
A
BASIC ELEMENTS OF A PRESSURE WASHER (FIG. 1)
A. High Pressure Pump: Increases the pressure of the water supply.
B. Engine: Drives the high pressure pump. Refer to the engine manual for location
and operation of engine controls.
C. High Pressure Hose (not shown): Carries the pressurized water from the
pump to the gun and spray wand.
D. Spray Gun: Connects with spray wand to control water flow rate, direction,
and pressure.
E. Quick-Connect Spray Wand: Allows the user to quickly change out high-
pressure nozzles. See How To Use Spray Wand instructions in Operation
section.
F. Detergent Siphon Hose (not shown): Feeds cleaning agents into the pump to mix
with the water. See
How To Apply Chemicals/Cleaning Solvents instructions
in
Operation section.
G. Handle
H. Frame

11- ENG
I. Pump Outlet
J. Pump Inlet
K. Quick Connect Nozzles
L. Nozzle Holder
BASIC ELEMENTS OF AN ENGINE
Refer to the engine manual for location and operation of engine controls.
Choke Control: Opens and closes carburetor choke valve.
Starter Grip: Pulling starter grip operates recoil starter to crank engine.
Engine Switch: Enables and disables ignition system.

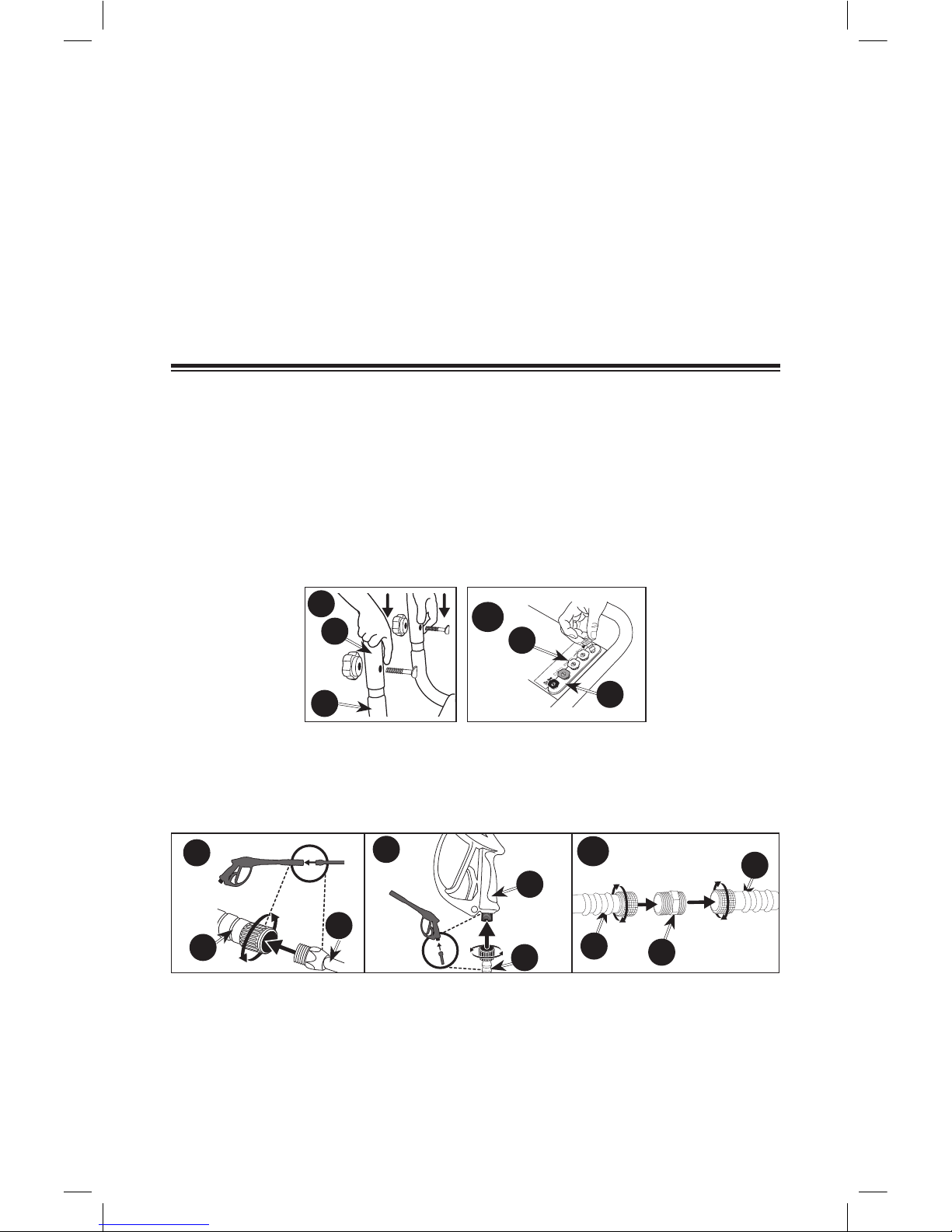

ASSEMBLY INSTRUCTIONS (FIG. 1– 4)
1. Locate and remove all loose parts from the carton.
2. Cut four corners of the carton from top to bottom and lay the panels flat.
3.
Slide the handle assembly (G) onto the frame (H) and secure with saddle bolts
and knobs.
NOTICE: Risk of personal injury. Avoid placing hands between handle and frame
when assembling to prevent pinching.
4. Remove colored quick connect nozzles (K) from plastic bag and insert them
into correct grommet on the nozzle holder (L). NOTE: Nozzles are color coded
to match colored nozzles on panel.
K
L
G
H
22A
5. Connect wand (E) to gun (D). Tighten securely.
6. Attach high pressure hose (C) to gun (D). Tighten securely.
7. Extension Hose (optional): Attach high pressure hose (C) to extension hose
(Q) using adaptor (R). Ensure connections are secure.
C
QR
E
4
D
C
3
D
4A
NOTICE: The engine is shipped without oil. Before starting engine, add the oil
provided. Damage to the engine will occur if the engine is run without oil, this
damage will not be covered under warranty.

12- ENG
OPERATION
PRESSURE WASHER TERMINOLOGY
PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used
for air pressure, hydraulic pressure, etc. Sometimes noted as “Bar”, another unit
of measure.
GPM: Gallons per Minute. The unit of measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by psi equals CU.
Bypass Mode: Allows water to re-circulate within the pump when the gun trigger is
not pulled. This feature allows the operator to release the trigger gun and reposition
themselves without having to turn the engine off in between cleaning actions.
NOTICE: Allowing the unit to run for more than two minutes without the gun
trigger being pulled could cause overheating and damage to the pump. Do not let
the pressure washer run for more than two minutes in Bypass Mode. Turn off the
engine and relieve the pressure in the gun during these extended situations.

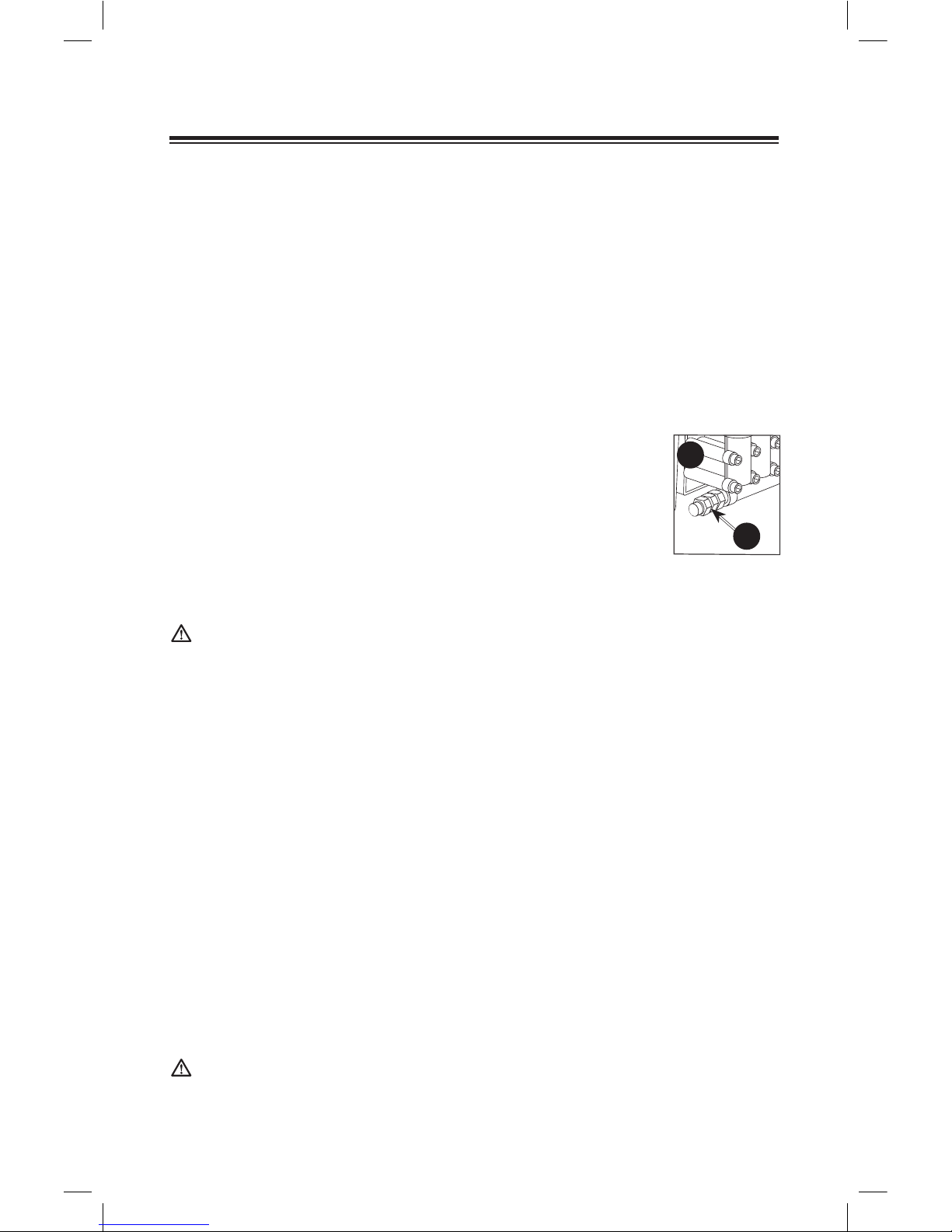

Thermal Relief Valve (M): When the temperature inside the pump 5
M
rises too high, this valve will open and release a gush of water in
an effort to lower the temperature inside the pump. The valve will
then close.
Detergent Injection System: Mixes cleaners or cleaning solvents
with the water to improve cleaning effectiveness.
Water Supply: All pressure washers must have a source of water.
The minimum requirements for a water supply are 20 psi and 5 Gallons Per Minute.
If your water source is a well, the garden hose length can only be 30 ft. (9 m) max.
WARNING: To reduce the possibility of contamination always protect
against backflow when connected to a potable water system.
PRESSURE WASHER OPERATING FEATURES
PRESSURE ADJUSTMENTS
The pressure setting is preset at the factory to achieve optimum pressure and
cleaning. If you need to lower the pressure, it can be accomplished by these meth-
ods.
1. Back away from the surface to be cleaned. The further away you are, the
less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less powerful stream
of water and a wider spray pattern. Refer to How To Use Spray Wand.
3. Reduce the speed of the gasoline engine (RPM). Slow the engine down and
the water pressure will go down with it.
NOTICE: DO NOT attempt to increase pump pressure. A higher pressure setting
than the factory set pressure may damage pump.
HOW TO USE SPRAY WAND
The nozzles for the spray wand are stored in the nozzle holder on the panel assembly.
Colors on the panel identify nozzle location and spray pattern. Refer to the following
chart to choose the correct nozzle for the job to be performed.
CHANGING NOzzLES ON SPRAY WAND
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury will
occur.

13- ENG
WARNING: Flying objects could cause risk of serious injury. Do not
attempt to change nozzles while pressure washer is running. Turn engine off
before changing nozzles.
1. Pull quick-connect coupler (E) back and insert nozzle (K). 6
KE
2. Release quick-connect coupler and twist nozzle to make
sure it is secure in coupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect snap ring is fully
engaged (forward) before squeezing gun trigger.
NOzzLE COLOR SPRAY PATTERN USES SURFACES*
Red
0˚ powerful pinpoint
for spot cleaning
of hard, unpainted
surfaces or for
high reach areas
unpainted metal
or concrete;
DO NOT use on wood
Yellow
15˚ intense cleaning
of unpainted
hard surfaces
grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Green
25˚ standard cleaning
nozzle for most
applications
yard tools, sidewalks,
lawn furniture, unpainted
siding, stucco, gutters
and eaves, concrete,
brick surfaces
White
40˚ cleaning of
painted or delicate
surfaces
auto/RV, marine, wood,
painted brick and stucco,
vinyl, painted siding
Black
low pressure applies cleaning
solutions low pressure spray is safe on all surfaces.
always verify
compatibility of cleaning
solution prior to use
*NOTICE: The high pressure spray from your pressure washer is capable of caus-
ing damage to surfaces such as wood, glass, automobile paint, auto striping and
trim, and delicate objects such as flowers and shrubs. Before spraying, check the
item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray.
HOW TO APPLY CHEMICALS/CLEANING SOLvENTS (FIG. 7)
Applying chemicals or cleaning solvents is a low pressure operation.
NOTE: Use only soaps and chemicals designed for pressure washer use. Do not
use bleach.

14- ENG
To Apply chemicals:
1. Ensure detergent siphon hose (F, Figure 7) is attached
F
7
to barbed fitting location near high pressure hose
connection of pump as shown.
2. Place other end of detergent siphon hose with
filter on it into container holding chemical/cleaning
solution. NOTE: For every 7 gallons of water pumped
1 gallon of chemical/cleaning solution will be used.
3. Install low pressure (black) nozzle into quick connect
fitting of spray wand, see How To Use Spray Wand paragraph in this section.
4. After use of chemicals, place detergent siphon hose into container of clean
water and draw clean water through chemical injection system to rinse system
thoroughly. If chemicals remain in the pump it could be damaged. Pumps
damaged due to chemical residue will not be covered under warranty.
NOTE: Chemicals and soaps will not siphon if the black soap nozzle is not installed
on the spray wand.
STARTING (FIG. 8–11)
WARNING: To reduce the risk of injury, read the pressure washer instruction
manual and the engine instruction manual before starting pressure washer.
DANGER: Risk of fluid injection and laceration. When using the high-
pressure setting, DO NOT allow the high-pressure spray to come in contact
with unprotected skin, eyes, or with any pets or animals. Serious injury will
occur.
• Yourwasheroperatesatfluidpressuresandvelocitieshighenoughtopenetrate
humanandanimalflesh,whichcouldresultinamputationorotherseriousinjury.
Leakscausedbyloosefittingsorwornordamagedhosescanresultininjection
injuries.DONOTTREATFLUIDINJECTIONASASIMPLECUT!Seeaphysician
immediately!
DANGER: Carbon Monoxide. Using an engine indoors can kill you in
minutes. Engine exhaust contains high levels of carbon monoxide (CO), a
poisonous gas you cannot see or smell. You may be breathing CO even if you
do not smell engine exhaust.
• Breathingexhaustfumeswillcauseseriousinjuryordeath!Engineexhaustcontains
carbonmonoxide,anodorlessanddeadlygas.
• Operatepressurewasherinawell-ventilatedarea.Avoidenclosedareassuchas
garages,basements,etc.
• Neveroperateunitinornearalocationoccupiedbyhumansoranimals.
WARNING: Risk of Fire, Asphyxiation and Burn. Never fill fuel tank when
engine is running or hot. Do not smoke when filling fuel tank.
• Never fill fuel tank completely. Fill tank to 1/2" )12.7 mm) below bottom of filler
necktoprovidespaceforfuelexpansion.Wipeanyfuelspillagefromengineand
equipmentbeforestartingengine.
• DO NOT let hoses come in contact with very hot engine muffler during or
immediatelyafteruseofyourpressurewasher.Damagetohosesfromcontactwith
hotenginesurfaceswillNOTbecoveredbywarranty.
NOTICE: Riskofpropertydamage.Neverpullwatersupplyhosetomovepressure
washer. This could damage hose and/or pump inlet.
• DONOTusehotwater,usecoldwateronly.

15- ENG
• Neverturnwatersupplyoffwhilepressurewasherengineisrunningordamageto
pumpwillresult.
• DONOTstopsprayingwaterformorethantwominutesatatime.Pumpoperates
inbypassmodewhensprayguntriggerisnotpressed.Ifpumpisleftinbypass
mode for more than two minutes internal components of the pump can be
damaged.
If you do not understand these precautions, please contact our customer service
department at www.simpsoncleaning.com!
Prior to starting, refer to your engine manual for proper starting procedure.
1. In a well ventilated outdoor area add fresh, high quality, unleaded gasoline
with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled
fuel before starting the engine. Refer to Engine Owners Manual for correct
procedure.
2. Check engine oil level. See Engine Owners Manual for correct procedure.
3. Connect the water hose to the water source. Turn the water source on to
remove all air from the hose. When a steady stream of water is present, turn
the water source off.
4. Verify the filter screen (P) is in water inlet of pump.
NOTE: Cone side faces out.
5. Connect high pressure hose (C) to pump outlet (I).
6. Connect water source (N) to pump inlet (J).
NOTE: Water source must provide a minimum of 5 gallons per minute at
20psi.
I
10
C
9
N
J
P
8
WARNING: To reduce the possibility of contamination always protect
against backflow when connected to a potable water system.
7. Choose the correct nozzle for the job to be performed. See How To Use Spray
Wand instructions in this section. NOTE: If applying a chemical or cleaning
solution, see How To Apply Chemicals/Cleaning Solvents instructions in this
section.
8. Turn water source on.
NOTICE: Risk of property damage. Failure to do so could cause damage to the
pump.
9. Remove all air from the pump and high pressure hose by depressing trigger
until a steady stream of water is present.
10. Start engine. See Engine Owners Manual for correct procedure.
WARNING: Risk of unsafe operation. If engine does not start after two
pulls, squeeze trigger of gun to relieve pump pressure. Pull starter cord slowly
until resistance is felt. Then pull cord rapidly to avoid kickback and prevent
hand or arm injury.

16- ENG
NOTE: If the oil level in the engine is low, the engine will not start. If the engine does
not start, check the oil level and add oil as needed. See Engine Owners Manual
for correct procedure
11. Depress trigger on gun to start water flow.
WARNING: Risk of unsafe operation. Stand on a stable surface and
grip gun/spray wand firmly with both hands. Expect the gun to kick when
triggered.
12. Release trigger to stop water flow.

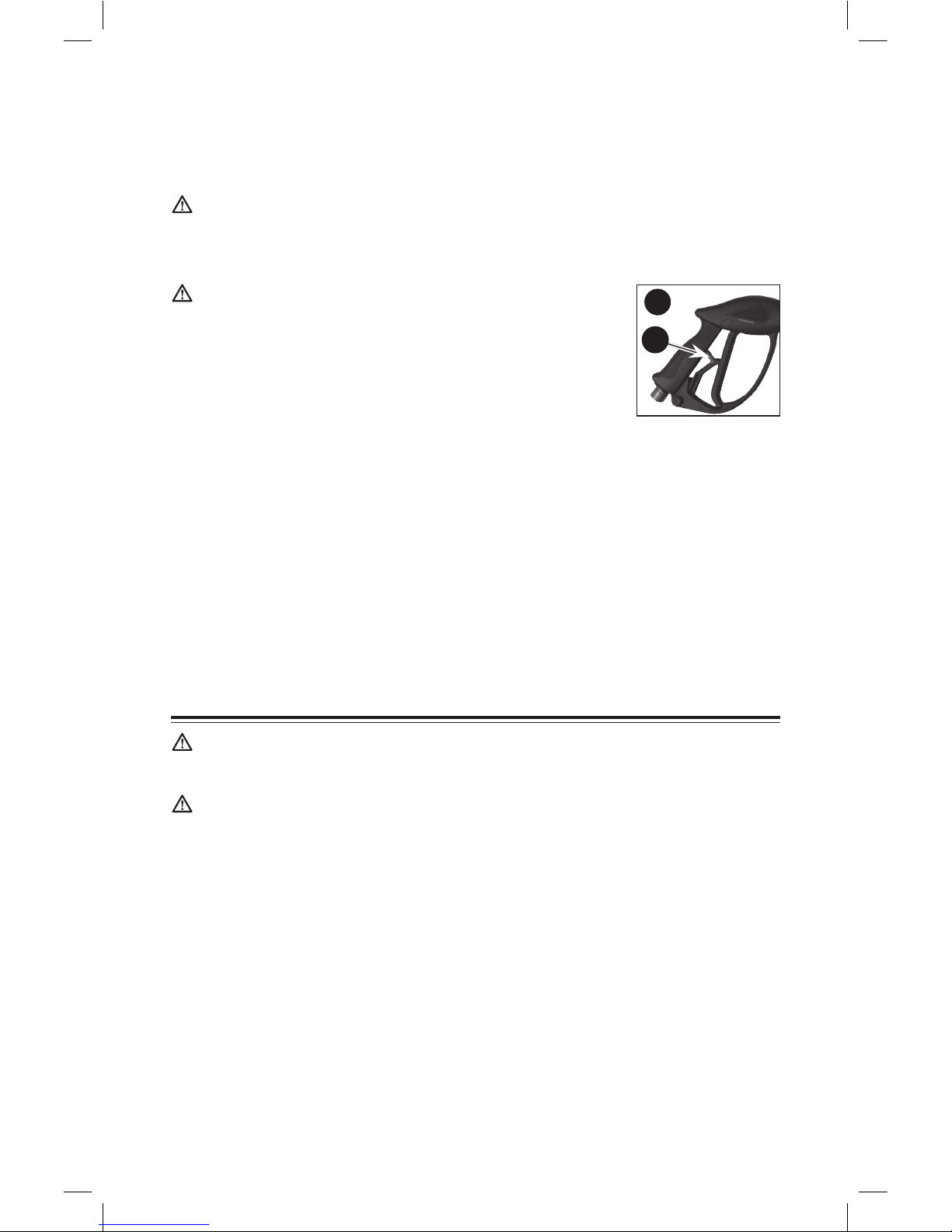

WARNING: Risk of injury from spray. Always engage the 11
O
trigger lock (O) when gun is not in use. Failure to do so
could cause accidental spraying.
SHUTTING DOWN
1. After each use, if you have applied chemicals, place
detergent siphon hose into container of clean water and
draw clean water through chemical injection system to
rinse system thoroughly.
NOTICE: Risk of property damage. Failure to do so could cause damage to the
pump.
2. Turn engine off. See Engine Owner’s Manual.
NOTICE: Risk of property damage. NEVER turn the water off with the engine
running.
3. Turn water source off.
4. Pull trigger on spray gun to relieve any water pressure in hose or spray gun.
NOTE: Failure to release system pressure will prevent removal of high pressure
hose from spray gun or pump connection.
5. See Storage section in this manual for proper storage procedures.
MAINTENANCE
WARNING: Risk of burn hazard. When performing maintenance, you may
be exposed to hot surfaces, water pressure or moving parts that can cause
serious injury or death.
WARNING: Risk of fire hazard. Always disconnect, spark plug wire,
let the engine cool and release all water pressure before performing any
maintenance or repair. The engine contains flammable fuel. Do not smoke or
work near open flames while performing maintenance.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer is
used in unusual conditions, such as high-temperatures or dusty conditions, more
frequent maintenance checks will be required.
ENGINE
Consult the Engine Owners Manual for the manufacturer's recommendations for
any and all maintenance. NOTE: The engine drain plug is located at the rear of the
unit.
PUMP (FIG. 12)
NOTE: The pump was filled with oil at the factory. Change pump oil after the first
50 hours of operation. Change every 100 hours or every 3 months thereafter. Use
SAE 15W-40 oil. Oil capacity is 6.5 ounces.

17- ENG
To Check Oil
The oil level should come to the dot in the middle of
BB
CC
AA
12
the sight glass (AA).
How To Change Pump Oil
1. Loosen pump oil fill plug (BB).
2. Place a container under the oil drain plug(CC).
3. Remove pump oil drain plug.
4. After oil is drained, replace oil drain plug. Tighten securely.
5. Remove pump oil plug and fill with 6.5 ounces of SAE 15W-40 oil.
6. Replace pump oil plug and tighten securely.
If there is a problem with the pump contact us at www.simpsoncleaning.com
CONNECTIONS
Connections on pressure washer hoses, gun and spray wand should be cleaned
regularly and lubricated with light oil or lithium grease to prevent leakage and
damage to the o-rings.
NOzzLE CLEANING (FIG. 13)
If the nozzle becomes clogged with foreign materials, such as dirt, excessive
pressure may develop. If the nozzle becomes partially clogged or restricted, the
pump pressure will pulsate. Clean the nozzle immediately using the nozzle kit
supplied and the following instructions:
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on gun handle to relieve any water pressure.
3. Disconnect the spray wand from the gun.
4. Remove the high-pressure nozzle (K) from the spray wand. 13 K
K
N
Remove any obstructions with the nozzle cleaning tool
provided and backflush with clean water.
5. Direct water supply (N) into spray wand to backflush
loosened particles for 30 seconds.
6. Reassemble the nozzle to the wand.
7. Reconnect spray wand to gun and turn on water supply.
8. Start pressure washer and place spray wand into high
pressure setting to test.
CLEAN THE WATER INLET FILTER (FIG. 8)
This screen filter should be checked periodically and cleaned if necessary.
1. Remove filter by grasping end and removing it from water inlet of pump.
2. Clean filter by flushing it with water on both sides.
3. Re-insert filter into water inlet of pump. NOTE: Cone side faces out.
NOTE: Do not operate the pressure washer without filter properly installed.
STORAGE
ENGINE
Consult the Engine Owners Manual for manufacturer’s recommendations for
storage.

18- ENG
PUMP
NOTICE: The manufacturer recommends using a pump protector/winterizer when
storing the unit for more than 30 days and/or when freezing temperatures are
expected. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.
Pump protector/winterizer is usually available at the store where the pressure
washer was purchased. If a pump protector/winterizer is not available, RV
antifreeze needs to be run through the pump.
NOTE: Using a pump protector/winterizer or RV antifreeze is to provide proper
lubrication to the internal seals of the pump regardless of temperature or
environment.
PRESSURE WASHER
1. Drain all water from high pressure hose and wrap it onto hose wrap.
2. Drain all water from the spray gun and wand by holding spray gun in a vertical
position with nozzle end pointing down and squeezing trigger. Store in gun
holder.
3. Wrap up and secure detergent siphon hose so it is protected from damage.
ACCESSORIES
DANGER: Risk of fluid injection. When using replacement spray wands or
guns with this pressure washer, DO NOT use a spray wand and/or spray gun/
wand combination that is shorter in length than what was provided with this
pressure washer as measured from the nozzle end of the wand to the gun
trigger.
NOTICE: The use of any other accessory not recommended for use with this tool
could be hazardous. Use only accessories rated equal to or greater than the rating
of the pressure washer.
SPECIFICATIONS
Model PSK3200
PSI Max* 3200 psi
GPM Max* 2.8 gpm
High Pressure Hose 25 ft. (7.6 m)
Presure of Inlet Water 20–100 psi
Inlet Water cold tap
Soap Consumption Rate 10% max
* PressureandFlowRatingstestedinaccordancetoPWMAstandards.
In a continued commitment to improve quality, the manufacturer reserves the right
to make component changes, design changes, or specification changes when
necessary and without notice.
SERvICE INFORMATION
Do not return this product to your retailer. Please contact our customer service
department at www.simpsoncleaning.com

19- ENG
LIMITED WARRANTY
The manufacturer of this product agrees to repair or replace designated parts that
prove defective within the warranty period listed below at the manufacturer’s sole
discretion. Specific limitations/extensions and exclusions apply.
This warranty covers defects in material and workmanship and not parts failure
due to normal wear, depreciation, abuse, accidental damage, negligence, improper
use, maintenance, or storage. To make a claim under the terms of the warranty, all
parts said to be defective must be retained and available for return upon request to
a designated Warranty Service Center for warranty inspection. The judgments and
decisions of the manufacturer concerning the validity of warranty claims are final.
These warranties pass through to the end user and are non-transferable. As a
factory authorized and trained Warranty Service Center, the factory will honor the
terms of all component warranties and satisfy claims of the appropriate warranty
provisions.
Normal wear items include, but are not limited to, valves and seals, which are not
covered by this warranty.
This warranty replaces all other warranties, express or implied, including without
limitation any warranties of merchantability or fitness for a particular purpose and
all such warranties are hereby disclaimed and excluded by the manufacturer. The
manufacturer’s warranty obligation is limited to repair and replacement of defec-
tive products as provided herein and the manufacturer shall not be liable for any
further loss, damages, or expenses – including damages from shipping, accident,
abuse, acts of God, misuse, or neglect. Neither is damage from repairs using parts
not purchased from the manufacturer or alterations performed by non-factory
authorized personnel. Failure to install and operate equipment according to the
guidelines put forth in the instruction manual shall void warranty.
This warranty does not cover the following: machines used for rental purposes,
damage resulting from shipping (claims must be filed with freighter), accident,
abuse, act of God, misuse, or neglect. Neither is damage from repairs or alterations
performed by non-factory authorized personnel or failure to install and operate
equipment according to the guidelines put forth in the instruction manual.
The manufacturer will not be liable to any persons for consequential damage, for
personal injury, or for commercial loss.
ENGINE
Covered by engine manufacturer warranty. See engine manual.
HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND WORKMANSHIP)
One (1) year from date of purchase.
WARRANTY DOES NOT APPLY TO FAILURES DUE TO:
• Freightdamage
• Freezedamage
• Damage caused by parts or accessories not obtained from an authorized
dealer or not approved by the manufacturer.
• Normalwearofmovingpartsorcomponentsaffectedbymovingparts.
FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)
One (1) year from date of purchase.
ACCESSORIES (DEFECTS IN MATERIAL AND WORKMANSHIP)
Includes nozzles, hoses, spray guns, wands
Ninety (90) days from date of purchase.

20- ENG
TROUBLE SHOOTING GUIDE
OPERATIONAL
ISSUE POSSIBLE CAUSE SOLUTION
Engine will not
start (see Engine
Manual for
further engine
troubleshooting)
No fuel Add fresh fuel
Low oil. Add required amount of oil.
Air filter filled with oil. Clean and/or replace filter
element. Refer to to Engine
Owners Manual for correct pro-
cedure.
Pressure builds up after
two pulls on the recoil
starter or after initial use.
Squeeze gun trigger to relieve
pressure.
Choke lever in the "No
Choke" position. Move choke to the "Choke" position.
Spark plug wire not attached. Attach spark plug wire.
Engine switch in OFF
position. Place engine switch in ON position.
Choke lever in the "Choke"
position on a "hot" engine
or an engine that has been
exposed to thermal heat
for a long period of time.
Move choke to the "No Choke"
position.
Spray wand not in
high pressure. See How to Use Spray Wand instructions in the
Operation Section.
Low water supply. Water supply must be at
least 5 gpm @ 20 psi.
Leak at high pressure
hose fitting. Repair leak. Apply sealant tape if necessary.
Nozzle obstructed. See Nozzle Cleaning
instructions in the
Maintenance section.
Water filter screen clogged. Remove and clean filter.
Engine will not
start (see Engine
Manual for
further engine
troubleshooting)
Air in hose. Turn off the engine, then the
water source. Disconnect the
water source from the pump
inlet and turn the water source
on to remove all air from the
hose. When there is a steady
stream of water present, turn
water source off. Re-connect
water source to pump inlet and
turn on water source. Squeeze
trigger to remove remaining air
No or low
pressure
(initial use)
Choke in the “Choke”
position. Move choke to the “No Choke” position.
High pressure hose
is too long. Use high pressure hose under 100 feet (30m).
