Sinclair AMC-11P User manual

LOCAL AIR CONDITIONER
AMC-11P, AMC-14P
EN / User manual
Ver.1 18-03-2019
Original instructions

VERY IMPORTANT
Do not install and use your portable air conditioner
unit before carefully reading this instruction guide.
Please retain this manual brochure for product
warranty and future reference
CAUTION
1. Do not use means to accelerate the defrosting
process or to clean, other than those
recommended by the manufacturer.
2. The appliance shall be stored in a room without
continuously operating ignition sources (for
example: open flames, an operating gas
appliance or an operating electric heater.)
3. Do not pierce or burn.
4. Be aware that refrigerants may not contain an
odour.
5. Appliance AMC-11P shall be installed, operated
and stored in a room with a floor area larger
than 12m2 and AMC-14P larger than 13m2.
6. Servicing shall be performed only as
recommended by the manufacturer.
7. The appliance shall be stored in a well-
ventilated area where the room size
corresponds to the room area as specified for
operation.
8. All working procedure that affects safety means
shall only be carried by competent persons.

9. " PLEASE MAKE SURE THE PRODUCT
VENTILATES ALL THE TIME "! Please make
sure the inlet and outlet ventilation is not
blocked at all times.
10. Operate this unit on a horizontal surface to
avoid water leakage.
11. Do not operate this unit in an explosive or
corrosive atmosphere.
12. Operate this unit in an ambient of 35 degree
centigrade or less.
13. The heating function of the unit should be operated
in an indoor ambient temperature between 7℃and
23℃
14. Clean air filter periodically to enjoy the most
efficient cooling.
15. When the unit is shut off, please wait at least
3.5 minutes before restarting this is to prevent
the compressor from being damaged.
16. This unit needs at least 7 Amps of electricity to
have its compressor operational. To avoid the
household electricity block out, please do not
use any extension cord for this unit.
17. This unit is for indoor cooling, heating and

dehumidifying.
18. When turning on the unit, the fan will operate
but the compressor will start up after the
cooling alarm flashes for three minutes
● In heating function, the heating alarm will
flash for 3.5 minutes before the compressor
and fan start up.
19. When the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid hazard.
20. In order to dispose the appliance safely, please
remove the batteries from the unit before
scrapping it.
21. This appliance can be used by children aged from 8
years and above and persons with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
22. The air-conditioner can be connected only to a
supply with system impedance no more than
0.219Ω.In case necessary, please consult your
supply authority for system impedance
information.
23. The appliance shall be installed in accordance with

national wiring regulations.
24. Do not operate your air conditioner in a wet room
such as a bathroom or laundry room. (Do not
suitable for the model with window kit)
Transportation, marking and storage for units
1. Transport of equipment containing flammable
refrigerants Compliance with the transport
regulations
2. Marking of equipment using signs
Compliance with local regulations
3. Disposal of equipment using flammable
refrigerants Compliance with national
regulations
4. Storage of equipment/appliances The storage
of equipment should be in accordance with
the manufacturer’s instructions.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical damage to
the equipment inside the package will not
cause a leak of the refrigerant charge. The
maximum number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. The appliance shall be stored so as to prevent
mechanical damage from occurring.
7. General work area All maintenance staff and

others working in the local area shall be instructed on
the nature of work being carried out. Work in
confined spaces shall be avoided. The area
around the workspace shall be sectioned off.
Ensure that the conditions within the area have
been made safe by control of flammable material.
ATTENTION
For effective heating and cooling
functions, please ensure that the
following steps are undertaken:
1) Extend the exhaust hose to a
length of not more than
400mm. The exhaust hose
must be kept parallel and
must not be bent up or down.
2) A distance of 500mm
minimum must be kept
between the filter side of the
unit and wall or any other
obstacles”.
3) When this appliance starts to defrost, the word “DF”
will be displayed on the LED

CONGRATULATIONS ON YOUR
SELECTION OF A QUALITY
PORTABLE AIR CONDITIONER
PORTABLE AIR CONDITIONER

This Air Conditioner has been designed and manufactured to the
highest standards of modern engineering.
Our product not only provides you a remote control to help user
operate all the functions easily and conveniently but also has below
benefits:
- Moves easily from room to room on easy glide castors
- No installation required-just plug into any household
power outlet
- Powerful refrigerated air system cools down the ambience
instantly whenever you want.
- Dehumidified and filtered air cycle improve breathing
environments effectively.
- Besides the remote control, your one touch electronic pad
also provides easy-identifying manual operation.
- 24 hour programmable timer that can be used with either the
air conditioning or dehumidification setting
- Unique sleep control function
- 220-240 Volt 50Hz operation
- 1.8 meter cord with plug

UNPACKING INSTRUCTIONS
1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton in an upwards motion and it will release from the base.
4. Grip the carry handles located on either sides of the unit and carefully lift until it
slides out of the foam base.
5. Remove the air outlet and take out the
exhaust hose as the picture.
6. Install the exhaust hose on the unit before
operating the unit.
CONTENTS
1 / Air conditioner unit
2 / Remote control
3 / Batteries
4/ Window Kit A

NAME OF THE PARTS
1. Control panel
2. Remote control receiver
3. Adjustable air vent
4. Joint tube
5. Exhaust hose
6. Upside drain hole
7. Cool air inlet
8. Cool air filter
9. Hot air inlet
10. Hot air filter
11. Downside drain hole

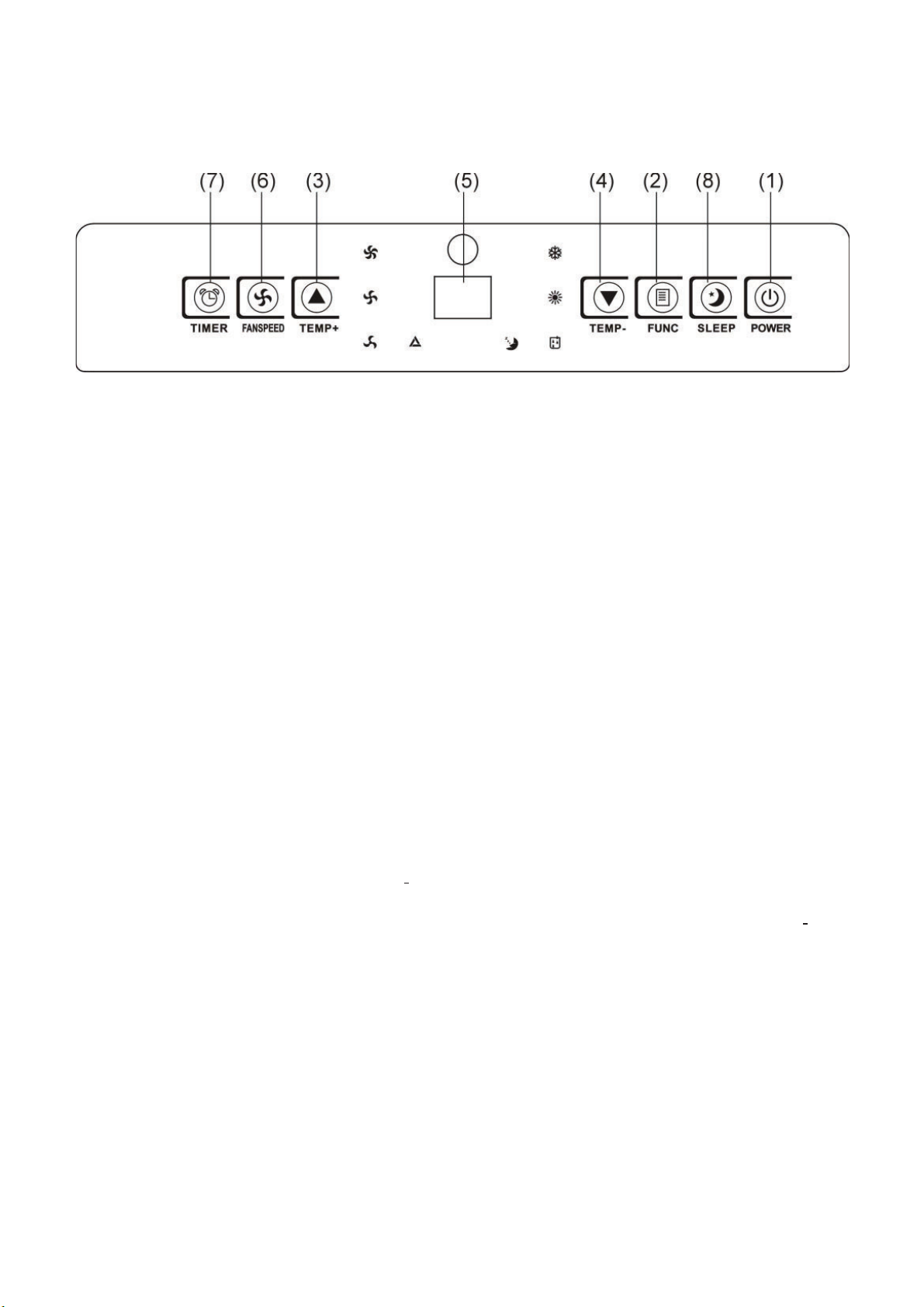

CONTROL PANEL & DESCRIPTION OF FUNCTION
1. POWER KEY
Press to turn unit "ON" or "OFF".
2. FUNCTION
Press this key to select cooling, heating, or dehumidifying.
3. TEMPER ATURE REGUL AT I ON KEY (UP)
During cooling function˖This key raises the preset temperature by 1ć each time it is
pressed and the maximum limit is 30ć.
During heating function˖
˖
This key raises the preset temperature by 1ć each time it is
pressed and the maximum limit is 25ć.
4. TEMPERATURE REGULATION KEY (DOWN)
During cooling function˖This key lowers the preset temperature by 1ć each time it is
pressed and the minimum limit is 17ć.
During heating function˖This key lowers the preset temperature by 1ć each time and
the minimum limit is 15ć.
5. L.E.D. DISPLAY
The display indicates the current setting temperature or the timer setting. When the set
temperature or the timer is adjusted, the new setting is shown then the display returns the
current set temperature.
Ć The display is also used to show error codes should a fault occur, see ERROR
CODES.

6. SPEED
Press to select either LOW, MEDIUM, HIGH or AUTO fan speed.
If "AUTO" is selected,”HIGH” or "MEDIUM" or “LOW" will be
selected automatically according to the difference between setting temperature and
ambient temperature.
7. PROGRAMMABLE TIMER
Programmable timer ON/OFF key.
TIMER-ON: The timer-on is used to turn on the unit automatically after the set time is
over.
1. Press the "TIMER" key at stand-by status to set the time you desired.
2. Once the set hour has come to an end, the unit will turn on automatically.
3. Press the "POWER" key before time out, the setting time will be canceled and the
unit will turn on.
4. You can set the function and fan speed while setting the timer.
TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting
time is over.
1. Press the "TIMER" key at operating status to set the time you desired.
2. Once the set hour has come to an end, the unit will turn off automatically.
3. Press the "POWER" key before the time out, the setting time will be canceled and
the unit will turn off.
8. SLEEP CONTROL FUNCTION
1. While in cooling mode, press the SLEEP key to set the temperature. It increases1 ć
after an hour and at most increases 2 ć after 2 hours.
Note: In heating function and dehumidifying function,
ġ
this key is invalid because
the unit is defined to be high speed in heating mode and low speed in
dehumidifying mode.

2. While in heating mode, press the SLEEP key to set the temperature. It decreases
1 ć after an hour and at most decreases 2 ć after 2 hours.
3. Press the SLEEP key again can cancel the setting.
9. ALARM
When the water tank is full,"E4" will be displayed on the display panel. To resume
operation, please remove the rubber cap of the drain hose to drain out the water firstly.
The E4 warning will disappear after draining, and then you can restart the unit by
pressing the POWER key.

REMOTE CONTROL FUNCTION
1. POWER
2. FUNC
3. TIMER
4. AUTO
5. HI
6. MID
7. LOW
8. SLEEP
9. TEMP.
On/Off switch
Function “MODE” selector
Hourly programming
Automatic fan speed
High fan speed
Medium fan speed
Low fan speed
Night operation selector
Temperature selector

NOTICE
This unit can evaporate the condensation and distribute through the exhaust hose
automatically.
1. When the unit is in the cooling function, it does not need the drain pipe installed.
Please make sure that the rubber cap is locked on drain hole, when the unit is
running.
2. When operating the heating function, the “ķ” rubber cap on drain hole should be
pulled out and install a proper drain pipe in order to improve the heating effect
3. When operating the dehumidifying function the “ķ” rubber cap on drain hose should
be pulled out and install a proper drain hose.
ƽ Please remove the air exhaust hose, connect a drain hose to the drain hole and
lead the water to the outside in order to intensify dehumidifying capacity.
Ć When the water tank is full,"E4" will be displayed on the display panel. Please
remove the rubber cap“ĸ” of the drain hole to drain out the water first. After the
drainage is completed, please restart the unit and then the unit can operate
normally.
MAINTENANCE
PLEASE DISCONNECT THE POWER CORD BEFORE CLEANING.
AIR FILTER
The air filter located on the left hand side of the unit can be removed,
simply by pulling the frame out

CONDENSER/EVAPORATOR
Use a brush attachment with a vacuum cleaner.
Casing
Wipe with a damp cloth and polish with a soft cloth.
To remove the air filter, please follows the arrow direction and pull the
filter lightly, and then take out the filter for cleaning.

POWER SUPPLY
(1) Confirm the correct power.
(2) Insert the plug into the outlet firmly In order to prevent any
dangerous leakage.
(3) Don’t pull power wire by force because it will cause damage to power
wire.
PLACE FOR USE
(1) Because the machine distributes hot air, please don’t place or
operate in a narrow place.
(2) In case of dangerous leak, don’t work the machine in a humid place.
(3) Don’ t place the machine in a sunlit corner otherwise the unit might
shut down due to the overheat and the color of the machine may
soon fade out.
HELPFUL HINTS
The unit is fitted with a special thermal cut off device.
Please ensure the unit is not placed against objects which will
obstruct air intake e.g. furniture or curtains as this will affect it's
performance dramatically.ġ
ġ

EXHAUST HOSE INSTALLġ
ġ
1. Circumrotate the exhaust hose according to the direction as the arrowhead ķ
indicates and then the exhaust hose can be took out from the unit.
2. Circumrotate the exhaust hose according to the direction as the arrowhead ĸ
indicates and then make it connect with the unit.
WINDOW KIT INSTALL
 Install the Exhaust Hose and the Adjustable Window Slider Kit as
depicted in Fig.1 ˂ Fig.1a.

How to enjoy heating function?
When operating heating function˖
Disassemble the outlet and the exhaust hose as arrow direction in Fig.01 and then
exchange the two subassemblies to install. The finished illustration is as Fig.03.

TROUBLESHOOTING
1. Information on servicing
1) Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimised. For repair to
the refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk
of a flammable gas or vapour being present while the work is being performed.
3) Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and
during work, to ensure the technician is aware of potentially flammable
atmospheres. Ensure that the leak detection equipment being used is suitable for
use with flammable refrigerants, i.e. non-sparking, adequately sealed or
intrinsically safe.
4) Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available to
hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
5) No ignition sources
No person carrying out work in relation to a refrigeration system which involves
exposing any pipe work that contains or has contained flammable refrigerant
shall use any sources of ignition in such a manner that it may lead to the risk of
fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing,
removing and disposal, during which flammable refrigerant can possibly be
released to the surrounding space. Prior to work taking place, the area

around the equipment is to be surveyed to make sure that there are no
flammable hazards or ignition risks. “No Smoking” signs shall be displayed.
6) Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation shall
continue during the period that the work is carried out. The ventilation should
safely disperse any released refrigerant and preferably expel it externally into the
atmosphere.
7) Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specification. At all times the manufacturer’s maintenance and
service guidelines shall be followed. If in doubt consult the manufacturer’s
technical department for assistance.
The following checks shall be applied to installations using flammable
refrigerants:
– The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are not
obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be
checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and
signs that are illegible shall be corrected;
– Refrigeration pipe or components are installed in a position where they are
unlikely to be exposed to any substance which may corrode refrigerant
containing components, unless the components are constructed of materials
which are inherently resistant to being corroded or are suitably protected
against being so corroded.
