Sinclair SDV5 Series User manual

INDOOR ONE-WAY CASSETTE UNITS SDV5-xxC1A
COMMERCIAL AIR CONDITIONERS SDV5

Original instructions
IMPORTANT NOTE:
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.

201711 3
One-way Cassette
1Specifications ........................................................................................ 4
2Dimensions............................................................................................ 6
3Unit Placement...................................................................................... 8
4Piping Diagram ...................................................................................... 9
5Wiring Diagram.................................................................................... 10
6Capacity Tables .................................................................................... 13
7Electrical Characteristics ...................................................................... 21
8Sound Levels........................................................................................ 22

4 201711
1Specifications
SDV5-18C1A/
SDV5-22C1A / SDV5-28C1A / SDV5-36C1A
Table 1.1: SDV5-18,22,28,36C1A specifications
Model
SDV5-18C1A SDV5-22C1A SDV5-28C1A SDV5-36C1A
Power supply
1-phase, 220-240V, 50Hz
Cooling1
Capacity
kW
1.8
2.2
2.8
3.6
kBtu/h
6.1
7.5
9.6
12.3
Power input
W
25
25
30
30
Heating2
Capacity
kW
2.2
2.6
3.2
4.0
kBtu/h
7.5
8.9
10.9
13.6
Power input
W
25
25
30
30
Fan motor
Model
ZKSP-20-8-1-1
Type
DC
Brand
Panasonic & Welling
Speed3
r/min 970/910/860/820/780/730/690 1160/1100/1040/1000/960/920/840
Indoor coil
Number of rows
2
2
2
2
Tube pitch × row pitch
mm 21×13.37
21×13.37
21×13.37
21×13.37
Fin spacing
mm 1.5
1.5
1.5
1.5
Fin type
Hydrophilic aluminum
Tube OD and type
mm
Ф7 Inner-groove
Dimensions (L×H×W)
mm
760×252.4×26.74
Number of circuits
2
2
3
3
Air flow rate3
m3/h
523/482/448/404/360/312/275
573/531/492/456/420/364/315
Sound pressure level4
dB(A)
37/36/35/34/32/31/30
39/38/37/36/35/35/34
Sound power level
dB(A)
51/50/49/48/46/45/44
53/52/51/50/49/49/48
Main body
Net dimensions5(W×H×D)
mm
1054×153×425
Packed dimensions
(W×H×D)
mm
1155×245×490
Net/Gross weight
kg
11.8/15.3
12.3/15.8
Panel
Net dimensions (W×H×D)
mm
1180×25×465
Packed dimensions
(W×H×D)
mm
1232×107×517
Net/Gross weight
kg
3.5/5.2
Refrigerant type
R410A
R410A
R410A
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
4.4/2.6
4.4/2.6
4.4/2.6
Pipe connections
Liquid/Gas pipe
mm
Ф6.35/Ф12.7
Drain pipe
mm
OD Ф32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

201711 5
SDV5-45C1A / SDV5-56C1A / SDV5-71C1A
Table 1.2: SDV5-45,56,71C1A specifications
Model
SDV5-45C1A SDV5-56C1A SDV5-71C1A
Power supply
1-phase, 220-240V, 50Hz
Cooling1
Capacity
kW
4.5
5.6
7.1
kBtu/h
15.4
19.1
24.2
Power input
W
40
48
60
Heating2
Capacity
kW
5.0
6.3
8.0
kBtu/h
17.1
21.5
27.3
Power input
W
40
48
60
Fan motor
Model
WZDK60-38G
Type
DC
Brand
Welling & Nidec
Speed3
r/min 970/950/920/870
/810/780/760
1120/1040/1010/980
/950/920/900
1150/1120/1080/1040
/990/930/880
Indoor coil
Number of rows
2
2
2
Tube pitch × row pitch
mm 21×13.37
21×13.37
21×13.37
Fin spacing
mm 1.5
1.5
1.5
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф7 Inner-groove
Dimensions (L×H×W)
mm 955×231×26.74
Number of circuits
3
3
5
Air flow rate3
m3/h
693/662/638/600/556
/510/476
792/763/728/688/643
/589/549
933/873/815/749/689
/637/592
Sound pressure level4
dB(A)
41/40/39/38/37/36/35
42/41/40/39/38/37/36
44/43/42/41/39/38/37
Sound power level
dB(A)
55/54/53/52/51/50/49
56/55/54/53/52/51/50
58/57/56/55/53/52/51
Main body
Net dimensions5
(W×H×D)
mm
1275×189×450
Packed dimensions
(W×H×D)
mm
1370×295×505
Net/Gross weight
kg
16.1/20.4
16.4/20.7
17.6/22.4
Panel
Net dimensions
(W×H×D)
mm
1350×25×505
Packed dimensions
(W×H×D)
mm
1410×95×560
Net/Gross weight
kg
4/5.4
Refrigerant type
R410A
R410A
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
4.4/2.6
4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm
Ф6.35/Ф12.7
Ф9.53/Ф15.9
Drain pipe
mm
OD Ф32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

6 201711
2Dimensions

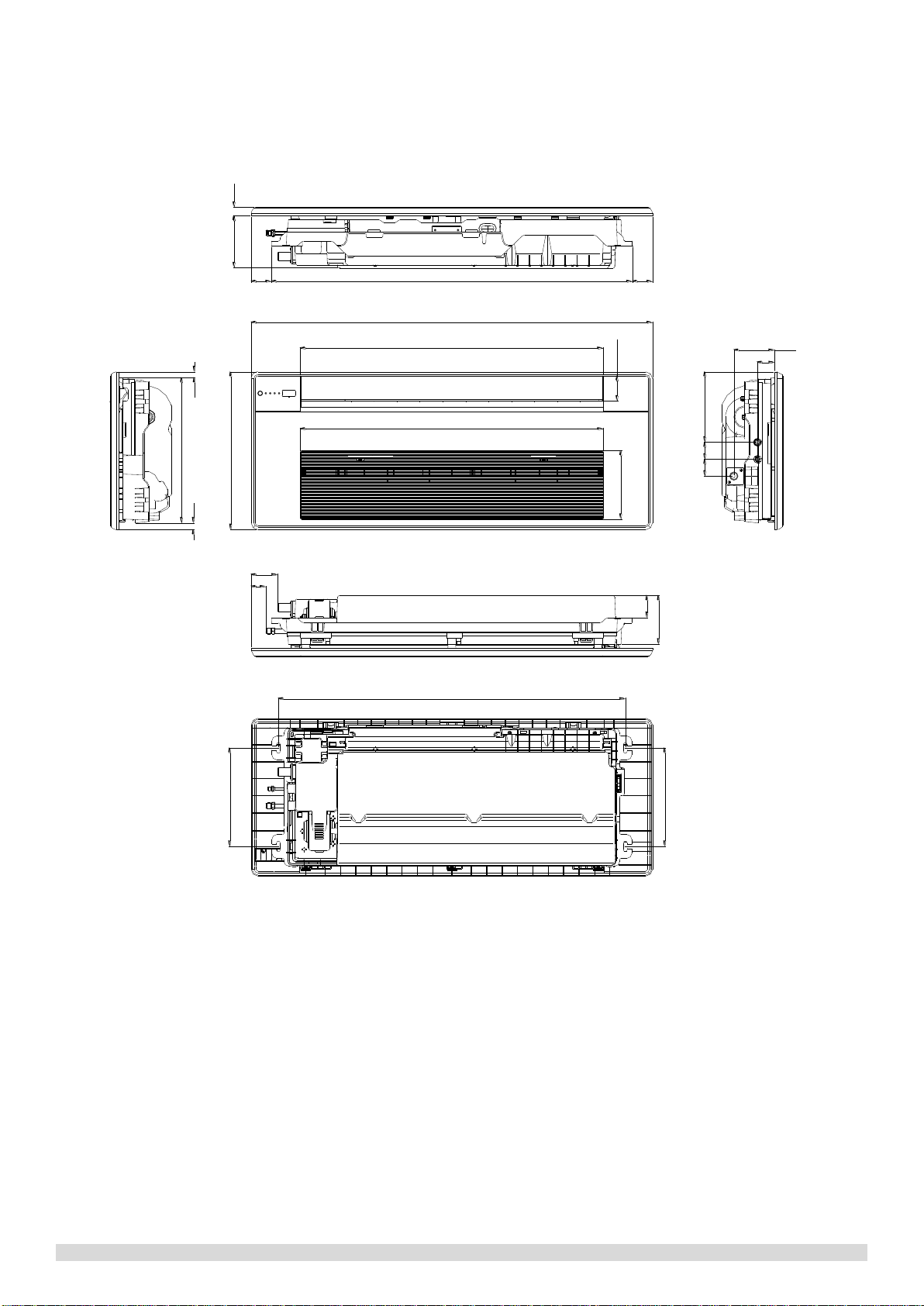

2.1 Unit Dimensions
Figure 2.1: SDV5-18,22,28,36C1A dimensions (unit: mm)
465
1180
890
890
202 74
25153
428
20 17
60
5050
51
119
1020
290 290
208
60
43
78
1060
65
143

201711 7
Figure 2.2: SDV5-45,56,71C1A dimensions (unit: mm)
1350
1054
70
505
228
1061
189
25
1235
300
300
1235
119
42
69
60
170
75 30 84
56
33
51
121
452

8 201711
3Unit Placement
3.1 Placement Considerations
Unit placement should take account of the following considerations:
Units should not be installed in the following locations:
Where exposure to direct radiation from a high-temperature heat source or to interference from a source of
electromagnetic radiation may occur.
Where dust or dirt may affect heat exchangers.
Where exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.
Where exposure to salinity may occur, such as seaside locations.
Where highly flammable materials are present.
Where exposure to oily air may occur, such as a kitchen.
Where exposure to very high humidity may occur, such as a laundry.
Units should be installed in positions where:
The ceiling is horizontal and is able to bear the unit’s weight.
There are no obstructions that could impede the airflow into and out of the unit.
The airflow out of the unit can reach throughout the room.
There is sufficient space for access during installation, servicing and maintenance.
The refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping
systems.
Short-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.
3.2 Space Requirements
Figure 3.1: One-way Cassette space requirements (unit: mm)
Table 3.1: One-way Cassette dimensions and space requirements
Model name
Dimensions / Requirements (mm)
A
B
C
D
E
SDV5-18C1A
SDV5-22C1A
SDV5-28C1A
SDV5-36C1A
1180
1380
153
3200
465
SDV5-45C1A
SDV5-56C1A
SDV5-71C1A
1350
1550
189
4000
505
≥C
≥B
A
≥100 ≥100
C
≤D
Unit：mm
E≥100
Unit：mm
Fan angle range
Air return port
The air outlet can not has any barriers such as pendant lamp, folding screen etc.

201711 9
4Piping Diagram
Figure 4.1: One-way Cassette piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

10
 
5 WWiring Dia
Figurre 5.1:
SDV5-18,22,28,36C1A

E QP
HP set switch ENC1 definition list
Code
Name
Fan motor Swinging motor
To outdoor unit communication
X2 X1
Indoor Unit Capacity Value FM
GM
Code
NL
XP4 XS4
To wired
controller POWER INPUT
01800W
(
0.8HP
)
Centralized
controller
E D2 D1

gram
Water drainage pump Water level sensor Electronic expansion valve Indoor temp. sensor
DM
CS
PMV
T1
L
XP4
XS4
Display Board
()
02200W(0.8HP) 12800W(1.0HP) 23600W(1.2HP) 34500W(1.7HP)

X1 X2 PQE
Mid-pipe temp. sensor of evaporator Outlet temp. sensor of evaporator Butt connection socket Butt connection socket
T2
T2B
XP1-4 XS1-4
L
N
CN1
CN4
CN6
CN
5
45600W(2.0HP) 57100W(2.5HP)
ENC1SW1SW7SW2SW3SW4SW5
SW6
ONON
POWER_S
CN20
CN17 CN
9
C
N
ONONONONON
CN31
Y/G

Wiring plate
Caution! For wiring convenience, two
communicative
CN3
5
Error Code List
No address when first time power on
M-Home not matched error(Reserved)
Mode conflict
FE
H0
E0
CN2
9
N
15
CN21
CN14
CN8
CN7
CN16
J2
CN5
CN25
J1
CN30
CN11CN6CN4CN55
CN24
CN13
CN3
main control panel
communicative
terminals can be pulled out from wiring plate.
DM
PMV
XP1 X
S
XP2 X
S
XP3 X
S
ON/OFF
Mode
conflict
Communication error of indoor and outdoor units Error of indoor temp. sensor (T1)
Error of pipe temp. sensor (T2) Error of
p
i
p
e tem
p
. sensor
(
T2B
)
E0
E2 E3 E4 E1
RED
WHITE
BLACK
Y/G
T2B T2
T1
FM GM CS
S
1
S
2
S
3
ON/OFF
pp p ( )
EEPROM errorE7 DC FAN errorE6 Error of electronic ex
p
ansion valve
E5 Reserved Eb
Outdoor unit error
Water level alarm
Ed EE
p
2
0

0
1711

201
7
7
11
 
Figuure 5.2: SDV5-45,56,71C1A
HP set switch ENC1 definition list
Name
Code

P
Q E X1 X2
To outdoor unit communication
To wired
controller
bomm.bus
POWER INPUT
Code Fan motor
Swinging motor Water drainage pump
W
ater level sensor
Indoor Unit Capacity Value
01800W(0.8HP) 02200W(0.8HP)
1
2800W(1 0HP)
FM
GM1-2
DM
CS
Centralized
controller

XP4 XS4
P
Q
E
X1
X2
LN
L N
W
ater
level
sensor
Electronic expansion valve Indoor temp. sensor Mid-pipe temp. sensor of evaporator
Otltt tf
1
2800W(1
.
0HP)
23600W(1.2HP) 34500W(1.7HP) 45600W(2.0HP)
CS
PMV
T1 T2
T2B
7100W(2 5HP)
PQE X1X2
w
e
y
t
e
e
c
k
Display Board
E D2 D1
Y/G

Red
Blue
O
u
tl
e
t
t
emp. sensor o
f
evapora
t
or
Butt connection socket Butt connection socket
Error Code List
T2B
XP1-4 XS1-4
5
7100W(2
.
5HP)
Yello
w
Gr
e
Whi
t
Blu
e
Bla
c
Display
Board
ONON POWER_S CN20
CN
ONONONONON
Y/G
Error
Code
List
No address when first time power on
M-Home not matched error(Reserved)
Mode conflict
FE
H0
E0
ENC1
SW1SW7SW2SW3SW4SW5
SW6
17 CN9
CN15
J1
CN13
CN3
CN31
Y/G
DM
Communication error of indoor and outdoor units Error of indoor temp. sensor (T1)
Error of pipe temp. sensor (T2)
Efit (T2B)
E2 E3
E4
E1
CN2
CN21
CN14
CN8CN7
CN16
J2
CN5
CN25
J1
CN30
CN11CN6CN4CN55
CN24
main control panel
RE
D
WH
Y/
G
FM PMV
XP1 XS
1
XP2 XS
2
E
rror o
f
p
i
pe
t
emp. sensor
(T2B)
EEPROM errorE7
E4
XP3 XS
ON/OFF
DC FAN errorE6
E5 Reserved
D
ITE
BLACK
G
T2B T2
T1 GM2
1
2
GM1 Outdoor unit error
Water level alarm
Ed EE
3
Error of electronic expansion valveEb
11

12 201711
Caution
All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified
and accredited professionals and in accordance with all applicable legislation.
Units should be grounded in accordance with all applicable legislation. Metal and other conductive components
should be insulated in accordance with all applicable legislation.
Power supply wiring should be securely fastened at the power supply terminals –loose power supply wiring
would represent a fire risk.
After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the
electric control box cover risks fire or electric shock.
Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The
only circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB.
When replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with
the unit capacity given on the unit’s nameplate.
Notes for installers and service engineers


201711 13
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: One-way Cassette cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
1.8
10.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.4
1.3
12.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.3
1.2
14.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.3
1.2
16.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.3
1.2
18.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.3
1.2
20.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.2 1.1
21.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.3
2.2 1.1
23.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.2
2.2 1.1
25.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.2
2.1 1.1
27.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.1
1.2
2.1 1.1
29.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.0
1.2
2.1 1.1
31.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.0
1.2
2.1 1.1
33.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
2.0
1.2
2.0 1.2
35.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
1.9
1.1
2.0 1.2
37.0
1.2 1.1 1.5 1.1
1.7
1.2
1.8
1.2
1.9
1.3
1.9
1.1
1.9 1.1
39.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.8
1.2
1.9
1.1
1.9
1.1
42.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.8
1.2
1.9
1.1
1.9
1.1
44.0
1.2
1.1
1.5
1.1
1.7
1.2
1.8
1.2
1.8
1.2
1.9
1.1
1.9
1.1
46.0
1.2
1.1
1.5
1.2
1.7
1.2
1.8
1.2
1.8
1.2
1.9
1.1
1.9
1.1
2.2
10.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.9
1.5
12.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
14.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
16.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
18.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.4
20.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.7
1.4
21.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.7
1.4
23.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.7
1.4
25.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.6
1.4
27.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.6
1.4
29.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.5
1.4
31.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.5
1.4
33.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.4
1.4
35.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.3
1.3
2.4
1.4
37.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.3
1.3
2.3
1.4
39.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
42.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
44.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3 1.4
46.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3 1.4
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

14 201711
Table 6.1: One-way Cassette cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
2.8
10.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.7
2.0
12.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
14.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
16.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
18.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
20.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
21.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
23.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
25.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3 1.9
27.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3 1.9
29.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2 1.8
31.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2 1.7
33.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.1 1.7
35.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.1 1.7
37.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.0 1.7
39.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0 1.7
42.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0 1.7
44.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0 1.7
46.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
3.6
10.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
12.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
14.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.6
2.4
16.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
18.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
20.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
21.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
23.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.3
2.2
25.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.2
2.2
27.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.2
2.2
29.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.1
2.2
31.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
4.1
2.2
33.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
35.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
37.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.9
2.1
39.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
42.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
44.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
46.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

201711 15
Table 6.1: One-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
4.5
10.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
12.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
14.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.8
3.0
16.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
2.9
18.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
20.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
21.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
3.0
23.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.5
3.0
25.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.2
3.0
5.4 2.9
27.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
3.0
5.2 2.8
29.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
2.9
5.2 2.8
31.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.0
2.9
5.1 2.7
33.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.9
2.8
5.1 2.7
35.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.8
5.0 2.7
37.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.9
4.9 2.6
39.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
42.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
44.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
46.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
3.1
4.8
2.6
5.6
10.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.3
3.5
12.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.2
3.5
14.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.1
3.5
16.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.0
3.4
18.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.8
3.4
20.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.7
3.3
21.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
23.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
25.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.5
3.2
27.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.4
3.5
6.4
3.2
29.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.3
3.5
6.4
3.3
31.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
33.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
35.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.0
3.3
6.0
3.1
37.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
5.9
3.2
6.0
3.1
39.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
42.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
44.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
46.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.7
5.8
3.2
6.0
3.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

16 201711
Table 6.1: One-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
7.1
10.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.2
4.6
12.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.1
4.5
14.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.0
4.5
16.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.9
4.4
18.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.7
4.3
20.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.5
4.2
21.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.4
4.2
23.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.3
4.1
25.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.2 4.1
27.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.1
4.3
8.2 4.1
29.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
8.0
4.3
8.1 4.1
31.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.9
4.3
7.8 4.0
33.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.8
4.2
7.8 4.0
35.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.6
4.1
7.7 3.9
37.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.4
4.4
7.5
4.1
7.6 4.0
39.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
42.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
44.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
46.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

201711 17
6.2 Heating Capacity Table
Table 6.2: One-way Cassette heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
1.8
-20
-19.8
1.23
1.23
1.23
1.23
1.23
1.23
-19
-18.8
1.32
1.32
1.32
1.32
1.32
1.32
-17
-16.7
1.39
1.39
1.39
1.39
1.39
1.39
-15
-14.7
1.43
1.43
1.43
1.43
1.43
1.43
-13.00
-12.60
1.52
1.52
1.52
1.52
1.52
1.52
-11.00
-10.50
1.54
1.56
1.56
1.56
1.56
1.56
-10.00
-9.50
1.61
1.61
1.61
1.61
1.61
1.61
-9.10
-8.50
1.65 1.65
1.65
1.65
1.65
1.65
-7.60
-7.00
1.67 1.67
1.67
1.67
1.67
1.67
-5.60
-5.00
1.74 1.74
1.74
1.74
1.74
1.74
-3.70
-3.00
1.83 1.83
1.83
1.83
1.83
1.83
-0.70
0.00
1.96 1.96
1.96
1.96
1.96
1.85
2.20
3.00
2.07 2.07
2.07
2.07
2.02
1.85
4.10
5.00
2.13 2.13
2.13
2.13
2.02
1.85
6.00
7.00
2.20 2.20
2.20
2.13
2.02
1.85
7.90
9.00
2.27 2.27
2.20
2.13
2.02
1.85
9.80
11.00
2.33 2.33
2.20
2.13
2.02
1.85
11.80
13.00
2.42
2.38
2.20
2.13
2.02
1.85
13.70
15.00
2.49
2.38
2.20
2.13
2.02
1.85
2.2
-20
-19.8
1.46
1.46
1.46
1.46
1.46
1.46
-19
-18.8
1.56
1.56
1.56
1.56
1.56
1.56
-17
-16.7
1.64
1.64
1.64
1.64
1.64
1.64
-15
-14.7
1.69
1.69
1.69
1.69
1.69
1.69
-13.00
-12.60
1.79
1.79
1.79
1.79
1.79
1.79
-11.00
-10.50
1.82
1.85
1.85
1.85
1.85
1.85
-10.00
-9.50
1.90
1.90
1.90
1.90
1.90
1.90
-9.10
-8.50
1.95
1.95
1.95
1.95
1.95
1.95
-7.60
-7.00
1.98
1.98
1.98
1.98
1.98
1.98
-5.60
-5.00
2.05
2.05
2.05
2.05
2.05
2.05
-3.70
-3.00
2.16
2.16
2.16
2.16
2.16
2.16
-0.70
0.00
2.31
2.31
2.31
2.31
2.31
2.18
2.20
3.00
2.44
2.44
2.44
2.44
2.39
2.18
4.10
5.00
2.52
2.52
2.52
2.52
2.39
2.18
6.00
7.00
2.60
2.60
2.60
2.52
2.39
2.18
7.90
9.00
2.68
2.68
2.60
2.52
2.39
2.18
9.80
11.00
2.76
2.76
2.60
2.52
2.39
2.18
11.80
13.00
2.86
2.81
2.60
2.52
2.39
2.18
13.70
15.00
2.94
2.81
2.60
2.52
2.39
2.18
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

18 201711
Table 6.2: One-way Cassette heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
2.8
-20
-19.8
1.79
1.79
1.79
1.79
1.79
1.79
-19
-18.8
1.92
1.92
1.92
1.92
1.92
1.92
-17
-16.7
2.02
2.02
2.02
2.02
2.02
2.02
-15
-14.7
2.02
2.02
2.02
2.02
2.02
2.02
-13.00
-12.60
2.14
2.14
2.14
2.14
2.14
2.14
-11.00
-10.50
2.24
2.24
2.24
2.24
2.24
2.24
-10.00
-9.50
2.34
2.34
2.34
2.34
2.34
2.34
-9.10
-8.50
2.40
2.40
2.40
2.40
2.40
2.40
-7.60
-7.00
2.43 2.43
2.43
2.43
2.43
2.43
-5.60
-5.00
2.53 2.53
2.53
2.53
2.53
2.53
-3.70
-3.00
2.66 2.66
2.66
2.66
2.66
2.66
-0.70
0.00
2.85 2.85
2.85
2.85
2.85
2.69
2.20
3.00
3.01 3.01
3.01
3.01
2.94
2.69
4.10
5.00
3.10 3.10
3.10
3.10
2.94
2.69
6.00
7.00
3.20 3.20
3.20
3.10
2.94
2.69
7.90
9.00
3.30 3.30
3.20
3.10
2.94
2.69
9.80
11.00
3.39 3.39
3.20
3.10
2.94
2.69
11.80
13.00
3.52 3.46
3.20
3.10
2.94
2.69
13.70
15.00
3.62
3.46
3.20
3.10
2.94
2.69
3.6
-20
-19.8
2.24
2.24
2.24
2.24
2.24
2.24
-19
-18.8
2.40
2.40
2.40
2.40
2.40
2.40
-17
-16.7
2.52
2.52
2.52
2.52
2.52
2.52
-15
-14.7
2.60
2.60
2.60
2.60
2.60
2.60
-13.00
-12.60
2.68
2.68
2.68
2.68
2.68
2.68
-11.00
-10.50
2.80
2.80
2.80
2.80
2.80
2.80
-10.00
-9.50
2.92
2.92
2.92
2.92
2.92
2.92
-9.10
-8.50
3.00
3.00
3.00
3.00
3.00
3.00
-7.60
-7.00
3.04
3.04
3.04
3.04
3.04
3.04
-5.60
-5.00
3.16
3.16
3.16
3.16
3.16
3.16
-3.70
-3.00
3.32
3.32
3.32
3.32
3.32
3.32
-0.70
0.00
3.56
3.56
3.56
3.56
3.56
3.36
2.20
3.00
3.76
3.76
3.76
3.76
3.68
3.36
4.10
5.00
3.88
3.88
3.88
3.88
3.68
3.36
6.00
7.00
4.00
4.00
4.00
3.88
3.68
3.36
7.90
9.00
4.12
4.12
4.00
3.88
3.68
3.36
9.80
11.00
4.24
4.24
4.00
3.88
3.68
3.36
11.80
13.00
4.40
4.32
4.00
3.88
3.68
3.36
13.70
15.00
4.52
4.32
4.00
3.88
3.68
3.36
Abbreviations:
TC: Total capacity
Notes:
2. Shaded cells indicate rating condition.
Table continued on next page …

201711 19
Table 6.2: One-way Cassette heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
4.5
-20
-19.8
2.80
2.80
2.80
2.80
2.80
2.80
-19
-18.8
3.00
3.00
3.00
3.00
3.00
3.00
-17
-16.7
3.15
3.15
3.15
3.15
3.15
3.15
-15
-14.7
3.25
3.25
3.25
3.25
3.25
3.25
-13.00
-12.60
3.35
3.35
3.35
3.35
3.35
3.35
-11.00
-10.50
3.50
3.50
3.50
3.50
3.50
3.50
-10.00
-9.50
3.65
3.65
3.65
3.65
3.65
3.65
-9.10
-8.50
3.75
3.75
3.75
3.75
3.75
3.75
-7.60
-7.00
3.80 3.80
3.80
3.80
3.80
3.80
-5.60
-5.00
3.95 3.95
3.95
3.95
3.95
3.95
-3.70
-3.00
4.15 4.15
4.15
4.15
4.15
4.15
-0.70
0.00
4.45 4.45
4.45
4.45
4.45
4.20
2.20
3.00
4.70 4.70
4.70
4.70
4.60
4.20
4.10
5.00
4.85 4.85
4.85
4.85
4.60
4.20
6.00
7.00
5.00 5.00
5.00
4.85
4.60
4.20
7.90
9.00
5.15 5.15
5.00
4.85
4.60
4.20
9.80
11.00
5.30 5.30
5.00
4.85
4.60
4.20
11.80
13.00
5.50 5.40
5.00
4.85
4.60
4.20
13.70
15.00
5.65
5.40
5.00
4.85
4.60
4.20
5.6
-20
-19.8
3.53
3.53
3.53
3.53
3.53
3.53
-19
-18.8
3.78
3.78
3.78
3.78
3.78
3.78
-17
-16.7
3.97
3.97
3.97
3.97
3.97
3.97
-15
-14.7
4.10
4.10
4.10
4.10
4.10
4.10
-13.00
-12.60
4.22
4.22
4.22
4.22
4.22
4.22
-11.00
-10.50
4.41
4.41
4.41
4.41
4.41
4.41
-10.00
-9.50
4.60
4.60
4.60
4.60
4.60
4.60
-9.10
-8.50
4.73
4.73
4.73
4.73
4.73
4.73
-7.60
-7.00
4.79
4.79
4.79
4.79
4.79
4.79
-5.60
-5.00
4.98
4.98
4.98
4.98
4.98
4.98
-3.70
-3.00
5.23
5.23
5.23
5.23
5.23
5.23
-0.70
0.00
5.61
5.61
5.61
5.61
5.61
5.29
2.20
3.00
5.92
5.92
5.92
5.92
5.80
5.29
4.10
5.00
6.11
6.11
6.11
6.11
5.80
5.29
6.00
7.00
6.30
6.30
6.30
6.11
5.80
5.29
7.90
9.00
6.49
6.49
6.30
6.11
5.80
5.29
9.80
11.00
6.68
6.68
6.30
6.11
5.80
5.29
11.80
13.00
6.93
6.80
6.30
6.11
5.80
5.29
13.70
15.00
7.12
6.80
6.30
6.11
5.80
5.29
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

20 201711
Table 6.2: One-way Cassette heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
7.1
-20
-19.8
4.48
4.48
4.48
4.48
4.48
4.48
-19
-18.8
4.80
4.80
4.80
4.80
4.80
4.80
-17
-16.7
5.04
5.04
5.04
5.04
5.04
5.04
-15
-14.7
5.20
5.20
5.20
5.20
5.20
5.20
-13.00
-12.60
5.36
5.36
5.36
5.36
5.36
5.36
-11.00
-10.50
5.60
5.60
5.60
5.60
5.60
5.60
-10.00
-9.50
5.84
5.84
5.84
5.84
5.84
5.84
-9.10
-8.50
6.00
6.00
6.00
6.00
6.00
6.00
-7.60
-7.00
6.08 6.08
6.08
6.08
6.08
6.08
-5.60
-5.00
6.32 6.32
6.32
6.32
6.32
6.32
-3.70
-3.00
6.64 6.64
6.64
6.64
6.64
6.64
-0.70
0.00
7.12 7.12
7.12
7.12
7.12
6.72
2.20
3.00
7.52 7.52
7.52
7.52
7.36
6.72
4.10
5.00
7.76 7.76
7.76
7.76
7.36
6.72
6.00
7.00
8.00 8.00
8.00
7.76
7.36
6.72
7.90
9.00
8.24 8.24
8.00
7.76
7.36
6.72
9.80
11.00
8.48 8.48
8.00
7.76
7.36
6.72
11.80
13.00
8.80 8.64
8.00
7.76
7.36
6.72
13.70
15.00
9.04
8.64
8.00
7.76
7.36
6.72
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
