Sinclair ASH-18AC PT User manual

USER'S MANUAL
ASH-18AC PT, ASH-24AC PT
CAESAR SERIES



CONTENTS
This symbol stands for the items
should be forbidden.
This symbol stands for the items
should be followed
■.............................................................1
■
■..........................................................13
■.................................................................16
■ ..............................................21
■................................................................23
■..............................................................25
■...............................27
■..........................28
■
■ .........................................................19
■..................................................................14
Operation and maintenance
Notices for operation
Notices for use ....................................................................3
Names and functions of each part ...........................................5
■Operation of remote controller ...............................................7
Clean and care

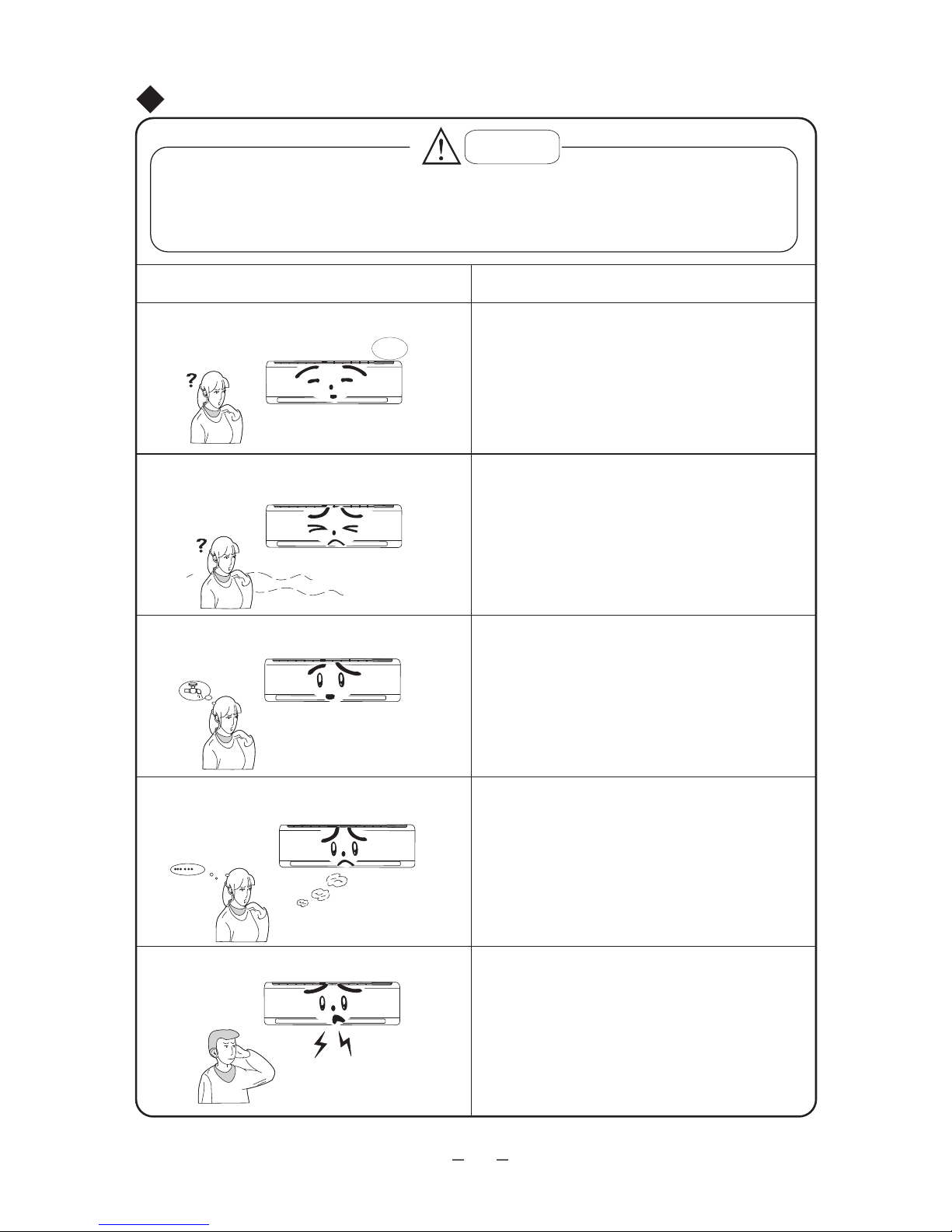

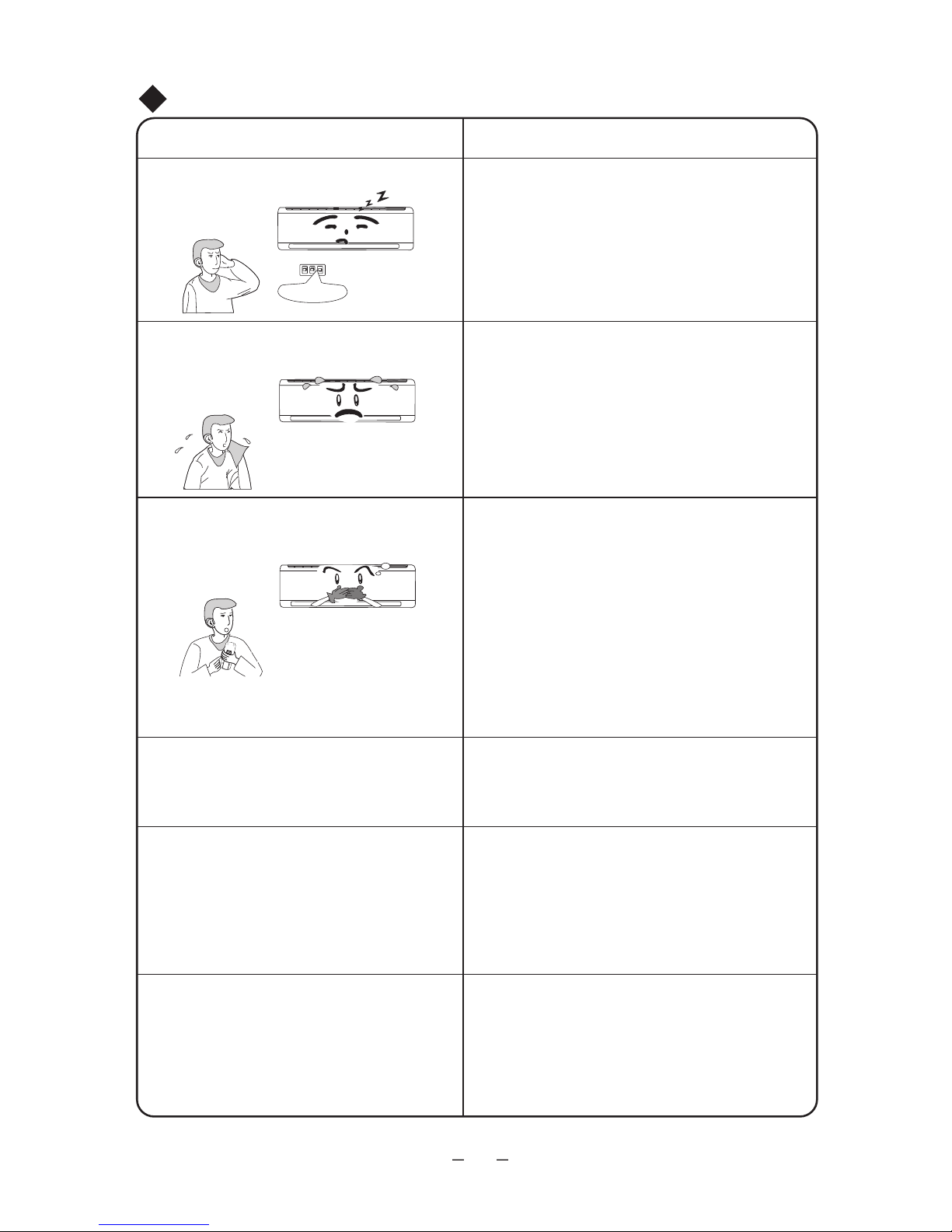

Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Install indoor unit
Install outdoor unit
Check after installation and test operation

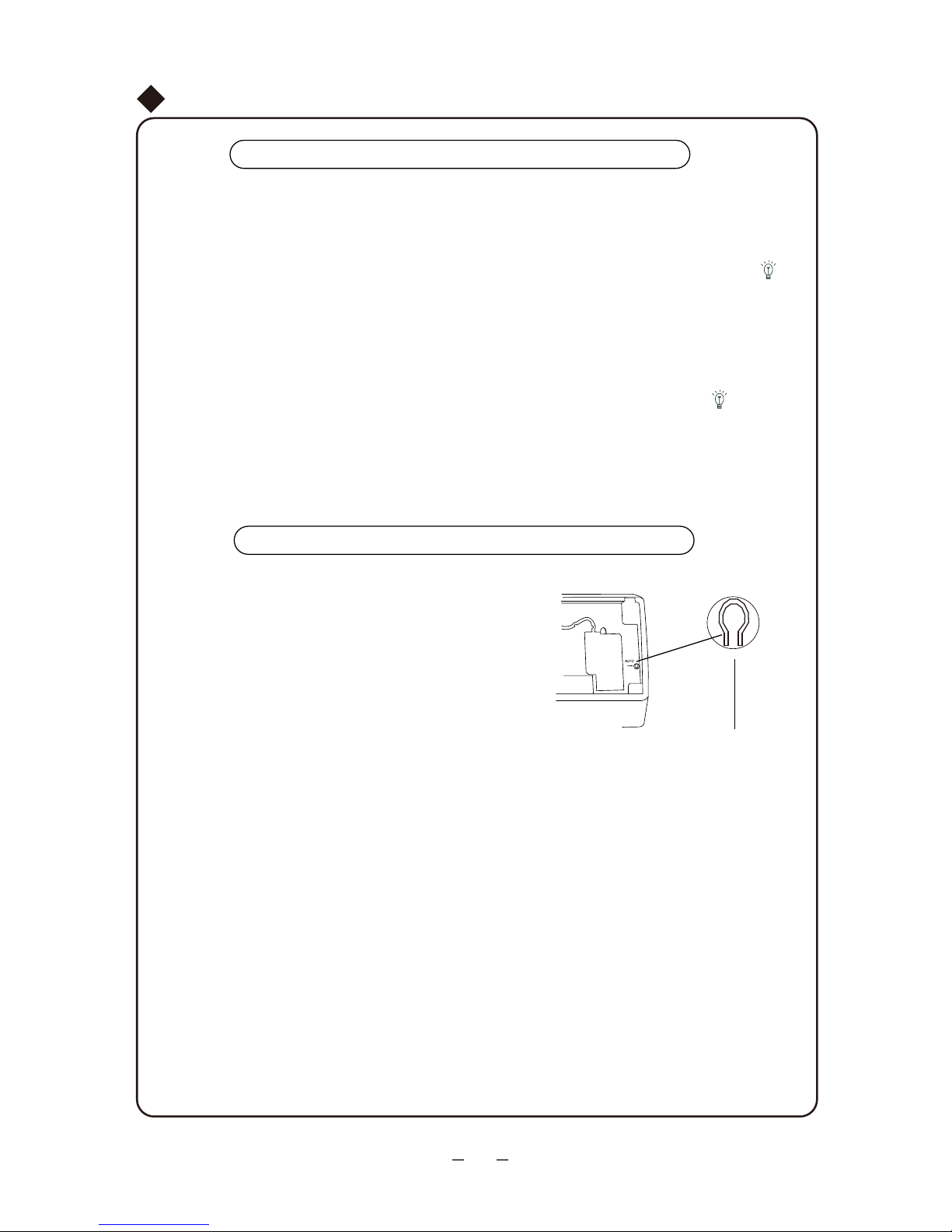

Emergency operation
Installation and Maintenance of Healthy Filter
■.....29
Configuration of connection pipe and additional volume of refrigerant
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
The products in this manual may be different with the real one, according to different
models, some models have displayer and some models without displayer, the position
and shape of the displayer please refer to the real one.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
R410A:GWP:(R32/125: 50/50): 1900
FUSE:T3.15AL 250V

Keep room cooler
than outside
about 5 degree.
★
★
★

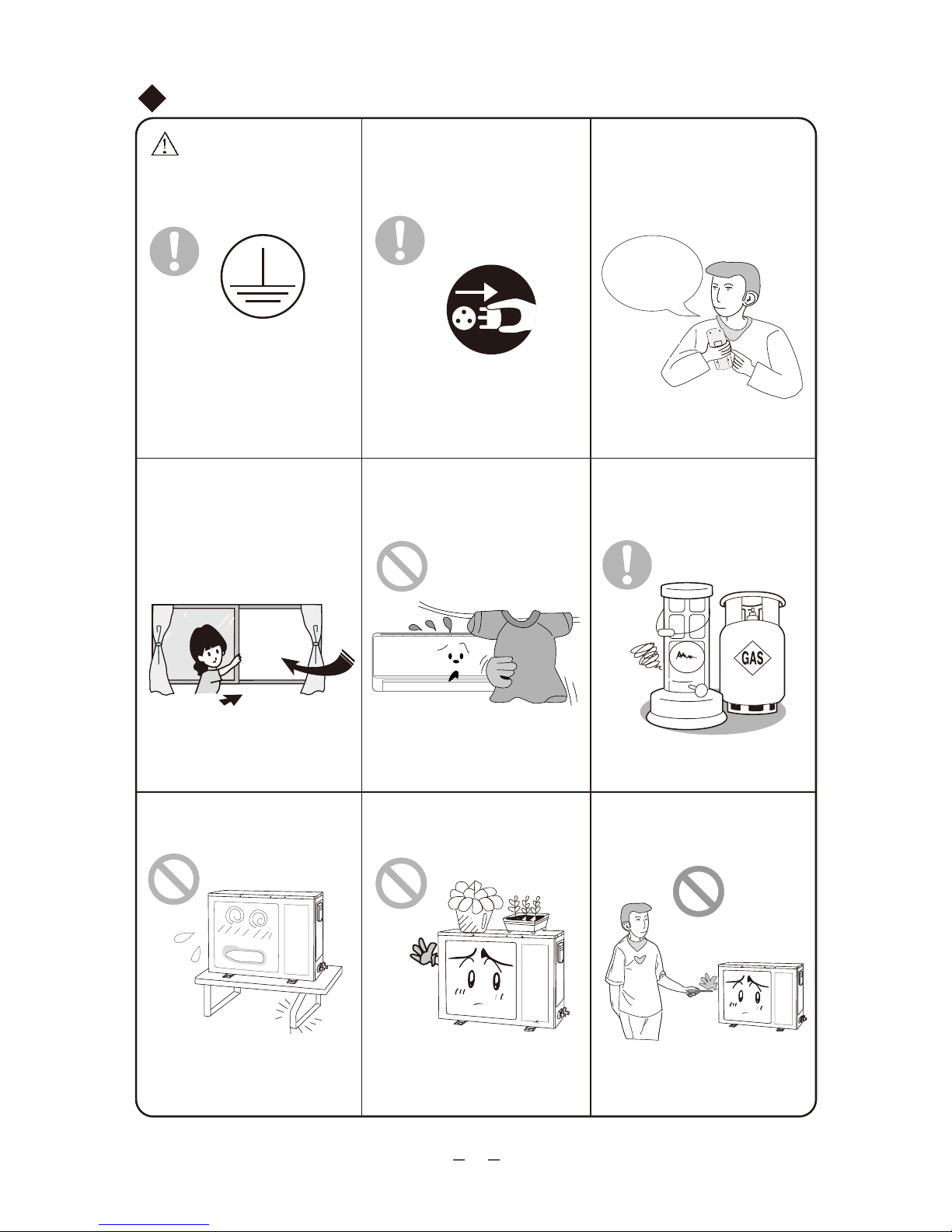

Operation and maintenance-notices for operation
1
★★
Be sure to pull out the power
★
★★
★
Earth: The ground
be connected!
If not, please ask the qualified person-
nel to install. Furthermore, don't conn-
ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-
oper places.
plug when not using the air co-
nditioner for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Select the most appropriate tem-
perature.
It can preclude the electricity wasted.
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Keep combustible spray away
from the units more than 1m.
It can cause afire or explosion.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
Please note whether the installed
stand is firm enough or not.
Don't step on the top of the
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.

２
★
★
★
★
★
★
★
★

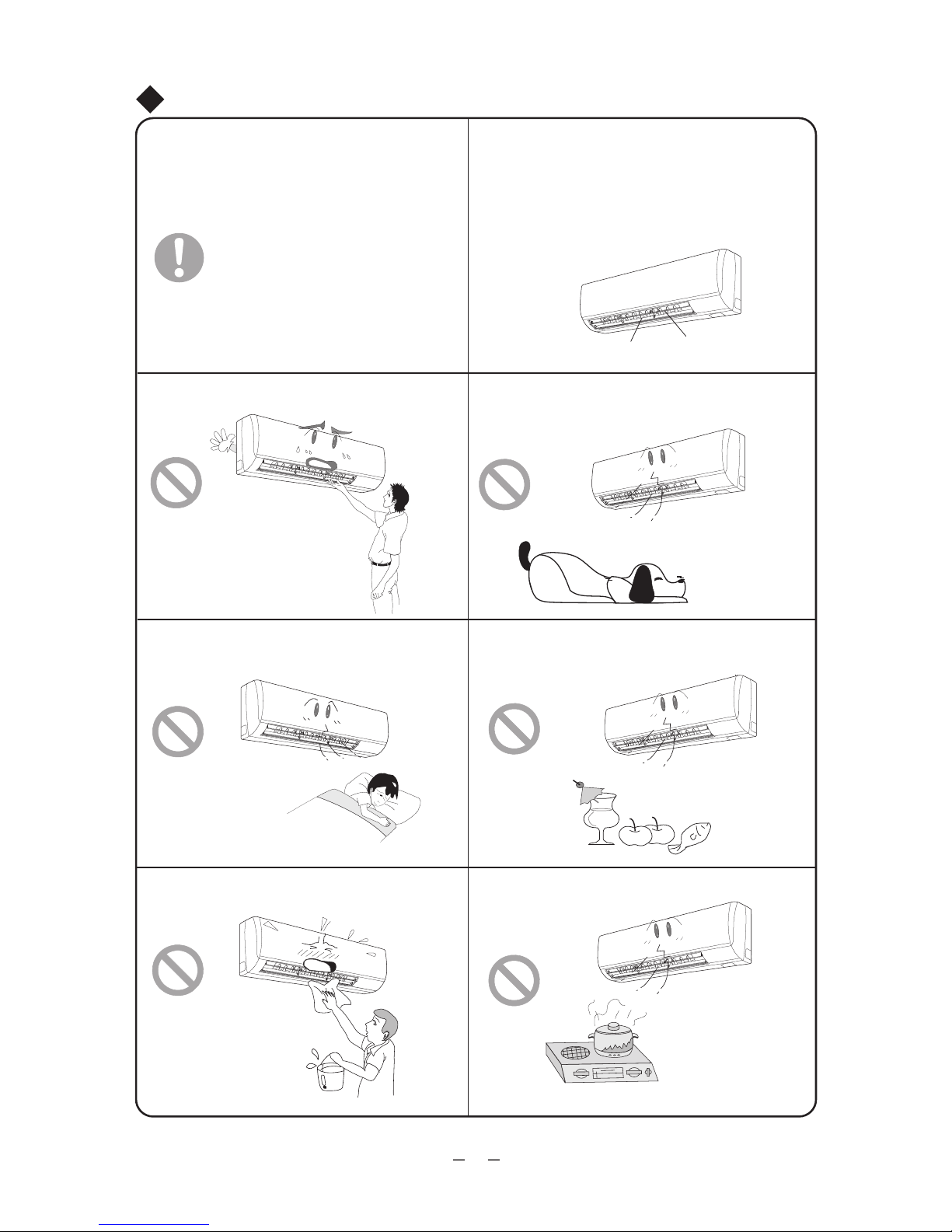

Notices for operation
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
The airflow direction can be adjusted appro-
priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/do-
wnward direction. And then, hold two ends of
left and right louver to adjust the horizontal air-
flow.
Louver of left/right directionLouver of upward/
downward direction.
Don't insert your hands or stick into the air
intake or outlet vents.
Otherwise it will cause accident.
Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.
Don't apply the cold wind to the body for a
long time.
It can cause the health problems.
Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
Splashing water on the air conditioner can
cause an electric shock and malfunction. Don't place a space heater near the air
conditioner.
Or CO toxicosis may occur for imcomplete
burning.

.
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze, and
the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition
2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop
running about 1min.
*
*
*
*
*
*
Notices for use
Working principle and special functions for cooling
Principle:
Anti-freezing function:
Working principle and special functions for heating
Principle:
Defrosting:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the
indoor unit microcomputer will stop compressor running and protect the unit.
℃
Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
If outdoor temperature becomes very low, please operate with other heating equipments.
When outdoor temperature is low but high humidity, after a long while running, frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 3-12mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
3

4
Notices for use
The operating temperature range (outdoor temperature) for cooling only unit is 18℃~ 43℃；
for heat pump unit is -7℃~ 43℃.
Working temperature range
Maximum cooling
Maximum heating
Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)
32/23
27/---
43/26
18
24/18
-7
Working temperature range
Minimum cooling
Minimum heating
Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)
The operating temperature range (outdoor temperature) for cooling only unit is 21℃~ 52℃；
for heat pump unit is -7℃~ 52℃.

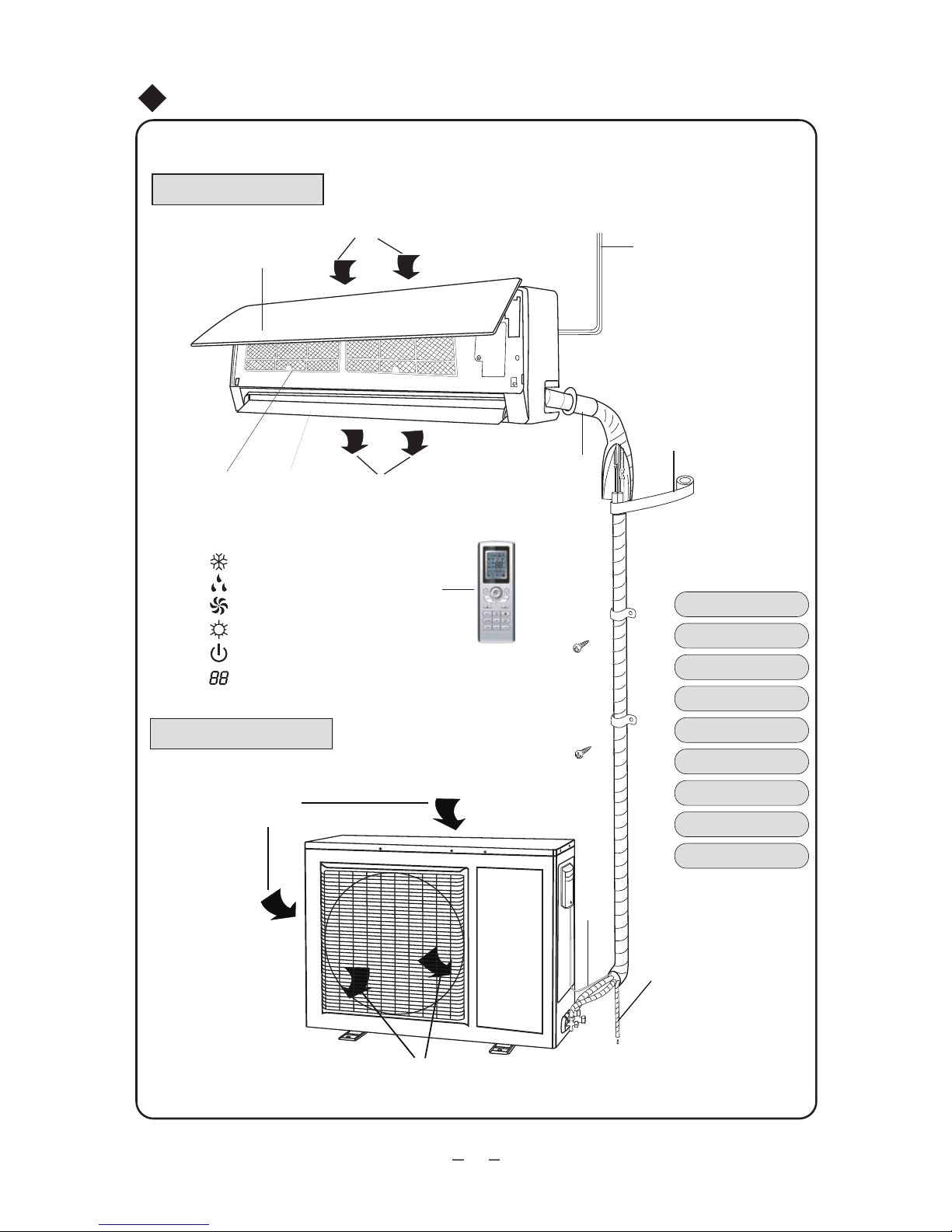

Names and functions of each part
⑸
⑶⑴
⑵
⑹
⑸
⑵
⑻
⑼
⑷
⑺
⑶
⑴
Indoor unit
Air in
Air out
Outdoor unit
Wireless
remote control
Power cable
Remote control
Front panel
Filter
Guide louver
Wall pipe
Bind tape
Connection wire
Drainage pipe
⑷
：Cool
：Dry
：Fan
：Heat
：Set temp.
：Run
The pattern in displayer：
Air in
Air out
(6)
(7)
(8)
(9)
5

7
Press it to start or stop operation.
ON/OFF
MODE
+
-
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
: Press it to increase temperature
setting.
: Press it to decrease temperature
setting.
FAN
Press it set swing angle.
TIMER ON
TIMER OFF
CLOCK
X-FAN ( page 11)
TEMP( page 11)
TURBO( page 11)
SLEEP( page 12)
LIGHT
Press it to set fan speed.
Press it to set auto-on timer.
Press it to set auto-off timer
Press it set clock.
1
6
Press it to set HEALTH function
7
I FEEL(Page 10)
5
3
2
4
11
10
14
9
12
13
15
16
17
Operation of remote controller
3
14
910
13
16
12
5
4
15
11
8
17
7
21
6
Press it to set AIR function.
8
Press it to turn on/off the light.

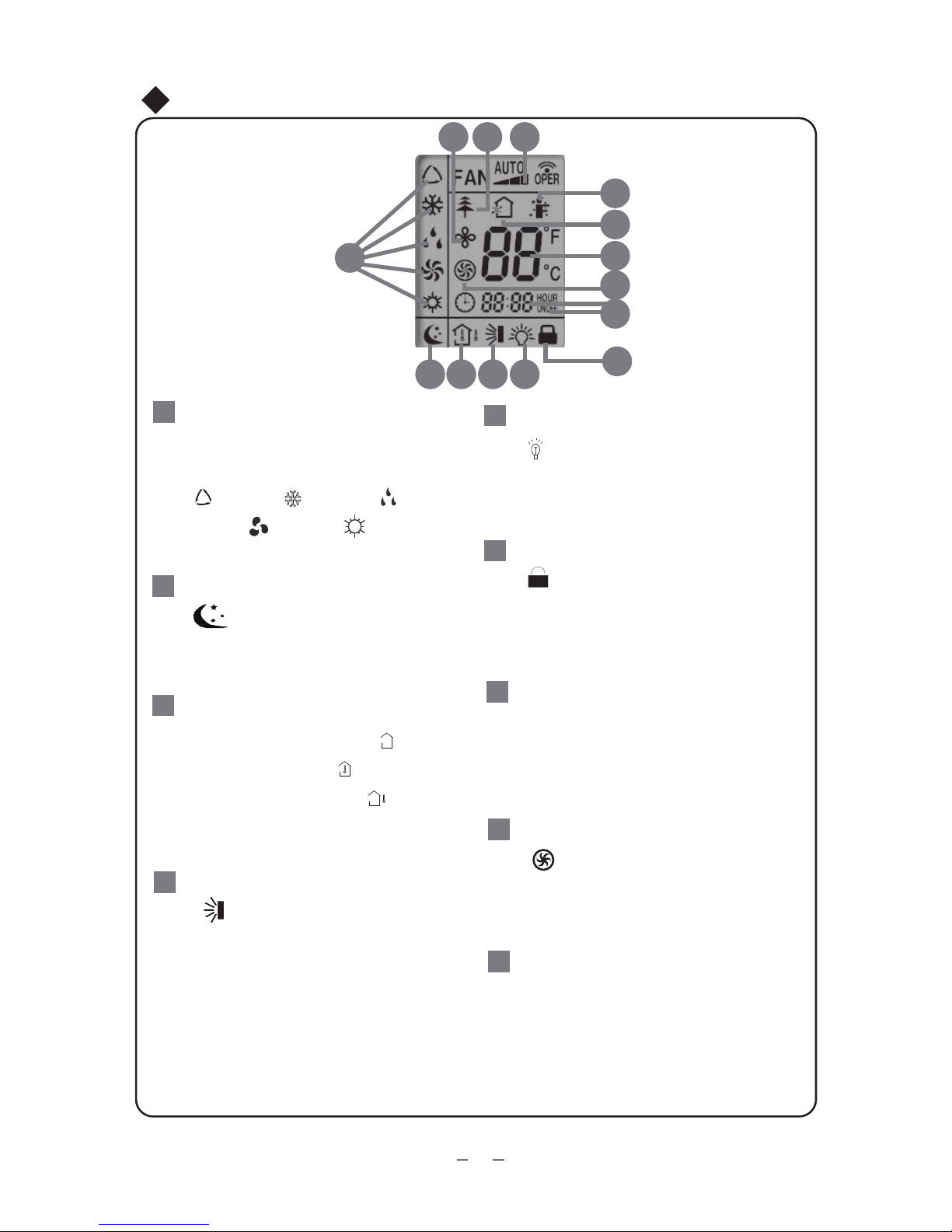

This area will show the set tempe-
rature. In SAVE mode,"SE" will be
displayed. During defrosting opera-
tion, “H1” will be displayed.
DIGITAL display:
26
LOCK icon:
is displayed by pressing "+"
and “-” buttons simultaneously. Press
them again to clear the display.
23
LIGHT icon:
is displayed by pressing the
LIGHT button. Press LIGHT button
again to clear the display.
22
MODE icon:
If MODE button is pressed,
current operation mode icon
(AUTO), ( COOL),
(DRY), (FAN) or (HEAT
only for heat pump models) will show.
18
is displayed when pressing
the up & down swing button.
Press this button again to clear the
display.
21
Up & down swing icon:
After pressing TIMER button, ON or
OFF will blink.This area will show
the set time.
SET TIME display:
24
Pressing TEMP button,
(set temperature),
ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
(indoor
TEMP icon:
20
SLEEP icon :
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
19
is displayed when pressing the
nottubsihtsserP.nottubOBRUT
again to clear the display.
TURBO icon:
25
18
23
24
292929
19 20 21 22
26
28
27
25
Operation of remote controller
8

9
is displayed when pressing the
X-FAN button. Press this button
again to clear the display.
X-FAN icon:
31
Press FAN button to select the
desired fan speed setting (AUTO-
Low-Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
FAN SPEED display:
29
is displayed when pressing the
AIR button.Press this button again
to clear the display.
AIR icon:
27
is displayed when pressing the
I FEEL button. Press this button again
to clear the display.
I FEEL icon:
28
is displayed when pressing the
HEALTH button. Press this button
HEALTH icon:
30
18
23
24
293031
19 20 21 22
26
28
27
25
Operation of remote controller
again to clear the display.

Pressing CLOCK button, blinks. ehtstsujdanottub-ro+gnisserp,sdnoces5nihtiW
present time. Holding down either button above 2 seconds increases or decreases the
CLOCK :
time by 1 minute every 0.5 second and then by 10 minutes every 0.5 second. During
blinking after setting, press CLOCK button again to confirm the setting, and then
9
will be constantly displayed.
Press this button to select AIR function ON or OFF.
8
Press this button to set HEALTH function ON or OFF . After the unit is turned on, it defaults
to HEALTH function ON.
7

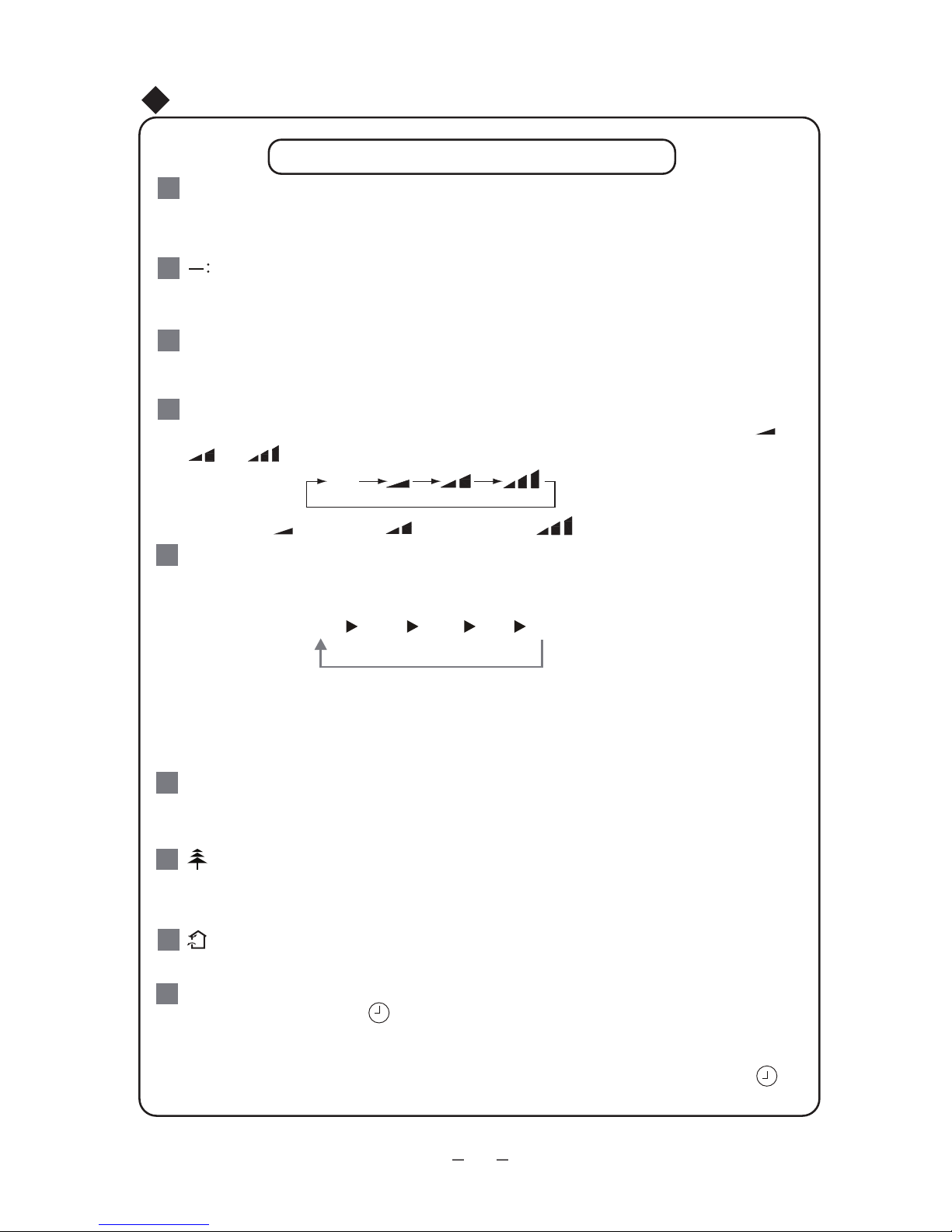

Remote Controller Description
ON/OFF :
+:
This button is used for setting Fan Speed in the sequence that goes from AUTO,
to then back to Auto.
,
,,
FAN :
Press this button to turn on I FEEL function. The unit automatically adjust temperature
according to the sensed temperature. Press this button again to cancel I FEEL function.
I FEEL:
6
MODE :
5
Each time you press this button, a mode is selected in a sequence that goes from AUTO,
COOL,DRY, FAN,and HEAT *, as the following:
AUTO COOL DRY FAN HEAT *
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.
1
3
2
4
Operation of remote controller
Press this button to turn on the unit .Press this button again to turn off the unit.
Press this button to decrease set temperature. Hold it down for above 2 seconds to
rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.
Press this button to increase set temperature. Hold it down for above 2 seconds to
rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.
Auto
Low speed Medium speed High speed
10
*Note: Only for models with heating function.

13 TEMP:
Press this button, could select displaying the indoor setting temperature or indoor ambient
temperature.When the indoor unit firstly power on it will display the setting temperature,
if the temperature's displaying status is changed from other status to" ",displays the
ambient temperature, 5s later or within 5s, it receives other remote control signal that will
return to display the setting temperature. if the users haven't set up the temperature
displaying status,that will display the setting temperature.
TIMER ON :
TIMER OFF :
11
10
14
X-FAN:
TURBO:
12
15
Operation of remote controller

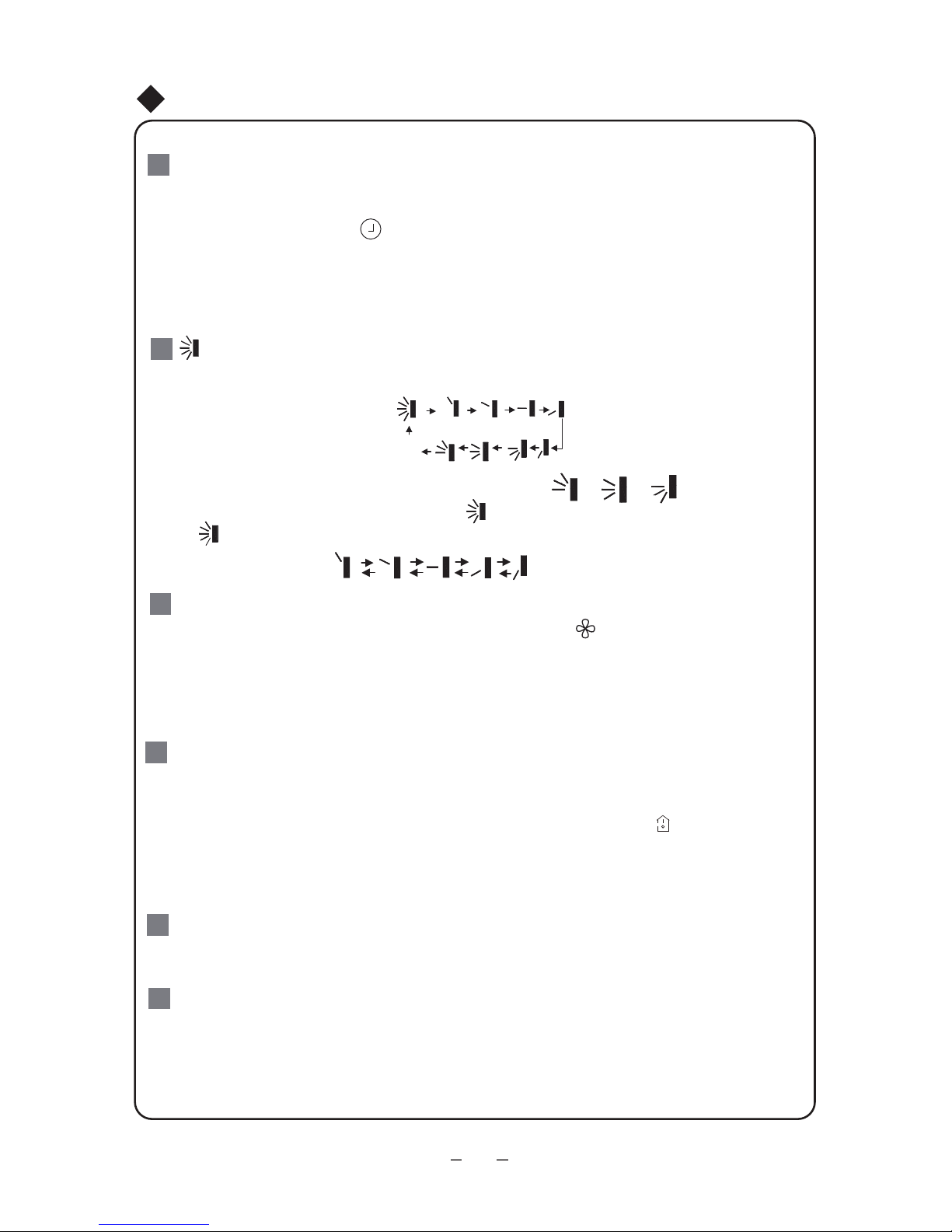

Press this button to initiate the auto-ON timer. To cancel the auto-timer program, simply
press this button again.
After pressing this button, disappears and "ON "blinks
. 00:00 is displayed for ON time
setting. Within 5 seconds, press + or - button to adjust the time value. Every press of either
button changes the time setting by 1 minute. Holding down either button rapidly changes the
time setting by 1 minute and then 10 minutes. Within 5 seconds after setting, press TIMER
ON button to confirm.
Press this button to set up & down swing angle, which circularly changes as below:
OFF
This remote controller is universal. If any command , or is sent out,
the unit will carry out the command as
indicates the guide louver swings as:
:
Pressing X-FAN button in COOL or DRY mode, the icon is displayed and the indoor
fan will continue operation for 10 min utes in order to dry the indoor unit even though you
have turned off the unit.
After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO,FAN or
HEAT mode.
Press this button to activate / deactivate the Turbo function which enables the unit to
reach the preset temperature in the shortest time. In COOL mode, the unit will blow strong
cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air
at super high fan speed. (This function is not applicable for some models).
Press this button to initiate the auto-off timer. To cancel the auto-timer program, simply
press the button again.TIMER OFF setting is the same as TIMER ON.
11

★
●
●
●
●
●

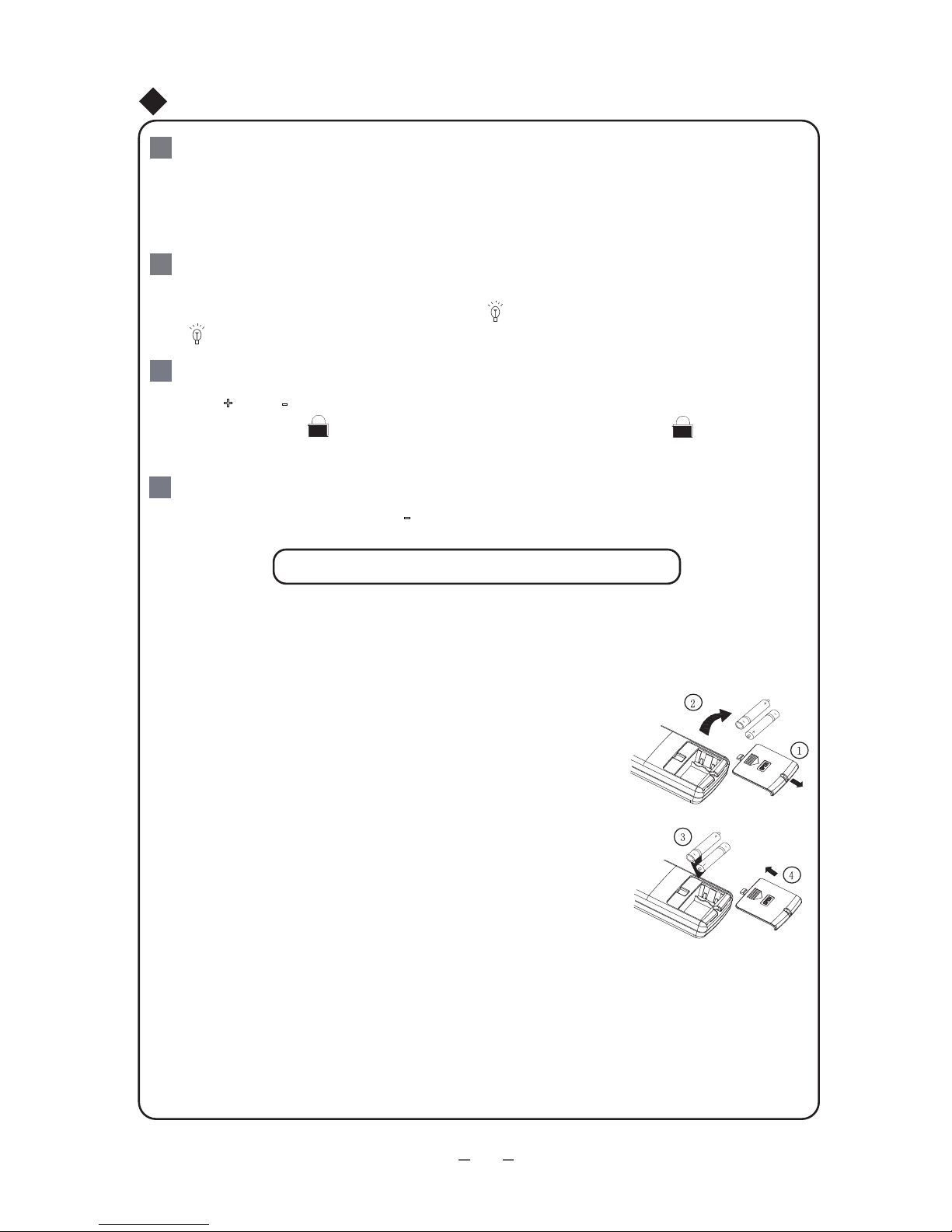

1.Remove the battery cover plate from the rear of the remote controller.
(As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
When replacing the batteries, do not use old or different types of batteries,
If the remote controller will not be used for a long time, please
otherwise, it may cause malfunction.
remove batteries to prevent batteries from leaking.
The operation should be performed in its receiving range.
It should be kept 1m away from the TV set or stereo sound sets.
If the remote controller does not operate normally, please take the
batteries out and reinsert them after 30 seconds. If it still can't operate properly,
Notes:
replace the batteries.
Operation of remote controller
Sketch map for
replacing batteries
Replacement of Batteries
Press " +" and "-" buttons simultaneously to lock or unlock the keypad. If the remote
controller is locked, is
displayed. In this case, pressing any button, blinks
three times.
At unit OFF, press "MODE" and "-" buttons simultaneously to switch between and .
℃℉
SLEEP:
LIGHT:
16
17
Press this button to go into the SLEEP operation mode. Press it again to cancel this
function. This function is available in COOL, HEAT (Only for models with heating
function) or DRY mode to maintain the most comfortable temperature for you.
Press LIGHT button to turn on the display's light and press this button again to turn off
the display's light. If the light is turned on, is displayed. If the light is tunrned off,
disappears.
Combination of "+" and "-" buttons: About lock
18
Combination of "MODE" and "-" buttons: About switch between Fahrenheit and Centigrade
19
12

If the wireless remote control is lost
or broken, please use the manual switch
Auto mode, but the temperature and fan
button. At this time, the unit will run at the
To open the panel, the manual switch
is on the displayer box.
It's a special selective button for the users ,who are not accustomed to the
light at sleeping.
Get the displayer indicator light on: When setting the light function,the mark will
pressing this button. In which case,the diss-
player indicator light will be on if the AC receives
Get the displayer indicator light off: If cancel the light function,the mark will disap-
per on the remote controller screen by pressing
be off if the AC receives this signal.
Displayer indicator light control of indoor unit
●
●
display on the remote controller screen by
this signal.
Emergency operation
Emergency operation
speed cannot be changed. The operation
was shown as below:
Turn on the unit: At unit turned off, press
the button,the unit will run at Auto mode
immediately.The microcomputer will accord
●
to the indoor temperature to select (Cooling,
Heating, Fan) and obtain the comfortable effect.
Turn off the unit: At unit turned on, press the
button, the unit will stop working.
●
Manual switch
Fig.3
13
button. In which case, the displayer indicator
this
light will

℃
●●
●●
●
℃
②Clean the air filter
③
①
(a)
(b)

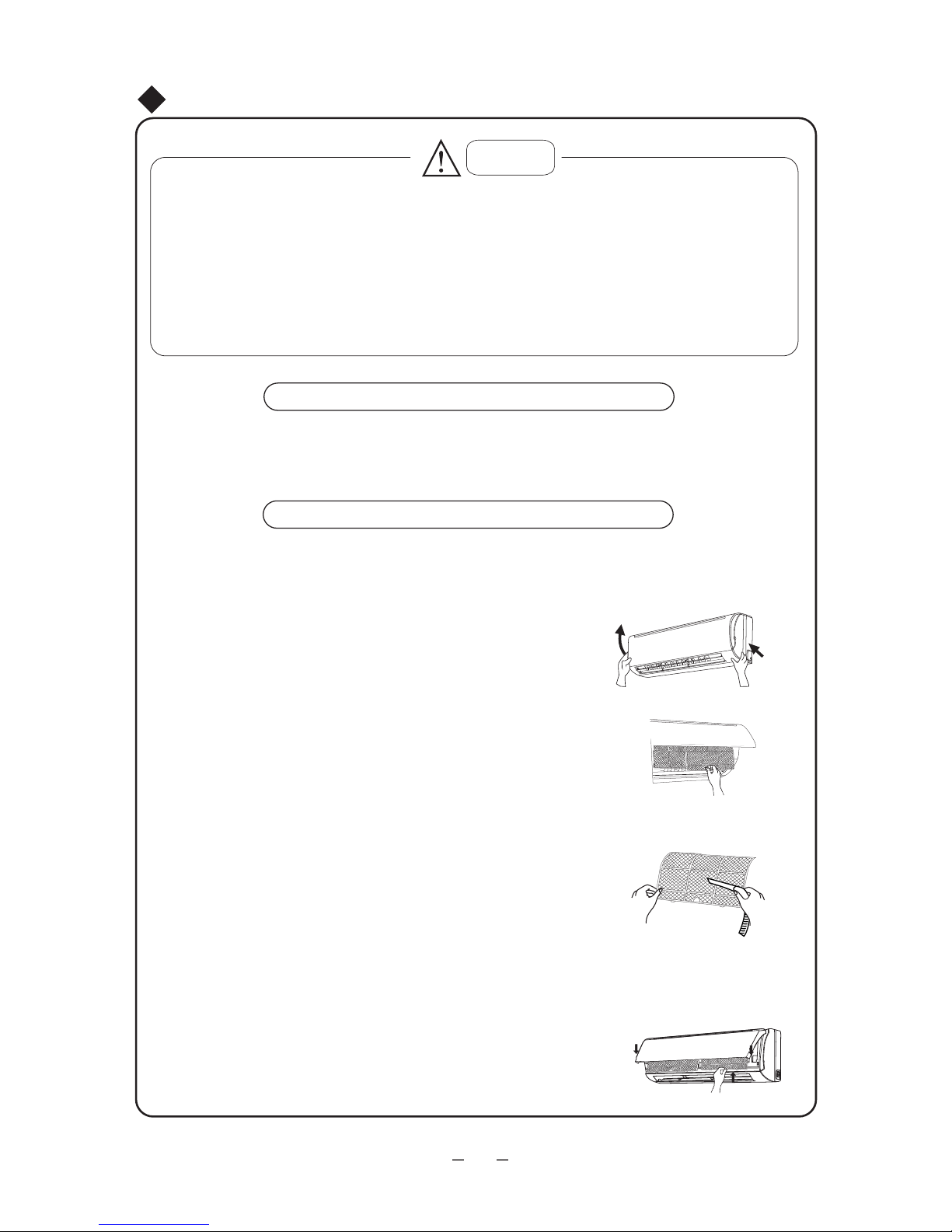

Clean and care
Caution
Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric
shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an
electric shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel
Clean the air filter (Recommended once every three months)
NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.
Take down the air filter
At the slot of surface panel to open an angle, pull the air filter
downward and take it out, please see the Fig. 4(a, b).
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.
NOTE: Never use water above 45 to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.
Insert the air filter
Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.
Fig.4
When cleaning the front panel, please dip the cloth into the water temperature of 45 below, then to dry
the cloth and wipe the dirty part.
Note: Please do not to immerse the front panel in water, due to there are microcomputer components and
circuit diagrams on the front panel.
14

① Be sure that nothing obstructs the air outlet and intake vents.
②
③ Check that whether the batteries of air conditioner are
changed or not.
④ Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
①
②
③
④
⑤
Clean and care
Check before use
Check that whether ground wire is properly connected or not.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Clear dust and obstructions from the outdoor unit.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.
15

●
●
●
●
●
●
Troubleshooting
CAUTION
Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.
Phenomenon Troubleshooting
Not operate immediately when the air
conditioner is restarted.
There's unusual smell blowing from the outlet
after operation is started.
Sound of water flow can be heard during
the operation.
In COOL mode, sometimes the mist emitted
from the air outlet vent.
Creaking noise can be heard when start or
stop the unit.
Once the air conditioner is stopped, it will
not operate in approximately 3 minutes to
protect itself.
The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.
Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)
The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfuncti-
ons.
When the indoor temperature and humidity
are very high, this phenomenon would
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.
This is caused by the deformation of plastic
due to the changes of temperature.
Waiting
16

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
The unit can not run. Has the power been shut down?
Is power plug loosed?
Is the circuit protection device tripped off or not?
Is voltage higher or lower?
(Tested by professionals)
Is the TIMER correctly used?
Cooling(Heating) efficiency is not good. Is Temp. setting suitable?
Were inlet and outlet vents obstructed?
Is filter dirty?
Are the windows and doors clothed?
Did Fan speed set at low speed?
Is there any heat sources in the room?
Wireless remote control is not available. The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.
Is it in its receiving range? Or obstructed?
To check the voltage in wireless remote control inside
is charged, otherwise to replace the batteries.
Whether the wireless remote control is damaged.
If water leakage in the room. The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
If water leakage in outdoor unit. When the unit is running in COOL mode, the pipe
and connection of pipe would be condensed due
to the water cooled down.
When the unit is running in Auto Defrosting mode
the ice thawed and flowed out.
When the unit is running in HEAT mode, the water
adhered on heat exchanger dripped off.
Noise from indoor unit emitted. The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
Breaking off
17

●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit cannot deliver air.
Moisture on air outlet vent ●If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
Immediately stop all operations and plug out, contact
the dealer in following situations.
There is harsh sound during operation.
The terrible odors emitted during operation.
Water is leaking in the room.
Air switch or protection switch often breaks.
Carelessy splash water or something into unit.
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
In HEAT mode, when the temperature of indoor
heat exchanger is very low, that will stop deliver
air in order to prevent cool air. (Within 2min)
In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost be
formed on the outdoor heat exchanger, that the
unit will automatically defrost, indoor unit stop
blowing air for 3-12min.
During the defrosting, there is water flowing out
or vapor be produced.
In dehumidifying mode, sometimes indoor fan will
stop, in order to avoid condensing water be vapo-
rized again, restrain temperature rising.
18
H1
: Defrosting ●It is normal.
