Sinclair SDV5 Series User manual

INDOOR FLOOR-CEILING UNITS SDV5-xxFA
COMMERCIAL AIR CONDITIONERS SDV5

Original instructions
IMPORTANT NOTE:
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.

201805 3
Ceiling & floor
1Specifications ........................................................................................ 4
2Dimensions............................................................................................ 6
3Unit Placement...................................................................................... 4
4Piping Diagram ...................................................................................... 5
5Wiring Diagram...................................................................................... 6
6Capacity Tables ...................................................................................... 8
7Electrical Characteristics ...................................................................... 16
8Sound Levels........................................................................................ 17

4 201805
1 Specifications
SDV5-36FA / SDV5-45FA / SDV5-56FA / SDV5-71FA
Table 1.1: SDV5-36,45,56,71FA specifications
Model
SDV5-36FA SDV5-45FA SDV5-56FA SDV5-71FA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW
3.6
4.5
5.6
7.1
kBtu/h
12.3
15.4
19.1
24.2
Power input
W
49
115
115
115
Heating2
Capacity
kW
4.0
5.0
6.3
8.0
kBtu/h
13.6
17.1
21.5
27.3
Power input
W
49
115
115
115
Fan motor
Model
WZDK100-38GS-2
Type
DC
Brand
Panasonic/Match-Well
Speed3
r/min 770/740/700/680/6
50/630/610
1380/1330/1300/1260/
1210/1140/1070
1380/1340/1300/12
60/1190/1140/1120
Indoor coil
Number of rows
2
3
3
3
Tube pitch × row pitch
mm 25.4×22
Fin spacing
mm 1.8
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф9.53 Inner-groove
Dimensions (L×H×W)
mm 804×254×44
804×254×66
Number of circuits
3
Air flow rate3
m3/h
550/525/500/480
/460/440/420
930/895/860/830/792/755/720
Sound pressure level4
dB(A)
40/39/38/38/37/
36/36
43/42/41/41/39/38/38
Sound power level
dB(A)
53/52/51/51/50/
49/49
56/55/54/54/52/51/51
Unit
Net dimensions5(WxHxD)
mm
990×660×203
Packed dimensions (WxHxD)
mm
1089×744×296
Net/Gross weight
kg
26/32
28/34
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm
Ф6.35/Ф12.7
Ф9.53/Ф15.9
Drain pipe
mm
OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

201805 5
Table 1.2: SDV5-80,90,112,140FA specifications
Model
SDV5-80FA SDV5-90FA SDV5-112FA SDV5-140FA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW
8.0
9.0
11.2
14.0
kBtu/h
27.2
30.7
38.2
47.8
Power input
W
130
130
180
180
Heating2
Capacity
kW
9.0
10.0
12.5
15.0
kBtu/h
30.7
34.1
42.7
51.2
Power input
W
130
130
180
180
Fan motor
Model
WZDK100-38GS-1
WZDK100-38GS-2
Type
DC
DC
Brand
Panasonic/Match-Well
Speed3
r/min
1300/1270/1230/1200/1160/1120/1090
1140/1090/1060/1040/1010/990/970
Indoor coil
Number of rows
3
Tube pitch × row pitch
mm 25.4×22
Fin spacing
mm 1.8
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф9.52 Inner-groove
Dimensions (L×H×W)
mm 1094×254×66 1360×254×66
Number of circuits
5
Air flow rate3
m3/h 1280/1245/1210/1170/1130/1085/1050 1890/1830/1765/1700/1660/1620/1580
Sound pressure level4
dB(A) 45/44/43/43/42/41/40 47/46/45/45/44/43/42
Sound power level
dB(A) 58/57/56/56/55/54/53 60/59/58/58/57/56/55
Unit
Net dimensions5
(WxHxD)
mm
1280×660×203
1670×680×244
Packed dimensions
(WxHxD)
mm
1379×744×296
1915×760×330
Net/Gross weight
kg
35/41
48/58
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
BD24FKS(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm
Ф9.53/Ф15.9
Drain pipe
mm
OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

6 201805
2Dimensions
2.1 Unit Dimensions

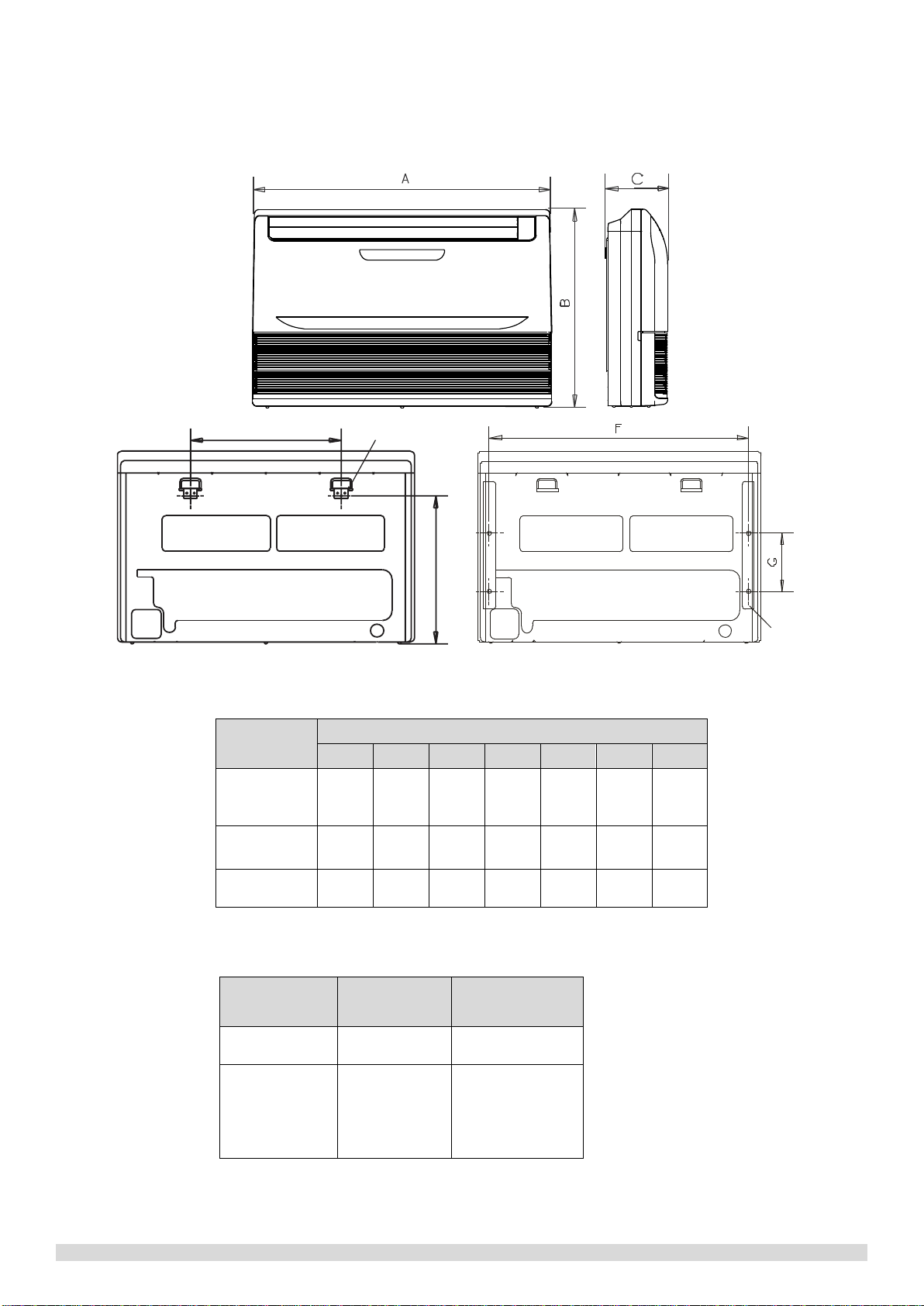

Figure 2.1: Ceiling & floor dimensions (unit: mm)
Hook
D
E
Hanging arm
Table 2.1: Ceiling & floor dimensions
Model
Dimensions (mm)
A B C D E F G
SDV5-36FA
SDV5-45FA
SDV5-71FA
990 660 203 505 506 907 200
SDV5-80FA
SDV5-90FA 1280 660 203 795 506 1195 200
SDV5-112FA
SDV5-140FA 1670 680 244 1070 450 1542 200
Table 2.2: Ceiling & floor piping connections
Model Gas pipe (mm) Liquid pipe (mm)
SDV5-36FA
SDV5-45FA Ф12.7 Ф6.35
SDV5-71FA
SDV5-80FA
SDV5-90FA
SDV5-112FA
SDV5-140FA
Ф15.9 Ф9.53

4 201805
3Unit Placement
3.1 Placement Considerations
Unit placement should take account of the following considerations:
Units should not be installed in the following locations:
Where exposure to direct radiation from a high-temperature heat source or to interference from a source of
electromagnetic radiation may occur.
Where dust or dirt may affect heat exchangers.
Where exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.
Where exposure to salinity may occur, such as seaside locations.
Where highly flammable materials are present.
Where exposure to oily air may occur, such as a kitchen.
Where exposure to very high humidity may occur, such as a laundry.
Units should be installed in positions where:
The ceiling is horizontal and is able to bear the unit’s weight.
There are no obstructions that could impede the airflow into and out of the unit.
The airflow out of the unit can reach throughout the room.
There is sufficient space for access during installation, servicing and maintenance.
The refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping
systems.
Short-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.
3.2 Space Requirements

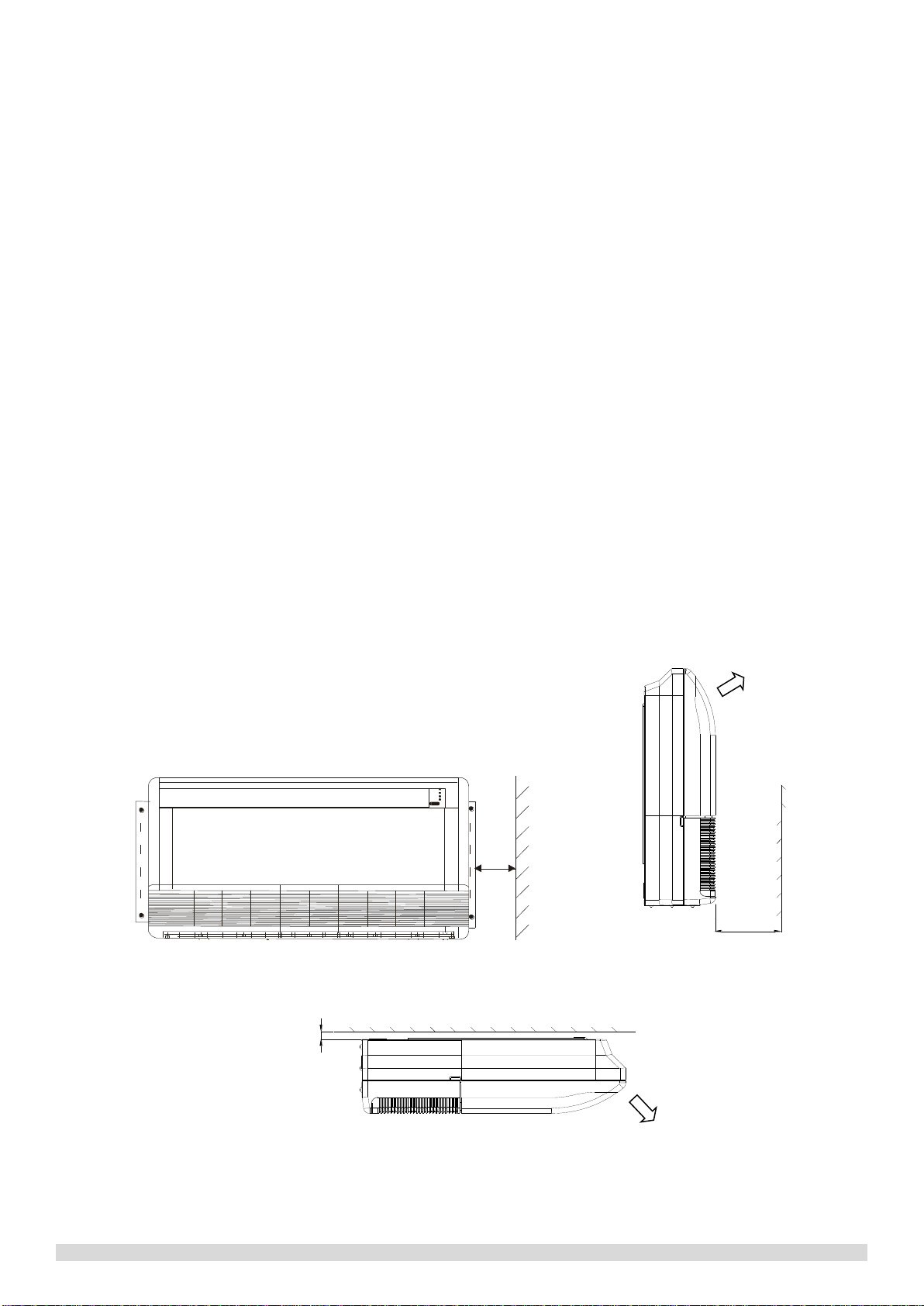

Figure 3.1: Ceiling & floor space requirements (unit: mm)
>600mm
>600mm
600mm
>20
Air Outlet
Obstacle
Piping connection
Obstacle
Drop ceiling
Air Outlet

201805 5
4Piping Diagram

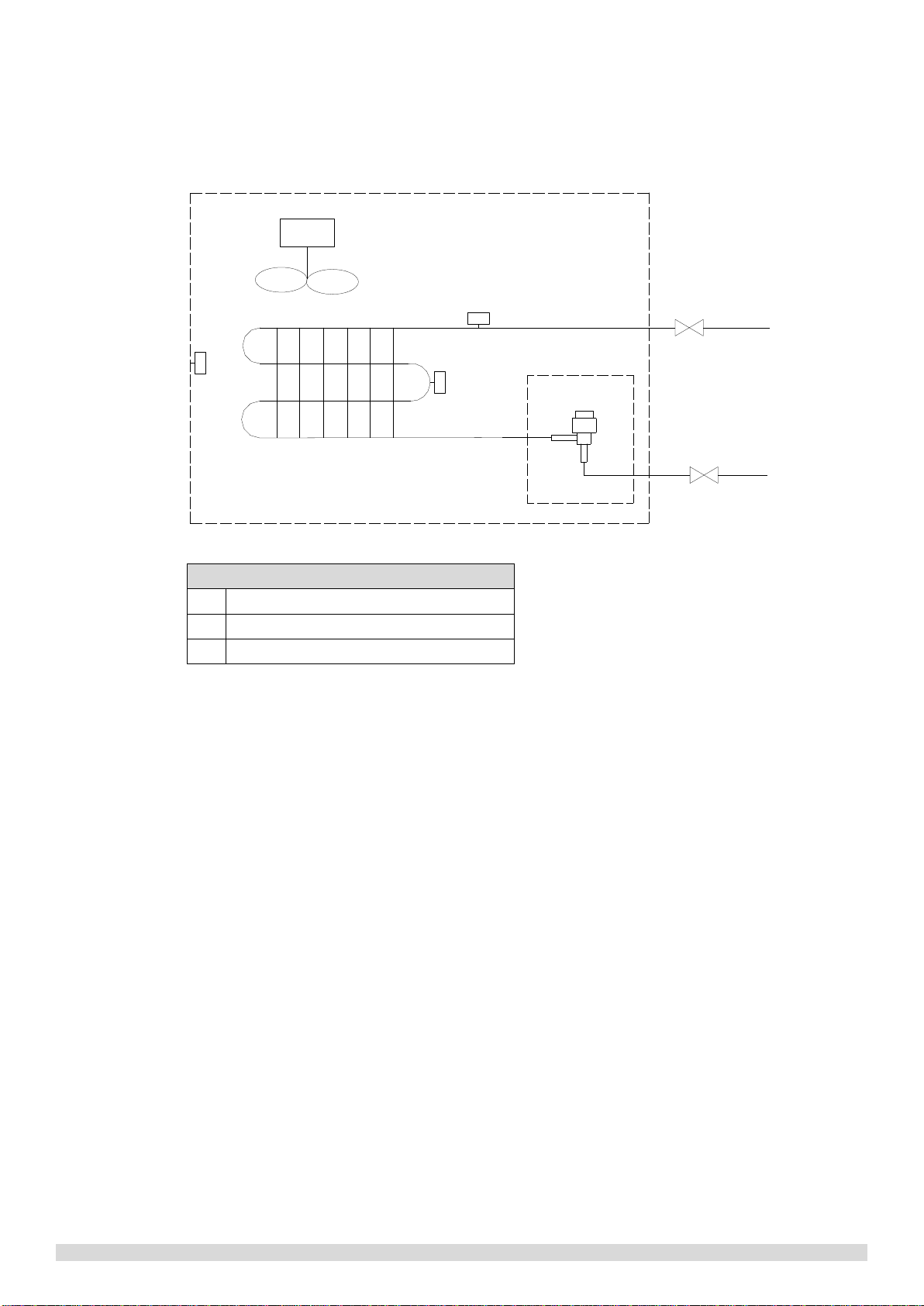

Figure 4.1: Ceiling & floor piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

6 201805
5Wiring Diagram

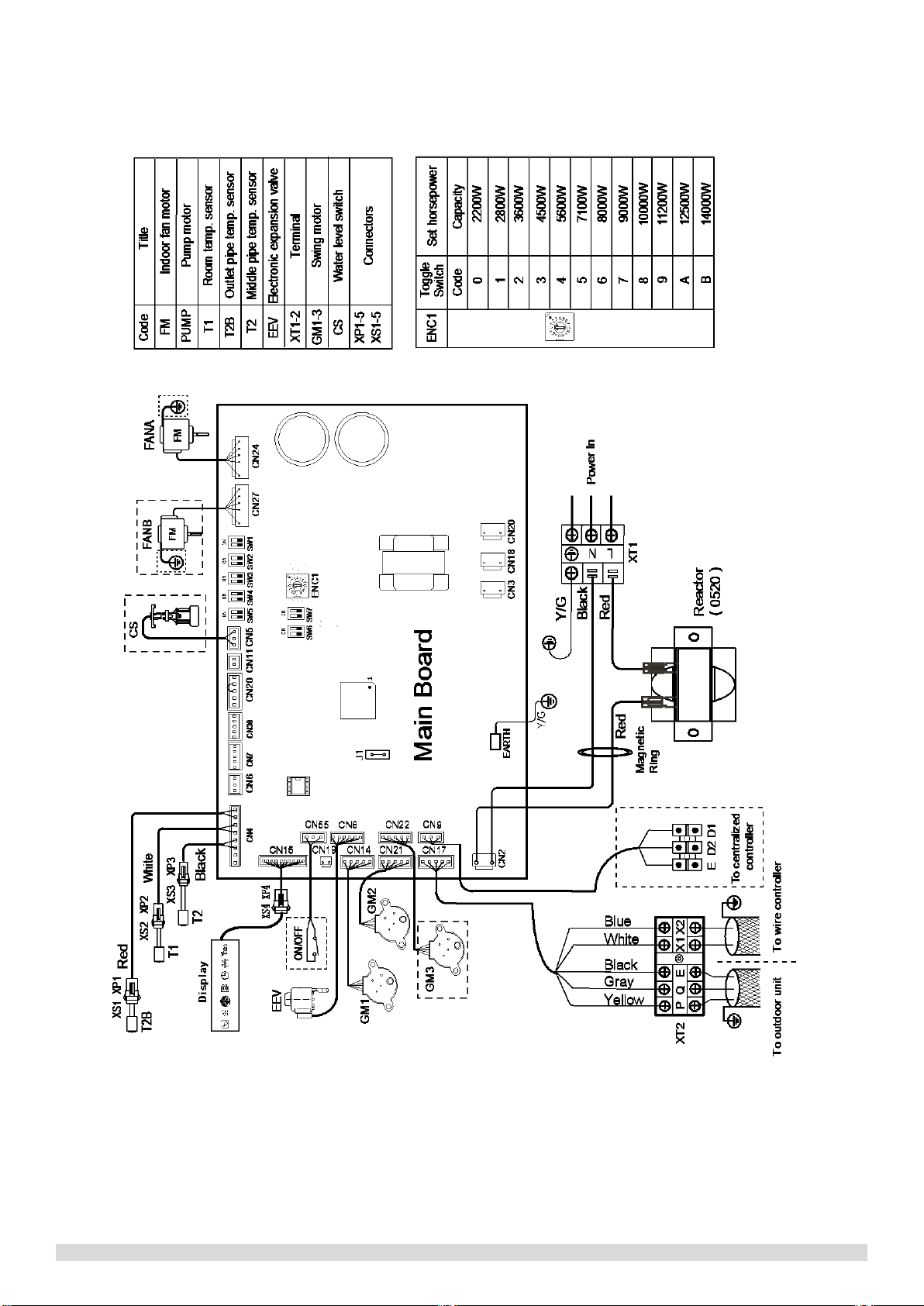

Figure 5.1: Ceiling & floor wiring diagram

201805 7
Caution
All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified
and accredited professionals and in accordance with all applicable legislation.
Units should be grounded in accordance with all applicable legislation. Metal and other conductive components
should be insulated in accordance with all applicable legislation.
Power supply wiring should be securely fastened at the power supply terminals –loose power supply wiring
would represent a fire risk.
After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the
electric control box cover risks fire or electric shock.
Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The
only circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB.
When replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with
the unit capacity given on the unit’s nameplate.
Notes for installers and service engineers


8 201805
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: Ceiling & floor cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
3.6
10.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
12.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
14.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.6
2.4
16.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
18.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
20.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
21.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
23.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.3 2.2
25.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.2 2.2
27.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.2 2.2
29.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.1 2.2
31.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
4.1 2.2
33.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9 2.1
35.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9 2.1
37.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.9 2.1
39.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
42.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
44.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
46.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
4.5
10.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
12.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
14.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.8
3.0
16.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
2.9
18.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
20.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
21.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
3.0
23.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.5
3.0
25.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.2
3.0
5.4
2.9
27.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
3.0
5.2
2.8
29.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
2.9
5.2
2.8
31.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.0
2.9
5.1
2.7
33.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.9
2.8
5.1
2.7
35.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.8
5.0
2.7
37.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.9
4.9
2.6
39.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
42.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
44.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
46.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
3.1
4.8
2.6
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

201805 9
Table 6.1: Ceiling & floor cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
5.6
10.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.3
3.5
12.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.2
3.5
14.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.1
3.5
16.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.0
3.4
18.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.8
3.4
20.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.7
3.3
21.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
23.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
25.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.5
3.2
27.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.4
3.5
6.4
3.2
29.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.3
3.5
6.4
3.3
31.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2 3.2
33.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2 3.2
35.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.0
3.3
6.0 3.1
37.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.9
3.5
5.9
3.2
6.0 3.1
39.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0 3.1
42.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0 3.1
44.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0 3.1
46.0
3.9 2.7 4.6 3.0
5.3
3.3
5.6
3.4
5.7
3.7
5.8
3.2
6.0 3.1
7.1
10.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.2 4.6
12.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.1 4.5
14.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.0 4.5
16.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.9
4.4
18.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.7
4.3
20.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.5
4.2
21.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.4
4.2
23.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.3
4.1
25.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.2
4.1
27.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.1
4.3
8.2
4.1
29.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
8.0
4.3
8.1
4.1
31.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.9
4.3
7.8
4.0
33.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.8
4.2
7.8
4.0
35.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.6
4.1
7.7
3.9
37.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.4
4.4
7.5
4.1
7.6
4.0
39.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
42.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
44.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
46.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

10 201805
Table 6.1: Ceiling & floor cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
8.0
10.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.4
5.6
12.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
14.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
16.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.0
5.4
18.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.8
5.3
20.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.6
5.2
21.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
23.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
25.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.3
5.0
27.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.1
5.3
9.2
5.1
29.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
9.0
5.3
9.1
5.0
31.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.9
5.2
8.8 4.8
33.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.8
5.2
8.8 4.8
35.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.6
5.1
8.6 4.8
37.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.3
5.4
8.4
5.0
8.6 4.9
39.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6 4.9
42.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6 4.9
44.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6 4.9
46.0
5.5 4.4 6.6 4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6 4.9
9.0
10.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.7 6.0
12.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.5 5.9
14.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.4 5.9
16.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.3
5.8
18.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.0
5.8
20.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.8
5.7
21.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.6
5.6
23.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.5
5.5
25.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.4
5.5
27.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.3
5.9
10.4
5.4
29.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.1
5.7
10.3
5.4
31.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.0
5.7
9.9
5.3
33.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
9.9
5.6
9.9
5.3
35.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.5
6.0
9.6
5.5
9.7
5.3
37.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.3
5.8
9.5
5.4
9.6
5.3
39.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
42.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
44.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
46.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

201805 11
Table 6.1: Ceiling & floor cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
11.2
10.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
15.5
8.2
12.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.4
7.7
14.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.2
7.6
16.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.1
7.5
18.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.0
7.5
20.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.9
7.4
21.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.8
7.4
23.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.1
7.5
13.7
7.3
25.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.0
7.4
13.6
7.2
27.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.9
7.3
13.4
7.2
29.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.8
7.3
13.3
7.2
31.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.7
7.2
12.8 6.9
33.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.5
7.2
12.5 6.8
35.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.8
7.4
12.4
7.1
12.3 6.7
37.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.6
7.3
12.3
7.0
12.1 6.6
39.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.4
7.1
12.2
7.0
11.9 6.6
42.0
7.7 6.0 9.1 6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0 6.6
44.0
7.7 6.0 9.1 6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0 6.6
46.0
7.7 6.0 9.1 6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0 6.6
14.0
10.0
9.7 7.2 11.3 7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
18.2 9.4
12.0
9.7 7.2 11.3 7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.9 9.2
14.0
9.7 7.2 11.3 7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.8 9.2
16.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.5
9.0
18.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.1
8.8
20.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.8
8.7
21.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.5
8.5
23.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.4
9.3
16.4
8.4
25.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.2
9.3
16.2
8.4
27.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.1
9.2
16.1
8.4
29.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.0
9.1
16.0
8.4
31.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.8
9.0
15.4
8.1
33.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.7
8.9
15.4
8.1
35.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.7
8.9
15.1
8.6
15.1
8.1
37.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.6
8.8
15.1
8.6
15.0
8.0
39.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
42.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
44.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
46.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

12 201805
6.2 Heating Capacity Table
Table 6.2: Ceiling & floor heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
3.6
-20
-19.8
2.24
2.24
2.24
2.24
2.24
2.24
-19
-18.8
2.40
2.40
2.40
2.40
2.40
2.40
-17
-16.7
2.52
2.52
2.52
2.52
2.52
2.52
-15
-14.7
2.60
2.60
2.60
2.60
2.60
2.60
-13.00
-12.60
2.68
2.68
2.68
2.68
2.68
2.68
-11.00
-10.50
2.80
2.80
2.80
2.80
2.80
2.80
-10.00
-9.50
2.92
2.92
2.92
2.92
2.92
2.92
-9.10
-8.50
3.00
3.00
3.00
3.00
3.00
3.00
-7.60
-7.00
3.04
3.04
3.04
3.04
3.04
3.04
-5.60
-5.00
3.16 3.16
3.16
3.16
3.16
3.16
-3.70
-3.00
3.32 3.32
3.32
3.32
3.32
3.32
-0.70
0.00
3.56 3.56
3.56
3.56
3.56
3.36
2.20
3.00
3.76 3.76
3.76
3.76
3.68
3.36
4.10
5.00
3.88 3.88
3.88
3.88
3.68
3.36
6.00
7.00
4.00 4.00
4.00
3.88
3.68
3.36
7.90
9.00
4.12 4.12
4.00
3.88
3.68
3.36
9.80
11.00
4.24 4.24
4.00
3.88
3.68
3.36
11.80
13.00
4.40 4.32
4.00
3.88
3.68
3.36
13.70
15.00
4.52 4.32
4.00
3.88
3.68
3.36
4.5
-20
-19.8
2.80 2.80
2.80
2.80
2.80
2.80
-19
-18.8
3.00 3.00
3.00
3.00
3.00
3.00
-17
-16.7
3.15
3.15
3.15
3.15
3.15
3.15
-15
-14.7
3.25
3.25
3.25
3.25
3.25
3.25
-13.00
-12.60
3.35
3.35
3.35
3.35
3.35
3.35
-11.00
-10.50
3.50
3.50
3.50
3.50
3.50
3.50
-10.00
-9.50
3.65
3.65
3.65
3.65
3.65
3.65
-9.10
-8.50
3.75
3.75
3.75
3.75
3.75
3.75
-7.60
-7.00
3.80
3.80
3.80
3.80
3.80
3.80
-5.60
-5.00
3.95
3.95
3.95
3.95
3.95
3.95
-3.70
-3.00
4.15
4.15
4.15
4.15
4.15
4.15
-0.70
0.00
4.45
4.45
4.45
4.45
4.45
4.20
2.20
3.00
4.70
4.70
4.70
4.70
4.60
4.20
4.10
5.00
4.85
4.85
4.85
4.85
4.60
4.20
6.00
7.00
5.00
5.00
5.00
4.85
4.60
4.20
7.90
9.00
5.15
5.15
5.00
4.85
4.60
4.20
9.80
11.00
5.30
5.30
5.00
4.85
4.60
4.20
11.80
13.00
5.50
5.40
5.00
4.85
4.60
4.20
13.70
15.00
5.65
5.40
5.00
4.85
4.60
4.20
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

201805 13
Table 6.2: Ceiling & floor heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
5.6
-20
-19.8
3.53
3.53
3.53
3.53
3.53
3.53
-19
-18.8
3.78
3.78
3.78
3.78
3.78
3.78
-17
-16.7
3.97
3.97
3.97
3.97
3.97
3.97
-15
-14.7
4.10
4.10
4.10
4.10
4.10
4.10
-13.00
-12.60
4.22
4.22
4.22
4.22
4.22
4.22
-11.00
-10.50
4.41
4.41
4.41
4.41
4.41
4.41
-10.00
-9.50
4.60
4.60
4.60
4.60
4.60
4.60
-9.10
-8.50
4.73
4.73
4.73
4.73
4.73
4.73
-7.60
-7.00
4.79
4.79
4.79
4.79
4.79
4.79
-5.60
-5.00
4.98
4.98
4.98
4.98
4.98
4.98
-3.70
-3.00
5.23
5.23
5.23
5.23
5.23
5.23
-0.70
0.00
5.61 5.61
5.61
5.61
5.61
5.29
2.20
3.00
5.92 5.92
5.92
5.92
5.80
5.29
4.10
5.00
6.11 6.11
6.11
6.11
5.80
5.29
6.00
7.00
6.30 6.30
6.30
6.11
5.80
5.29
7.90
9.00
6.49 6.49
6.30
6.11
5.80
5.29
9.80
11.00
6.68 6.68
6.30
6.11
5.80
5.29
11.80
13.00
6.93 6.80
6.30
6.11
5.80
5.29
13.70
15.00
7.12 6.80
6.30
6.11
5.80
5.29
7.1
-20
-19.8
4.48 4.48
4.48
4.48
4.48
4.48
-19
-18.8
4.80 4.80
4.80
4.80
4.80
4.80
-17
-16.7
5.04 5.04
5.04
5.04
5.04
5.04
-15
-14.7
5.20
5.20
5.20
5.20
5.20
5.20
-13.00
-12.60
5.36
5.36
5.36
5.36
5.36
5.36
-11.00
-10.50
5.60
5.60
5.60
5.60
5.60
5.60
-10.00
-9.50
5.84
5.84
5.84
5.84
5.84
5.84
-9.10
-8.50
6.00
6.00
6.00
6.00
6.00
6.00
-7.60
-7.00
6.08
6.08
6.08
6.08
6.08
6.08
-5.60
-5.00
6.32
6.32
6.32
6.32
6.32
6.32
-3.70
-3.00
6.64
6.64
6.64
6.64
6.64
6.64
-0.70
0.00
7.12
7.12
7.12
7.12
7.12
6.72
2.20
3.00
7.52
7.52
7.52
7.52
7.36
6.72
4.10
5.00
7.76
7.76
7.76
7.76
7.36
6.72
6.00
7.00
8.00
8.00
8.00
7.76
7.36
6.72
7.90
9.00
8.24
8.24
8.00
7.76
7.36
6.72
9.80
11.00
8.48
8.48
8.00
7.76
7.36
6.72
11.80
13.00
8.80
8.64
8.00
7.76
7.36
6.72
13.70
15.00
9.04
8.64
8.00
7.76
7.36
6.72
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

14 201805
Table 6.2: Ceiling & floor heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
8.0
-20
-19.8
5.04
5.04
5.04
5.04
5.04
5.04
-19
-18.8
5.40
5.40
5.40
5.40
5.40
5.40
-17
-16.7
5.67
5.67
5.67
5.67
5.67
5.67
-15
-14.7
5.85
5.85
5.85
5.85
5.85
5.85
-13.00
-12.60
6.03
6.03
6.03
6.03
6.03
6.03
-11.00
-10.50
6.30
6.30
6.30
6.30
6.30
6.30
-10.00
-9.50
6.57
6.57
6.57
6.57
6.57
6.57
-9.10
-8.50
6.75
6.75
6.75
6.75
6.75
6.75
-7.60
-7.00
6.84
6.84
6.84
6.84
6.84
6.84
-5.60
-5.00
7.11
7.11
7.11
7.11
7.11
7.11
-3.70
-3.00
7.47
7.47
7.47
7.47
7.47
7.47
-0.70
0.00
8.01 8.01
8.01
8.01
8.01
7.56
2.20
3.00
8.46 8.46
8.46
8.46
8.28
7.56
4.10
5.00
8.73 8.73
8.73
8.73
8.28
7.56
6.00
7.00
9.00 9.00
9.00
8.73
8.28
7.56
7.90
9.00
9.27 9.27
9.00
8.73
8.28
7.56
9.80
11.00
9.54 9.54
9.00
8.73
8.28
7.56
11.80
13.00
9.90 9.72
9.00
8.73
8.28
7.56
13.70
15.00
10.17 9.72
9.00
8.73
8.28
7.56
9.0
-20
-19.8
5.60 5.04
5.60
5.60
5.60
5.60
-19
-18.8
6.00 5.40
6.00
6.00
6.00
6.00
-17
-16.7
6.30 6.30
6.30
6.30
6.30
6.30
-15
-14.7
6.50
6.50
6.50
6.50
6.50
6.50
-13.00
-12.60
6.70
6.70
6.70
6.70
6.70
6.70
-11.00
-10.50
7.00
7.00
7.00
7.00
7.00
7.00
-10.00
-9.50
7.30
7.30
7.30
7.30
7.30
7.30
-9.10
-8.50
7.50
7.50
7.50
7.50
7.50
7.50
-7.60
-7.00
7.60
7.60
7.60
7.60
7.60
7.60
-5.60
-5.00
7.90
7.90
7.90
7.90
7.90
7.90
-3.70
-3.00
8.30
8.30
8.30
8.30
8.30
8.30
-0.70
0.00
8.90
8.90
8.90
8.90
8.90
8.40
2.20
3.00
9.40
9.40
9.40
9.40
9.20
8.40
4.10
5.00
9.70
9.70
9.70
9.70
9.20
8.40
6.00
7.00
10.00
10.00
10.00
9.70
9.20
8.40
7.90
9.00
10.30
10.30
10.00
9.70
9.20
8.40
9.80
11.00
10.60
10.60
10.00
9.70
9.20
8.40
11.80
13.00
11.00
10.80
10.00
9.70
9.20
8.40
13.70
15.00
11.30
10.80
10.00
9.70
9.20
8.40
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

201805 15
Table 6.2: Ceiling & floor heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
11.2
-20
-19.8
7.00
7.00
7.00
7.00
7.00
7.00
-19
-18.8
7.50
7.50
7.50
7.50
7.50
7.50
-17
-16.7
7.88
7.88
7.88
7.88
7.88
7.88
-15
-14.7
8.13
8.13
8.13
8.13
8.13
8.13
-13.00
-12.60
8.38
8.38
8.38
8.38
8.38
8.38
-11.00
-10.50
8.75
8.75
8.75
8.75
8.75
8.75
-10.00
-9.50
9.13
9.13
9.13
9.13
9.13
9.13
-9.10
-8.50
9.38
9.38
9.38
9.38
9.38
9.38
-7.60
-7.00
9.50
9.50
9.50
9.50
9.50
9.50
-5.60
-5.00
9.88
9.88
9.88
9.88
9.88
9.88
-3.70
-3.00
10.38
10.38
10.38
10.38
10.38
10.38
-0.70
0.00
11.13 11.13
11.13
11.13
11.13
10.50
2.20
3.00
11.75 11.75
11.75
11.75
11.50
10.50
4.10
5.00
12.13 12.13
12.13
12.13
11.50
10.50
6.00
7.00
12.50 12.50
12.50
12.13
11.50
10.50
7.90
9.00
12.88 12.88
12.50
12.13
11.50
10.50
9.80
11.00
13.25 13.25
12.50
12.13
11.50
10.50
11.80
13.00
13.75 13.50
12.50
12.13
11.50
10.50
13.70
15.00
14.13 13.50
12.50
12.13
11.50
10.50
14.0
-20
-19.8
8.96 8.96
8.96
8.96
8.96
8.96
-19
-18.8
9.60 9.60
9.60
9.60
9.60
9.60
-17
-16.7
10.08 10.08
10.08
10.08
10.08
10.08
-15
-14.7
10.40
10.40
10.40
10.40
10.40
10.40
-13.00
-12.60
11.04
11.04
11.04
11.04
11.04
11.04
-11.00
-10.50
11.20
11.36
11.36
11.36
11.36
11.36
-10.00
-9.50
11.68
11.68
11.68
11.68
11.68
11.68
-9.10
-8.50
12.00
12.00
12.00
12.00
12.00
12.00
-7.60
-7.00
12.16
12.16
12.16
12.16
12.16
12.16
-5.60
-5.00
12.64
12.64
12.64
12.64
12.64
12.64
-3.70
-3.00
13.28
13.28
13.28
13.28
13.28
13.28
-0.70
0.00
14.24
14.24
14.24
14.24
14.24
13.44
2.20
3.00
15.04
15.04
15.04
15.04
14.72
13.44
4.10
5.00
15.52
15.52
15.52
15.52
14.72
13.44
6.00
7.00
16.00
16.00
16.00
15.52
14.72
13.44
7.90
9.00
16.48
16.48
16.00
15.52
14.72
13.44
9.80
11.00
16.96
16.96
16.00
15.52
14.72
13.44
11.80
13.00
17.60
17.28
16.00
15.52
14.72
13.44
13.70
15.00
18.08
17.28
16.00
15.52
14.72
13.44
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.

16 201805
7Electrical Characteristics
Table 7.1: Ceiling & floor electrical characteristics
Model
Power supply
Indoor fan motors
Hz
Volts
Min. volts
Max. volts
MCA
MFA
Rated motor
output (kW)
FLA
SDV5-36FA
50
220-240
198
264
0.45
15
0.10
0.35
SDV5-45FA
50
220-240
198
264
1.20
15
0.10
0.93
SDV5-56FA
50
220-240
198
264
1.20
15
0.10
0.95
SDV5-71FA
50
220-240
198
264
1.20
15
0.10
0.95
SDV5-80FA
50
220-240
198
264
1.30
15
0.10
1.10
SDV5-90FA
50
220-240
198
264
1.30
15
0.10
1.10
SDV5-112FA
50
220-240
198
264
1.70
15
0.10+0.10
0.65+0.65
SDV5-140FA
50
220-240
198
264
1.70
15
0.10+0.10
0.65+0.65
Abbreviations:
MCA: Minimum Circuit Amps
MFA: Maximum Fuse Amps
FLA: Full Load Amps

201805 17
8Sound Levels
8.1 Overall
Table 8.1: Ceiling & floor sound pressure levels1
Model name
Sound pressure levels dB(A)
SSH
SH
H
M
L
SL
SSL
SDV5-36FA
40
39
38
38
37
36
36
SDV5-45FA
43
42
41
41
39
38
38
SDV5-56FA
43
42
41
41
39
38
38
SDV5-71FA
43
42
41
41
39
38
38
SDV5-80FA
45
44
43
43
42
41
40
SDV5-90FA
45
44
43
43
42
41
40
SDV5-112FA
47
46
45
45
44
43
42
SDV5-140FA
47
46
45
45
44
43
42
Notes:
1. Sound pressure levels are measured in a semi-anechoic chamber.
During in-situ operation, sound pressure levels may be higher as a
result of ambient noise.
Figure 8.1: Ceiling & floor sound pressure level measurement
8.2 Octave Band Levels
Figure 8.2: SDV5-36FA octave band levels
Figure 8.3:SDV5-45,56,71FA octave band levels
Octave band sound pressure level dB(A)
Octave band sound pressure level dB(A)
Octave band center frequency (Hz)
Octave band center frequency (Hz)
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC65
NC60
NC55
NC50
NC45
NC40
NC35
NC30
NC25
NC20
NC15
NC65
NC60
NC55
NC50
NC45
NC40
NC35
NC30
NC25
NC20
NC15
SSH
SH
H
M
L
SL
SSL
SSH
SH
H
M
L
SL
SSL
