SERVICE MANUAL
KING
SERIES
ASH-09AK, ASH-13AK

Model Remarks
ASH-09AK
ASH-13AK
1Summary and features
Summary and features
09/13Outdoor unit:
1Ph 220~240V 50Hz
R410a

COOLING HEATING COOLING HEATING
2650 /9050 2850/ 9730 3516/12000 4015/13700
820 785 1080 1104
1110 1150 1500 1500
5.69 5.9 7.6 7.6
Model of Indoor Unit
Fan Motor Speed (r/min) (H/M/L)
Output of Fan Motor (w)
Input of Heater (w)
Fan Motor Capacitor (uF)
Fan Motor RLA(A)
Fan Type-Piece
Diameter-Length (mm)
Evaporator
Pipe Diameter (mm)
Row-Fin Gap(mm)
Coil length (l) x height (H) x coil
width (L)
Swing Motor Model
Output of Swing Motor (W)
Fus e (A)
Sound Pressure Level dB (A)
(H/M/L)
Sound Power Level dB (A)
(H/M/L)***
Dimension (W/H/D) ( mm)
Dimension of Package(W/H/D)(mm)
Net Weight /Gross Weight (kg) 9/12
51/49/46/42
805 x 280 x 215
860 x 355 x 280
MP24 AA
1.5
PCB 3.15A
41/39/36/32
Aluminum fin-copper tube
7
2-1.5
656 x 25.4 x 304.8
1
0.254
Cross flow fan – 1
φ99*644
ASH-13AK
Cool:ing 1120/1010/890/760
Heating: 1120/1010/900/780
9
/
A
ASH-13AK
220-240V
50Hz
580
1
3.26/3.64
A
500
1
8/10
3.21/3.61
Indoor
unit
50/48/46/44
740 x 250 x 180
790 x 320 x 264
MP28 EC
2
3.15
40/38/36/34
Aluminum fin-copper tube
7
2-1.6
57 6X1 4 2 X145
1
0.263
Cross flow fan – 1
97
ASH-09AK
Cool:ing 1160/1065/959/861
Heating: 1160/1067/960/860
/
ASH-09AK
220-240V
50Hz
Energy Class
Total Capacity (W/Btu/h)
Power Input (W)
Rated Input (W)
Rated Current (A)
Air Flow Volume (m3/h) (H/M/L)**
Dehumidifying Volume (l/h)
EER / C.O.P (W/W)
Mode l
Function
Rated Voltage
Rated Frequency
Technical specifications
Technical specifications
2

ASH-09AK ASH-13AK
HIGHLY Gree
ASG102CV-B7AT QXA-133uB030
Rotary Rotory
18A 32
4.05 5.1
875 1160
KA-172-LYGN914 B250-150-141E
-5~43 -15~46
77
1-1.6 2-1.4
608X495X205 731X495X25.4
830 850
30W 30
0.345 0.35
22
1400 1700
Axial fan -1 Axial fan –1
400 400
Auto defrost Auto defrost
T1 T1
II
IP24 IP24
33.8
11.2
52 52
62 62
848X540X320 848X540X320
878X590X360 878X590X360
35/40 40/44
R410A/0.75 R410A/1.10
55
25 25
Liquid Pipe (mm) Φ6(1/4") Φ6(1/4")
Gas Pipe (m m ) Φ9.52(3/8") Φ12(1/2")
Height (m) 10 10
Length (m) 1515
Aluminum fin-copper tube
Capillary
Capacitor
Dimension of Package (L/W/H)(mm)
Condenser
Pipe Diameter (mm)
Rows-Fin Gap(mm)
Coil length(l) x height(H) x coil width(L)
Fan Motor Speed (rpm) (H/M/L)
Output of Fan Motor (W)
Net Weight /Gross Weight (kg)
Permissible Excessive Operating
Pressure for the Suction Side(MPa)
Sound Pressure Level dB (A) (H/M/L)
Sound Power Level dB (A) (H/M/L)
Dimension (W/H/D) (mm)
Outer
Diameter
Refrigerant Charge (kg)
Outdoor
unit
Connecti
on Pipe
Gas additional charge(g/m)
Length (m)
Max
Distance
Model of Outdoor Unit
Compressor Manufacturer/trademark
Compressor Model
Compressor Type
L.R.A. (A)
Compressor RLA(A)
Compressor Power Input(W)
Overload Protector
Throttling Method
Starting Method
Working Temp Range (℃)
Fan Motor RLA(A)
Fan Motor Capacitor (uF)
Air Flow Volume of Outdoor Unit
Fan Type-Piece
Moisture Protection
Permissible Excessive Operating
Pressure for the Discharge Side(MPa)
Fan Diameter (mm)
Defros ting Method
Climate Type
Isolation
The above data is subject to change without notice. Please refer to the nameplate of the unit.

Part name
Part name
Wall Pipe
LED displayer
Remote control window
Guide louver
Indoor unit
Outdoor unit
Front Panel
Filter
Air in
Air out
Drainage hose
Air in
Air out
Manual switch
Wireless remote control
Wrapping Tape
Set Temp
Heat Cooling
Connection pipe
3
LED displayer
DRY Run

Tube exit
Air inlet
Rear View
Right
Left
Ceiling
Wall-Mounting Plate
W
D
H
Outline and installation dimensions of indoor unit
4Outline and installation dimension
Outline and installation dimension
Wall-Mounting Plate:
ASH-09AK
ASH-13AK
Mo d e l W( ㎜)H(
㎜)D( ㎜)
ASH-09AK 740 250 180
ASH-13AK
805 280 215

Outline and installation dimensions of outdoor unit
Unit:mm
ASH-09AK, ASH-13AK
Bolt
Nut
Wrench
ｏｖｅｒ
ｏｖｅｒ
ｏｖｅｒ
ｏｖｅｒ

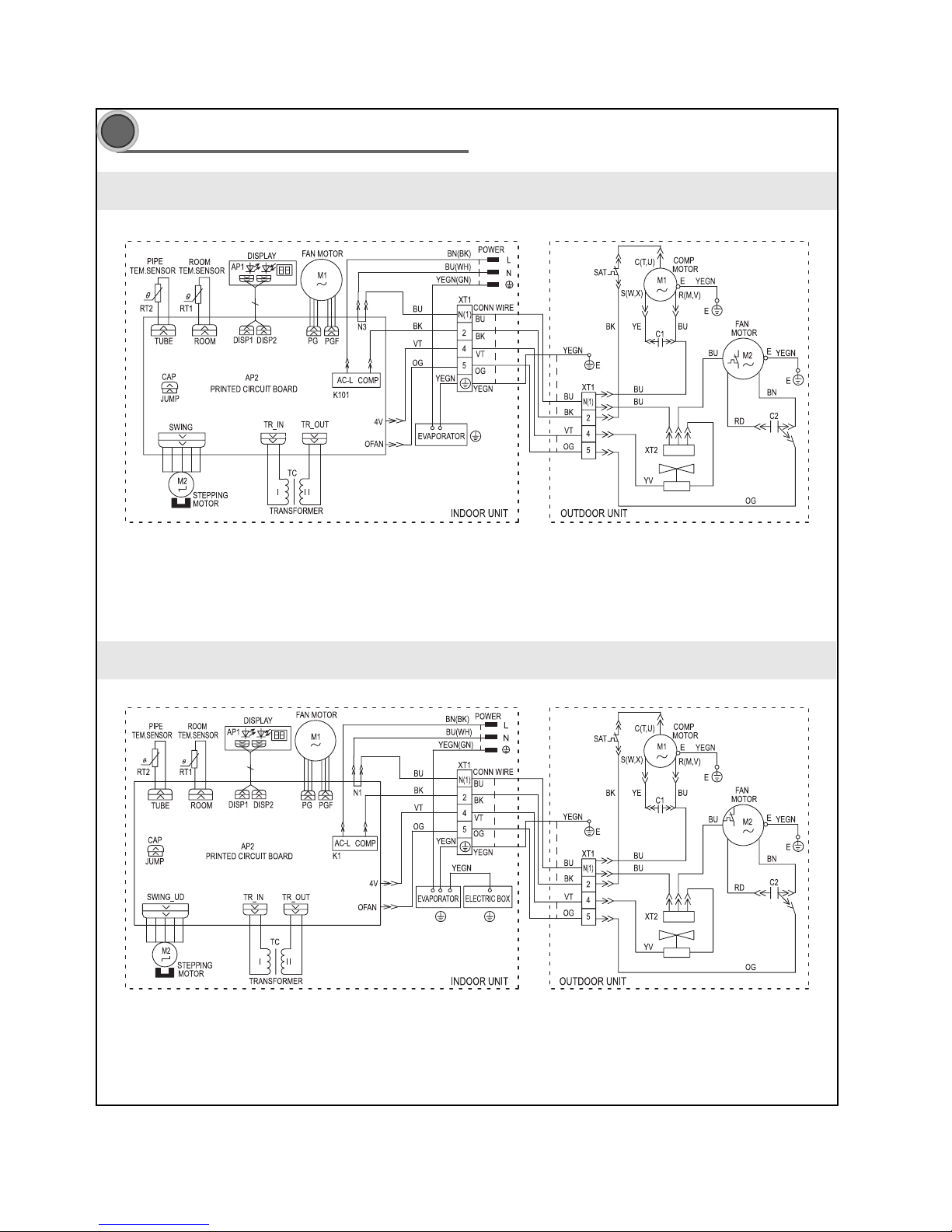

Electrical circuit diagram
Electrical circuit diagram
55
55
5
ASH-09AK
ASH-13AK

66
66
6


Manual of functions of remote controller and operation method
Manual 1 of functions of remote controller
6.1.1 Temperature parameter
The room setting temperature(Tpreset)
The room ambient temperature (Tamb)
6.1.2Basic Functions
Once energized, the compressor should in no way be restarted unless after 3-minute time interval at least. For the first
energization, the compressor will be started without 3-minute lag. The compressor, once started,will not be stopped
within 6minutes with the change of room temperature.

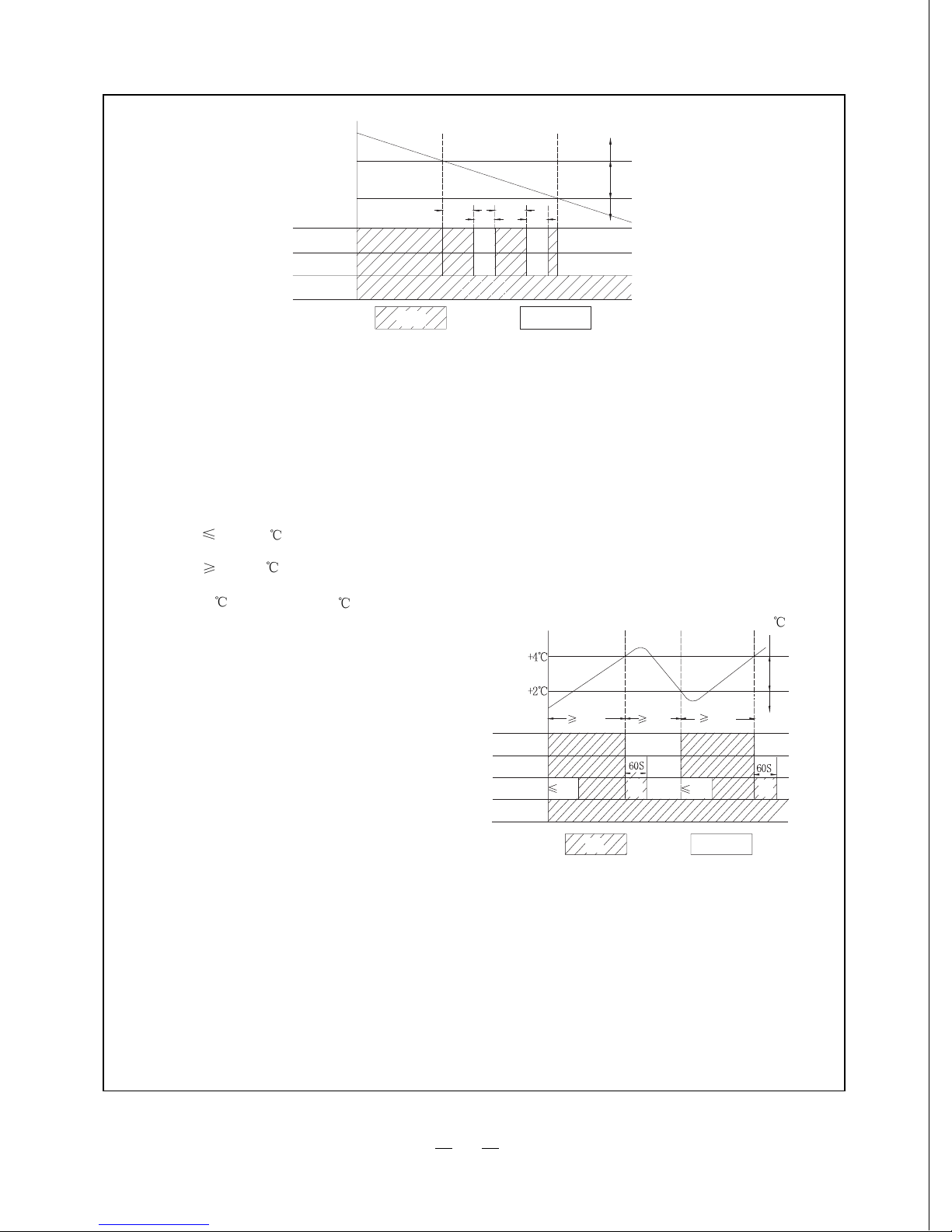

CoolingMode
Cooling Conditions and Process
When T amb.≥Tpreset +1℃, the unit will run under cooling mode, in which case the compressor and outdoor fan will start
and the indoor fan will run at setting speed.
When T amb.≤Tpreset -1℃, the compressor and the outdoor fan will stop, the indoor fan will run at setting speed.
When Tpreset -1 <T℃amb.< Tpreset +1 , the unit will maintain its original operating status.℃
 Under this mode, the switchover valve will not be powered on, and the setting temperature range is16 ~30 .
Tpreset +1℃
Tpreset -1℃
Compressor
Outdoor fan
Indoor fan Preset speed
Run
Tamb
Stop
Stop cooling
Start cooling
Original operating status
≥6min. ≥3 min. ≥6min.
6.1.2.1.3 Protection
 Antifreeze Protection
If it is detected that the system is under antifreeze protection, the compressor and outdoor fan will be stopped,
and the indoor fan will run at setting speed. When antifreeze protection is released and the compressor has stopped
for 3 minutes, the unit will resume its original operating status.
During antifreeze protection
3 min.
Stop
Run
Preset speed
Compressor
Outdoor fan
Indoor fan

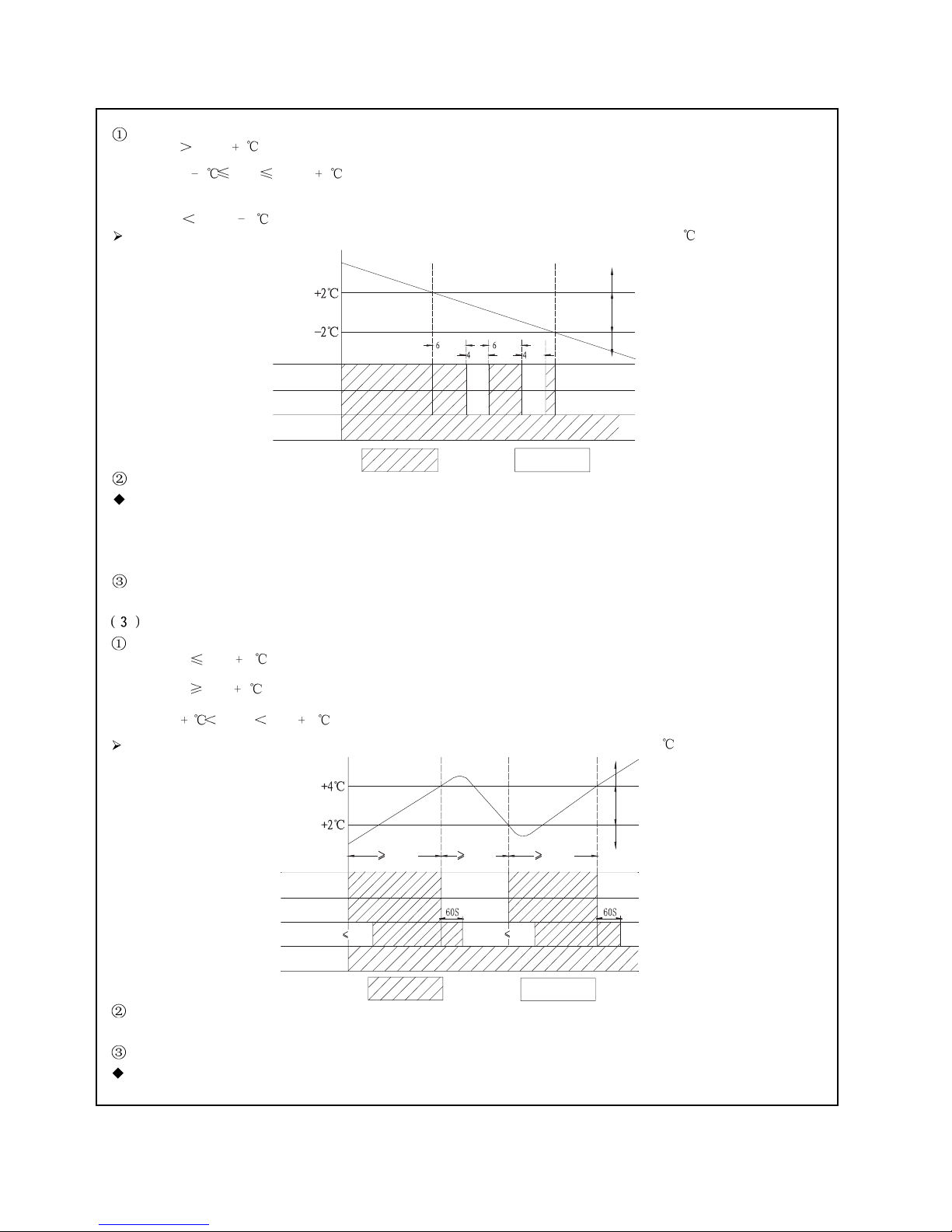

6.1.2.2 DRY Modes
6.1.2.2 .1 The conditions and process of DRY
+2, the unit will run under DRY cooling mode, in which case the compressor and outdoor fan℃
will be started and the indoor fan will run at low speed.
When T amb. > Tpreset
When Tpreset -2℃≤Tamb.≤Tpreset +2℃, the unit will run under DRY mode, in which case the indoor fan will keep run
at low speed, the compressor and the outdoor fan will be stopped after 6 minutes . After 4 minutes,the compressor
and the outdoor fan will be restarted. The dehumidifying process is so repeated in cycle.
.
When Tamb.< Tpreset-2℃, the compressorand outdoor fan will be stopped, the indoor fan will run at low speed.
 Under this mode, the switchover valve will not be powered on, and the setting temperature range is16 ~30 .

Tpreset +2℃
Tpreset -2℃
Tamb
Compressor
Outdoor fan
Indoor fan
Cooling
Dry
Stop
6 min.6 min.
4min. 4min.
low speed
Run Stop
6.1.2.2.3 Protection
 Antifreeze Protection
Upon meeting the cooling condition, if it is detected that the system is under antifreeze protection, the compressor
and outdoor fan will be stopped,and the indoor fan will run at lowspeed. When antifreeze protection is releasedand
the compressor has stopped for 3 minutes, the complete unit will resume its original operating status.
Upon meeting the dehumidify condition, if it is detected that the system is under antifreeze protection, the com
-pressor and outdoor fan will be stopped,and the indoor fan will run at lowspeed. When antifreeze protection is released
and the compressor has stopped for 4minutes, the complete unit will resume its original operating status.
6.1.2.3 HEAT Mode (there is no this mode for cooling only unit)
6.1.2.3 .1The conditions and process of heating
Tset
Tset
Compressor
Outer fan
Inner fan
Reversal valve
Running Stop
Stop heating
Original running state
Start heating
Tamb.
6Min. 3Min. 6Min.
2Min. Setting
fan speed 2Min. Setting
fan speed
When Tamb Tset +2 ,the system enters heating running, in this case, the reversal valve, compressor,
outer fan enter simultaneously running.The indoor fan will delay at most for 2min to run.
When Tamb Tset +4 ,the compressor and outdoor fan will stop, but the reversal valve is still with power on,
the indoor unit will run at setting fan speed for 60s then will stop .
When Tset +2 <Tamb < Tset +4 ,the unit will maintain its original operating status.
 Under this mode, the switchover valve will be powered on, and the setting temperature range is16 ~30 .
6.1.2.3.3 Conditions and processes of defrost
This unit adopt intelligent defrosting,it can defrost according to the frosting conditions,dual 8 display H1
6.1.2.3.4 Protection
 High Temp. Protection
If it is detected that the evaporator tube temperature is too high, the outdoor fan will be stopped. When the tube
temperature resumes to normal, the outdoor fan will be restarted.
 Noise Silencing Protection: If the unit is stopped by pressing ON/OFF, the reversal valve will be stopped after
2-minute lag; or 2 minutes willbedelayed upon mode switching.
6.1.2.4 Fan mode
Under FAN mode, only the indoor fan runs at setting speed.The RUN indicator will be bright. Double 8 module indicator
will display the setting temperature. When stand by, the power indicator is bright but the unit does not run.
6.1.2.5 Auto Mode
Under this mode, the system will automatically select its run mode (cool, dehumidify, heat or fan) with the change of
ambient temperature. For protection function, same as under cooling and heating mode.

3.Other controls
1. Memory function
Memory contents: Mode, up and down swing, Light, Setting temp., Setting fan speed, Ordinary setting
Fahrenheit/Centigrade, after powered off, and powered on, it will run at the memory contents.
If no timer setting function in last remote control order, the system will memorize the last remote control
order, the system will memorize the last remote control order and work with last remote control setting.
In the last remote control order, there is ordinary timer function, if power off happen beffore the timer
arrived, the system will memorize the last remote control timer function, and will recalculate.
If there is timer function in last remote control order, but timer has arrive, system will run at timer on or timer
off and power off, after repowered on, the system will run at the mode before power off.
Timer function
1.Ordinary Timer setting:
Timer on: Under unit off, the timer on function could be set up, if timer on has arrived, controller will run at
setting mode, the timer interval is 0.5hr, setting range is 0.5-24hrs.
Timer off: Under unit off, the timer off function could be set up, if timer off has arrived, controller will run at
setting mode, the timer interval is 0.5hr, setting range is 0.5-24hrs.
Timer setting for hour:
Timer on: if system is running, to set timer on, the system will continue to run, if unit is off to set up timer on,
when timer on has arrived, the system will run at pressetting mode.
Timer off: If system is off to set up the timer off, when to set up timer off, the unit will stand by, when unit is on,
to set up timer off, when the timer off arrived, the system will stop to work.
Timer setting change:
When system is in Timer status, can set up timer on and timer off by wireless remote control, to reset up Timer
also, the system will run at last setting status.
When system is running, at the same time to set up Timer on and Timer off, the system will keep the present
setting status, when time arrived, system will stop to work.
When system stop, at the same time to set up Timer on and Timer off, the system will stop, untile the timer
arrived, the system will start to work.
Hereafter, when timer of timer on in every day arrived, it will run the presetting modes, after timer off arrived,
the system will stop.
(3) Auto button
After powered on, press this button, it will run at Auto mode, when repressed, the unit will turns off.
(4) Buzzer
The controller is powered on and detect the signal received, the buzzer will beep.

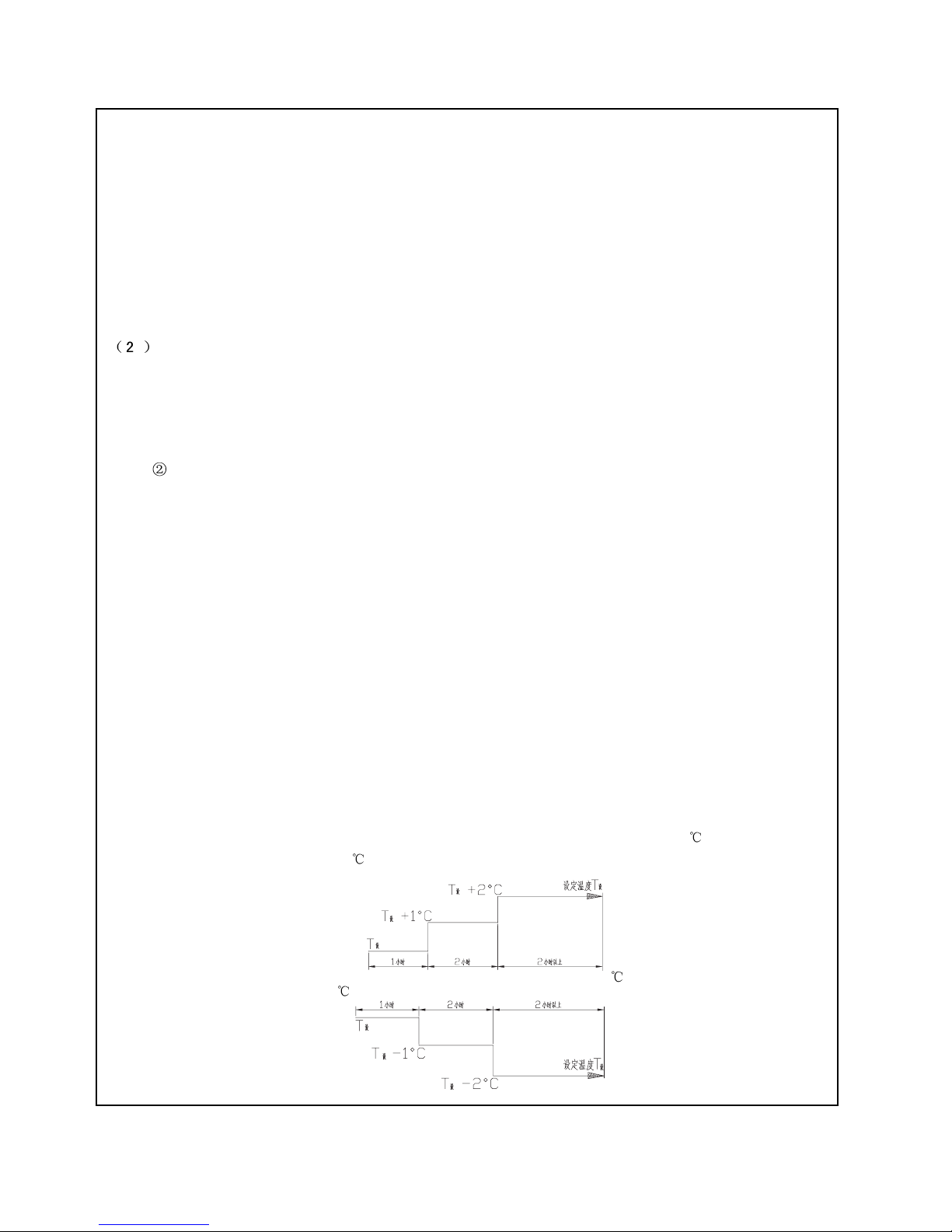

(5) Sleep function
Under cooling or dehumidifying mode, the preset temperature will automatically rise by 1 , ine hour after
setting of sleep program and rise by 1 after 2hours.
Under heating mode, the preset temperature will automatically decrease by 1 one hour after setting of sleep
program and decrease by another 1 after 2hours.

(6) Turbo function
The turbo function is available in Cool and Heat modes.
(7) Dry function
Dry function is available in Cool and Dehumidifying modes.
(8) Auto fan speed control
In this mode, indoor fan can run with Hig, Mid, Low speeds.
(10) Displayer
Running figure and mode figure display
Dual 8 display
After powered on, the figure will be displayed, then only Power/running indicator turn on. When using
remote conroller to open the unit, it will turn on, at the same time to display current setting running modes.
When the unit is turned on, after powered on, the nixie tube will display the setting temp.(setting range is 16-
30 ). Under Auto mode, cooling and fan will display 25 , heating will display 20 , cooling only control
display 25 .
(9) Up and down swing control
After powered on, the lower swing motor will firstly rotate the guide louver to position 0, close up the air outlet
vent; After unit turned on, if to set up swing function, when indoor fan stop running, the guide louver will stop
at current position, inner fan motor is running, guide louver will resume to swing.From Cool, Dry, Fan modes
to Heat mode, the guide louver will be opened at D position, when turn on swing will run at (A-D); from Heat
mode to Cool, Dry, Fan mode, the fan louver will turn to B position, if turn on the swing, it will run at (A-C).
(11) PG motor lock protection
When turn on the fan motor, if motor continuously run for a while and the running speed is very slow, in order
to prevent motor automatically self-protection, it will stop running and display lock; If currently turns unit on,
that dual 8 will display lock error code H6; If current is unit off, will not display the block error information.
LCD Display
When cooling and dehumidifying, the Cool and indicator will turn on, when heating, the Heat and Run indicaor
will turn on, when in fan mode, the indicator will turn on.

Manual 2 of functions of remote controller
1. Temperature parameter
The room setting temperature(Tpreset)
The room ambient temperature (Tamb)
Basic Functions
Once energized, the compressor should in no way be restarted unless after 3-minute time interval at least for the first energization, the
compressor will be started without 3-minute lag. The compressor, once started, will not be stopped within 6 minutes with the charge of
room temperature.
Cooling Mode
Cooling Conditions and Process
When Tamb. Tpreset 1 , the unit will run under cooling mode, in which case the compressor and outdoor fan will start and
the indoor fan will run at setting speed.
When Tamb. Tpreset 1 , the compressor and the outdoor fan will stop, the indoor fan will run at setting speed.
When Tpreset 1 Tamb. Tpreset 1 , the unit will maintain its original operating status.
Under this mode, the four-way valve will not be powered on and the setting temperature range is 16-30 .
The displayer displays running signal, cooling signal and setting temperature.
Start cooling
Original operating status
Stop cooling
min. min. min.
Preset
Preset
amb.
Compressor
Outdoor fan
Indoor fan
Run Stop
Preset speed
Protection
Antifreeze Protection
If it is detected that the system is under antifreeze protection, the compressor and outdoor fan will be stopped,
and the indoor fan will run at setting speed. When antifreeze protection is released and the compressor has
stopped for 3 minutes, the unit will resume its original operating status.
Compressor
Outdoor fan
Indoor fan
Run Stop
During antifreeze protection
3 min.
Preset speed
Over current protection
DRY Modes
This manual is applicable to 18K, 24K models, the centigrade is used for the following function manual, if there will be the Fahrenheit
degree, that will be TF= TCX1.8+32.
If it is detected that the system amperage exceeds the specified value(about 22 A), the main unit will enter into the status
that only the fan is running. After 3 minutes and overcurrent protection is released, the main unit will resume its original
operating status .If it is 6 times continuously detected overcurrent protection (if the compressor has run over 6 mins continuously,
the times of protection will be cleared),the main unit will be stopped on standby,the nixietube will display error code "E5",
power indicator will blink and it is need to restart the unit by the wireless remote control.

DRY Modes
When Tamb. Tpreset 2 , the unit will run under DRY cooling mode, in which case the compressor and outdoor fan will
be started and the indoor fan will run at low speed.
When Tpreset 2 Tamb. Tpreset 2 , the unit will run under Dry mode, in which case the indoor fan will keep run at low speed,
the compressor and outdoor fan will be stopped after 6mins. After 4 minutes, the compressor and outdoor fan will be restarted. The
dehumidifying process is so repeated in cycle.
When Tamb. Tpreset 2 , the compressor and outdoor fan will be stopped, the indoor fan will run at low speed.
Under this mode, the switchover valve will not be powered on and the setting temperature range is 16-30 .
Compressor
Outdoor fan
Indoor fan
Run Stop
Start cooling
Stop running
Preset speed
min. min.
min. min.
Tpreset
Tpreset
Tamb.
Dehumidifying
Protection
Antifreeze Protection
HEAT Mode (there is no this mode for cooling only unit)
The conditions and process of heating
When Tamb Tset 2 ,the system enters heating running, in this case, the reversal valve, compressor,
outer fan enter simultaneously running.The indoor fan will delay at most for 2min to run.
When Tamb Tset 4 ,the compressor and outdoor fan will stop, but the reversal valve is still with power on,
the indoor unit will run at setting fan speed for 60s then will stop .
When Tset 2 Tamb Tset 4 ,the unit will maintain its original operating status.
Under this mode, the switchover valve will be powered on and the setting temperature range is 16-30 .
Tpreset
Tpreset
Tamb.
Compressor
Outer fan
Inner fan
Inner fan
Running Stop
6Min. 3Min. 6Min.
Stop heating
Original running state
Start heating
2Min. fan speed
Setting 2Min. Setting
fan speed
Conditions and processes of defrost
This unit adopt intelligent defrosting,it can defrost according to the frosting conditions,dual 8 display H1
Protection
Anti-high temperature protection
Other protection
The other protections are the same with that under Cool mode.
Under dehumidifying and cooling mode, i f it is detected that the system is under antifreeze protection, the compressor and
and outdoor fan will be stopped, and the indoor fan will run at low speed. When antifreeze protection is released and the
the compressor has stopped for 3 minutes, the complete unit will resume its original operating status.
Upon meeting "run 6 mins and stop 4 mins" dehumidify condition, if it is detected that the system is under antifreeze
protection,the compressor and outdoor fan will be stopped, and the indoor fan will run at low speed. When antifreeze prote-
ction is released and the compressor has stopped for 4 minutes, the complete unit will resume its original operating
status.

Other controls
Timer function
Ordinary Timer setting:
timer on: Under unit off, the timer on function could be set up, if timer on has arrived, controller will run at
setting mode, the timer interval is 0.5hr, setting range is 0.5-24hrs.
Timer off: Under unit off, the timer off function could be set up, if timer off has arrived, controller will run at
setting mode, the timer interval is 0.5hr, setting range is 0.5-24hrs.
Timer setting for hour:
Timer on: if system is running, to set timer on, the system will continue to run, if unit is off to set up timer on,
When timer on has arrived, the system will run at pressetting mode.
Timer off: If system is off to set up the timer off, when to set up timer off, the unit will stand by, when unit is on,
to set up timer off, when the timer off arrived, the system will stop to work.
Timer setting change:
When system is in Timer status, can set up timer on and timer off by wireless remote control, to reset up Timer
also, the system will run at last setting status.
When system is running, at the same time to set up Timer on and Timer off, the system will keep the present
setting status, when time arrived, system will stop to work.
When system stop, at the same time to set up Timer on and Timer off, the system will stop, untile the timer
arrived, the system will start to work.
Hereafter, when timer of timer on in every day arrived, it will run the presetting modes, after timer off arrived,
the system will stop.
Auto button
After powered on, press this button, it will run at Auto mode, when repressed, the unit will turns off.
Buzzer
The controller is powered on and detect the signal received, the buzzer will beep.
Sleep function
Under cooling or dehumidifying mode, the preset temperature will automatically rise by 1 , ine hour after
setting of sleep program and rise by 1 after 2hours.
Under heating mode, the preset temperature will automatically decrease by 1 one hour after setting of sleep
program and decrease by another 1 after 2hours.
Tpreset
Tpreset
Tpreset Preset temp. Tpreset
1hour 2hours 2hours above
Auto Mode
Under this mode, the system will automatically select its run mode (cool, dehumidify, heat or fan) with the change of
ambient temperature. For protection function, same as under cooling and heating mode.
Fan mode
Under FA N mode, only the indoor fan runs at setting speed.The RUN indicator will be bright. Double 8 module indicator
will display the setting temperature. When stand by, the power indicator is bright but the unit does not run.
Noise SilencingProtection
If the unit is stopped by pressing ON/OFF, the reversal valve will be stopped after
2-minute l g; or 2 minutesa w ll ibe
delayed upon mode switching.
If it is detected that the evaporator tube temperature is
too high, the outdoor fan will be stopped. When the tube
temperature resumes to normal,
the outdoor fan will be restarted.
Over current product
The overcurrent protection is the same with the the over current protection under cool mode.

Turbo function
The turbo function is available in Cool and Heat modes.
Dry function
Dry function is available in Cool and Dehumidifying modes.
Auto fan speed control
In this mode, indoor fan can run with Hig, Mid, Low speeds.
Up and down swing control
Displayer
Running figure and mode figure display
After powered on, the figure will be displayed, then only Power/running indicator turn on. When using
remote conroller to open the unit, it will turn on, at the same time to display current setting running modes.
Dual 8 display
PG motor lock protection
When turn on the fan motor, if motor continuously run for a while and the running speed is very slow, in order
to prevent motor automatically self-protection, it will stop running and display lock; If currently turns unit on,
that dual 8 will display lock error code H6; If current is unit off, will not display the block error information.
After powered on, the lower swing motor will firstly rotate the guide louver to position 0, close up the air outlet
vent; After unit turned on, if to set up swing function, when indoor fan stop running, the guide louver will stop
at current position, inner fan motor is running, guide louver will resume to swing.From Cool, Dry, Fan modes
to Heat mode, the guide louver will be opened at D position, when turn on swing will run at (A-D); from Heat
mode to Cool, Dry, Fan mode, the fan louver will turn to B position, if turn on the swing, it will run at (A-C).
When unit is turned off, the guide louver will turn to position 0, the swing is only available after preset the
swing function, and indoor unit is running.
Note: When to set up at position L to B, A to C, B to D, the guide louver will swing between position W to D.
Tpreset
Tpreset
Tpreset
1hr. 2hrs. 2hrs. above
Tpreset temp.
Power-off Memory
Memory contents: Mode, UP/DOWN Swing, light, Set temp, Set fan speed.
After de-energized, and re-energized, the unit will start to run with the memory function automatically. The system, if the last
remote control signal do not set timer function, will memorize the
last remote control signal and run according to it. If the last
remote control signal has set timer function, the system is de-energized before the set time,when re-energized, the system
will memorize the timer function, the set time will recalculate. If the last remote control signal has set timer function and the
system is de-energized after the set time, when re-energized, the system will memorize the running status before de-energized.
When the unit is turned on, after powered on, the nixie tube will display the setting temp.(setting range is 16-30 ).
When the preset temperature display signal has been received, the nixie tube will display the preset temperature;
If the display ambient temperature signal has been received, the nixie tube will display the current indoor ambient
temperature, if to set up others by remote controller that the display will maintain its status. At displaying ambient
temperature, the unit received the remote control signal, it will display 5s preset temperature then turn to ambient
temperature display. The ambient temperature sensor malfunction will display F1; Indoor tube sensor will display
F2, wire jumper cap protection displays C5.

Dissassembly Procedures
Front Pane
(09) Disassembly procedures for indoor unit
1. Disassemble the front panel, filter
Filter
Bend the guide louver so that the movable
lock of guide louver is released to remove the
guide louver.
2. Disassemble the guide louver
Screw
Operating Procedures / Photos
Dissassembly Procedures
77
77
7
Screw
Guide louver
Open the 2 screw covers at the front case and
screw off 4 screws. Pull out the movable latch at
the front case with hand, disassemble the front
case.
3. Disassemble the front case
Protect board
Push the rotating shaft of front panel outsidely to put out
it from the groove, screw off one screw on the display
guard board, then take down the displayer connection
wire, can take down the front panel.

Operating Procedures / Photos
Screw off the screw, then press the clasps in by
till they loose, then lift up wards the electric cover.
4. Disassemble the electric cover
5. Disassemble water tray
Electric cover
5. Disassemble the electric box
Screw off the grounding wire of the evaporator,
remove the temperature sensor for the pipe, put
out the connection lines for the step motor and
the indoor motor. Screw off the screw fixing the
electric box. Remove the electric box.
Grounding wire
Connector
Tube Sensor
Clasp
Clasp
Water tray
Screw
Clasp
Screw
Loosen the clasps at both sides of water tray sub-assy then lift them up,
can take out of the water tray sub-assy.
Note:Because the water tray is connected with the water drainage pipe,
so when take it out should pay more attention, avoid to hurt the fin of
evaporator.

Operating Procedures / Photos
Screw off 4 screws fixing the motor cover and then
take the motor cover out.
Screw off the holding screw at the left shaft sleeve
of the cross flow fan, pull out the motor, and re-
move the cross flow fan.
7. Disassembling motor and cross flow fan
6. Disassembling the evaporator
Screws
CAUTION:
When repair, Carefully take out the evaporator and
pay attention to protect the connecting pipe.
Screws
Motor Press Plate
Screws
Screw
Screw off one screw which fix the connection pipe clamp.
Take off the connection pipe clamp.
