Singer SMW930MCO User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
MODEL: SMW930MCO
900W 30L 1100W
Grill Power
55 5

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input (Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Rated Input (Convection):
1100W
Approx. 18kg
900W
2500W
315mm
520X496X326mm
SMW930MCO
230V~50Hz
1450W
30L
2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
1. Read and follow the specific:"PRECAUTIONS TO
3. Keep the appliance and its cord out of reach of children
less than 8 years.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
3

.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due to the possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foods must not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
6. WARNING: It is hazardous for anyone other than a
adversely affect the life of the appliance and possibly
result in a hazardous situation.
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
4

-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
21.The microwave oven is intended for heating food and
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
18.The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
this oven.(for ovens provided with a facility to use a
17.Only use the temperature probe recommended for
temperature-sensing probe.)
allowed during microwave cooking.
cleaner.
19.The microwave oven must be operated with the
22. Metallic containers for food and beverages are not
23. The appliance shall not be cleaned with a steam
16. The appliance must not be installed behind a
applicable for appliances with decorative door.)
decorative door in order to avoid overheating. (This is not
24.The appliance is intended to be used freestanding.
20.This appliance is intended to be used in household
a wall.
25.The rear surface of appliances shall be placed against
5

READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
be taken to avoid touching heating elements inside the
oven.
30. During use the appliance becomes hot. Care should
26. Steam cleaner is not to be used.
27. Surface of a storage drawer can get hot.
use. Young children should be kept away.
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously supervised.
29. WARNING: The appliance and its accessible parts
adult supervision due to the temperatures generated.
combination mode, children should only use the oven under
32.WARNING: When the appliance is operated in the
to clean the oven door glass since they can scratch
which may result in shattering of the glass.
scrapers
the surface,
28. Do not use harsh abrasive cleaners or sharp metal
31. WARNING: Accessible parts may become hot during
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9
(Microwave-safe
only)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
10

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

Example: If you want to use 80% microwave powerto cook for 10 minutes, you can
operate the oven as the following steps.
OPERATION INSTRUCTION
2. Microwave Cooking
Select different microwave power level and set cooking time as you wish. There are five
power levels available for choosing. Keep on pressing " MICROWAVE " to choose the power.
MICROWAVE" once, the oven will display "P100".
Presses
Instructions Microwave
Power
Display
1
2
3
4
5
MICROWAVE" once again to choose 80% power, the oven will display "P80".
Press the number buttons of "1","0","0","0" in order, the oven will display "10:00"
P100
P 80
P 50
P 30
P 10
1.Clock Setting
Note: "MICROWAVE" Pad presses instructions
(1) Press "
(2) Press "
(3)
(4) Press "START/+30SEC." to start cooking, ":" will light.
(1) Press " CLOCK/KITCHEN TIMER "once, "00:00" will display.
(2) Press the number keys and enter the current time. For example,
time is 12:10 now, please press "1,2,1,0" in turn.
(3) Press " CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash and the clock
will be lighted.
(4) If the numbers input are not within the range of 0:00--23:59, the setting will be invalid
until valid numbers are input.
Note: (1) In the process of clock setting, if the "STOP/CLEAR " button is pressed, the oven
will go back to the former setting
(2)If the clock need to be reset, please repeat step 1 to step 3.
automatically.
High
M.High
Med.
M.Low
Low
12

4. Grill Cooking
Example: If you want to use to cook for 35 minutes, you can operate
the oven as the following steps.
5. Convection Cooking(With preheating function)
GRILL" key , the oven will display " G-1 ".
Press the number buttons of "3","5","0","0" in order, the oven will display "35:00"
START/+30SEC." key to start cooking.
Press the number buttons to set the cooking time.
START/+30SEC." key to start cooking.
3. Kitchen Timer
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
(1) Press the "
(2)
(3) Press the "
(3)
(4) Press the "
Note:If half the grill time passes, the oven will sound twice to tell you to turn the food
over.In order to have a better effect of grilling food, you should turn the
food over,close the door, and then press" " to continue cooking.
If there is no operation, the oven will continue working.
START/+30SEC.
Press the " CONVEC." key several times to select the temperature from 140-230 .
START/+30SEC
temperature
figure will flash when reach to the temperature and buzzer will ring
you to put the food into the oven
." key to start preheating. The
and close the door.
(1)
(2) Press the "
(2) Press the number keys and enter the timer time.(the maximum cooking time is
99 minutes and 99 seconds)
(3) Press " START/+30SEC. " to confirm setting.
(4) When the timer time arrives, the buzzer will ring 5 times.
If the clock be set (24-hour system), the screen will display the current time.
Note: (1) Kitchen Timer is a timer.
(2) During kitchen timer, anny program cannot be set.
(1) Press "CLOCK/KITCHEN TIMER " twice, the screen will display 00:00, the first hour
figure flash.
100% grill
twice to remind
13

7. Combination Cooking
Example: If you want to use combination to cook (C-1) for 40 minutes, you can
operate the oven as following steps.
6. Convection Cooking(Without preheating function)
COMBI.
Press the number buttons of "4", "0", "0", "0" in order, the oven will display "40:00".
START/+30SEC." key to start cooking.
Press the number buttons to set the cooking time.
" key to start cooking.
Presses
Instructions Microwave
Power
Display Convection
Power
1
2
3
4
Grill
Power
C-1
C-2
C-3
C-4
Note: "
8. Reheat
START/+30SEC." key to confirm,the "h-1" will display.
(Press the " REHEAT " pad several times to select the the weight of the cooking food.)
"START/+30SEC." key to start cooking.
" key once, the oven will display "C-1".
COMBI " Pad presses instructions
(2)
(3) Press the "
(1) Press the "
(2)
(3) Press the "
(2) Press "
(3) Press "REHEAT" pad , the oven will display "150"
(4) Press
and "g" indicators will light.
REHEAT" pad , the "h-1" will display in oven and "Auto" indicator will
light(Press the " REHEAT" pad several times to select the cooking program you
wanted.)
(1) Press "
START/+30SEC.
Press the " CONVEC." key several times to select the temperature from 140-230 .
(1)
14
.

Reheat Chart
Menu Weight(g) Display
h-1
(Auto Reheat)
h-2
(Dinner Plate)
h-3
(Beverage/Coffee)
h-4
(Roll/muffin)
150
250
350
450
600
250
350
450
1 cup(approximately 240g)
2 cups(approximately 480g)
3 cups(approximately 720g)
1(approximately 70g)
2(approximately 140g)
3(approximately 210g)
150
250
350
450
600
250
350
450
1
2
3
1
2
3
9. Defrost By time
10. Defrost By weight
Input the figure of the weight of food.
(The input figure of the weight should be within 100--2000g)
Input the figure of the time of cooking.
(The maximum cooking time is 99 minutes and 99 seconds.)
(1) Press " " once, the oven will display "d-1".
(2)
(3) Press "START/+30SEC." key to start defrosting.
(1) Press "DEFROST" pad twice, the oven will display "d-2".
(2)
(3) Press "START/+30SEC." key to start defrosting.
DEFROST
15

11. Defrost Groud meat
Input the figure of the weight of food.
(The input figure of the weight should be within 100--2000g)
12. Defrost Sea food
Example : Cooking vegetable of 350g:
(1) Press "VEGETABLE
(2) Press "VEGETABLE" button again to choose weight, oven will display "350",
(3) Press "START/+30SEC." to start cooking,
13. Auto Menu Cooking
The numeral pads 0—9 are matching with ten different subjects respectively;
Pad Cook Pad Cook Pad Cook
1
2
3
4
5
6
7
8
VEGETABLE
FISH
MEAT
PASTA
POTATO BREAD
SOUP
ROAST
Pad Cook
9
0PIZZA
CAKE
Input the figure of the weight of food.
(The input figure of the weight should be within 100--2000g)
(1) Press "DEFROST" pad thrice, the oven will display "d-3".
(2)
(3) Press "START/+30SEC." key to start defrosting.
(1) Press "DEFROST" pad 4 times, the oven will display "d-4".
(2)
(3) Press "START/+30SEC." key to start defrosting.
" button, "Auto " will light.
"g", "AUTO" will light.
"g" will go out, time
counts down, "Auto " will flash.
Note: 1)Cake menu is under convection cooking with 1 -warm-up function,
and you should preheat first following the auto menu operation, when the oven
reaches the temperature, it will stop working and sound to remind opening
the door to put cake in, then press " " to start cooking.
80
START/+30SEC.
2) When roast chicken is selected and 2/3 of the time has passed, it will ring twice to tell you
over the food. You can just leave it continue. For better result,
the door, and then press" "to continue cooking.
to turn turn the food over, close
START/+30SEC.
16

Auto menuChart
Menu Weight(g) Press Times Display
Roast Chicken
Vegetable
Fish
Meat
Pasta
Potato
Bread
Soup
150(add water 30g)
150
250
350
450
650
150
300
450
600
50(with cold water 450
100(with cold water 800g)
150(with cold water 1200g)
1(approximately230g)
2(approximately460g)
3(approximately690g)
200ml
400ml
600ml
500
750
1000
1200
50g
100g
150g
475
200g
300g
400g
Once
Twice
Thrice
Once
Twice
Thrice
4 times
5 times
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Once
Twice
Thrice
Cake
Pizza
150
350
500
150
250
350
450
650
150
300
450
600
50
100
150
1
2
3
200
400
600
500
750
1000
1200
50
100
150
475
200
300
400
350(add water 60g)
500(add water 120g)
g)
17

15.Multi-Stage Cooking
Two stages of cooking can be maximumly set. If one of the stages is defrosting, it should
be put in the first stage , and auto menu should not be set here. The buzzer will
after each stage and the next stage will begin.
14.MEMORY
16. Speedy Cooking
Example: If you want to cook the food with 100% microwave power for 10 minutes+ 80%
microwave power for 15 minutes. Do it as following:
cooking with full microwave power for 30 seconds.(the maximum setting is 99 minutes and
99 senonds)
"START/+30SEC." key to add 30 seconds cooking time.(in the Weight Defrosting,
Multi-stage cooking or Auto Menu state is invalidation)
program, and the oven will display "1", "2" or "3".
Example: ) Press "MICROWAVE" once to choose 100% microwave power;
(b) Press number keys "1","0","0","0" in order to adjust the cooking time;
"START/+30SEC." to start cooking and save the program automatically.
just only need to press "MEMORY" key to choose the program wanted and then press
"START/+30SEC." to start cooking.
automatically
ring once
memory program).
press
(1) Press "MEMORY" key one to three times to set memory "1", memory "2" or memory "3"
(2) Set one or two stages program you want(Defrosting or Auto menu cannot be set as
(3) Press "MEMORY" key to save the memory program setted, or press
(4) Next time when you want to cook with the memory program which has been set, you
(1) Press "MICROWAVE" once to choose 100% microwave power;
(2) Press number keys "1","0","0","0" in order to adjust the cooking time;
(3) Press "MICROWAVE" twice to choose 80% microwave power;
(4) Press number keys "1","5","0","0" in order to adjust the cooking time;
(5) Press "START/+30SEC. " to start cooking.
(1) When the oven is in the waiting state, press "START/+30SEC." key to start
(2) When the oven is in the microwave,grill, convection and combination cooking states,
(a
18

17. Inquiring Function
(1) In cooking state, press " , and
will be displayed for 2~3 seconds.
(2) In cooking state, press " inquire the time . The
flash for 2~3 seconds.
18. Lock-out Function for Children
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and a key indicator will light. The oven will
display "0:00" or current time.
Lock quitting: In locked state, press " STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released and the key indicator will go out.
" to
CLOCK/KITCHEN TIMER time will
","MICROWAVE", or "CONVEC."
COMBI. the current power
19

According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.

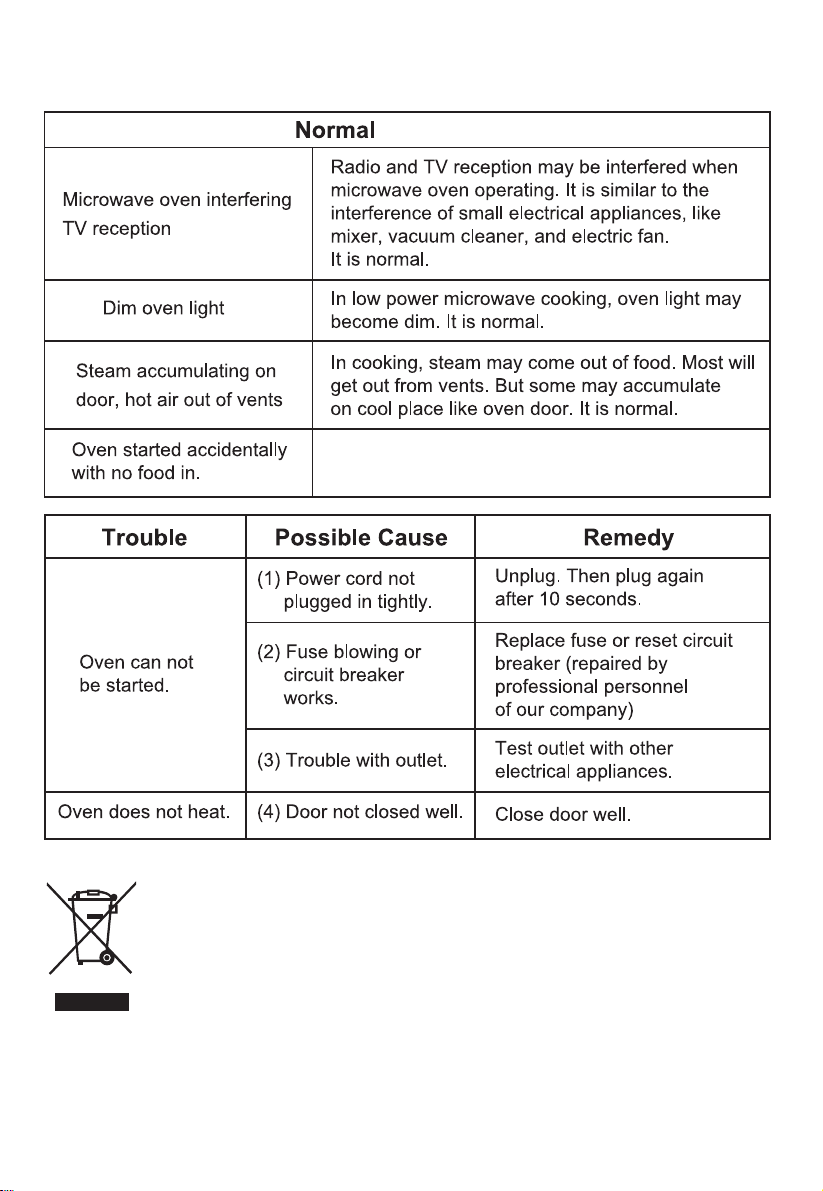

Trouble shooting
20
