Singer 14T968DC Professional 5 User manual

SINGER®
PROFESSIONAL 5™
Overlock Workbook

Congratulations on the purchase of your new SINGER®PROFESSIONAL 5™
Overlock Machine! The SINGER PROFESSIONAL 5 (14T968DC) Overlock
Machine is a time saving innovation that provides professional seams,
seam finishes, and creative stitch capabilities. Sew one-of-kind projects
with the special effects of decorative stitching, such as Flatlocking,
Chainstitching and Rolled Hemming. The overlock works side by side
with your conventional sewing machine and adds new creative possiblities
to your sewing projects.

This workbook has been created as a tool for learning the various stitch
types, which you can then apply to your projects. The workbook is divided
into individual chapters, and each chapter focuses on a particular
stitch type. Each chapter has comprehensive machine set-up and threading
directions, photos and definitions on how and where the stitch can be used,
and suggestions for successful stitch formation. It is a good starting point to
fully understanding your SINGER PROFESSIONAL 5 Overlock Machine.

We are certain that your creativity will be inspired and that you will have
many hours of sewing enjoyment with this easy-to-use, feature-packed
machine!
Enjoy!
The Singer Sewing Company
SINGER®and PROFESSIONAL 5™are exclusive trademarks of The Singer Company Ltd. or its affiliates. ©2008
The Singer Company Limited or its affiliates.

Chapter 1 Double Chain Stitch
Chapter 2 Two-Thread Wrapped Edge Overlock
(narrow and wide)
Chapter 3 Two-Thread Overedge (narrow and wide)
Chapter 4 Three-Thread Overlock
(narrow, wide, and wide with decorative threads)
Chapter 5 Three-Thread Flatlock (narrow and wide)
Chapter 6 Three-Thread Ultra-Stretch Mock Safety Stitch
Chapter 7 Four-Thread Ultra-Stretch Mock Safety Stitch
Chapter 8 Four-Thread Safety Stitch
Chapter 9 Five-Thread Safety Stitch Wide
Chapter 10 Five-Thread Safety Stitch Narrow
Chapter 11 Cover Hem (Cover Stitch) Narrow
Chapter 12 Cover Hem (Cover Stitch) Wide
Chapter 13 Triple Cover Hem Stitch
Chapter 14 Three-Thread Rolled Hem
Chapter 15 Additional Presser Feet
Table of Contents

Chapter 1:
Double Chain Stitch

Double Chain Stitch
This stitch is suitable for straight seams. It also can be used for a decorative
chainstitch topstitching effect. The Middle Cover needle and the Chainstitch Looper
are used. Decorative thread can be placed in the Chainstitch Looper, the needle, or
in both to create various effects.
Double Chain Stitch page 1

ATD:
Auto Tension Dial
“D”
Left Cover Stitch
Needle “C” Unthreaded and Remove Needle
Middle Cover Stitch
Needle “D” (Blue) Threaded
Right Cover Stitch
Needle “E” Unthreaded and Remove Needle
Overedge Left
Needle “A” Unthreaded and Remove Needle
Overedge Right
Needle “B” Unthreaded and Remove Needle
Upper Looper
Looper Disengaged and
Not Threaded
Lower Looper
Unthreaded
Chainstitch Looper
(Brown) Threaded
Upper Knife Not Used
Seam Guide Plate Installed
Seam Width Dial “N”
Stitch Length Dial “N”
Presser Foot
Pressure “N”
Differential Feed Dial “N”
Stitch Finger “R”
Spreader Not Engaged
Set at::
Needle:
Double Chain Stitch page 2

Double Chain Stitch

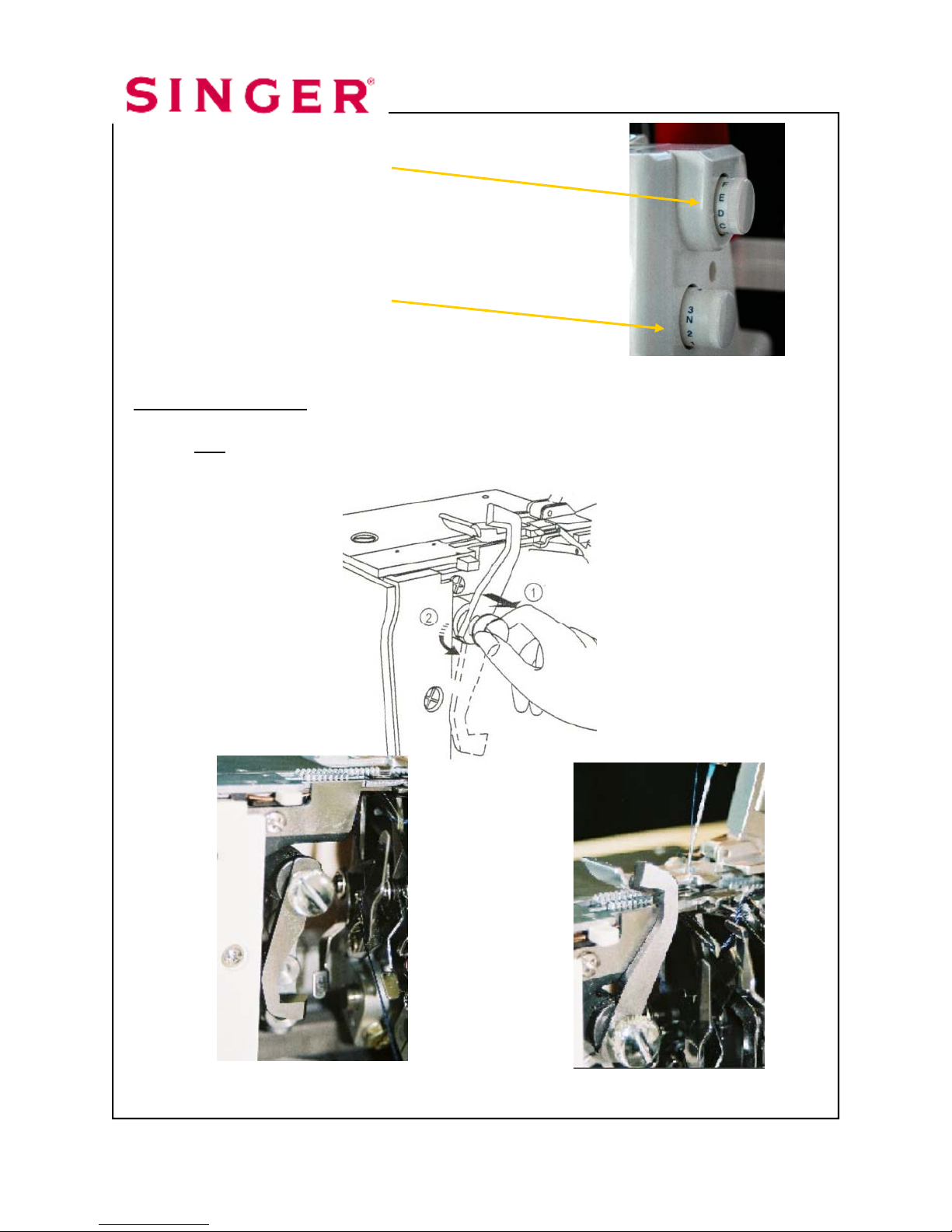

Turn Auto Tension Dial to “D”.
Turn Stitch Length Dial to “N”.
Disengage Upper Knife. The knife will not trim the fabric when it is disengaged.
1. Open Looper Cover.
2. Pull the movable knife holder (silver screw) to the right as far as it will go.
3. Turn the holder counter clockwise until the knife clicks into a lock
position.
Upper Knife Engaged Upper Knife Disengaged
Double Chain Stitch page 3

Turn Presser Foot
Pressure Dial to “N”.
Turn Differential Feed
Dial “N”.
Turn Seam Width Dial
to “N”.
 Place Stitch Finger to “R”.
Double Chain Stitch page 4

Install the Seam Guide Plate. The Seam Guide Plate provides a flat surface for the
fabric and seam guides. It can only be used when the knife and the lower looper
are disengaged. The Seam Guide Plate is used when sewing the Chainstitch,
Cover Stitch and the Triple Cover Stitch.
1. Open looper cover.
2. Remove Knife Cover by pulling it slightly
towards you.
3. Slide the Seam Guide Plate into place.
Disengage Upper Looper. By disengaging the Upper Looper, the looper no longer
moves when sewing. It is nonoperative. If the looper was still engaged, it would hit the
Seam Guide Plate.
1. Turn handwheel until the Upper Looper is in the
highest position.
2. Push the clutch button to the left and up to
disengage.
Upper Looper Disengaged
Double Chain Stitch page 5
Upper Looper Engaged

Thread Chainstitch Looper with a decorative
thread
1. Raise the Presser foot to release the
tension disks. Pass the thread from
the back to the front through the
thread guide .
2. Thread the top cover thread guide by pulling the thread towards the left until
it slips under the guide. Then pull thread along the right side of the button,
as illustrated.
3. While holding the thread, firmly pull the thread between the tension disks.
Double Chain Stitch page 6

4. Turn the hand wheel toward you until the Chainstitch Looper extends out
10mm (approximately ½”) from the needle plate edge.
5. Thread the looper area of the machine following the brown color-coded
thread guides 4-11. Use the tweezers provided in the accessory case to
aid in threading the looper.
6. Place the thread through threading guide and .
7. Continue threading guides , , and .
8. Thread the looper eye (A) from front to back.
Pull about 4 inches of thread through the
looper. Position the thread into the V cutout
(B) on the threader. Firmly hold the thread
tail with your left hand and pull threader
lever (C) up into place (D). Gently pull 5-6”
of thread to the back of the machine.
Double Chain Stitch page 7
“V” cutout
Threader lever

Thread Middle Cover Stitch Needle with
regular overlock thread.
1. Raise the Presser Foot to release the
tension disks. Thread the Cover
Stitch Middle/Chain Stitch needle as
illustrated 1-9.
2. Pass thread from back to the front
through the thread guide .
3. Thread the top cover thread guide by pulling the thread towards the left until
it slips under the guide. Then pull the thread along the right side of the
button as illustrated.
4. While holding the thread, firmly pull the thread between the tension disks.
Double Chain Stitch page 8

5. Continue to thread points 4-8. Slip the thread into the middle slot of the
thread guide . Go over the take up lever . Continue by slipping the
thread into the middle slot of the thread guides and .
6. Before threading the eye of the needle, make sure the thread is in front of
the thread guide located on the bottom of the needle clamp for the Cover
Stitch or Chainstitch.
7. Thread the eye of the Middle Cover Needle .
8. Draw about 4 inches of the thread through the needle eye towards the back
of the machine.
9. Place the thread to the back, under the Presser Foot. Lower foot and sew.
4
5
7
8
Double Chain Stitch page 9
6

Fuse a layer of fabric to a lightweight batting.
Fuse a fabric backing to the other side of the
batting, to create a quilted piece of fabric.
Using a rinse-away fabric marking pen draw a design
lines on the wrong side of the fabric.
Lift the Presser Foot to the heightest position.
Position the fabric right side down. Align the needle
with one of the lines drawn.
Lower the Presser Foot and sew.
The decorative thread will be on the under side.
Makesoftgentle
turns;gradual
curvesworkbest.
Avoidmaking
sharpcorners.
Double Chain Stitch page 10

When sewing the Double Chainstitch, it is necessary to
have fabric under the needle. Avoid sewing off the
fabric.
Continue sewing, following the drawn marking.
To remove fabric, gently turn handwheel to loosen
threads.
Turn fabric over to see the decorative stitching.
Double Chain Stitch page 11

Chapter 2:
Two-Thread Wrapped Edge
Overlock (narrow and wide)

Two-Thread Wrapped Edge Overlock (narrow)
The Two-Thread Wrapped Edge Overlock provides an elegant fine finish to lightweight
fabrics. When using clear threads in conjunction with the Two-Thread stitch, the
fabric appears to have an invisible edge. This gives a couture effect and looks
beautiful on finer fabrics. The Two-Thread Stitch requires the lower looper thread and
one overlock needle thread. The lower looper thread wraps around the fabric’s edge.
There are 2 different ways to set up for a Two-Thread Wrapped Edge Overlock stitch.
For a more narrow stitch (4.0) select the right overedge needle; for a wider stitch(6.0)
the left overedge needle is used.
Right Overedge
Needle Thread
Lower Looper
Thread
Two-Thread Wrapped Edge Overlock (narrow) page 1

Needle:
ATD:
Auto Tension Dial
“D”
Left Cover Stitch
Needle “C” Unthreaded and Remove Needle
Middle Cover Stitch
Needle “D” Unthreaded and Remove Needle
Right Cover Stitch
Needle “E” Unthreaded and Remove Needle
Overedge Left
Needle “A” Unthreaded and Remove Needle
Overedge Right Needle
(Blue) “B” Threaded
Upper Looper
Looper Engaged and Not Threaded
Lower Looper
(Red) Threaded
Chain Stitch Looper
(Brown) Not Threaded
Upper Knife Engaged
Seam Guide Plate Not Installed
Use Knife Cover
Seam Width Dial “N”
Stitch Length Dial “2”
Presser Foot
Pressure “N”
Differential Feed Dial “N”
Stitch Finger “N”
Spreader Engaged
Set at:
Two-Thread Wrapped Edge Overlock (narrow) page 2

Turn Auto Tension Dial to “D”.
Turn Stitch Length Dial to “2”.
Engage Upper Knife. The knife will not trim the fabric when it is disengaged.
1. Open Looper Cover.
2. Pull the movable knife holder (silver screw) to the right as far as it will go.
3. Turn the holder toward clockwise until the knife clicks into a lock position.
Upper Knife EngagedUpper Knife Disengaged
Two-Thread Wrapped Edge Overlock (narrow) page 3

Turn Presser Foot
Pressure Dial to “N”.
Turn Differential Feed
Dial to “N”.
Turn Seam Width Dial
to “N”.
 Set Stitch Finger to “N”.
Two-Thread Wrapped Edge Overlock (narrow) page 4
