TECHNICAL INFORMATION
Super Scanner™ V Metal Detector
Catalog No. MDWAND
INTRODUCTION
The Super Scanner™ V is a compact, lightweight, durable
and easy-to-operate hand-held metal detector. It is ideally
suited for use in any security situation to detect metal
objects on a person’s body. It is capable of detecting a
paper clip from 7" (17.7cm) away. The factory set sensitiv-
ity can be adjusted and an Interference Elimination Button
will decrease the sensitivity to detect much larger metal
objects, bypassing loose change and keys.
Physical contact is not necessary on body searches due
to the pinpoint accuracy of the MDWAND. The Super
Scanner™ V detects all metals, both ferrous, nonferrous,
and stainless steel. A red LED indicates whenever metal

TI11-692ENG-REV1
2 of 8
3 of 8
is detected along with a speaker produced clear audible signal. The optional earphone attachment (No.
MDWANDEAR) allows for “silent” operation or for use in noisy environments. A rechargeable Nickel
Metal Hydride (NiMH) Accessory Battery Kit is also available in both 110V and 220V (No. MDBAT-
TERY110; MDBATTERY220).
COMPONENT IDENTIFICATION
Power Switch—To turn the detector on, set the
switch to the On position. A brief audio and Red
LED alarm will occur, indicating the unit is on.
The Super Scanner™ V is immediately ready
for use.
Audio Alert—The speaker provides a clearly
audible sound whenever metal is detected. When
using the optional earphone accessory, the audio
alert will only sound through the earphone. The
Audio Alert also indicates battery condition.
When approximately 10% of battery life remains,
the sound when metal is detected changes from a
warble to a steady tone.
LEDs
When the Power Switch is turned on, the Green Light will remain illuminated as long as the unit is
on.
When approximately 10% of battery life remains, the Amber Alert Light will turn on, indicating the
battery needs to be replaced or recharged. Approximately one (1) hour of operational time remains
when the amber LED is initially activated.

2 of 8
TI11-692ENG-REV1
3 of 8
Whenever metal is detected, the Red Alert Light will illuminate.
Interference Elimination Button—The detector is factory set for maximum sensitivity to detect
the smallest of items. This high level of sensitivity may produce alarms when approaching a floor
containing rebar. Press and hold this button to decrease sensitivity to a level that does not respond to
the rebar. Release the button and the detector returns to normal sensitivity.
Earphone/Recharger Jack—An earphone is available (see Accessories) for "silent" operation or
for use in noisy environments. The rechargeable NiMH battery is also recharged through this jack.
Do not attempt to recharge conventional batteries. Attempting this will damage the detector. (See
Accessories for Rechargeable Battery Kit.)
Internal Threshold Adjust—Adjustment is used to decrease sensitivity to surrounding material.
Adjustments should only be made by a supervisor who is authorized to set sensitivity levels. Turn
counter-clockwise to decrease sensitivity, clockwise to increase.
Safety Sling—Used to assist the operator in convenient handling of the Super Scanner™ V.
Battery Cover—Remains securely in place at all times but can be easily opened for changing the bat-
tery with no tools required.
OPERATING INSTRUCTIONS
Turn the detector on by setting the Power Switch to the On position. The Green Alert Light will illu-
minate and the Audio Alert will sound to indicate the unit has been turned On. The Green Alert Light
will remain on until the unit is turned Off.

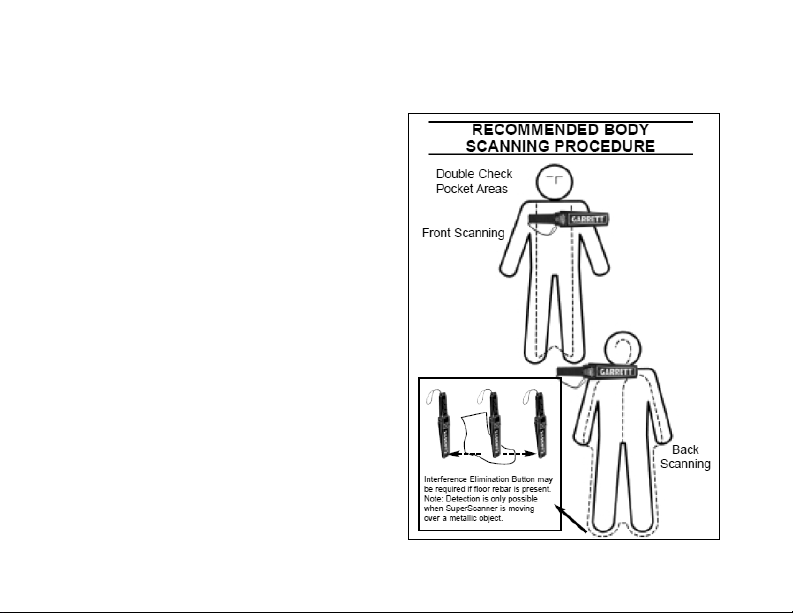

When the Super Scanner™ V is operating, it will detect metal only while it is in motion. Move the
instrument within approximately two inches from the person (object) being inspected. Sound will
increase sharply and the Red Alert Light will illuminate whenever metal is detected adjacent to the
Scan Area. Operation is completely automatic. All conductive metals will be detected, including fer-

TI11-692ENG-REV1
4 of 8
5 of 8
rous, non-ferrous and stainless steel.
Detection Principles and Capabilities
The Super Scanner™ V is an active hand-held
metal detector with very high sensitivity to all
metals including ferrous, nonferrous and stain-
less steel. Detection and alarming takes place
when the instrument is passed in close proximity
to metal objects. Detection range is dependent
upon the size and conductivity of the metal ob-
ject. The larger the object, the greater the detec-
tion distance.
The Super Scanner™ V is factory preset to max-
imum sensitivity with no operator adjustments
required. This ensures that the detector will be
used at the proper operating level established for
the particular security need.
Should nearby metal objects (floor rebar, metal
walls or cell bars) cause interference to the scan-
ning process, an Interference Elimination Button
is available to momentarily reduce sensitivity so
as to ignore the interfering nearby metal and per-
mit precise scanning of the individual or object
being scanned.
When metal objects are encountered, a sharp

4 of 8
TI11-692ENG-REV1
5 of 8
audible signal and a red LED are activated. If desired, the audible signal can be silenced by inserting
the optional earphone.
CARE AND MAINTENANCE
• DO NOT probe or dig with the Super Scanner™ V. Such mechanical forces applied to the coil can
cause it to malfunction. We recommend using the optional Stainless Steel Digging Trowel (No.
MDDIG) for probing in soil.
• DO NOT immerse the Super Scanner™ V in water or sand. While the search coil will repel dirt
and water, we do not recommend this practice since foreign matter may get inside the unit and
cause shorting of electrical components and loss of operation.
• To extend battery charge life, always turn the unit OFF when not in operation.
• There are no user-serviceable components inside the unit other than the battery.
SERVICE INFORMATION
Battery Replacement—Slide back the battery cover (do not attempt to remove it), tilt the detec-
tor and the battery will slip out. Replace with fresh battery. Because the battery cover will not slide
back if the battery is inserted improperly, never force the cover. When the Super Scanner™ V is to be
stored more than 30 days, remove battery.
Sensitivity Threshold Adjustment—Turn on the Super Scanner™ V. Roll back the grip cover just
below the nameplate. Insert a small flat blade screwdriver in the exposed hole and turn slightly to
adjust. Sound should be barely silent when the detector is turned on but not detecting metal.
Maximum sensitivity is achieved when threshold is set just below audible level. A decrease in sensi-
tivity can be achieved by further rotation.

TI11-692ENG-REV1
6 of 8
7 of 8
CAUTION: Always verify that the Super Scanner™ V is set to the desired sensitivity level by testing
with appropriate targets anytime the sensitivity adjustment is changed.
FACTORY REPAIRS AND RETURNS UNDER WARRANTY
Your Super Scanner™ V was tested and determined to be fully operational within its operating speci-
fications when it was shipped from the factory. A warranty is provided with each unit produced. To be
valid, your warranty must be registered with the factory in accordance with the instructions contained
in the warranty. Units to be returned as defective under warranty must be authorized in writing by the
factory prior to being returned. Postage or freight on returned goods must be prepaid by the sender.
Any units received out of warranty, or where the customer failed to register their warranty, will be
repaired with a charge for parts, labor, handling and returned to the customer C.O.D. Contact the fac-
tory by writing to: SIRCHIE, 100 Hunter Place, Youngsville, NC 27596 USA
SPECIFICATIONS:
Model Number: MDWAND
Operating Frequency: 93 kHz
Audio Frequency: 2 kHz, Warbled
Dimensions:
Length: 16.5" (42cm)
Width: 3.25" (8.3cm)
Thickness: 1.62" (4.13cm)
Weight: 17.6 oz. (499g)
Voltage: 6.8 to 10V DC
Current: 5 mA typical
Battery: Standard 9V (Eveready No. 216 or equivalent) or 7.2V Nickel Metal Hydride (NiMH) (rechargeable)
Environmental:
Operating Temperatures: -35°F (-37°C) to 158°F (70°C)
Humidity: to 95% non-condensing
Environmental Protection: 1EC 60529 Classification IP54

6 of 8
TI11-692ENG-REV1
7 of 8
NOTE: Do not affix metallic labels (or any material that might cause the detector to alarm) to the
detection area of the Super Scanner™ V. Doing so might cause an imbalance within the detection field
and thereby reduce scanning effectiveness.
Safety Notice
SIRCHIE makes every effort to ensure that its products are safe for its users. Extensive research has
produced no information that would indicate that use of this product has adverse effects on pregnan-
cies or on the operation of electronic medical implants such as pacemakers. However, recommenda-
tions by electronic medical device manufacturers or physicians should be followed.
ACCESSORIES:
Rechargeable Battery Kit: New environmentally friendly battery. 7.2 Nickel Metal Hydride (Ni-MH) battery with kit for
recharging from conventional electric outlet.
110V: No. MDBATTERY110
220V: No. MDBATTERY220
Earphone: Permits audio alarms of Super Scanner™ V to only come through the earplug No. MDWANDEAR
Belt Loop: Police-quality leather sling provides means for carrying the Super Scanner™ V on any belt up to 3"
(7.5cm) width. Quick release access strap No. MDWANDLOOP
Belt Holder: Police-quality ballistic weave No. MDWANDBELT
Stainless Steel Digging Trowel No. MDDIG
Headphones No. MDGROUNDHP
