Sirius Fitness 16116809US User manual

MAG. RECUMBENT CYCLE
Retain for Future reference
CAUTION:You must read and understand this owner’s manual before operating unit.
OWNER`S
MANUAL
Model No.
16116809US
•Assembly
•Operation
•Exercise
•Parts
•Warranty

Customer Service 1-888-707-1880 ©2009
1
MANUFACTURE’S ONE-YEAR LIMITED WARRANTY
Your Sirius Recumbent cycle is warranted for one year from the date of purchase against
defects in material, when used for the purpose intended, under normal conditions, and
provided is receives proper care. Any part found defective or missing will be sent at no cost
when returned in accordance with the terms of this warranty.
This warranty is not transferable and is extended only to the original owner.
The warranty shall not apply to exercise cycles units which are (1) used for commercial or
other income producing purposes, or (2) subject to misuse, neglect, accident or
unauthorized repairs and alterations.
This warranty provided herein is in lieu of all other express warranties. Any implied
warranties, including any implied warranties of merchantability or fitness for particular
purpose, are limited in duration to the first 12 months from the date of purchase. All other
obligations or liabilities, including liability for consequential damages, are hereby excluded.
REPAIR PARTS AND SERVICE
All of the parts for the RECUMBENT BIKE, shown in figure can be ordered from Maurice
Pincoffs Canada Inc. 6050 DON MURIE STREET, NIAGARA FALLS, ONTARIO L2E 6X8.
When ordering parts, the parts will be sent and billed at the current prices. Prices may be
subject to change without notice. Check or money order must accompany all orders.
Standard hardware items are available at your local hardware store.
To ensure prompt and correct handling of any errors, or to answer any questions, please call
our Toll Free number: 1-888-707-1880, or local number 1-905-353-8955 or fax
1-905-353-8968 or email [email protected] Office hours are from 8:30 AM to
5:00 PM Monday to Friday Eastern Standard Time.
Always include the following information when ordering parts
zModel Number
zName of Each Part
zPart Number of Each Part
TABLE OF CONTENTS
WARRANTY 1 DIAGRAM & PARTS LIST 9-12
SAFETY PRECAUTIONS 2 MONITOR INSTRUCTIONS 13-14
PRE-ASSEMBLY CHECK LIST 3 TROUBLE SHOOTING 15
HARDWARE PACKING LIST 4 TRAINING GUIDELINES 16-17
ASSEMBLY INSTRUCTION 5-8 STRETCHING 18-19

Customer Service 1-888-707-1880 ©2009
2
SAFETY PRECAUTIONS
Thank you for purchasing our product. Even though we go to great efforts to ensure the
quality of each product we produce, occasional errors and /or omissions do occur. In any
event should you find this product to have either a defective or a missing part please contact
us for a replacement.
This product has been designed for home use only. Product liability and guarantee
conditions will not be applicable to products being subjected to professional use or products
being used in a gym center.
This exercise equipment was designed and built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before assembly and operation of this machine. Also, please note the
following safety precautions:
1. Read the OWNER’S OPERATING MANUAL and all accompanying literature and
follow it carefully before using your cycle.
2. If dizziness, nausea, chest pains, or any other abnormal symptoms are experienced
while using this equipment, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
3. Inspect your exercise equipment prior to exercising to ensure that all nuts and bolts
are fully tightened before each use.
4. The cycle must be regularly checked for signs of wear and damage. Any part found
defective must be replaced with a new part from the manufacturer.
5. Fitness equipment must always be installed on a flat surface, It is recommended to
use an equipment mat to prevent the unit from moving while it is being used, which
could possibly scratch or damage the surface of your floor.
6. No changes must be made which might compromise the safety of the equipment.
7. It is recommended to have a minimum of 2’ safe clearance around the exercise
equipment while in use.
8. Keep children and pets away from this equipment at all times while exercising.
9. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes
afterward. This allows your heart rate to gradually increase and decrease and
will help prevent you from straining muscles.
10. Never hold your breath while exercising. Breathing should remain at a normal rate
in conjunction with the level of exercise being performed
11. Always wear suitable clothing and footwear while exercising. Do not wear loose
fitting clothing that could become entangled with the moving parts of your cycle.
12. Care must be taken when lifting or moving the equipment, so as not to injure your
back. Always use proper lifting techniques.
13. User weight should not exceed 250 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. WE ASSUME NO
RESPONSIBILITY FOR PEROSNAL INJURY OR PROPERTY DAMAGE SUSTAINS BY
OR THROUGH THE USE OF THIS PRODUCT.

Customer Service 1-888-707-1880 ©2009
3
PRE-ASSEMBLY CHECK LIST
PART NO. DESCRIPTION Q’TY
1 Main Frame 1
22 Handlebar 1
25 Seat support bracket 1
14/15 Front Stabilizer w/transportation wheels 1
30/29 Rear Stabilizer w/end caps 1
26 Seat sliding tube 1
4 Front post 1
28 Back cushion 1
32 Seat Cushion 1
2 Monitor 1
17L/R Pedal L / R 2
Inner box 1
Manual 1

Customer Service 1-888-707-1880 ©2009
4
HAREWARE PACKING LIST

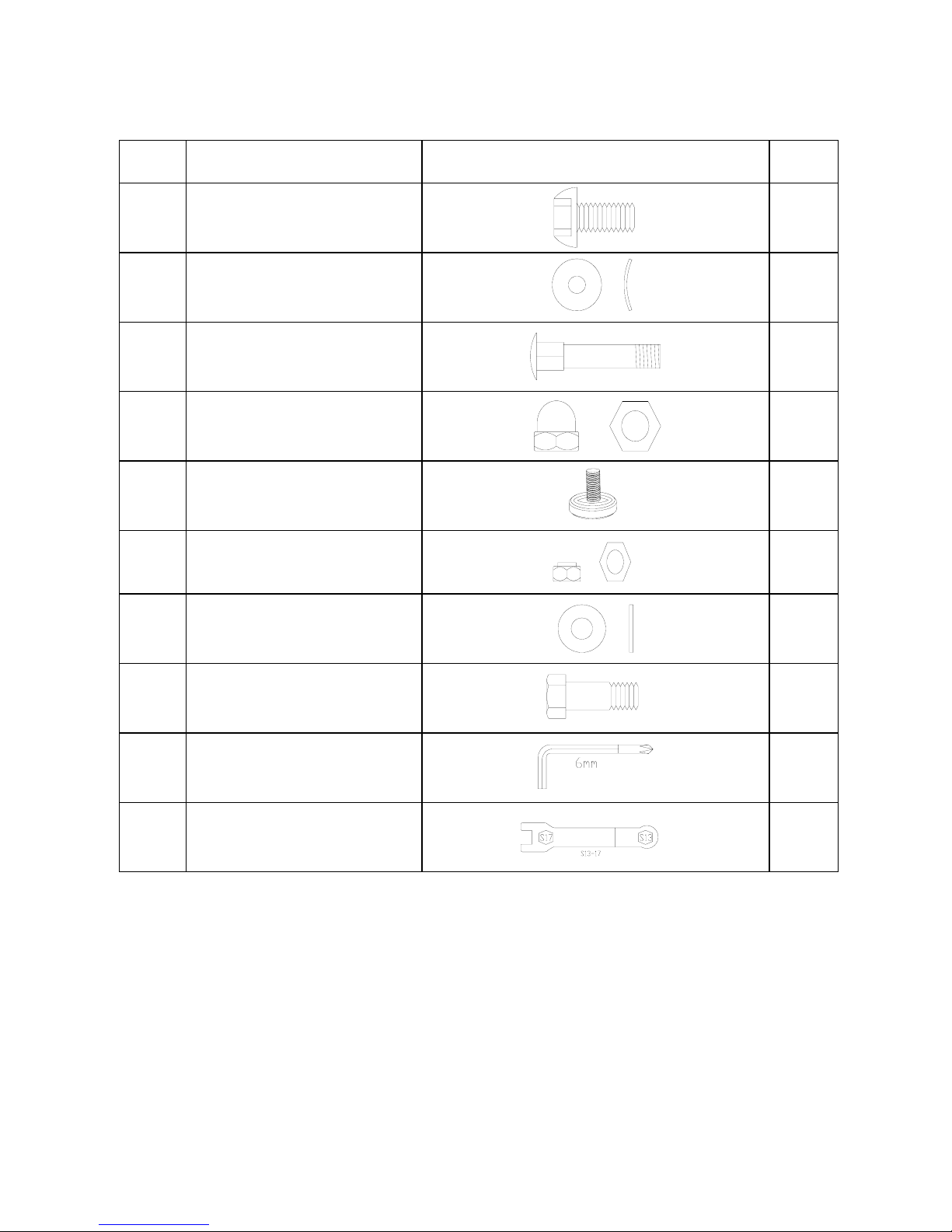

NO. Description Drawing QTY
8 Allen bolt M8 x 16 12
9 Curve washer 8
13 Carriage Bolt M8*65 4
19 Domed nut M8 4
20 Leveling knob 1
21 Nylon locknut M8
4
27 Flat washer Φ8 x Φ17 12
31 Hex head bolt M8 x 75
4
65 Allen Key L6 1
66 Allen Wrench S13,15, 17 2
Above described parts are all the parts you need to assemble this machine. Before
you start to assemble, please check the hardware packing to make sure they are
included.

Customer Service 1-888-707-1880 ©2009
5
ASSSEMBLY INSTRUCTION
This manual is designed to help you easily assemble, adjust and use this machine. Please
read this manual carefully. For the sake of familiarizing yourself with the parts identified in
the instruction, first study the overview drawing.
Set all parts in a clear area on the floor and remove the packing material. Refer to the parts
list for help to identify the parts.
It will take two people to assemble your unit.
Step 1
Connect the middle extension pulse wire (35) to the back extension pulse wire (34). Insert
the seat sliding tube (26) into the back of main frame (1). Secure in your desired position
using the quick release knob (24).
Lock the leveling knob (20) under the tube of main frame (1).
Step 2
Attach the front stabilizer (14) w/transportation wheels (15) to the main frame (1). Secure
using two carriage bolts (13), two curve washers (9) and two domed nuts (19).
Attach the rear stabilizer (30) w/end caps (29) to the main frame (1). Secure using two
carriage bolts (13), two curve washers (9) and two domed nuts (19).

Customer Service 1-888-707-1880 ©2009
6
Step 3
a) Attach the back cushion (28) to seat support bracket (25). Secure using four washers
(27) and four allen screws (8).
b) Attach the seat cushion (32) to seat support bracket (25). Secure using four washers
(27) and four allen screws (8).
c) Attach the seat support bracket (25) on to the seat sliding tube (26). Secure using two
hex head bolts (31), two flat washers (27) and two nylon locknuts (21).
Step 4
Attach the handlebar (22) to the seat support bracket (25). Secure using two hex head bolts
(31), two flat washers (27) and two nylon locknuts (21).
Connect the hand pulse wire (33) to the back extension pulse wire (34).

Customer Service 1-888-707-1880 ©2009
7

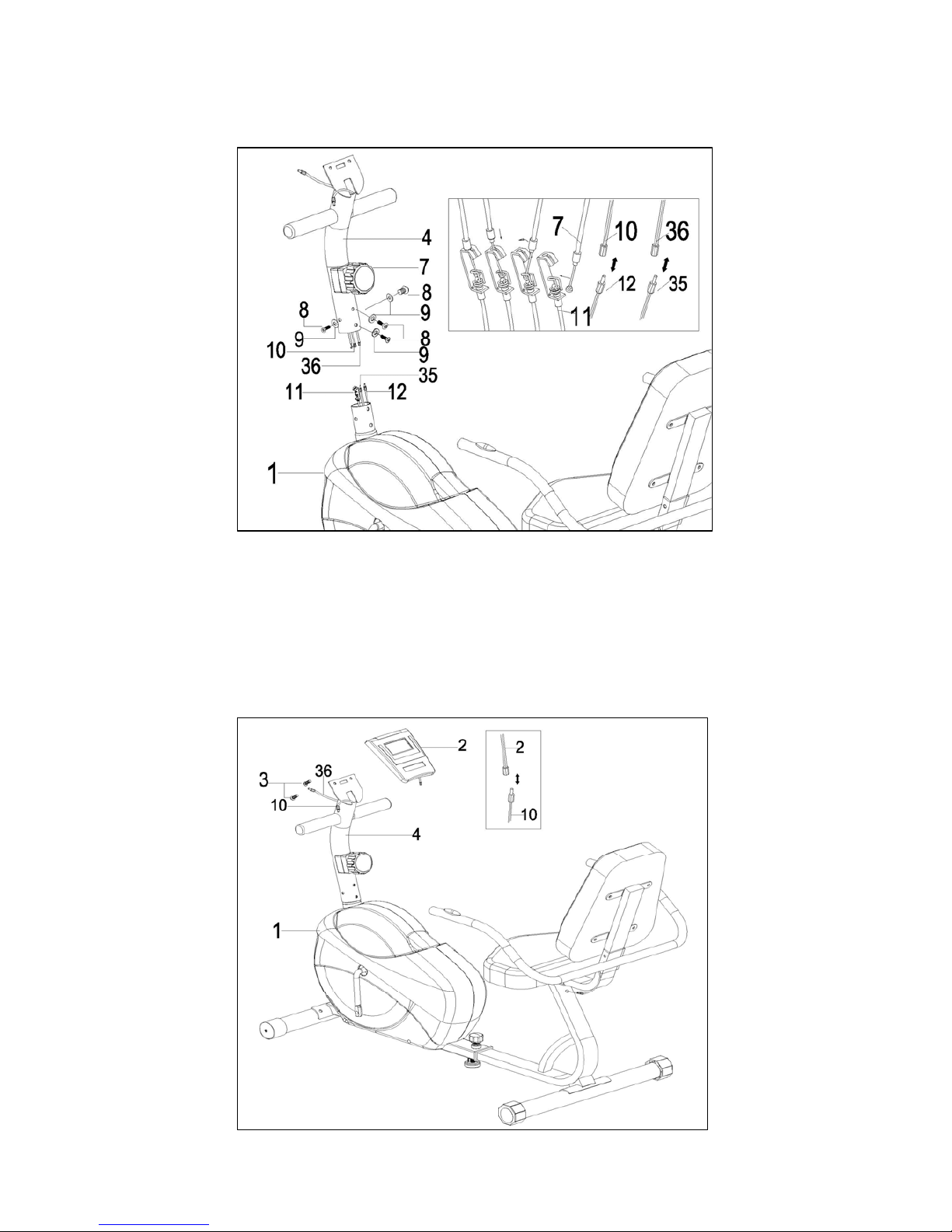

Step 5
a) Connect the tension control w/cable (7) to the extension tension cable (11).
b) Connect the extension sensor wire (10) to the sensor wire (12).
c) Connect the upper extension pulse wire (36) to the middle extension pulse wire (35).
d) Attach the front post (4) to the main frame (1). Secure using four allen head screws (8)
and four curve washers (9).
Step 6
Connect the extension sensor wire (10) to the monitor (2).
Connect the upper extension pulse wire (36) to the back of monitor (2).
Slide the monitor (2) onto the bracket of the front post (4). Secure using two screws (3).
NOTE: Before attaching the monitor to the front post, please ensure that the wires are safely
tucked inside the opening of the handlebar post. This will ensure that the monitor slides on
easily and avoids pinching the wire.

Customer Service 1-888-707-1880 ©2009
8
Step 7
Attach the right and left pedal straps (17SR/17SL) to the right and left pedals (17R/17L).
Note: The end with four adjustable holes must be set outwards.
Attach the right and left pedals (17R/17L) to the right and left crank arms (16).
Note: The pedals and crank arms are marked with R & L. The right pedal (R) should be
threaded on clockwise and the left pedal (L) should be threaded counter-clockwise.
To ensure that the cycle is balanced adjust the height of leveling knob (20).
Ensure that that you have fastened the bolts securely.
You have completed the assembly of your cycle.

Customer Service 1-888-707-1880 ©2009
9
PART LIST
KEY NO. PART NO. DESCRIPTION Q’TY
1 80901 Main Frame 1
2 80902 Monitor 1
3 80903 Screw M5 x 10 2
4 80904 Front post 1
5 80905 Flat washer Φ6 x Φ12 1
6 80906 Screw M5 x 50 1
7 80907 Tension control w/cable 1
8 80908 Allen bolt M8 x 16 12
9 80909 Curve washer 8
10 80910 Extension sensor wire 1
11 80911 Extension tension cable 1
12 80912 Sensor wire 1
13 80913 Carriage Bolt M8*65 4
14 80914 Front stabilizer 1
15 80915 Transportation wheel 2
16 80916 Crank w/pulley 1
17L 80917L Left pedal 1
17R 80917R Right pedal 1
17SL 80917SL Left pedal strap 1
17SR 80917SR Right pedal strap 1
18 80918 Square end cap 2
19 80919 Domed nut M8 4
20 80920 Leveling knob 1
21 80921 Nylon locknut M8 5
22 80922 Handlebar 1
23 80923 End cap for handlebar 2
24 80924 Quick release knob 1
25 80925 Seat support bracket 1
26 80926 Seat sliding tube 1
27 80927 Flat washer Φ8 x Φ17 1
28 80928 Back cushion 1

Customer Service 1-888-707-1880 ©2009
10
KEY NO. PART NO. DESCRIPTION Q’TY
29 80929 Leveling end cap 1
30 80930 Rear stabilizer 1
31 80931 Hex head bolt M8 x 75 4
32 80932 Seat cushion 1
33 80933 Hand pulse wire 1
34 80934 Lower extension pulse wire 1
35 80935 Middle extension pulse wire 1
36 80936 Upper extension pulse wire 1
37 80937 Screw ST5 x 20 11
38 80938 Belt 1
39L 80939L Chain cover left 1
39R 80939R Chain cover right 1
40 80940 Hex head screw M8 x 45 1
41 80941 Nut M8 2
42 80942 Magnetic assembly 1
43 80943 French nut M10 2
44 80944 Idler pulley w/bracket 1
45 80945 Allen bolt M8 x 20 1
46 80946 Bushing 1
47 80947 Flywheel 1
48 80948 Spring Φ10 1
49 80949 Hex head bolt M8 x 108 1
50 80950 Bearing assembly 1
51 80951 Square sleeve 1
52 80952 Screw ST5 x 15 1
53 80953 Sensor bracket 1
54 80954 Nut M6 2
55 80955 Screw M6 1
56 80956 Spring Φ16 1
57 80957 Allen key L6 1
58 80958 Allen wrench L13,15,17 2

Customer Service 1-888-707-1880 ©2009
11
DIAGRAM

Customer Service 1-888-707-1880 ©2009
12
MONITOR INSTRUCTION
FUNCTION BUTTONS：
Mode: Press to select functions between: scan, time, speed, distance and calories
Set: Press to preset the target value of time, distance and calories.
Reset: Press to reset your preset value to zero.
Press and hold for 3 seconds to reset all values to zero.
FUNCTIONS:
Scan: Displays each function in sequence every 6 seconds. The display loop is
time, speed, time, distance and calories.
Speed: Displays the current speed up to 99.9 m.
Time: Shows your elapsed workout time up to 99:59
Counts down from your preset target time to 00:00 during your workout
Distance: Displays the cumulative distance traveled during your workout up to 99.99m
Counts down from your preset target time to 0.0 during your workout
Odometer: Displays the total distance accumulated up to 9999m.
Calorie: Displays the cumulative calories burned at any given time during your
workout up to 999 cal.
Counts down from your preset target calorie to 0 cal.
Note: This is a rough guide used for comparison of different exercise
sessions, which cannot be used for medical purposes.

Customer Service 1-888-707-1880 ©2009
13
Monitor Function:
How to preset time, distance and calories
1. Press the mode button until desired function is displayed.
2. Press the set until your desired number is displayed.
3. Press the mode button to accept value.
The monitor will count down from your preset value once you start exercising.
The monitor will beep to indicate the completion of your preset value. Press any button to
stop the beep and the monitor will now start to count up.
If more than one value is preset, the first to reach the value will sound the alarm. Once you
have stopped the alarm the next preset value will sound the alarm until you have reached all
preset values.
NOTE:
1. Monitor requires two “AA” batteries.
2. The monitor will turn on automatically by pressing any key or when you start
pedaling.
3. The monitor will turn off automatically if no signal is detected for four minutes.
4. To reset the odometer, you must remove the batteries.
5. If monitor is illegible or partial segments appear, remove batteries and wait 15
seconds to re-install.

Customer Service 1-888-707-1880 ©2009
14
Trouble Shooting
Problem Cause Correction
Monitor does not display Batteries weak or dead Replace batteries
Sending unit not connected
Securely plug sending unit into
extension wire and the back of the
monitor
Sending unit not working
properly Replace sending unit
No speed or distance
displays on the monitor
Monitor not working properly Replace monitor
Tension control cable not
connected
Securely plug tension control cable
into the extension tension control
cable
No tension
Magnetic wheel not working
properly Replace magnetic wheel
Pulse wire not connected
not connected
Securely plug wires into the back of
the monitor
Hand pulse defective Replace hand pulse grip or ear clip
Heart rate not displaying
Monitor not working properly Replace monitor
Crank bearing defective Replace crank bearings
Idler pulley defective Replace idler pulley
Grinding
Mag wheel defective Replace magnetic wheel
Squealing V-belt slipping Adjust v-belt
Always ensure batteries are fresh and in correctly.

Customer Service 1-888-707-1880 ©2009
15
TRAINING GUIDELINES
Exercise
Exercise is one of the most important factors in the overall health of an individual. Listed
among its benefits are:
xIncreased capacity for physical work (strength endurance)
xIncreased cardiovascular (heart and arteries/veins) and respiratory efficiency
xDecreased risk of coronary heart disease
xChanges in body metabolism, e.g. losing weight
xDelaying the physiological effects of age
xPhysiological effects, e.g. reduction in stress, increase in self-confidence, etc.
Basic Components of Physical Fitness
There are four all encompassing components of physical fitness and we need to briefly
define each and clarify its role.
Strength is the capacity of a muscle to exert a force against resistance. Strength
contributes to power and speed and is of great importance to a majority of sports
people.
Muscular Endurance is the capacity to exert a force repeatedly over a period of time,
e.g. it is the capacity of your legs to carry you 10 Km without stopping.
Flexibility is the range of motion about a joint. Improving flexibility involves the
stretching of muscles and tendons to maintain or increase suppleness, and provides
increased resistance to muscle injury or soreness.
Cardio-Respiratory Endurance is the most essential component of physical fitness. It is the
efficient functioning of the heart and lungs
Aerobic Fitness
The largest amount of oxygen that you can use per minute during exercise is called your
maximum oxygen uptake (MVo2). This is often referred to as your aerobic capacity.
The effort that you can exert over a prolonged period of time is limited by your ability to
deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect
that can increase your aerobic capacity by as much as 20 to 30%. An increased MVO2
indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen
and of the muscles to take up oxygen.
Anaerobic Training
This means “without oxygen” and is the output of energy when the oxygen supply is
insufficient to meet the body’s long term energy demands. (For example, 100 meter sprint).
The Training Threshold
This is the minimum level of exercise which is required to produce significant improvements
in any physical fitness parameter.
Progression
As your become fitter, a higher intensity of exercise is required to create an overload and
therefore provide continued improvement
Overload
This is where you exercise at a level above that which can be carried out comfortably. The
intensity, duration and frequency of exercise should be above the training threshold and
should be gradually increased as the body adapts to the increasing demands. As your
fitness level improves, so the training threshold should be raised.
Working through your program and gradually increasing the overload factor is important.

Customer Service 1-888-707-1880 ©2009
16
Specificity
Different forms of exercise produce different results. The type of exercise that is carried out
is specific both to the muscle groups being used and to the energy source involved.
There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular
fitness. That is why it is important to have an exercise program tailored to your specific
needs.
Reversibility
If you stop exercising or do not do your program often enough, you will lose the benefits you
have gained. Regular workouts are the key to success.
Warm Up
Every exercise program should start with a warm up where the body is prepared for the
effort to come. It should be gentle and preferably use the muscles to be involved later.
Stretching should be included in both your warm up and cool down, and should be
performed after 3-5 minutes of low intensity aerobic activity or callisthenic type exercise.
Warm Down or Cool Down
This involves a gradual decrease in the intensity of the exercise session. Following exercise,
a large supply of blood remains in the working muscles. If it is not returned promptly to the
central circulation, pooling of blood may occur in the muscles
Heart Rate
As you exercise, so the rate at which your heart beat also increases. This is often used as a
measure of the required intensity of exercise. You need to exercise hard enough to
condition your circulatory system, and increase your pulse rate, but not enough to strain
your heart.
Your initial level of fitness is important in developing an exercise program for you. If you are
starting off, you can get a good training effect with a heart rate of 110-120 beats per
minute(BPM). If you are fitter, you will need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to
70% of your maximum. If you find this is too easy, you may want to increase it, but it is better
to lean on the conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age,
so your heart, like other muscles, loses some of its efficiency. Some of its natural loss is won
back as fitness improves.
The following table is a guide to those who are “starting fitness”.
Age 25 30 35 40 45 50 55 60 65
Target heart Rate
10Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute 138 132 132 126 120 114 114 108 108
Pulse Count
The pulse count(on your wrist or carotid artery in the neck, taken with two index fingers)is
done for ten seconds, taken a few seconds after you stop exercising. This is for two reasons:
(a) 10 seconds is long enough for accuracy, (b) the pulse count is to approximate your BPM
rate at the time you are exercising. Since heart rate slows as you recover, a longer count
isn’t as accurate.
The target is not a magic number, but a general guide. If you’re above average fitness, you
may work quite comfortably a little above that suggested for your age group.
The following table is a guide to those who are keeping fit. Here we are working at about
80% of maximum.
Age 25 30 35 40 45 50 55 60 65
Target heart Rate
10Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120

Customer Service 1-888-707-1880 ©2009
17
Don’t push yourself too hard to reach the figures on this table. It can be very uncomfortable if
you overdo it. Let it happen naturally as you work through your program. Remember, the
target is a guide, not a rule, a little above or below is just fine.
Two final comments:(1) don’t be concerned with day to day variations in your pulse rate,
being under pressure or not enough sleep can affect it;(2) your pulse rate is a guide, don’t
become a slave to it.
Endurance Circuit Training
Cardiovascular endurance, muscle, strength, flexibility and coordination are all necessary
for maximum fitness. The principle behind circuit training is to give a person all the
essentials at one time by going through your exercise program moving as fast as possible
between each exercise. This increases the heart rate and sustains it, which improves the
fitness level. Do not introduce this circuit training effect until you have reached an advanced
program stage.
Body Building
Is often used synonymously with strength training The fundamental principal here is
OVERLOAD. Here, the muscle works against greater loads than usual. This can be done by
increasing the load you are working against.
Patronization
This is the term used to vary your exercise program for both physiological and psychological
benefits. In your overall program, you should vary the workload, frequency and intensity.
The body responds better to variety and so do you. In addition, when you feel yourself
getting “stale’, bring in periods of lighter exercise to allow the body to recuperate and restore
its reserves. You will enjoy your program more and feel better for it.
Muscle Soreness
For the first week or so, this may be the only indication you have that you are on an exercise
program. This, of course, does depend on your overall fitness level. A confirmation that you
are on the correct program is a very slight soreness in most major muscle groups. This is
quite normal and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced or you
have increased your program too rapidly.
If you experience PAIN during or after exercise, your body is telling your something.
Stop exercising and consult your doctor.
What to Wear
Wear clothing that will not restrict your movement in any way while exercising. Clothes
should be light enough to allow the body to cool. Excessive clothing that causes you to
perspire more than you normally would while exercising, gives you no advantage. The extra
weight you lose is body fluid and will be replaced with the next glass of water you drink. It is
advisable to wear a pair of gym or running shoes or “sneakers”.
Breathing during Exercise
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
Rest periods
Once you start your exercise program, you should continue through to the end. Do not break
off halfway through and then restart at the same place later on without going through the
warm-up stage again.
The rest period required between strength training exercises may vary from person to
person. This will depend mostly on your level of fitness and the program you have chosen.
Rest between exercises by all means, but do not allow this to exceed two minutes. Most
people manage with half minute to one minute rest periods

Customer Service 1-888-707-1880 ©2009
18
STRETCHING
Stretching should be included in both your warm up and cool down, and should be
performed after 3-5 minutes of low intensity aerobic activity or callisthenic type exercise.
Movements should be performed slowly and smoothly, with no bouncing or jerking. Move
into the stretch until slight tension, not pain, is felt in the muscle and hold for 20-30 seconds.
Breathing should be slow, rhythmical and under control, making sure never to hold your
breath.
HEAD ROLLS SHOULDER LIFTS
Rotate your head to the right for one count, feeling Lift your right shoulder up toward your ear
the stretch up the left side of your neck. Next rotate for one count. Then lift your left shoulder
your head back for one count, stretching your chin to up for one count as you lower your right
the ceiling and letting your mouth open. Rotate your shoulder.
head to the left for one count, and finally, drop your
head to your chest for one count.
SIDE STRETCHES QUADRICEPS STRETCH
Open your arms to the side and continue lifting With one hand against a wall for balance,
them until they are over your head. Reach your reach behind you and pull your right foot up.
right arm as far upward toward the ceiling as Bring your heel as close to your buttocks as
you can for one count. Feel the stretch up possible. Hold for 15 counts and repeat with
your right side. Repeat this action with your left foot up.
left arm.

Customer Service 1-888-707-1880 ©2009
19
INNER THIGH STRETCH TOE TOUCHES
Sit with the soles of your feet together with your Slowly bend forward from your waist, letting
knees pointing outward. Pull your feet as close your back and shoulders relax as you stretch
Into your groin as possible. Gently push your toward your toes. Reach down as far as you
knees towards the floor. Hold for 15 counts. can and hold for 15 counts.
HAMSTRING STRETCHES CALF / ACHILLES STRETCH
Sit with your right leg extended. Rest the sole of Lean against a wall with your left leg in front
your left foot against your right inner thigh. Stretch of the right and your arms forward. Keep Your
toward your toe as far as possible. Hold for 15 right leg straight and the left foot on the floor,
counts. Relax and then repeat with left leg then bend the left leg and lean forward by
extended. moving your hips toward the wall. Hold, then
repeat on the other side for 15 counts.
