Instruction Manual of
Probes for Digital Thermohygrometer SK-110TRH-B
Read this manual thoroughly before use, and keep it for future reference.
Names of Sections
Plug-in Probe for SK-110TRH-B: Model S110TRH-10
① Probe part
② Connector to the main unit
Wired Probe for SK-110TRH-B: Model S110TRH-20
① Probe part
② Cable
③ Connector to the main unit
Telescoping Probe for SK-110TRH-B: Model S110TRH-30
① Probe part
② Cable
③ Connector to the main unit
Flexible Probe for SK-110TRH-B: Model S110TRH-40
① Probe part
② Cable
③ Connector to the main unit
How to Use
Connection of Probe:
While the main unit is turned off, insert the connector of the probe straight into
the probe connector on the main unit so that an arrow mark on the probe faces
frontward. Turn the nut on the probe next until the probe is fixed.
Do not turn black elastic parts.
Refer to the manual for the main unit of SK-110TRH-B as well.
Sensor Filter:
An optional sensor filter sold separately can cover S110TRH-10/20 to resist a dusty environment.
Cautions
To use the probes for SK-110TRH-B properly, follow the instructions below.
 Do not use the probe in any non-standard atmosphere or submerged in liquids.
 Do not touch the humidity sensor with hands.
 Do not store in bubble buffers or antistatic bags, which have a distinctive color such as blue, pink, or rose pink in
general. It may damage the humidity sensor.
 If the probe gets condensed with moisture, turn the power off immediately and dry it naturally under room temperature
before use.
 Be sure not to burn yourself when measuring high temperature.
 Do not wet, give a heavy shock to, forcibly pull, disassemble, or customize the probe.
 For repair or calibration, contact us or a retailer from which you have purchased.

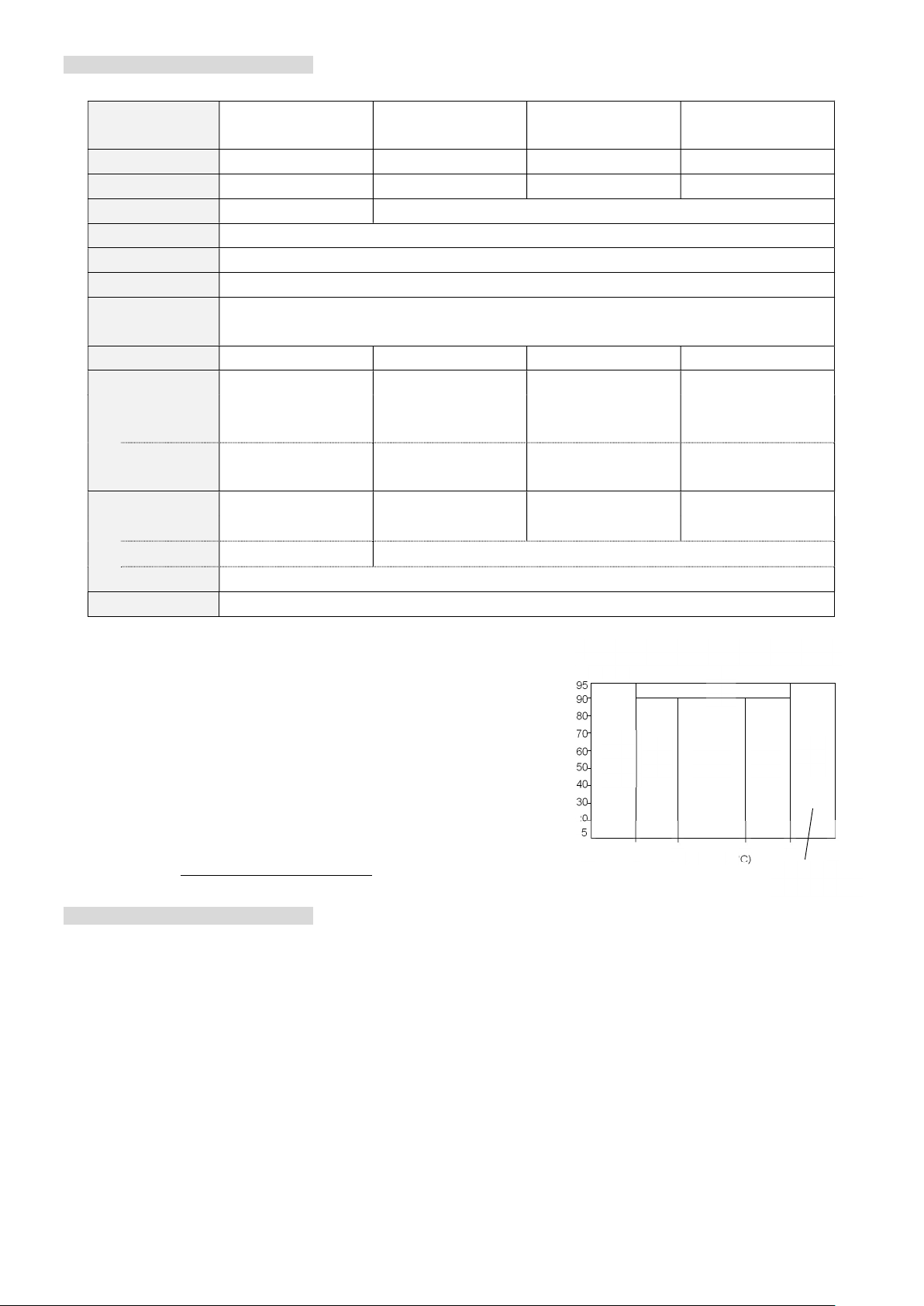

Specifications
Product name Plug-in Probe
for SK-110TRH-B
Wired Probe
for SK-110TRH-B
Telescoping Probe
for SK-110TRH-B
Flexible Probe
for SK-110TRH-B
Model name SK-110TRH-10 SK-110TRH-20 SK-110TRH-30 SK-110TRH-40
Catalog no. 8141-10 8141-20 8141-30 8141-40
Range (T) −10 to 60°C −20 to 80°C
Range (RH) 5 to 95%rh
Accuracy (T) ±0.3°C (10 to 50°C), ±0.5°C (other)
Accuracy (RH) See below *
Storage
ambient −10 to 60°C, less than 85%rh without condensing
Weight 13 g 68 g 107 g 31 g
Dimensions Ø15 x 90 mm Ø15–20 x 200 mm Ø9–14 x 200 mm
min., 930 mm
max.**
Ø9 x 35 mm
Probe part
Cable — 1.5 m long 0.7 m long min.,
1.5 m long max.** 1.6 m long
Materials
Probe part PC PC POM + SUS304 POM
Cable — PVC
Connector PVC
Accessory Instruction manual
* Probes are consumables which deteriorate over time. Thus, a
regular recalibration and replacement are advised. Especially, the
accuracy of the humidity sensor worsens for 0.5%rh per year even in
a good condition.
** As for SK-110TRH-30, its cable moves into the telescoping probe
when the probe is extended. Therefore, the total length of the cable
and the probe is always around 1.7 m.
Specifications and appearance are subject to change without notice.
Visit our website https://www.sksato.co.jp/en/ for the latest information.
Warranty Policy
Our products are warranted to be free from defects in materials and workmanship for a period of one year from the
date of delivery. If a defect is found within one year and is not the result of misuse, force majeure, or transportation
arranged by yourself, please return the products on freight prepaid basis. Repair or replacement will be made without
fee. Note that we alone will judge the cause of the defect.
Before returning, request for our acknowledgement first.
For details, contact us or a retailer from which you have purchased.
SATO KEIRYOKI MFG. CO., LTD.
3-4, Kanda-kajicho, Chiyoda-ku, Tokyo 101-0045, Japan
https://www.sksato.co.jp/en/
Ver. W.08
As of August 2023
Accuracy of Humidity
95
90
80
70
60
50
40
30
20
5
0
-20 15
Temperature (°
C
)
40 60
80
±5%rh
±4%rh ±2.5%rh
Out of range
±4%rh ±6%rh
Humidity (%rh)
Out of range
(S110TRH-10)
