Skil PWRCore 20 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
For Customer Service 1300-017-545 OR www.skil.com.au

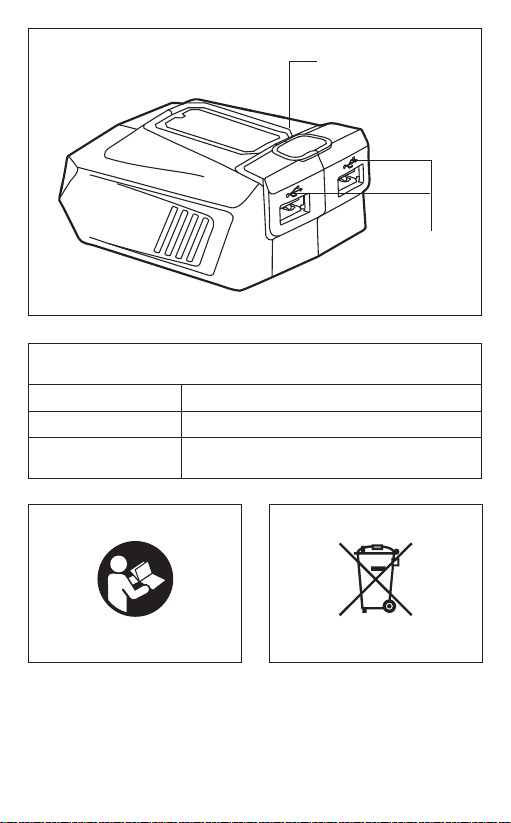

Cordless USB Charging Adapter
Model: AD5923E-00
TM

2
3
1
4
2SPECIFICATIONS
Rated Voltage 18V d.c. (20V max)
Output voltage 5.1V d.c.
Output current Max. 2.1 A (each port)
Max. 3.6 A (in total)
USB Ports
ON/OFF Button (Indicator)

3
NOT STANDARD INCLUDED
*
*
5
6
5
6
a
a
b
b

4
specically designated battery
packs. Use of any other battery packs
may create a risk of injury and re.
• Only use the following batteries
and chargers with this tool
-SKIL battery: BY5197E-03
BY5196E-03
-SKIL charger: SC5358E-01
QC5360E-01
• When battery pack is not in use,
keep it away from other metal
objects like paper clips, coins, keys,
nails, screws, or other small metal
objects that can make a connection
from one terminal to another.
Shorting the battery terminals together
may cause burns or a re.
• Under abusive conditions,
liquid may be ejected from the
battery; avoid contact. If contact
accidentally occurs, ush with
water. If liquid contacts eyes,
additionally seek medical help.
Liquid ejected from the battery may
cause irritation or burns.
• Do not use a battery pack or tool
that is damaged or modied.
Damaged or modied batteries may
exhibit unpredictable behaviour resulting
in re, explosion or risk of injury.
• Do not expose a battery pack or tool
to re or excessive temperature.
Exposure to re or temperature above
130°C may cause explosion.
• Follow all charging instructions
and do not charge the battery
pack or tool outside the
temperature range specied in the
instructions. Charging improperly or
at temperatures outside the specied
range may damage the battery and
increase the risk of re.
• Permitted ambient temperature (tool/
charger/battery):
-when charging 4...40°C
-during operation –20...+50°C
-during storage –20...+50°C
• Never service damaged battery
packs. Service of battery packs
should only be performed by the
manufacturer or authorized service
providers.
EXPLANATION OF SYMBOLS ON
TOOL/BATTERY
3Read the instruction manual before use
INTRODUCTION
• This tool is intended for using a SKIL
battery pack as power source for
USB devices
• This tool is not intended for
professional use
• Read this instruction manual
carefully before use and save it for
future reference
SAFETY
• This tool can be used by children
aged 8 and above and by persons
who have physical, sensory or
mental limitations or a lack of
experience or knowledge if a
person responsible for their safety
supervises them or has instructed
them in the safe operation of the
tool and they understand the
associated dangers (otherwise,
there is a danger of operating errors
and injuries)
• Supervise children (this will ensure
that children do not play with the tool)
• Cleaning and user maintenance
of the tool shall not be made by
children without supervision
• For ITE use only
• Do not operate power tools in
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
• Do not expose power tools to rain
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
• Store the tool indoors in a dry and
locked-up place, out of reach of children
• Do not use tool/charger when
damaged; take it to one of the ocially
registered SKIL Service Stations for a
safety check
• Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This
will ensure that the safety of the power
tool is maintained.
• Provide for good ventilation at the
working place
• Use power tools only with

5
electric tools, accessories and
packaging should be sorted for
environmental-friendly recycling
!prior to disposal protect battery
terminals with heavy tape to
prevent short-circuit
4Do not dispose of electric tools and
batteries together with household
waste material
USE
• Charging battery
!read the safety warnings and
instructions provided with the
charger
• Removing/installing the battery 5
• Charging an external USB device 6
!make sure that your USB device
can be charged using the USB
adapter
-press on/o button to activate the
adapter, the indicator will turn GREEN
-connect the charging cable of an
USB device in one of the USB ports
-press on/o button again to turn o
the adapter, the GREEN indicator
will turn o
!the adapter will automatically
shut o when charging is
completed or after an inactivity
of 3 hours
!when not in use, remove the
charger cable(s) and battery
• Battery protection
Switches o the tool or prevents the tool
from being switched on, when
-the battery temperature is not within
the allowable operating temperature
range of -20 to +50°C
-the lithium-ion battery is nearly empty
(to protect against deep discharge)
!do not continue to press the
on/o switch after the tool is
switched o automatically;
battery may be damaged
MAINTENANCE
• This tool is not intended for
professional use
• Clean the tool with a dry, soft cloth (do
not use cleaning agents or solvents)
!remove battery from tool before
cleaning
ENVIRONMENT
• Do not dispose of electric
tools, batteries, accessories
and packaging together with
household waste material. The

6
benets to you given by this warranty are
in addition to other rights and remedies
imposed by State and Federal legislation
that cannot be excluded. Our goods come
with guarantees that cannot be excluded
under the Australian Consumer Law.You
are entitled to a replacement or refund
for a major failure and compensation for
any other reasonably foreseeable loss
or damage.You are also entitled to have
the goods repaired or replaced if the
goods fail to be of acceptable quality and
the failure does not amount to a major
failure. Chervon Australia Pty Ltd, Unit
14, 5 Kelletts Road, Rowville, VIC. 3178.
Ph; 1300 01 SKIL (1300 01 7545). Email:
[email protected]
The following consumables have a
3-month warranty period:
Brushes Collets
Dust canisters Angle grinder
anges
Allen keys Chucks
WARRANTY
SKIL WARRANTY POLICY
For all SKIL warranty & enquiries, please
contact 1300 01 SKIL (1300 01 7545)
Monday to Friday 9:00am to 5:00pm EST
Chervon Australia Pty Ltd ABN 36 165
077 501 (“Chervon”) warrants to the
original domestic purchaser that this
product will be free from defects in
materials and workmanship for 5 years
from date of purchase, and any battery
or charger will be free from defects in
materials and workmanship for 3 years
from date of purchase. Please note SKIL
products are intended for DIY (Do It
Yourself) use only. SKIL Products are not
designed or intended for commercial or
trade use and if the products are used
in any commercial or trade applications,
the warranty will not apply. Consumables
will be covered by a 3-month warranty
and a complete list can be found inside
the manual. This SKIL product warranty
is only applicable to purchases from
authorised SKIL retailers.This warranty
will not apply to SKIL products that are
purchased from Amazon, eBay and any
other non-authorised online retailer. This
SKIL product warranty does not apply
to any parallel imported product and
does not apply to any SKIL products that
are not purchased from an authorised
SKIL retailer. To make a claim, return
the faulty item together with proof of
purchase directly to your closest service
agent or to the place of purchase. Any
handling and transportation costs (and
other expenses incurred in claiming this
warranty) are not covered by this warranty
and will not be borne by Chervon. The
replacement product or part or repaired
product will be made available for your
collection at an address nominated by
Chervon. Where a valid warranty claim is
made, Chervon will replace the defective
product or repair the fault.Where the
product is repaired, Chervon may use
refurbished parts.This warranty does not
cover normal wear and tear, misuse or
abuse. This warranty may also be further
limited or voided as specically detailed
in the product Manual. Chervon has no
other liability under this warranty. The

7
