_.§_2g/L :4 W. INSTRUCTION MANUAL
SKIL MODELS 77, 367 &825 SUPER D-UTY SAWS
BEFORE CONNECTING YOUR TOOL
TO APOWER SOURCE
Be sure. you have read all safety rules and understand all the
instructions in this manual for safe operation of the tool.
GENERAL SAFETY PRECAUTIONS
1. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
2. AVOID DANGEROUS ENVIRONMENT. Don't use power
tools in damp or wet locations. Keep work area well lit.
Do not expose power tool in rain.
3. KEEP CHILDREN AWAY. All visitors should be kept safe
distance from work area.
4. STORE IDLE TOOLS. When not in use, tools should be
stored in dry, high or locked-up place—out of the reach of
children.
5. DON'T FORCE TOOL. It will do the job better and safer at
the rate for which it was designed.
6. USE RIGHT TOOL. Don‘t force small tool or attachment
to do the job of aheavy—duty tool.
7. WEAR PROPER APPAREL. No loose clothing or jewelry
to get caught in moving parts. Rubber gloves and footwear
are recommended when working outdoors."
8. usE SAFETY GLASSES. Use safety glasses witlfmost’
tools. Also face or dust mask if cutting operation is dusty.
9. DON'T ABUSE CORD. Never carry tool by cord or yank it
to disconnect from receptacle. Keep cord from heat, oil,
and sharp edges.
_10. SECURE WORK. Use clamps or vise to‘ hold work. It's
safer than using your hand and it frees both hands to
operate tool. ‘
11. DON'T OVERREACH. Keep proper footing and balance at
all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
.13. DISCONNECT TOOLS. When not in use; before servicing;
when changing blades, bits, cutters, etc.
14. REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
15. AVOID ACCIDENTAL STARTING. Don’t carry plugged-in '
tool with finger on switch. Be sure switch is OFF when
plugged in. I
16. OUTDOOR USE EXTENSION CORDS. When tool is used
outdoors, use only extension cords suitable for use out-
doors and so marked.
17. Keep Guards in Place and in Working Order.
18. Keep Blades sharp.
19. Keep Hands Away from Cutting Area.
20."lNARNING! Electrical repairs should be attempted only
by trained repairmen. Contact the nearest SKIL Service
Center or other competent repair service."
PRELIMINARY INSTRUCTIONS
Your electric tool is precision built and manufactured to satisfy the
highest standards. For maximum perfomsmca, long tool life, and your
safety, follow these instructions carefully.
VOLTAGE WARNING: Before connecting the tool to apower source _
(receptacle, outlet, etc.) be sure the voltage supplied is the same as that
specified on the nameplate of the tool. A power source with voltage
greater than that specified for the tool can result in SERIOUS INJURY
to the user—as well as damage to the tool. If in doubt, DO NOT PLUG
IN THE TOOL. Using apower source with voltage less than the name-
plate rating is harmful to the motor.
GROUNDING INSTRUCTIONS: This tool should be grounded while
in use to protect the operator from electric shock. The tool is equipped
with an approved three-conductor cord and three—prong grounding-type
plug to fit the proper grounding-type receptacle. The green (or green
and yellow) conductor in the cord is the grounding wire. Never connect
the green (or green and yellow) wire to a live terminal. If your unit is
for use on less than 150 volts, it has a plug that looks like Fig. If
it is for use on 150-250 volts, it has aplug that looks like Fig. "D”.
An adapter, Fig. "B" and "C" is available for connecting Fig. "A" plugs
to two-prong receptacles, (see Note). The green-colored rigid ear, lug,
etc., extending from the adapter must be connected to apermanent
ground such as to properly grounded outlet box. No adapter is avail-
able for Fig. "D" plugs.
F|G.A “F‘IG.C Adapt.’
Q 629
°'3?i-?-‘i‘"° °°'a'.:L?a°:.“°*° *“=';;::::"°
F'°'° NOTE: THE GROUNDING ADAP-
@TER IS PROHIBITED IN CANADA
- PER CANADIAN ELECTRICAL
(E CODE—PART 1. THEREFORE, THE
INSTRUCTIONS FOR ITS USE ARE
Grounding NOT APPLICABLE IN CANADA.
Blade
EXTENSION OORDS: Use only threewire extension cords which have
‘three-prong grounding-type plugs and three-pole receptacles which
accept the tool's plug. Replace or repair darrnged or worn cord immedi-
ately. The following table shows the correct size to use depending on
cord length and nameplate amperap rating. If in doubt, use the next
heavier gage. An undersized cord will cause adrop in line voltage, result-
ing in loss of power and overheating. NOTE: The smaller the gage
number, the heavier the cord.
Recommended Minimum Gage for Cord Extensions
for Portable Electric Tools
Ampere Volts Length of Cord in Feet
1:233 120 v 25 Ft. 50 Ft. 100 Ft.l150 1-':.[2oo 1=r._]2-so 1=~e.13oo Ft.
1240V.%'5°'F€'- ‘100Ft.1'oo1=1.3ooFt 0¢.lFt._ _F‘t.' Ft.
8-10 18 .14 12 1o 8 8e
1o12 16 14 10 8866
12-14 16 12 1o 866 6
14-16 16 12 1o 8 6e4
F-31748724 7/78

and below work.
BEVEL
ADJUSTME NT
LEVER MOTOR
SAFETY LIFT HOUSING
UPPER HANDLE
GUARD SWITCH
OUADRANT
4
\
FOOT
DEP
\ TH
LOWER ADJUSTMENT
BLADE GUARD KNOB
STUD OUTER
ARBOR
WASHER
SPECIFICATIONS
MODEL 77 367 825
Maximum Blade Diameter . . . . 7-1/4". . . . . 6-‘l/2". . . . 8-1/4"
NoLoadSpeed .. . . . . . . ..4400 4600 .....4300
Amperage Rating at 120’Volts. . 13 . .. . . 12 . . . . . 13
ALL MODELS
Motor . . . . . . . . . . . . . . . . .. . .. . D.C., or A.C.up to 60 Hz.
SAW SAFETY RULES
1. Disconnect the plug before changing blades, or before inspecting,
adjusting or lubricating the saw. 2. Raise the lower guard only with the
safety handle. 3. Never clamp or tie the lower guard into the open
position. 4. Always keep the telescopic lower guard in good working
condition. 5. Do not run the saw while carryingit at your side. 6.
Secure wood before sawing never hold pieces in your hand or across
your knee. 7. If guiding saw with two hands, keepvsecond hand on
top handle, not near blade. 8. Before making cut, be sure depth
and bevel adjusting nuts are tight and secure. 9. Always be sure that
electric cord is positioned away from line of cut, both from above
PREPARING THE SAW
CHANGING BLADES
CAUTION: Always disconnect theplug before changing blades.
1. Press lock pin to lock saw shaft. 2. To loosen, turn saw stud
clockwise. Stud has left hand thread. 3. Mount blade with
teeth pointing in direction of rotation. Tighten saw stud as
much as possible with fingers, then apply wrench and
tighten stud to point of slight resistance.
If the blade slips too much
during normal use, tighten
stud a bit more. Make these
adjustments each time you
mount ablade on your saw.
When you adjust the blade
stud properly, the cluth per-
mits the shaft to make an
extra 1/4 to 1/2 turn if the
blade meets excessive resist-
ance and stops suddenly. This
protects saw components
TURN from "shock overload" and
CLOCKMSE lessens kickback by letting
motor, gears and shaft stop
less abruptly if blade should
Removing saw Blade bind or jam to astop.
This "Vari-Torque" feature permitsyou to adjust blade slippage
to your requirement.
BLADE GUARDS
The blade guards are for your protection. Keep them clean and
in free operation. The lower guard is atelescoping guard that
retracts automatically up into the upper guard as the blade
enters its cut.
CAUTION: Always be certain that the lowerguard is working
properly before operating the saw. Check the lower guard to
insure that it engages the rubber stop on the upper gt/am’.
If guard does not work freely: 1. Remove blade. 2. Blow out
or remove all excess sawdust with asoft cloth or brush. 3. If
guard still does not operate properly, check spring for proper
hook-up and tension. It may have to be replaced. 4. Do not use
any saw on which blade guards are not working properly.
WARNING: Never grasp the lower guard at any place but the
safety lift handle.
LOWER
GUARDSAW
BLADE
SAW
FOOT ICARPENTEITS
;/ SQUARE
Qheic.l< these two ppint
for alignment
Aligning Saw Foot
ALIGNING SAW FOOT
For accurate cutting, the side of the foot must be parallel to
the blade. Check alignment with carpenter's square. 1. Dis- ""-*-—-
connect cord. 2. Adjust depth of cut to maximum. 3. Set for
vertical cut. 4. Retract lower guard. 5. Hold square against
blade. 6. Check alignment with side of the foot. If badly
out of line, send the saw to your service center, listed on the
back cover, for repair.
DEPTH ADJUSTMENT
To adjust for depth, set the foot on the edge of the material
with the blade hanging over the edge. 1. Lift up on depth
adjustment lever. 2. Hold back end of‘ foot down and lift up
on rear handle till saw blade protrudes below foot to desired
depth of cut. 3. Tighten lever. ’
BEVEL ADJUSTMENT
Your new saw cuts any angle from 0° to 45°. To regulate
bevel adjustment, set the foot on the edge of the material as
in depth adjustment. Loosen bevel adjustment lever, and line
up desired graduation on quadrant with arrow on bevel
indicator. Tighten lever and try your first cut on apiece of
scrap material to see if you have the right angle.
OPERATING INSTRUCTIONS
SIGHTING
The front edge of the foot is notched to provide sighting
points. The saw can be guided accurately along marked lines
of the work, for both 0° and 45° cuts. When sighting points
pass beyond the work, the line can still be seen in froht of
the blade.
Line up the scribed
line with the proper
match.
Sighting Notches

DEPTH OF CUT
The proper depth of cut is important in cutting thin materials
such as sheets of plywood, wood veneer, plastic and non-
ferrous metals. Selection of blade is important but even the
right blade may fail in cutting some thin materials if the blade
is not set for the proper depth of cut. Experiment with the
depth of cut, trying shallower cuts first and then proceeding
to deeper ones.
In general, ashallow depth of cut works best on thin materials
because on a shallow cut: 1. Teeth tend to "mill" work from
the edge rather than "impacting" it sharply from below. 2.
More teeth are actually in the cut at all times with their tips
in contact with work. 3. Adiallow depth of cut for thin
materials produces less vibration, giving asmoother cut with
less chipping of top surface. But do not assume that minimum
depth of cut is best for all thin materials. Experiment.
When cutting thick materials such as common framing lumber,
maximum depth of cut results in faster cutting and places less
load upon the saw. CAUTION: A/ways disconnect the plug
before making any adjustments.
LONG
CONTACT 3 ii
ARC 0 =
O/
Mill
___._p
I
I
I
I
I
I
Minimum Depth Adiustment Rip Fence Set for Cutting
RIP CUTS
Cutting With Grain—Long lengths of lumber can be ripped by
following ascribed line with the sighting notch on the foot or
by using arip fence which is optional at extra cost.
The adjustable rip fence makes ripping easier and more
accurate. It eliminates measuring and marking the material
and is especially useful for making repetitive cuts.
After setting the rip fence to the width of cut desired, tighten
the set screw firmly.
CROSS CUTS
Cutting Cross Grain——To start acut, rest the front edge of the
foot on the work without letting the blade contact it. Line up
the sighting notch of the foot with the marked line to be cut.
Hold the handle firmly and squeeze the trigger switch. Allow
the blade to reach full speed, then guide the saw into the work
with light, but steady pressure. Do not force. Keep your
right arm in line with the blade.
When the cut is finished, release the switch before lifting the
saw from the work.
POCKET CUTS
To make pocket cuts, the blade should be set to the maximum
cutting depth. 1. With switch off, rest front edge of saw on
work. 2. Line up sighting notch with line of cut. 3. Lift lower
blade guard with safety handle. Be sure switch is still off and
that teeth of blade do not touch work. 4. Start motor and,
using front edge of foot as apivot, lower saw until cuts
through work and foot rests flat. 5. Release safety handle to
drop lower guard and follow line of cut. 6. Turn saw around
to make ashort cutback. Never pull saw backward in the cut
while motor is running, this will avoid the danger of a
kickback.
Lining-up for Pocket Cuts
BLADE SELECTION
No one blade can be efficient on all cutting jobs. Different
materials and results desired require specially designed blades.
With the proper blade your SKIL Power Saw can cut many
materials.
CUT-OFF WHEELS
SKI LSafety Cut-Off Wheels are abrasive discs used for cutting
and scoring metal, concrete, asbestos cement, tile and other
stone and masonry materials. Several types of these wheels
are available. For best results, select proper type for material
being cut. NOTES: Do not use any cut-off wheel beyond its
rated speed. Check catalog RPM against safe wheel speed.
Never try to cut thru thick material in one try, make aseries
of shallow cuts that gradually deepen to the cut desired.
SKIL safety wheels are suitable for heavy duty iobs. Special
reinforcing resists breaking or chipping if the wheel is twisted
or pushed too hard.
Mount cut-off wheels on saw arbor same as steel blades. Be
sure that arbor hole metal insert faces toward saw. Tighten
blade stud firmly. Start saw before wheel touches work and
maintain aslow but firm pressure while cutting. Guide saw
straight through work—do not twist or tilt saw as wheel may
break or bind.
CARE OF BLADES
Gum and wood pitch harden on the blade and slow it down.
Remove with hot water or kerosene.
SKI LBlades are made of finest alloy steel, designed to operate
with maximum efficiency on portable electric saws. The best
blade cannot work efficiently and will overload the tool if not
kept sharp. Extra blades should be kept on hand so that an
efficient cutting edge is always available while dull blades
are sharpened.
Unless the SKIL Power Saw owner is experienced in blade
sharpening, he should no more than touch up blades. After
several touch—ups the blades should be sharpened and refitted
by aprofessional saw sharpener. SKIL service centers main-
tain ablade exchange service.
ACCESSORIES
CAUTION: The use of any other accessories not specified
in this manual could create ahazard.
PREVENTIVE MAINTENANCE PROGRAM

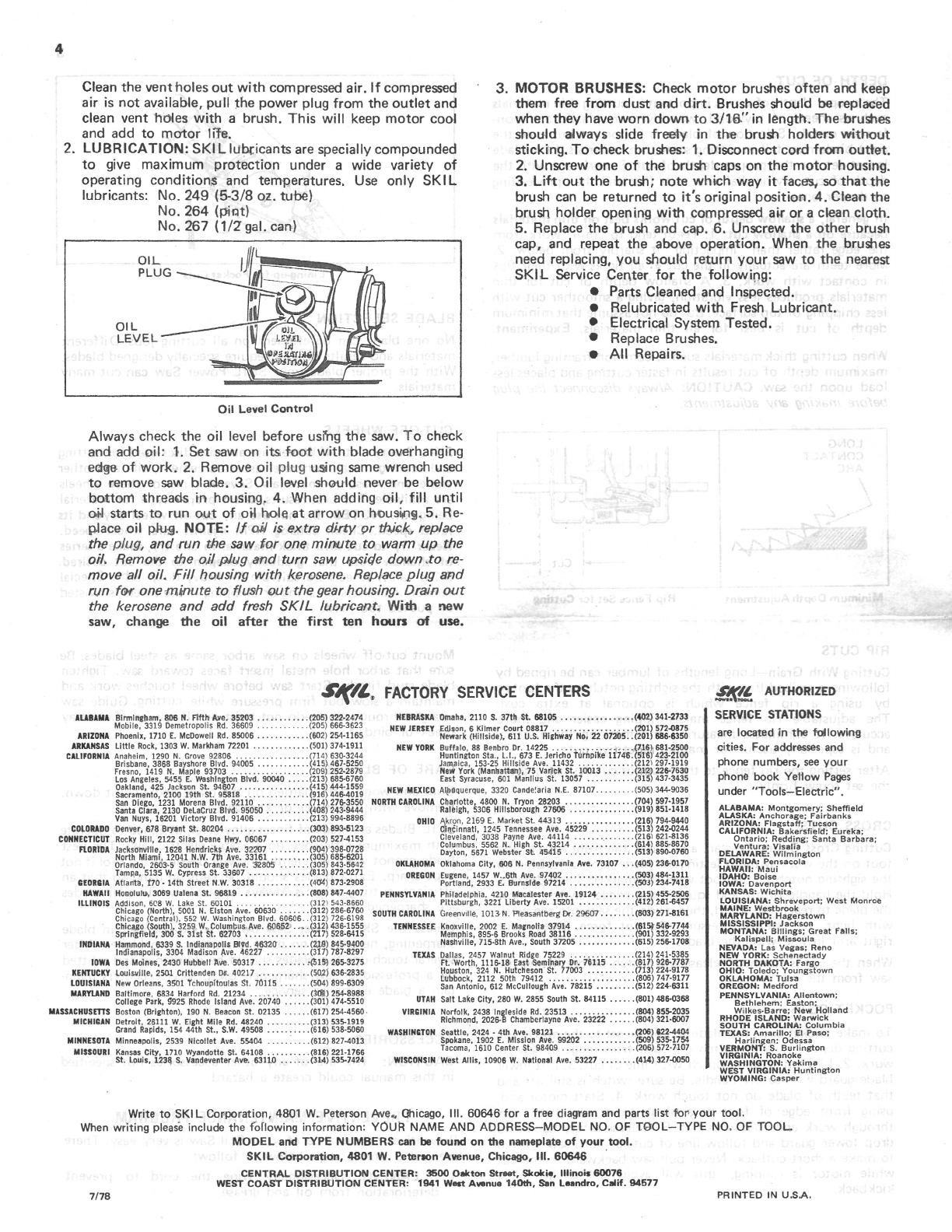

Preventive maintenance of your Skil Saw is very easy. There
are just 3simple steps below to follow:
1. CLEANING: Occasionally wipe the cord to prevent
deterioration from oil and grease.

Clean the vent holes out with compressed air. If compressed
air is not available, pull the power plug from the outlet and
clean vent holes with a brush. This will keep motor cool
and add to motor life.
LUBRICATION: SKI Llubricants are specially compounded
to give maximum protection under awide variety of
operating conditions and temperatures. Use only SKIL
lubricants: No. 249 (5-3/8 02. tube)
No. 264 (pint)
No. 267 (1/2 gal. can)
OIL
PLUG
ALAIAIAA Birmingham. 806 N. Fifth NIB. 35203 .
COLORADO Denver. 678 Bryant st. 80204 . . . . . . . . . .
CONNECTICUT Rocky Hill, 2122 Silas Deane Hwy. 06067
Oil Level Control
Always check the oil level before usi‘rlg the saw. To check
and add oil: 1. Set saw on itsfoot with blade overhanging
edge of work. 2. Remove oil plug using same wrench used
to remove saw blade. 3. Oil level should never be below
bottom threads in housing. 4. When adding oil, fill until
oil starts to run out of oil hole at arrow on housing. 5. Re-
place oil plug. NOTE: If oil is extra dirty or thlickg, replace
the plug, and run the saw for one minute to warm up the
oil. Remove the oil plug and turn saw upside down .to re-
move all oil. Fill housing with kerosene. Replace plug and
run for one minute to flush out the gearhousing. Drain out
the kerosene and add fresh SK/L lubricant. With a new
saw, change the oil after the first ten hours of use.
$4’/L. FACTORY SERVICE CENTERS
[phone]
[phone]
[phone]
Mobile, 3319 Demetropolis Rd. 36609 .
ARIIONA Phoenix, 1710 E. McDowell Rd. B5006 .
San Diego, 1231 Morena Blvd. 92110 .
Santa Clara, 2130 DeLaCruz Blvd. 95050
Van Nuys, 15201 Victory Blvd. 91406 . [phone] mm
[phone]
[phone]
FLORIDA Jacksonville, 1628 Hendricks Ave. 32207
North Miami, 12041 N.W. 7th Ave. 33161
Orlando, 2603-5 South Orange Ave. 32805
Tampa, 5135 W. cypress St. 33607 . . . . .
NEBRASKA Omaha, 2110 S. 37th St. 88105 . . .. . . . . . . . . . . . . .[phone]
NEW JERSEY Edlson. 6Kilmer Court 08817 . . . . . .
Newark (Hillside), 611 U.S. Highway N
[phone]
[phone] NORTH CAROLINA Charlotte, 4800 N. Tryon 28203 .
[phone] Raleigh, 5306 Hillsllorougrl 27606
kron, 2169 E. Market St. 44313 . . .
néinnati, 1245 Tennessee Ave. 452
Cleveland, 3038 Payne Ave. 44114 .
Columbus, 55152 N. High St. 43214 .
Dayton, 5671 Webster St-. 115415
OKLAHOMA Oklahoma city, 606 N. Pennsylvania Ave. 73107 .. .[phone]
3. MOTOR BRUSHES: Check motor brushes often and keep
them free from dust and dirt. Brushes should be replaced
when they have worn down to 3/1.61" in length. The brushes
should always slide frwly in the brush holders without
sticking. To check brushes: 1. Disconnect cord from outlet.
2. Unscrew one of the brush caps on the motor housing.
3. Lift out the brush; note which way it faces, so that the
brush can be returned to it's original position. 4. Clean the
brush holder opening with compressed air or aclean cloth.
5. Replace the brush and cap. 6. Unscrew the other brush
cap, and repeat the above operation. When the brushes
need replacing, you should return your saw to the nearest
SKIL Service Center for the following:
Parts Cleaned and inspected.
Relubricated with Fresh Lubricant.
Electrical System Tested.
Replace Brushes.
All Repairs.
AUTHORIZED
SERVICE STATIONS
are located in the following
. . ..... .[phone]
07205. .[phone]
ARKANSAS 111119 11061-1303 W» Mafkham 72201 -- [phone] usw YORK Buffalo, as Benbro Dr. 14225 ................. .4715) 681-2500 cities. For addresses and
l:ALlFOIlNlA Anaheim, 1290 N. Grove 92806 . . . . [phone] Huntington Sta., L.l.. 673 E. Jericho Turnpike 11746.[phone]
Brisbane, 3363 Bayshore Blvd. 94005 [phone] Jamaica, 153-25 Hillside Ave. 11432 ........... ..(212l297-1919 phone numbers, see your
Fresno, 1419 N. Maple 93703 ..... .. [phone] New York (Manllanan). 75 Varlck St. 10013 ..... ..(212) as-7530 h
Los Anlzeles, 5455 E. WatSIl;!lg107n Blvd. 90040 . [phone] East Syracuse, 601 Manlius St. 13057 ......... ..[phone] 13 one book Yellow Pages
gggjgg‘;-nf,}'52’fb°O 51'§"m5S-t_ 355$“-1-_; I5’ NEW MEXICO Alpnquerque, 3320 canueaana n.2, 87107. ..(5o5)344-9035 under "1-ool5_Elect,lc~.
. .[phone]
. .[phone]
. .[phone] ALABAMA: Montgomery; Sheffield
ALASKA: Anchorage; Fairbanks
ARIZONA: Flagstaff; Tucson
CALIFORNIA: Bakersfield; Eureka;
Ontario: Redding; Santa Barbara;
Ventura: Visalia
DELAWARE: Wilmington
FLORIDA: Pensacola
HAWAII: Maui
............ . . Zf(513) 890-0760
GEORGIA Atlanta, 170 - 14th Street N.W. 30318 ...
OREGON Eugene, 1457 W..5Ih Ave. 97402 . . . . . . . .... . . . . .[phone]
Portland, 2933 E. Burnside 97214 . . . .
IIAWAII Honoluiul 3069 Ualena 51- 96819 ----- -- [phone] PENNSYLVANIA Philadelphia, 4210 Macalester Ave. 19124 [phone]
lu.lilols é:dison,&08nhM$. lézalée 30101 A. . . .s.0.6.3b. Pittsburgh, 3221 Liberty Ave. 15201 [phone]
‘ago 0 , 1. scnve. . . . . . .. -
W153“ (cemm 552 W’ wmmgm mm 606% _ (312) mmgs sourll cAiioi.lllll Greenville, 101311. Fleasantberg Dr. 29607 .. . [phone]
Chicago (South). 3259 W-Columbus AVe- 50552 [phone] TENNESSEE Knoxville, 2002 E. Magnolia 37914 . ..(s15l54s-7744
Springfield, 300 8. 31st St. 62703 . . . . . . . . . . (21?) 528-6415 Merrlp_llis, 895-6 Brooks Road 38116 . . . 901) 332-9293
INIIIANA Hammond, 5339 s. Indianapolis Blvd. 4632 (219) 3459400 Nashville. 715-8th Ave-. South 37205 -1615) 2561703
'"‘“°"3?°"5- 33“ M“°“5“" “"1 ‘"5227 (317) 737"3297 uxas Dallas, 2457 Walnut Ridge 75229 ..[phone]
IDVIA Des Nlolnes, 2430 Hubbell Ave. 50317 . . . .. -(3133 265-3275 Ft. Worth, 1116-18 East Seminary Dr. 761 [phone]
xsinucllv Louisville, 2501 crittenden 0:. 40217 ..... .. [phone] tlmm. 1:2;-;2N.55iti;1tc9§:0g st. 77003 [phone]
"-“’A‘;"‘:::: :'1;';_°"°°";é3f°Ja‘;°“:"::;°:?:3§1- 7°”5 -- ggigggg sail Anténlo, 612 Mccuilougil'l'\ve'.' 7021 . 224
8lmore, .. I‘ 01 . . . . . . . . . . . ,
college Park, 9925 Rhode Island Ave. 20740 . [phone] LITAII Salt Lake city, 280 W. 2855 South St. 84115 . . . . . .[phone]
MASSACHUSETTS Boston (Brighton), 190 N. Beacon 51. 02135 . [phone] VIRGINIA Norfolk, 2438 In leside Rd. 23513 ......... .. [phone]
”|cfl|gAfl Daron’ 26111 w_ Emm Mile Rd. 43240 ‘ _ _ _ _ Richmond. 2025- Chamberlayne AVE. 23222 . .[phone]
°“"“1 113111115: 154 4411' 51- 5~W- 49508 (5 5°50 wlsliliieroil Seattle. 2424 - nil Ave. 93121 ....... .. ..(2os) 5224404
Mlllnsson Minneapolis, 2539 Nlcollet Ave. 55404 .(s12)s27-1013 Spokane, 1902 E. Mission Ave. 99202 . ..(5o9)5as17s4
uissolllll Kansas city, 1710 Wyandotte 51. 54103 [phone] ”°°'"" 15”’ ‘em’ 5" SW9 """ " "‘2°5’ 572'"°7
St. Louis, 1230 s. andelienter Ave. 53110 ..... ..(31l4) 535-7424 wisconslil West Allis, 10905 w. national Ave. 53227 ...... ..[phone]
IDAHO: Boise
IOWA: Davenport
KANSAS: Wichita
LOUISIANA: Shreveport: West Monroe
MAINE: Westbrook
MARYLAND: Hagerstown
MISSISSIPPI: Jackson
MONTANA: Billings; Great Falls;
Kalispell; Missoula
NEVADA: Las Vegas; Reno
NEW YORK: Schenectady
NORTH DAKOTA: Fargo
OHIO: Toledo: Youngstown
OKLAHOMA: Tulsa
OREGON: Medford
PENNSYLVANIA: Allentown;
" ‘hlehemz Easton;
Wilkes-Barre; New Holland
RHODE ISLAND: Warwick
SOUTH CAROLINA: Columbia
TEXAS: Amarillo: El Paso:
Harlin en: Odessa
VERMON : S. Burlington
VIRGINIA: Roanoke
WASHINGTON: Yakima
WEST VIRGINIA: Huntington
WYOMING: Casper
Write to SKIL Corporation, 4801 W. Peterson Ave... Ohicago, lll. 60646 for afree diagram and parts list for your tool.
When writing please include the following information: YOUR NAME AND ADDRESS—MODEL NO. OF TGOL—TYPE NO. OF TOOL.
MODEL and TYPE NUMBERS can be found on the nameplate of your tool.
SKIL Corporation, 4801 W. Peterson Avenue, Chicago, Ill. 60646 ‘
CENTRAL DISTRIBUTION CENTER: 3500 Oakton Street, Skokil, Illinois 60076
WEST COAST DISTRIBUTION CENTER: 1941 West Avenue 140191, San Lelndro, Calif. 9457']
7/78 PRINTED IN U.S.A.

D SK/LSAW 77-TYPE 15. 387-TYPE 7, &825-WPE13 POWER SAW
V“x!
NR“ 51
\\l “E” “R
EXAMPLE:
TD LOCATE THE CORRECT PART NAME
AND NUMBER: FIRST LOCATE THE
nerencuce NUMBER IN THE nanwms,
THEN not THE PARTS LIST. sneer THE
cmuuu mm vmm MOUEL NUMBER,
men .’-LEIECT mi um: WAT INCLUDES
\
vrmn mm
23— /
22 a(-%
2 ,
1299 2: _\\_ t I ‘A
we 1, 26 42
17 _ L '*‘@t))
D \ © V
'6 >\ 29 3°
3 M to
7 3 ,2
29 %°
THE COMPONENT PARTS (small ref. no'S.)
ARE INCLUDED WHEN ORDERING
THE ASSEMBLY PART (LARGE REF. NO.).
WARNING' Etectncal repatrs should he
attempted nnty tzy trained repatrmert
Contact the nearest Slut Servtce Center
or other competent repatr serwce.
91
/\
// I‘
514$‘/W/85
7523,/@<\ 3'
;\., in
t/‘sg\O£/) 40
\ 5. D
4‘ 54
526\\
98ti—§

THE FOLLOWING PARTS ARE COMMON TO ALL TYPES
nF.
_I_IfJ_. PART IIAIAE '53? TIEIIFI
1BEARING COVER 23313 45
2WASHER 23331 45
3LOCK PIN BUSHING 23324 47
4FLAT WASHER 25057 48
5LOCK PIN 23387 49
5SNAP RING 23340 50
7SPRING 23394 51
8FLAT WASHER 17015 52
9"O" RING 15725 53
10 SELF LOCKING NUT 71144 54
I1 BALL BEARING 17875 55
12 SPACER 23332 55
I3 SPWORM 8. SAW SHAFT ASSY 27155 57
14 LOC KWASHER (2) 305355 58
15 SCREW (2) 27153 59
I5 WASHER 23385 50
I7 OIL PLUG 23384 51
18 SCREW 27040 52
19 CAP SCREW 27158 53
20 SCREW (5) 315299 54
21 HOOD 303855 55
22 SCREW (4) 27002 55
22.. SCREW (4) 27003 5'7
23 TOP HANDLE 315283 58
24 BEARING RETAINER 73333 59
25 BALL BEARING (2) 24748 70
25 SEAL COLIAR 23330 71
27 OIL SEAL I857 72
28 LOCKWASHER 27159 73
29 GEAR HOUSING ASSEMBLY 315281 74
30 SPRING STUD 23337 75
31 EXPANSION CHAMBER 23335 75
32 COVER PLATE 23335 77
33 SCREW (4) 23399 73
34 COLLAR 23328 79
35 LOCK DISC 23327 80
35 BALL BEARING 155 8-1
37 LOADING SPRING WASHER 4521 82
38 SCREW 27034 83
39 FLAT WASHER 4341 84
40 RUBBER BUMBER 4335 85
41 SPACER 23329 86
42 SCREW (4) 300129
43 ARMATURE-SEE ELECTRICAL PARTS LIST
44 FAN 23318
11314825 11/75 SKIL CORPORATION
£AB.‘IJ.6M.5.
FIELD-SEE ELECTRICAL PARTS LIST
TERMINAL (5)
BRUSH CLIP (2)
LOADING SPRING WASHER
BALL BEARING ‘
SCREW (4)
SCREW (4)
SWITCH
SCREW-i(Ground to Housirg)
PRT
‘I15.
63
23081
4459
18299
315380
315765
315282
— 69260
CORD &PLUG-SEE ELECTRICAL PARTS LIST
STRAIN RELIEF
SET SCREW (2)
BRUSH 5SPRING (2)
BRUSH CAP (2)
STUD
PLUG BUTTON
GASKET
BEARING PLATE
OIL SEAL
SPRING
GUARD PLATE
CLAMP LEVER ASSEMBLY (2)
LEVER (21
LEVER RETAINER (2)
NUT (2)
SCREW (2)
RIVET
FLAT WASHER (2)
CARRIAGE BOLT
RIvET(2)
FLAT WASHER (25
HINGE PIN
LIFT LEVER
RIVET (2)
SNAP RING
SAW BLADE STUD
ROLL PIN
HANDLE COVER-RIGHT
SPACER (4)
CORD CLAMP
HANDLE COVER-LEFT
BRUSH HOLDER (2)
' 5033 ELSTON AVENUE an
5970
1138
23953
306278
315286
9223
23334
23311
25245
23414
23325
13598
13559
16051
13558
67123
13548
9722
16325
13547
13595
3212
3152W
315290
18268
50
18921
315279
315274
3719
315280
306277
CHICAGO, ILLINOIS
THE FOLLOWING PARTS APPLY ONLY TO TYPES INDICATED
Mo.’ PART NAME
88 SCREW (23
89 - OUTERWASHER
90 MOTOR HOUSING
91 SCREW ‘(4)
92 o INNER WASHER
93 UPPER GUARD
94 FOOT ASSEMBLY
95 FOOT HINGE
95 BRACKET
97 REAR SUPPORT BRI<T ASSY
98 LOWER GUARD
SPEIIIAL NOTES
77—T15
27140
27130
315277
27139
27131
27121
27150
13599
13606
27156
315287
3Ii7—T7
303850
20634
(T1 5292
27139
23406
27120
301265
13599
13606
306274
315288
825-“!
23374
27130
315278
27137
2713
27122
27154
13546
13543
27165
315289
* OPTIONAL: 531577‘-4‘ CORD WITH TWIST LOCK PLUG.
Av MATCHE0 SET (REF. I13)
0 TO CONVE TTO 5/*8" ROUND ARBOR USE:
0636 OUTER WASHER
‘"23-$07 INNER WASHER
OSHA WASHER SET #73482 FOR USE WITH CUTOFF WHEELS,
ELECTRICAL PARTS LIST
j-—_._———:
TVPII mu ARMATURE FIELD CORD
77-T I5 115 305205 303535 «Ir 302817
230 305207 303538 302818
357-1 7115 308805 303544 302817
825-113 100 302923 305552 302817
115 302922 305551 302817
230 302924 305553 302818
60630 PRINTED IN U.S.A.
