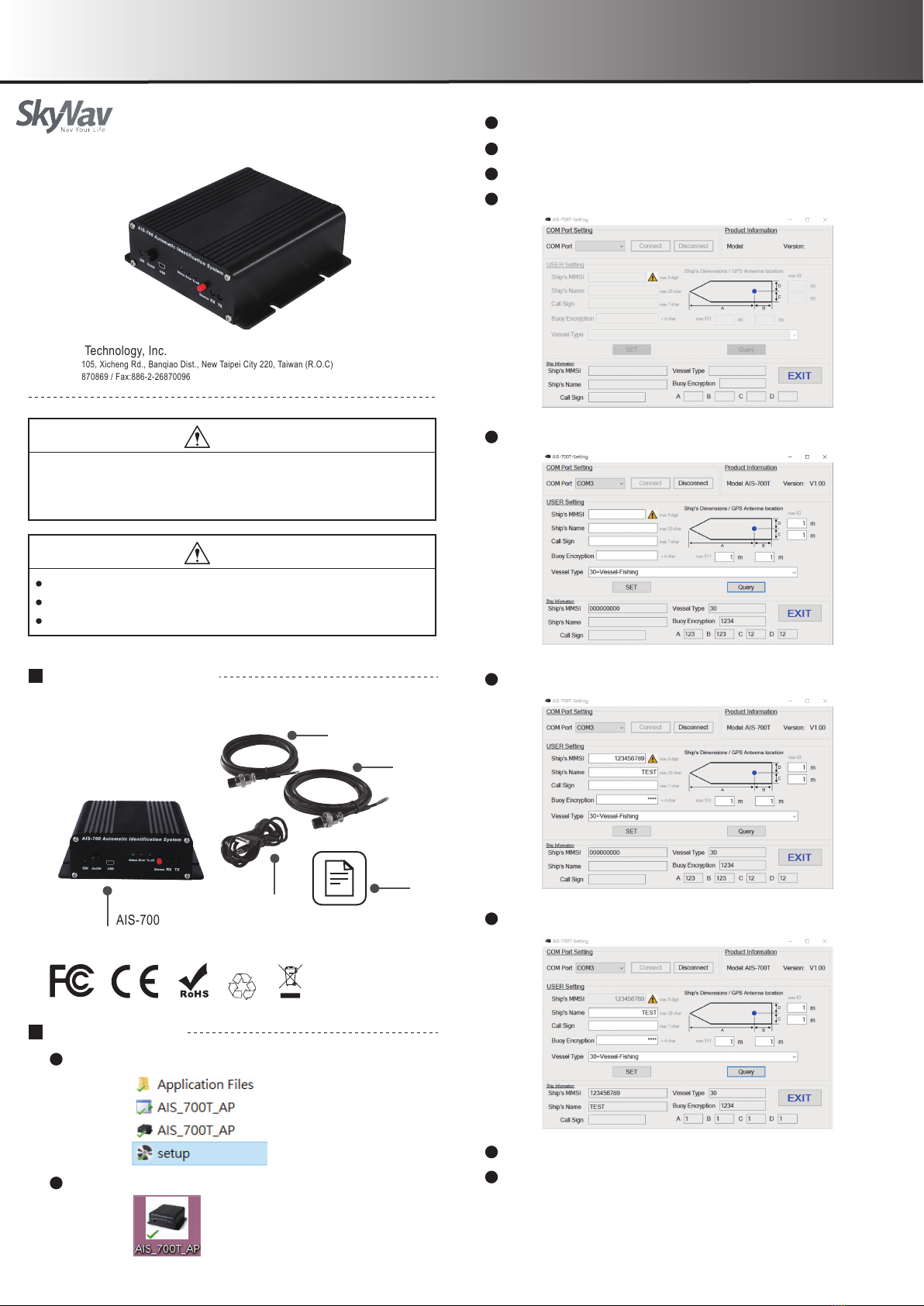

SKYNAV AIS-700 User manual

User Manual AIS-700 Class B AIS Transponder
Warning
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please check
with your local authorities.
v1.1.1.2021-700
Notifications
Do not input voltage over 40V.
Stay away from fire.
Do not crash by Human negligence.
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:[phone] / Fax:[phone]
www.skynav.com.tw / [e-mail]
Made in Taiwan
What do I need?
RECYCLABLE
PACKAGING
Basic Setting
Install the setting software “AIS_700T_AP”
1
2Open the software.
User manual
Power cable
Data cable
USB cable
AIS-700
Turn on the AIS-700.
4
Plug in the power cable and provide 12~24V power input.
3
Connect to your computer by USB cable.
5
Choose the correct COM port and click “Connect”.
6
Click “Query” to load default setting.
7
Enter your information of ship then click “SET”.
8
Click “Query” to make sure the setting.
9
Power off the AIS-700.
11
Click Disconnect and EXIT.
10

User Manual
v1.1.1.2021-700
Connections Define
PIN
1
2
3
4
V-
Reserved
V+
Reserved
Cable
Black
Red
V-
V+
1
23
4
Power
LED Flash Code
ON（Green LED）
12V Power input
Dark
Steady Light
Low power input (<5V DC)
While Silence button is pushed
Tx off（Blue LED）
Steady Light
RX（Green LED）
While the transponder is receiving AIS data
Dark
Steady Light
While the transponder is not receiving
AIS data
Flashing
Status（Green LED）
Steady Light
While transponder or Wi-Fi or Ethernet
initialize finished
Wi-Fi initialize fail
Ethernet initialize fail
Dark
TX（Red LED）
Steady Light
While the transponder is transmitting
own AIS data
While the transponder is not transmitting
own AIS data
Notifications
If you need to continue to set another AIS-700, you do not need to
choose your COM Port.
Just click connect and repeat step 8 to 11.
Please remember to restart the AIS-700 before test and use it.
If you want to receive the signal of AT-106, please set the same
encrypt code with each other.
Background noise level exceeds allowable
threshold(-77dBm)
GPS is unable to lock 3D fixed
after 3 minutes of losing GPS signal
Error（Red LED）
Flashing
Steady Light MMSI is not properly programmed
or MMSI=0
Dark others
PIN
1
2
3
4
5
6
7
GND
Reserved
Reserved
T- RS422
T+ RS422
RS232_Tx
RS232_Rx
Cable
Black
Blue
Yellow
Green
White
Gray
Brown
GND
Reserved
Reserved
T- RS422
T+ RS422
RS232_Tx
RS232_Rx
1
2
3
4
5
67
Data
AIS-700 Class B AIS Transponder
AIS-700 Automatic Identification System
ON RX TX On/Off USB Silence
Status Error Tx off

v1.1.1.2021-700
User Manual
Specification
Frequency Range：156.025 MHz ~ 162.025 MHz
Data Rate: 9600 bps (GMSK / FM)
Tx Output Power：2 Watt
Rx Sensitivity：< -107dBm @20% PER
AIS Channel 1：CH 87B (161.975 MHz)
AIS Channel 2：CH 88B (162.025 MHz)
Supply Voltage：9V ~ 40V DC
Size：140 mm x 131.4 mm x 46 mm
Weight：600g
Operating Temperature：-15°C~60°C
Storage Temperature：-20°C~70°C
Distributor
Sold Date: ___ / ___ / ______ (dd/mm/yyyy)
Warranty
Remark:
1.One-year warranty effects from the purchase date.
2.The warranty covers any manufacturing technical
defect excluding breakage.
3.The warranty does not cover faults resulting from
operation careless handing or not the following
instruction. Also, to electric shock cases.
Please keep this warranty card to retain
buyer’s legal rights. No replacement if lost.
AIS-700 Class B AIS Transponder
