USER’S MANUAL
USER’S MANUAL
LED HDTV/DVD COMBO
SLC-1519A-3S
SLC-1919A-3S
SLC-2219A-3S
MODEL
SKYWORTH ELECTRONICS,INC
Phone: [phone]
FAX: [phone]
Email: [e-mail]
1312 john Reed Court
City of Industry, CA 91745

Warning
To prevent fire and/or electric shock, do not use this plug with an extension
cord, receptacle or other outlet unless the blades can be fully inserted to
prevent blade exposure. Do not expose this appliance to rain or moisture.
Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Please, unplug the TV power cord when the following conditions occur:
-When there is a thunderstorm (Please, pull out the power cord and antenna).
-When cleaning the TV set.
-When the TV set is not used for a long time.
Do not use corrosive depurative when cleaning the TV set.
Do not put the TV set under direct sunlight or near heat.
Do not put a heat source, such as a candle or heater, on top of or near the TV set.
Leave plenty of space (al least 10cm) around the TV set for ventilation.
Place the TV set away from where it can be ruined by rain or water (such as near a
window).
Don't put a container with liquid (such as a vase) on top of the TV set.
Do not move the TV set when the power is on.
Do not touch, push or scratch the surface of the TV set with hard materials or items.
When TV surfaces are dirty, please use a wet cotton cloth or soft cloth with non-
corrosive cleaners
to clean it carefully. Don´t use acetone, toluene or alcohol to clean the TV set.
Be aware and careful of moisture, which can damage inner electronic components.
When condensed
moisture is present, the TV screen may appear blurry or spotty.
It is recommended that a technician install the TV set on a wall, if such placement is
desired.
An incorrect wall installation will be unsafe and hazardous.
Do not let children climb on or play around the TV set to avoid falls, collissions,
damages and injuries.
Do not hit the TV panel with hard objects to prevent damages.
Do not cover the TV set with blankets or other objects when it is connected to a
power source to prevent overheating and fire.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Mains plug is used as disconnect device from the mains, the disconnect
device shall remain readily operate.
Apparatus with class I construction shall be connected to a mains socket
outlet with a protective earthing connection.

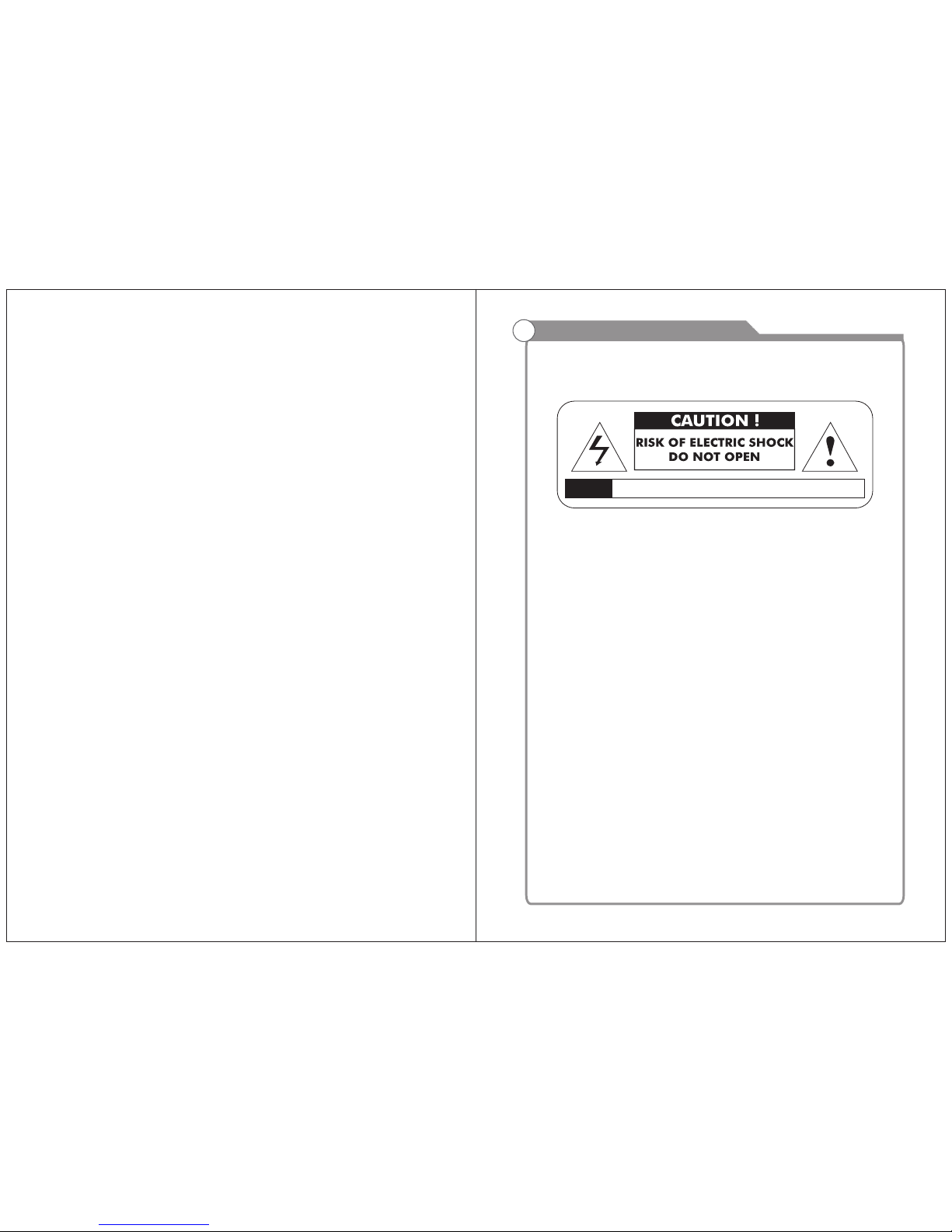

Safety Information
AVIS RISQUE DE CHOC ELEC TRIOUE/NE PAS OUVRIR

Important Safety PrecautionsImportant Safety Precautions
Do not place the power cord or other cables
across a walkway in case it is trampled on. Do
not overload the power cord or power socket.
When the power plug is used to disconnect and
connect the device, it should easily into the
power source.
Do not place the LED TV on an unstable
surface.
Do not disassemble the back cover, as it
contains high voltages inside and will cause
electric shock. Only qualified professionals
sh oul d co nd uc t in ter na l ad ju stmen ts ,
maintenance, and checks.
The TV set should not be subjected to
water droplets, vapor, or splash. This
equipment should not be placed on objects
filled with liquids. Do not place flame
sources, such as lit candles, on or near the
LED TV. Please, pull out the power plug
and contact after sales support if there are
abnormal objects or water in the TV.
Pull out the power cord and antenna cable
during electrical storms so the LED TV is not
damaged by electrical surges. Keep all
people away from the antenna cable during
electrical storms.
Please, immediately pull out the AC power
plug
from adapter if there is an abnormal sound or
smell or the LED TV has sound but no picture,
and contact after sales support.
The LED TV should be kept free from rain,
moisture and dust to prevent electrical
shock and
short circuits. Do not cover the ventilation
openings with table clothes, curtains,
newspapers, etc.
The LED TV should be kept from high
temperature heating sources or direct
sunlight. Good ventilation is required.
Allow 10 cm. between the LED TV and
other appliances or built-in cabinet walls.
When you wipe the front cabinet, please
make sure the power plug is pulled out and
use a soft, dry, lint-free cloth and handle it
with care. Do not repeatedly wipe the panel,
nor scrape, tap or strike the panel with a hard
object.
Do not wipe the LED TV with any petrol,
chemical or alcohol based solvents as it
will lead to product damage of the panel
and cabinet.
ENERGY STAR Qualification.
This product has earned the ENERGY STAR for meeting U.S. Federal energy efficiency guidelines as set
by the Department of Energy and Environmental protection agency.
The ENERGY STAR program exists to provide energy saving guidelines and help promote energy efficient
products and practices. Changes to certain features, settings and functions of this TV can change and/or
increase its power consumption.
As-shipped mode is the mode in which the product qualifies for ENERGY STAR .

Table of Contents Table of Contents
Troubleshooting
27
28
25
26
Connecting Digital Audio System
Connecting Amplifier/DVD Home Theater
Connecting DVD Player/Set-Top Box via HDMI
Connecting S-VIDEO
Connecting a Headphone
Introduction
Features
Specifications
General Description
Overview of front and side panel
Overview of back panel
External Connection
Connecting VCR
Connecting DVD Player/Set-Top Box via HDMI
Connecting PC
Supporting signals
Basic operation
Turning the TV On and Off
3
4
5
5
11
11
19
19
18
6
Accessories
3
Antenna connection 10
7-9
10
14
15
16
17
18
12
13
BASIC OPERATION
Audio
Time
Setup
Lock
Menu system introduction 20
20
21
21
22
22
23-24
Picture defects and the reason
12
DVD OPERATION
DVD Setup Menu

Input terminals used for external equipment connection
Introduction
Features
E
Note:
1. In case of any design change, a notice will not be released.
Introduction
W arnings
Specifications
One ANTENNA input
One Computer VGA/PC inpu t
One HDMI input
One AV input
One USB(only update) input
One EARPHONE output
One PC Audio input
34
Fine digital control
NTSC3.58
75W (Unbalance)
NTSC System, ATSC System
Antenna: 2~69; Cable: 1~135 (Analog: 1-125,
Digital: 1-135)
0 C-40 C
o
Adapter requirement
Model
Power Consumption 24W
AC 100-240V, 50/60Hz
1366X768
SLC-1519A-3S
Quick Setup Guide
Qui ck setu p Guide
Manual
Instructions
SLC-1919A-3S SLC-2219A-3S
1366X768 1920X1080
32W 2W4
IN PUT
OUT PUT DC: 12V 3A/5A/5A
Display screen type Color active matrix LED display
Sound output(Max)
AdapterCar charger cable
Power Cord
Remote Control &
Batteries (AAAx 2)
One COAXIAL out put
One YPbPr input
One L/R Audio output
One S-VIDEO input
6.6 lbs 7.7 lbs 9.4 lbs
2 x 5W
15 Dx6 Wx12 H
4
3
4
2
4
218 Dx6 Wx13 H
4
2
4
1
8
321 Dx7 Wx15 H
21
8
1
88
o

General Description
Overview of front and side panel
General Description
Overview of back panel
56
SPEAKER
REMOTE CONTROL SENSOR
If an optional remote control is allowed,
aim it towards this spot on the TV.
POWER INDICATOR
Green: In power on mode.
Red: In standby mode.
Toggles between all the available input
sources ( TV, AV, S-VIDEO, COMPONENT,
CH+/-
Press to change channels.
In the on-screen menu, use the CH +/-
buttons as up/down arrow buttons.
VOL+/-
Press to increase or decrease the volume.
In the on-screen menu, use the VOL +/-
buttons as left/right arrow buttons.
POWER
Press POWER button to toggle between
and standby mode.normal
MENU
Press to see an on-screen menu of your
TV's features.
SOURCE
4
5
6
78
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
1 2 345
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
10
11
12
13
R
L
VIDEO
IN
9
67
8. S-VIDEO
Connect an S-VIDEO signal from a
camcorder or VCR...
9. COAXIAL
10.
11.RF
12.EARPHONE
13.USB
USB input
Connect to a Digital Audio devices.
AUDIO OUT
Connect to the audio output jacks
on your amplifier/home theater.
Connect to an antenna or cable
NTSC & ATSC.
Connect a set of phone for private
listening
1. POWER( ) input
2. HDMI
3.
4. PC AUDIO
5.
6.
DC 12V
Audio input for external devices
7. S-VIDEO
Connect to the HDMI jack of a device
with an HDMI output.
VGA/PC IN
Connect to the video output jack on
your PC.
COMPONENT
Connect Component video.
COMPOSITE VIDEO
Video input for external devices, such
as a camcorder or VCR.
COMPOSITE
COMPONENT AUDIO
Audio inputs for external devices.
DVD, HDMI, VGA)
S-VID EO
IN
8

78
News,
Music, Movie, Sports and Custom.
Vivid, Soft, Custom.
Press to turn ON/Off closed captions.
16:9, Letter Box, Panorama, 4:3.

x x
Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be
connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder
cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the
antenna jack. For details Please refer to the following drawing.
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
ANT IN
75ohm coaxial cable
Antenna cable
Antennas with 300 ohm flat twins Leads Antennas with 75 Round Leadsohm
910

RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN
External Connection
Connecting VCR
External Connection
Connecting DVD Player/Set-Top Box
11 12
These instructions assume that you have already connected your TV to an antenna or a
cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable
system.
Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
We recommend the use of cables with a Ferrite Core.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN
terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the VIDEO IN
jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and
AUDIO R jacks on the TV.
If you have a mono (non-stereo) VCR, use a Y-connector (not supplied) to hook up to
the right and left audio input jacks of the TV. If your VCR is stereo, you must connect
two cables.
VCR Rear Panel
Audio Cable (Not supplied)
Video Cable (Not supplied)
RF Cable (Not supplied)

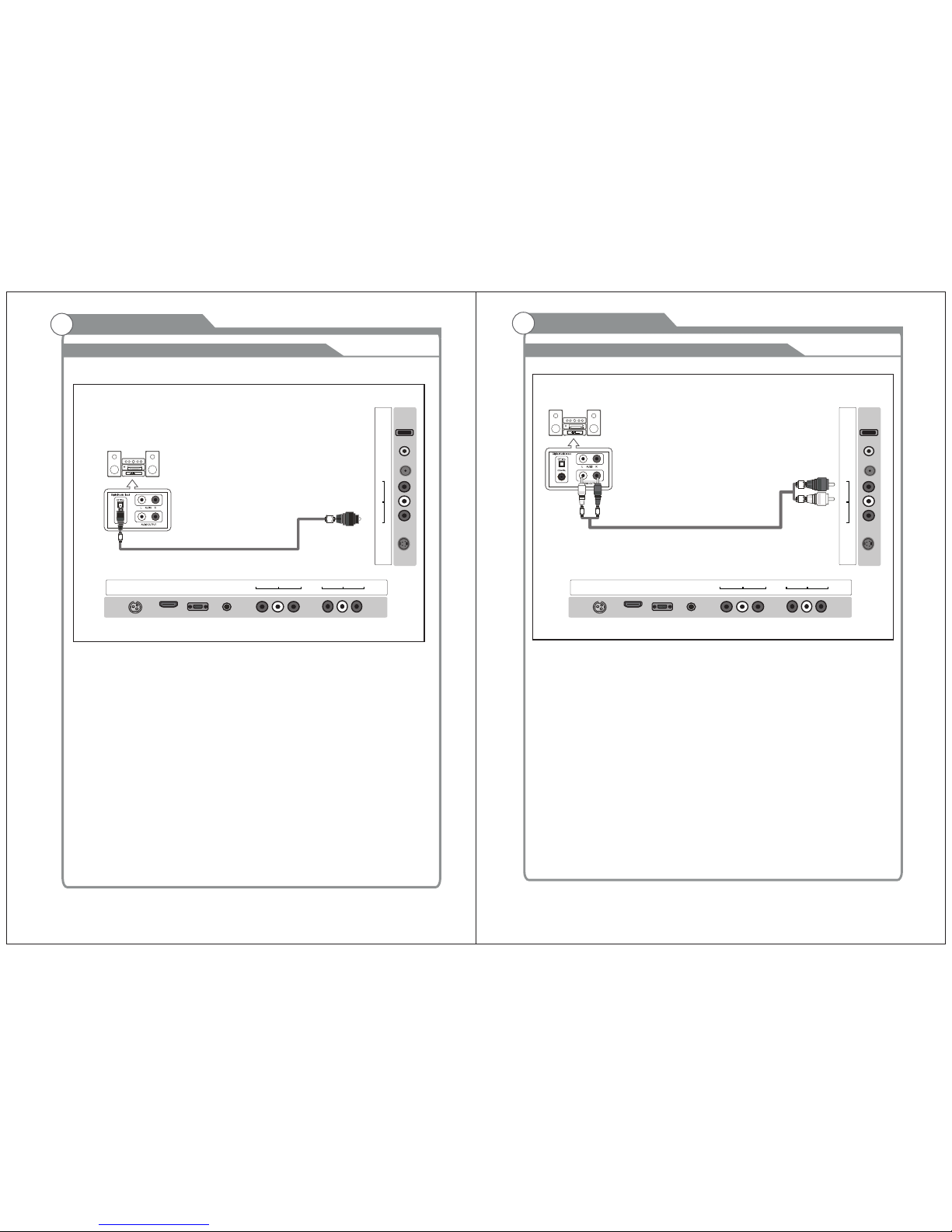

and the AUDIO OUT jacks on the DVD player.
the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.
The rear panel jacks on your TV make it easy to connect a DVD to your TV.
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr
(Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting the video cable to COMPONENT IN, connect the audio
cable to COMPONENT IN also.
Each DVD player/STB has a different back panel configuration.
When connecting a DVD player/STB, match the color of the connection terminal to the
cable.
We recommend the use of cables with a Ferrite Core.
1. Connect a Component Cable between the COMPONENT IN [Y, PB, PR] jacks on
2. Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV
Audio Cable (Not supplied)
Component Cable (Not supplied)
DVD Player/Set-Top Box
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN

Digital Audio System
External Connection
13 14
Connecting Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.
5.1 CH audio is possible when the TV is connected to an external device supporting 5.1
CH.
We recommend the use of cables with a Ferrite Core.
1. Connect an COAXIAL Cable between the SPDIF jacks on the TV and the Digital Audio
jacks on the Digital Audio System. When a Digital Audio System is connected to the Input
SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with
the system's volume control.
COAXIAL Cable (Not supplied)
Digital Audio System
Audio Cable (Not supplied)
Each external input source device has a different back panel configuration.
When connecting an external device, match the color of the connection terminal to the
cable.
We recommend the use of cables with a Ferrite Core.
1. Connect Audio Cables between the AUDIO L and R OUT on the TV and AUDIO IN [R-
AUDIO-L]on the Amplifier/DVD Home Theater.
When an audio amplifier is connected to the AV OUT [R-AUDIO-L] terminals: Decrease
the gain (volume) of the TV, and adjust the volume level with the Amplifier's volume control.
External Connection
Connecting Amplifier/DVD Home Theater
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN

External Connection
Connecting DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a HDMI Output connector on the external
device.
What is HDMI.
HDMI, or high-definition multimedia interface, is a next-generation interface that enables
the transmission of digital audio and video signals using a single cable without
compression.
Multimedia interface is a more accurate name for it especially because it allows multiple
channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the
HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi-channel digital audio.
Each DVD player/STB has a different back panel configuration.
We recommend the use of cables with a Ferrite Core.
1. Connect an HDMI Cable between the HDMI connector on the TV and the
HDMI connector on the DVD player/Set-Top Box.
HDMI Cable (Not supplied)
DVD Player/Set-Top Box
External Connection
Connecting PC
Each PC has a different back panel configuration.
The HDMI jacks do not support PC connection.
We recommend the use of cables with a Ferrite Core.
1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output
connector on your computer.
D-Sub Cable (Not supplied)
PC
PC AUDIO Cable (Not supplied)
2. Connect the PC audio input jackc on the TV
15 16
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN

External Connection
1360X768
1920X1080
Note: only 22” can support the resolution of 1920x1080
USB
Dat eTrav er
Headphone Cable
Connecting a Headphone
Supporting signals
External Connection
Connecting S-VIDEO
Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on the set.
The picture quality is improved, compared to connecting a regular VCR to the
video input.
Connect the Audio output of the DVD or VCR to the Audio input jacks on the set
using the RCA cable.
Select S-VIDEO input source with using the SOURCE button on the remote
control.
S-VIDEO AV RL
DVD
17 18
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN
RF
IN
EARPH ON E
OUT USB
R
L
COAXI AL
OUT
S-VID EO
IN
HDMI 1
IN
VGA
IN
PC
AUDIO
IN
DC 12V
IN
Pr
Pb
Y
IN
R
L
VIDEO
IN

Turning the TV On and Off
Basic Operation
Press SOURCE button to display the input source list;
Press ▼ / ▲button to select the input source you want to watch;
Press ▶ button to enter the input source;
Adjust the OSD Screen
OSD Menu Operations
2. Press
button on the LED TV.
3. Normal picture will be displayed on the screen after
6 seconds. If no signal input, "No Signal" will be
displayed on the screen.
4. If temporary POWER off is required, press
button on the LED TV.
5. If you want to completely switch off the power for this unit, unplug the power cord plug
for this unit.
6. After switching off the unit, you should turn on the TV again at least 5 seconds later.
Status indication lamp
Green: In power on mode.
Red: In standby mode.
Auto power off
If there is no signal input in any Mode, the TV will automatically accesses the standby
state in about 15 minutes.
Memory before turning TV off
The settings of picture and the preset channels will be memorized at turning off the unit.
When being started up again, the unit will work according to the mode set before being
turned off.
1. How to turn the TV on or off
19 20
1. After attaching cable to either an antenna or a cable service, insert the power cord plug
into a polarized AC outlet.
INPUT SOURCE
TV
AV
PC
HDMI
DVD
Component
S-VIDEO
BASIC OPERATION
L
Channel
Air/Cab le Ai r
Auto Scan
Favorit e
Show/Hi de
Channel N o.
Channel L ab el
DTV Signa l Ba d
Auto Scan
Digital channel only
Analog channel only
MENU ENTER
Scan all channels
Press MENU button to display the main menu.
Press◄ / ► button to select CHANNEL in the main menu, it will highlight the first option.
Air/Cable
press ENTER buttons to select it Cable or Air.
AUTO SCAN
Auto Tuning can find out all effective channel automatically.
Press ▼/▲ to select Auto Tuning, then press ENTER to start
auto searching.
If you want to stop searching, press EXIT.
CHANNEL
ENTER

OSD Menu Operations OSD Menu Operations
21 22
Adjust the OSD Screen
L
Picture M od e Standar d
Color Mod e No rmal
Zoom Mode Norma l
3DNR We ak
DLC On
PICTURE MENU
Press MENU to display the main menu, and press ◄ /► to select the Picture Menu.
Highlight the item and press ▼/▲ to select corresponding sub-menu.
Picture Mode: Dynamic/Standard/Soft/ Personal.
Color mode:This item can adjust the saturation of the color based on your own like.
Zoom mode: Four selectable Zoom Modes, Normal, Zoom, Cinema, Wide .
3DNR: Used for the noise reduction adjustment to get a better image effects.
DLC: Dynamic brightness control
Press MENU button to display the main menu.
Press◄ / ► button to select PICTURE in the main menu, it will highlight the first option.
AUDIO MENU
Press MENU to display the main menu, and press ◄ /► to select the Sound Menu.
Equalizer : Adjust audio frequency band.
MTS: Set the MTS (ATV mode).
Digital Output: Press ▼ button to highlight Digital Output. then press the enter buton to
select it .
Surround : Surround effect on or off.
Audio Only: Audio Only effect on or off.
AVC: When set the AVC on, quick volume change will be smoothed.
AUDIO
Press MENU button to display the main menu.
Press◄ / ► button to select AUDIO in the main menu, it will highlight the first option.
L
Audio
Equal ize r Pe rso nal
Digit al Ou tp ut PC M
Surro und O ff
Audio O nly O ff
AVC Of f
MTS STE REO
TIME
Press MENU button to display the main menu.
Press◄ / ► button to select TIME in the main menu, it will highlight the first option.
L
Time
Sleep Tim er Off
Time Zo ne At la ntic
DST Off
Time Fo rm at 24-hou r
Auto Sync O n
Clock 201 2/ 1/1 12:0
Wak eUp 2012/1/ 1 12:0
TIME MENU
Press MENU to display the main menu, and press ◄ /►
Sleep Timer: Select the time in minutes(5min,10min,15min,30min,60min,90min,120min,
180min,240min,Personal) that you want the TV to shut off automatically after you set the
time. Cancel by setting it to Off.
Time Zone: Set to choose the time belt.
DST: Press ENTER to select the DST on or off.
Time Format: Set to choose time display format
Auto Sync: Synchronous automatic
Clock:Press ENTER to set time.
Wake Up: Ending the state of sleep
to select the Time Menu.
SETUP
L
Setup
Menu Lang ua ge Englis h
Transpar en cy 25%
Closed Ca pt ion
Restore D ef ault
Setup Wiz ard
Blue Scre en O ff
Press MENU button to display the main menu.
Press◄ / ► button to select SETUP in the main menu, it will highlight the first option.
SETUP MENU
Press MENU to display the main menu , and press◄/► to select the Set p Menu.
Menu Language: Set the OSD display language. (English/ French/ Spanish)
Transparency: Set transparency of OSD.
Closed Caption: Set to hide the caption
Restore Default: Recall the default setting.
Setup Wizard: Installation guide.
Blue Screen: Set the background color to blue or black when no input signal.
u

OSD Menu Operations OSD Menu Operations
23 24
LOCK
Press MENU button to display the main menu.
Press◄ / ► button to select LOCK in the main menu, it will highlight the first option.
L
Lock
Parenta l Co ntrols_ __
Press MENU button to display the main menu.
Press button to select Lock in the main menu. It will highlight the first option.
Enter the code 0000 to enter the parental menu (see the picture below),
or press MENU to cancel.
◄ / ►
L
Lock
Change Pa ss word
System Lo ck O n
Input Blo ck
US
Canada
RRT Setti ng
Reset RRT
CHANGE PASSWORD
Press ENTER button and enter a new 4 digit password.
SYSTEM LOCK
Press ENTER to select the system lock on or off.
Unrated L oc k Off
UNRATED LOCK
Press ENTER to select the Unrated lock on or off.
Enter Old Password
Clear Cancel
Enter New Password
Confirm Password
CANADA
Press ENTER button for to enter to CANADA ratings menu, which contains two sub-menus:
Canada English and Canada French.
Adjust the OSD Screen
US
Press ENTER button for to enter to US ratings menu, which contains two sub-menus:
MPAA Rating and TV Rating.
INPUT BLOCK
HDMI PC )
press◄/►
Press ENTER to display the Input Block , AVPress ▼ / ▲ button to select (TV、 、
Component、 、 、USB
button to select “UnBlock” or “Block”.
MENU ENTER
US
TV
MPAA
Block
TV RATING
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
ALL
ALL
ALL
ALL
ALL
ALL
FV
V S L D
V
V
S
S
L
L
D
MENU
MPAA
G
PG
PG-13
R
N/A
NC-17
X Lock
MENU
Canada Eng
C
MENU ENTER
Canada
Canada Eng
Canada Fre
MENU
Canada Fre
G
C8+
G
PG
14+
18+
EXEMPT
Lock
8 ans+
13 ans+
16 ans+
18 ans+
EXEMPT
Lock

DVD OPERATION
Press button on the panel or on the remote controller.
side
After placed a disc in the disc tray,
press button twice to pause.
press button to play the disc,and
DVD Support List:
- - General Setup Page - -
TV Display
OSD Lang
Captions
Last Memory
Source
Wide
Eng
Off
Off
Disc
Wide
Eng
Off
Off
Disc
- - General Setup Page - -
- - General Setup Page - -
STRSTR
- - General Setup Page - -
Downmix
Go To Speaker Setup PageGo To Speaker Setup Page
- - Preferenc e Page - -
NTSC
Eng
Eng
Eng
NTSC
Eng
Eng
Eng
- - Preferenc e Page - -
TV Type
Audio
Subtitle
Disc Menu
Parental
Password
Default
TV Type
Audio
Subtitle
Disc Menu
Parental
Password
Default
5.SOURCE: Select to Disc, USB or Card.
Go To Preference PageGo To Preference Page
Default Password is 8888.
5.
6.
7.
25 26
USB

Troubleshooting Picture defects and the reason
C
C
E
E
E
E
Disconnect the power cord, wait 60 seconds then
reconnect the power cord and restart the TV.
No support for this function.
Increase the volume.
please check sound settings.
27 28
