Slant/Fin VICTORY II VHS Series User manual

VSL Boiler
DIRECT-VENT SEALED COMBUSTION CONDENSING BOILER
HOT WATER MODEL VSL II 90A - 250A
GAS-FIRED BOILER FOR NATURAL AND L.P. PROPANE GASES
USER’S INSTRUCTIONS
Heating Contractor Boiler Model Number
Adresse Boiler Serial Number
Phone Number Installation Date
A
S
ME
H
WARNING!!! This manual must only be
used by a qualied heating installer /
service technician. Read all instruc-
tions, including this manual, before
installing. Perform steps in the order
given. Failure to comply could result
in severe personal injury, death, or
substantial property damage.
Save this manual for future reference.
62417023 R01 Feb. 12, 2015
This manual must be left with owner and should be
hung on or adjacent to the boiler for reference.

2
SAFETY INSTRUCTIONS
- Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
- Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or death.

3
SAFETY INSTRUCTIONS
























































4
- Ne pas entreposer ni utiliser d’essence
ou ni d’autres vapeurs ou liquides
inammables à proximité de cette appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
• Ne pas tenter d’allumer l’appareil.
• Ne touchez à aucun interrupteur, ne
pas vous servir des téléphones se
trouvant dans le bâtiment
• Appelez immédiatement votre
fournisseur de gas de puis un voisin.
Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le
fournisseur, appelez le service des
incendies
- L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualié ou par le fournisseur
de gaz.
AVERTISSMENT: Assurez vous de bien
suivre les instructions données dans
cette notice pour réduire au minimum
le risque d’incendie ou d’explosion ou
pour éviter tout dommage matériel, toute
blessure ou la mort
SAFETY INSTRUCTIONS

5
SAFETY INSTRUCTIONS
ÉÉ
àé
éî

û
û

éè





à
ééâ
é




à
éé
éé
é
ééé
é
éèô
ééé

Êéééà
é
“C”é

ûû


éé
èé
Êàééé
éàé
àé




é
è


é



é
éà




é



6
SAFETY INSTRUCTIONS
could result in excessive levels
of carbon monoxide which can
cause severe personal injury or
death!
WARNING!!!
WARNING!!!
Flue gas/air
intake: Do not obstruct the air
intake or vent pipe terminals.
Failure to take proper precautions
can result in excessive levels
of carbon monoxide which can
cause severe personal injury or
death!
WARNING!!!
WARNING!!!
Flue gas/air
intake terminals: Do not restrict
or seal any air intake or outlet
openings (terminals). Failure to
follow these instructions could
result in excessive levels of
carbon monoxide which can
cause severe personal injury or
death!
WARNING!!!
WARNING!!!
Hazards and
Your Safety - Hot Water Can
Scald! Water temperature over
125°F (52°C) can cause severe
burns instantly, or death from
scalds. Children, the disabled,
and the elderly are at highest
risk of being scalded; see
instruction manual before setting
temperature at heater! Feel water
before bathing or showering.
CAUTION!!!
In the event of a
breakdown and/or malfunction
of the heater, contact a qualied
installer and do not make any
attempt to repair it. The heater
must be serviced exclusively
by a Qualied installer using
original spare parts. Failure to
comply with this requirement
may compromise the safety of
the unit.
WARNING!!!
WARNING!!!
Maintenance: at least once a
year the user must call a
Qualied installer for routine
maintenance.
Failure to comply with these
provisions can cause a re or
explosion causing property
damage, personal injury, or
death.
WARNING!!!
WARNING!!!
If the
information in this manual is
not followed exactly, can result
in a re or explosion causing
property damage, personal
injury, or death.
WARNING!!!
WARNING!!!
Qualied
installer: qualied installer is
an individual with specic,
technical training in space
heating systems, domestic hot
water systems, fuel gas systems
and electrical systems. This
individual must have the legally
required qualications. Failure
to comply with these provisions
can cause a re or explosion
causing property damage,
personal injury, or death.
WARNING!!!
WARNING!!!
Installation
and Alterations: Only a Qualied
installer must carry out the
installation and calibration of
the heater. Never modify the
heater or its ue gas carrying
components in any way.
This heater must be properly
vented. Failure to follow these
instructions could result in
personal injury or death!
WARNING!!!
WARNING!!!
Flue gas/air
intake: You are only permitted
to operate this appliance with
the combustion air/ue gas
system that has been specically
designed and approved. Failure
to follow these instructions
WARNING!!!
WARNING!!!
When
servicing heater, to avoid
electric shock, disconnect
electrical supply before
performing maintenance.
Failure to do so can cause
severe personal injury or death.
WARNING!!!
WARNING!!!
When
servicing heater, to avoid severe
burns, allow heater to cool
before performing maintenance.
Failure to do so can cause
severe personal injury or death.
WARNING!!!
WARNING!!!
Should
overheating occur or the gas
supply fail to shut off, do not
turn off or disconnect electrical
supply to circulator. Instead,
turn off the manual gas shut-off
valve external to the appliance.
Failure to follow these
instructions could result in re
or explosion which can cause
severe personal injury or death!
WARNING!!!
ATTENTION!!!
En cas de
surchauffe ou si l’alimentation
de gaz ne peut être coupée,
ne pas couper ni débranch
l’alimentation électrique de la
pompe. Fermer plutôt le robinet
d’admission de gaz à l’extérieur
de l’appareil

7
SAFETY INSTRUCTIONS
WARNING!!!
WARNING!!!
Do not use
this appliance if any part has
been under water. Immediately
call a licensed authorized
technician to inspect the
appliance and to replace any
part of the control system and
any gas control, which has
been under water. Failure to do
so can cause severe personal
injury or death.
WARNING!!!
ATTENTION!!!
N’utilisez pas
cet appareil s’il a été plongé
dans l’eau, même partiellement.
Faites inspecter l’appareil
par un tecnicien qualié et
remplacez toute partie du
système de contrôle et toute
commande qui ont été plongés
dans l’eau.
WARNING!!!
WARNING!!!
Ensure the
heater and its controls are
protected from dripping or
spraying water during normal
operation or service. Failure
to do so can cause severe
personal injury or death.
NOTICE! When calling or writing about
the heater – Please have the
heater model and serial number
from the heater rating plate.
NOTICE! Any claims for damage or
shortage in shipment must be
led immediately against the
transportation company by the
consignee.
CAUTION!!!
Do not use
“homemade cures” or
“heater patent medicines”.
Serious damage to the heater,
personnel, and/or property may
result.
NOTICE! The manufacturer declines
all liability, contractual or otherwise
(warranty included), for any
damage to people, animals
property or this same appliance,
caused by:
a) - incorrect installation;
b) - failure to comply with this or any
other instruction provided by the
manufacturer;
c) - failure to comply with the applicable
local and/or national regulations in
force;
d) - incorrect use of this appliance
e) - inadequate or incorrect service
f) - inadequate or incorrect
maintenance.

8
SAFETY INSTRUCTIONS .................................................................................................................2
TABLE OF CONTENTS .....................................................................................................................8
1 - CODE REQUIREMENTS..............................................................................................................9
1.1 - Regulations and guidelines .................................................................................................................................. 9
2 - GENERAL INFORMATION.........................................................................................................10
2.1 - Key to symbols used .......................................................................................................................................... 10
2.2 - Manufactured by ................................................................................................................................................ 10
2.3 - Description of models:........................................................................................................................................ 10
3 - FUNCTION OVERVIEW .............................................................................................................11
3.1 - Intended use and functions ................................................................................................................................ 11
3.2 - Efciency up to 98%........................................................................................................................................... 11
4 - INSTALLATION - Vent and combustion air .............................................................................12
4.1 - Prevent combustion air contamination ............................................................................................................... 12
5 - USE.............................................................................................................................................13
5.1 - Overview ............................................................................................................................................................ 14

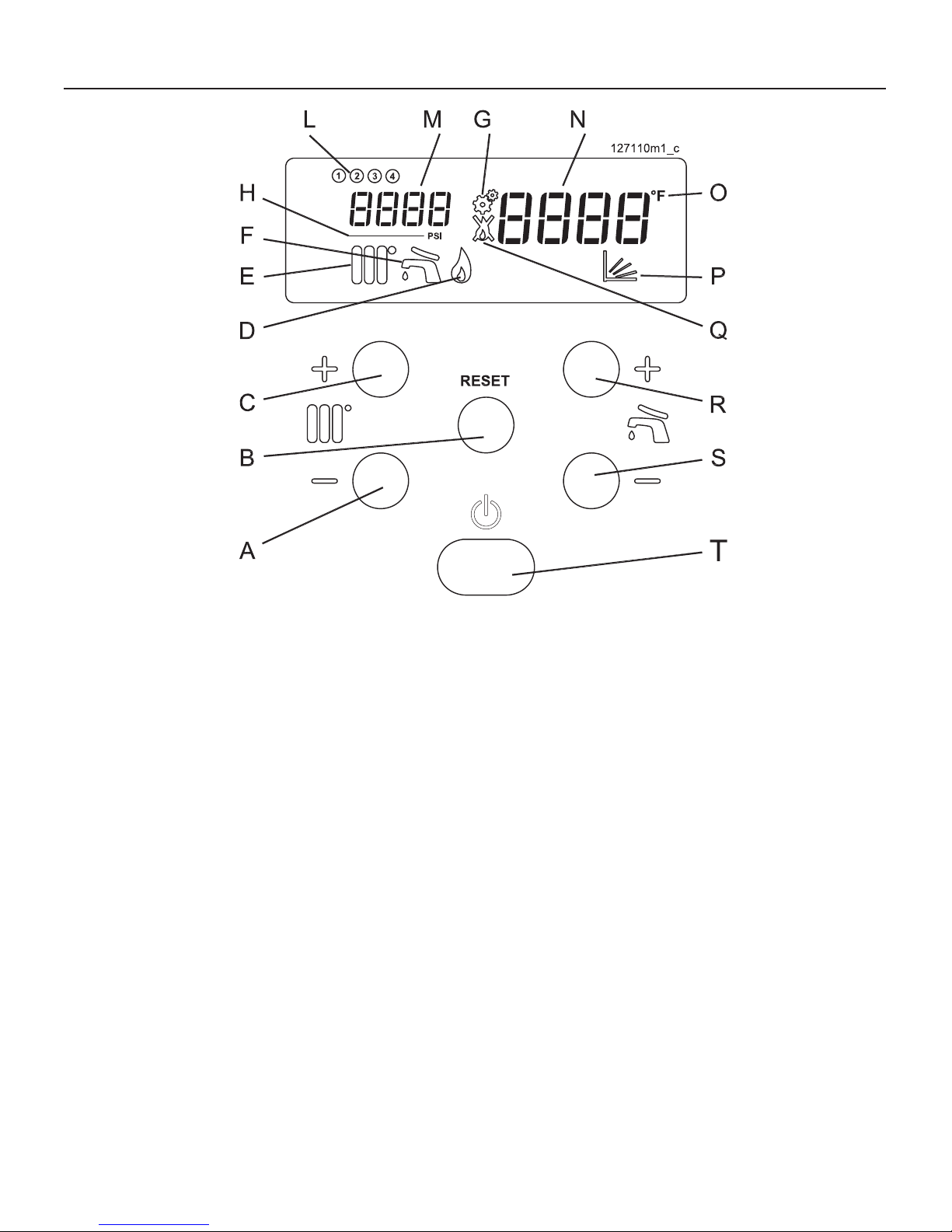

5.2 - Displays.............................................................................................................................................................. 14
5.3 - Start-up procedure ............................................................................................................................................. 14
5.4 - Indirect water heater temperature adjustment ................................................................................................... 14
5.5 - Heating temperature adjustment........................................................................................................................ 14
5.6 - Delays, alarms and protective actions ............................................................................................................... 15
5.7 - Circulator pump protection ................................................................................................................................. 15
5.8 - Freeze protection ............................................................................................................................................... 15
5.9 - Display in energy saver mode ........................................................................................................................... 15
5.10 - “Users’ menu”................................................................................................................................................... 16
5.11 - Diagnostic......................................................................................................................................................... 17
5.12 - Safety ue blocked pressure switch................................................................................................................. 17
5.13 - Shuts heater down ........................................................................................................................................... 17
5.14 - How to clean the appliance jacket.................................................................................................................... 17
6 - MAINTENANCE..........................................................................................................................18
6.1 - Care and maintenance....................................................................................................................................... 18
6.1.1 - Check heater area.................................................................................................................................................... 19
6.1.2 - Check pressure gauge ............................................................................................................................................. 19
6.1.3 - Check vent piping..................................................................................................................................................... 19
6.1.4 - Check air piping........................................................................................................................................................ 19
6.1.5 - Check condensate drain system .............................................................................................................................. 19
6.1.6 - Check heater piping (gas and water) ....................................................................................................................... 19
6.1.7 - Shut boiler down ...................................................................................................................................................... 19
1. Follow “To Turn Off Gas to Appliance” on page 3 of this manual. ................................................................................... 19
6.1.8 - Test low water cutoff (if used)................................................................................................................................... 19
6.1.9 - Reset low water cut off button (If used).................................................................................................................... 19
TABLE OF CONTENTS

9
1 - CODE REQUIREMENTS
1.1 - Regulations and
guidelines
- The installation must conform to the
requirements of the authority having
jurisdiction or, in the absence of such
requirements, to:
- the latest edition of the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 and or CAN/
CSA B149.1, Natural Gas and Propane
Installation Code;
- the latest edition of the National Electric
Code ANSI/NFPA 70 and or Canadian
Electrical Code Part 1 CSA C22.1.
- Where required by the authority having
jurisdiction, the installation must conform
to the Standard for Controls and Safety
Devices for Automatically Fired Boilers,
ANSI/ASME CSD-1
NOTICE!
Install CO detectors per local regulations.
NOTICE!
This appliance meets the safety and other
performance requirements as specied in
ANSI Z21.13 standard.
NOTICE!
Per DOE mandate, the operator control
incorporates an automatic means (outdoor
reset) of adjusting the boiler water
temperature for hot water heating. The boiler
must operate with the automatic means
enabled.
NOTICE!
In accordance with Section 325 (f)(3) of the
energy policy and conservation Act, this boiler
is equipped with a feature that saves energy
by reducing the boiler water temperature as
the heating load decreases.

10
2 - GENERAL INFORMATION
2.1 - Key to
symbols used
WARNING!!!
WARNING!!! Failure to
follow these indications can
causing an explosion, re,
extensive property damage,
severe personal injury or
death!
CAUTION!!! Failure to
observe this indication may
compromise the smooth
running of the appliance
or cause serious damage
to individuals, animals or
property.
NOTICE! Indicates special
instructions on installation, operation,
or maintenance that are important
but not related to personal injury or
property damage.
 Important indication symbol
2.2 - Manufactured
by
See last page of the present manual.
2.3 - Description of
models:
XXX XXXA
90 = maximum input of 90,000 Btu/hr (26,40 kW).
130 = maximum input of 130,000 Btu/hr (38,1 kW)).
150 = maximum input of 150,000 Btu/hr (44 kW)).
200 = maximum input of 198,000 Btu/hr (58 kW).
250 = maximum input of 250,000 Btu/hr (73,2 kW).
XXX = Manufacturer’s reference of fully modulating, gas-red, condensing hot water boiler
A = Tankless fully modulating gas red hot water boiler (Wall hung installation).

11
3 - FUNCTION OVERVIEW
Figure 3-1 Outdoor reset control to optimize the efciency
3.1 - Intended use
and functions
The boiler is designed to be used for
central heating systems for residential
and light commercial use. Any other
use is prohibited.
The boiler can be installed with a Direct
Vent system or with a one pipe vent
system using room air.
The boiler can be connected to an
indirect water heater for the production
of domestic hot water.
3.2 - Efciency up to
98%
When the outdoor reset is activated (an
outdoor sensor is connected), the boiler
always work at the maximum efciency.
It will automatically change the supply
temperature in relation with the outdoor
temperature (Outdoor reset).
The graph in Figure 4-2 shows an
example on how it can work.
This graph represents an installation
where the supply and return
temperatures are 139°F and 115°F
respectively , and the outside
temperature is 23°F. The outdoor
reset drives the boiler, to progressively
reduce the supply temperature and
thereby optimize the efciency. It
changes from 87% when outside is
-10°F, to 94.8% when outside is 23°F
and up to 98% when the outside
temperature rises up to 67°F.

12
4 - INSTALLATION - Vent and combustion air
4.1 - Prevent
combustion air
contamination
Do not terminate vent/air in locations
that can allow contamination of
combustion air.
WARNING!!!
WARNING!!! Contaminate
combustion air will damage
the boiler, resulting in possible
severe personal injury, death or
substantial property damage.
Ensure that the combustion air
will not contain any of the follow
contaminants.
Products that may contaminated the
air combustion:
- Permanent wave solutions;
- Chlorinated waxes/cleaners;
- Chlorine-based swimming pool
chemicals;
- Calcium chloride used for thawing;
- Sodium chloride used for water
softening;
- Refrigerant leaks;
- Paint or varnish removers;
- Hydrochloric acid/muriatic acid;
- Cements and glues;
- Antistatic fabric softeners used in
clothes dryers;
- Chlorine-type bleaches, detergents,
and cleaning solvents found in
household laundry rooms;
- Adhesives used to fasten building
products and other similar products;
Do not pipe combustion air near
sources of products that may
contaminate the air combustion, like:
-Dry cleaning/laundry areas and
establishments;
- Swimming pools;
- Metal fabrication plants;
- Beauty shops;
- Refrigeration repair shops;
- Photo processing plants;
- Auto body shops;
- Plastic manufacturing plants;
- Furniture renishing areas and
establishments;
- Remodeling areas;
- Garages with workshops.

13
Figure 5-1 Instrument panel
5 - USE
A - Key to reduce the supply water temperature;
B - Multifunctional key: reset any lockouts; access to user and installer menu.
C - Key to increase the supply water temperature;
D - Flame icon, is present when the ame is present;
E - Radiator icon. Present when heating is enabled to work. Blinking when heating is active;
F - Faucet icon. Present when an indirect water heater is enabled to work. Blinking when an indirect water heater (coil water heater) is in load;
H - Unit of measure of the water system pressure;
L - Cascade boiler indicators: Light when boiler is burning; blinking when boiler is in lockout or in blocking error:
= Boiler 1 (manager)
= Boiler 2 (dependent)
= Boiler 3 (dependent)
= Boiler 4 (dependent)
M - Water pressure gauge and indicator of the parameters
G - Icon indicating access to the installer menu
N - Supply water temperature gauge and indicator of the parameters value
O - Unit of measure of the temperature
P - Icon displayed when the outdoor sensor is active
Q - Flame crossed icon: is present when the appliance is in lockout or blocking error condition
R - Multifunctional key: increase the indirect water heater temperature; scroll the parameters; increase the parameters’ value;
S - Multifunctional key: decrease the indirect water heater temperature; scroll the parameters; decrease the parameters’ value;
T - On-Off Main power switch

14
5.1 - Overview
The heater is pre-set with standard
parameters. It is possible to consult
the parameters by means of using the
“Users’ Menu” (see Section 5.10).
During functioning display “N” of
Figure 5-1, displays the supply
temperature and display “M” (see
Figure 5-1) shows the pressure of the
heating system. The various operating
statuses are shown with other icons
as per Figure 5-1.
5.2 - Displays
During normal operations, the
display remain permanently off,
except appliance go in Lockout, or in
Blocking error.
In any case, pressing any key, display
will light on and will stay light on for 5
minutes from the last pressing key.
5.3 - Start-up
procedure
1. Open the manual gas shutoff valve;
2. switch on electric power to the
heater;
3. If the display shows code Err 65,
it means that the polarity has not
been observed (Call a qualied
technician to restore the situation,
do not attempt to repair it);
4. press key or to
setup the supply temperature
desired, then press RESET key to
save the changement.
The ame control appliance will start-
up the burner.
If the burner fails to ignite within 60
seconds, the heater will automatically
attempt ignition another four times,
after which if it fails to start-up, it will
shut down and the display will show
Loc 1 together icon .
Press the RESET key in order to re-
set normal operating conditions.
The boiler will automatically attempt
another start-up.
CAUTION!!! If the appliance
frequently shuts down, contact
a qualied technician to restore
normal running conditions. Do
not attempt to repair it.
5.4 - Indirect water
heater temperature
adjustment
If the boiler is installed to perform
double service (heating and domestic
hot water by an indirect water heater),
to control the indirect water heater
temperature you have to use keys
and . When the keys
are pressed, the display, item “N” in
Figure 5-1, shows the indirect water
heater setpoint being selected. The
range within which the indirect water
heater can be set is 104°F (40°C) to
140°F (60°C).
WARNING!!!
WARNING!!!
Water
temperature over 125°F can
cause severe burns instantly
or death from scalds. Children,
disabled and elderly are at
highest risk of being scalded.
Feel water before bathing or
showering.
5.5 - Heating
temperature
adjustment
The boiler supply hot water at the
temperature set by adjusting keys
or as shown in Figure
5-1. The room thermostat turns the
circulator pumps on in order to satisfy
the heat demand of the rooms controlled
by the thermostat. To maximize the
heaters’ performance, the heating
temperature, should be set at a value
that is just sufficient to maintain the
desired temperature of the rooms.
5 - USE

15
CAUTION!!! Do not deactivate
the boiler freeze protection
program. If the indoor air
temperature of the building
where the boiler is located
drops to 40F or below it is the
responsibility of the owner to
take preventative measures to
prevent the boiler and system
from freezing.
Once the heater has reached a
temperature of 50 °F (10 °C), the
heating pump will automatically turn
on. If the temperature falls below
41 °F (5 °C), the burner will light to
prevent the heater from freezing.
5.9 - Display in
energy saver mode
The display, in Figure 5-1, is switched
off each time no key is touched for at
least 5 minutes, with the exception of
when it displays errors or settings.
5 - USE
5.6 - Delays, alarms
and protective
actions
To protect the life of the appliance,
improve comfort, and maximize energy
savings, the following timings have
been incorporated into the control
logic:
a - Pump delay: each time the room
thermostat is satised, the circulator
pump continues to run for 4 minutes;
b - DHW delay: each time the domestic
hot water demand is satised, a 4
minutes delay must pass before the
end of the service;
e - Time delay in restarting the burner:
in its normal functioning state, every
time the burner stops, there is a
delay time of 3 minutes before the
burner restarts again.
5.7 - Circulator
pump protection
During the summer months, the
circulators pumps are run once a day
for around 15 seconds to prevent it
from seizing.
5.8 - Freeze
protection
CAUTION!!!
For the freeze
protection function to work, the
boiler must remain connected
to the electrical and gas
supplies with DHW and central
heating service switched to OFF
CAUTION!!! The freeze
protection program in the
boiler will only protect the
boiler and not the entire
heating system. If the system
is shut down on a regular basis
or has the potential to freeze
additional measures must be
taken to protect the system
from freezing.

16
5.10 - “Users’
menu”
Pressing RESET key for 2 seconds,
you will enter the “Users’ menu”.
When entering the “Users’ menu”, the
display, item “M” in Figure 5-1, will
5 - USE
start showing parameters from 1000.
Press keys and you
can scroll all parameters inside this
menu. All parameters into this “Users’
menu” can be consulted but not
changed.
** How to read the timer value:
Eg: If it shows 1:29, it means 29 minutes;
Eg: If it shows 2:12, it means 12 hours;
Eg: If it shows 3:15, it means 15 days;
Eg: If it shows 4:26, it means 26 weeks;
Parameter Parameter’s description Units
1001 Supply temperature °F
1002 Indirect water heater temperature °F
1004 Outdoor sensor temperature °F
1006 Flue gas temperature °F
1007 Return temperature °F
1008 Ionisation current μA (micro ampere)
1009 State of the Local pump ON/OFF
1010 State of the CH pump ON/OFF
1011 State of the DHW pump ON/OFF
1012 Calculated CH setpoint (when outdoor sensor is enabled) °F
1040 Actual Fan speed rpm/min
1041 Ignition fan speed rpm/min
1042 Low power fan speed rpm/min
1043 High power fan speed rpm/min
1051 Last lockout number \
1052 Last Blocking error \
1053 Number of ame failures no
1055 Number of failed ignitions no
1056 Total hours of operation Hr x 10
1057 Total hours of operation of the indirect water heater Hr x 10
1059 **Interval between Lockouts. May be: 1:MIN; 2:HRS; 3:DAY; 4:WK
1060 **Interval between Blocking errors. May be: 1:MIN; 2:HRS; 3:DAY; 4:WK
1062 Water ow GPM
1101 CASCADE: number of boilers ON n
1102 CASCADE: header temperature °F
1103 CASCADE: any boiler into Lockout /
1104 CASCADE: any boiler into Blocking Error /
1106 CASCADE: system is in emergency mode /
1107 CASCADE: current cascade setpoint °F
1120 CASCADE: boiler 1 modulating level %
1121 CASCADE: boiler 2 modulating level %
1122 CASCADE: boiler 3 modulating level %
1123 CASCADE: boiler 4 modulating level %

17
5 - USE
5.11 - Diagnostic
During normal operation display can show the below
informations:
5.12 - Safety ue
blocked pressure
switch
This appliance is equipped with a
safety ue blocked pressure switch
that shut-off the unit when the ue
exhaust vent pipe is blocked. If this
pressure switch shuts off the unit (Loc
2, Loc 5 or Loc 25), do not attempt
to place the boiler in operation but
contact a qualied service agency.
To reset the blocked vent shut off
system, call a qualied service agency
that will reset the unit after checking
for any potential dangerous situation.
WARNING!!!
WARNING!!! If the safety
ue blocked pressure switch shuts
off the system do not attempt
to reset or repair the unit. It is
mandatory to contact a Qualied
service agency. Failure to comply
with this requirement can result
in excessive levels of carbon
monoxide which can result in
severe personal injury or death!
5.13 - Shuts heater
down
1. Follow “To Turn Off Gas to
Appliance” on page 3 of this
manual.
2. Do not drain the system unless
exposure to freezing temperatures
will occur.
3. Do not drain the system if it is lled
with an antifreeze solution.
5.14 - How to clean
the appliance
jacket
To clean the appliance jacket, use only
a soft cloth dampened with water. Do
not use aggressive or abrasive agents.
Parameter Parameter description Visualization on display “N” (see Figure 5-1)
AFro Heater is doing antifreezing protection Supply temperature (°F)
Light xed = Indirect water heater enabled
Blinking = indirect water heater loading Indirect water heater temperature (°F)
Light xed = Hot water supply enabled
Blinking = Hot water supply active Supply temperature (°F)
Loc
Heater is in Lockout. Press RESET button to unlock the burner.
If lockout happens frequently, ask for a qualied technical
service
Lock out code
Err
Heater is in blocking error. It is possible to restore the normal
operating conditions only resolving the problem. Ask for a
qualied technical service.
Blocking error code

18
6 - MAINTENANCE
6.1 - Care and
maintenance
This section must be brought to the
attention of the user by the installer so
that the user can make the necessary
arrangements with a qualied service
agency for the periodic care and
maintenance of the boiler. User must
check its boiler follow Table 6-1 column
“User maintenance”.
The installer must also inform the
user that the lack of proper care and
maintenance of this boiler and any
fuel burning equipment may result in a
hazardous condition.
Installer should discuss contents of this
user’s manual with the user.
A trained and qualied service
technician should perform the inspection
listed in these instructions before each
heating season and at regular intervals.
Service and maintenance schedules
Service Technician User maintenance
Annual Startup:
- Address reported problems;
- Check all piping for gas leaks;
- Verify ue and air lines in good condition and sealed tight;
- Check system water pressure/system piping/expansion tank;
- Check control settings;
- Check ignition and ame sense electrodes;
- Check wiring and connections;
- Perform start up checkout and performance verication;
- Flame inspection;
- Check ame signal;
- Inspect combustion chamber. Clean and vacuum if necessary.
Clean the heat exchanger if the ue temperature is 63°F
(35°C) above return water temperature;
- Clean condensate trap and ll with fresh water;
- Check the capacity input;
- Check relief valve;
- Test low water cutoff (if used) (Follow Section 6.1.8);
- Reset low water cut-off button (if used) (Follow Section 6.1.9)
Daily:
- Check heater area (Follow Section 6.1.1);
- Check pressure gauge (Follow Section 6.1.2);
Monthly:
- Visually inspect vent piping and vent termination screen (Follow
Section 6.1.3);
- Visually inspect air piping and air termination screen (Follow
Section 6.1.4);
- Visually inspect condensate drain system (Follow Section
6.1.5);
- Visually inspect the vent for signs of of damage
Every six month:
- Visually inspect heater piping (gas and water) for leaks (Follow
Section 6.1.6);
End of season months:
- Shut boiler down (unless boiler used for domestic hot water)
(Follow Section 6.1.7);
Table 6-1 - Service and Maintenance Schedules
WARNING!!!
WARNING!!!
Never store
combustible materials, gasoline
or any product containing
ammable vapors and liquids
in the vicinity of the heater.
Failure to comply with this
warning can result in extensive
property damage, severe
personal injury or death!
WARNING!!!
WARNING!!!
Never
obstruct the ow of combustion
and ventilation air. Failure to
provide adequate combustion
air for this heater can result
in excessive levels of carbon
monoxide which can result in
severe personal injury or death!
WARNING!!!
WARNING!!!
Servicing,
inspection and adjustment
must be done by a trained
technician in accordance with
all applicable local and national
codes. Improper servicing or
adjustment could damage the
boiler! Failure to comply with
this warning can result in a re
or explosion causing property
damage, personal injury or loss
of life!

19
6.1.2 - Check pressure
gauge
1. Make sure the pressure reading on
the heater pressure gauge (item “M”
of Figure 5-1) does not exceed the
maximum working pressure. Higher
pressure may indicate a problem
with the expansion tank.
6.1.3 - Check vent piping
1. Visually inspect the vent outlet
termination to be sure it is
unobstructed. Visually inspect the
entire length of the ue gas vent
piping for any signs of blockage,
leakage, or deterioration of the
piping. Notify your qualied service
technician at once if you nd any
problems.
WARNING!!!
WARNING!!!
Failure
to inspect the vent system
as noted above and have it
repaired by a qualied service
technician can result in vent
system failure, causing severe
personal injury or death.
6.1.4 - Check air piping
1. Visually inspect the air inlet
termination to be sure it is
unobstructed. Inspect the entire
length of air piping to ensure piping
is intact and all joints are properly
sealed.
2. Call your qualied service
technician if you notice any
problems.
6.1.5 - Check condensate
drain system
1. Visually inspect the condensate
drain line, condensate ttings
and condensate trap for signs of
weeping or leakage.
2. If you detect signs of leakage,
immediately contact your qualied
service technician to inspect the
boiler and system.
WARNING!!!
WARNING!!!
Before
performing any maintenance
operations, shut the boiler off,
close the manual gas shut-off
valve and shut off electrical
power to the heater. Follow the
Operating Instructions outlined
in the section “SAFETY
INSTRUCTIONS” (Beginning of
the manual).
6.1.1 - Check heater area
WARNING!!!
WARNING!!!
To prevent
potential of severe personal
injury, death, or substantial
property damage, eliminate
all materials discussed below
from the heater vicinity and
the vicinity of the heater
combustion air inlet.
If contaminants are found:
Remove products immediately
from the area. If they have
been there for an extended
period, call a qualied service
technician to inspect the
heater for possible damage
from acid corrosion.
If products cannot be removed,
immediately call a qualied
service technician to re-pipe
vent and air piping and locate
vent termination/air intake
away from contaminated areas.
1. Combustible/ammable materials --
Do not store combustible materials,
gasoline or any other ammable
vapors or liquids near the boiler.
Remove immediately if found.
2. Air contaminants -- Products
containing chlorine or uorine,
if allowed to contaminate the
heater intake air, will cause acidic
condensate in the heater. This
will cause signicant damage to
the heater if allowed to continue.
Read the list of potential materials
listed in Section 4.1. If any of these
products are in the room from which
the heater takes its combustion air,
they must be removed immediately
or the heater combustion air (and
vent termination) must be relocated
to another area.
6 - MAINTENANCE
6.1.6 - Check heater
piping (gas and water)
1. If gas odor or leak is detected,
immediately shut down the heater
following the procedures on page 3.
Call a qualied service technician.
2. Visually inspect for leaks around
water piping. Also inspect the
circulators, relief valve, and ttings.
Immediately call a qualied service
technician to repair any leaks.
WARNING!!!
WARNING!!!
Have leaks
xed at once by a qualied
service technician. Failure to
comply could result in severe
personal injury, death, or
substantial property damage.
6.1.7 - Shut boiler down
1. Follow “To Turn Off Gas to
Appliance” on page 3 of this manual.
2. Do not drain the system unless
exposure to freezing temperatures
will occur.
6.1.8 - Test low water
cutoff (if used)
If the system is equipped with a
low water cutoff, test the low water
cutoff periodically during the heating
season, following the low water cutoff
manufacturer’s instructions.
6.1.9 - Reset low water
cut off button (If used)
Testing the low water cutoff shuts the
unit off. Press the RESET button on
the low water cutoff to turn the unit
back on.
