SLS loudspeakers PD500 User manual

2001, SLS Loudspeakers 1
SLS
L
ou
d
spea
k
ers 3119 S. Scenic, Springfield, MO 65807
PRD500 Planar Ribbon Driver
The PRD500 is a high performance planar ribbon driver with
very high sensitivity/output capabilities developed for wide
range of professional and consumer applications were highest
quality accurate sound reproduction is required.
Unique Features:
•Kaptondiaphragm, massive cast face plates,
horns and back cup, gold plated terminals,
symmetrical push-pull Neodymium magnet system
•Driving force directly acts on the diaphragm and is
evenly distributed over the radiating surface
providing freedom from break-up resonance,
transmission delay and losses
•Flat diaphragm provides the ideal shape for sound radiation, that is frequency
independent, results in even and coherent wavefront, even dispersion, no wave
cancellation, no signal delays, no horn throat related colorations
•Purely resistive impedance, virtually free from inductive component
•Extremely light diaphragm compares by mass to associated vibrating air volume,
being extremely light it creates ideal condition for sound energy transfer, accurate
signal resolution, very high sensitivity and high frequency output extension

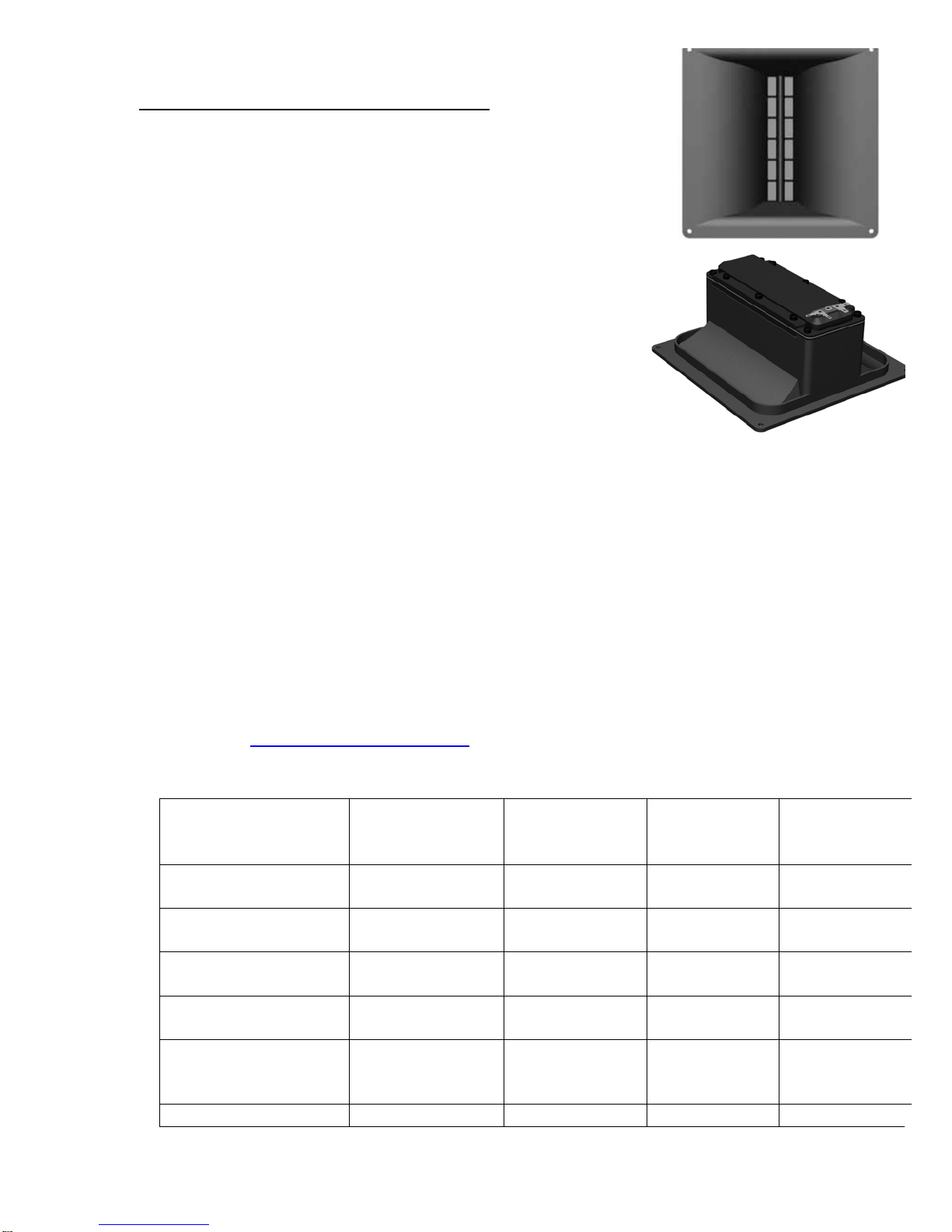

The PRD500 driver can be used with variety of faceplates and horns suited for specific
applications (picture shows PRD500 with 70°x40°horn). The PRD500 is specifically
suitable for true line source systems that provides appropriate coupling at high
frequencies resulting in coherent, free from distortion and colorations, long throw sound
energy beam. For more detailed information please download a white paper on PRD
drivers at www.slsloudspeakers.com
Specifications
Parameters PRD500 with
3.5”x7”
faceplate
PRD500 with
120°x40°
waveguide
PD500
w/90°x 40°
horn
PD500
w/70°x 40°
horn
Effective frequency
range
1500 Hz-40 kHz 1500 Hz-40
kHz
1500 Hz–40
kHz
1500 Hz–40
kHz
Power handling, W 50 W RMS,
500 W peak
50 W RMS,
500 W peak
50 W RMS,
500 W peak
50 W RMS,
500 W peak
Sensitivity,
2.83V/1m
100 dB 101 dB 103dB 105dB
Nominal impedance,
ohms
7 (purely
resistive)
7 (purely
resistive)
7 (purely
resistive)
7 (purely
resistive)
Dimensions HxWxD
Inch(cm)
6.85”(17.4)x3.46
(8.8)x1.26(3.2)
6.85”(17.4cm)x
6.85”(17.4cm)x
1.75”(4.44cm)
6.85”(17.4cm
)x6.85”(17.4c
m)x3”(7.6cm)
11”(27.9cm)x
11”(27.9cm)x
8”(20.3cm)
Weight 1.8 lbs (0.8 kg) 2.0 lbs (0.9 kg) 2.5lbs(1.8kg) 4.5lbs(1.8kg)

2001, SLS Loudspeakers 2
PRD500 frequency response, 2.83V/1m with 7”x7”waveguide
On-axis
(
u
pp
er curve
)
and 15°, 30°, 45°off-axis
(
lower curves
)
PRD500 cumulative decay spectrum (waterfall), 1m, 30dB
d
y
namic ran
g
e
,
no smoothin
g
