ENGLISH
iPod Speakers, art.no. 38-2156, model AD0013
Please read the entire instruction manual before using and save it for future
use.
We apologise for any text or photo errors and any changes of technical data.
If you have any questions concerning technical problems please contact our
Customer Service Department (see address on reverse.)
This box contains
- Speaker unit
- AC/DC adaptor
- Infra-red remote control (battery included)
- 3x adaptors for iPod, iPod Mini and iPod Nano
- Carry strap

3
ENGLISH
A
B
C
D
E
C
The front of the unit
A. Transparent cover
B. iPod connector
C. Function buttons
+ ▲ Volume up
– ▼ Volume down
• IR receiver
On/Off
►
II Play/Pause
I ◄◄
Previous/Back
►► I Next/Forward
D. Remote control
E. Battery holder

4
ENGLISH
FG
G
J
H
L
KI

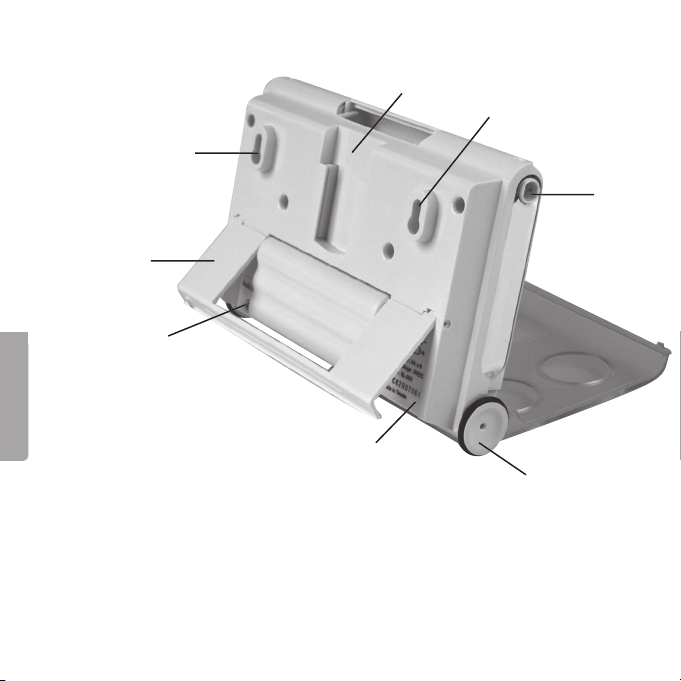

The back of the unit
F. Remote control holder
G. Wall bracket
H. Table stand
I. Support wheel
J. Carry strap anchor point
K. Battery compartment for 6x LR6/AA batteries
L. 1 V DC power input jack / 3. mm stereo jack for external
sound source


ENGLISH

Use
Connecting the AC/DC adaptor
Connect the adaptor’s connector plug to the power input jack [ L ] on the back of
the speaker unit and then plug the adapter into the wall socket.
Inserting batteries
The speaker unit can run on batteries if you don’t want to or can’t use the
accompanying adaptor.
- Fold out the table stand [ H ], remove the battery cover and insert 6x
LR6/AA batteries. Make sure that you align the batteries correctly, with the
negative poles (-) against the springs and the positive poles (+) against the
at contacts
Inserting/Changing the remote control battery
Before you can use the re-
mote control, the protective
plastic on the battery needs
to be removed.
- Remove the battery holder from the back of the
remote control by pushing in the catch on the
side of the remote at the same time as you pull
the battery holder outwards. Remove the pro-
tective plastic and replace the battery holder.
- To replace the battery, remove the battery
holder as instructed above and replace the
battery with a new CR03 battery. Make sure
to align the battery according to the marking on
the battery holder. The positive pole (+) should
be pointing downwards in the battery holder.

6
ENGLISH
Connecting your iPod
1. Open the transparent cover [ A ].
. Insert the iPod adaptor for the type of iPod you are going to use. Push the
adaptor straight down into the holder.
(If you are using the iPod Mini, 30 GB, 30/40 GB or 60 GB, insert the
accompanying spacers.
3. Turn on your iPod and insert it into the adaptor.
4. Push the On/Off button [  ] to turn on the speaker unit. The LED on the
front of the speaker unit lights up when the device is turned on.
. Start playing the music from the inserted music device (read the respective
device’s instruction manual).
6. Adjust the volume using the volume controls [ + ] and [ – ].
Connection to a computer or other music source
(e.g. MP3 player, laptop etc.)
1. Connect the accompanying audio lead to the sound input jack [ L ] on the
back and to the headphone jack on e.g. the MP3 player.
. Push the On/Off button [  ] to turn on the speaker unit. The LED on the
front of the speaker unit lights up when the device is turned on.
3. Start playing the music from the inserted music device (read the respective
device’s instruction manual).
4. Adjust the volume using the volume controls [ + ] and [ – ].


ENGLISH
Troubleshooting
The LED on the front of the speaker does not light up
- Check that the AC/DC adaptor is connected properly to both the speaker
unit and the wall socket.
- If the speaker unit is running on batteries, check that they are inserted
correctly and are in good condition. Replace the batteries if necessary.
No sound from the speakers
Check that:
- The volume is not turned down.
- The iPod device is correctly connected and that the correct adaptor is being
used.
- The external audio lead is connected correctly if an external sound source
is being used.
- The AC/DC adaptor is connected correctly.
- The battery charge is not too low.
Poor sound quality
- Check that the iPod device is connected correctly.
- The audio le might be of poor quality. Try playing another audio le.
The remote control doesn’t work
- Check the battery of the remote control.
- Move the remote control closer and point it at the IR receiver.


ENGLISH
Care and Maintenance
Clean with a soft, lightly moistened cloth. Never use strong solvents or
detergents.
Disposal
Follow local ordinances when disposing of this product. If you are unsure about
how to dispose of this product contact your municipality.
Specications
Power 1 V DC 1 A (provided by the accompanying
30 V AC adaptor or batteries)
Battery type, speaker unit 6x LR6/AA
Battery type, remote control 1x CR03
Output  x 4 W
Frequency range 0 – 0,000 Hz
Signal to noise ratio 9 dB
Dynamic range 1 dB
Operating temperature -  °C to 40 °C
Size 0 x 14 x  mm.

9
