Smart Meter iScale SMSC2001- G-001 User manual

version:1.0
User Manual
iScale Cellular Weight Scale
Model SMSC2001- G-001
Thank you for selecting the Smart Meter iScale
Please read the user manual carefully and thoroughly to ensure the
correct and safe usage of this product. Keep the manual for
additional reference in the future.
MAXIMUM CAPACITY: 551LB / 0.2LB | 250KG / 0.1KG
SC-O-ISCUM-U-0321
®

1
Table of Contents
Table of Contents
Overview
Device Components
LCD Display
Initial Start-Up
General Instructions
Insert Batteries and Pair-up
Start Measuring
Daily Measurement
Troubleshooting
Error Prompt
When Measuring
Specifications
Maintenance
Warranty
4
5
6
6
8
9
10
11
12
12
.................................................................................................................
...................................................................................................................
.............................................................................................................................
..................................................................................................................
............................................................................................................................
...............................................................................................................................
......................................................................................................................................
2
.........................................................................................................................
........................................ ...........................................................
..............................................................................................................................
...................................................................................................................
.
Select Measurement Unit 7
Safety Information
Your Scale and Its Environment
3
.............................................................................................
Efficient Use of Your Scale
3
..........................................................................................................
............................................... ............................................................
Symbol Meaning
Symbol Meaning
List 4
............................................................................................................................................
FCC Regulations ...................................................................................................................... 13
Appendix
................................................................................................................................ 14
EMC Guidance
Warning
........................................................................................................................ 14

2 3
Safety InformationSafety Information
The Smart Meter iScale Cellular Weight Scale is intended for adults and children(10-17
years old) to measure weight in the home.
INDICATIONS FOR USE
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:

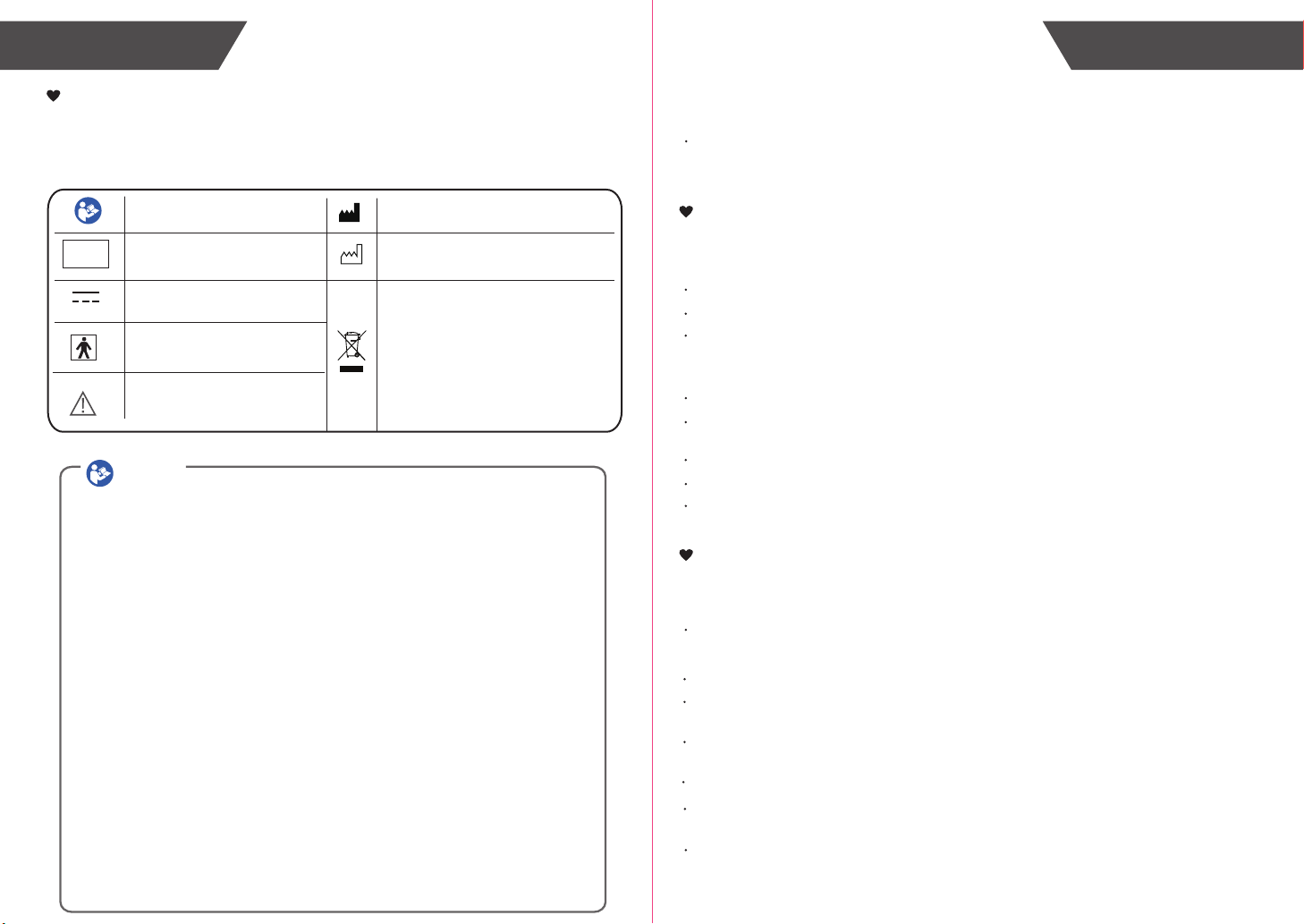

Symbol Meaning
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
To ensure your safety as well as the service life of your scale, please avoid
using the scale under the following circumstances:
Slippery floor such as tile floor
Jumping onto the platform immediately after bath or with wet feet
Near a cell phone or microwave oven
Avoid storage in the following locations:
Where there is water
Where the device may be exposed to extreme temperatures, humidity, moisture, direct
sunlight, dust, or salt air
Where there is risk of shock or drop
Where you store chemicals or corrosive gases
Where in reach of the infants or children
Your iScale and Its Environment
Efficient Use of Your iScale
SN
Symbol for “TYPE BF APPLIED
PARTS”
Symbol for “MANUFACTURE
DATE”
Caution: These notes must be
abserved to prevent any damage
to the device.
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Start measurement at least two hours after waking up or dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dining.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.
This device is not intended for use in an oxygen rich environment.
Any information provided by this scale is in no way meant to treat, cure or prevent any
disease or illness from happening. If in doubt, contact your physician.
It is intended for use in the home only.
CAUTION
The iScale Cellular Weight Scale offers you a way to manage your health. Please be aware
that this device is designed for children(10-17 years old) and adults’ self-measuring. Any
information provided by this device is in no way meant to treat, cure or prevent any disease or
illness from happening.
This device is contraindicated for any female user who may be pregnant..
The iScale Cellular Weight Scale is equipped with data transmission function. It may emit
electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF
communications equipment can affect the performance of the device .
Portable and mobile RF communications equipment can affect the measuring accuracy of the
iScale Cellular Weight Scale.
Kindly note that the use of accessories, transducers or cables other than those specified, with
the exception of transducers and cables sold by the manufacturer as replacement parts for
internal components, may result in increased EMISSIONS or decreased IMMUNITY of the
device.
Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other
hazards. Please do not use the device in flammable gas environment.
Warning that the iScale Cellular Weight Scale should not be used adjacent to or stacked with
other equipment.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modifications of this equipment is allowed.
During measuring, the patient will contact with the upper surface of the scale. The ABS plastic
surface of the scale is type BF Applied part.
The device doesn’t need to be calibrated in five years lifetime.
Do not touch the output of batteries when using the scale.
The patient is an intended operator. The patient can perform all the operations in the manual,
such as measurement, data transmitting, changing batteries.

4 5
LCD Display
List
1. iScale Cellular Weight Scale
2. Four AA-size Batteries (1.5V per each)
3. User Manual
OverviewOverview
Device Components
Kilogram
Stone
Pound
Signal symbol
Battery symbol
Data transmitting
LCD Display
Battery Compartment
UNIT Button

7
6
General Instructions
Initial Start-UpInitial Start-Up
Insert Batteries and Pair-up
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AA) into the battery compartment according to the polarity
indications marked inside the compartment.
* The all digits will be shown on the LCD.
The scale will be automatically pair-up with the system when used for the first time. The
signal symbol will be displayed at the same time, which indicates the quality of the
network signal. With batteries correctly installed, you will see the black “UNIT” button in the battery
door. Press it to select measurement unit. The default measurement unit is “lb”. You may
press “UNIT” button to choose among pound, kilogram and stone.
CAUTION
When the symbol “ ” and “ Lo” appear, the device will power off. Then you should replace with a
new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries
with the new ones.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries
and scrapped device.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.
If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries
before storing.
If using the scale three times a day, and the lifetime of batteries should be one year.
Select Measurement Unit
The Smart Meter iScale Cellular Weight Scale operates utilizing SENSE ON
technology. The sensitive SENSE ON technology offers convenience for the user.
If SUCCEED, symbol “[ ]” will be shown on the LCD.
If FAIL, symbol “E1” will be shown on the LCD.
Lay the scale on the floor and it will turn off in 10 seconds.
The signal symbol displays the following status：
Strong Medium General Weak No Signal

9
8
Start Measuring
Daily Measurement
With original SENSE ON patent technology, the scale
will automatically switch on as you step on the platform
barefooted.
Stand still and keep full contact with the scale, the weight data on the LCD will
blink twice, then the weight is locked. The weight data will be transmitted after 10
seconds.
When data is successfully transmitted, “oH” will be displayed and icon “ ” stops blinking.
If the data transfer fails, “E1” will be displayed and icon “ ” disappeared. Then the scale
will turn off in about 3 seconds.

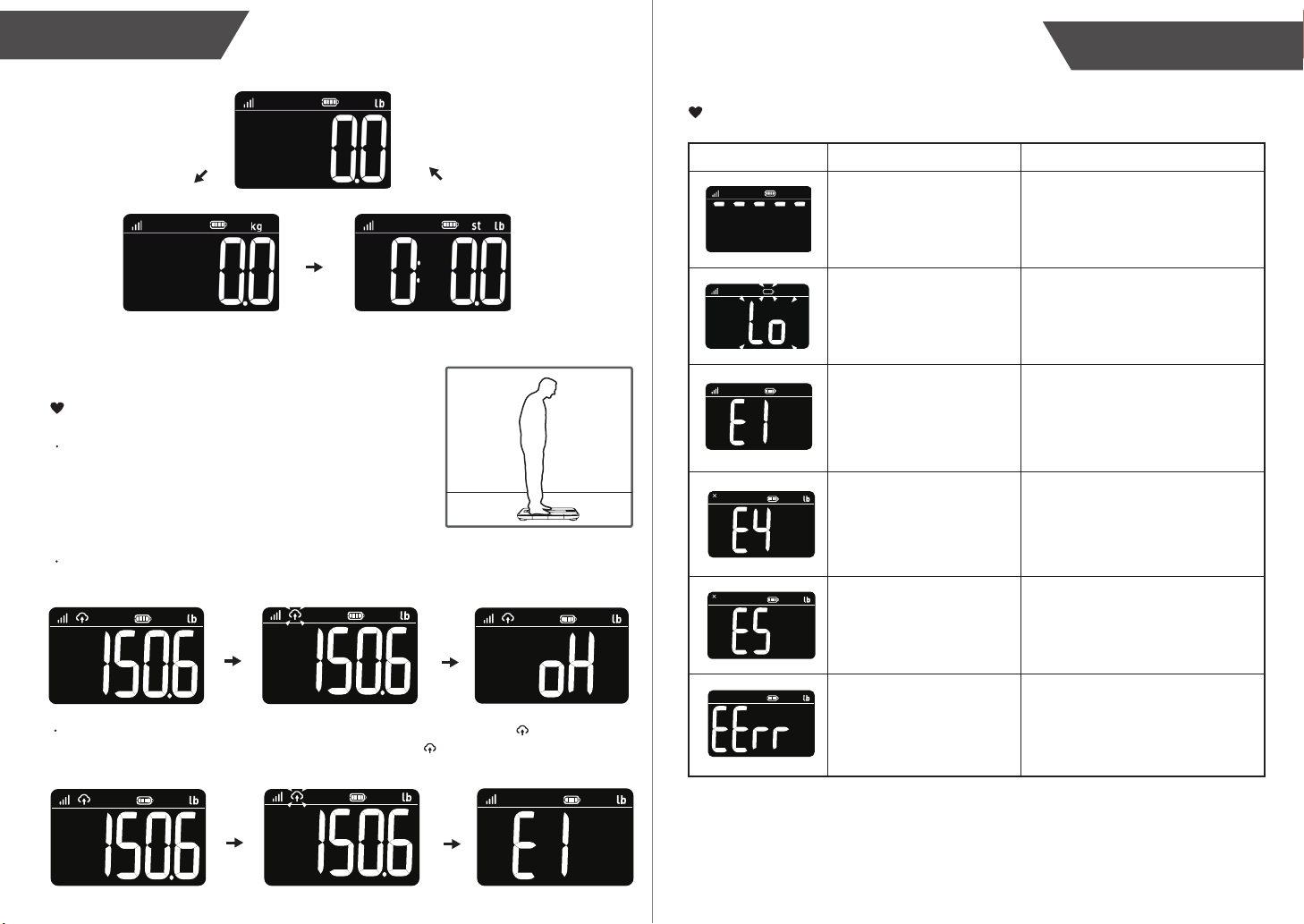

Error Prompt
Error Description Solution
Overload error. The
device will power off.
Stop using this scale for
measurement.
Low battery error. The
device will power off.
Replace all four batteries at
the same time. Please purchase
the authorized batteries for
replacement.
1. Move the scale to a
location where there is a
stronger signal.
2. Check with your telecom
operator for SIM card status.
Failure to pair-up with
the network. Or Data
transmission error.
Eeprom checks failed. Contact Smart Meter
Technical Support.
Troubleshooting
Query signal timeout.
No SIM card information
was found.
1. Reinstall the batteries.
2. Move the scale to a location
with a strong signal.
Check with your telecom
operator for SIM card status.

11
10
Specifications
When Measuring ...
Problem Root Cause Solution
No display on
LCD when the
device powers on.
The device
powers off
automatically.
Batteries not yet installed.
Worn batteries.
Low battery.
Install the batteries.
(Please refer to Insert the
Battery and Pair-up)
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Troubleshooting
iScale Cellular Weight Scale
6V (Four AA-size Batteries)
About 10 seconds while showing 0.0;
1. Four AA-size Batteries
11lb to 551.2lb / 5kg to 250kg / 0st:11lb to 39st: 5lb
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
This product is specially designed for Smart Meter iScale Cellular Weight Scale as well as weight measurement. It
should NOT be used by anyone during the process of transaction for verification of goods’ weight.
Scale: Approx. 360x360x37.2mm
Approximately 3.04kg ( Excluding the dry cells)
50kg±0.2kg；100kg±0.3kg；150kg±0.4kg;
200kg±0.5kg;250kg±0.8kg
Specifications
Product Name
Dimension
Net Weight
Display Digital LCD
Measurement Unit Pound / Kilogram / Stone
Measurement Range
Division
Accuracy
Working Environment
Storage Environment
Power Source
Auto-ON SENSE ON technology
Auto-OFF
Accessories 2. User Manual
Mode of Operation Continuous Operation
Temperature: 5℃to 40℃
Temperature: -20℃to 60℃Relative Humidity: ≤90% RH
Atmospheric pressure: 86kPa to 106kPa
Atmospheric pressure: 50kPa to 106kPa
Relative Humidity: ≤90% RH
Protection Against
Ingress of Water
IP22(The first number 2: Protected against solid foreign
objects of 12.5 mm Ф and greater. The second number 2:
Protection against vertically falling water drops when
enclosure tilted up to 15°on either side of the vertical.)
Software Version
Degree of protection Type BF applied part
0.1kg / 0.2lb
A5

1312
Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Maintenance
Clean the device after use.
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry
soft cloth to dry the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Smart Meter
Technical Support.
(Please refer to Warranty for contact information)
No service and maintenance while in use with the patient.
Warranty
Smart Meter guarantees its products free of defects in materials and workmanship in
normal use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse,abuse, lost, stolen or
damage, including but not limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to SMART METER LLC, 201 E. Kennedy Blvd., Suite
880, Tampa, FL 33602 prepaid. Please return the store receipt (with the retail purchase
date) and a note with reasons to return on it as well.
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected;
Consult the dealer or an experienced radio / TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
FCC Regulations
FCC Regulations
Smart Meter Technical Support
201 E. Kennedy Blvd., Suite 880
Tampa, FL 33602
1-844-445-8267
email: [email protected]
www.SmartMeterRPM.com

15
14
Appendix Appendix
EMC Guidance
Guidance and manufacturer’s declaration -electromagnetic emissions and Immunity
Table 1
Guidance and manufacturer’s declaration - electromagnetic emissions
Emissions test
Compliance
RF emissions
CISPR 11
Group 1
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/ flicker
emissions
IEC 61000-3-3
Not applicable
Table 2
Guidance and manufacturer’s declaration - electromagnetic Immunity
Immunity Test
IEC 60601-1-2
Test level
Compliance level
Electrostatic discharge (ESD)
IEC 61000-4-2
±8 kV contact
±2 kV, ±4 kV, ±8 kV, ±15 kV air
±8 kV contact
±2 kV, ±4 kV, ±8 kV, ±15 kV air
Electrical fast transient/burst
IEC 61000-4-4
Not applicable
Not applicable
Surge
IEC 61000-4-5
Not applicable
Not applicable
Voltage dips, short
interruptions and voltage
variations on power supply
input lines
IEC 61000-4-11
Not applicable
Not applicable
Power frequency magnetic
field
30 A/m
50Hz/60Hz
30 A/m
50Hz/60Hz
IEC 61000-4-8
Conducted RF
IEC61000-4-6
Not applicable
Not applicable
Radiated RF
IEC61000-4-3
10 V/m
80 MHz – 2,7 GHz
80 %AM at 1 kHz
10 V/m
80 MHz – 2,7 GHz
80 %AM at 1 kHz
NOTE U
T
is the a.c. mians voltage prior to application of the test level.
Warning
The ME EQUIPMENT or ME SYSTEM is suitable for home healthcare environments.
Warning：Do not use near active HF surgical equipment and the RF shielded room of an
ME system for magnetic resonance imaging, where the intensity of EM disturbances is
high.
Warning：Use of this equipment adjacent to or stacked with other equipment should be
avoided because it could result in improper operation. If such use is necessary, this
equipment and the other equipment should be observed to verify that they are operating
normally.
Warning: Use of accessories, transducers and cables other than those specified or
provided by the manufacturer of this equipment could result in increased electromagnetic
emissions or decreased electromagnetic immunity of this equipment and result in
improper operation.
Warning：Portable RF communications equipment (including peripherals such as
antenna cables and external antennas) should be used no closer than 30 cm (12 inches)
to any part of the equipment BS-2001-G, including cables specified by the manufacturer.
Otherwise, degradation of the performance of this equipment could result.

16
Table 3
Guidance and manufacturer’s declaration - electromagnetic Immunity
Radiated RF
IEC61000-4-3
(Test specifications
for ENCLOSURE
PORT IMMUNITY to
RF wireless
communications
equipment)
Test
Frequency
(MHz)
Band
(MHz)
Service
Modulation
Modulation
(W)
Distance
(m)
IMMUNITY
TEST
LEVEL
(V/m)
385
380 –
390
TETRA 400
Pulse
modulation
18 Hz
1,8
0.3
27
450
430 –
470
GMRS 460,
FRS 460
FM
± 5 kHz
deviation
1 kHz sine
2
0.3
28
710
704 –
787
LTE Band
13,
17
Pulse
modulation
217 Hz
0,2
0.3
9
745
780
810
800 –
960
GSM
800/900,
TETRA
800,
iDEN 820,
CDMA 850,
LTE Band 5
Pulse
modulation
18 Hz
2
0.3
28
870
930
1720
1 700 –
1 990
GSM 1800;
CDMA
1900;
GSM 1900;
DECT;
LTE Band
1, 3,
4, 25;
UMTS
Pulse
modulation
217 Hz
2
0.3
28
1845
1970
2450
2 400 –
2 570
Bluetooth,
WLAN,
802.11
b/g/n,
RFID 2450,
LTE Band 7
Pulse
modulation
217 Hz
2
0.3
28
Appendix
