smartair FAST CHILL MAX User manual

User’s Manual
Fast Chill Max Manual.indd 1 24/02/2021 14:09

2SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Quick Start Guide
Preparing
Safety cutout
1 Metre
3 Feet
Ensure there is a
minimum of 1 metre (3
feet) of clear space all
around the fan.
IMPORTANT: Ensure that no
items can block the air intake
on the back of your fan.
IMPORTANT: Ensure that
the power cable is not a trip
hazard.
Filling the water tank
Rotate the locking
catch clockwise into the
horizontal position.
Pull the water tank out
of the bottom of the
appliance and fill with
water using a jug.
Push the water tank back into
the bottom of the appliance
and rotate the locking catch
anti-clockwise to lock.
Your Fast Chill Max is fitted with an internal safety switch. This will stop the appliance
from operating if it is push over or rocked severely. If this happens, simply turn the
appliance off and back on again. If any water has been spilled, make sure it is all mopped
up and allow the appliance to dry thoroughly before tuning on again.
IMPORTANT: Please read the Important Safeguards before using your appliance.
Fast Chill Max Manual.indd 2 24/02/2021 14:09

3
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Controls
Control
panel
Remote
control Function description
Press this button to turn the appliance on, press again to
enter the standby mode.
IMPORTANT: After using your Fast Chill Max, allow it to
sit for 2 minutes after turning it off before emptying the
water tank or removing the wet curtain.
Press this button to turn the air swing function off and on.
The air swing function makes the fan blades on the front
of the appliance move from left to right spreading the air
flow over a larger area.
Use this function to increase or decrease the wind speed
of the appliance.
There are 3 speeds: Low, Medium, High.
These will be illuminated on the control panel.
Use this function to type of wide produced by the
appliance. When normal is selected the wind speed
indicator show above will be illuminated.
There are 3 types: Day Wind: High speed, Calm
Sleep Wind: Low speed + low noise, Baby Wind: Low
speed + low noise.
These will be illuminated on the control panel.
Shutdown: When the fan is on, press the buttons
multiple times to choose between 1 to 7 hours in 1 hour
intervals before the fan shuts down.
Start up: When the fan is in standby mode, do the same
as above to set the delay start up time.
Used this function to turn the cool wind function on or
off. The icon will be illuminated on the control panel
when the function is turned on.
IMPORTANT: You will need to have water in the water
tank to use this function.
Fast Chill Max Manual.indd 3 24/02/2021 14:09

4SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Index
Important safeguards 05
Box contents 09
Parts of your Fast Chill Max 09
Preparing the remote control 10
Placing your Fast Chill Max 11
Filling the water tank 12
Using the ice packs 13
Turning your Fast Chill Max on & off 14
Using your Fast Chill Max 15
Cleaning the wet curtain 16
Cleaning the water tank 17
Storing the power cable 18
Maintenance & cleaning 19
Troubleshooting 19
Topic
Fast Chill Max Manual.indd 4 24/02/2021 14:09

5
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
• If the supply cord is
damaged, it must
be replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
• This appliance is for
household use only.
• This appliance can be used
by children aged from 8
years and above and persons
with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
• Children shall not play with
the appliance.
• Children of less than 3 years
should be kept away unless
continuously supervised.
• Unplug the appliance when
filling the water tank or when
cleaning.
• Prior to cleaning or other
maintenance, the appliance
must be disconnected from
the mains supply.
• Nonspecialist personnel
or unauthorized repair
personnel shall not repair or
modify the machine.
• Caution: DO NOT operate
the appliance with wet
hands.
• Switch off at the wall socket
then remove the plug from
the socket when not in use
or before cleaning or other
maintenance.
• To prevent accidental injury
or damage to the unit,
please do not insert any
foreign matter into the air
inlet and outlet, because
the appliance incorporates a
high-speed wind rotor.
When using electrical appliances, basic safety precautions should always be
followed including the following:
Important Safeguards
Fast Chill Max Manual.indd 5 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
6
Important Safeguards (cont...)
• Do not place the appliance
on an incline or uneven
surface to prevent the
appliance from falling and
causing damage to the unit
or its internal parts.
• This appliance is fitted with
a safety switch. If the wet
curtain or wet curtain support
has been fitted incorrectly,
the unit will not work
correctly.
• Never remove the wet
curtain or the wet curtain
support.
• Never exceed the MAX mark
on the water tank.
• Do not let the water in the
water tank fall below the MIN
mark on the water tank.
• After filling and refitting the
tank, do not tilt or collide
with the appliance when
placing or moving it. When
moving the appliance, please
lift the appliance and move
slowly to prevent the water in
the tank from being spilled.
• If the appliance is accidently
knocked over with water in
the tank, Switch the power
of at the mains socket and
remove the plug immediately
and allow to dry completely
before using again.
• NEVER place any items on
the appliance and never
cover the inlets or outlets.
• Clean the appliance with a
damp cloth and nonabrasive
cleaning agents. DO NOT
rinse the appliance with
water. Dry the appliance
with a soft dry cloth after
cleaning. Never use corrosive
cleaning agents or solvents.
• NEVER immerse the
appliance in water.
• NEVER place the appliances
air inlet or outlet close to a
wall, curtains or any other
objects that may block the
airflow or will affect the air
supply.
• Always empty the tank when
not in use.
• To protect against the risk
of electrical shock, do not
Fast Chill Max Manual.indd 6 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 7
Important Safeguards (cont...)
immerse the appliance,
power cord or plug in water
or other liquid.
• NEVER insert fingers, pencils
or any other object through
the grille when the fan is
running.
• Unplug the appliance when
moving from one location to
another.
• Be sure the appliance is on
a level, stable surface to
prevent overturning.
• This appliance is for
household use only
Need help? We’re here for you.
Please contact our Customer Services Team on:
Phone: [phone] (UK) / 0412 132 998 (Ireland)
Email: customercar[email protected]
Visit: drewandcole.com/support for FAQ’s
The product and its packaging have been manufactured from valuable materials that can be
recycled. Recycling reduces the amount of refuse and helps to preserve the environment.
Dispose of the packaging at a recycling point that sorts materials by type. Make use of the local
facilities provided for collecting paper, cardboard and light weight packaging.
Appliances marked with this symbol must not be disposed of along with normal household
waste!
You are legally obliged to dispose of old appliances separately from household waste.
Information about collection points where old appliances can be disposed of free of
charge is available from your local authorities.
Fast Chill Max Manual.indd 7 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
8
Box Contents
Fast Chill
Max
Remote
control
Ice
packs
User
manual
Parts of Your Fast Chill Max
Fan
blades
Water
gauge
Air direction
adjustment
arm
Air direction
adjustment
arm
Cable arm
Cable arm
Water tank
Water tank
catch
Control panel
Wet
curtain
support
Fast Chill Max Manual.indd 8 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 9
Preparing The Remote Control
Important battery information:
• When the remote control is not used for a long time (more than a month),
remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment
and replace the batteries with new ones.
• Do not use any other type of battery other than those specified above.
• Do not heat or disassemble batteries. Never throw them in a fire or into water.
• Do not carry or store batteries with other metallic objects. Doing so could
cause batteries to short circuit, leak or explode.
• Never try to recharge non-rechargeable batteries.
IMPORTANT: You will need to purchase 2x AAA batteries before you can use
the remote control. The remote control will work within a 6m range, however this
could be affected by any obstacles between the Fast Chill Max and the remote
control. If the remote control is used near other devices which generate infrared
rays then it may not operate properly and may interfere with other devices.
Fitting/replacing the batteries:
Push down gently on the top of the
battery cover and slide down. Lift the
battery cover off the bottom of the
remote control.
Insert the two AAA batteries into the
battery compartment (not supplied).
Ensure the + & – on the batteries are
correctly aligned with the marks in the
battery compartment.
Slide the battery compartment cover
back onto the bottom of the remote
control as shown in the diagram and
push upwards until it locks in place.
Fast Chill Max Manual.indd 9 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
10
Placing Your Fast Chill Max
Place your Fast Chill Max in the room
you wish to use it in with a minimum
of 1 metre (3 feet) of clear space all
around it.
IMPORTANT: Ensure that the power
cable is positioned so that it does not
present a trip hazard on the floor or
can be snagged and accidently pulled
off a raised surface.
IMPORTANT: Ensure that no items can
block the air intake on the back of your
Fast Chill Max, such as curtains, fabric
covers or furniture.
1 Metre
3 Feet
Fast Chill Max Manual.indd 10 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 11
Rotate the water tank catch into the
horizontal position.
Pull the water tank out of the back of
the Fast Chill Max and fill with water
using a jug.
Filling The Water Tank
IMPORTANT: Before filling the water tank, always ensure your Fast Chill Max
is unplugged from the mains.
Slot the water tank back into the
bottom of your Fast Chill Max.
Turn the water tank catch to the vertical
position to lock the water tank in place.
Fast Chill Max Manual.indd 11 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
12

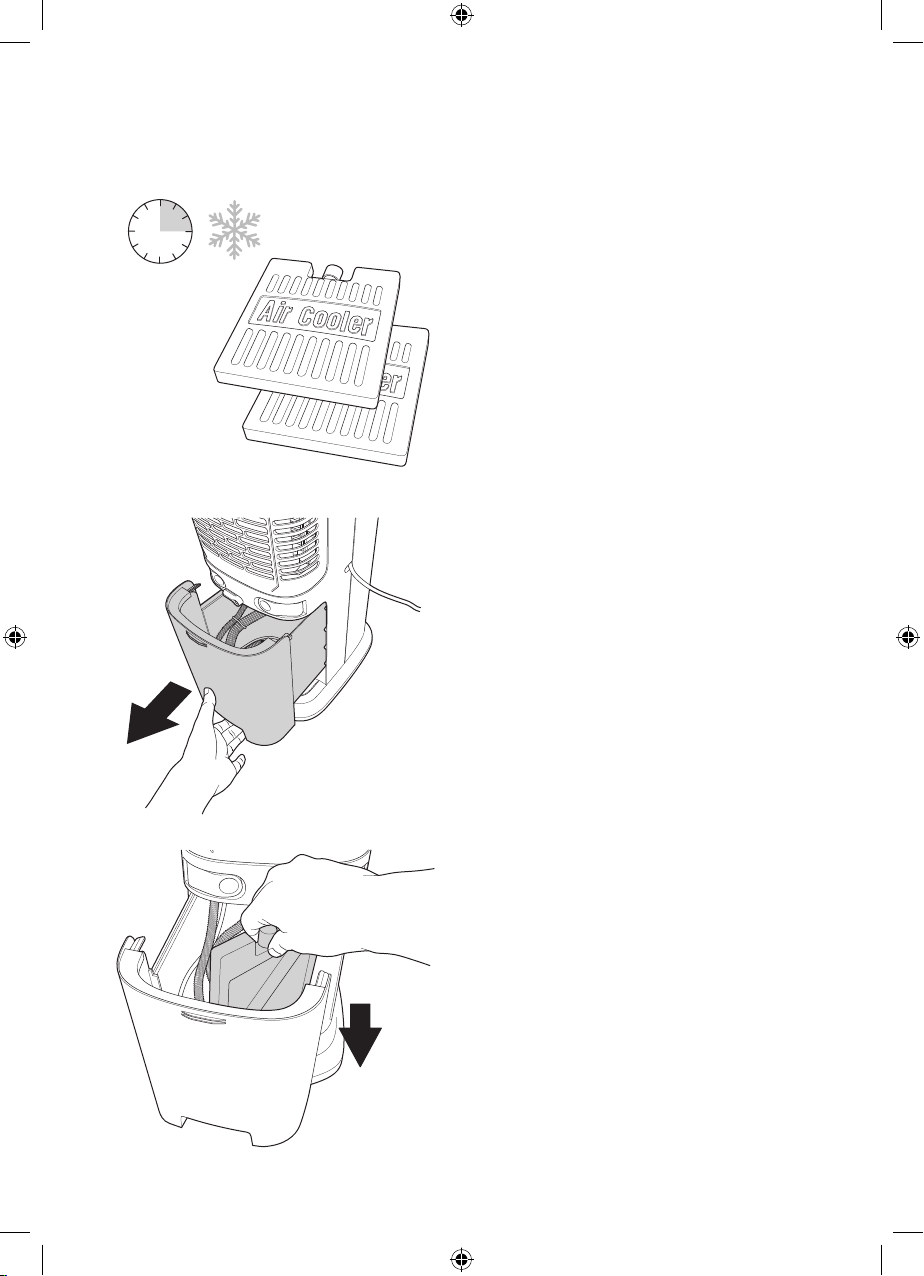

Using The Ice Packs
During hot periods you can use the ice
packs to cool the air coming from the
appliance.
You will need to freeze the ice packs
for a minimum of 3 hours before using
them.
Note: You can also use ice instead of
the ice packs
ALWAYS ensure the water in the water
tank is not over the MAX line after
adding any item to the water tank.
Unplug the appliance from the mains
and pull the water tank out of the
bottom of the appliance.
Place the ice pack into the water tank
then slide the water tank back into the
appliance.
Plug the appliance back into the mains
and use as normal.
If the air flow starts to warm up simply
replace the ice pack with the other
frozen one.
3 hours
Fast Chill Max Manual.indd 12 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 13
Turning Your Fast Chill Max On & Off
Slot the plug into a mains power
socket and turn the power on if
required.
Press the button on the top of your
Fast Chill Max or the button on
the remote control to turn your Fast
Chill Max on or press again to go into
standby mode.
To completely turn your Fast Chill Max
off you will have to turn the power off
at the socket and remove the plug
from the socket.
Fast Chill Max Manual.indd 13 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
14
Using Your Fast Chill Max
Control
panel
Remote
control Function description
Press this button to turn the appliance on, press
again to enter the standby mode.
IMPORTANT: After using your Fast Chill Max, allow
it to sit for 2 minutes after turning it off before
emptying the water tank or removing the wet curtain.
Press this button to turn the air swing function off
and on. The air swing function makes the fan blades
on the front of the appliance move from left to right
spreading the air flow over a larger area.
Use this function to increase or decrease the wind
speed of the appliance.
There are 3 speeds: Low, Medium, High.
These will be illuminated on the control panel.
Use this function to type of wide produced by the
appliance. When normal is selected the wind speed
indicator show above will be illuminated.
There are 3 types: Day Wind: High speed, Calm
Sleep Wind: Low speed + low noise, Baby Wind:
Low speed + low noise.
These will be illuminated on the control panel.
Shutdown: When the fan is on, press the buttons
multiple times to choose between 1 to 7 hours in 1
hour intervals before the fan shuts down.
Start up: When the fan is in standby mode, do the
same as above to set the delay start up time.
Used this function to turn the cool wind function on
or off. The icon will be illuminated on the control
panel when the function is turned on.
IMPORTANT: You will need to have water in the
water tank to use this function.
Fast Chill Max Manual.indd 14 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 15
Adjusting The Air Flow Direction
Your Fast Chill Max is fitted with two air
direction adjustment arms.
1. These can be lifted to make the air
blow upwards
2. Lowered to make the air blow
downwards.
Note: The two air direction adjustment
arms can be adjusted independently
from the other.
If you set the air direction adjustment
arms to the middle position the air
will blow directly out of your Fast Chill
Max.
Fast Chill Max Manual.indd 15 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
16
Cleaning The Wet Curtain
Grip the top of the wet curtain support
and pull outwards then lift off the back
of your Fast Chill Max.
Rotate the locking catch at the bottom
of the wet curtain support a quarter
turn anti-clockwise.
Lift the wet curtain out of the wet
curtain support so that it can be
cleaned.
Cleaning the wet curtain: Allow the
wet curtain to dry completely and then
brush any dust or grime off.
Refitting: Reverse the process above
to refit the wet curtain and wet curtain
support.
Fast Chill Max Manual.indd 16 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 17
Removing the water pump
The water pump in the bottom of the
water tank can be removed.
To do this, turn the pump locking catch
at the front of the pump a quarter turn
anti-clockwise.
Lift the water pump out of the bottom
of the water tank.
You can now wash the water tank
under a tap using a mild detergent, do
not use abrasive cleaning agents.
Wipe the water tank with a soft dry
cloth and slot back into the bottom of
your Fast Chill Max.
Refitting the water pump
Slot the water pump into the bottom of
the water tank. Ensure the tab on the
back of the pump is slotted under arch
in the bottom of the tank (1).
Slot the front of the pump over the
pump locking catch, turn the catch
a quarter turn clockwise to lock the
pump to the base of the water tank.
Now slot the water tank back into you
Fast Chill Max and turn the water tank
locking catch to the vertical position.
Cleaning The Water Tank
Fast Chill Max Manual.indd 17 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
18
Storing The Power Cable
On the back of the appliance there are
two cable arms that are used to wrap
the power cable around.
Push the backs of the two cable arms
inwards to open them.
Wrap the power cord around the ends
of the two cable arms to safely store
the power cable.
Fast Chill Max Manual.indd 18 24/02/2021 14:09

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 19
Troubleshooting
Maintenance & Cleaning
Your Fast Chill Max requires little maintenance. Do not try to fix it by yourself,
always refer to a qualified service person if it required any repairs.
• Before cleaning and assembling ensure the appliance is unplugged at the
mains.
• To ensure adequate air circulation to the motor, keep all vents at the rear
of the motor free of dust. Do not disassemble the appliance to remove the
dust.
• Wipe the exterior parts of the appliance with a soft damp cloth and a mild
detergent.
• After cleaning with a damp cloth, wipe the appliance with a soft dry cloth to
remove any residue liquid or detergent.
• NEVER use abrasive cleaning agents or solvents to avoid damaging the
appliances surface.
• Never use combustible substances such as petrol based products to clean
the appliance.
• NEVER allow water or any other liquid into the motor housing or interior
parts.
Fault Possible solution
The appliance does
not work.
The volume of air
is low and getting
weaker.
The power cord or plug is damaged.
Press the button on the remote control or on the
control panel on your Fast Chill Max.
The fuse in the plug needs changing.
The wet curtain is dirty and needs to be cleaned. Do
this on a regular basis to prevent this problem.
The cool wind
function does not
work correctly.
Check the water level in the water tank and fill if
required.
Fast Chill Max Manual.indd 19 24/02/2021 14:09

Search: ‘Fast Chill Max’
to keep up to date with all
the latest news, recipes
and inspiration.
Distributed by:
High Street TV, PO Box 7903,
Corby, NN17 9HY
Model number: MK-SH15Powe508b
V1-02/21
Please recycle our product and
packaging where facilities exist.
Check with your Local Authority
or retailer for recycling in your
country.
Fast Chill Max Manual.indd 20 24/02/2021 14:09
