smartair AMS150-CJ User manual

User’s Manual
Register your product at
www.highstreettv.com
and visit us for...
Smartair Bladeless Fan Manual.indd 1 13/10/2020 17:29

2SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Quick Start Guide
Preparing
1 Metre
3 Feet
Ensure there is a
minimum of 1 metre (3
feet) of clear space all
around the fan.
IMPORTANT: Ensure that no
items can block the air intake
on the back of your fan.
IMPORTANT: Ensure that
the power cable is not a trip
hazard.
Slot the tabs on the
bottom of the prefilter
into the slots (1). Push the
top inwards to lock (2).
Push the top of the air
intake panel back onto
the base of the fan.
Push the bottom of the
air intake panel onto the
bottom of the fan.
Pull the air intake panel
off the base of the fan.
Pull the prefilter out of
the base of the fan.
Slot the HEPA filter into base
of the fan.
IMPORTANT: Please read the Important Safeguards before using your appliance.
Repeat the process for the other side of the fan
Smartair Bladeless Fan Manual.indd 2 13/10/2020 17:29

3
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Controls
Thermal safety cutout
Your fan is fitted with an internal thermal safety switch. This will stop the fan from operating if
the internal temperature exceeds the normal operating temperature. If this happens refer to the
‘Thermal Safety Cutout’ on page 9.
Plug the fan into a mains socket and turn the power on if required and fit the batteries into the
remote control.
BUTTON FUNCTION
POWER: Turn the fan ON / Turn OFF.
ADJUSTMENT BUTTONS: Set wind speed / Adjust timing.
OSC: Use to change the angle of rotation of the top of the fan.
MODE: Use to select the desired wind speed, day wind (12 speeds, indicator
light is on) / sleep wind (3 speeds, indicator light is on) / baby wind (2 speeds,
indicator light is on).
TIMER: Use to set the running time of the fan when it will automatically turn on or
off.
SMARTWIND: Use to set the temperature of the air coming out of the fan.
± ION: Use to ionised the air coming out of the fan.
LIGHT: Use to turn the ambient light on or off.
CONTROL
PANEL
REMOTE
CONTROL
Smartair Bladeless Fan Manual.indd 3 13/10/2020 17:29

4SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Index
Important safeguards 05
Thermal safety cutout 09
Box contents 10
Parts of your fan 10
Control panel & remote control icons 11
Preparing your remote control 12
Fitting the HEPA filters 13
Preparing your fan 15
Using your fan 16
Cleaning your fan 21
Troubleshooting 23
Specification 23
Topic
Smartair Bladeless Fan Manual.indd 4 13/10/2020 17:29

5
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
• Read all instructions
before using this
product.
• When using any
electrical appliance,
basic safety precautions
should always be
followed including the
following:
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• Please ensure that the
appliance is used on a
stable, level, and heat
resistant surface.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• DO NOT leave the
appliance unattended
while it is operating.
• Close supervision is
necessary when any
appliance is used by or
near children or pets.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance in a
safe way and understand
the hazards involved.
• Children must not play
with the appliance.
• Children of less than 3
years should be kept
away unless continuously
supervised.
When using electrical appliances, basic safety precautions should always be
followed including the following:
Important Safeguards
Smartair Bladeless Fan Manual.indd 5 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
6
Important Safeguards (cont...)
• Cleaning and user
maintenance must not
be made by children
without supervision.
• Children aged from 3
years and less than 8
years shall only switch
on/off the appliance
provided that it has
been placed or installed
in its intended normal
operating position and
they have been given
supervision or instruction
concerning use of the
appliance in a safe
way and understand
the hazards involved.
Children aged from 3
years and less than 8
years must not plug in,
regulate and clean the
appliance or perform
user maintenance.
• Switch off at the wall
socket then remove the
plug from the socket
when not in use or
before cleaning.
• If the supply cord is
damaged, it must
be replaced by the
manufacturer, its service
agent or similarly
qualified persons in
order to avoid a hazard.
• If the supply cord or
appliance is damaged,
stop using the
appliance immediately
and seek advice from
the manufacturer or
its service agent or
a similarly qualified
person.
• CAUTION: In order to
avoid a hazard due to
inadvertent resetting
of the thermal cut-out,
this appliance must not
be supplied through
an external switching
device, such as a timer,
or connected to a circuit
that is regularly switched
Smartair Bladeless Fan Manual.indd 6 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 7
Important Safeguards (cont...)
on and off by the utility.
• DO NOT let the cord
hang over the edge of a
table or counter or let it
come into contact with
any hot surfaces.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer,
apart from those
supplied with this
product.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or the cable.
• DO NOT use this
product for anything
other than its intended
use.
• This appliance is for
household use only.
• DO NOT carry the
appliance by the power
cord.
• DO NOT use the
appliance outdoors.
• Use the appliance in a
well ventilated area.
• DO NOT use the
appliance near explosive
and combustible gas.
Avoid long-term direct
solar radiation.
• DO NOT locate the item
directly below the socket
outlet and outdoor.
• DO NOT use the same
socket with other items.
• DO NOT cover the wind
outlet.
• DO NOT use the
appliance near water.
• Caution: DO NOT
operate the appliance
with wet hands.
• In the unlikely event
the appliance develops
a fault, stop using
it immediately and
Smartair Bladeless Fan Manual.indd 7 13/10/2020 17:29

seek advice from the
Customer Support Team.
• WARNING: In order to
avoid overheating, do
not cover the fan.
• The fan must not be
located immediately
below a socket outlet.
• Do not use this fan in the
immediate surroundings
of a bath, a shower or a
swimming pool.
• Unplug the appliance
during cleaning.
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
8
Important Safeguards (cont...)
Need help?
We’re here for you.
Please contact our Customer Services Team on:
Phone: [phone] (UK) / 0412 132 998 (Ireland)
Email: [e-mail]
Visit: highstreettv.com/support for FAQ’s
Smartair Bladeless Fan Manual.indd 8 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 9
Thermal safety switch
Your fan is fitted with an internal thermal safety switch. This will stop the fan from
operating if the internal temperature exceeds the normal operating temperature.
IF YOUR FAN SHUTS DOWN
• Turn the fan off by removing the plug from the mains socket.
• Leave the fan to cool for approximately 10 minutes or until the fan feels cool.
• Plug the fan back into the mains socket and turn on as usual.
Smartair Bladeless Fan Manual.indd 9 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
10
Box Contents
HEPA
Filers x2
Remote
control
Bladeless
fan
Parts of Your Fan
Display
Air outlet Air outlet
Ambient light
Power cord
Plug
Air intakes
Control panel FRONT BACK
Smartair Bladeless Fan Manual.indd 10 13/10/2020 17:29

BUTTON FUNCTION
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 11
Control Panel & Remote Control Icons
CONTROL PANEL REMOTE CONTROL
POWER: Turn the fan ON / Turn OFF.
ADJUSTMENT BUTTONS: Set wind speed / Adjust timing.
OSC: Use to change the angle of rotation of the top of the fan.
MODE: Use to select the desired wind speed, day wind
(12 speeds, indicator light is on) / sleep wind (3 speeds,
indicator light is on) / baby wind (2 speeds, indicator light
is on).
TIMER: Use to set the running time of the fan when it will
automatically turn on or off.
SMARTWIND: The wind speed automatically adjusted
according to the change of room temperature.
± ION: Use to ionised the air coming out of the fan.
LIGHT: Use to turn the ambient light on or off.
Smartair Bladeless Fan Manual.indd 11 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
12
Preparing The Remote Control
Press down on the top of the battery
compartment cover and side down as
far as it will go.
Lift the battery compartment cover off
the remote control.
Insert two AAA batteries (not included)
into the battery compartment.
Ensure the + and – ends of the battery
are correctly aligned with the marks on
the inside of the battery compartment.
Place the battery compartment cover
back onto the remote control.
Slide the battery compartment cover
up until it locks in place.
IMPORTANT INFORMATION: The remote control should be used within
5 meters of the front of the fan and at an angle of no more than 30º of the
display on the front of the fan.
Smartair Bladeless Fan Manual.indd 12 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 13

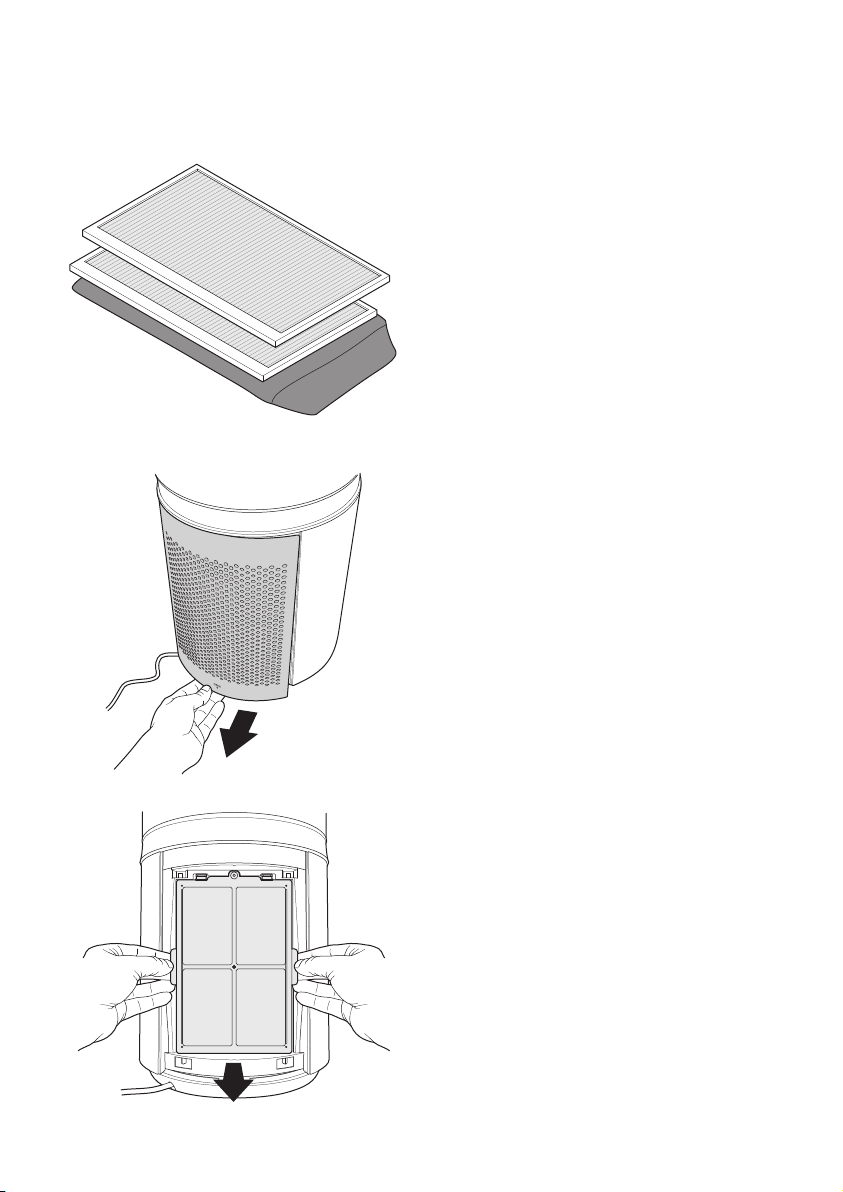

Fitting the HEPA filters
Before using your fan for the first time,
you will need to fit the HEPA filters.
Remove the packaging from the HEPA
filters.
Pull the bottom edge of one of the air
intake panels on the sides of the fan
outwards to unlock.
Pull the top of the panel away from the
fan to completely remove the panel.
Grip the tabs on the sides of the
prefilter and pull towards yourself to
remove the filter from the fan.
Smartair Bladeless Fan Manual.indd 13 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
14
Fitting the HEPA filters (cont...)
Slot the HEPA filter into the housing as
shown in the diagram.
Slot the prefilter back into the housing
by slotting the tabs at the bottom of
the filter into the holes in the base (1).
Now push the top of the prefilter
inwards (2) until it locks in place.
Slot the air intake panel back onto
the base of the fan and push the top
corners in to lock in place (1).
Push the bottom of the air intake panel
inwards to lock in place (2).
IMPORTANT: Repeat the process on
the other side of the fan.
Smartair Bladeless Fan Manual.indd 14 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 15

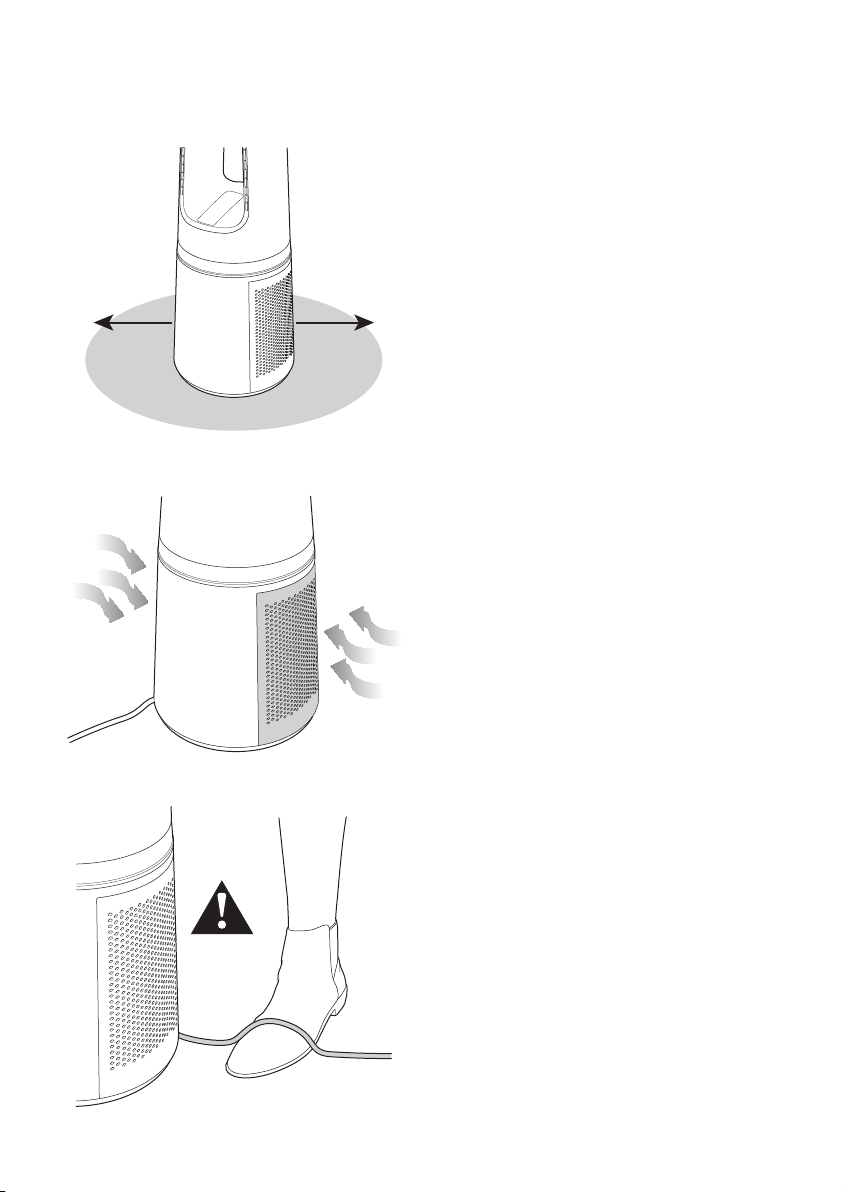

Preparing Your Fan
Place your fan in the room you wish to
use it in with a minimum of 1 metre (3
feet) of clear space around base.
IMPORTANT: Ensure that no items can
block the air intake panels on the base
of your fan, such as curtains, fabric
covers or furniture.
IMPORTANT: Ensure that the power
cable is positioned so that it does not
present a trip hazard on the floor or
can be snagged and accidently pulled
off a raised surface.
1 Metre
3 Feet
Smartair Bladeless Fan Manual.indd 15 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
16
Using Your Fan
Slot the plug into a mains socket and
press the power switch on the socket
to the on position if required.
Turning the fan ON and OFF
Control panel: Press the button to
turn the fan on and off.
Remote control: Press the button to
turn the fan on and off.
Using the Smartwind function
The SMARTWIND function will
automatically adjust the speed and
volume of air the fan will emit. When
it is hotter the speed and volume of
air will increase and when colder the
volume and speed of air will decrease.
Press the button on the control
panel to activate.
Smartair Bladeless Fan Manual.indd 16 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 17
Using Your Fan (cont...)
Using the ±Ion function
The ionizer function emits positive and
negative ions into the air as a means of
sterilizing the air of contaminants.
Press the ±ION button to turn the
ionizer on.
You can adjust the power of the fan
when in Smartwind function by either
pressing the button on the control
panel or the button on the remote
control.
The following icons will be shown on
the display:
: Day wind speed
: Sleep wind speed
: Baby wind speed
Using the light function
Press the light button to turn the
ambient light on the fan.
Smartair Bladeless Fan Manual.indd 17 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
18
Using Your Fan (cont...)
Using the startup timer
When in the Standby mode, press the
button on either the control panel
or the remote control. Use the –or +
buttons on the control panel or remote
control to enter the amount of hours
you want before the fan starts up.
Note: If the timer is set to 0h the timer
will not work. The maximum you can
set is 12 hours.
After a few seconds of not pressing any
button you will hear a beep, you can
now enter the mode you want the fan
to use.
After a few seconds of not pressing
any button you will hear a beep, the
timer is now set and will turn the fan on
when the timer has counted down.
Using the shutdown timer
When the fan is switched on, press the
button on either the control panel
or the remote control. Use the –or +
buttons to enter the amount of time
you want the fan to stay on for.
After a few seconds you will hear a
beep, the timer is now set.
Smartair Bladeless Fan Manual.indd 18 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 19
Using Your Fan (cont...)
Using the mode function
Use the mode function to select from
the 3 preset fan speeds.
: Day wind speed
: Sleep wind speed
: Baby wind speed
Press the button on either the
control panel or the button on the
remote control.
Using the oscillation function
The oscillation function sets the
amount the fan can rotate when in use.
Press the button on either the
control panel or the remote control.
You can set the amount of oscillation to
0º, 30º, 60º or 120º by pressing the
button on the control panel or remote
control multiple times.
Note: When you press the button
it will go from 30º to 0º to 60º etc.,
continue to press the button until you
have the degree of rotation you want.
The angle of oscillation will be show on
the display.
Smartair Bladeless Fan Manual.indd 19 13/10/2020 17:29

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
20
Using Your Fan (cont...)
Replacing the filter
IMPORTANT: You can continue to use
the fan without changing the filters.
You can also use the fan with no HEPA
filters fitted.
If the filter replacement light on the
display lights up the HEPA filters can
be replaced.
To change the filters follow the
information on pages 13 and 14.
After changing the filters turn the fan
on and press and hold the ±ION
button for 3 seconds to turn the filter
replacement light off.
Manually adjusting the power
of the fan
When the fan is running, you can
change the power of the fan by
pressing the –or +buttons on the
control panel or the remote control.
Each preset fan speed can be adjusted
as shown below.
: Speed 1 to 12
: Speed 1 to 3
: Speed 1 to 2
Smartair Bladeless Fan Manual.indd 20 13/10/2020 17:29
