1. Introduction

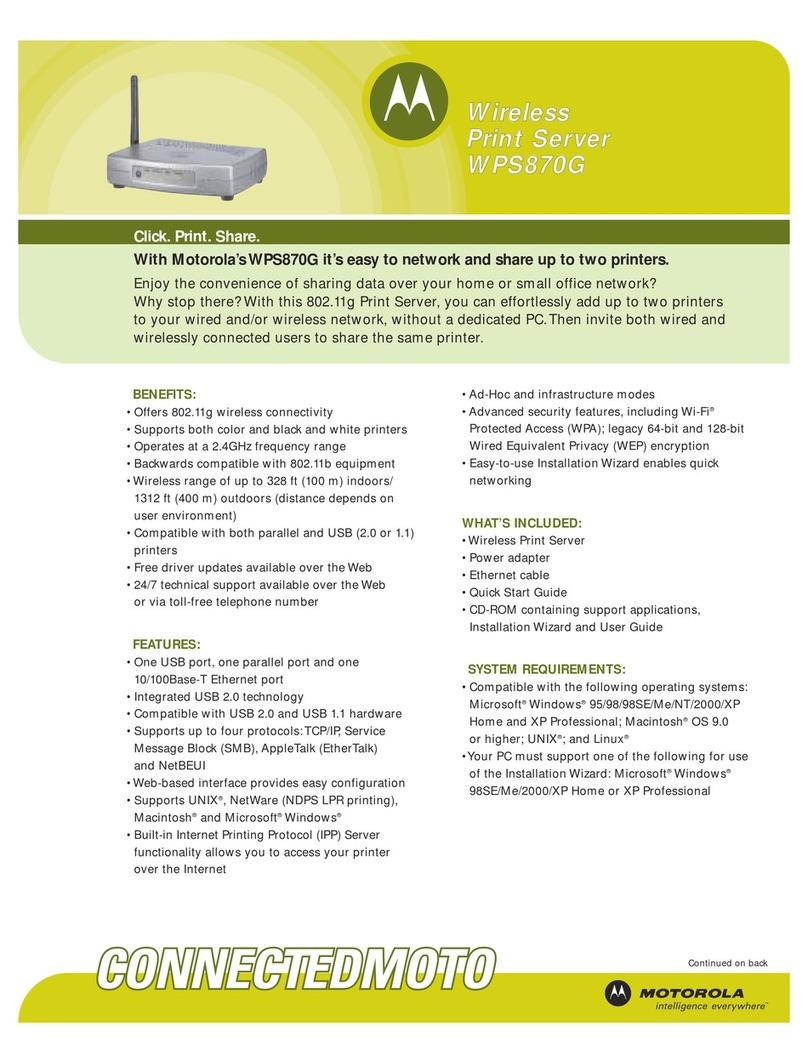

Product Overview
The external print servers enhance capability by letting you place your printers at convenient
locations directly on the Ethernet network, and by increasing network printer performance
and management. Please note that the print server does not support printing with host-based
printers, e.g. CAPT, GDI, PPA.
Network Management
The print servers support the Simple Network Management Protocol (SNMP), which remote
printer management and a warning. A standard SNMP agent is permanent on these print
servers. Any standard SNMP-based application can be used to access and manage these
print servers.
Network configuration
The print servers provide an embedded web server that can be accessed via a proper web
browser. We also subsidiary Windows-based PSAdmin utility which help administrator to
setup print server environment.
Wireless Specifications
Standard Complies with IEEE 802.11b/g standard
Radio Frequency 2.4Ghz ISM Band
Media Access Control
Method Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA)
with ACK
Modes Ad-Hoc and Infrastructure (User definable)
Data Transfer Rate 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps
Output Power 15 ~ 20dBm
WEP (Wired Equivalent
Privacy) Encryption Support 64 and 128 bit Encryption

5
Components and Features
Print server
˙1 USB2.0 port
˙POST (Power On Self Test)
˙LED Lights
Power: Green, indicating Power/POST process (flash 5 times)
WLAN Active: Green, indicating the linkage and data transmission via wireless
connectivity.
USB: Green, indicating the linkage and data transmission of USB port.
˙1 setup CD for Windows 95/98/Me/NT/2000/XP/2003
˙1 external AC power adapter(5V/2A)
˙Normal (factory default) and Diagnostic Mode (select by DIP switch)
˙Built-in Reset Button
Before you start, you should prepare the following items:
One Windows-based computer with print server setup CD
One printer with a USB port
One USB printer cable
One 802.11b/g Access Point (optional)

6
Hardware Installation
To install the print servers, you need to complete these steps:
˙Confirm that your printer USB port works well.
˙Connect the print server to the network and printer, and plug in the print server.
Follow these instructions to install the print servers, please refer to any peripheral
you are connecting to the print server:
1. Turn off the printer’s power.
2. Connect the print server to your printer with the USB cable.
3. Turn the printer’s power on.
4. Plug the AC power adapter into the power connector on the side of the print server.
5. Wait 30 seconds until all the LEDs have stopped flashing (the WLAN LED will continue to
flash if data is being transmitted via wireless connectivity).
Note: The Power LED should be flash five times when POST. Then WLAN LED should be
flash 30 seconds to associate with the proper Access Point with best wireless signal. If not,
please contact your local dealer for repair or replacement.
6. It’s highly recommended to configure the print server by wired connectivity first.
7. Ensure that the print server’s DIP is switched to NOR (Normal mode).

7
Network Environment
Wired Network with Print Server:
Printer Print Server
Computer Computer Computer
HUB
Wireless Network with Print Server:
Infrastructure (Access Point) Mode:
Printer Print Server
Computer Computer Computer
HUBAccess Point
Laptop Laptop

8
Ad-Hoc (PEER-to-PEER) Mode:
Printer Print Server
Laptop Laptop

9
2. Print Server Installation
Preparation
To meet users’ network printing needs in today’s heterogeneous and multiple protocol
networking environments, the print server supports industrial standard protocols, including
TCP/IP, IPX/SPX, NetBEUI and AppleTalk. This means that the print server supports the
most popular network operating systems today, including NetWare, Windows
95/98/Me/NT/2000/XP/2003, UNIX systems and Macintosh computer. As such, there might
be several ways to deploy the print server on your network.
Supported Networks
Print server supports a variety of network protocols, including TCP/IP, IPX/SPX, NetBEUI
and AppleTalk. In addition, we provide software for network configuration on the following
networks:
˙Novell NetWare 3.12, 4.x, 5.x (Bindery and NDS)
˙Microsoft Windows 95/98/Me
˙Microsoft Windows NT/2000/XP/2003
˙Apple EtherTalk
˙UNIX /Linux system
˙Internet (via Internet Printer Connection software)
Configuration Solution Table
Setup Operating
System Function Remarks
PSAdmin utility / Setup Wizard
Windows
95/98/Me
Windows
NT/2000/XP/2003
Install a single
network on a
peer-to-peer or
client-server
network
Easy printer installation runs from print server
setup CD
Embedded Web server
Windows
95/98/Me
Windows
NT/2000/XP/2003
Mac OS, Linux…
Remote setup
print server from
private LAN
Follow standard browse, e.g. IE or Netscape
HP Web JetAdmin
Windows
NT/2000/XP/2003 Remote management of Print server solution for continual management of multiple printers- anywhere on your LAN

10
print server,
include
alert and
consumables
Internet Printing Protocol
Windows
NT/2000/XP/2003 Printing via the internet to
Internet Printing
Protocol-
enabled print
server
Allows saving distribution of HQ hardcopy
document over Internet, replacing fax, mail
Comment
Configuration solution Table has many installations way to setup Windows 95/98/Me,
Windows NT/2000/XP/2003, NetWare, UNIX / Linux system and Mac computer. Firstly, we
introduce PSAdmin utility, HP Web JetAdmin program and Internet Printing Protocol solution.
Then we will discuss Embedded Web Server Installation with print server.

11
3. Software Installation
The PSAdmin is a proprietary Windows-based management program that can assist you in
configuring and managing your print server in NetWare environments. The program can be
installed from the setup CD of print server.
Installing the PSAdmin and Print Server’s Driver
1. To enable network communication with print server, your computer must have a proper
IP address, e.g. 192.168.2.15. The Print Server is a DHCP-client by default.
2. Insert the setup CD into your CD-drive, and the following message appears:

12
3. Choose Setup Wizard to install the print server and configure the connected printer.
Note:
The setup CD will install the print server’s driver, PSAdmin and Setup Wizard into your
computer. The default installation directory will be C:\Program files\Network Print Monitor.
4. Click Next, the wizard will automatically discover the print server.
5. From the Select A Print Sever screen, select the print server that you want to configure
and click Next.

13

14
6. On the Change Settings screen, select No or Yes:
Click No if you want the print server to keep using the default IP address and keep the default
Infrastructure settings:
zInfrastructure mode
zSSID: <ANY>
zChannel: 6
zEncryption: none
zDHCP client: off
zIP address: DHCP client
Click Yes if you want change wireless settings or assign a static IP address to the print
server:
zOn the Basic Wireless Settings screen, select Communication Type according to
your network:
-Infrastructure
-Ad-Hoc

15
zEnter the proper SSID of your wireless network.
-Channel: optional
-Data Transmit Rates: select Auto or others
-Transmit Mode: select Auto or others
zOn the Wireless Security screen, enable or disable WEP/WPA/WPA2 encryption,
configure according to your wireless network and click Next.
zOn the TCP/IP Settings screen, specify a fixed or dynamic IP address for the print
server, a fixed IP address is highly recommended. Click Next.
Note:
The IP address of print server must be within the same subnet as your network adapter.
7. In the setup wizard, select an already configured printer from the list, click Next, Next
and then Finish to complete the installation.
or
Select Add New Printer if the print server is connected to a printer that hasn’t been
installed before and does not appear in the list.

16
8. Click Add New Printer to launch Windows Add Printer Wizard.
9. Click Next and select Local Printer, make sure the Automatically detect and install
my Plug and Play printer check box is NOT checked. Then click Next.

17
10. Make sure the Use the following port radio-button is clicked and select LPT1:
(recommended Printer Port) from the pull-down list. Then click Next.
11. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.

18
12. If you already have the printer’s driver installed, you will be asked whether to keep it or to
replace it. Click Next. Supply a name for the printer and choose whether you want to
make it your default printer. Then click Next.
13. Then, choose whether you want to share the printer with other network user, print a test
page (please select No.), etc. Select the appropriate radio-button and click Next and
Finish.
14. In the setup wizard, finish the installation by highlighting the installed printer in the
Select a Printer list and click Next, NEXT -> Finish.
15. From Windows system, go to start -> Printers and Faxes and highlight your newly
installed printer.

19
16. Right-click, select Properties -> Ports and verify that the print server’s port appears.
