Smeg LSA4650B User manual

INSTRUCTION MANUAL
G
GU UI ID DE E F FO OR R U US SI IN NG G T TH HE E D DI IS SH HW WA AS SH HE ER R A AN ND D T TH HE E W WA AS SH HI IN NG G P PR RO OG GR RA AM MS S

Contents
11
1. Description of the controls________________________________12
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.

User instructions
12
1. Description of the controls
1.1 Upper panel
All the dishwasher controls are grouped on the upper panel.
1WASHING PROGRAM SELECTOR
2ON/OFF BUTTON
3ECO 55°C PROGRAM BUTTON
4ON/OFF INDICATOR LIGHT
5NO SALT WARNINGLIGHT
6RECESSED DOOR HANDLE
1
6
2
4
3
5
26
3 1
4 5

User instructions
13
After using the table to identify the most appropriate washing program,
turn the PROGRAM SELECTION knob (1) (see section "1. Description
of the controls") to set the program of choice by aligning the pointer with
the program number.
Only run the soak program with half loads.
(*) Reference program as per EN 50242 standard.
(–) Not present.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.
AMOUNT OF
DETERGENT DURATION CONSUMPTION
SWITCH,
CYCLE AND
BUTTON
TYPE AND
DEGREE
OF DIRT
ON DISHES
PROGRAM
SEQUENCE GRAMS MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK
1_
Pans and dishes
pending
completion
of the load
Cold prewash _6' 40,01
NORMAL
65°C
2_
Cold prewash
Wash at 65°C
2 cold rinses
Rinse at 65°C
Dry
25 120' 221,30
INTENSIVE
65°C
3_
Very dirty pans
and dishes, even
with dried-on dirt
Pans and dishes
with normal dirt
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 65°C
Dry
25 170' 19 1,27
DAILY 65°C
4_Dishes
with normal dirt
Wash at 65°C
Cold rinse
Rinse at 65°C
Dry
25 160' 151,25
ECONOMY55°C
(*) EN 50242
4
ECO
Dishes
with light dirt
Wash at 55°C
Cold rinse
Rinse at 65°C
Dry
25 155' 161,01
RINSE
5_
Dishes for rinsing
and drying
Cold rinse
Rinse at 65°C
Dry
_80'10 0,78

User instructions
14
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.
TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program (*) Selector on4+ ECO55°C
Load 10 place-settings
Type of detergent B
Amount of detergent 25 g
Rinse aid setting 5/6
The upper basket must be set in the low position.
1.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.

User instructions
15
CANCELLING THE CURRENT PROGRAM
To cancel the program in progress the dishwasher must be switched off
by pressing the ON/OFF key (2) (see section "1. Description of the
controls").
Turn the program selector to SOAK and wait for the dishwasher to start.
On completion of the program, switch off the dishwasher by pressing the
ON/OFF key (2).
CHANGING THE PROGRAM
To change the program in progress the dishwasher must be switched off
by pressing the ON/OFF key (2) (see section "1. Description of the
controls").
Turn the program selector to the program required and then switch the
dishwasher on again by pressing ON/OFF key (2). The dishwasher will
carry out the new program automatically.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.

User instructions
16
If it is necessary to open dishwasher door during the washing cycle,
there will be a 1-minute delay before the program can be resumed.
After correctly closing the door, the washing program will start again from
where it was interrupted. This operation may negatively affective the
progress of the washing cycle.
END OF CYCLE
At the end of the washing program the selector will be on one of the
STOP markers, depending on the program carried out. Switch off the
dishwasher by pressing the ON/OFF key (2) (see section "1. Description
of the controls").
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.

User instructions
17

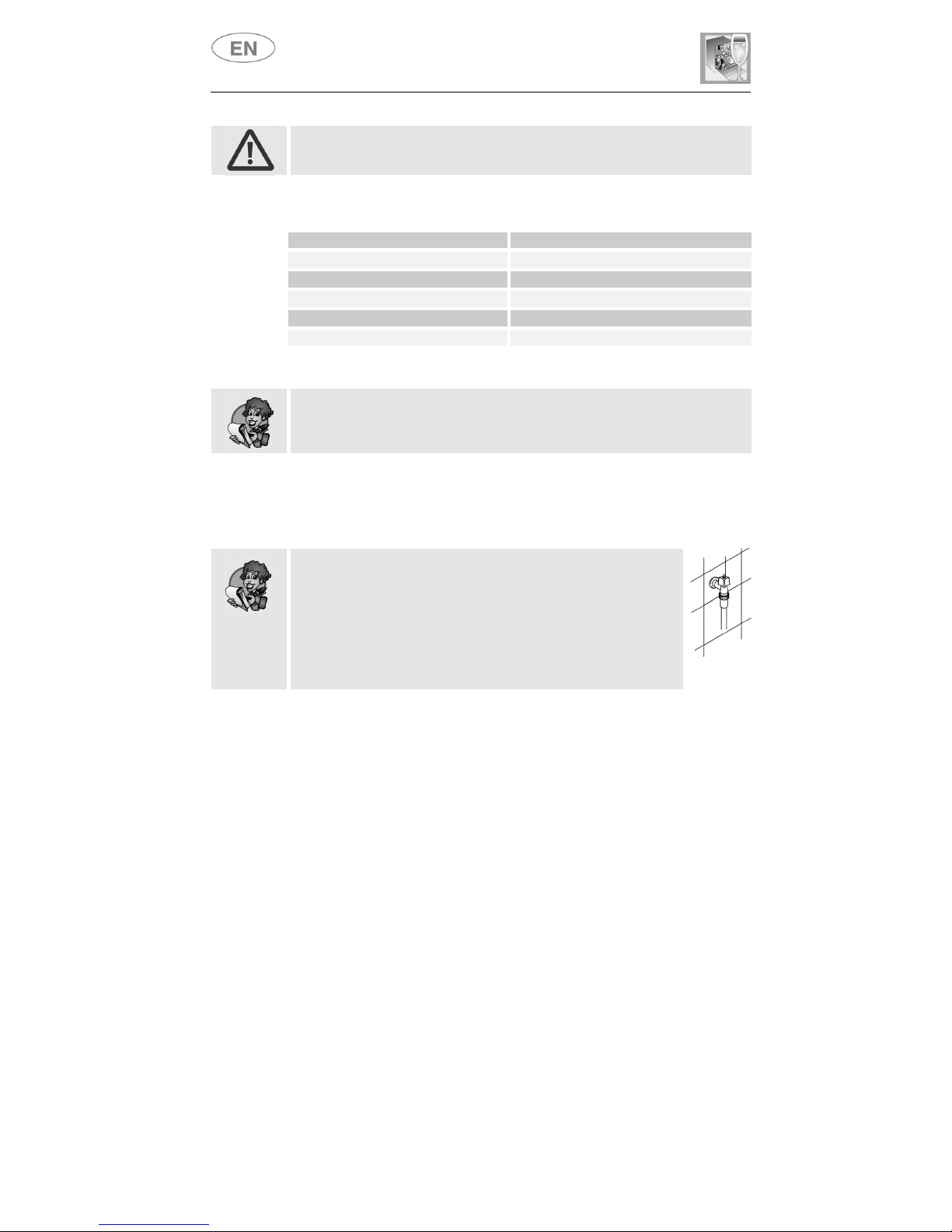

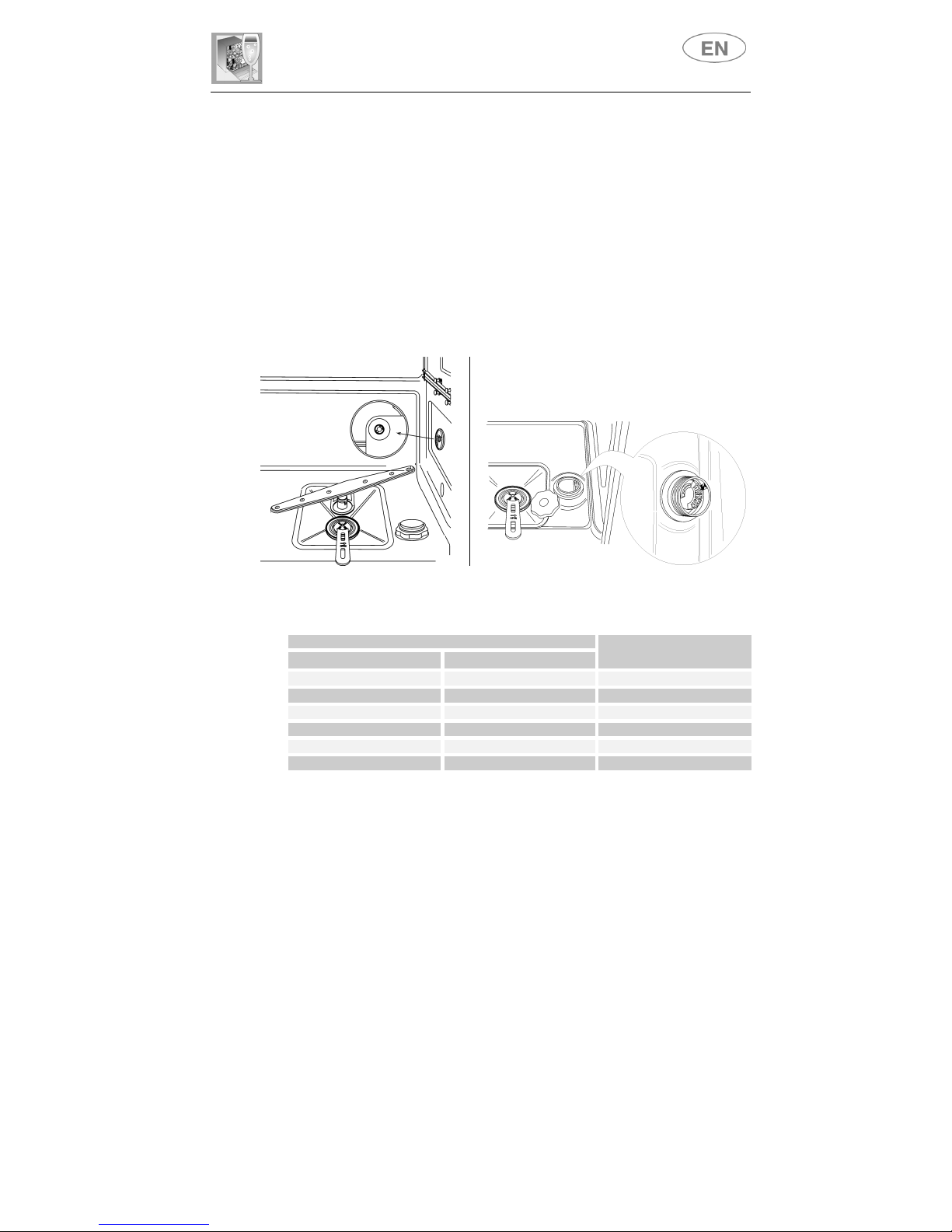

ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher is equipped with an device for the user to adjust the
water softening system according to the hardness of the water supply.
According to the machine model, the selector which acts on the
adjustment may be located:
•inside the plastic locking ring located on the right-hand side, inside
the dishwasher;
•inside the water softener, just below the cap.
Both allow for adjustment to 5settings:
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF) SETTING
0 - 4 0 - 7 Setting N. 1 NO SALT
5 - 15 8 - 25 Setting N. 1
16 - 23 26 - 40 Setting N. 2
24 - 31 41 - 60 Setting N. 3
32 - 47 61 - 80 Setting N. 4
48 - 58 81 - 100 Setting N. 5
Contact your local water board for information on the hardness of your
water supply.

INSTRUCTION MANUAL
W
WA AR RN NI IN NG GS S A AN ND D R RE EC CO OM MM ME EN ND DA AT TI IO ON NS S, , G GU UI ID DE E F FO OR R T TH HE E U US SE E O OF F B BA AS SK KE ET TS S
A
AN ND D F FO OR R C CL LE EA AN NI IN NG G D DI IS SH HW WA AS SH HE ER RS S

Contents

1. Safety and operating instructions __________________________28
2. Installation and hook-up _________________________________31
3. Operating instructions ___________________________________35
4. Cleaning and maintenance _______________________________46
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: useful advice is provided for the use of baskets,
spray arms, containers and filters.
