Smeg LSP1453B User manual

INSTRUCTION MANUAL
G
GU UI ID DE EF FO OR RU US SI IN NG GT TH HE ED DI IS SH HW WA AS SH HE ER RA AN ND DT TH HE EW WA AS SH HI IN NG GP PR RO OG GR RA AM MS S

Contents

1. Description of the controls________________________________18
2. Troubleshooting _______________________________________30
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.

User instructions

1. Description of the controls

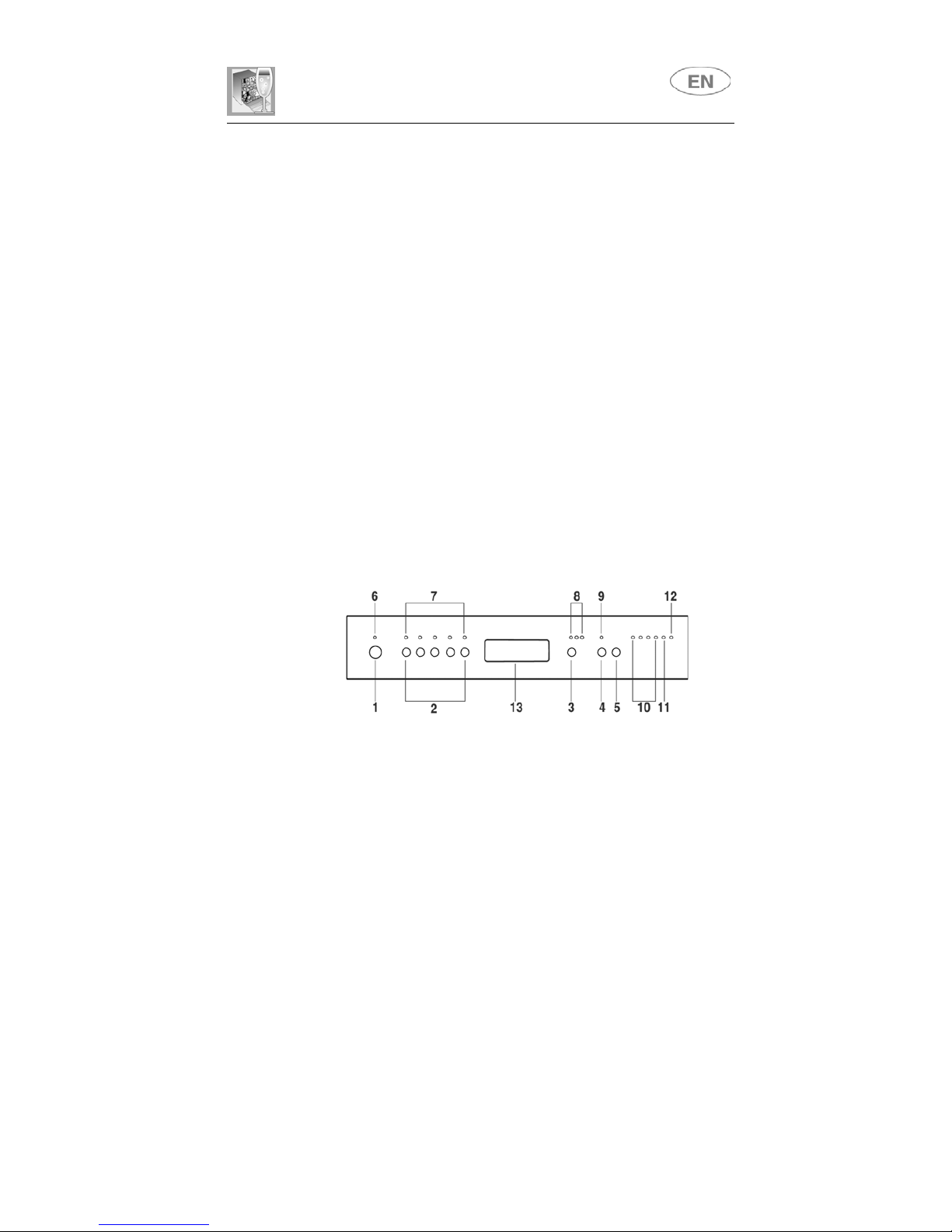

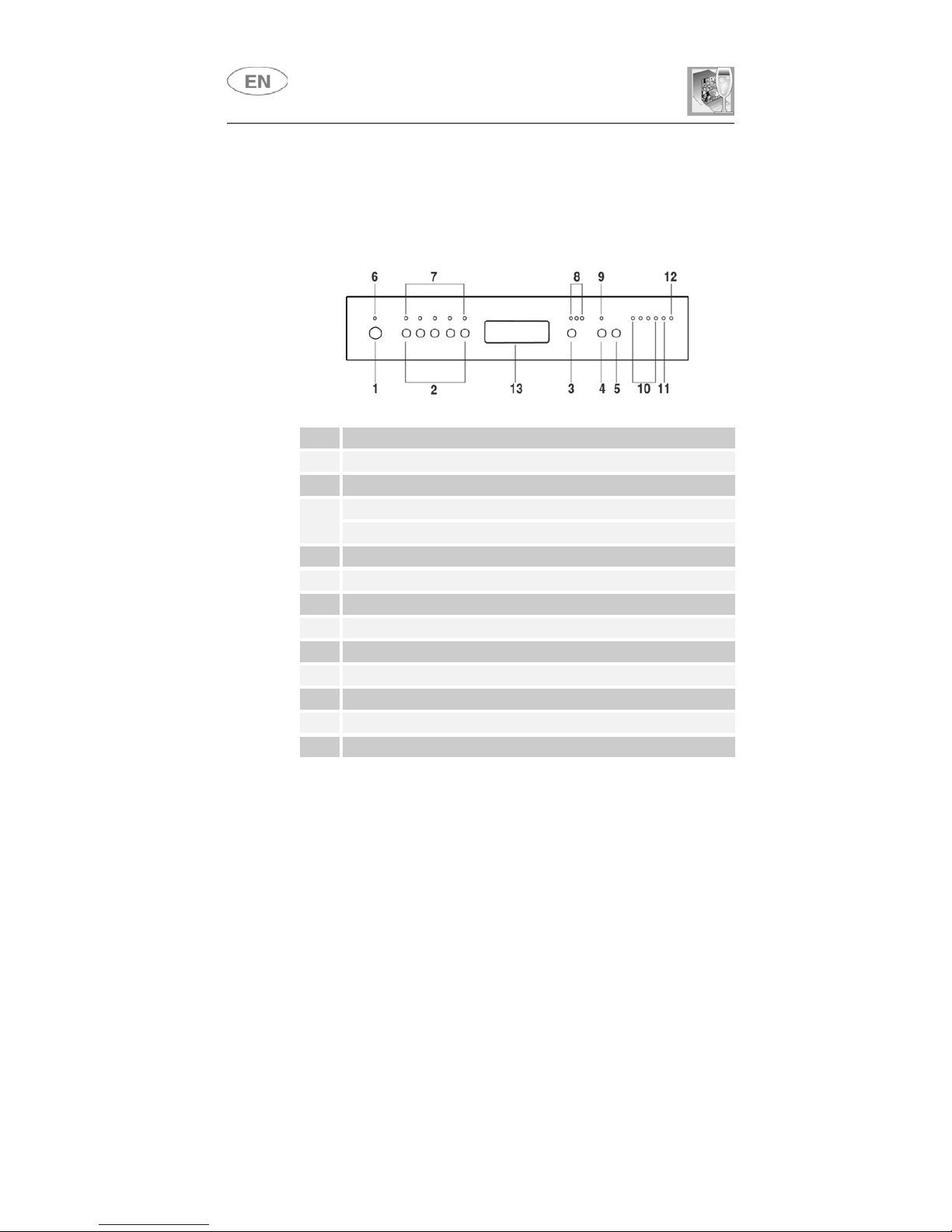

1.1 Front panel

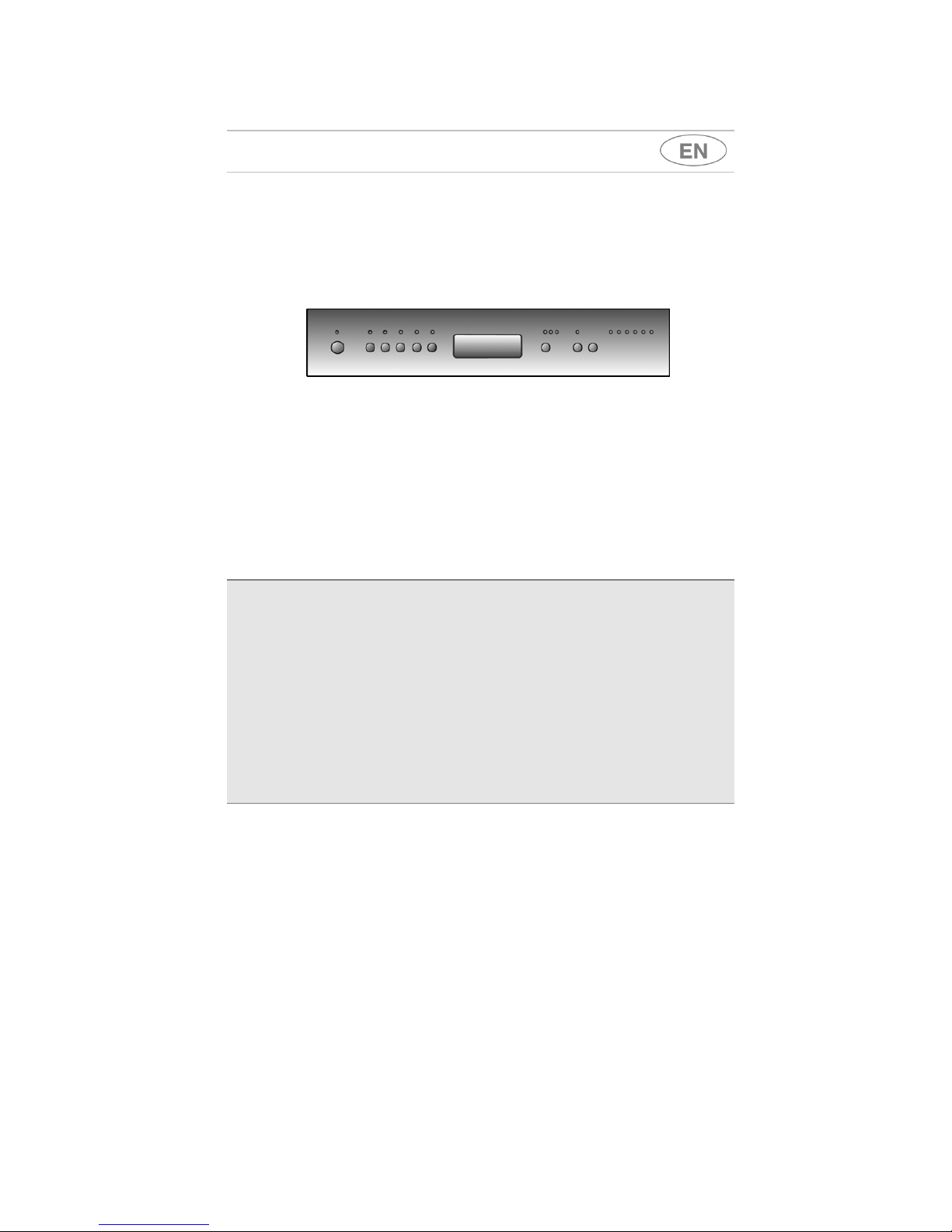

All the dishwasher control are grouped on the front panel.
1ON/OFF BUTTON
2SELECTION PROGRAMS BUTTONS (P1...P5)
3DELAY PROGRAM BUTTON (on some models only)
½ LOAD WASH BUTTON (on some models only)
4"3/1" OPTION BUTTON (on some models only)
5START/PAUSE BUTTON
6POWER ON LIGHT
7PROGRAMS LIGHTS
8DELAY PROGRAM LIGHTS (on some models only)
9½ LOAD WASH LIGHT (on some models only)
10 PHASES/PROGRAM LIGHTS
11 NO SALT LIGHT (on some models only)
12 NO RINSE AID LIGHT (on some models only)
13 RECESSED DOOR HANDLE

User instructions


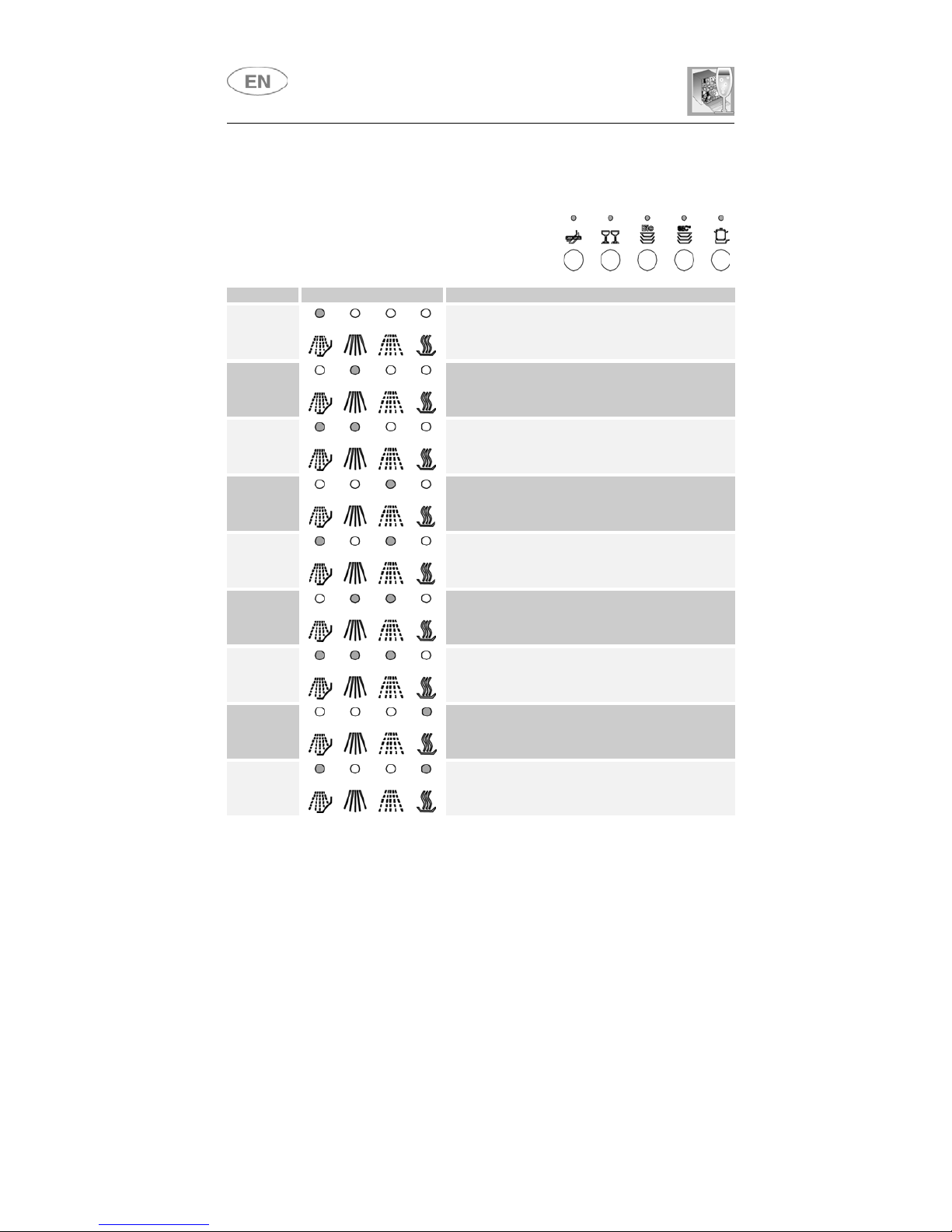

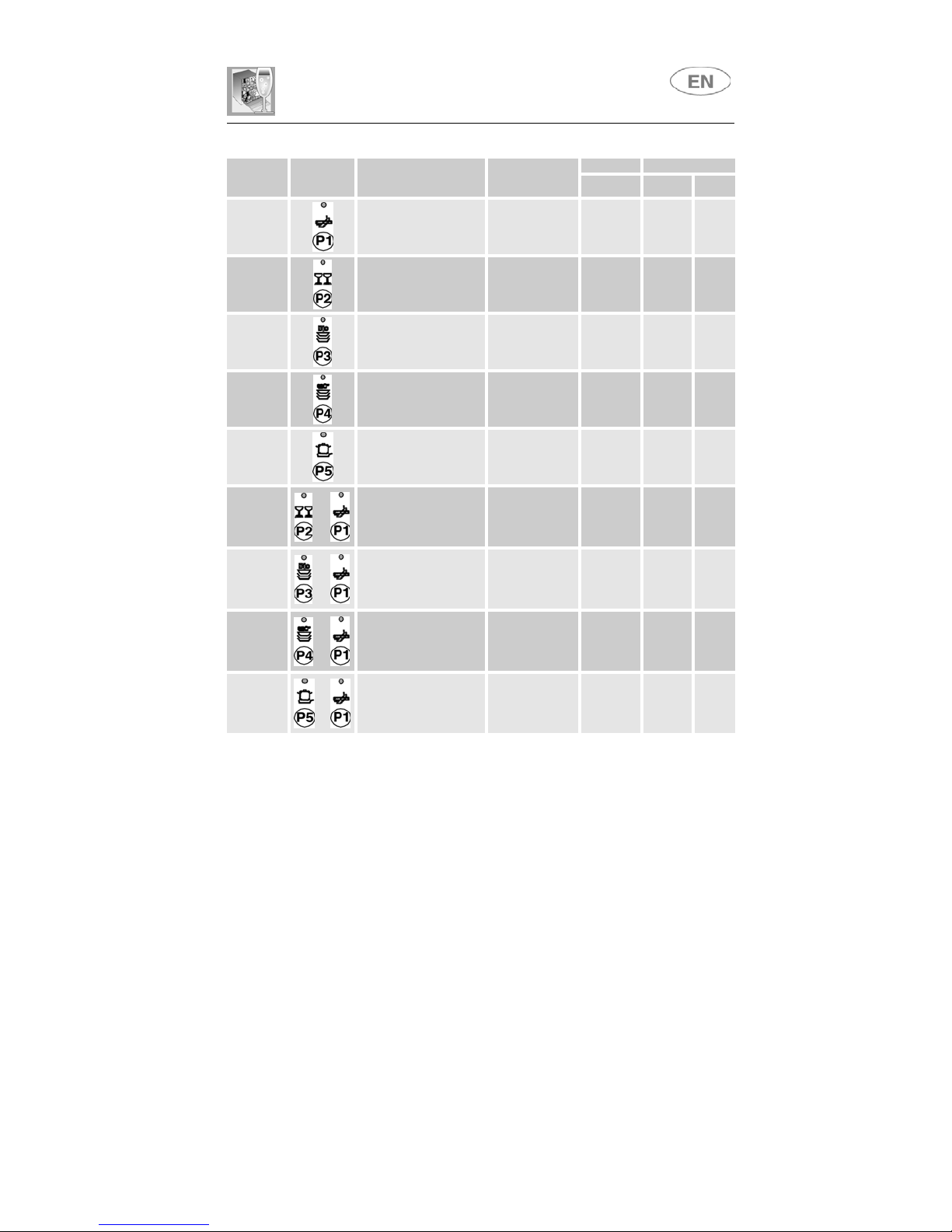

For AAA 14place-settings models only (see energy label)
DURATION CONSUMPTION
PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS
PROGRAM MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK
PANS AND DISHES
IN WAITING OF
COMPLETING
THE LOAD
Cold prewash 15 60,03
QUICK
DISHES NOT MUCH DIRTY
AND WITH "FRESH DIRT"
WITHOUT RESIDUAL DRY
Wash at 38°C
Cold rinse
Rinse at 58°C
45 13 0,85
ECO
PANS AND DISHES
NOT VERY DIRTY BUT
WITH DRY RESIDUALS
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
100 14 1,25
DAILY
PANS AND DISHES
WITH NORMAL DIRT,
WITHOUT DRY RESIDUAL
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
85 13 1,35
STRONG PANS AND DISHES
VERY DIRTY
Wash at 70°C
Cold rinse
Rinse at 68°C
Dry
95 17 1,50
DELICATE +DISHES
NOT VERY DIRTY
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
75 17 1,15
BIO
(*) +PANS AND DISHES DIRTY AND WITH DRY RESIDUALS
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
180 171,08
NORMAL +PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
90 17 1,35
SUPER +
PANS AND DISHES
VERY DIRTY AND WITH
DRY RESIDUALS
Prewash at 45°C
Wash at 70°C
Cold rinse
Rinse at 68°C
Dry
110 20 1,70
Only run the soak program with half loads.
The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.
(*) Reference program as per EN 50242 standard.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.

User instructions

For AAB 14place-settings modelsonly(see energylabel)
DURATION CONSUMPTION
PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS
PROGRAM MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK
PANS AND DISHES
IN WAITING OF
COMPLETING
THE LOAD
Cold prewash 15 60,03
QUICK
DISHES NOT MUCH DIRTY
AND WITH "FRESH DIRT"
WITHOUT RESIDUAL DRY
Wash at 38°C
Cold rinse
Rinse at 58°C
45 13 0,85
ECO
PANS AND DISHES
NOT VERY DIRTY BUT
WITH DRY RESIDUALS
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
130 121,08
DAILY
PANS AND DISHES
WITH NORMAL DIRT,
WITHOUT DRY RESIDUAL
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
85 131,35
STRONG PANS AND DISHES
VERY DIRTY
Wash at 70°C
Cold rinse
Rinse at 68°C
Dry
95 17 1,50
DELICATE +DISHES
NOT VERY DIRTY
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
75 171,15
BIO
(*) +PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
16017 1,08
NORMAL +PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
90 17 1,35
SUPER +
PANS AND DISHES
VERY DIRTY AND WITH
DRY RESIDUALS
Prewash at 45°C
Wash at 70°C
Cold rinse
Rinse at 68°C
Dry
110 20 1,70
Only run the soak program with half loads.
The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.
(*) Reference program as per EN 50242 standard.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.

User instructions

For BAB 14place-settings models only (see energy label)
DURATION CONSUMPTION
PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS
PROGRAM MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK
PANS AND DISHES
IN WAITING OF
COMPLETING
THE LOAD
Cold prewash 12 70,02
QUICK
DISHES NOT MUCH DIRTY
AND WITH "FRESH DIRT"
WITHOUT RESIDUAL DRY
Wash at 38°C
Cold rinse
Rinse at 58°C
45 15 0,90
ECO
(*)
PANS AND DISHES
NOT VERY DIRTY BUT
WITH DRY RESIDUALS
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
150 15 1,28
DAILY
PANS AND DISHES
WITH NORMAL DIRT,
WITHOUT DRY RESIDUAL
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
90 141,45
STRONG PANS AND DISHES
VERY DIRTY
Wash at 70°C
2 cold rinses
Rinse at 68°C
Dry
9020 1,60
DELICATE +DISHES
NOT VERY DIRTY
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
80 20 1,20
BIO +PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
105 20 1,35
NORMAL +PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
95 20 1,40
SUPER +
PANS AND DISHES
VERY DIRTY AND WITH
DRY RESIDUALS
Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 68°C
Dry
115 24 1,80
Only run the soak program with half loads.
The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.
(*) Reference program as per EN 50242 standard.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.

User instructions

TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program (*) Program BIO (P3+P1) - models AAA-AAB
(*) Program ECO (P3) - models BAB
Load 14place-settings
Type of detergent B
Amount of detergent 35g
Rinse aid setting 5/6
1.2 Washing programs
The dishwasher is equipped with a control panel, described in chapter
"1. Description of the controls", from which it is possible to carry out all
the power switch-on, switch-off and programming operations.
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.
LIGHTING
When the ON/OFF button (1) is pressed, the dishwasher switches on
and the light (6) comes on. About 2 seconds later, the
PHASES/PROGRAM lights (10) will come on.

User instructions

PROGRAMMING
In this model of dishwasher, all programming procedures can only be
carried out with the door closed. As long as the door is open, the
PROGRAMS lights (7) and PHASES/PROGRAM lights (10) will remain
off.
SELECTION PROGRAM
The program selection is possible
through the relative buttons (2).
When the button relating to the program required is pressed, the relative
light will come on to confirm the operation.
START PROGRAM
To start the dishwasher, press the START/PAUSE button (5) for a few
seconds, until the light of the first phase of the selected program starts to
flash (confirmation beep).

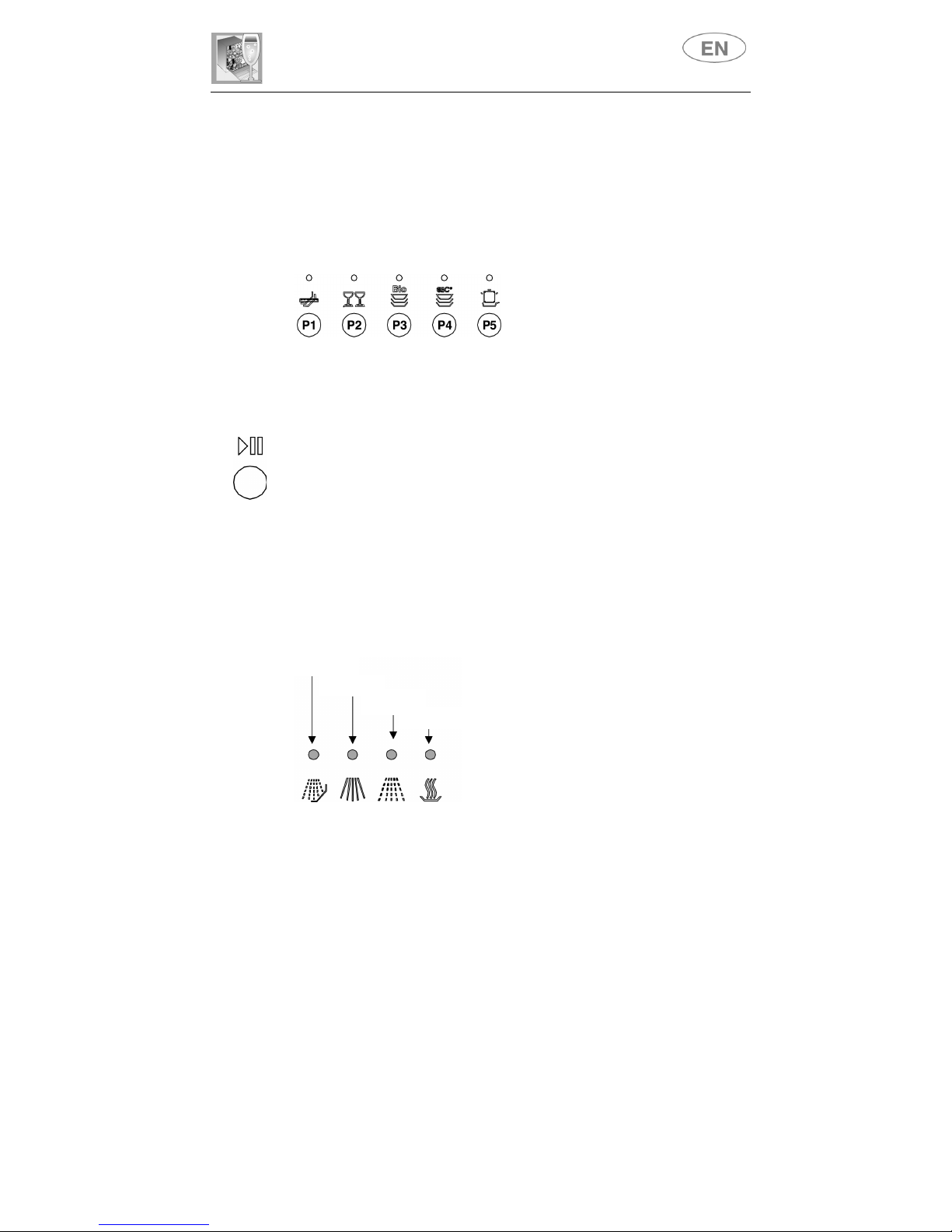

As the program runs, the PHASES/PROGRAM lights (10) will indicate
the current cycle status.
The light of the phase in progress will
flash, while the lights of the previous and
subsequent phases remain on.
N.B. during execution of programs which
do not include a prewash, the first
PHASES/PROGRAM light (10) will remain
off.
Pr
e
w
as
h
Wash
Rinse
Dr
y

User instructions

END PROGRAM
When the program finishes, a buzzer sounds
briefly and all the PHASES/PROGRAM lights
(10) flash.
Press any of the SELECTION PROGRAMS buttons (2), stops the light
flashins, and the dishwasher is now ready to perform a new cycle;
opening and shutting the door or switching the appliance off and on has
the same effect.
INTERRUPTION OF A PROGRAM
In order to interrupt a running program it is necessary:
•press the
START/PAUSE button (5), the light of the current phase
goes out;
•keep the button pressed until the PHASES/PROGRAM lights (10)
come on (confirmation buzzer).
TO CHANGE A PROGRAM
To change the running program it is necessary:
•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);
•select the new program;
•to press again the START/PAUSE button (5) to make start the new
program.

User instructions

ANNULLING A PROGRAM
To annul the program in progress, it must first be interrupted (see
“INTERRUPTION OF A PROGRAM”).

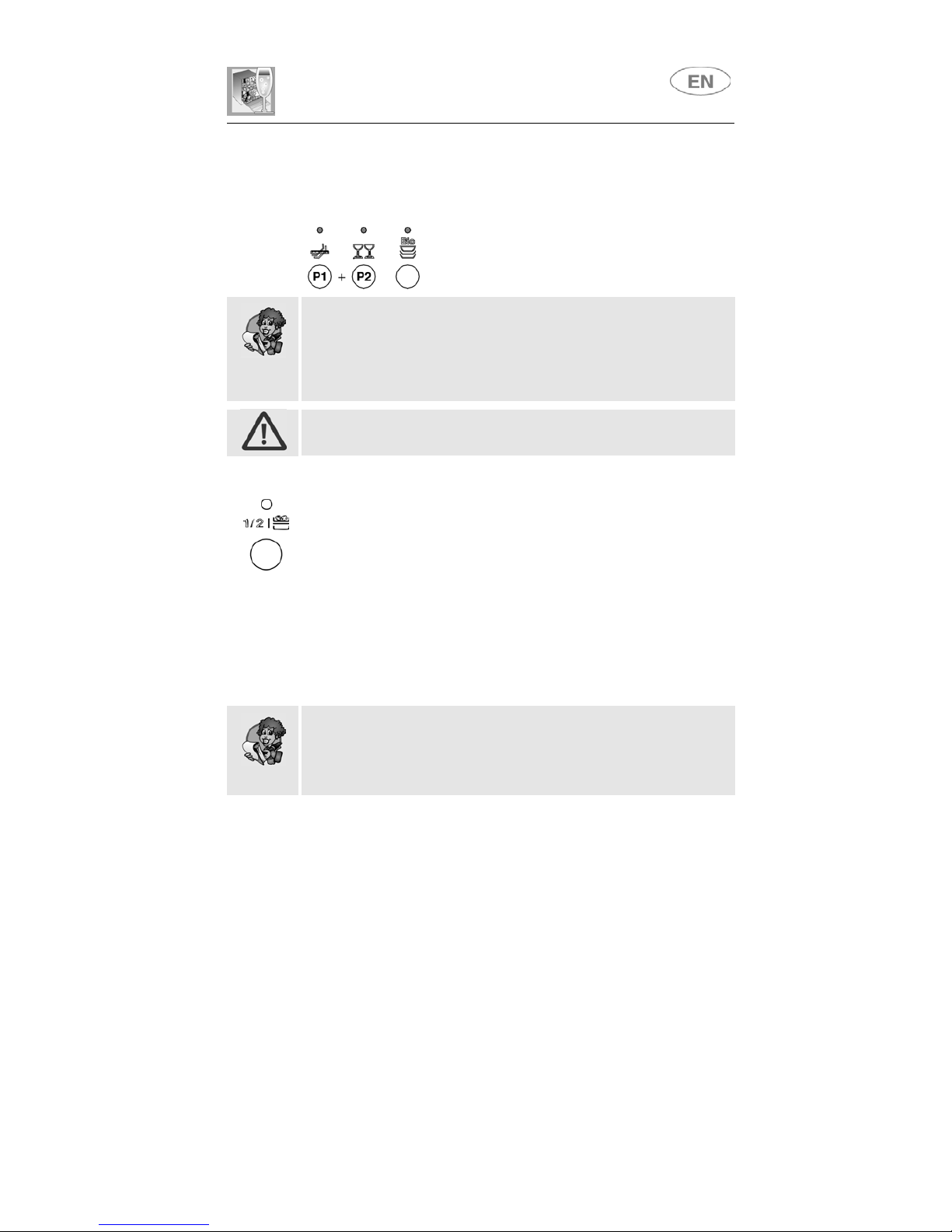

Now press buttons P1+P2 simultaneously and
the first three program lights will come on.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “START PROGRAM”. The program will resume from the point in
which it was interrupted.
In case that the tub temperature is higher than 50°C the program
will start about 30 seconds later.
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.
HALF LOAD WASH FUNCTION (on some models only)
Pressing button ½ LOAD WASH (4) selects washing on the top basket
only.
After selecting the program, proceed as follows:
•press the button ½ LOAD WASH (4) once to select the top basket
(the relative light comes on);
•press the button ½ LOAD WASH (4) again to return to full load
wash status (the light goes out).
The ½ LOAD wash option can be selected in all programs except the
soak program.
N.B.: selecting the ½ LOAD option changes the duration of the program.
It is possible to place a cutlery basket inside the basket selected for the
HALF-LOAD program; the other basket must remain empty.
WARNING: do not load dishes and cutlery into the non-selected
basket, because the water spray will only reach the selected basket.
