Smeg ST5324L User manual

G
GU UI ID DE E F FO OR R U US SI IN NG G T TH HE E D DI IS SH HW WA AS SH HE ER R A AN ND D T TH HE E W WA AS SH HI IN NG G P PR RO OG GR RA AM MS S
INSTRUCTION MANUAL

Safety instructions
1
1. Safety and operating instructions __________________________2
2. Installation and hook-up _________________________________6
3. Description of the controls ______________________________10
4. Operating instructions__________________________________23
5. Cleaning and maintenance______________________________37
6. Troubleshooting ______________________________________41
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms,containers,filters, washingprograms, andfor operating thecontrols.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

Safety instructions
2
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE AND SIMILAR APPLICATIONS SUCH AS THE
STAFF KITCHENS OF SHOPS, OFFICES AND OTHER WORKPLACES,
INSTITUTIONS, AND FOR THE USE OF GUESTS AT HOTELS, HOSTELS, BED
AND BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL FACILITIES
AND COMPLIES WITH DIRECTIVES 2006/95/EC AND 2004/108/EC
CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND ELIMINATION
OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND
MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.
THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE
REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP
THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.

Safety instructions
3
WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE.
THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT
WITH THE SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE
DISHWASHER WHEN THE DOOR IS OPEN. CHECK THAT THE DETERGENT
RECEPTACLE IS EMPTY AFTER COMPLETION OF THE WASH CYCLE.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL
HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE
ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE HANDED
OVER TO THE APPLICABLE COLLECTION POINT FOR THE RECYCLING OF
ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT!
IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

Safety instructions
4
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER
IT.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP
BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT THEY DO
NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER
LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A QUALIFIED
TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID
VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE HOSE AND DO
NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER. IN THE EVENT
OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE
FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY.
MODELS WITH INTERNAL LIGHTING
THE APPLIANCE’S LIGHTING SYSTEM BELONGS TO RISK GROUP 1 UNDER
THE IEC/EN 62471 STANDARD. THIS MEANS THAT THERE IS NO
PHOTOBIOLOGICAL RISK IN NORMAL CONDITIONS OF USE.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF THE
DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE
ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL
SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original spare
parts.

Installation instructions
5
TECHNICAL DATA
Width
597 599 mm
Depth measured flush with the
outer edge of the control panel 550 mm
Height
from 820 mm to 890 mm
Capacity
13 Standard place settings
Water supply pressure
min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
Electrical characteristics
See rating plate

Installation instructions
6
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other furniture
units. If the dishwasher is installed near a heat source, fit the special
insulating panel to prevent overheating and malfunction of the appliance.
To ensurestability, install integratedor built-under dishwashers onlyunder
continuous worktops, and screw them to the adjacent units. To facilitate
the installation procedure, the intake and drain hoses can be positioned in
any direction; make sure that the hoses are not kinked, crushed or pulled
too tightly. Make sure to tighten the locking ring-nut once the pipes have
been placed in the direction required. A hole at least 8 cm in diameter is
required to allow the power supply cable and pipes to pass. Before putting
the dishwasher into its definitive position, turn on the water tap and check
that there are no leaks from the tap connection, the dishwasher
connection or the hose.
Level the appliance on the floor using its adjustable feet. This operation is
essential for ensuring correct operation of the dishwasher.
Some models are equipped with only oneadjustable footattherear,which
can be adjusted by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden.
Moreover, dishwashersmaynot be installeddirectlytouching appliances
which are not conventional built-in kitchen appliances (e.g. fireplaces,
stoves, etc.).
When installing the dishwasher in a compartment next to one or more other
appliances, it is essential to comply with all the recommendations provided
by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
For free-standing models only:
- Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
- If the appliance is not built-in and is therefore accessible on one side, the
door hinge area must be covered for safety
reasons(injury hazard). The covering fixtures are available as an accessory
from specialist dealers or the After-Sales
Service.
- To build in the dishwasher, the special kit must be purchased from authorised
dealers or the After-Sales Service.

Installation instructions
7
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system with
new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾” gas
thread, inserting the filter Asupplied with the dishwasher.
Take care to screw the hose firmly into place with your
hands and then complete by tightening about ¼ of a
turn with pliers.
In dishwashers equipped with the ACQUASTOP device,
the filters is already fitted inside the threaded ring.
Thedishwashercanalsobeconnectedtoahot watersupply
not exceeding
60°C. Supplying the appliance with hot water cuts down the washing time
by approximately 20 minutes, but slightly reduces its effectiveness. Make
the connection to the domestic hot water supply using the same procedure
described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between
30 and 100 cm
,
and should never be submerged in water. If a horizontal drain extension
hose is used (for a maximum of 3 m) the drain hose can be placed at a
maximum height of 85 cm from the ground.

Installation instructions
8
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
"45 CM" MODELS ONLY (9-10 PLACE SETTING)
AFTER CHANGING THE SUPPLY CORD, MAKE SURE THAT THE BRACKET
WHICH SECURES THE CORD IS FIXED SECURELY IN PLACE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
Some components are live even with the ON/OFF button in the OFF position.
Before maintenance work on the appliance, remove the plug or turn off the
power supply at the wall switch.
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
AN OMNIPOLAR CIRCUIT BREAKER IN OVERVOLTAGE PROTECTION CLASS
III MUST BE INSTALLED IN AN EASILY ACCESSIBLE POSITION ON THE
POWER SUPPLY LINE.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A QUALIFIED
TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN BELOW AND THE
REGULATIONS IN FORCE.
L= brown
N= blue
= yellow-green

Installation instructions
9

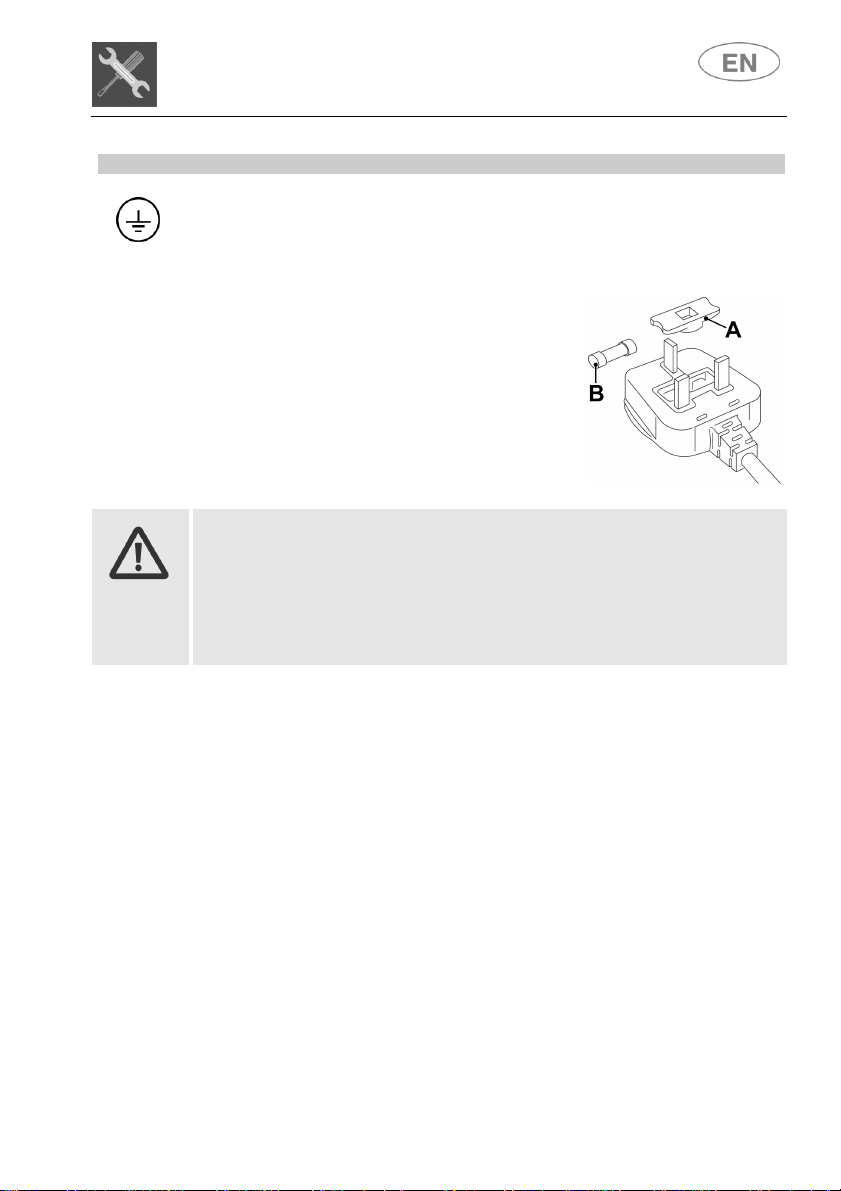

FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
Fuse replacement
If the mains lead of this appliance is fitted
with a BS 1363A 13amp fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and
proceed as follows:
1. Remove the fuse cover Aand fuse B.
2. Fit replacement 13A fuse into fuse
cover.
3. Refit both into plug.
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.

User instructions
10
3. Description of the controls

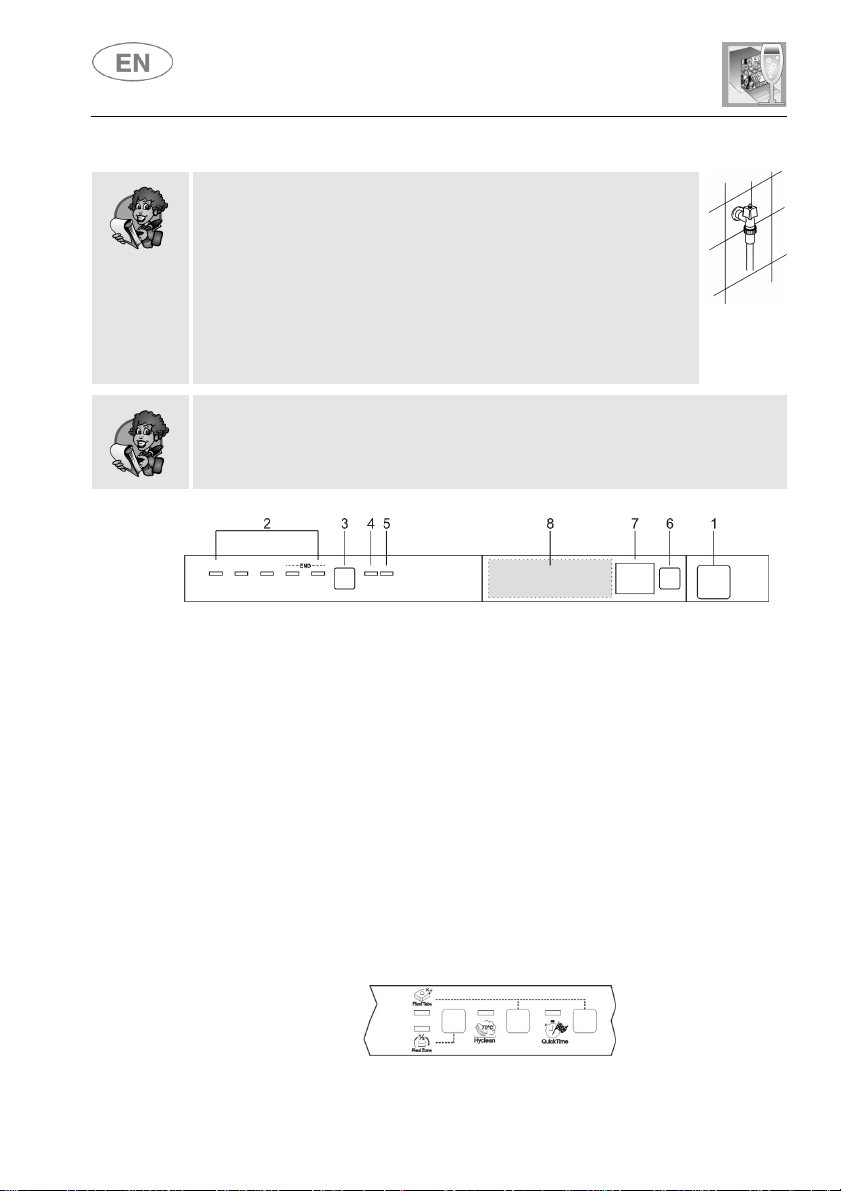

3.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off, etc. procedures are only possible when the door is
open.
The panel shown is only a guideline example: the form of the lights and
buttons may vary depending on the model.
1 ON/OFF BUTTON
Press this button to switch the dishwasher on/off.
2 SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3
PROGRAM SELECTION BUTTON
+ADJUSTING THEWATER SOFTENING SYSTEM
Used to select the washing program required and adjust the water
softening system.
4
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
SALT WARNING LIGHT
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
5 RINSE AID WARNING LIGHT
Illumination of this light denotes a rinse aid warning level in the tank.
6 PROGRAM DELAY BUTTON
Press this button to delay the start of the program.
7 INFORMATION DISPLAY (1 or 3 digits depending on model)
8 OPTIONS (on some models only)

User instructions
11
Information displayed
no Scheduled program
duration yes
no Remaining program
time yes
1 - 9 hours Delayed start 1 - 24 hours
E
Error message
Err
<<OPTIONS (8)>>
Depending on the model, this zone may contain one or more of the
following options, identified by the relative symbols and described in more
detail in the relevant sections of the manual.
It is not possible to select any options when the soak program is being
used. All options except "Flexi Tabs" are disabled at theend ofthe wash
cycle. To disable the “Flexi Tabs” option, press the relative button (the
light goes out).
Flexi Tabs
Option recommended for the use of multi-function tablet
detergent.
HYCLEAN
Adds a final antibacterial rinse to the selected program.
Spread HALF LOAD WASH
Allows washing of just a few dishes placed in both baskets.
PROGRAM DELAY
Allows the program to beset to start with a delay of 9, 12 or 24
hours depending on the model.
QUICK TIME OPTION
Select this option together with any washing program (except
the soak program) to SHORTEN the cycle.
ENERSAVE
Indicated option for save energy.

User instructions
12
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
select the option required (if any and if the model provides options);
close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).
PROGRAM IN PROGRESS INDICATOR LIGHT
(on some models only)
When a program is running, a flashing light is projected onto the floor
under the right-hand corner of the door. At the end of the program, the
light goes out to reduce sleep mode electricity consumption.
PROGRAMS TABLE
The manual contains the programs table for several models. To find the
table for your dishwasher, compare the program symbols at the top of the
table with those on your control panel.

User instructions
13

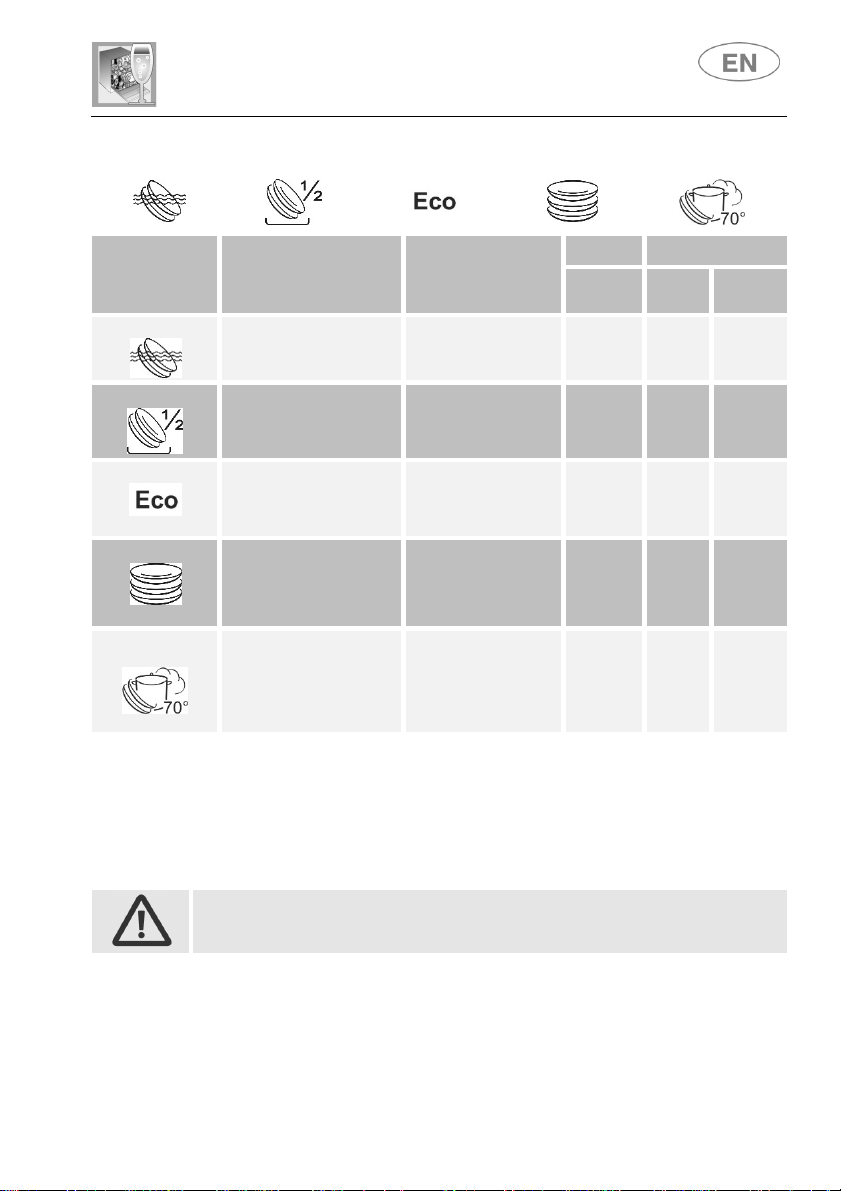

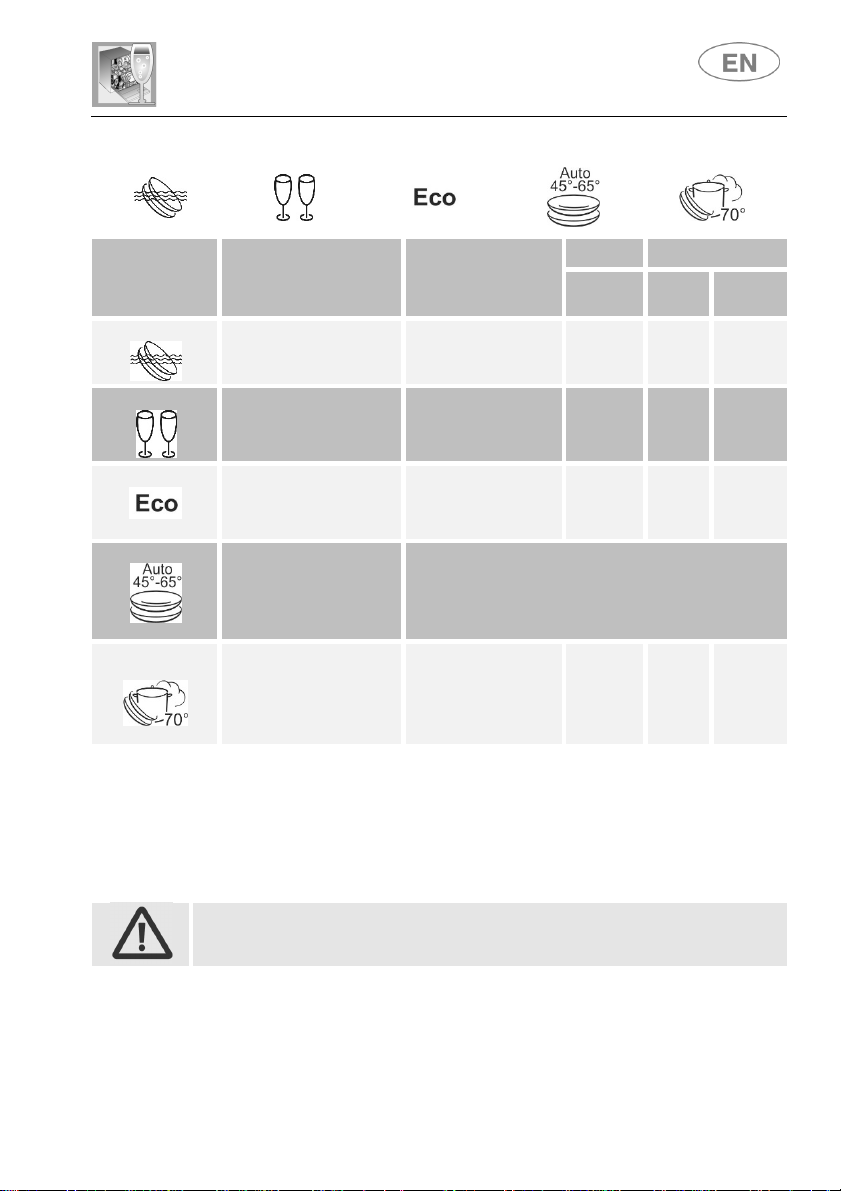

PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES POWER
KWh (1)
1SOAK
Pans and dishes awaiting
completion of the load Cold prewash 15 3,5 0,02
2 HALF LOAD
Half load of dishes with
normal dirt, washed
immediately after use.
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
90
11 1,20
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Wash at 45°C
Cold rinse
Rinse at 55°C
Dry
**
** **
4 NORMAL
IEC/DIN***
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
105
13,5 1,35
5 ULTRA
CLEAN
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
155
15,5 1,70
The
ULTRA CLEAN
program terminate with an extra anti-bacteria rinse that ensures
a further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights flash to warn that the anti-bacteria effect is not guaranteed.
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
14
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
kWh (1)
6RAPID 27’
+
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27
6,5 0,70
7 GLASS
+
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65
9,5 1,10
8
ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80
12,5 1,25
9
NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
85
13 1,40
10
STRONG
and FAST
+
Mixed dishes with normal
dirt without dried-on
residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
50
10 1,20
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
15
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES POWER
KWh (1)
1SOAK
Pans and dishes awaiting
completion of the load Cold prewash 15 3,5 0,02
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Wash at 45°C
Cold rinse
Rinse at 55°C
Dry
**
** **
4
AUTO 45-65
IEC/DIN***
Pans and dishes with
normal dirt, even with
dried-on residues.
When the "AUTO" program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the
washing parameters as appropriate.
5 ULTRA
CLEAN
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
155
15,5 1,70
The
ULTRA CLEAN
program terminate with an extra anti-bacteria rinse that ensures
a further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights flash to warn that the anti-bacteria effect is not guaranteed.
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
16
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
KWh (1)
6 RAPID 27’
+
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27
6,5 0,70
7
DELICATE
QUICK
+
Delicate dishes with normal
dirt.
Cold prewash
Wash at 50°C
Cold rinse
Rinse at 70°C
80
10,5 1,15
8
ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80
12,5 1,25
9
NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
85
13 1,40
10
STRONG
and FAST
+
Mixed dishes with normal
dirt without dried-on
residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
50
10 1,20
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
17
NOTES AND REFERENCES
Only
run the soak program with half loads.
Options cannot be used with the soak program.
The ENERSAVE option cannot be used with soak, ultra clean, or any programs
which do not include the final drying stage.
* Standard programme under
EN 50242
. The
ENERSAVE
option must
be
enabled.
** See information sheet provided
***
IEC/DIN
reference programme. The
ENERSAVE
option must
be enabled
.
**** Reference program for laboratories: Detergent:
20g
in the
dispenser
+
10g
in
the door or tablet. Configuration: see photo in “Using the baskets”.
(1) Programconsumption and duration figures havebeen measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
room temperatures and the type and quantity of dishes loaded.
(2) 1 or 2 cold rinses depending on the model.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).

User instructions
18
3.2 Washing programs
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
OPTION SELECTION
Options are selected by pressing the relative button by the symbol of the
option required; the light comes on to confirm that the option has been
activated.
It is not possible to select any options when the soak program
is being used.
All options except "Flexi Tabs" are disabled at the end of the
wash cycle. To disable the “Flexi Tabs” option, press the
relative button (the light goes out).
All options, including "Flexi Tabs" are disabled when a program
is CANCELLED after it has begun.
ADDITIONAL OPTIONS
Some models feature additional options, activated by pressing two
buttons simultaneously. In this case, two lines in the control panel
graphics link the symbol of the additional option to the two buttons to be
pressed simultaneously to enable it. (e.g. “Flexi Tabs” in this illustration)
