Smeg PL65337NIN User manual

Contents
1
1 General safety instructions _______________________________ 2
2. Installation ___________________________________________ 9
3. Product description ____________________________________ 15
4. Operating instructions __________________________________ 21
5. Cleaning and maintenance ______________________________ 22
6. Troubleshooting ______________________________________ 23
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
This manual contains only the basic information required to use the
appliance. The complete manual can be obtained from
www.smeg.com/download-manuals
by entering the product code shown on the plate attached to the inner
right hand edge of the dishwasher door.
The manual can be accessed quickly via the QR code using a device
with a QR reader application.

Warnings
2
TRANSLATION OF THE ORIGINAL
INSTRUCTIONS
1 General safety instructions
 This manual is an integral part of the appliance; it
must always be kept intact together with the
dishwasher for future reference (even if sold). Before
using the appliance, carefully read all the
instructions contained in this manual.
 This appliance is intended for indoor use in a
household environment and similar such as staff
kitchens of shops, offices and other workplaces,
institutions, and for the use by guests at hotels,
hostels, bed and breakfast and other residential
facilities. The appliance is designed and
manufactured to perform the following function:
washing and drying of dishes; any other use shall
be considered improper. The manufacturer
declines all responsibility for uses other than
those described above.
 Do not use appliances which have been damaged
during transit! If in doubt, contact your dealer.
 The appliance must be installed and connected in
accordance with the instructions provided by the
manufacturer. Installation must be performed by
qualified technicians in accordance with
applicable regulations.

Warnings
3
 Never leave waste packaging unattended. Do not
allow children to play with packaging materials.
Separate waste packaging materials by type and
consign them to the nearest recycling centre.
 The plate with the technical data, serial number and
marking is in a visible position on the inside edge of
the door. It must not be removed.
 The appliance must be earthed in compliance with
electrical safety regulations. The manufacturer
declines all responsibility for damage to persons
or property resulting from failure to earth the
appliance or from a defective earth connection.
 During the installation the appliance must be
disconnected from the network.
 Do not install the appliance in a place subject to
freezing.
 Do not install the appliance near equipment with
high irradiation temperature (e.g. gas burners,
fireplaces, etc.).
 If the appliance is installed in a compartment above
or below another equipment (e.g. gas burners,
ovens, etc.), read carefully the instructions provided
by the manufacturer of the equipment. If the
instructions of the equipment do not contain
information, contact the manufacturer of the
equipment to ensure that the appliance can be
installed above or below it.

Warnings
4
 Building-in the appliance underneath a hob is
absolutely forbidden. Installing a hob on top of free-
standing appliance is absolutely forbidden.
 To ensure stability, install the appliance only under
continuous worktop, securely fixed to adjacent
cabinets. If the appliance is installed in a high
cabinet, both the appliance and the cabinet must be
adequately fixed.
 If the appliance is not built-in and is therefore
accessible on one side, the door hinge area must be
covered for safety reason (injury hazard). The
covering fixtures are available as an accessory from
specialist dealers or the after-sales.
 Check that the voltage and the frequency of the
mains match the ratings on the name plate of the
appliance.
 The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet the
regulations in force. Do not use adaptors or shunt
connections in order to avoid the possibility of
overheating or burning.
 The plug of the appliance must be accessible after
installation. Never disconnect the plug by pulling on
the power supply lead.
 If the appliance is provided with a plugless supply
cord, an omnipolar circuit breaker providing a full
disconnection in overvoltage protection class III
must be installed in an easily accessible position on
the supply lineile.

Warnings
5
 The appliance must be connected to the water
supply by means of new hoses.
 Briefly test the appliance after installation. Run a
wash cycle with a temperature of between 45 and
70°C with the dishwasher empty and using a specific
dishwasher detergent. (It is not sufficient to run a
soak cycle). If the dishwasher fails to operate
correctly, disconnect it from the electrical power
supply and call the nearest technical service centre.
Never attempt to repair the appliance yourself.
 The dishwasher should only be used by adults. Use
by children aged from eight years and persons with
reduced physical, sensor or mental capabilities or
lack of experience and knowledge is only permitted
under the supervision of a person responsible for
their safety.
 I Do not allow children to play with the appliance.
 Keep children away from the dishwasher when the
door is open. Always check that the detergent
distributor is empty after completion of the wash
cycle.
 Cleaning and regular maintenance of the appliance
by children is only permitted under the supervision
of a person responsible for their safety.
 Some detergents are strongly alkaline. Avoid
contact with the skin and eyes. Detergents can be
extremely dangerous if swallowed. They contain
substances capable of causing permanent damage
to the mouth and throat, and even leading to

Warnings
6
suffocation. Observe all the safety instructions on
the packaging of these products.
 Do not drink the water residues which may be
present on the dishes or appliance at the end of the
washing program.
 Never place solvents such as alcohol or turpentine,
which are potentially explosive, inside the appliance.
Never load dishes soiled with ash, wax or paint.
 Never leave the dishwasher door open; people
might trip over it. Leaning or sitting on the
dishwasher door when open may cause the
appliance to overturn and/or damage it.
 Switch off the dishwasher after use to avoid wasting
electricity.
 Knives and other kitchen equipment with sharp
edges must be placed in the basket with their tips
downwards, or horizontally in the top basket; take
care not to injure yourself on any sharp edges
protruding from the baskets.
 The appliance satisfies all applicable safety
regulations governing electrical equipment. Any
technical checks should be conducted exclusively by
trained and authorised technicians: repairs
performed by unauthorised persons not only
void the warranty but may also put the user’s
safety at risk.
 In the event of a fault, disconnect the dishwasher
from the electrical power supply and shut off the
water tap. In the event of damage to the supply cord,

Warnings
7
have it replaced by the manufacturer or an
authorised technical service centre.
 Some components are live even with the on/off
button in the off position. Before performing any
maintenance work on the appliance, disconnect it
from the electrical power supply.
 Do not clean the machine with a water jet machine,
high-pressure or steam cleaners.
 Models with “acquastop” device
This device prevents flooding in case of water leak.
When the “acquastop” device is tripped, contact a
qualified technician to identify and repair the fault.
In these models the water intake hose contains a
solenoid valve. Do not cut the hose and do not
allow the solenoid valve to drop into water. In
case of damage to the water intake hose,
disconnect the appliance from the electrical and
water supply.
Warning: The device only works if the
dishwasher is connected to the mains.

Warnings
8
1.1 Declaration of conformity
The appliance complies with the essential requirements
of the following European directives:
- 2009/125/EC
- 2011/65/EU
- 2014/35/EU
- IEC/EN 62471, risk group 1, for models with
internal lighting.
 IEC/EN 61770
1.2 Disposal
This appliance must be disposed of separately
from other waste (directives 2012/19/EC).
The appliance does not contain substances in quantities
sufficient to be considered hazardous to health and the
environment, in accordance with current European
directives:
To dispose of the appliance:
 Cut the power cable,
 make the lock unusable.
The manufacturer declines any liability for damage
or injury caused by failure to comply with the
instructions indicated above or as a result of
tampering with even just one part of th
e appliance
and the use of non-original spare parts.

Warnings
9
2. Installation
2.1 Technical characteristics
Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5
– max. 9 bar)
Water supply temperature
max. 60°C
Capacity
12
-
13 standard
place settings
Class of protection against
moisture
IPX0
Protection against electric
shock
class I
Electrical data
see the data plate
Appliance dimensions (mm)

Warnings
10
2.2 General Information

This appliance may be placed up against
walls or
other furniture units.

If the appliance is installed near a heat source, fit a
special insulating panel to prevent overheating and
malfunction of the appliance.

To facilitate the installation procedure, the intake and
drain hoses can be positioned
in any direction; make
sure that the hoses are not kinked, crushed or pulled
too tightly.

A hole at least 8 cm in diameter is required to allow
the power supply cable and hoses to pass.

At the end of the installation, perform a short test of
the appliance
: open the water tap and check that
there are no leaks.

To install the dishwasher against the back wall, the
hoses should be passed through the lower area
where there is a dedicated space for them.
Level the appliance on the floor using the
appropriate Allen key to regulate the adjustable
feet. This operation is essential for ensuring
correct operation of the dishwasher.
Some models are equipped with only one
adjustable foot at the rear, which can be adjusted
by turning the screw on
the lower front part of the
appliance.

Warnings
11
Building-in a dishwasher underneath a hob is
absolutely forbidden.
Moreover, dishwashers may not be installed
directly touching appliances which are not
conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the dishwasher in a compartment
next to one or more other appliances, it is essential
to comply with all the recommendations provided
by the appliance’s manufacturer (minimum
dis
tances, installation procedures, etc.).

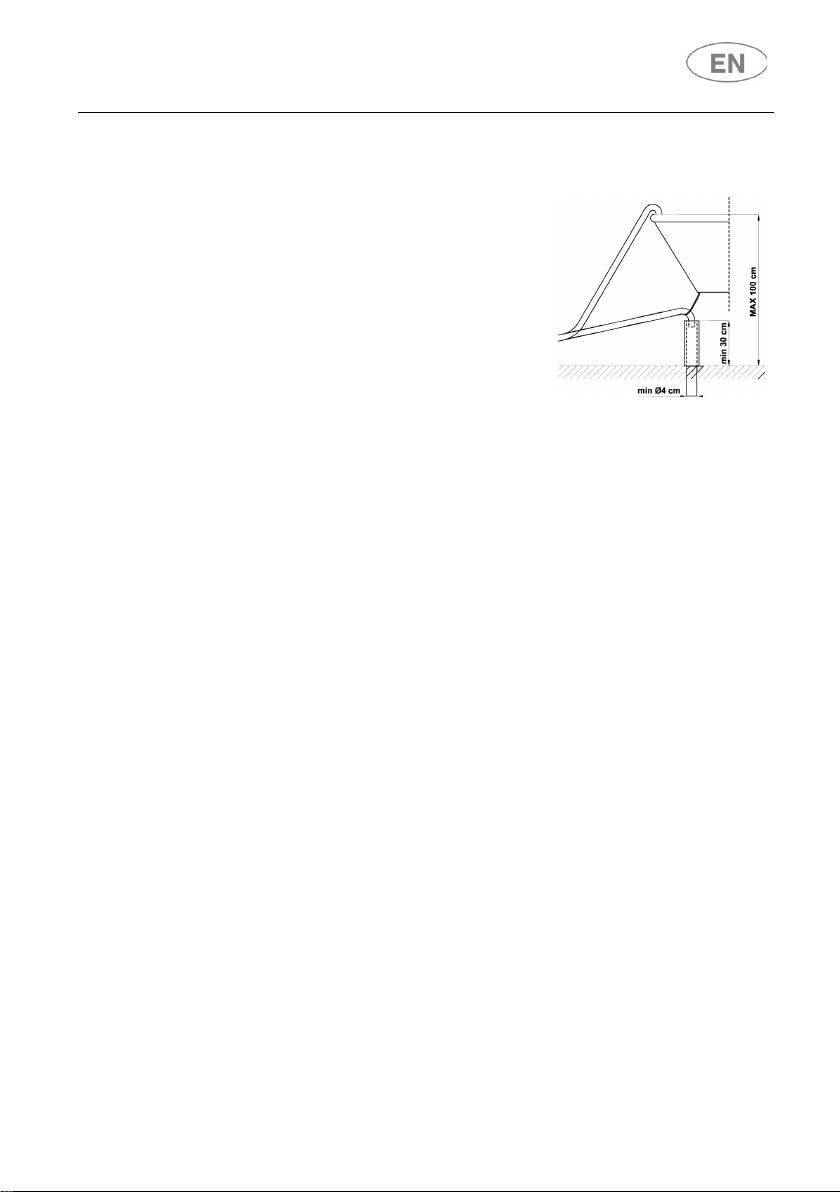

7
For free-standing models only
- Installing a hob on top of a free-
standing
dishwasher is absolutely forbidden.
-
If the appliance is accessible from one side, the
door hinge area has to be covered for
safety
reasons (risk of injury). The covers are available
as an accessory and can be ordered through the
Technical Assistance Service.
-
The top surface of the dishwashers can be
removed to allow installation under a worktop.
The appropriate kit should be
purchased from
authorised dealers or via the Technical Assistance
Service.
This must be carried out by authorised personnel.

Warnings
12
2.3 Water supply connection
CONNECTING TO THE WATER SUPPLY

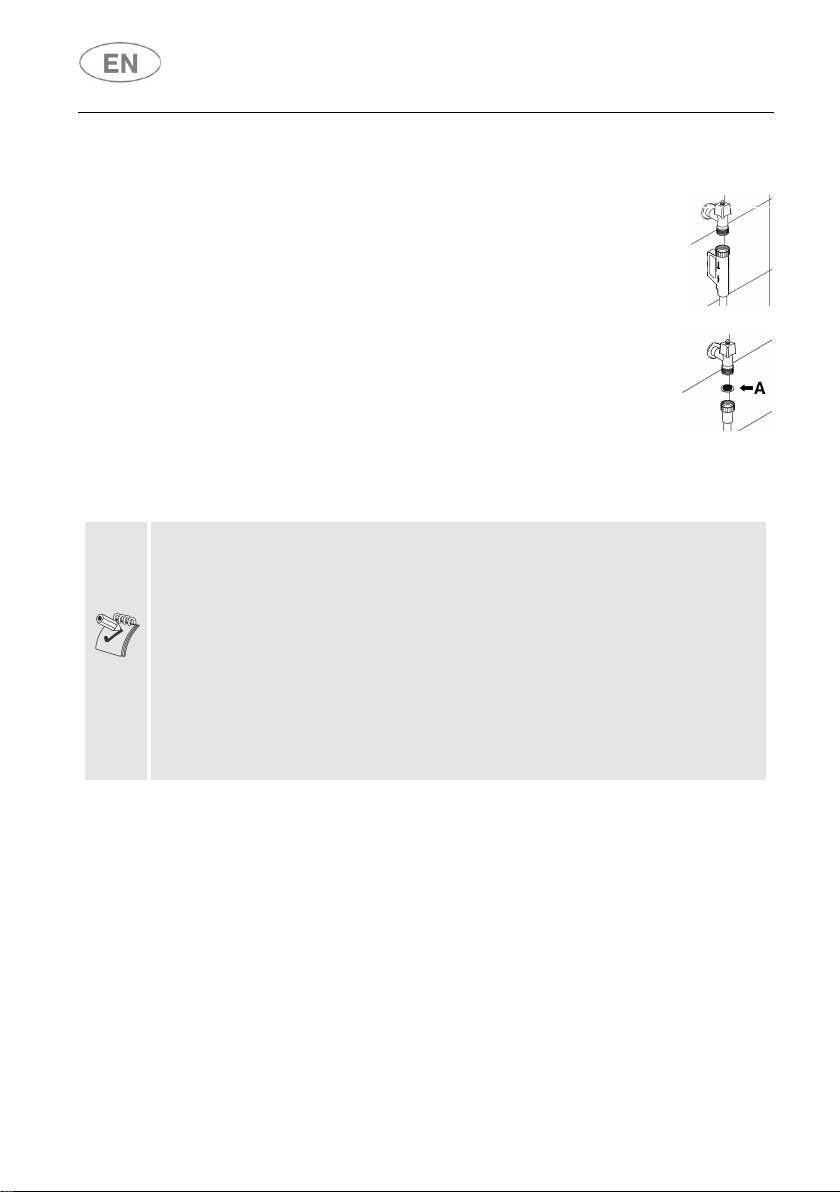

Connect the intake hose to a cold water supply
with ¾” gas thread, inserting the filter A
supplied with the dishwasher.
Take care to
screw the hose firmly into place with your
hands and then complete by tightening
about ¼ of a turn with pliers.
In dishwash
ers equipped with the
AQUASTOP device, the filters is already
fitted inside the threaded ring.
The dishwasher can also be connected to a hot
water supply not exceeding 60°C
. Supplying the
appliance with hot water cuts down the washing
time be
approximately 20 minutes, but slightly
reduces its effectiveness. Make the connection to
the domestic hot water supply using the same
procedure described for connecting to the cold
water supply.
Supplementary note regarding the water
connection, for the German market:
Before connecting the product to the water supply,
make sure that that the water system has been fitted
with a safety device to protect drinking water against
contamination due to backflow (according to DIN EN
1717). The water valves and/or taps are fitted with these
safety devices if the water system of the house has
been properly implemented.

Warnings
13
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm
, or alternatively,
plac
e it inside the kitchen sink using
the plastic support provided, taking
care not to crush or excessively
bend the hose. It is important to
prevent the hose from coming loose
and falling. For this purpose, the
plastic support is equipped with a
hole for tyi
ng it to the wall or water
tap.
The free end should be positioned at
a height of between 30 and 100 cm,
and should never be submerged in
water.
If a horizontal drain extension hose is used (for a
maximum 3 m), the drain hose can be placed at a
maximum height of.
85 cm
from the ground.

Installation
14
2.4 Electrical connection
Check that the voltage and the frequency of
the mains match the ratings on the name plate
of the appliance positioned on the inner edge
of the door.

The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet the
regulations in force.
 The plug must be accessible after installation.

Never disconnect the plug by pulling on the
power supply lead.

After
changing the supply cord, make sure that the
bracket which secures the cord is fixed securely in
place.

Do not use adaptors or shunt connections
in
order to avoid the possibility of overheating or
burning.
The power cable must be replaced by the
manufacturer or by an Authorized Service
Centre.

User instructions
15
3. Product description
3.1 Control panel

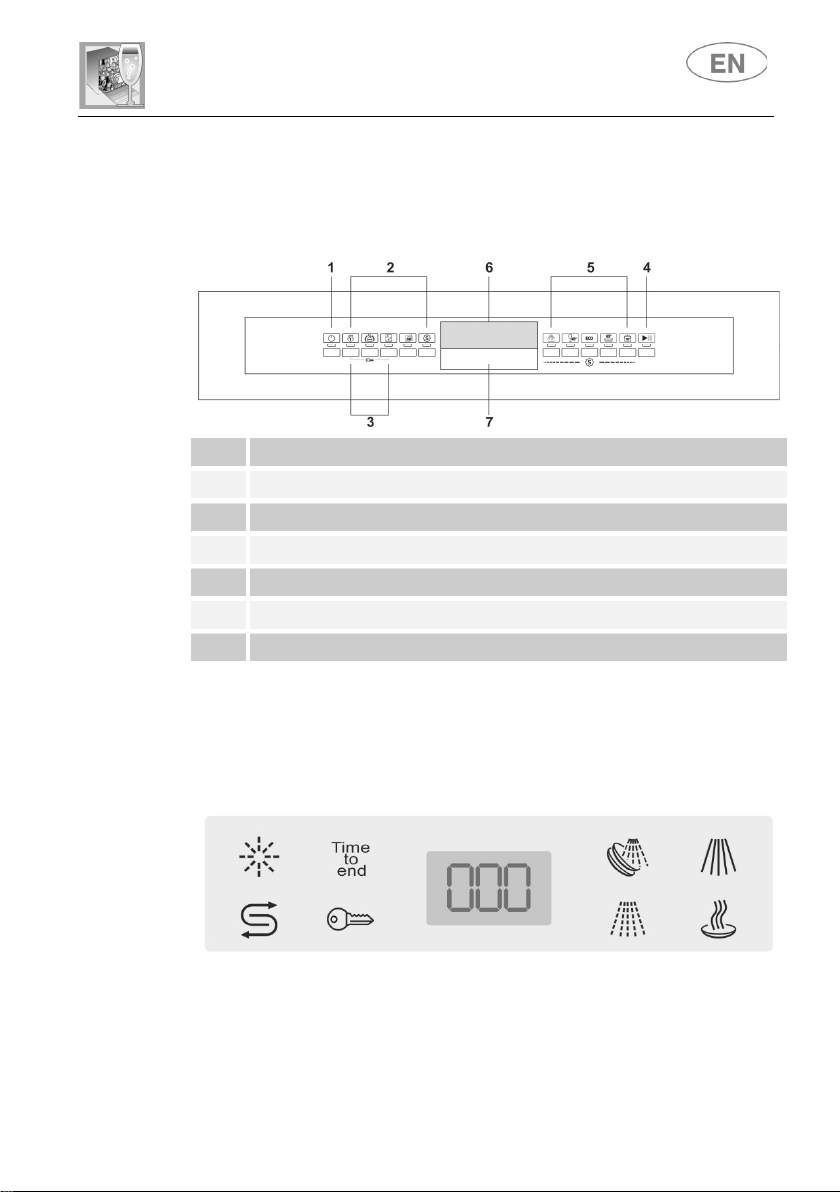

All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 “CHILD LOCK” ACTIVATION BUTTONS
4 START/PAUSE BUTTON
5 PROGRAM SELECTION BUTTONS
6 INFORMATION DISPLAY
7 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
The dishwasher is equipped with a practical DISPLAY which provides
information on the programmed dishwasher functions.

User instructions
16
Rinse aid lack warning indicator
Salt lack warning indicator
End of cycle signal
“Child lock” option warning light
000
Delayed start indicator, wash cycle duration and alarms
Program phases warning lights.
LIGHTING
Pressing the ON/OFF button will start the dishwasher and will lit up the
dishwasher pilot light. After approximately 3 second from this operation
the DISPLAY will be turned on with a visualization that will depend upon
the state of the dishwasher.
PROGRAMMING
All the programming operations are possible only with closed door. With
open door, on the
DISPLAY
will appear
-
-
:
-
-
.
SELECTION PROGRAM
The program selection is possible through the relative buttons.
By pressing the relative button of the desired program (see table) it will
light up the relative pilot light to confirm that the operation occurred and
on the
DISPLAY
a program duration forecast will appear (“
h.mm
”).
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/PAUSE for some seconds until the symbol START/PAUSE
start to flash and confirmation “beep” is heard. From this moment the cycle
duration on the
DISPLAY
starts to decrease.
Program progress is indicated by the program phases that show the status
of the current cycle.
The current phase flashes, while the next washing phases lights stay on.
At the end of each phase, the signal will turn off.
N.B.: when a program which does not need the prewash phase is
selected, the prewash signal stays off.
Prewash Wash
Rinse Drying

User instructions
17
Warning:
during the initial phase of the wash program the spray arms cannot be
heard in operation because they start turning about 5 minutes after the
start. This is the normal wash cycle sequence.
END PROGRAM
At the end of the program the DISPLAY shows “end”. By pressing one of
the program buttons the dishwasher is ready to start a new cycle.
INTERRUPTING A PROGRAM
In order to interrupt a running program it is necessary:
 to press the START/PAUSE for some seconds until when the
led START/PAUSE remains lit on (confirmation beep). At this point,
it is possible to start the cycle again, otherwise:

TO CHANGE A PROGRAM
To change the running program it is necessary:
 to interrupt the running program (see “INTERRUPTING A PROGRAM”);
 select the new program;
 to press again the START/PAUSE button to make start the new
program.
STOPPING A PROGRAM
To cancel a program which is running:
 Interrupt the program (see "INTERRUPTING A PROGRAM")
 Press the START/PAUSE button and hold it down; the
display will show "P0" and the dishwasher will immediately
switch to the end of the cycle and drain the tank (during this
process, the "START/PAUSE led will flash). When the drain
procedure ends, the end of cycle "End" message appears on
the display.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “STARTING THE PROGRAM”. The program will resume from the
point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.

User instructions
18

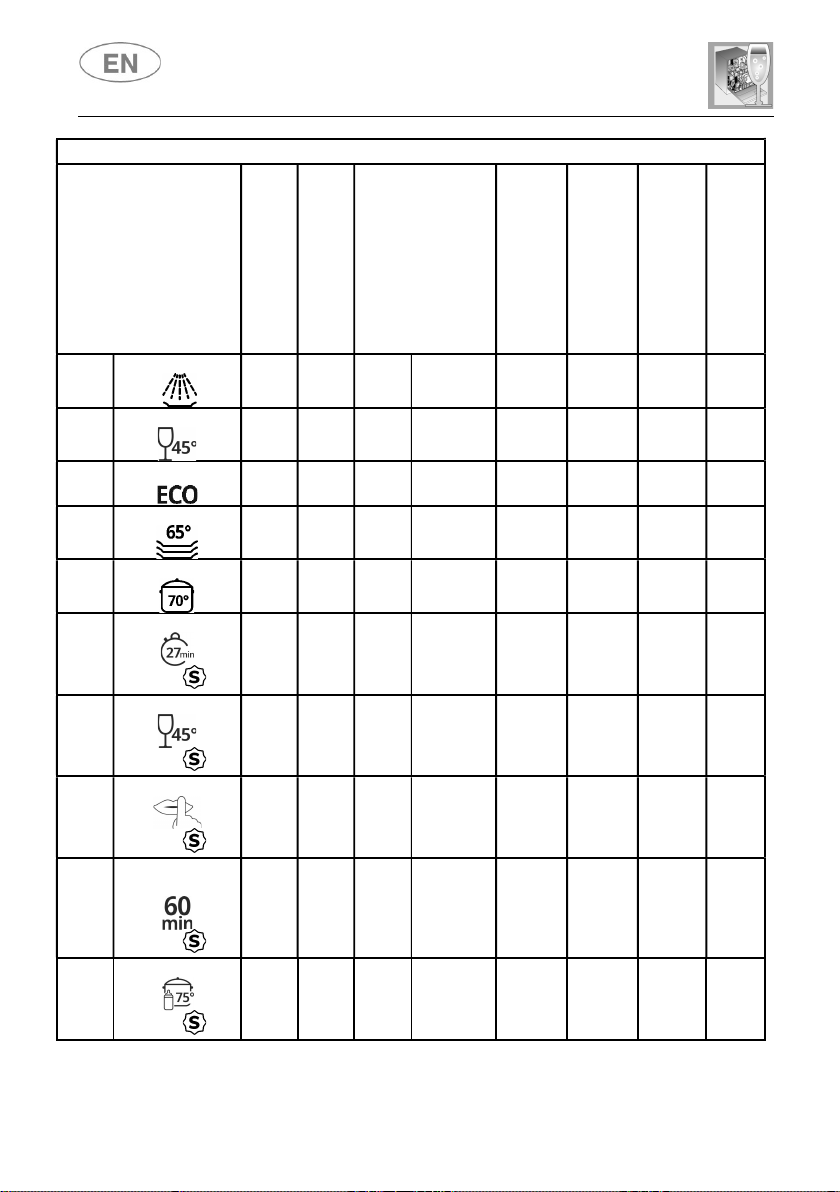

PROGRAMS TABLE
Program
Pre-wash
Wash
Rinse
Drying
(1) Duration (min)
Water consumption
(liters/cycle)
(1) Energy consumption
(KWh/cycle)
P1
SOAK
cold - - - - 15 3,5 0,02
P2
(**)
CRYSTAL 45°
- 45°C 2
cold
55°C(2)
/70°C ● 145 (2)/ 75 10,5 1,15
P3
(*)(**)
ECO
- 45°C cold 55°C(2)
/70°C ● 240 (2)/ 185 9 0,81
P4
(**)
MIX 65°
hot 65°C cold 55°C(2)
/70°C ● 170 (2)/ 110 13,5 1,35
P5
(**)
INTENSIVE 70°
hot 70°C 2
cold
55°C(2)
/70°C ● 205 (2)/ 155 15,5 1,60
P6
EXPRESS 27’
P1
+
- 38°C - 50°C - 27 6,5 0,70
P7
(**)
DELICATE 50°
P2
+
- 50°C 2
cold
55°C(2)
/70°C ● 150 (2)/ 80 10,5 1,15
P8
(**)
SILENT
P3
+
- 55°C cold 55°C(2)
/65°C ● 290 (2)/ 245 12,5 1,25
P9
(**)
FULL
EXPRESS 60’
P4
+
- 65°C cold 55°C(2)
/70°C ● 130 (2)/ 60 13 1,40
P10
(**)
STERILISE 75°
P5
+
hot 70°C 2
cold
55°C(2)
/75°C ● 180 (2)/ 130 13 1,20

User instructions
19
Automatic door opening – Dry Assist
Automatic door opening is included in programs indicated with ** in the first column
(*) Standard program according to EN 60436. The DRY ASSIST option (if present)
must be enabled. For consumption data, please see the information sheet provided.
(1) Consumption and program duration are measured according
to EN 60436. The values may vary due to various factors, such as the inlet water
temperature and the number of dishes.
(2) Program duration with the option dry assist selected (default) / not selected.
Notice for testing institutes
Testing institutes are provided with guidelines for comparative tests (e.g. according to
EN60436). request the guidelines by contacting us at the following
e-mail address: [e-mail]
When making a request, please specify the model (MOD) and the serial number (S/N)
indicated on the plate on the side of the door.
Description of the programs:
SOAK
Rinses dishes while waiting to be
washed.
EXPRESS 27’
Quick cycle for lightly soiled dishes,
washed immediately after use.
DELICATE
Mixed loads such as wine glasses and
lightly soiled dishes.
CRYSTAL 45°
Wine glasses and lightly soiled fine
china. Ideal when you require dazzlingly
clean glassware.
ECO
Cycle with the lowest water and energy
consumption, recommended for
normally soiled dishes, even with dried-
on residues.
SILENT
Normally soiled dishes, even with dried-
on residues. Ideal if you wish to run it
during the night.
MIX 65°
Normally soiled mixed loads such as
dishes and pans, even with dried-on
residues.
FULL EXPRESS 60’
Quick cycle for normally soiled mixed
loads such as dishes and pans, even
with dried-on residues. Dishes are
washed and dried in 60 minutes.
INTENSE 70°
Heavily soiled plates, pots and pans,
even with dried-on residues.
STERILISE 75°
Intensive wash cycle for plates, pots,
pans, cutting boards, feeding bottles.
Ideal for baby dishes or if there are
allergy sufferers in the family.

User instructions
20

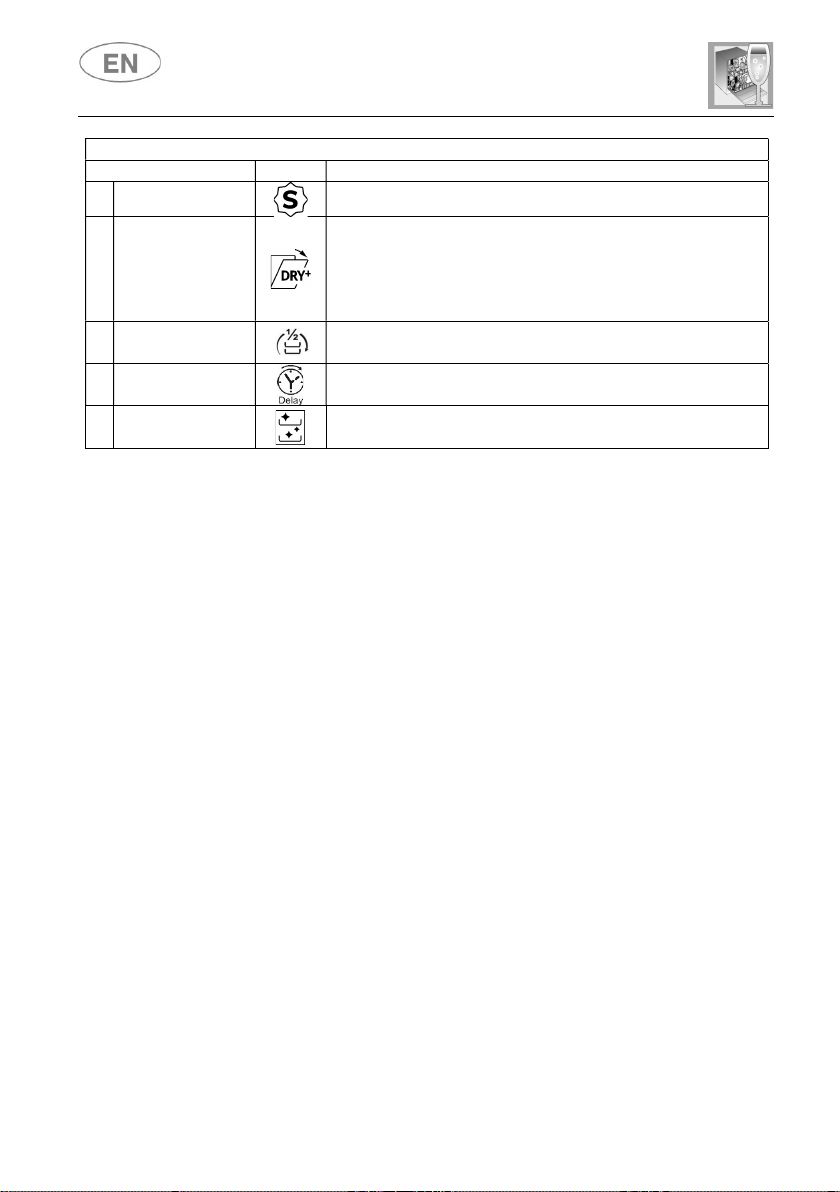

OPTIONS TABLE
Option
Description
1 SPECIAL Creates additional programs.
2 DRY ASSIST
Allows the dishes to be dried perfectly even at low
rinse temperatures, with significant energy savings. It
starts automatically if the selected program is
compatible with it. If it is not required, press the
button to disable it.
3 ½ LOAD
FLEXY ZONE
Ideal if just a few dishes need to be washed, allowing
energy savings and a shorter wash cycle.
4 DELAY
Allows the wash cycles 1 or 3 to be delayed by up to
9, 12 or 24 hours depending on the models.
5 SELF CLEAN
Dishwasher cleaning cycle. Must be started with the
machine empty, without dishes.
