Smeg STFABURD-1 User manual
CONTENTS
1
CONTENTS
1
EN
EN
CONTENTS
1
Contents
1 INTRODUCTION.....................................................................................................................3
2 DESCRIPTION OF THE CONTROLS..................................................................................5
2.1 Upper panel ................................................................................................................5
2.2 Setting the washing program and switching on and o............................6
2.2.1 Switching on...............................................................................................................9
2.2.2 Selecting and starting the program ................................................................ 10
2.2.3 End of program ....................................................................................................... 10
2.2.4 Interrupting a program ........................................................................................ 10
2.2.5 Changing the current program ......................................................................... 10
2.2.6 Canceling the current program ........................................................................ 11
2.2.7 Options ...................................................................................................................... 11
2.2.8 Switching o............................................................................................................ 12
2.2.9 Removing the dishes ............................................................................................ 12
3 ENERGY SAVING AND ENVIRONMENTAL RESPECT ............................................. 15
4 TROUBLESHOOTING ........................................................................................................ 16
5 OPERATING INSTRUCTIONS .......................................................................................... 18
5.1 Using the water softening system (on some models only) .................... 18
5.2.1 Adding the rinse-aid ............................................................................................. 21
5.2.2 Adjusting the rinse-aid dispenser setting ..................................................... 21
5.2.3 Adding the detergent ........................................................................................... 22
5.3 General warnings and recommendations .................................................... 24
5.4 Using the racks ........................................................................................................ 26
5.4.1 Lower rack ................................................................................................................. 27
5.4.2 Cutlery basket .......................................................................................................... 29
5.4.3 Upper rack ................................................................................................................ 30
6 CLEANING AND USER MAINTENANCE...................................................................... 33
6.1 General warnings and recommendations .................................................... 33
6.2 Cleaning the water intake filter ......................................................................... 34
6.3 Cleaning the spray arms ...................................................................................... 34
6.4 Cleaning the filter unit ......................................................................................... 36
6.5 General warnings and recommendations for correct maintenance ... 37
6.6 Troubleshooting minor problems .................................................................... 38
7 IMPORTANT SAFETY AND INSTRUCTIONS ............................................................. 40
8 INSTALLATION AND HOOK-UP ..................................................................................... 46
9 TECHNICAL DATA ............................................................................................................... 48
5.2 Using the rinse-aid and detergent dispenser .............................................. 20
2.3 Additional function ............................................................................................... 13
2.3.1 Adjusting the water softener ............................................................................. 13
CONTENTS
1
EN
EN
CONTENTS
1
Contents
1 INTRODUCTION.....................................................................................................................3
2 DESCRIPTION OF THE CONTROLS..................................................................................5
2.1 Upper panel ................................................................................................................5
2.2 Setting the washing program and switching on and o............................6
2.2.1 Switching on...............................................................................................................9
2.2.2 Selecting and starting the program ................................................................ 10
2.2.3 End of program ....................................................................................................... 10
2.2.4 Interrupting a program ........................................................................................ 10
2.2.5 Changing the current program ......................................................................... 10
2.2.6 Canceling the current program ........................................................................ 11
2.2.7 Options ...................................................................................................................... 11
2.2.8 Switching o............................................................................................................ 12
2.2.9 Removing the dishes ............................................................................................ 12
3 ENERGY SAVING AND ENVIRONMENTAL RESPECT ............................................. 15
4 TROUBLESHOOTING ........................................................................................................ 16
5 OPERATING INSTRUCTIONS .......................................................................................... 18
5.1 Using the water softening system (on some models only) .................... 18
5.2.1 Adding the rinse-aid ............................................................................................. 21
5.2.2 Adjusting the rinse-aid dispenser setting ..................................................... 21
5.2.3 Adding the detergent ........................................................................................... 22
5.3 General warnings and recommendations .................................................... 24
5.4 Using the racks ........................................................................................................ 26
5.4.1 Lower rack ................................................................................................................. 27
5.4.2 Cutlery basket .......................................................................................................... 29
5.4.3 Upper rack ................................................................................................................ 30
6 CLEANING AND USER MAINTENANCE...................................................................... 33
6.1 General warnings and recommendations .................................................... 33
6.2 Cleaning the water intake filter ......................................................................... 34
6.3 Cleaning the spray arms ...................................................................................... 34
6.4 Cleaning the filter unit ......................................................................................... 36
6.5 General warnings and recommendations for correct maintenance ... 37
6.6 Troubleshooting minor problems .................................................................... 38
7 IMPORTANT SAFETY AND INSTRUCTIONS ............................................................. 40
8 INSTALLATION AND HOOK-UP..................................................................................... 46
9 TECHNICAL DATA............................................................................................................... 48
5.2 Using the rinse-aid and detergent dispenser .............................................. 20
2.3 Additional function ............................................................................................... 13
2.3.1 Adjusting the water softener ............................................................................. 13
5.4.3 Flexi Duo Top Rack..................................................................................................29
2.3 Adjusting the water softening system.............................................................13
5.4.4 Upper Rack.................................................................................................................30
CONTENTS
1
EN
EN
CONTENTS
1
Contents
1 INTRODUCTION.....................................................................................................................3
2 DESCRIPTION OF THE CONTROLS..................................................................................5
2.1 Upper panel ................................................................................................................5
2.2 Setting the washing program and switching on and o............................6
2.2.1 Switching on...............................................................................................................9
2.2.2 Selecting and starting the program ................................................................ 10
2.2.3 End of program ....................................................................................................... 10
2.2.4 Interrupting a program ........................................................................................ 10
2.2.5 Changing the current program ......................................................................... 10
2.2.6 Canceling the current program ........................................................................ 11
2.2.7 Options ...................................................................................................................... 11
2.2.8 Switching o............................................................................................................ 12
2.2.9 Removing the dishes ............................................................................................ 12
3 ENERGY SAVING AND ENVIRONMENTAL RESPECT ............................................. 15
4 TROUBLESHOOTING ........................................................................................................ 16
5 OPERATING INSTRUCTIONS .......................................................................................... 18
5.1 Using the water softening system (on some models only) .................... 18
5.2.1 Adding the rinse-aid ............................................................................................. 21
5.2.2 Adjusting the rinse-aid dispenser setting ..................................................... 21
5.2.3 Adding the detergent ........................................................................................... 22
5.3 General warnings and recommendations .................................................... 24
5.4 Using the racks ........................................................................................................ 26
5.4.1 Lower rack ................................................................................................................. 27
5.4.2 Cutlery basket .......................................................................................................... 29
5.4.3 Upper rack ................................................................................................................ 30
6 CLEANING AND USER MAINTENANCE ...................................................................... 33
6.1 General warnings and recommendations .................................................... 33
6.2 Cleaning the water intake filter ......................................................................... 34
6.3 Cleaning the spray arms ...................................................................................... 34
6.4 Cleaning the filter unit ......................................................................................... 36
6.5 General warnings and recommendations for correct maintenance ... 37
6.6 Troubleshooting minor problems .................................................................... 38
7 IMPORTANT SAFETY AND INSTRUCTIONS ............................................................. 40
8 INSTALLATION AND HOOK-UP..................................................................................... 46
9 TECHNICAL DATA............................................................................................................... 48
5.2 Using the rinse-aid and detergent dispenser .............................................. 20
2.3 Additional function ............................................................................................... 13
2.3.1 Adjusting the water softener ............................................................................. 13
33
14
15
33
34
34
36
37
38
40
46
48
CONTENTS
1
EN
EN
CONTENTS
1
Contents
1 INTRODUCTION .....................................................................................................................3
2 DESCRIPTION OF THE CONTROLS..................................................................................5
2.1 Upper panel ................................................................................................................5
2.2 Setting the washing program and switching on and o ............................6
2.2.1 Switching on ...............................................................................................................9
2.2.2 Selecting and starting the program ................................................................ 10
2.2.3 End of program ....................................................................................................... 10
2.2.4 Interrupting a program ........................................................................................ 10
2.2.5 Changing the current program ......................................................................... 10
2.2.6 Canceling the current program ........................................................................ 11
2.2.7 Options ...................................................................................................................... 11
2.2.8 Switching o ............................................................................................................ 12
2.2.9 Removing the dishes ............................................................................................ 12
3 ENERGY SAVING AND ENVIRONMENTAL RESPECT ............................................. 15
4 TROUBLESHOOTING ........................................................................................................ 16
5 OPERATING INSTRUCTIONS .......................................................................................... 18
5.1 Using the water softening system (on some models only) .................... 18
5.2.1 Adding the rinse-aid ............................................................................................. 21
5.2.2 Adjusting the rinse-aid dispenser setting ..................................................... 21
5.2.3 Adding the detergent ........................................................................................... 22
5.3 General warnings and recommendations .................................................... 24
5.4 Using the racks ........................................................................................................ 26
5.4.1 Lower rack ................................................................................................................. 27
5.4.2 Cutlery basket .......................................................................................................... 29
5.4.3 Upper rack ................................................................................................................ 30
6 CLEANING AND USER MAINTENANCE...................................................................... 33
6.1 General warnings and recommendations .................................................... 33
6.2 Cleaning the water intake filter ......................................................................... 34
6.3 Cleaning the spray arms ...................................................................................... 34
6.4 Cleaning the filter unit ......................................................................................... 36
6.5 General warnings and recommendations for correct maintenance ... 37
6.6 Troubleshooting minor problems .................................................................... 38
7 IMPORTANT SAFETY AND INSTRUCTIONS ............................................................. 40
8 INSTALLATION AND HOOK-UP..................................................................................... 46
9 TECHNICAL DATA............................................................................................................... 48
5.2 Using the rinse-aid and detergent dispenser .............................................. 20
2.3 Additional function ............................................................................................... 13
2.3.1 Adjusting the water softener ............................................................................. 13
17
17
19
20
20
21
23
25
26
28
EN
3
EN
INTRODUCTION
EN
3
INTRODUCTION
1 INTRODUCTION
Thank you for choosing one of our products. To use this dishwasher
correctly and safely, please read this manual carefully. The manual is
divided into sections giving you a step-by-step guide to all your appli-
ance’s functions.
The texts are easy to understand and are complete with detailed illus-
trations. Following the cleaning instructions provided here will keep
dishwasher performance at peak levels in the long term. This user-
friendly manual will provide answers to all your questions about use
of the dishwasher.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
USER INSTRUCTIONS: advice on using the washing programs and in-
formation about all the dishwasher functions.
Useful advice is provided for the use of racks, spray arms, containers
and lters.
WARNINGS: a list of warnings concerning safety and use of the dish-
washer.
INSTALLATION INSTRUCTIONS: for the qualied technician who
must carry out the installation, hook-up and testing of the appliance.
Nomenclature of gures and tables:
The progressive number of each gure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the rst number (4) indicates the section to which
the gure belongs, while the second number (01) indicates the pro-
gressive number of the gure in section 4 (Fig. 4-01 is the rst gure in
section 4). The tables are numbered in the same way, bearing in mind
that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01 is the rst table in
section 4). If a table occupies more than one page, a letter is added
after the progressive number (e.g.: “Tab. 4-01a”, Tab. 4-01b”).
2
EN
3
INTRODUCTION
3
EN
INTRODUCTION
EN
3
INTRODUCTION
1 INTRODUCTION
Thank you for choosing one of our products. To use this dishwasher
correctly and safely, please read this manual carefully. The manual is
divided into sections giving you a step-by-step guide to all your appli-
ance’s functions.
The texts are easy to understand and are complete with detailed illus-
trations. Following the cleaning instructions provided here will keep
dishwasher performance at peak levels in the long term. This user-
friendly manual will provide answers to all your questions about use
of the dishwasher.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
USER INSTRUCTIONS: advice on using the washing programs and in-
formation about all the dishwasher functions.
Useful advice is provided for the use of racks, spray arms, containers
and lters.
WARNINGS: a list of warnings concerning safety and use of the dish-
washer.
INSTALLATION INSTRUCTIONS: for the qualied technician who
must carry out the installation, hook-up and testing of the appliance.
Nomenclature of gures and tables:
The progressive number of each gure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the rst number (4) indicates the section to which
the gure belongs, while the second number (01) indicates the pro-
gressive number of the gure in section 4 (Fig. 4-01 is the rst gure in
section 4). The tables are numbered in the same way, bearing in mind
that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01 is the rst table in
section 4). If a table occupies more than one page, a letter is added
after the progressive number (e.g.: “Tab. 4-01a”, Tab. 4-01b”).
EN
4
EN
INTRODUCTION
EN
4
INTRODUCTION
EN
5
USER INSTRUCTIONS
S L OR T NOCEHTFONO I T P I RC S E D2
l enapr e p pU1.2
ehT. ) 10-2.gfiees ( l enapr eppueh tnodepuo r ge r as l o r t nocr ehsawhs i deh t l l A
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see tab. 2-01) of the various controls on the upper panel is
given below.

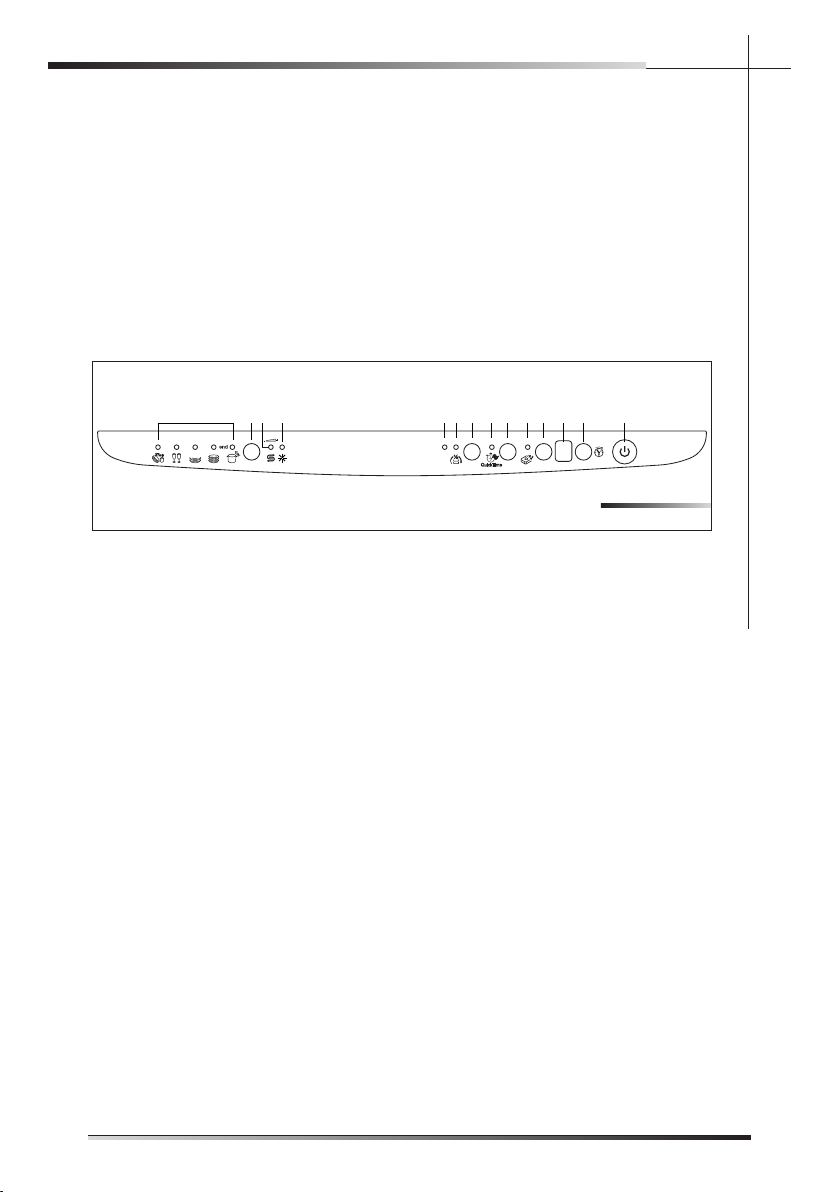

FIG. 2-01
˜˜˜
The panel shown is indicative, programs and options may vary depending on model.
USER INSTRUCTIONS
5
EN
EN
4
INTRODUCTION
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings
which, if not observed, may compromise personal safety or dam-
age the appliance.
DANGER OF ELECTROCUTION. This symbol highlights informa-
tion and warnings of an electrical nature which, if not observed,
may compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
EN
5
USER INSTRUCTIONS
S L OR T NOCEHTFONO I T P I RC S E D2
l enapr e p pU1.2
ehT. ) 10-2.g
fi
ees ( l enapr eppueh tnodepuo r ge r as l o r t nocr ehs awhs i deh t l l A
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see tab. 2-01) of the various controls on the upper panel is
given below.
FIG. 2-01
˜˜˜
The panel shown is indicative, programs and options may vary depending on model.
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
4
EN
INTRODUCTION
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings
which, if not observed, may compromise personal safety or dam-
age the appliance.
DANGER OF ELECTROCUTION. This symbol highlights informa-
tion and warnings of an electrical nature which, if not observed,
may compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
4
EN
INTRODUCTION
EN
4
INTRODUCTION
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings
which, if not observed, may compromise personal safety or dam-
age the appliance.
DANGER OF ELECTROCUTION. This symbol highlights informa-
tion and warnings of an electrical nature which, if not observed,
may compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
EN
5
USER INSTRUCTIONS
S L OR T NOCEHTFONO I T P I RC S E D2
l enapr e p pU1.2
ehT. ) 10-2.gfiees ( l enapr eppueh tnodepuo r ge r as l o r t nocr ehsawhs i deh t l l A
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see tab. 2-01) of the various controls on the upper panel is
given below.
FIG. 2-01
˜˜˜
The panel shown is indicative, programs and options may vary depending on model.
USER INSTRUCTIONS
5
EN
EN
4
INTRODUCTION
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings
which, if not observed, may compromise personal safety or dam-
age the appliance.
DANGER OF ELECTROCUTION. This symbol highlights informa-
tion and warnings of an electrical nature which, if not observed,
may compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
EN
5
USER INSTRUCTIONS
˜˜˜
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
USER INSTRUCTIONS
5
EN
2D E S C R I P T I NO FO TEH NOC T R O L S
1.2 pU p e r enap l
A l l t h e d i s h w a s h e r c no t r o l s a r e g r uo dep no t h e u p ep r ap n e l ( s e e fig . 0-2 1 ) . T h e
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see tab. 2-01) of the various controls on the upper panel is
given below.
FIG. 2-01
The panel shown is indicative, programs and options may vary depending on model.
21
34511 12 10 9 8 7 6 14 13
½
QuickTime
Auto
Sanitized
27
min
6
6
USER INSTRUCTIONS
EN
EN
6
USER INSTRUCTIONS
gnihct iwsdnamargorpgnihsaweh tgn i t t eS2.2
on and off
desus ihc i hw) 20-2.gfiees ( l enapl o r t nocah t i wdepp i uqes i r ehsawhs i dehT
to program the appliance and switch it on and off.
FIG. 2-02
On/off button
Press to power the appliance.
1

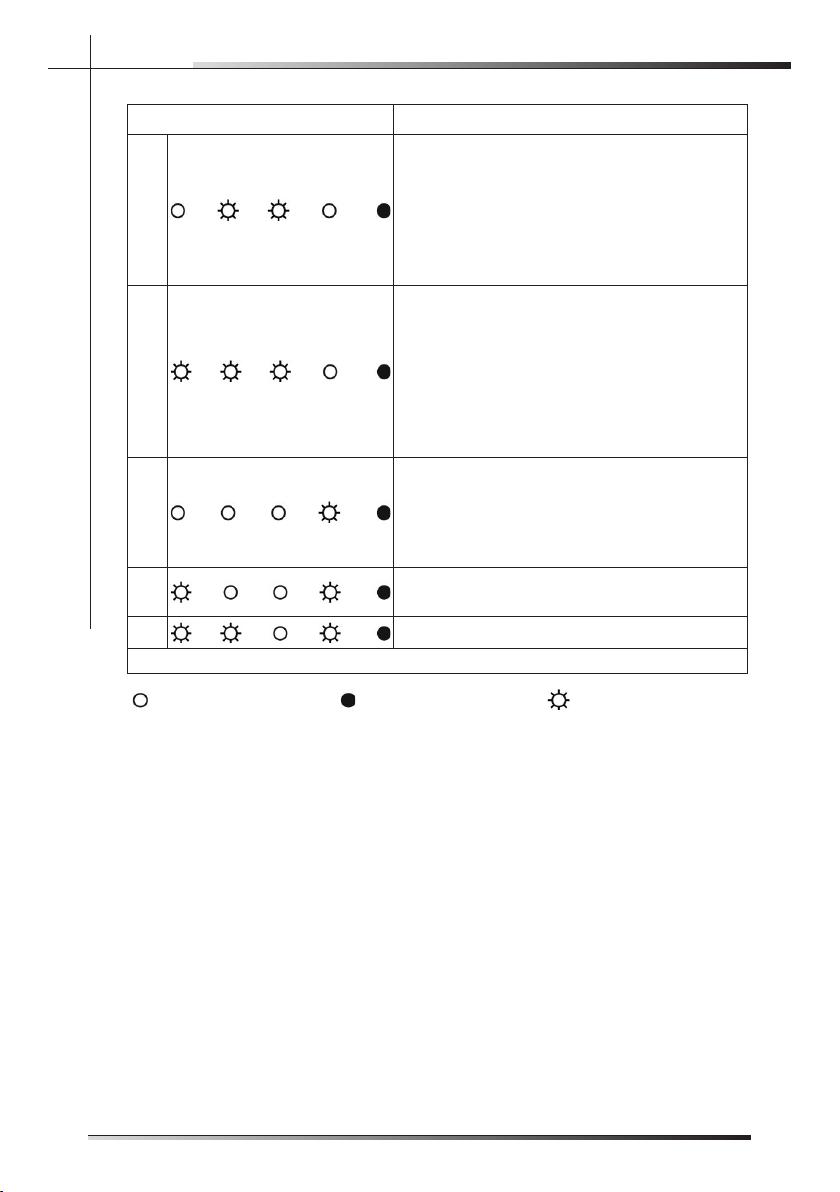

Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
2
Program selection button
Press in sequence to select the required program.
3
Add salt indicator light (only fitted on some models)
Shows the appliance has run out salt.
4
Add rinse aid indicator light
(only fitted on some models)
Shows the appliance has run out of rinse aid.
5
Quick time option button
Press this button to start one of the quick time programmes (see table).
6
Quick time programmes indicator light
Shows that one of the quick time programmes will be run
7
Half load option button
Press to select the half load option
8
Half load option light
Shows the function is active
9
Sanitation indicator light
Shows that sanitation has been completed (see notes in the programmes table)
10
Flexi tabs option button
Specifically for the use of products which contain salt and rinse aid as well as detergent.
11
12 Flexi tabs option light
Shows the function is active
Programme delay button
Press to delay the start of the programme up to 9 hours.
13
14 Information display
Tab. 2-01
The manual contains the programs table for several models.
EN
7
USER INSTRUCTIONS
- l o feh tt l usnoc, hsawo tsehs i deh tr o fma r go rpe l ba t i ust someh tt ce l esoT
lowing table which specifies the most appropriate type of washing sequence
depending on the kind of dishes and how dirty they are (see tabs. 2-02a and
2-02b).
Auto
3AUTO
(2)
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
Dishes with
4 NORMAL normal dirt, in-
cluding dried- 100 18,3 l
4,83 gal. 0,8
on residues.
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
kWh (1)
1
RINSE
Pans and
dishes
awaiting
completion of
the load
Cold prewash
15 3,5 l 0,02
2
CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Washat45°C
(113°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
65 12 l
3,17 gal.
0,93 gal.
0,5
3
DAILY HALF
LOAD
Half load of
dishes with
normal dirt,
washed
immediately
after use
Washat65°C
(149°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
90
13 l
3,45 gal.
1,00
4
NORMAL
(2)
Dishes with
normal dirt,
including
dried-on
residue
Wash at 50°C
(122°F)
Cold rinse
Rinse at 66°C
(150,8°F)
Dry
100 12 l
3,17 gal. 0,7
5
EXTREME
WASH
ETL
SANITATION
LISTED
Very dirty
pans and
dishes,
including
dried-on
residue
Hot prewash
Washat70°C
(158°F)
2cold rinses
Rinseat70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
KWH (1)
1RAPID 27’
Dishes with
light dirt,
washed im-
mediately after
use.
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,4
2CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
65 12 l
3,17 gal. 0,5
5
EXTREME
WASH
ETL SANITA-
TION LISTED
Very dirty pans
and dishes, in-
cluding dried-
on residues.
Hot prewash
Wash at 70°C
(158°F)
2 cold rinses
Rinse at 70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
Dishes
washed
immediatly
after use
Wash at 45°C
(113°F)
Cold rinse
Rinse at 65°C
(149°F)
Dry
90
12 l
3,45 gal. 0,6
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
USER INSTRUCTIONS
7
EN
EN
6
USER INSTRUCTIONS
gnihct iwsdnamargorpgnihsaweh tgn i t t eS2.2
on and off
desus ihc i hw) 20-2.gfiees ( l enapl o r t nocah t i wdepp i uqes i r ehsawhs i dehT
to program the appliance and switch it on and off.
FIG. 2-02
On/off button
Press to power the appliance.
1
Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
2
Program selection button
Press in sequence to select the required program.
3
Add salt indicator light (only fitted on some models)
Shows the appliance has run out salt.
4
Add rinse aid indicator light
(only fitted on some models)
Shows the appliance has run out of rinse aid.
5
Quick time option button
Press this button to start one of the quick time programmes (see table).
6
Quick time programmes indicator light
Shows that one of the quick time programmes will be run
7
Half load option button
Press to select the half load option
8
Half load option light
Shows the function is active
9
Sanitation indicator light
Shows that sanitation has been completed (see notes in the programmes table)
10
Flexi tabs option button
Specifically for the use of products which contain salt and rinse aid as well as detergent.
11
12 Flexi tabs option light
Shows the function is active
Programme delay button
Press to delay the start of the programme up to 9 hours.
13
14 Information display
Tab. 2-01
The manual contains the programs table for several models.
EN
7
USER INSTRUCTIONS
- l o feh tt l usnoc, hsawo tsehs i deh tr o fma r go rpe l ba t i ust someh tt ce l esoT
lowing table which specifies the most appropriate type of washing sequence
depending on the kind of dishes and how dirty they are (see tabs. 2-02a and
2-02b).
Auto
3AUTO
(2)
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
Dishes with
4 NORMAL normal dirt, in-
cluding dried- 100 18,3 l
4,83 gal. 0,8
on residues.
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
kWh (1)
1
RINSE
Pans and
dishes
awaiting
completion of
the load
Cold prewash
15 3,5 l 0,02
2
CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Washat45°C
(113°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
65 12 l
3,17 gal.
0,93 gal.
0,5
3
DAILY HALF
LOAD
Half load of
dishes with
normal dirt,
washed
immediately
after use
Washat65°C
(149°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
90
13 l
3,45 gal.
1,00
4
NORMAL
(2)
Dishes with
normal dirt,
including
dried-on
residue
Wash at 50°C
(122°F)
Cold rinse
Rinse at 66°C
(150,8°F)
Dry
100 12 l
3,17 gal. 0,7
5
EXTREME
WASH
ETL
SANITATION
LISTED
Very dirty
pans and
dishes,
including
dried-on
residue
Hot prewash
Washat70°C
(158°F)
2cold rinses
Rinseat70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
KWH (1)
1RAPID 27’
Dishes with
light dirt,
washed im-
mediately after
use.
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,4
2CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
65 12 l
3,17 gal. 0,5
5
EXTREME
WASH
ETL SANITA-
TION LISTED
Very dirty pans
and dishes, in-
cluding dried-
on residues.
Hot prewash
Wash at 70°C
(158°F)
2 cold rinses
Rinse at 70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
Dishes
washed
immediatly
after use
Wash at 45°C
(113°F)
Cold rinse
Rinse at 65°C
(149°F)
Dry
90
12 l
3,45 gal. 0,6
On/off button
Press to power the appliance.
1
Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
2
Program selection button
Press in sequence to select the required program.
3
Add salt indicator light (only fitted on some models)
Shows the appliance has run out salt.
4
Add rinse aid indicator light
(only fitted on some models)
Shows the appliance has run out of rinse aid.
5
6
7
Half load option button
Press to select the half load option
8
Half load option light
Shows the function is active
9
Sanitation indicator light
Shows that sanitation has been completed (see notes in the programmes table)
10
Flexi tabs option button
Specifically for the use of products which contain salt and rinse aid as well as detergent.
11
12
Flexi tabs option light
Shows the function is active
Programme delay button
Press to delay the start of the programme up to 9 hours.
13
14 Information display
Tab. 2-01
USER INSTRUCTIONS
EN
Quick time option button
Press this button to start one of the quick time programmes (see table).
Quick time programmes indicator light
Shows that one of the quick time programmes will be run
7
6
USER INSTRUCTIONS
EN
EN
6
USER INSTRUCTIONS
gnihct iwsdnamargorpgnihsaweh tgn i t t eS2.2
on and off
desus ihc i hw) 20-2.gfiees ( l enapl o r t nocah t i wdepp i uqes i r ehsawhs i dehT
to program the appliance and switch it on and off.
FIG. 2-02
On/off button
Press to power the appliance.
1
Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
2
Program selection button
Press in sequence to select the required program.
3
Add salt indicator light (only fitted on some models)
Shows the appliance has run out salt.
4
Add rinse aid indicator light
(only fitted on some models)
Shows the appliance has run out of rinse aid.
5
Quick time option button
Press this button to start one of the quick time programmes (see table).
6
Quick time programmes indicator light
Shows that one of the quick time programmes will be run
7
Half load option button
Press to select the half load option
8
Half load option light
Shows the function is active
9
Sanitation indicator light
Shows that sanitation has been completed (see notes in the programmes table)
10
Flexi tabs option button
Specifically for the use of products which contain salt and rinse aid as well as detergent.
11
12 Flexi tabs option light
Shows the function is active
Programme delay button
Press to delay the start of the programme up to 9 hours.
13
14 Information display
Tab. 2-01
The manual contains the programs table for several models.
EN
7
USER INSTRUCTIONS
- l o feh tt l usnoc, hsawo tsehs i deh tr o fma r go rpe l ba t i ust someh tt ce l esoT
lowing table which specifies the most appropriate type of washing sequence
depending on the kind of dishes and how dirty they are (see tabs. 2-02a and
2-02b).
Auto
3AUTO
(2)
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
Dishes with
4 NORMAL normal dirt, in-
cluding dried- 100 18,3 l
4,83 gal. 0,8
on residues.
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
kWh (1)
1
RINSE
Pans and
dishes
awaiting
completion of
the load
Cold prewash
15 3,5 l 0,02
2
CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Washat45°C
(113°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
65 12 l
3,17 gal.
0,93 gal.
0,5
3
DAILY HALF
LOAD
Half load of
dishes with
normal dirt,
washed
immediately
after use
Washat65°C
(149°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
90
13 l
3,45 gal.
1,00
4
NORMAL
(2)
Dishes with
normal dirt,
including
dried-on
residue
Wash at 50°C
(122°F)
Cold rinse
Rinse at 66°C
(150,8°F)
Dry
100 12 l
3,17 gal. 0,7
5
EXTREME
WASH
ETL
SANITATION
LISTED
Very dirty
pans and
dishes,
including
dried-on
residue
Hot prewash
Washat70°C
(158°F)
2cold rinses
Rinseat70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
KWH (1)
1RAPID 27’
Dishes with
light dirt,
washed im-
mediately after
use.
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,4
2CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
65 12 l
3,17 gal. 0,5
5
EXTREME
WASH
ETL SANITA-
TION LISTED
Very dirty pans
and dishes, in-
cluding dried-
on residues.
Hot prewash
Wash at 70°C
(158°F)
2 cold rinses
Rinse at 70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
Dishes
washed
immediatly
after use
Wash at 45°C
(113°F)
Cold rinse
Rinse at 65°C
(149°F)
Dry
90
12 l
3,45 gal. 0,6
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
USER INSTRUCTIONS
7
EN
EN
6
USER INSTRUCTIONS
gnihct iwsdnamargorpgnihsaweh tgn i t t eS2.2
on and off
desus ihc i hw) 20-2.gfiees ( l enapl o r t nocah t i wdepp i uqes i r ehsawhs i dehT
to program the appliance and switch it on and off.
FIG. 2-02
On/off button
Press to power the appliance.
1
Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
2
Program selection button
Press in sequence to select the required program.
3
Add salt indicator light (only fitted on some models)
Shows the appliance has run out salt.
4
Add rinse aid indicator light
(only fitted on some models)
Shows the appliance has run out of rinse aid.
5
Quick time option button
Press this button to start one of the quick time programmes (see table).
6
Quick time programmes indicator light
Shows that one of the quick time programmes will be run
7
Half load option button
Press to select the half load option
8
Half load option light
Shows the function is active
9
Sanitation indicator light
Shows that sanitation has been completed (see notes in the programmes table)
10
Flexi tabs option button
Specifically for the use of products which contain salt and rinse aid as well as detergent.
11
12 Flexi tabs option light
Shows the function is active
Programme delay button
Press to delay the start of the programme up to 9 hours.
13
14 Information display
Tab. 2-01
The manual contains the programs table for several models.
EN
7
USER INSTRUCTIONS
- l o feh tt l usnoc, hsawo tsehs i deh tr o fma r go r pe l ba t i ust someh tt ce l esoT
lowing table which specifies the most appropriate type of washing sequence
depending on the kind of dishes and how dirty they are (see tabs. 2-02a and
2-02b).
Auto
3AUTO
(2)
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
Dishes with
4 NORMAL normal dirt, in-
cluding dried- 100 18,3 l
4,83 gal. 0,8
on residues.
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
kWh (1)
1
RINSE
Pans and
dishes
awaiting
completion of
the load
Cold prewash
15 3,5 l 0,02
2
CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Washat45°C
(113°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
65 12 l
3,17 gal.
0,93 gal.
0,5
3
DAILY HALF
LOAD
Half load of
dishes with
normal dirt,
washed
immediately
after use
Washat65°C
(149°F)
Cold rinse
Rinseat70°C
(158°F)
Dry
90
13 l
3,45 gal.
1,00
4
NORMAL
(2)
Dishes with
normal dirt,
including
dried-on
residue
Wash at 50°C
(122°F)
Cold rinse
Rinse at 66°C
(150,8°F)
Dry
100 12 l
3,17 gal. 0,7
5
EXTREME
WASH
ETL
SANITATION
LISTED
Very dirty
pans and
dishes,
including
dried-on
residue
Hot prewash
Washat70°C
(158°F)
2cold rinses
Rinseat70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1) WATER ENERGY
KWH (1)
1RAPID 27’
Dishes with
light dirt,
washed im-
mediately after
use.
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,4
2CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
65 12 l
3,17 gal. 0,5
5
EXTREME
WASH
ETL SANITA-
TION LISTED
Very dirty pans
and dishes, in-
cluding dried-
on residues.
Hot prewash
Wash at 70°C
(158°F)
2 cold rinses
Rinse at 70°C
(158°F)
Dry
122 18,3 l
4,83 gal. 1,12
Tab. 2-02a
Dishes
washed
immediatly
after use
Wash at 45°C
(113°F)
Cold rinse
Rinse at 65°C
(149°F)
Dry
90
12 l
3,45 gal. 0,6
8
USER INSTRUCTIONS
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6+SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
PROGRAMME, NUMBER &
SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES (1) WATER ENERGY
KWH (1)
1 RAPID 27’
Dishes with
light dirt,
washed im-
mediately after
use.
Wash at 38°C
(100,4°F)
Cold rinse
Rinse at 50°C
(122°F)
27 6.5 l
1.72 gal. 0.4
2CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
65 12 l
3.17 gal. 0.5
3
QuickTime
end
QuickTime
Sanitized
1131410 6789432 5
½
1112
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
E1
E2
E3
E4
E5
E6
E7
E8
E9
E11
AUTO DELI-
CATE (2)
Normally soiled
dishes, includ-
ing dried-on
residues, for
daily use.
Wash at 45°C
(113°F)
Cold rinse
Rinse at 53°C
(127°F)
Dry
180-195 10.6 l
2.8 gal. 0.5-0.6
4WASH PLUS
Mixed dishes
very dirty, in-
cluding dried-
on residues.
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
Dry
110 15 l
3.96 gal. 1.00
5
EXTREME
WASH
ETL
SANITATION
LISTED
Mixed dishes
very dirty and
pans dirty, in-
cluding dried-
on residues.
Cold prewash
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
Dry
105-130
12-16 l
3.17 gal
4.23 gal.
1.0-1.2
Tab. 2-02a
USER INSTRUCTIONS
EN
8
8
USER INSTRUCTIONS
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6+SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
USER INSTRUCTIONS
9
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6+SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
PROGRAMME, NUMBER &
SYMBOL
LOAD CROCK-
ERY AND
CUTLERY
PROGRAM
PROGRESS
DURA-
TION CONSUMPTION
MINUTES
(1) WATER ENERGY
KWH (1)
6+SOAK
Pans and
dishes awaiting
completion of
the load.
Cold prewash 16 3.9 l
1.03 gal. 0.4
7+DELICATE
QUICK
Dishes with
light dirt.
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
60 15 l
3.96 gal. 1.0
8+
QuickTime
end
QuickTime
Sanitized
1131410 6789432 5
½
1112
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
end
Auto
E1
E2
E3
E4
E5
E6
E7
E8
E9
E11
ECO QUICK
Dishes with
normal dirt,
washed im-
mediately after
use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
85 15 l
3.96 gal. 1.2
9+NORMAL
QUICK
Dishes with
normal dirt,
washed im-
mediately after
use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
90 15 l
3.96 gal. 1.3
10 +STRONG and
FAST
Mixed dishes
with normal
dirt without
dried-on resi-
dues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
55 12 l
3.17 gal. 1.12
Tab. 2-02a
8
USER INSTRUCTIONS
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6
+
SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
USER INSTRUCTIONS
EN
9
8
USER INSTRUCTIONS
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6+SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
USER INSTRUCTIONS
9
EN
EN
8
USER INSTRUCTIONS
PROGRAMME,
NUMBER & SYMBOL
LOAD
CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(1)
WATER
LITRES
ENERGY
kWh (1)
6+
RAPID 27’
Dishes with
light dirt,
washed
immediately
after use
Wash at 38°C
(100,4°F)
Rinse at 50°C
(122°F)
27 6,5 l
1,72 gal. 0,40
7+ECO
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 60°C
(140°F)
Cold rinse
Rinse at 70°C
(158°F)
70 12,5 l
3,3 gal. 0,9
8+
NORMAL
QUICK
Dishes with
normal dirt,
washed
immediately
after use.
Cold prewash
Wash at 70°C
(158°F)
Cold rinse
Rinse at 70°C
(158°F)
80
13 l
3,44 gal. 1,1
9+
STRONG
and FAST
Mixed dishes
with normal
dirt without
dried-on
residues.
Wash at 65°C
(149°F)
Cold rinse
Rinse at 70°C
(158°F)
55 9,5 l
2,51 gal. 1,00
Tab. 2-02b
((1) The cycle times and electrical energy listed use and care manual are based on normal soil loads
and 120°F (49°C) incoming water and will vary based on your actual conditions.
(2) Program for energy star.
- Only “EXTREME WASH” program conforms to NSF std 184 and is certified by INTERTEK with
the ETL SANITATION LISTED.
-When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
-When the “AUTO PROGRAMME” is selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
PROGRAMME,
NUMBER & SYMBOL
LOAD PROGRAM DURATION CONSUMPTION
CROCKERY PROGRESS MINUTES WATER ENERGY
AND CUTLERY (1) KWH (1)
Pans and
6+SOAK dishes await-
ing completion Cold prewash 16 3,9 l
1,03 gal. 0,4
of the load.
7 LIGHT QUICK Delicate dishes 13 l
+
with light dirt. 60 0,6
3,45 gal
Auto
Dishes with Cold prewash
ECO normal dirt, Wash at 60°C
8(140°F) 12 l
+QUICK washed im- Cold rinse 85 3,45 gal. 0,7
mediately after
use. Rinse at 70°C
(158°F)
Dishes with Cold prewash
Wash at 70°C
9NORMAL normal dirt, (158°F) 13 l
+QUICK washed im-
mediately after Cold rinse 90 3,45 gal. 1,00
use. Rinse at 70°C
(158°F)
Mixed dishes Wash at 65°C
with normal (149°F)
10 STRONG
+and FAST dirt without Cold rinse 55 9,5 l
dried-on Rinse at 70°C 2,51 gal. 1,12
residues. (158°F)
Tab. 2-02b
Cold prewash
Wash at 50°C
(122°F)
Cold rinse
Rinse at 70°C
(158°F)
EN
9
USER INSTRUCTIONS
Only run the soak program with half loads.
To run programmes 6, 7, 8, 9, 10, select the required standard programme and
then press the quick time option button (ref. 6 fig. 2-02).
After using the above tables to choose the most suitable washing cycle, program
the appliance.
Before starting a washing program, make sure that:
• The water supply tap is open.
•The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
• The spray arms are able to rotate freely and without obstruc-
tion.
• The racks have been correctly loaded (see the instructions in
the general manual).
• The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fig. 2-02) to start the dishwasher. Then wait for one
of the program indicator lights to turn on (ref. 2 fig. 2-02).
USER INSTRUCTIONS
EN
10
10
USER INSTRUCTIONS
EN
EN
10
USER INSTRUCTIONS
margorpeh tgn i t r a t sdnagn i t ce l eS2.2.2
eh tsse rP•program selection button (ref. 3 fig. 2-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fig.
2-02);
•if required, press the relative buttons to select any complementary functions
(e.g.: “extra drying”, “program delay”; see para 2.2.7 “options”);
•close the door; the program will start after about 2 seconds and the relative
. ) l ang i sgn i nnu r¬ma r go r p (e l c yceh t t uohguo r h thsa fllliwthgilrotacidni
˜˜˜
˜
- r ocn ineebsahr odeso l cneebt onsahr ehsawhs i deh t f or oodeh t f I
rectly closed, the washing cycle will not begin.
QUICK TIME PROGRAMS OPTION
•Select this option together with any washing program (except the soak pro-
gram) to SHORTEN the cycle by from a minimum of 10% to a maximum
of 55%, depending on the cycle selected. To activate this option, press the
QUICK TIME OPTION button (light comes on) after selecting the pro-
gram required. The option is automatically deactivated at the end of the
program.
margorpfodnE3.2.2
The end of the program is signaled by a short beep. Additionally the indicator
. hsafl) ” dne “dek r am(sma r go r pgno r t sdna l amr oneh t f ot hg i l
margorpagn i t pu r r e t n I4.2.2
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
.detpur retn isawt ierehw
margorpt ne r r uceh tgn i gnahC5.2.2
To change the current program, simply open the door of the dishwasher and
. y l l ac i t amo t uama r go r pweneh tnu ro t r oodeh teso l C.ma r go r pweneh t t ce l es
FAST CYCLES OPTION
• Select this option together with any washing program (except the soak
program) to SHORTEN the cycle by from a minimum of 10% to a maxi-
mum of 55%, depending on the cycle selected. To activate this option,
press the FAST CYCLES button (light comes on) after selecting the
program required. The option is automatically deactivated at the end of
the program.
EN
11
USER INSTRUCTIONS
margorpt ne r r uceh tgn i l e c n aC6.2.2
eh tnwodd l ohdnas se r pdnar oodeh tnepo,ma r go r pt ne r r uceh t l ecnacoT•
program selection button (ref. 3 fig. 2-02) for a few seconds until the indi-
cator lights of the fourth and fifth programs turn on (ref. pr. 4, pr. 5 fig. 2-03).
•Close the door again.
•After about 1 minute, the dishwasher terminates the cycle and the indicator
lights of the fourth and fifth programs (ref. pr. 4, pr. 5 fig. 2-03) start flashing.
FIG. 2-03
2.2.7 Options
Function designed for loads with hard to dry item s such as saucepans, non-
stick pans and plastic containers. Increases the hot rinse temperature and can
be used in programmes featuring a final drying phase (see programmes table).
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing program
up to 9 hours from the moment in which programming takes place. This makes
it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 2.2 “Setting the washing program and
switching on and off”). Select the day by pressing the Program delay button
(ref. 11 fig. 2-02); each time you press the button, the display increases the
delay before the appliance starts by 1 hour.
symbols programs according to the models
USER INSTRUCTIONS
11
EN
EN
10
USER INSTRUCTIONS
margorpeh tgn i t r a t sdnagn i t ce l eS2.2.2
eh tsse rP•program selection button (ref. 3 fig. 2-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fig.
2-02);
•if required, press the relative buttons to select any complementary functions
(e.g.: “extra drying”, “program delay”; see para 2.2.7 “options”);
•close the door; the program will start after about 2 seconds and the relative
. ) l ang i sgn i nnu r¬ma r go r p (e l cy ceh t t uohguo r h thsa fllliwthgilrotacidni
˜˜˜
˜
- r ocn ineebsahr odeso l cneebt onsahr ehsawhs i deh t f or oodeh t f I
rectly closed, the washing cycle will not begin.
QUICK TIME PROGRAMS OPTION
•Select this option together with any washing program (except the soak pro-
gram) to SHORTEN the cycle by from a minimum of 10% to a maximum
of 55%, depending on the cycle selected. To activate this option, press the
QUICK TIME OPTION button (light comes on) after selecting the pro-
gram required. The option is automatically deactivated at the end of the
program.
margorpfodnE3.2.2
The end of the program is signaled by a short beep. Additionally the indicator
. hsafl) ” dne “dek r am(sma r go r pgno r t sdna l amr oneh t f ot hg i l
margorpagn i t pu r r e t n I4.2.2
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
.detpur retn isawt ierehw
margorpt ne r r uceh tgn i gnahC5.2.2
To change the current program, simply open the door of the dishwasher and
. y l l ac i t amo t uama r go r pweneh tnu ro t r oodeh teso l C.ma r go r pweneh t t ce l es
FAST CYCLES OPTION
•Select this option together with any washing program (except the soak
program) to SHORTEN the cycle by from a minimum of 10% to a maxi-
mum of 55%, depending on the cycle selected. To activate this option,
press the FAST CYCLES button (light comes on) after selecting the
program required. The option is automatically deactivated at the end of
the program.
EN
11
USER INSTRUCTIONS
margorpt ne r r uceh tgn i l e c n aC6.2.2
eh tnwodd l ohdnas se r pdnar oodeh tnepo,ma r go r pt ne r r uceh t l ecnacoT
•
program selection button (ref. 3 fig. 2-02) for a few seconds until the indi-
cator lights of the fourth and fifth programs turn on (ref. pr. 4, pr. 5 fig. 2-03).
•Close the door again.
•After about 1 minute, the dishwasher terminates the cycle and the indicator
lights of the fourth and fifth programs (ref. pr. 4, pr. 5 fig. 2-03) start flashing.
FIG. 2-03
2.2.7 Options
Function designed for loads with hard to dry item s such as saucepans, non-
stick pans and plastic containers. Increases the hot rinse temperature and can
be used in programmes featuring a final drying phase (see programmes table).
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing program
up to 9 hours from the moment in which programming takes place. This makes
it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 2.2 “Setting the washing program and
switching on and off”). Select the day by pressing the Program delay button
(ref. 11 fig. 2-02); each time you press the button, the display increases the
delay before the appliance starts by 1 hour.
symbols programs according to the models
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
USER INSTRUCTIONS
EN
10
USER INSTRUCTIONS
EN
EN
10
USER INSTRUCTIONS
margorpeh tgn i t r a t sdnagn i t ce l eS2.2.2
eh tsse rP•program selection button (ref. 3 fig. 2-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fig.
2-02);
•if required, press the relative buttons to select any complementary functions
(e.g.: “extra drying”, “program delay”; see para 2.2.7 “options”);
•close the door; the program will start after about 2 seconds and the relative
. ) l ang i sgn i nnu r¬ma r go r p (e l c yceh t t uohguo r h thsa
fllliwthgilrotacidni
˜˜˜
˜
- r ocn ineebsahr odeso l cneebt onsahr ehsawhs i deh t f or oodeh t f I
rectly closed, the washing cycle will not begin.
QUICK TIME PROGRAMS OPTION
•Select this option together with any washing program (except the soak pro-
gram) to SHORTEN the cycle by from a minimum of 10% to a maximum
of 55%, depending on the cycle selected. To activate this option, press the
QUICK TIME OPTION button (light comes on) after selecting the pro-
gram required. The option is automatically deactivated at the end of the
program.
margorpfodnE3.2.2
The end of the program is signaled by a short beep. Additionally the indicator
. hsafl
) ” dne “dek r am(sma r go r pgno r t sdna l amr oneh t f ot hg i l
margorpagn i t pu r r e t n I4.2.2
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
.detpur retn isawt ierehw
margorpt ne r r uceh tgn i gnahC5.2.2
To change the current program, simply open the door of the dishwasher and
. y l l ac i t amo t uama r go r pweneh tnu ro t r oodeh teso l C.ma r go r pweneh t t ce l es
FAST CYCLES OPTION
•Select this option together with any washing program (except the soak
program) to SHORTEN the cycle by from a minimum of 10% to a maxi-
mum of 55%, depending on the cycle selected. To activate this option,
press the FAST CYCLES button (light comes on) after selecting the
program required. The option is automatically deactivated at the end of
the program.
EN
11
USER INSTRUCTIONS
margorpt ne r r uceh tgn i l e c n aC6.2.2
eh tnwodd l ohdnas se r pdnar oodeh tnepo,ma r go r pt ne r r uceh t l ecnacoT•
program selection button (ref. 3 fig. 2-02) for a few seconds until the indi-
cator lights of the fourth and fifth programs turn on (ref. pr. 4, pr. 5 fig. 2-03).
•Close the door again.
•After about 1 minute, the dishwasher terminates the cycle and the indicator
lights of the fourth and fifth programs (ref. pr. 4, pr. 5 fig. 2-03) start flashing.
FIG. 2-03
2.2.7 Options
Function designed for loads with hard to dry item s such as saucepans, non-
stick pans and plastic containers. Increases the hot rinse temperature and can
be used in programmes featuring a final drying phase (see programmes table).
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing program
up to 9 hours from the moment in which programming takes place. This makes
it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 2.2 “Setting the washing program and
switching on and off”). Select the day by pressing the Program delay button
(ref. 11 fig. 2-02); each time you press the button, the display increases the
delay before the appliance starts by 1 hour.
symbols programs according to the models
USER INSTRUCTIONS
11
EN
EN
10
USER INSTRUCTIONS
margorpeh tgn i t r a t sdnagn i t ce l eS2.2.2
eh tsse rP•program selection button (ref. 3 fig. 2-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fig.
2-02);
•if required, press the relative buttons to select any complementary functions
(e.g.: “extra drying”, “program delay”; see para 2.2.7 “options”);
•close the door; the program will start after about 2 seconds and the relative
. ) l ang i sgn i nnu r¬ma r go r p (e l cy ceh t t uohguo r h thsa fllliwthgilrotacidni
˜˜˜
˜
- r ocn ineebsahr odeso l cneebt onsahr ehsawhs i deh t f or oodeh t f I
rectly closed, the washing cycle will not begin.
QUICK TIME PROGRAMS OPTION
•Select this option together with any washing program (except the soak pro-
gram) to SHORTEN the cycle by from a minimum of 10% to a maximum
of 55%, depending on the cycle selected. To activate this option, press the
QUICK TIME OPTION button (light comes on) after selecting the pro-
gram required. The option is automatically deactivated at the end of the
program.
margorpfodnE3.2.2
The end of the program is signaled by a short beep. Additionally the indicator
. hsafl) ” dne “dek r am(sma r go r pgno r t sdna l amr oneh t f ot hg i l
margorpagn i t pu r r e t n I4.2.2
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
.detpur retn isawt ierehw
margorpt ne r r uceh tgn i gnahC5.2.2
To change the current program, simply open the door of the dishwasher and
. y l l ac i t amo t uama r go r pweneh tnu ro t r oodeh teso l C.ma r go r pweneh t t ce l es
FAST CYCLES OPTION
•Select this option together with any washing program (except the soak
program) to SHORTEN the cycle by from a minimum of 10% to a maxi-
mum of 55%, depending on the cycle selected. To activate this option,
press the FAST CYCLES button (light comes on) after selecting the
program required. The option is automatically deactivated at the end of
the program.
EN
11
USER INSTRUCTIONS
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
USER INSTRUCTIONS
11
EN
6.2.2 aC n c e l i n g teh c u r r ne t rp o rg a m
•T o c cna e l t eh uc r r ne t p r o g r a m , o p ne t eh d o o r na d p r e s s na d h o l d d o w n t eh
program selection button (ref. 3 fig. 2-02) for a few seconds until the indi-
cator lights of the fourth and fifth programs turn on (ref. pr. 4, pr. 5 fig. 2-03).
•
•
Close the door again.
After about 1 minute, the dishwasher terminates the cycle and the indicator
lights of the fourth and fifth programs (ref. pr. 4, pr. 5 fig. 2-03) start flashing.
2.2.7 Options
Function designed for loads with hard to dry item s such as saucepans, non-
stick pans and plastic containers. Increases the hot rinse temperature and can
be used in programmes featuring a final drying phase (see programmes
table).
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing
program up to 24 hours from the moment in which programming takes place.
This makes it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 2.2 “Setting the washing program and
switching on and off”). Select the day by pressing theProgram delay button
(ref. 11 fig.2-02);eachtimeyoupressthebutton,thedisplayincreasesthe
delay before the appliance starts by 1 hour.
SPREAD HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy and reduces
the program duration. Place dishes in both baskets then load the detergent dispen-
ser than less than the normal amount for a full load.
Flexi Tabs
Specifically for washing with combination detergents in tablets, which also contain
salt and rinse aid (3in1) or other agents such as glass protector, steel rinse aids, etc.
(4in1, 5in1…). When this option is selected, salt and rinse aid will not be dispensed
even if the relative compartments contain them. If the containers are empty, the
lights will remain on.
FIG. 2-03
symbols programs according to the models
Auto
27
min
12
USER INSTRUCTIONS
EN
EN
12
USER INSTRUCTIONS
2.3 Additional functions
2.3.1 Adjusting the water softener (on some models only)
N.B.: a different washing program from soak must be used to make
the following adjustment.
Press and hold down the program delay button (ref. 12 fig. 2-05) until the
preset value appears followed by a dot (normally 3.). Release the button and
then press it again and again until the required value is displayed, as indicated
in the table (see tab. 2-03).
The 6 possible adjustment levels will appear in this sequence:
3., 4., 5., 0., 1., 2..
When the required value appears on the display, release the button; after 5
seconds the appliance automatically reverts to the program delay and the
adjustment is set to the chosen value.
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
12
USER INSTRUCTIONS
EN
S w i t c nih g fo f8.2.2
dA t t eh ne d o f t eh p r o g r a m , t eh d i s h w a s h r e e m i t s a s h o r t b e e p na t eh indi-
cator lights of the fourth and fifthfth ogram (ref. pr. 4, pr. 5 fig. 2-04) flash.
pressing the on/off button (ref.Turn off the appliance by opening the door and
1 fig. 2-02).
If it is necessary to open the door during the washing cycle, the
program will be interrupted, the relative indicator light will continue to
flash and a beep will indicate that the cycle has not terminated. Wait
for about 1 minute before closing the door and continuing with the
program. When the door closes, the program will start from where it
was interrupted. This operation should be performed only if neces-
sary as it could cause irregular program performance.
4
2.2.9
R E OM V I N G TEH D I S EH S
˜˜˜
A t t eh ne d o f t eh w a s h i n g p r o g r a m , w a i t a t l e a s t 20 minute before
removing the dishes in order to allow them to cool. To prevent any
water droplets on the upper rack from falling onto the dishes in the
lower rack, empty the lower rack first and then the upper one.
If the option is not provided, we recommend the use of conventional products
(separate detergent, salt and rinse aid), because with conventional washing cycles,
combined products might create problems such as a white deposit, poor drying
results and residues left on dishes.
For further information, refer to the detergent pack.
IMPORTANT:
when no longer required, the option must be deactivated by pressing the relative
button (the light goes out).
These products are not suitable for use with excessively “hard” water. If the
hardness level set is higher than H3, when the option is activated the rela-
tive light ashes to indicate that the product is being used incorrectly; the
dishwasher will still work, but washing results may be poor.
FIG. 2-04
symbols programs according to the models
Auto
27
min
13
12
USER INSTRUCTIONS
EN
EN
12
USER INSTRUCTIONS
f fognihct iwS8.2.2
eh tdnapeebt r ohsas t imer ehsawhs i deh t ,ma r go r peh t f odneeh t t A indi-
cator lights of the fourth and fifth program (ref. pr. 4, pr. 5 fig. 2-04) flash.
Turn off the appliance by opening the door and pressing the on/off button (ref.
1 fig. 2-02).
FIG. 2-04
If it is necessary to open the door during the washing cycle, the
program will be interrupted, the relative indicator light will continue to
flash and a beep will indicate that the cycle has not terminated. Wait
for about 1 minute before closing the door and continuing with the
program. When the door closes, the program will start from where it
was interrupted. This operation should be performed only if neces-
sary as it could cause irregular program performance.
SEHS I DEHTG N I V OME R4
˜˜˜
t sae l t at i aw,ma r go r pgn i hsaweh t f odneeh t t A 20 minute before
removing the dishes in order to allow them to cool. To prevent any
water droplets on the upper rack from falling onto the dishes in the
lower rack, empty the lower rack first and then the upper one.
2.2.9
symbols programs according to the models
2.3 Additional functions
2.3.1 Adjusting the water softener (on some models only)
N.B.: a different washing program from soak must be used to make
the following adjustment.
Press and hold down the program delay button (ref. 12 fig. 2-05) until the
preset value appears followed by a dot (normally 3.). Release the button and
then press it again and again until the required value is displayed, as indicated
in the table (see tab. 2-03).
The 6 possible adjustment levels will appear in this sequence:
3., 4., 5., 0., 1., 2..
When the required value appears on the display, release the button; after 5
seconds the appliance automatically reverts to the program delay and the
adjustment is set to the chosen value.
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
14
USER INSTRUCTIONS
EN
N.B.: the display indicates the water hardness adjustment and the
program delay. A dot (.) after the number means that the water har-
dness adjustment is being displayed. If no dot (.) appears, the pro-
gram delay is being displayed.
FIG. 2-05
Water hardness table (see tab. 2-03)
WATER HARDNESS
SETTING
German degrees (°D) French degrees (°F) American degrees
grains/galls
0 - 4 0 - 7 0 - 4.5 0.
155 - 8 - 25 -4.6 14.5 1.
2316 - 26 - 40 14.6 - 23.5 2.
3124 - 41 - 60 - 3523.6 3.
4732 - 61 - 80 4.
5848 - 81 - 100
35.1 - 46.5
46.6 - 58.5 5.
Tab. 2-03
Contact your local water board for information on the hardness of your water
supply.
EN
13
USER INSTRUCTIONS
L A TNEMNOR I VNEDNAGN I V A SYGRENE3
RESPECT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes under a running tap.
•Use the most suitable washing program for each type of load.
•Do not pre-rinse.
•If available, connect the dishwasher to a hot water system with a tempera-
ture of up to 60°C (140°F).
•When possible, skip the drying cycle by opening the door after washing:
the air and the residue heat will dry the dishes to perfection.
3.1 Reducing the consumption of detergent
and respecting the environment
- i vneeh to t l u fmr ahe r as t neg r e t edr ehsawhs i dn iden i a t nocse t ahpsohpehT
ronment. To avoid using excessive amounts of detergent and to save on elec-
tricity:
•Separate the more delicate items from those that are more resistant to ag-
gressive detergents and high temperatures;
•Do not pour . sehs i dehtotnoy l tcer idtnegretedeht
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
27
min
2.3 ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher is equipped with a device which allows the softener setting to
be varied to suit the hardness of the mains water. The hardness is set using the
PROGRAM SELECTION BUTTON (3).
To access the setting function, hold the button down for more than 15 secon-
ds. The WATER HARDNESS ADJUSTMENT INDICATOR LIGHT (4) flashes,
while the SELECTED PROGRAM INDICATOR LIGHTS (2) show the current
setting. Each pressure on the button changes the setting following the se-
quence in the table below:
Water hardness table (see tab. 2-03)
WATER HARDNESS
SETTING
German
degrees (°dH)
French
degrees (°dF)
0 - 6 0 - 11 All lights o
(no salt) H0 -
end
7 - 10 12 - 18 One light on H1 -
end
11 - 15 19 - 27 Two lights on H2 -
end
16 - 21 28 - 37 Three lights on H3 -
end
22 - 28 38 - 50 Four lights on H4 -
end
29 - 50 51 - 90 Five lights on H5 -
end
Contact your local water board for information on the hardness of your water
supply.
After adjustment or display of the current setting, simply do not touch the but-
ton for a few seconds; the dishwasher will automatically return to standard
mode, quitting the adjustment mode.
>
USER INSTRUCTIONS
EN
14
USER INSTRUCTIONS
15
EN
N.B.: the display indicates the water hardness adjustment and the
program delay. A dot (.) after the number means that the water har-
dness adjustment is being displayed. If no dot (.) appears, the pro-
gram delay is being displayed.
FIG. 2-05
Water hardness table (see tab. 2-03)
WATER HARDNESS
SETTING
German degrees (°D) French degrees (°F) American degrees
grains/galls
0 - 4 0 - 7 0 - 4.5 0.
155 - 8 - 25 -4.6 14.5 1.
2316 - 26 - 40 14.6 - 23.5 2.
3124 - 41 - 60 - 3523.6 3.
4732 - 61 - 80 4.
5848 - 81 - 100
35.1 - 46.5
46.6 - 58.5 5.
Tab. 2-03
Contact your local water board for information on the hardness of your water
supply.
EN
13
USER INSTRUCTIONS
L A TNEMNOR I VNEDNAGN I V A SYGRENE3
RESPECT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes under a running tap.
•Use the most suitable washing program for each type of load.
•Do not pre-rinse.
•If available, connect the dishwasher to a hot water system with a tempera-
ture of up to 60°C (140°F).
•When possible, skip the drying cycle by opening the door after washing:
the air and the residue heat will dry the dishes to perfection.
3.1 Reducing the consumption of detergent
and respecting the environment
- i vneeh to t l u fmr ahe r as t neg r e t edr ehsawhs i dn iden i a t nocse t ahpsohpehT
ronment. To avoid using excessive amounts of detergent and to save on elec-
tricity:
•Separate the more delicate items from those that are more resistant to ag-
gressive detergents and high temperatures;
•Do not pour . sehs i dehtotnoy l tcer idtnegretedeht
USER INSTRUCTIONS
EN
15
16
USER INSTRUCTIONS
EN
EN
14
USER INSTRUCTIONS
GN I T OOH S E L BUOR T4
The dishwasher can to signal a number of malfunctions by turning on various
: ) e l ba tgn i wo l l o fees (wo l ebdeb i r csedsa, s t hg i l r o t ac i dn i
FAULT DESCRIPTION
E1
Acquastop failure
The anti-flooding system has tripped (only for models
fitted with this feature). Activates in case of water leaks.
Contact the technicalassistance service.
E2
Safety level
The system limiting the water level in the dishwasher
has tripped. Interrupt the current program. Switch off
the dishwasher, switch it back on again, program a new
cycle and press start. If the problem persists, contact
the technical assistance service.
E3
Water heating malfunction
The water is not heated or is incorrectly heated. Repeat
the washing program; if the problem persists, contact
the technical assistance service.
E4
Water temperature monitoring malfunction
Interrupt the current program. Switch off the dishwasher,
switch it back on again, program a new cycle and press
start. If the problem persists, contact the technical
assistance service.
E5
Water intake malfunction
The appliance does not take in water or does so
incorrectly. Make sure the water connections are
correct, that the water supply tap is open and that the
filter is not clogged. If the problem persists, contact the
technicalassistance service.
Tab. 4-01a
EN
15
USER INSTRUCTIONS
FAULT DESCRIPTION
E6
Water pump-out malfunction
The appliance does not pump out the water or does so
incorrectly. Make sure the drain hose is not kinked or
crushed and that the siphon and filters are not clogged.
If the problem persists, contact the technical assistance
service.
E7
Turbine flow-regulator malfunction
(only for models fitted with this feature)
The appliance is unable to precisely measure the
quantity of incoming water. Interrupt the current program
and switch off the dishwasher. Switch it back on again,
program a new cycle and press start. If the problem
persists, contact the technical assistance service.
E8
Alternate washing systemmalfunction
Interrupt the current program and switch off the
dishwasher. Switch it back on again, program a new
cycle and press start. If the problem persists, contact
the technical assistance service.
E9 Water intake system malfunction
Contact the technical assistance service.
Tab. 4-01b
Light off Light on Light flashing
If an alarm situation occurs, the dishwasher interrupts the current program and
signals the fault.
sm r a l A•E1, E2, E3, E4, E8, E9 immediately terminate the current program.
•Alarms E5, E6 interrupt the current program and, after the problem has been
eliminated, resume the cycle.
•Alarm E7 is displayed at the end of the cycle which, however, is completed
given that it does not jeopardize the operation of the dishwasher.
:mr a l ana” t ese r “oT
s i h t t A. n i agaf f okcabdnanoecna i l ppaeh thc t i wsr o, r oodeh teso l cr onepo•
point, the dishwasher can be programmed again.
- r eSecna t s i ssAl ac i nhceTdez i r oh t uAeh t t ca t noc, s t s i s r ept l ua feh t f I
vice.
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
231
4581012 9 13
11 67 14
½
QuickTime
Auto
Sanitized
Auto
Auto
cancella programma
spegnimento
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
27
min
27min
27min
27min
27min
27min
27min
27min
27min
27min
27min
FAULT DESCRIPTION
E1
Acquastop failure
The anti-ooding system has tripped (only for
models tted with this feature). Activates in
case of water leaks. Contact the technical as-
sistance service.
E2
Safety level
The system limiting the water level in the dish-
washer has tripped. Interrupt the current pro-
gram. Switch o the dishwasher, switch it back
on again, program a new cycle and press start.
If the problem persists, contact the technical
assistance service.
E3
Water heating malfunction
The water is not heated or is incorrectly heat-
ed. Repeat the washing program; if the prob-
lem persists, contact the technical assistance
service.
E4
Water temperature monitoring malfunction
Interrupt the current program. Switch o the
dishwasher, switch it back on again, program
a new cycle and press start. If the problem per-
sists, contact the technical assistance service.
E5
Water intake malfunction
The appliance does not take in water or does
so incorrectly. Make sure the water connec-
tions are correct, that the water supply tap is
open and that the lter is not clogged. If the
problem persists, contact the technical assis-
tance service.
Tab. 4-01a
USER INSTRUCTIONS
EN
16
FAULT DESCRIPTION
E6
Water pump-out malfunction
The appliance does not pump out the water or
does so incorrectly. Make sure the drain hose is
not kinked or crushed and that the siphon and
lters are not clogged.
If the problem persists, contact the technical as-
sistance service.
E7
Turbine ow-regulator malfunction
(only for models tted with this feature)
The appliance is unable to precisely measure the
quantity of incoming water. Interrupt the current
program and switch o the dishwasher. Switch it
back on again, program a new cycle and press start.
If the problem persists, contact the technical assis-
tance service.
E8
Alternate washing system malfunction
Interrupt the current program and switch o
the dishwasher. Switch it back on again, program
a new cycle and press start. If the problem per-
sists, contact the technical assistance service.
E9 Water intake system malfunction
Contact the technical assistance service.
E11 Wash motor pump does not work
Tab. 4-01a
Light o Light on Light ashing
If an alarm occurs the appliance interrupts the program in progress and
signals a fault.
• Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program immediately.
• The E5, E6 alarms interrupts the running program once the cause is
resolved, it
will bring bach the execution of the program.
• The alarm E7 is visualized at the end of the cycle that comes, however,
brought to
the end since the operation of the dishwasher is not harmed.
•E11: Contact the after-sales service.
To “reset” an alarm is necessary:
Open and close the door, or turn o and on the machine. At this point is
possible to program the dishwasher again.
USER INSTRUCTIONS
EN
17
18
USER INSTRUCTIONS
EN
EN
16
USER INSTRUCTION
5 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP-
TER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
•add the rinse-aid and detergent.
5.2Using the rinse-aid and detergent dispensers
The detergent and rinse aid dispensers are situated on the inner part of the door:
the detergent dispenser (ref. A fig. 5-03) is on the left, and the rinse-aid
dispenser (ref. B fig. 5-03) is on the right.
A
B
WITH THE EXCEPTION OF THE SOAK PROGRAM, BEFORE EVERY
WASHING CYCLE IT IS NECESSARY TO ADD THE REQUIRED AMOUNT
OF DETERGENT TO THE DETERGENT DISPENSER. THE RINSE AID,
ON THE OTHER HAND, SHOULD ONLY BE ADDED AS REQUIRED.
Fig. 5-03
• adjust the water softening system;
• add the regenerating salt;
EN
20
USER INSTRUCTION
5 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP-
TER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
• adjust the water softening system;
• add the regenerating salt;
• add the rinse-aid and detergent.
5.1 Using the water softening system
The amount of scale contained in the water (water hardness index) can cause whit-
ish staining on the dry dishes, which tend to become dull over time. The dishwasher
is equipped with an automatic softening system which uses a special regenerat-
ing salt to reduce the hardness of the water. The dishwasher is factory set for water
hardness level 3 (average hardness 41-60°dF – 24-31°dH / 23.6-35 gpg). When us-
ing water of medium hardness, the regenerating salt container should be relled
after approximately 20 washing cycles. The salt container can hold approximately
1.7 Kg (3.75 lb) of salt in grains. Some models are equipped with an optical no-salt
indicator. In these models, the cap of the salt container contains a green oat which
descends as the salt concentration in the water drops. When the green oat can no
longer be seen, the container must be topped up with regenerating salt. The con-
tainer is situated at the bottom of the dishwasher. After removing the lower rack,
unscrew the salt container cap (ref. A g. 5-01) by turning it anticlockwise and pour
in the salt using the funnel (ref. A g. 5-02) supplied with the dishwasher. Before re-
placing the cap (ref. A g. 5-01), remove any salt residues from around the opening.

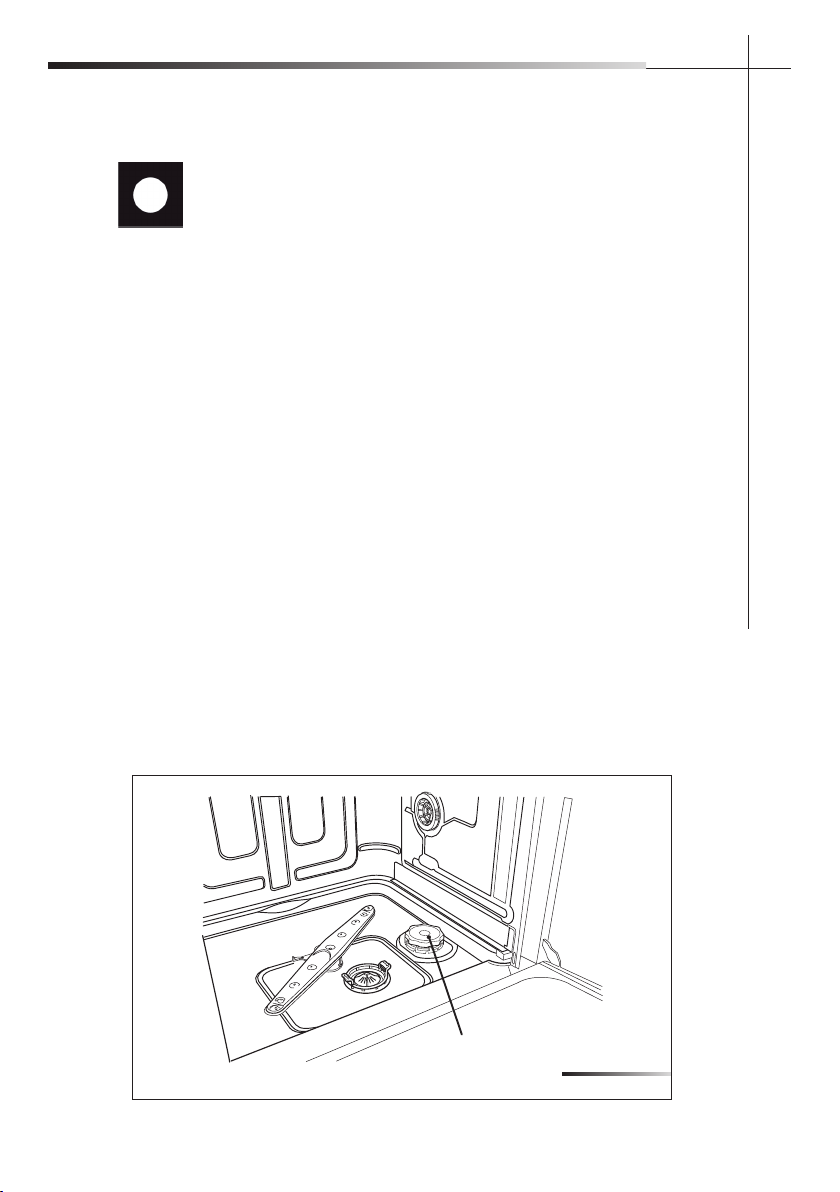

A
Fig. 5-01
EN
20
USER INSTRUCTION
5 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP-
TER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
• adjust the water softening system;
• add the regenerating salt;
• add the rinse-aid and detergent.
5.1 Using the water softening system
The amount of scale contained in the water (water hardness index) can cause whit-
ish staining on the dry dishes, which tend to become dull over time. The dishwasher
is equipped with an automatic softening system which uses a special regenerat-
ing salt to reduce the hardness of the water. The dishwasher is factory set for water
hardness level 3 (average hardness 41-60°dF – 24-31°dH / 23.6-35 gpg). When us-
ing water of medium hardness, the regenerating salt container should be relled
after approximately 20 washing cycles. The salt container can hold approximately
1.7 Kg (3.75 lb) of salt in grains. Some models are equipped with an optical no-salt
indicator. In these models, the cap of the salt container contains a green oat which
descends as the salt concentration in the water drops. When the green oat can no
longer be seen, the container must be topped up with regenerating salt. The con-
tainer is situated at the bottom of the dishwasher. After removing the lower rack,
unscrew the salt container cap (ref. A g. 5-01) by turning it anticlockwise and pour
in the salt using the funnel (ref. A g. 5-02) supplied with the dishwasher. Before re-
placing the cap (ref. A g. 5-01), remove any salt residues from around the opening.
A
Fig. 5-01
USER INSTRUCTIONS
EN
18
EN
21
USER INSTRUCTIONS
A
Fig. 5-02
S A LT
•When using the dishwasher for the rst time, in addition to the salt it is also
necessary to add one liter of water to the container.
•Each time the salt container is relled, make sure that the cap (ref. A g. 5-01)
is securely closed. The mixture of water and detergent must never penetrate
the salt container, as this would compromise the operation of the regeneration
system. In the event of this occurring, the warranty will be invalidated.
•Only use regenerating salt specially formulated for domestic dishwashers. If us-
ing salt tablets, do not ll the container completely.
•Do not use table salt as it contains insoluble substances which, over time, may
damage the water softening system.
•When necessary, rell the regenerating salt container before starting the
washing program. In this way, the excess saline solution will be immediately
removed by the water; the prolonged presence of salt water inside the tank
may lead to corrosion.
BE CAREFUL NOT TO CONFUSE THE SALT AND DETERGENT PACK-
AGES; ADDING DETERGENT TO THE SALT CONTAINER WILL DAMAGE
THE WATER SOFTENING SYSTEM.
USER INSTRUCTIONS
EN
19
20
USER INSTRUCTIONS
EN
EN
16
USER INSTRUCTION
5 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP-
TER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
•add the rinse-aid and detergent.
5.2Using the rinse-aid and detergent dispensers
The detergent and rinse aid dispensers are situated on the inner part of the door:
the detergent dispenser (ref. A fig. 5-03) is on the left, and the rinse-aid
dispenser (ref. B fig. 5-03) is on the right.
A
B
WITH THE EXCEPTION OF THE SOAK PROGRAM, BEFORE EVERY
WASHING CYCLE IT IS NECESSARY TO ADD THE REQUIRED AMOUNT
OF DETERGENT TO THE DETERGENT DISPENSER. THE RINSE AID,
ON THE OTHER HAND, SHOULD ONLY BE ADDED AS REQUIRED.
Fig. 5-03
• adjust the water softening system;
• add the regenerating salt;
EN
17
USER INSTRUCTIONS
5.2.1 Adding the rinse-aid
The rinse aid helps the dishes dry faster and prevents the formation of scale deposits
and staining; it is automatically added to the water during the final rinse cycle, from
the container situated on the inner side of the door.
A
C
B
To add rinse aid:
• Open the door.
• Rotate the container cover (ref. A fig. 5-04) anticlockwise by ¼ of a turn and re-
move it.
• Add the rinse aid until the container is full (approximately 140 ml). The optical
level indicator (ref. B fig. 5-04), on the side of the cap should be completely ob-
scured. Refill the rinse aid when the optical level indicator becomes clear again,
or when the rinse aid warning light illuminates (see “Description of controls”
manual).
• Replace the cover (ref. A fig. 5-04) by turning it in a clockwise direction until it is
fully closed.
• Use a cloth to remove any spillage of rinse aid which might lead to the formation
of excess foam.
5.2.2 Adjusting the rinse-aid dispenser setting
The rinse-aid dispenser can be set to one of 6 dierent levels. The dishwasher is
factory set for medium water hardness (selector set to “3”). To change the setting,
turn the dispenser selector (ref. c fig. 5-04) to the desired position: the amount of
rinse-aid dispensed is proportional to the position of this selector. Make sure that
the minimum amount of rinse-aid (selector turned to “1”) is approximately 1 ml and
the maximum amount (selector turned to “6”) is approximately 6 ml.
Fig. 5-04
USER INSTRUCTIONS
EN
20
USER INSTRUCTIONS
21
EN
EN
16
USER INSTRUCTION
5 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP-
TER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
•add the rinse-aid and detergent.
5.2Using the rinse-aid and detergent dispensers
The detergent and rinse aid dispensers are situated on the inner part of the door:
the detergent dispenser (ref. A fig. 5-03) is on the left, and the rinse-aid
dispenser (ref. B fig. 5-03) is on the right.
A
B
WITH THE EXCEPTION OF THE SOAK PROGRAM, BEFORE EVERY
WASHING CYCLE IT IS NECESSARY TO ADD THE REQUIRED AMOUNT
OF DETERGENT TO THE DETERGENT DISPENSER. THE RINSE AID,
ON THE OTHER HAND, SHOULD ONLY BE ADDED AS REQUIRED.
Fig. 5-03
• adjust the water softening system;
• add the regenerating salt;
EN
17
USER INSTRUCTIONS
5.2.1 Adding the rinse-aid
The rinse aid helps the dishes dry faster and prevents the formation of scale deposits
and staining; it is automatically added to the water during the final rinse cycle, from
the container situated on the inner side of the door.
A
C
B
To add rinse aid:
• Open the door.
• Rotate the container cover (ref. A fig. 5-04) anticlockwise by ¼ of a turn and re-
move it.
• Add the rinse aid until the container is full (approximately 140 ml). The optical
level indicator (ref. B fig. 5-04), on the side of the cap should be completely ob-
scured. Refill the rinse aid when the optical level indicator becomes clear again,
or when the rinse aid warning light illuminates (see “Description of controls”
manual).
• Replace the cover (ref. A fig. 5-04) by turning it in a clockwise direction until it is
fully closed.
• Use a cloth to remove any spillage of rinse aid which might lead to the formation
of excess foam.
5.2.2 Adjusting the rinse-aid dispenser setting
The rinse-aid dispenser can be set to one of 6 dierent levels. The dishwasher is
factory set for medium water hardness (selector set to “3”). To change the setting,
turn the dispenser selector (ref. c fig. 5-04) to the desired position: the amount of
rinse-aid dispensed is proportional to the position of this selector. Make sure that
the minimum amount of rinse-aid (selector turned to “1”) is approximately 1 ml and
the maximum amount (selector turned to “6”) is approximately 6 ml.
Fig. 5-04
USER INSTRUCTIONS
EN
