Smeg FA120A User manual

Instruction Manual
Manuale di istruzioni
en
it
FA120A
FA120AS

Safety first ................................................./1
Transport instructions................................/2
Disposal ..................................................../2
Appliance Setup......................................../2
Get to know your appliance......................./3
Prior to startup.........................................../4
Setting the operating temperature............./4
Freezing ..................................................../5
Defrosting of the appliance (Frozen Food)/5
Cooling....................................................../6
Defrosting of the appliance (Fresh Food)../6
Replacing the interior light bulb................./6
Cleaning and care...................................../7
Practical tips and notes............................./7
Examples of use......................................../8
Normal operating noises............................/8
What, if....................................................../9
Reversing the doors................................../9
Meaning of energy fiche............................/10
en-Index 1- 10
Innanzitutto la sicurezza................................/1
Istruzioni per il trasporto .............................../2
Smaltimento ................................................../2
Installazione dell'elettrodomestico................./2
Conoscere l'elettrodomestico......................../3
Prima dell'avvio ............................................./4
Impostazione della temperatura di funzionamento ./4
Congelamento.............................................../5
Sbrinamento dell'elettrodomestico (cibi congelati) ./5
Raffreddamento............................................./6
Sbrinamento dell'elettrodomestico (cibi freschi) ..... /6
Sostituzione della lampadina interna ............/6
Pulizia e manutenzione ................................./7
Suggerimenti pratici e note............................/7
Esempi di utilizzo.........................................../8
Rumori normali durante il funzionamento ...../8
Cosa fare, se… ............................................./9
Inversione degli sportelli................................/9
Significato della scheda sull'energia ......../10
it-Indice 1- 10

12
2
3
5
6
3
7
4
1
11
8
10
9
13
1

3
4
a b c
1
2
3
5
1
2
33
31
2 a
2 b

6 - a
H
G
D
E
I
F
B
CA

6 - b
1
60°
9
14
60°
5
16
10
2
3
4
8
77
12 12
11
11
6
6
15
13 17
18

7
55 mm
595 mm
820 mm
89
10
a
ac
b
bd
e
b b

en en
1
Congratulations on your choice of our product which will certainly provide you with many years
of good service.
Safety comes first!
Please read this Instruction Manual carefully. It contains important information on how to use
your new appliance. If instructions are not adhered to, you may lose your right to service at
no charge during the warranty period. Please keep this manual in a safe place and pass it on
to later users if applicable.
• Do not connect your appliance to the power supply until all packing and transit protectors
have been removed.
• Leave to stand upright for at least 4 hours before switching on to allow the system to settle
if transported horizontally.
• This appliance must only be used for its intended purpose, i.e. the storing and freezing of
edible foodstuff.
• We do not recommend use of this appliance in an unheated, cold room e.g. garage,
conservatory, annex, shed, outdoors etc., see ‘Location’.
• On delivery, check to make sure that the product is not damaged and that all the parts and
accessories are in perfect condition.
• Do not operate a damaged appliance if in doubt, check with your dealer.
• Do not allow children to play with the appliance.
• Do not sit or stand on, or let the children sit or stand on the appliance or on the pull-out parts.
• Do not hang on the appliance door.
• Your appliance contains no fluoridated coolants (CFC/HFC), but isobutane
(R 600 a), a natural gas which is highly compatible with the environment.
(R 600 a) is easily flammable. Therefore, be sure that the cooling circuit is not damaged
either during transport or during operations.
In the event of damage;
• Avoid any open flame, sources of sparks and flammable substances.
• Immediately air the room in which the appliance is located.
• In case the coolant spraying out contacts you eyes it may cause eye injuries.
• The space in the room where the appliance is installed must not be smaller than 10 cubic
metres.
• Do not dispose of the appliance in a fire. Your appliance contains non CFC substances in
the insulation which are flammable.
• Please contact your local authority in your region for information on disposal methods and
facilities available.
Warning - Keep ventilation openings on the appliance enclosure or in the built-in structure,
clear of obstruction.
Warning - Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Warning - Do not damage the refrigerant circuit.
Warning - Do not use electrical devices inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
• Avoid touching the metal condenser wiring on the backside of the appliance there is risk of
injury.
• In the event of a possible malfunction, disconnect the appliance from the power supply first.
• Prior to cleaning the appliance always unplug the appliance or switch off the circuit breaker.
Do not pull from the power cable. Pull from the plug.
• Repairs to the electrical equipment may only be made by qualified experts. If the power
cable is damaged, the manufacturer or customer service must replace it in order to avoid
danger.

en en
Transport instructions
The appliance should be transported only in
upright position.
The packing as supplied must be intact during
transportation.
f the appliance is transported in the horizontal
position, it must be placed vertically and left
in this position for 4 hours before taking into
operation.
The appliance must be protected against rain,
moisture and other atmospheric influences.
The manufacturer assumes no liability if safety
instructions are disregarded.
Disposal
Make the appliance unusable immediately.
Pull out the mains plug and cut the power
cable. Remove or destroy snap or latch locks
before disposing of the appliance. In this
manner you prevent children from locking
themselves in and endangering their lives.
Appliance setup
• Do not operate your appliance in a room
where the temperature is likely to fall below
10 °C at night and/or especially in winter. At
lower temperatures the appliance may not
operate, resulting in a reduction in the storage
life of the food.
• The climate class rate of your appliance is
given on the rating label located inside the
appliance. It specifies the appropriate operating
ambient temperatures as explained below.
Climatic class Ambient temperatures
SN.......................+10 °C to 32 °C
N .........................+16 °C to 32 °C
ST .......................+18 °C to 38 °C
T..........................+18 °C to 43 °C
SN-ST.................+10 °C to 38 °C
SN-T ...................+10 °C to 43 °C
Location
Only place the appliance in dry rooms which
can be ventilated.
Avoid direct sunlight or direct heat sources
such as a stove or a heater.
If this cannot be avoided, the following
minimum distances should be maintained:
From cookers: 3.00 cm
From heaters: 3.00 cm
From cooling devices: 2.50 cm
• Make sure that sufficient room is provided
around the appliance to ensure free air
circulation.
Fit the two plastic wall spacers supplied with
the appliance rotating 1/4 turn to the condenser
at the back of the appliance (Fig. 2).
• The appliance should be located on a level
surface. The two front feet can be adjusted as
required. To ensure that your appliance is
standing upright adjust the two front feet by
turning clockwise or counter-clockwise, until
the product is in firm contact with the floor.
Correct adjustment of feet avoids excessive
vibration and noise.
Installation (Under the counter)
•Internal height of the counter should be
820mm.
(!) Cookers or other heat sources must not be
placed above the counter where the appliance
is installed under the counter.
• The mains wall socket plug must be close
to the right or left hand side of the appliance.
• Remove the top cover of the appliance. There
are 4 screws(2 pieces at the back, 2 pieces
below the front edge) that should be removed.

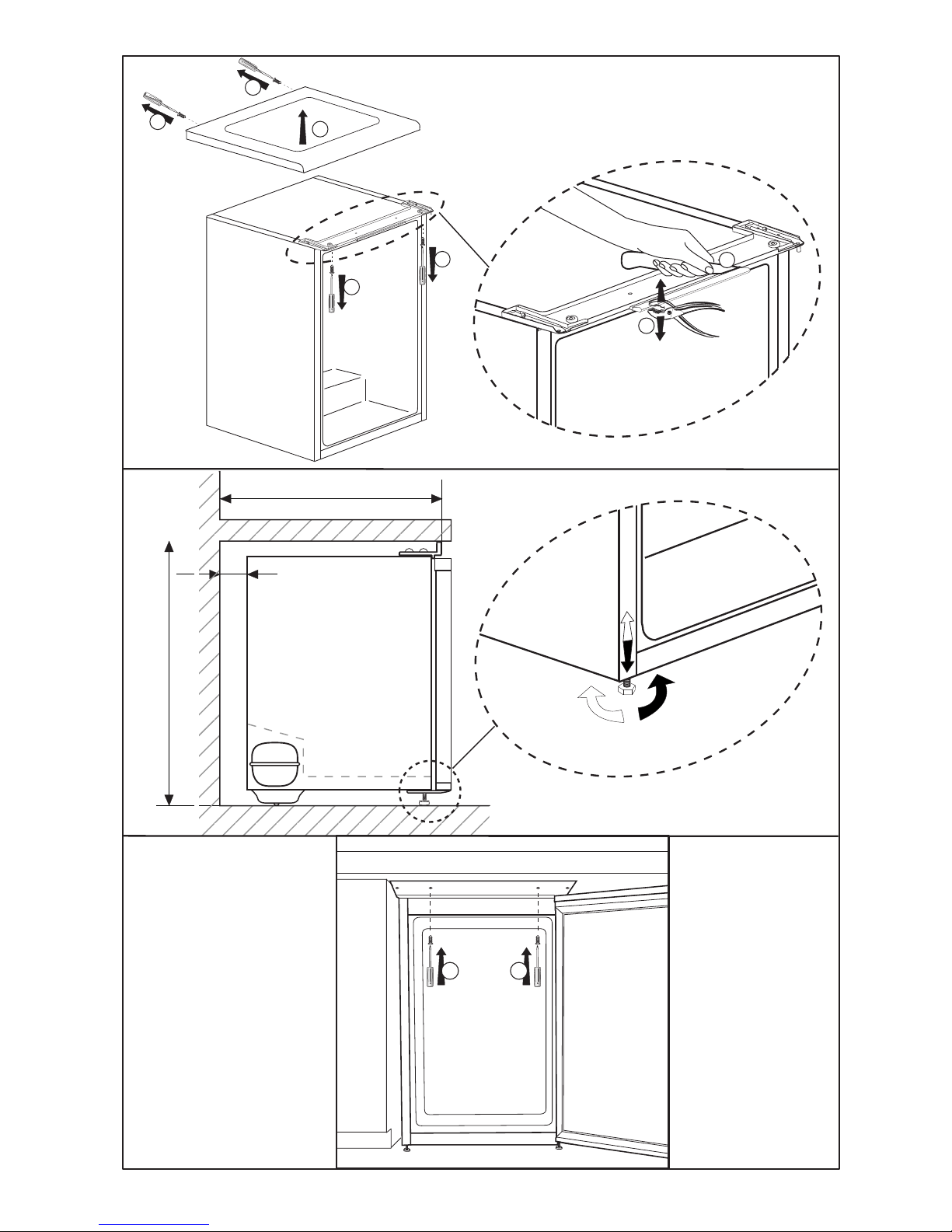

Fig. 9

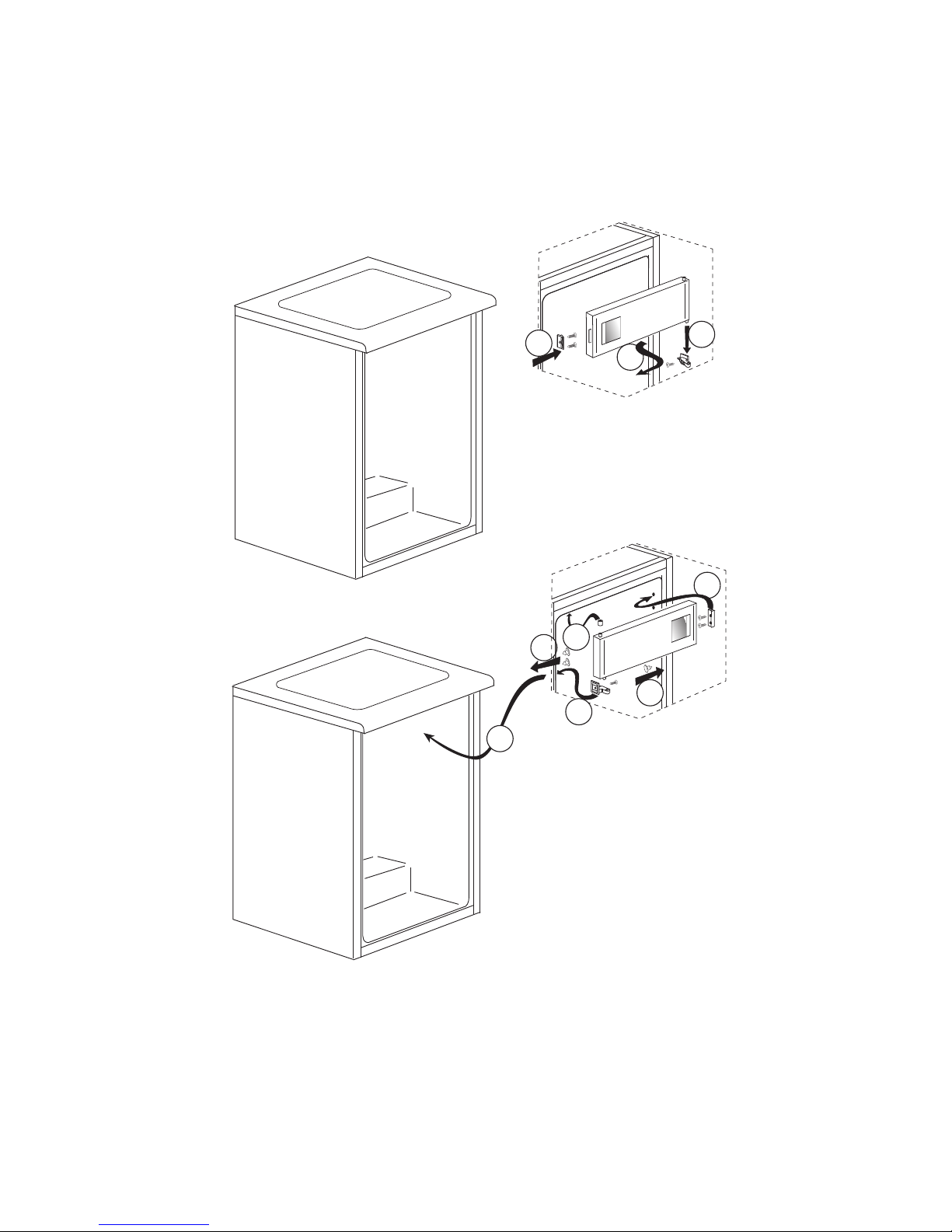

• Cut the part shown in the picture and then
remove it by the help of pliers.
• Place you appliance under the counter and
adjust the front feets until its top touches to
the counter.
In order to use the product under the counter,
the distance between the wall and the
reference indicated in the top connection plastic
must be minimum 595 mm. Fig. 10-11
• Fix the appliance under the counter by using
2 of the screws that was removed from the
top cover.(Material of the counter must be
plastics or wood based!) Fig. 12
2

Get to know your appliance
Warning
Below information about accessories are
supplied only for reference. Below accessories
may not be exactly same as the accessories
of your appliance.
Do not place hot objects or any appliance
that generates heat on the top trim
otherwise the top trim may be damaged.
3
Electrical connections
Warning
This appliance must be grounded.
• Check whether the power type and voltage
your region corresponds to the one stated on
the rating label inside the appliance.
• The electrical safety of the appliance is only
assured when the grounding system in the
house is installed in accordance with
regulations.
• When placing the appliance, do not let the
power cable get stuck under it; otherwise the
cable will be damaged.
• Ensure that the plug remains readily
accessible. Do not use a multiple adapter bar
or an extension cable.
• The electrical specifications of your appliance
is given on the rating label located inside the
appliance.
• Route power cable to allow easy connection
and disconnection after installation.
• A contact separator should be used if the
power cable is not accessible. (for built-in
models)
en en

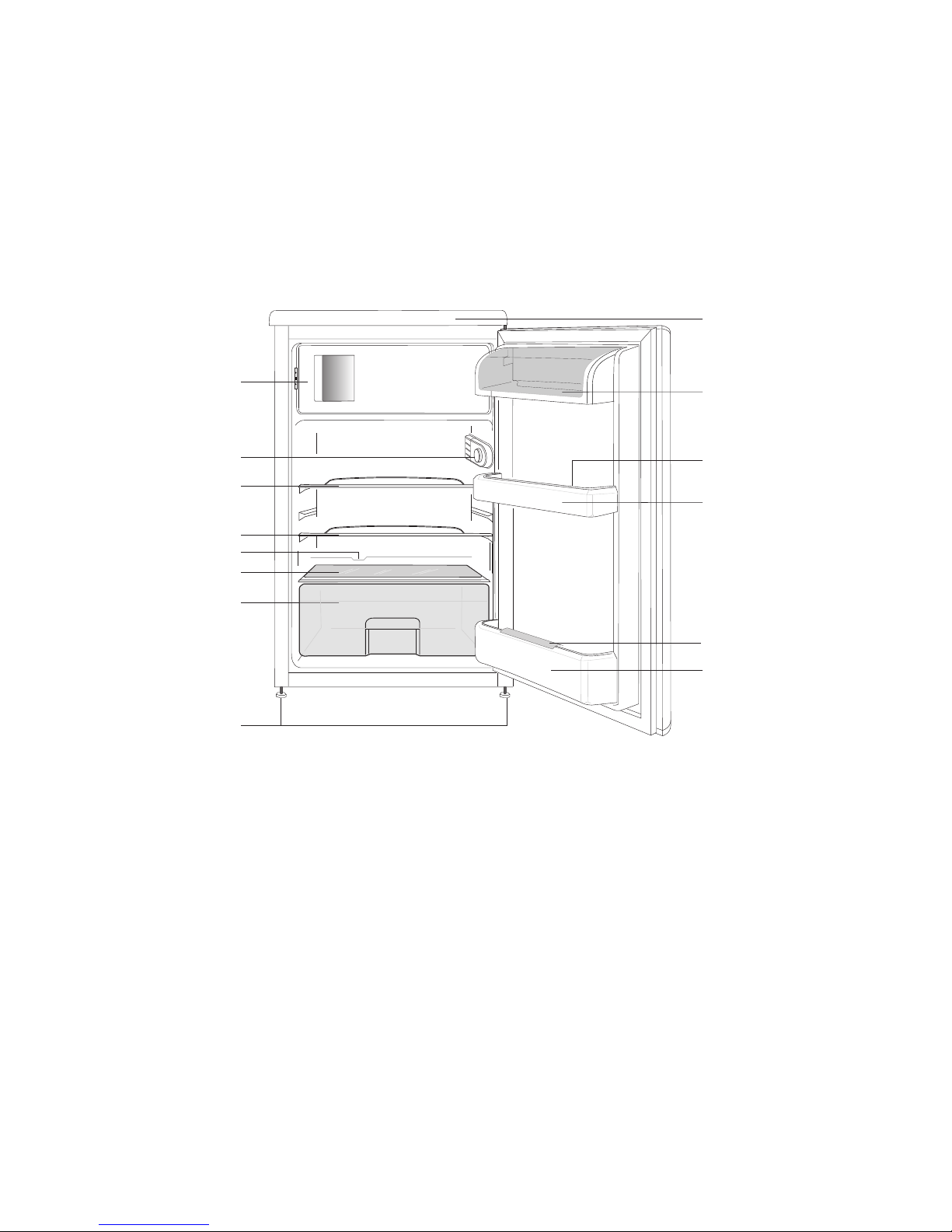

Fig. 1
a.) Freezing compartment & ice tray (for
models)
b.) Frozen food compartment & ice tray (for
models)
Interior light & Thermostat knob
Movable shelves
Defrost water collection channel - Drain tube
Crisper cover
Crisper
Adjustable front feet
Dairy compartment
Door shelves
Egg tray
Bottle shelf
Bottle gripper
Top trim
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
