BEFORE USING THE APPLIANCE................................. 3
General warnings...................................................................... 3
Old and out-of-order fridges...................................................... 5
Safety warnings ........................................................................ 5
Installing and operating your fridge........................................... 6
Before Using your Fridge.......................................................... 7
Information about New Generation Cooling Technology .......... 8
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS ...........................................................9
THE VARIOUS FUNCTION AND POSSIBILITIES ......... 11
Display and control panel .........................................................11
Operating your fridge............................................................... 13
Super freeze mode .............................................................. 13
Super cool mode.................................................................. 13
Economy mode.................................................................... 13
Holliday mode ...................................................................... 14
Drink cool mode................................................................... 15
Screen saver mode.............................................................. 15
Function of Child lock .......................................................... 16
Light cancelling mode .......................................................... 16
Cooler temperature settings .................................................... 17
Freezer temperature settings................................................... 17
Warnings about Temperature Adjustments.............................. 18
ACCESSORIES ..............................................................19
Freezer box.............................................................................. 19
Chiller Shelf ............................................................................. 19
Humidity Controler................................................................... 20
Natural Ion Tech / Ionisier (in some models) ........................... 20
Adjustable Door Shelf.............................................................. 21
Adjustable Glass Shelf............................................................. 21
CLEANING AND MAINTENANCE.................................. 22
Defrosting ................................................................................ 23

EN
2
ARRANGING FOOD IN THE APPLIANCE..................... 24
Refrigerator compartment........................................................ 24
Freezer compartment .............................................................. 25
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION........................................................................30
Repositioning the door............................................................. 30
BEFORE CALLING YOUR AFTER SALES SERVICE... 31
TIPS FOR SAVING ENERGY.......................................... 35

EN
3
BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep vantilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be xed in
accordance with the following instructions:
• If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the cooler)
you should take care during transportation and
installation to prevent the cooler elements from being
damaged. R600a is an environmentally friendly and
natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your
fridge away from open ames or heat sources and
ventilate the room where the appliance is located for
a few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
- staff kitchen areas in shops, ofces and other working
environments.

EN
4BEFORE USING THE APPLIANCE
- farm houses and by clients in hotels, motels and
other residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualied persons in order to avoid
a hazard.
• A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 16 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or
similar qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.

EN
5
BEFORE USING THE APPLIANCE

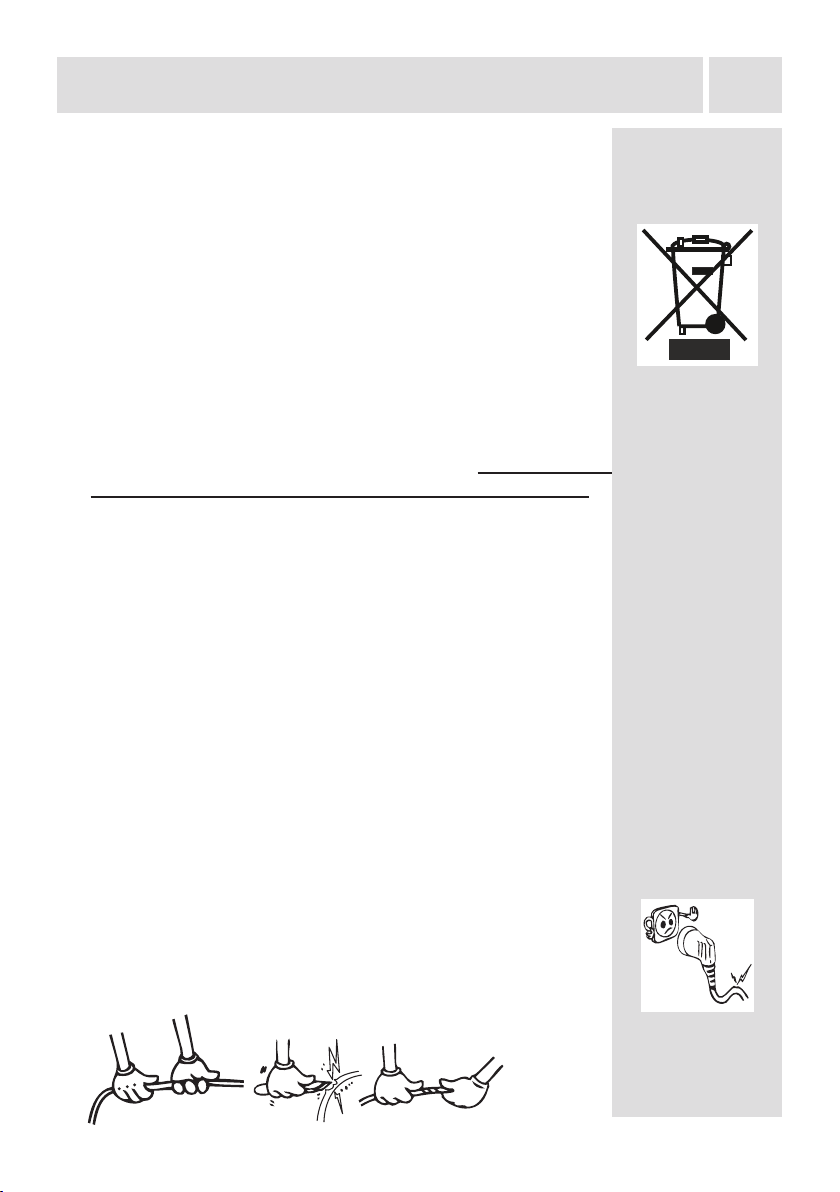

Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
• Old fridges and freezers may contain isolation material
and refrigerant with CFC or HFC. Therefore, take care not
to harm environment when you are discarding your old
fridges.
Please ask your municipal authority about the disposal of the
WEEE reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for losses incurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing food. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses
to be incurred in the contrary case.
Safety warnings
• Do not connect your Fridge Freezer to the mains
electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

EN
6BEFORE USING THE APPLIANCE
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang off the
door.
• Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-
making compartment as they can burst as the contents
freeze.
• Do not place explosive or ammable material in your
fridge. Place drinks with high alcohol content vertically in
the fridge compartment and make sure that their tops are
tightly closed.
• When removing ice from the ice-making compartment, do
not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-
cream or ice cubes immediately after you have taken them
out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This
may cause health issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects
the performance of your fridge.
• Secure any accessories in the fridge during transportation
to prevent damage to the accessories.
Installing and operating your fridge
Before using your fridge, you should pay attention to the
following points:
• The operating voltage for your fridge is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that
occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct
sunlight.
• Your appliance should be at least 50 cm away from stoves,
gas ovens and heater cores, and at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or exposed to
rain.
• When your fridge is placed next to a deep freezer, there

EN
7
BEFORE USING THE APPLIANCE
should be at least 2 cm between them to prevent humidity
forming on the outer surface.
• Do not place anything on your fridge, and install your fridge
in a suitable place so that at least 15 cm of free space is
available above it.
• Use the adjustable front legs to make sure your appliance
is level and stable. You can adjust the legs by turning them
in either direction. This should be done before placing food
in the fridge.
• Before using your fridge, wipe all parts with a
solution of warm water and a teaspoon of sodium
bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes
at the rear) by turning it 90° (as shown in the gure) to
prevent the condenser from touching the wall.
• The refrigerator should be placed against a wall with a free
space not exceeding 75 mm.
Before Using your Fridge
• When using your fridge for the rst time, or after
transportation, keep it in an upright position for at least 3
hours before plugging into the mains. This allows efcient
operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the
rst time. This is normal and the smell will fade away when
your fridge starts to cool.

EN
8BEFORE USING THE APPLIANCE
Information about New Generation Cooling
Technology
Fridges with new generation cooling technology have a
different working system than static fridges. In normal fridges,
humid air that enters into fridge and the water vapor that comes
out from the foods, accumulates frost formation in freezer
compartment. In order to melt this frost, in other words defrost,
the fridge has to be stopped. During the stopping period, to
keep the foods cold, user has to extract the food to outside of
fridge and user has to clear the ice during this period.
In the fridges with new generation cooling technology, situation
in the freezer compartment is completely different. With the
aid of fan, cold and dry air is blown out through many points
into the freezer compartment. As a result of the homogenously
blown cold air, even in the spaces between shelves, foods are
frozen equally and correctly. On the other hand there will be
no frost formation.
In the refrigerator compartment, there will be nearly same
conguration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment,
is cooled while passing through the gap behind the air duct.
At the same time, air is blown out through the holes on the air
duct so that cooling process is successfully completed in the
refrigerator compartment. Holes on the air duct are designed
such that the air distribution becomes homogenous in this
compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.

EN
9
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.

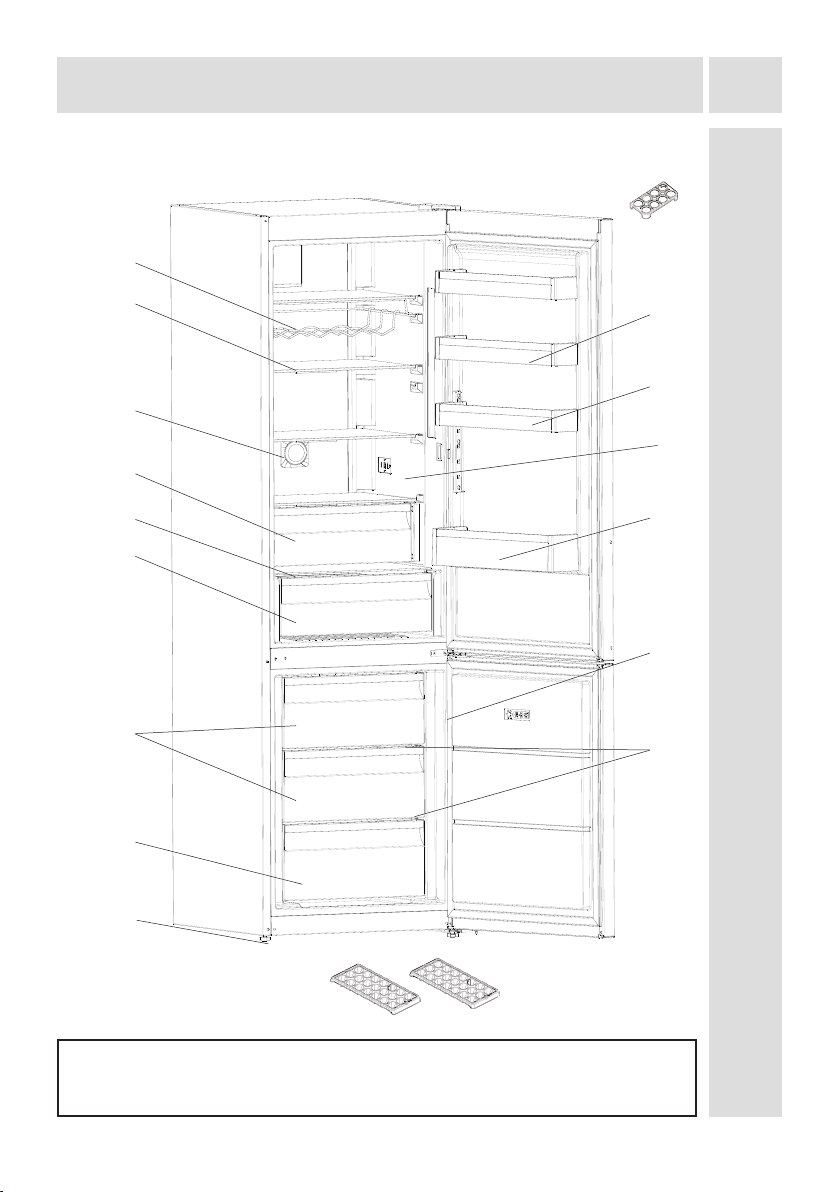

THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A
B
9
1
2
3
4
5
6
7
8
10
11
12
13
14
15

EN
10
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A) Fridge compartment
B) Freezer compartment
1) Wine rack *
2) Fridge shelves
3) Ionisier *
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer top baskets
8) Freezer bottom basket
9) Leveling feet
10) Ice tray
11) Freezer glass shelves
12) Bottle shelf
13) Adjustable door shelf * / Door shelf
14) Door shelf
15) Egg holder
* In some models
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.

EN
11
THE VARIOUS FUNCTION AND POSSIBILITIES
Display and control panel
1
2
3
4
5
6
7
9
10
8
11

EN
12 THE VARIOUS FUNCTION AND POSSIBILITIES
Use of control panel
1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of cooler to be modied and super cool
mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super
cool.
10. It enables the setting value of freezer to be modied and super freeze
mode to be activated if desired. Freezer may be set to -16, -18, -20, -22,
-24°C super freeze.
11. It enables the modes (economy, holiday…) to be activated if desired.

EN
13
THE VARIOUS FUNCTION AND POSSIBILITIES
Operating your fridge
Super freeze mode
How would it be used?
• Press freezer set button until Super freeze symbol will be
seen on the screen. Buzzer will sound beep beep. Mode
will be set.
During this mode:
• Temperature of cooler and super cool mode may be
adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same
operation of selecting.
Super cool mode
How would it be used?
• Press cooler set button until Super cool symbol will be
seen on the screen. Buzzer will sound beep beep. Mode
will be set.
During this mode:
• Temperature of freezer and super freeze mode may be
adjusted. In this case super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation
of selecting.
Economy mode
How would it be used?
• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco
symbol will blink 3 times. When mode is set, buzzer will
sound beep beep.
• Freezer and refrigerator temperature segments will show
"E".
• Economy symbol and E will light till mode nishes.

EN
14
Holliday mode
How would it be used?
• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set.
Holiday symbol will blink 3 times. When mode is set,
buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode nishes.
During this mode:
• Freezer may be adjusted. When holiday mode will be
cancelled , the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.
Holiday mode is automatically cancelled and the selected
mode is activated.
• Economy mode can be selected after cancelling the
holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
During this mode:
• Freezer may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.
Economy mode is automatically cancelled and the selected
mode is activated.
• Holiday mode can be selected after cancelling the
economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
15
Drink cool mode
When would it be used?
This mode is used to cool the drinks within adjustable time.
How would it be used?
• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen
and 05 will blink on cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 -
25 - 30 minutes).
• When you select the time the numbers will blink 3 times on
screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be
set.
• The countdown starts from the adjusted time minute by
minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3 seconds.
Screen saver mode
How to use?
• This mode will be activated when you press on mode
button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is
active, lights of the control panel will go off.
• If you press any button when lights of control panel are off,
the current settings will appear on the screen, and then
you can maket he adjustment as you want. If you neither
cancel screen saver mode nor press on any button in 5
seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5
seconds again.
• When screen saver mode is active you can also activate
child lock.
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
16
• If no button is pressed within 5 seconds after child lock is
activated, the lights of the control panel will turn off. You
can see latest status of settings or modes after you pres
any button. While control panel ‘s light is on, you can cancel
child lock as described in the instruction of this mode.
THE VARIOUS FUNCTION AND POSSIBILITIES
Light cancelling mode
When would it be used?
• If you want to cancel lights of cooler, you can select this
mode.
• While pushing the freezer and mode buttons, open and
close cooler door 3 times. The mode will be selected in
this way. From now on, the lights will not come on when
the function is not cancelled by the same way.
• If you want to cancel this mode, repeat the same process
or the mode will automatically cancel itself after 24 hours.
Function of Child lock
When would it be used?
To prevent children from playing with the buttons and
changing the settings you have made, child lock is available
in the appliance.

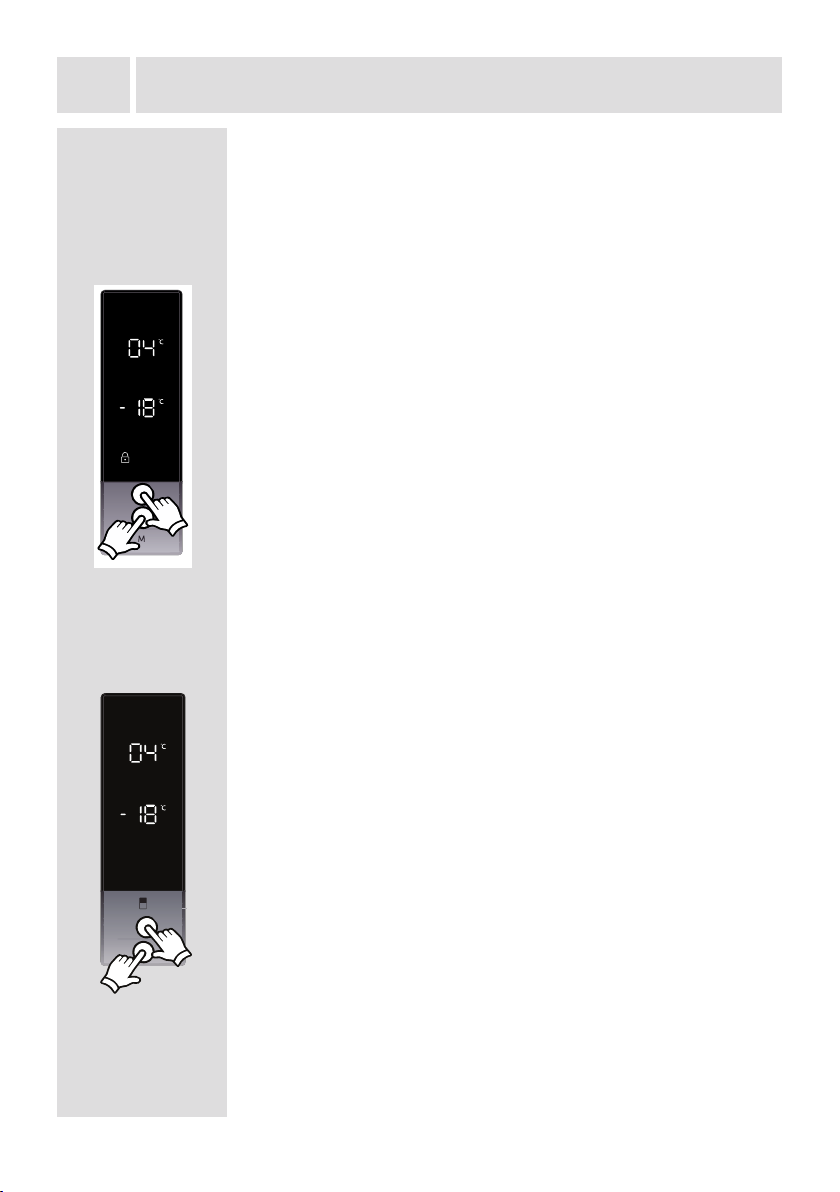

Activating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5
seconds.
Deactivating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5
seconds.
Note: Child lock will also be deactivated if electricity is
interrupted or the fridge is unplugged.

EN
17
Cooler temperature settings
• Initial temperature value for Cooler Setting Indicator is
+4 °C.
• Press cooler button once.
• When you rst push this button, the last value appears on
the setting indicator of the cooler.
• Whenever you press on this button, lower temperature will
be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool
symbol appears, and if you do not push any button in 1
seconds Super Cool will ash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy Mode
is activated will remain the same when the mode is over
or cancelled. The appliance continues to operate with this
temperature value.
THE VARIOUS FUNCTION AND POSSIBILITIES
Freezer temperature settings
• Initial temperature value for Freezer Setting Indicator is
-18°C.
• Press freezer set button once.
• When you rst push this button, the last set value will blink
on screen.
• Whenever you press on this button, lower temperature will
be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze
symbol appears, and if you do not push any button in 1
seconds Super Freeze will ash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy Mode
is activated will remain the same when the mode is over
or cancelled. The appliance continues to operate with this
temperature value.

EN
18 THE VARIOUS FUNCTION AND POSSIBILITIES
Warnings about Temperature Adjustments
• Your temperature adjustments will not be deleted when an energy
breakdown occurs.
• Temperature adjustments should be made according to the frequency
of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to be
completely cooled. Do not open doors of your fridge frequently and do
not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the
compressor of your fridge, when you take the plug off and then plug
it on again to operate it or when an energy breakdown occurs. Your
fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals
stated in the standards, according to the climate class stated in the
information label. We do not recommend operating your fridge out
of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed
for use at an ambient
temperature within the
10°C - 43°C range.
Climate Class Ambient Temperature oC
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

EN
19
ACCESSORIES
Freezer box
The freezer box allows foods are maintained more regularly.
Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
! Make the inverse of the same operation for the resetting the sliding
compartment.
Note: Always Keep the handle of box while removing the box.
Chiller Shelf
Keeping food in the Chiller compartment instead
of the freezer or refrigerator compartment allows
food retain freshness and avour longer, while
preserving its fresh appearance. When chiller tray
becomes dirty, remove it and wash it with water.
(Water freezes at 0°C, but foods containing salt or
sugar freeze at temperature lower than that)
Normally people use the chiller compartment for
raw sh, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Freezer boxes
(In some models)
