Smeg Dual Fuel Range Cooker A3A-5 User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 42
2. INSTALLATION OF THE APPLIANCE________________________ 44
3. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 47
4. FINAL OPERATIONS_____________________________________ 49
5. DESCRIPTION OF CONTROLS ____________________________ 51
6. USE OF THE COOKING HOB ______________________________ 58
7. USE OF THE OVENS_____________________________________ 59
8. ACCESSORIES _________________________________________ 61
9. COOKING HINTS________________________________________ 63
10. CLEANING AND MAINTENANCE ___________________________ 71
11. EXTRAORDINARY MAINTENANCE _________________________ 75
THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE
IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified
technician who must carry out a suitable check of the gas system,
install the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
41

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE
USING THE COOKER. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY
OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.
ALL OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, SWITCH OFF THE POWER
SUPPLY TO THE APPLIANCE AND CALL THE NEAREST TECHNICAL
ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.
NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE
THEY COULD CAUSE A FIRE IN THE HOME.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.
42

Introduction

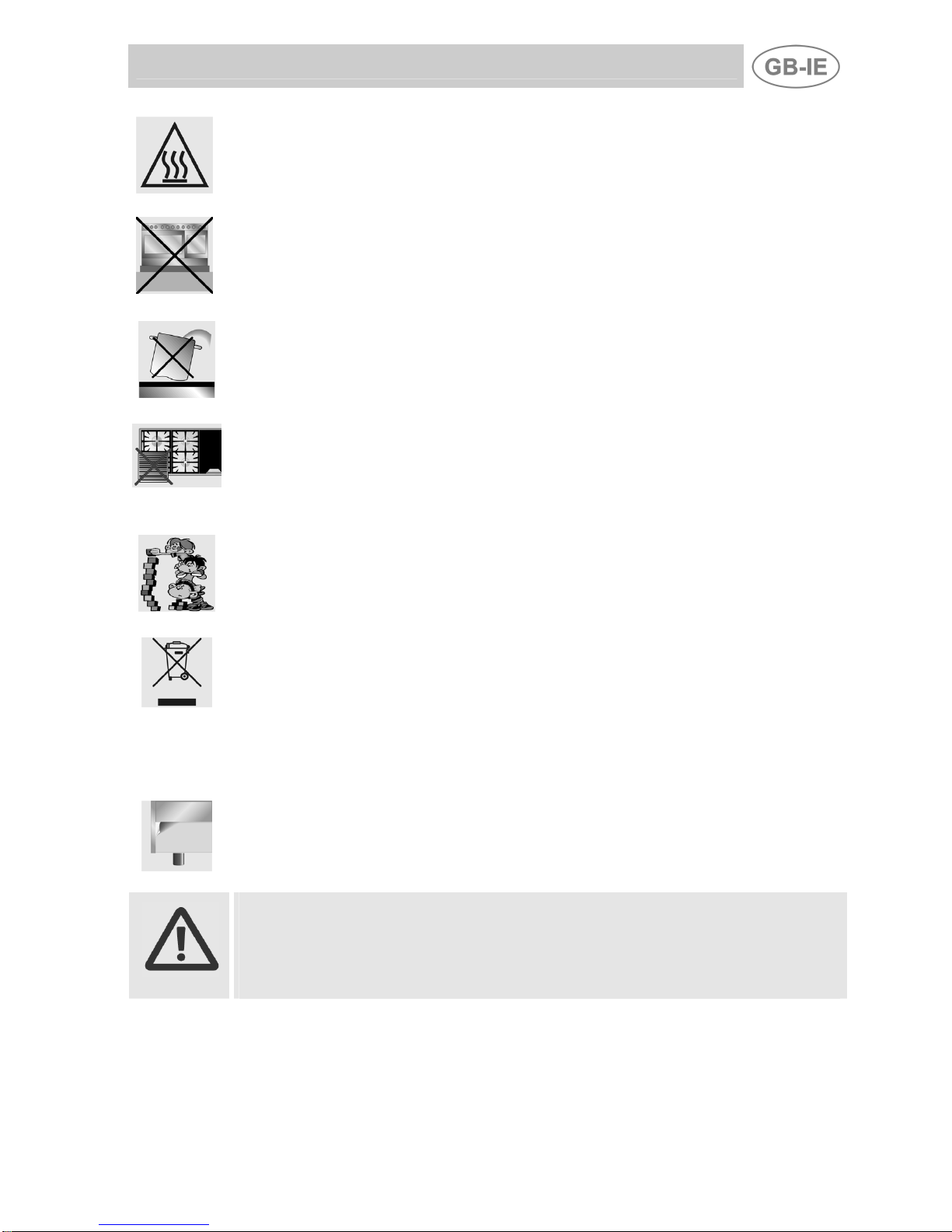

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS
ON THE COOKING HOB GRIDS.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE
OUTER PERIMETER OF THE HOB.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN TO GO NEAR OR PLAY WITH IT.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.
43

Instructions for the installer
2. INSTALLATION OFTHE APPLIANCE
It is the law that all gas appliances are installed by competent persons.
Corgi gas installers are approved to work to safe and satisfactory
standards. All gas installation, servicing and repair work must be in
accordance with the gas safety regulations 1984 (installation and use) as
amended 1990.

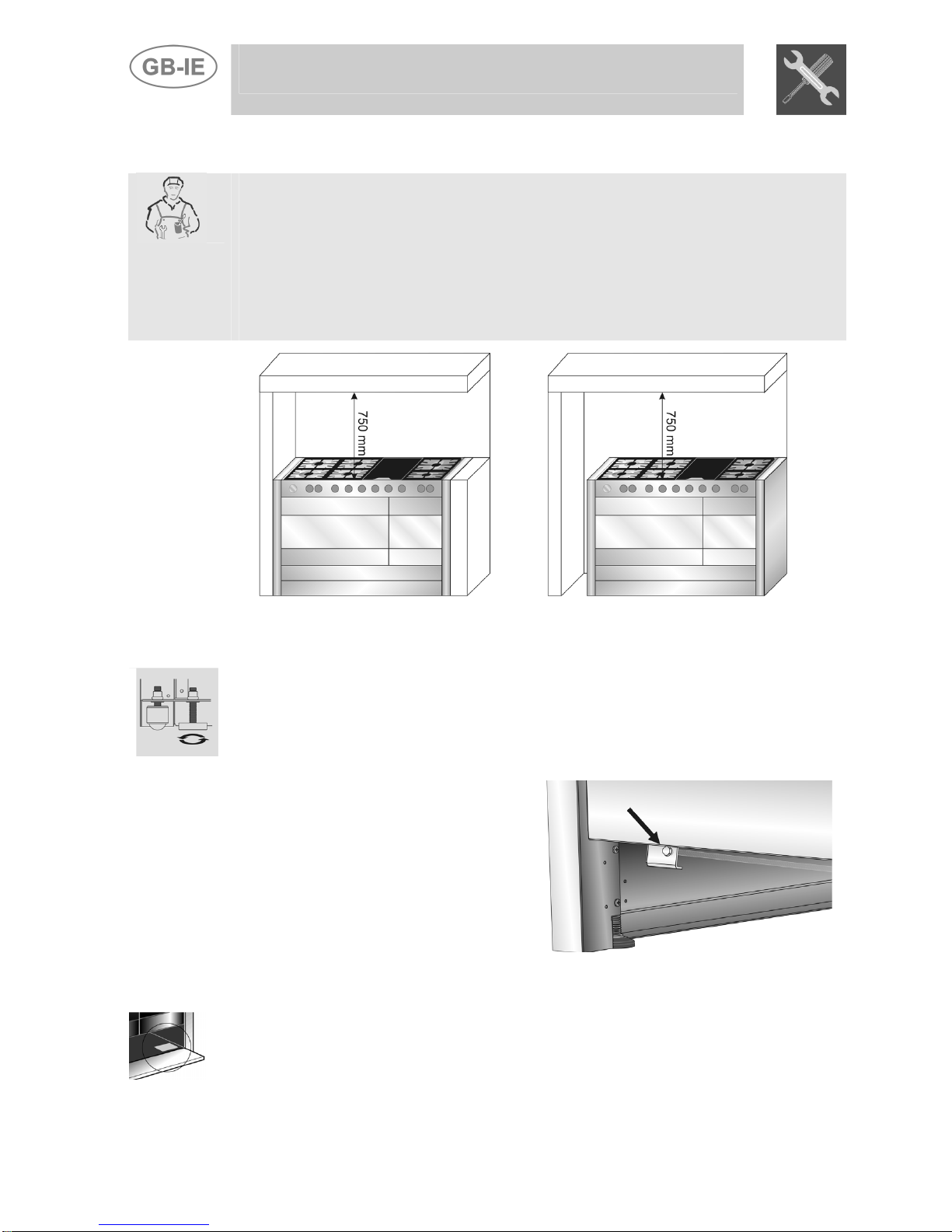

It can be placed against walls higher than the hob, at a distance of at
least 50 mm from the side of the appliance, as shown in the drawings A
and B relating to the installation classes. Wall units or extractor hoods
located above the hob must be at least 750 mm away from it.
AB
SLOT IN FREE STANDING
2.1 Positioning and levelling of the appliance
The appliance is equipped with wheels and adjustable feet to simplify the
positioning procedure. To use the front wheels, screw in the foot as
shown here, so that the appliance rests on the front wheels. However, to
allow the appliance to be moved freely it must be lifted at the back. To do
this, proceed as follows:
use a 10 socket wrench to screw in
the 2 hex nuts underneath the oven
compartment: this raises the
appliance either to level it or to
allow it to be moved around.
Once all procedures are complete,
unscrew the front feet and the hex
nuts to set the cooker stable and
level.
2.2 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.
44

Instructions for the installer
The connection to the mains shall be done conforming to the regulations
in force. Check that the power line is adequately grounded. Do not use
reducers, adapters or shunts. On the power line, install an omnipolar cut-
off device with contact cut-off distance greater than or equal to 3 mm,
located in an easily accessible position near the unit.

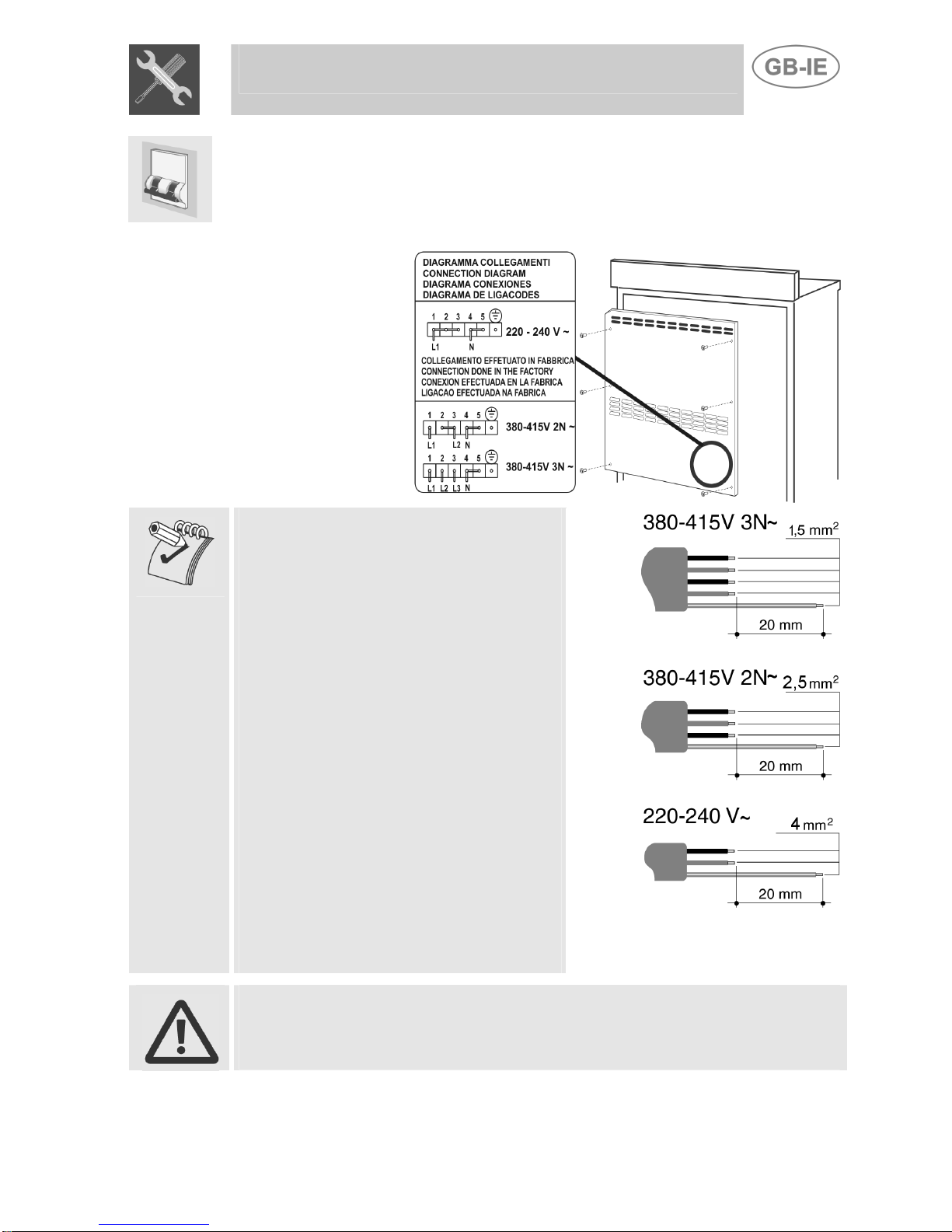

The connection terminals are
located at the rear of the
appliance. For electrical
connections see following
diagram. To access, remove
the rear cover.
For operation on 380-415V3N ∼ :use
an H05RR-F-type five-core cable (5 x
1.5 mm2).
For operation on 380-415V2N ∼ :use
an H05RR-F-type four-core cable (4 x
2.5 mm2).
For operation on 220-240V ∼ :use an
H05RR-F-type three-core cable (3 x 4
mm2).
The cable end to be connected to the
appliance must be provided with an
ground wire (yellow-
g
reen) at least 20
mm longer.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.
45

Instructions for the installer
2.3 Ventilation requirements
The room containing the appliance should have an air supply in accordance with
B.S. 5440 part 2 1989.
1. All rooms require an opening window or equivalent, and some rooms will
require a permanent vent as well.
2. For room volumes up to 5 m3an air vent of 100 cm2is required.
3. If the room has a door that opens directly to the outside, and the room
exceeds 1 m3no air vent is required.
4. For room volumes between 5 m3and 10 m3an air vent of 50 cm2is required.
5. If there are other fuel burning appliances in the same room B.S. 5440 part 2
1989 should be consulted to determine the air vent requirements.
6. This appliance must not be installed in a bed sitting room of less than 20 m3
or in a bathroom or shower room.
Windows and permanent vents should therefore not be blocked or removed
without first consulting a Corgi gas installer.
Failure to install appliances correctly is dangerous and could lead to
prosecution.

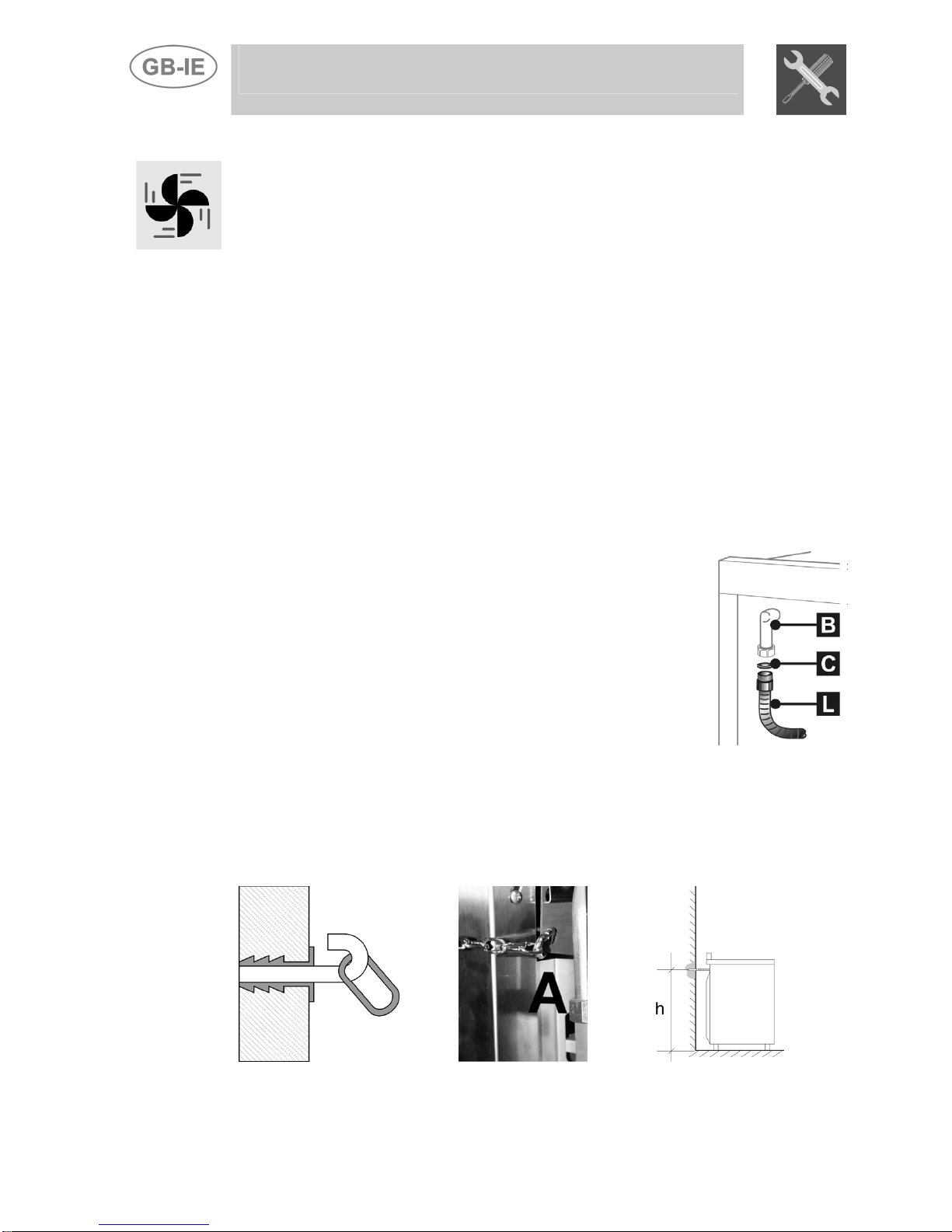

2.4Connecting to natural and LPG gas (Please see connection
diagram)
Make the connection to the appliance using flexible bayonet
style hose in accordance to B.S. 669. The hose connection at
the rear of the appliance has a 1/2" BSP internal thread.
Please use seal Cbetween the flexible connection Land the
appliance supply tube B. When making the connection, make
sure that no stress of any kind is applied to the cooker and
that the hose does not touch any sharp edges.
If connecting to LPG the bayonet hose must have red
bands on it.
2.5 Instruction for wall fixing (only on some models)
1) Fix the screw to the wall and hook the chain (B);
2) Hook the chain to the hole positioned at the rear of the cooker by the gas
pipe (A);
3) Once the chain is in position, push the cooker against the wall;
4) The height of the screw hole from floor level must not exceed 800 mm (C).
A
B
C
46

Instructions for the installer
3. ADAPTATIONTO DIFFERENTTYPES OF GAS
Before performing any cleaning or maintenance work, switch off the
power supply to the appliance.
The cooking hob of the cooker is preset for G20 natural gas at a
pressure of 20 mbar. In the case of functioning with other types of gas the
burner nozzles must be changed and the minimum flame adjusted on the
gas taps. Replace the burner nozzles as indicated in the table of the gas
to be used.

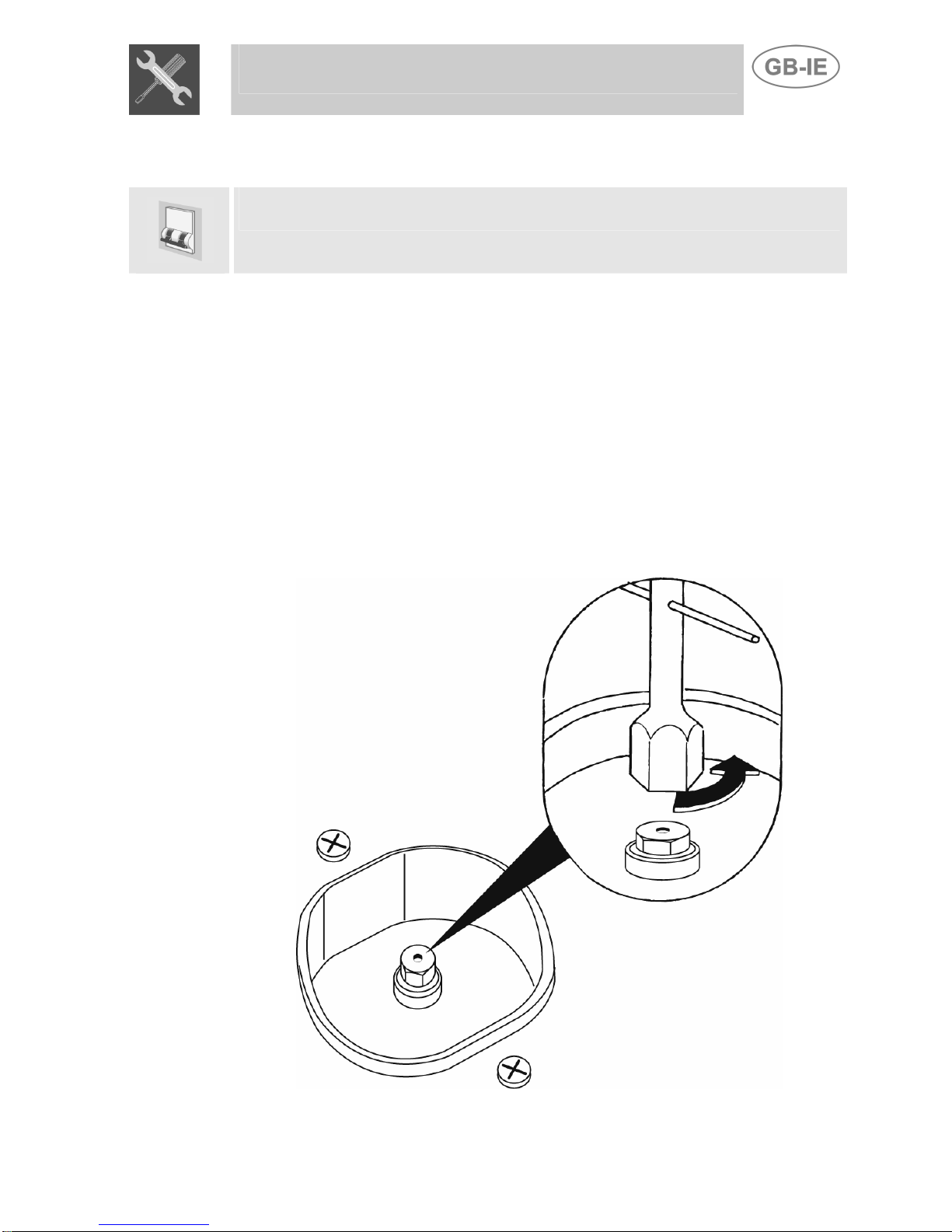

3.1 Changing nozzles
1. Extract the grids and remove all the caps and flame-spreader
crowns;
2. unscrew the burner nozzles with a 7 mm socket wrench;
3. proceed with replacing the burner nozzles in accordance with the
table for the gas in question.
47

Instructions for the installer
3.2 Burner and nozzle characteristics table
Burner Rated heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
(drawing ref. X238)
Nozzle
diameter
1/100 mm
By-pass
Mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30 Flowrate g/h G31
Auxiliary 1.05 50 30 360 76 75
Semi rapid 1.8 65 33 450 131 129
Rapid 3.0 85 45 750 218 215
Fish Burner 1.9 68 45 800 138 136
Triple crown 3.3 91 68 1600 218 215
Burner Rated heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm Drawing Ref. Reduced flowrate (W)
Auxiliary 1.05 72 (X) 360
Semi rapid 1.8 97 (Z) 450
Rapid 3.0 115 (Y) 750
Fish Burner 1.9 94 (X) 800
Triple crown 3.5 133 (S) 1600

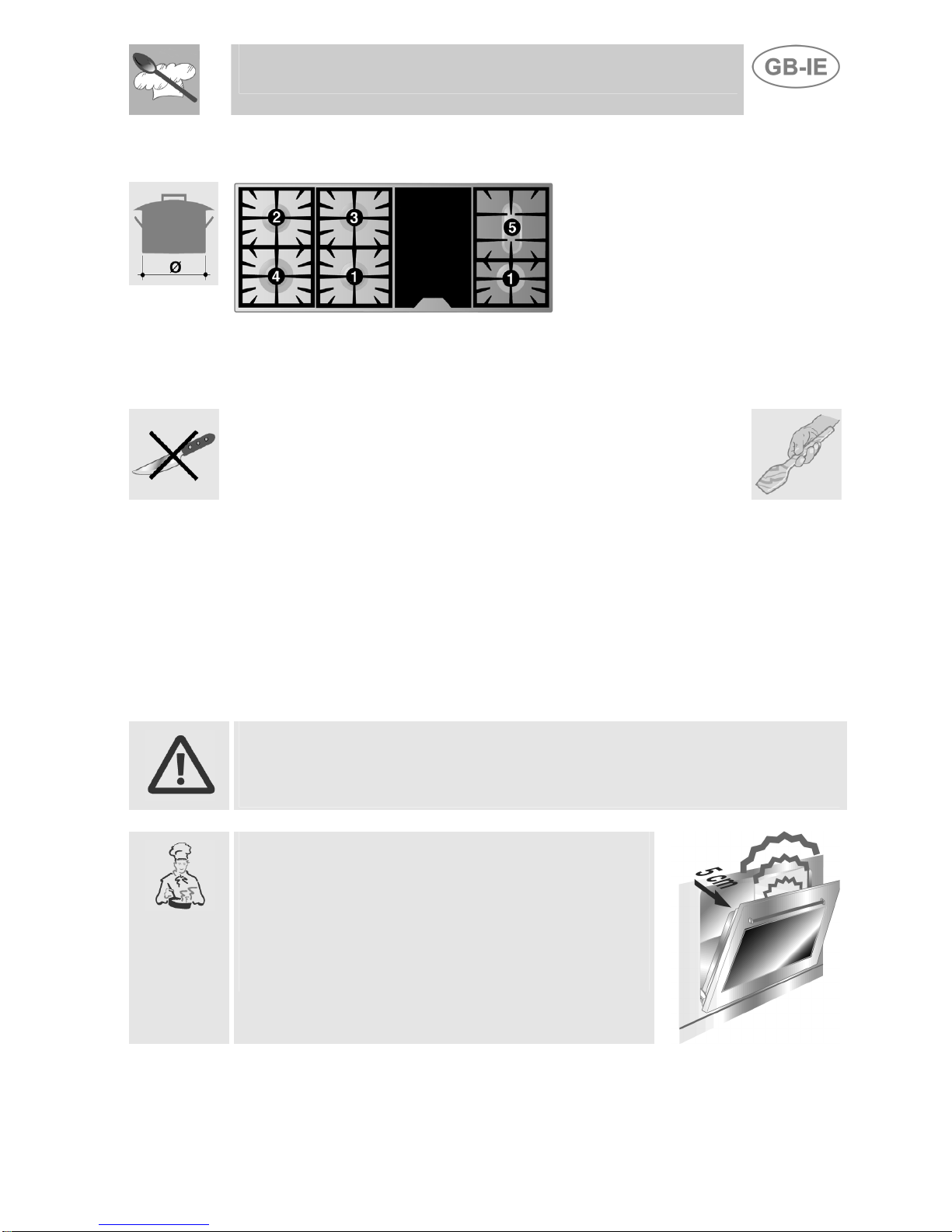

3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Triple crown
5 Fish burner
48

Instructions for the installer
4. FINAL OPERATIONS
After replacing the nozzles, reposition the flame-spreader crowns, the
burner caps and the grids.
Following adjustment to a gas other than the preset one, replace the gas
adjustment label fixed to the appliance with the one corresponding to the
new gas. This label is in the packet together with the nozzles.

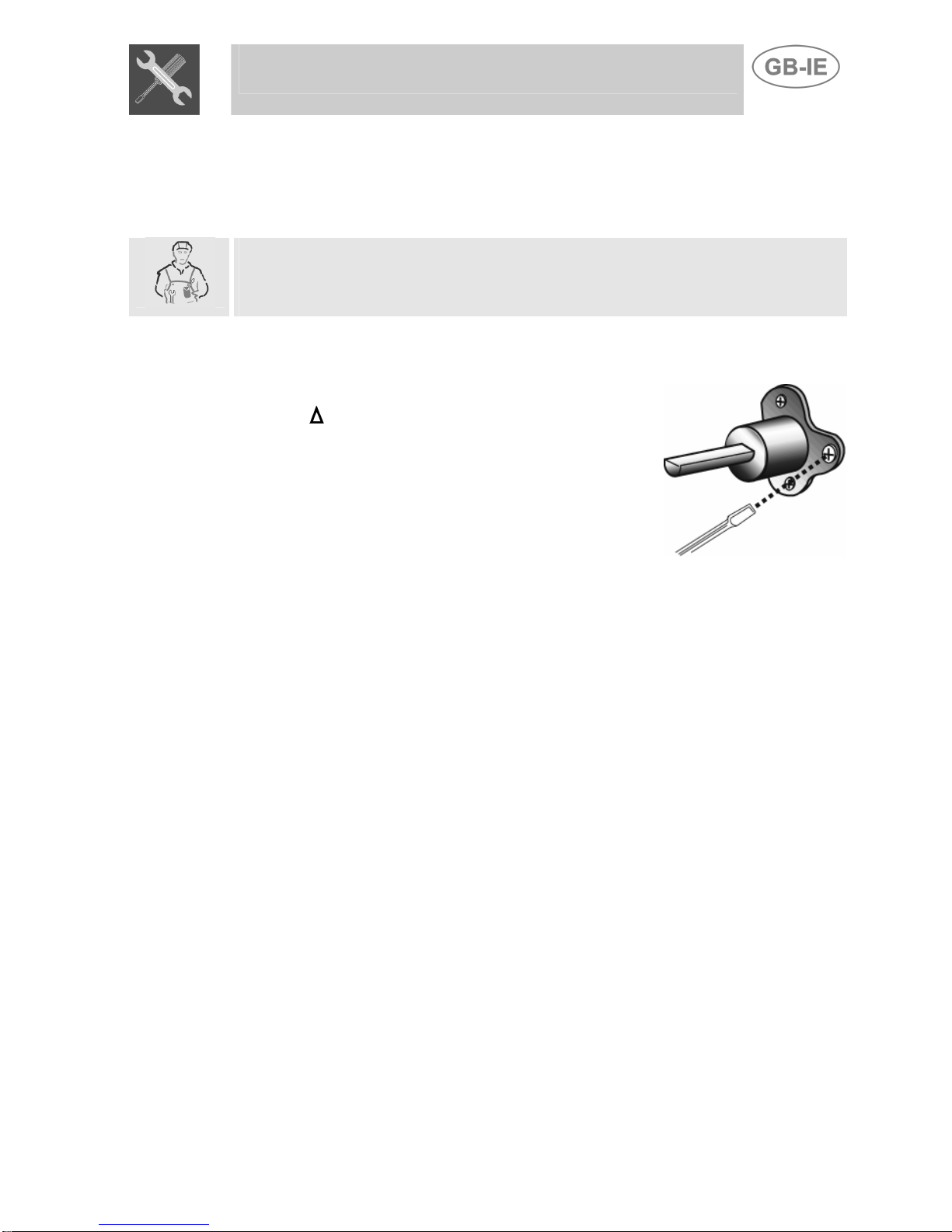

4.1 Adjustment of minimum for natural gas
Light the burner and turn it to the minimum
position . Extract the gas tap knob and turn the
adjustment screw at the side of the tap rod until
the correct minimum flame is achieved.
Replace the knob and check burner flame
stability: (rapidly turning the knob from maximum
to minimum position, the flame should not go
out). Repeat the operation on all the gas taps.
4.2 Regulation of minimum for LPG
For regulating the minimum with LPG, the screw at the side of the tap rod
must be turned clockwise all the way.
The bypass diameters for each individual burner are shown in paragraph
“3.2 Burner and nozzle characteristics table”. When adjustment is
complete, re-seal the by-passes using wax or an equivalent material.
49

Instructions for the installer

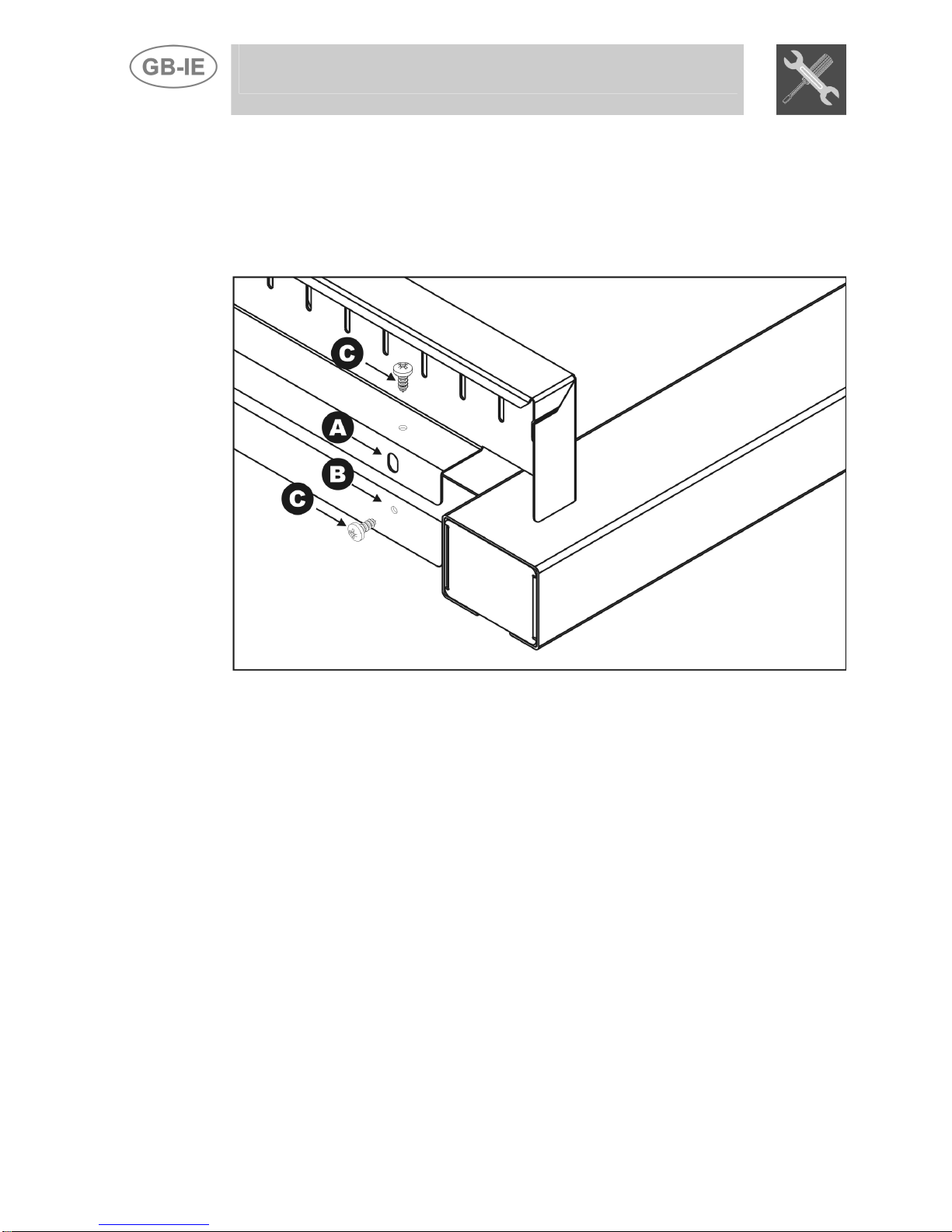

4.3 Mounting the rear top upstand
• Position the upstand above the top, taking care to align holes Awith
holes B.
• Secure the upstand to the top by tightening screws C.
50

Instructions for the user
5. DESCRIPTION OF CONTROLS
5.1 Front control panel
All the cooker controls and commands are on the front panel.
The user has only to press the central key for 1 - 2 seconds to enable
use of the oven on first use or after a power blackout.
DESCRIZIONE DEI SIMBOLI
FRONT LEFT BURNER
BACK LEFT BURNER
FRONT CENTRAL
BURNER
BACK CENTRAL
BURNER
FRONT RIGHT BURNER BACK RIGHT BURNER
BARBECUE ELEMENT
MAIN OVEN
THERMOSTAT
AUXILIARY OVEN
THERMOSTAT
MAIN OVEN
FUNCTIONS AUXILIARY OVEN
FUNCTIONS
MAIN OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by
turning the knob clockwise to the required temperature,
between 50° and 250°C.
The tell-tale light comes on to indicate that the oven is
warming up. When it goes out it means that the
required temperature has been reached. Intermittent
going on and off of the light means that the oven
temperature is being constantly maintained at the
programmed level.
51

Instructions for the user

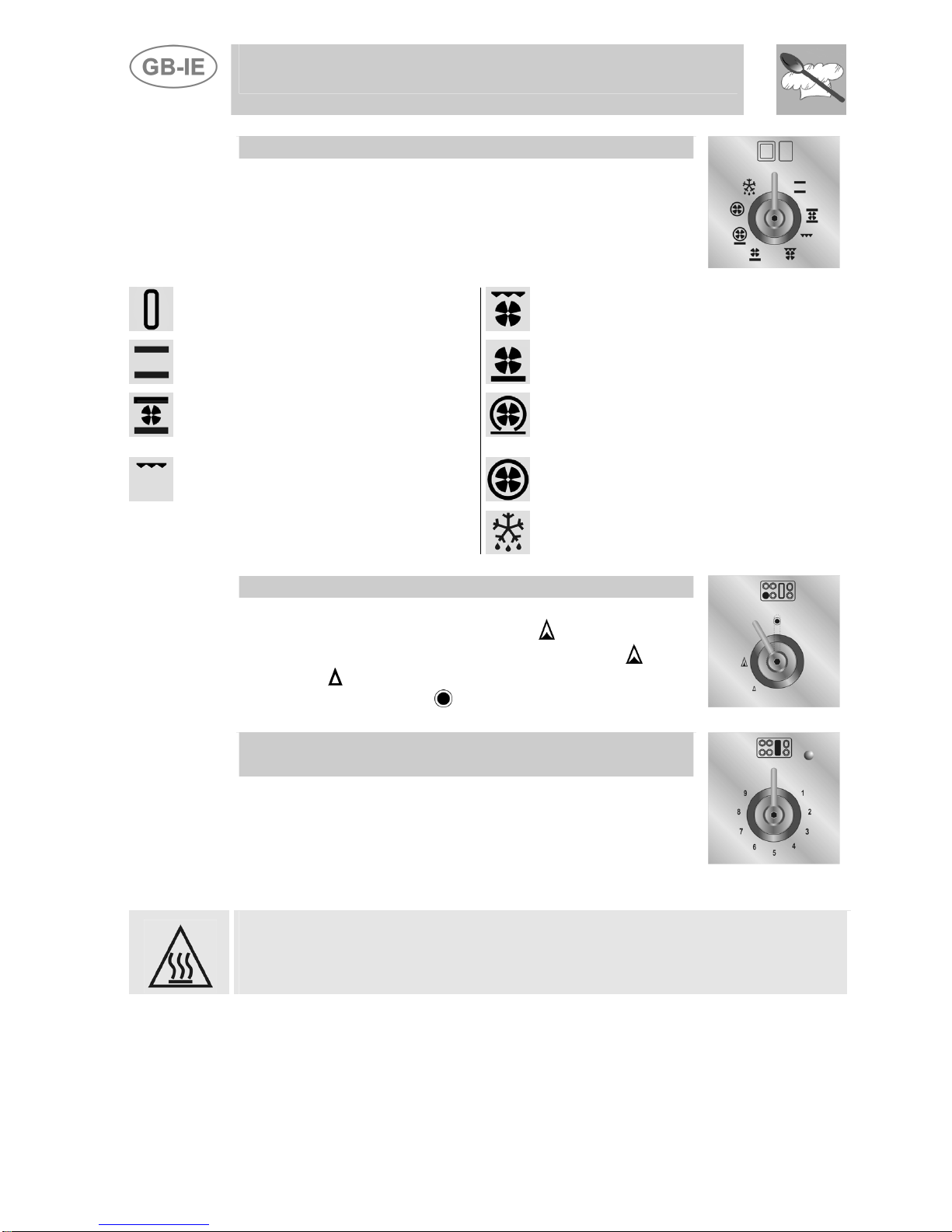

FUNCTION SWITCH KNOB
Turn the knob to select from the following functions:
NO FUNCTION SET GRILL ELEMENT + VENTILATION
UPPER AND LOWER HEATING
ELEMENT
LOWER HEATING ELEMENT +
VENTILATION
UPPER AND LOWER HEATING
ELEMENT + VENTILATION
LOWER HEATING ELEMENT +
VENTILATED HEATING
ELEMENT
GRILL ELEMENT VENTILATED HEATING
ELEMENT + VENTILATION
DEFROSTING
COOKING HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it
anticlockwise to maximum flame . To adjust the
flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is
returned to the position .
BARBECUE ELEMENT POWER REGULATOR
KNOB
This knob allows adjustment of the power of the
barbecue griddle on the hob. Set the knob on any
position from “1” to “9” to turn on the heating element.
The pilot light illuminates to indicate that the element is
in operation.
To switch off the element, turn the knob to “0”.
CAUTION: after it has been in operation for some time, the plate will
remain hot even after the element has been switched off: keep children
at a safe distance.
52

Instructions for the user
AUXILIARY OVEN VARIABLE GRILL KNOB
Position the auxiliary oven thermostat knob on the
symbol or .
Turn the variable grill knob clockwise to the desired
position.
When the signal light comes on the grill is engaged.
AUXILIARY OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by
turning the knob clockwise to the required temperature,
between 50° and 220°C.
The tell-tale light comes on to indicate that the oven is
warming up. When it goes out it means that the
required temperature has been reached. Intermittent
going on and off of the light means that the oven
temperature is being constantly maintained at the
programmed level.
The oven is switched on by turning the knob clockwise
to any one of the following functions except the oven
light:
NO FUNCTION SET GRILL ELEMENT (spit)
UPPER AND LOWER HEATING
ELEMENT (between 50° and 220°C) UPPER HEATING ELEMENT
+ GRILL ELEMENT
LOWER HEATING ELEMENT
53

Instructions for the user
5.2 Electronic Analogue Clock
LIST OF FUNCTIONS
MINUTE-MINDER BUTTON
AUTOMATIC SWITCH-OFF TIMING BUTTON
TIME SETTING AND RESET
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
5.2.1 Setting the time
When the oven is used for the first time, or after a power blackout, the
display flashes on and off at regular intervals. Press the key for 1/2
seconds to stop the display flashing and start setting of the current time.
Press the value modification keys or to increase or decrease by
one minute for each time a key is pressed.
Press one of the two value modification keys until the current time
appears. The clock will start from the time set 6/7 seconds after the last
key is pressed.
At the end of each programmed cooking operation, the clock gives 8
beeps, repeated 3/4 times at intervals of about 1 and a half minutes.
The beeps can be stopped at any moment by pressing any key.
54

Instructions for the user

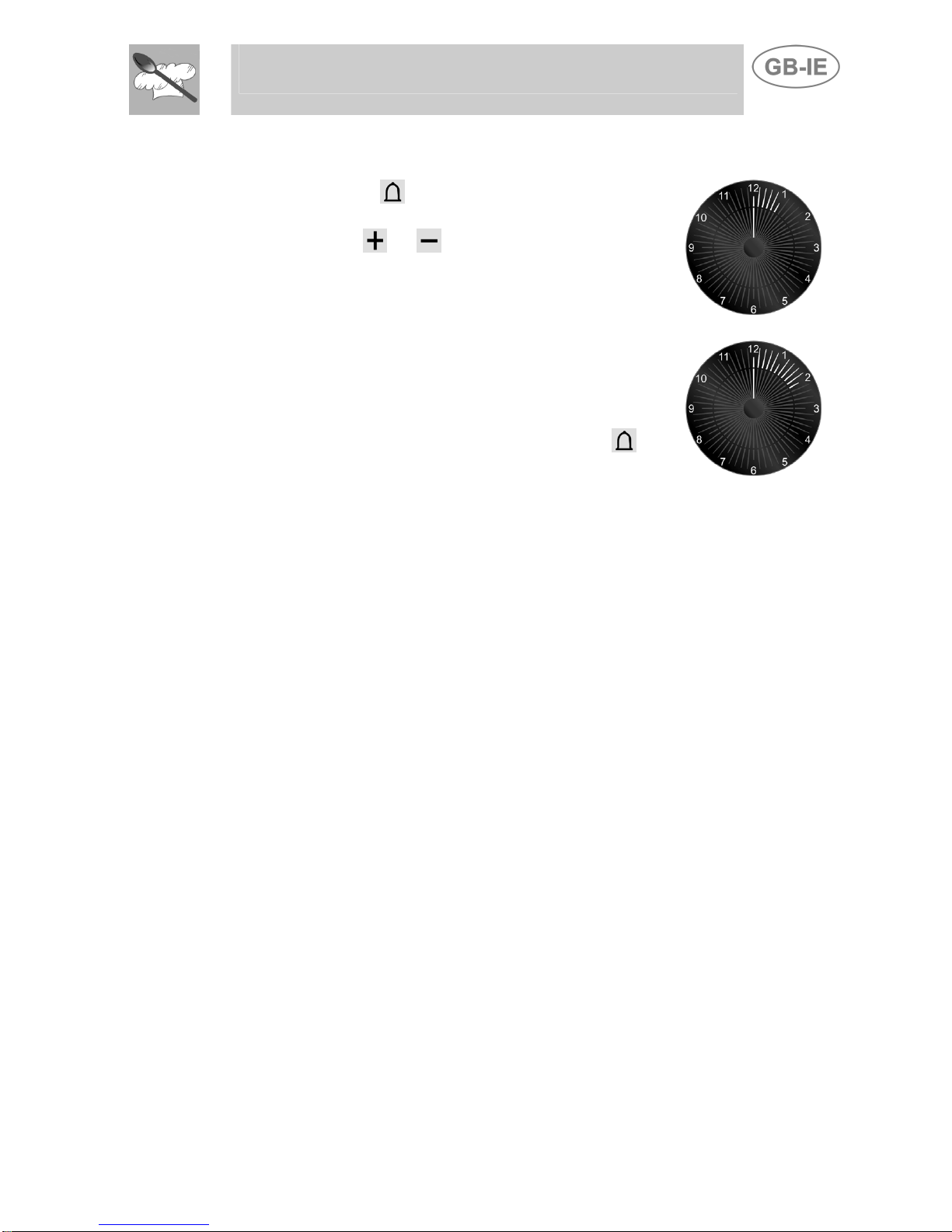

5.2.2 Minute-minder
This function does not stop cooking but just triggers the beeps.
- When the key is pressed the display
illuminates, appearing as shown in figure 1;
- Press the or keys within 6/7 seconds to
set the minute-minder. Whenever a key is
pressed, 1 outside segment, representing 1
cooking minute will light up (figure 2 shows 10
cooking minutes).
- The countdown will start 6/7 seconds after the
last key is pressed; at the end of it, you will hear
the beeps.
- During cooking with countdown, the current
time can be displayed by pressing the key
once; press again to return to the minute-
minder display.
- At the end of the countdown, the oven has to be
switched off by hand, by turning the thermostat
and the function selector to 0.
1
2
55

Instructions for the user

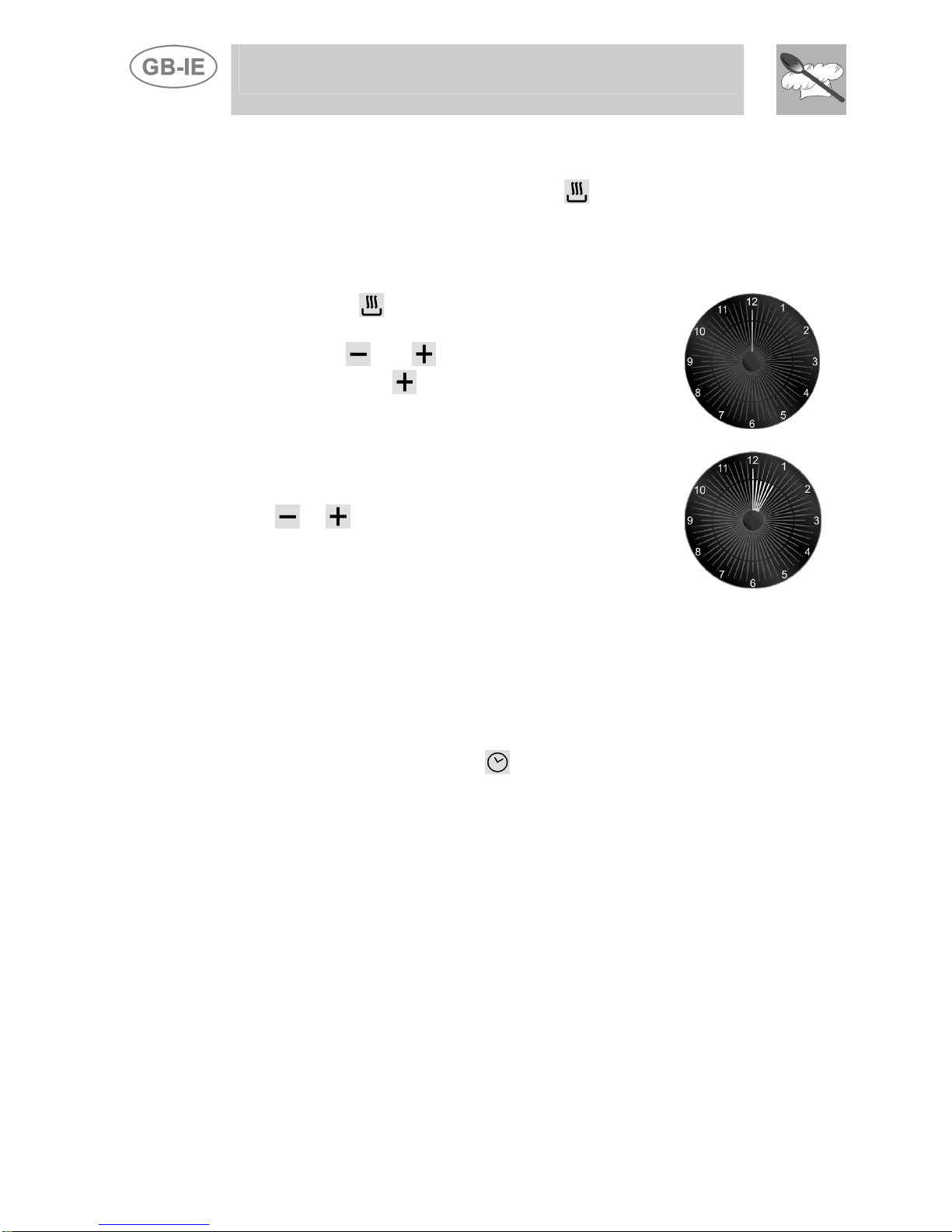

5.2.3 Programming
Cooking duration time: the 2nd button can be used to set the cooking
time. Before setting it, turn the thermostat to the cooking temperature of
choice and the function selector knob to any setting. To set the cooking
time, proceed as follows:
- Press the key for 1/2 seconds; the pointer will
move to position 12 (Fig. 1).
- Use the and keys to set the cooking time;
whenever the key is pressed, 1 minute will be
added to the cooking time, and every 12 minutes
a new inside segment will light up (figure 2
shows a cooking time of 1 hour).
- Once the required time has been set, cooking
will start about 6 seconds after the last time the
or . key is pressed.
- Once cooking has started, the display will show
the current time, represented by the constantly
on segments, and the minutes left until cooking
finishes, represented by the flashing segments
(every flashing segments indicates 12 minutes of
cooking time left).
1
2
- When the end of the cooking time is reached, the timer will switch
off the oven heating elements, the beeps will start and the numbers
on the dial will flash.
- The cooking time can also be reset by deleting the program set;
pressing the central key for 1 or 2 seconds will delete the time
set and the oven will have to be switched off by hand.
Caution: cooking times of more than 6 hours cannot be set.
56

Instructions for the user
Cooking start: as well as setting a cooking duration time, the user can
also set the cooking start time (up to 12 hours after the current time). To
set the cooking start/end time, proceed as follows.
- Set the cooking duration time as described in the previous point.
- Within 6/7 seconds after the last time the or keys are
pressed, press the key to set the cooking start time. The display
will show the current time with the inside segments indicating the
cooking end time illuminated. Use the and keys to set the
cooking start time.
- 6/7 seconds after the last time a key is pressed, the display will
show the current time and the cooking start and end times, indicated
by the illuminated inside segments. The segments on the display
will be constantly on until the current time is the same as the
cooking start time; as soon as the current time reaches the cooking
start time set, all the inside segments will start to flash, indicating
that the oven has started cooking.
- When the end of the cooking time is reached, the timer will switch
off the oven heating elements, the beeps will start and the numbers
on the dial will flash.
- To reset the entire program set, keep the central key pressed for
1 or 2 seconds: if cooking has already started the oven will have to
be switched off by hand.

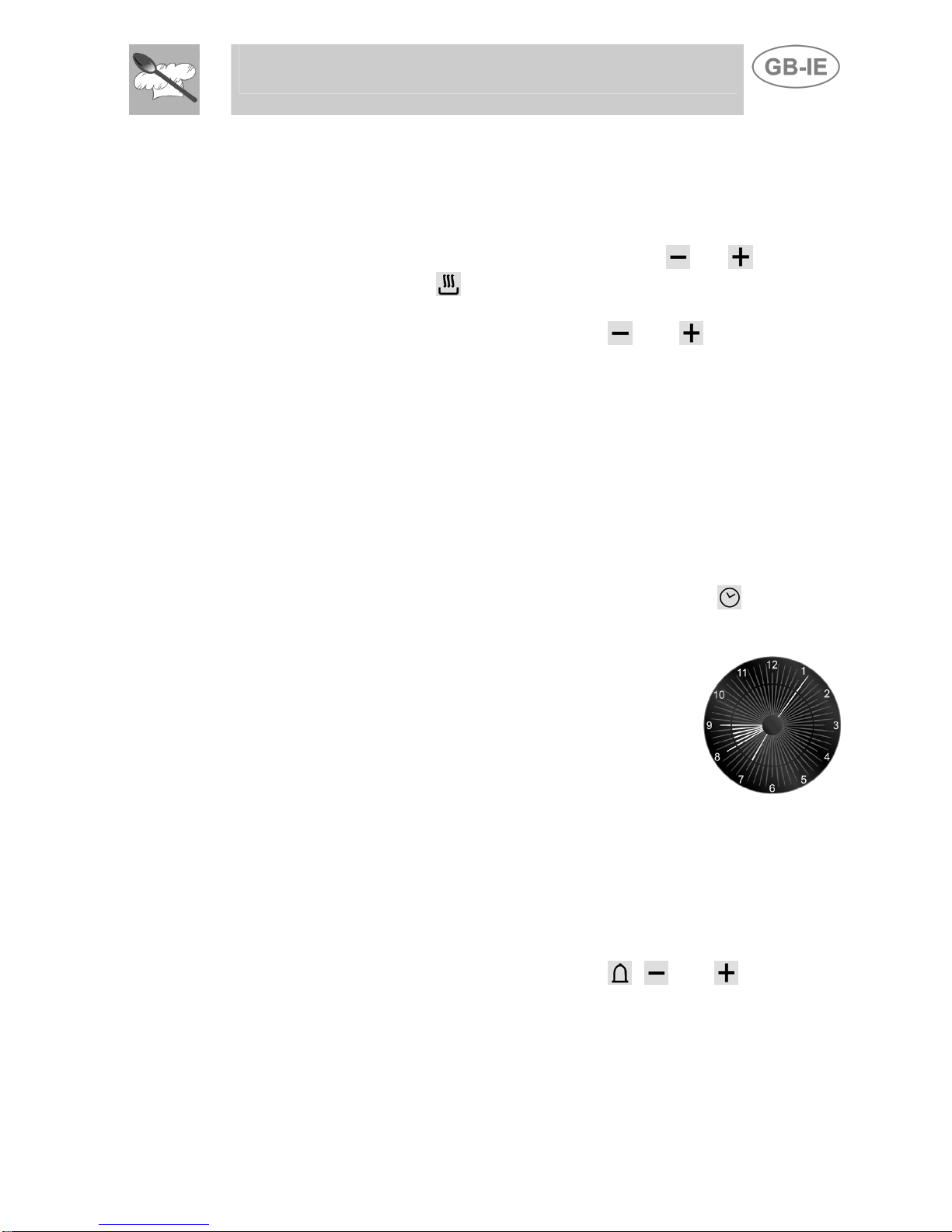

- The image on the right shows an example of
programming: the current time is 7.06 and
cooking is programmed to start at 8 o'clock
and finish at 9.
- At 8 o'clock, the inside segments between 8
and 9 will start to flash and the hour pointer will
remain still.
Caution: for the oven to start cooking after the programming
procedure just described, the thermostat and function selector must
be properly set on the temperature and function required.
5.2.4 "DEMO" Function
Models with analogue/digital programmer feature a "DEMO" function
which deactivates the heating elements while leaving the other functions
unchanged. To activate it, simply press the , and keys for 3/4
seconds. A confirmation beep will inform the user that the function is
active. To deactivate it, simply repeat the same procedure.
57

Instructions for the user
6. USE OFTHE COOKING HOB
6.1 Lighting of the cooking hob burners
Before lighting the cooking hob burners check that the flame cap crowns
are properly positioned with their appropriate burner caps: niche Amust
be centred with pin B.
Grid Cshould be used with Chinese woks.
Each knob corresponds to the burner indicated. The appliance is
equipped with an electronic lighting device. Just press and turn the knob
anticlockwise to the maximum flame symbol until the burner lights.
Keep the knob pressed for about 2 seconds to let the thermocouple heat
up. If the burner turns off when the knob is released, it means that the
thermocouple isn’t hot enough. Repeat ignition and keep the knob
pressed longer.
If the burners turn off accidentally, a safety device will trip after about 20
seconds to cut off gas flow (even with the gas tap open).
6.2 Practical advice for using the cooking hob burners
For better use of the burners and lower gas consumption, use covered
containers that are proportional in size to the burner to prevent the flame
from licking the sides (see paragraph “6.3 Diameter of containers”).
When water reaches the boiling point, lower the flame so that it doesn’t
overflow. To avoid burns or damage to the hob, all recipients or griddle
plates must be placed within the perimeter of the cooking hob. All
containers have to have a flat and smooth bottom. When using fats or
oils, be extremely careful that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait at
least 1 minute before trying to re-light the burner.
58

Instructions for the user
6.3 Diameter of containers
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Ultra rapid
5 Fish Burner
Ø min. e max.
(in cm)
12-14
16-20
18-24
20-24
Special oval-
shaped vessels
6.4 Using the griddle plate
The griddle plate is coated with a thin film of non-stick
material (Teflon). This film is very delicate and could be
damaged or scratched by any metal cooking tool. Use only
wooden or heat resistant plastic tools.
7. USE OFTHE OVENS
7.1 Warnings and general advice
Before using the oven for the first time, pre-heat it to maximum
temperature (250-220°C) long enough to burn any manufacturing oily
residues which could give the food a bad taste.
During cooking, do not cover the bottom of the oven with aluminium or
tin foil and do not place pans or oven trays on it as this may damage the
enamel coating. If you wish to use greaseproof paper, place it so that it
will not interfere with the hot air circulation inside the oven.
To prevent any steam in the oven creating
problems, open the door in two stages: half open
(5 cm approx.) for 4-5 seconds and then fully
open. To access food, always leave the door
open as short a time as possible to prevent the
temperature in the oven from falling and ruining
the food.
59

Instructions for the user
7.2 Oven Light
It comes on when the function switch knob is turned to any position.
7.3 Cooling fan
The appliance is equipped with a cooling system which comes into
operation regardless of the cooking function selected, including the
automatic cooking function.
The fan, installed in the rear of the appliance, drives the air across the top
of the oven and through the vent slits above the door.
The noise caused by the air flow will continue even after the oven is
switched off.
The cooling system ensures that the temperature on the outside of the
appliance complies with the parameters required by the European
Standard.
7.4 Storage compartment
A storage compartment, accessible by
pulling on the top edge of the door, is
located beneath the ovens.
Never store inflammable materials such as
rags, paper or the like. The compartment is
intended only for holding the metal
accessories of the range.
Never open the storage compartment when the oven is on and still hot.
The temperature inside may be very high.
60
