Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Important instructions . . . . . . . . . . . . . . . . . . . . . . . .81
General description . . . . . . . . . . . . . . . . . . . . . . . . .82
The control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Setting the clock / Microwave power settings . . . . . . . . . . .84
The display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
The selector knobs / Programming . . . . . . . . . . . . . . .86
Microwave programming . . . . . . . . . . . . . . . . . . . . . .87
The grilling rack / The grill function . . . . . . . . . . . . . .88
Programming the grill / the microwave + grill function . . . .89
The pizza function . . . . . . . . . . . . . . . . . . . . . . . . . .90
The pizza dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Linked programmes . . . . . . . . . . . . . . . . . . . . . . . . . .93
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Care & cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . .96
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . .97
Please read this user manual carefully. It contains important
instructions concerning installation, use and security measures.
Contents 

80
Installation

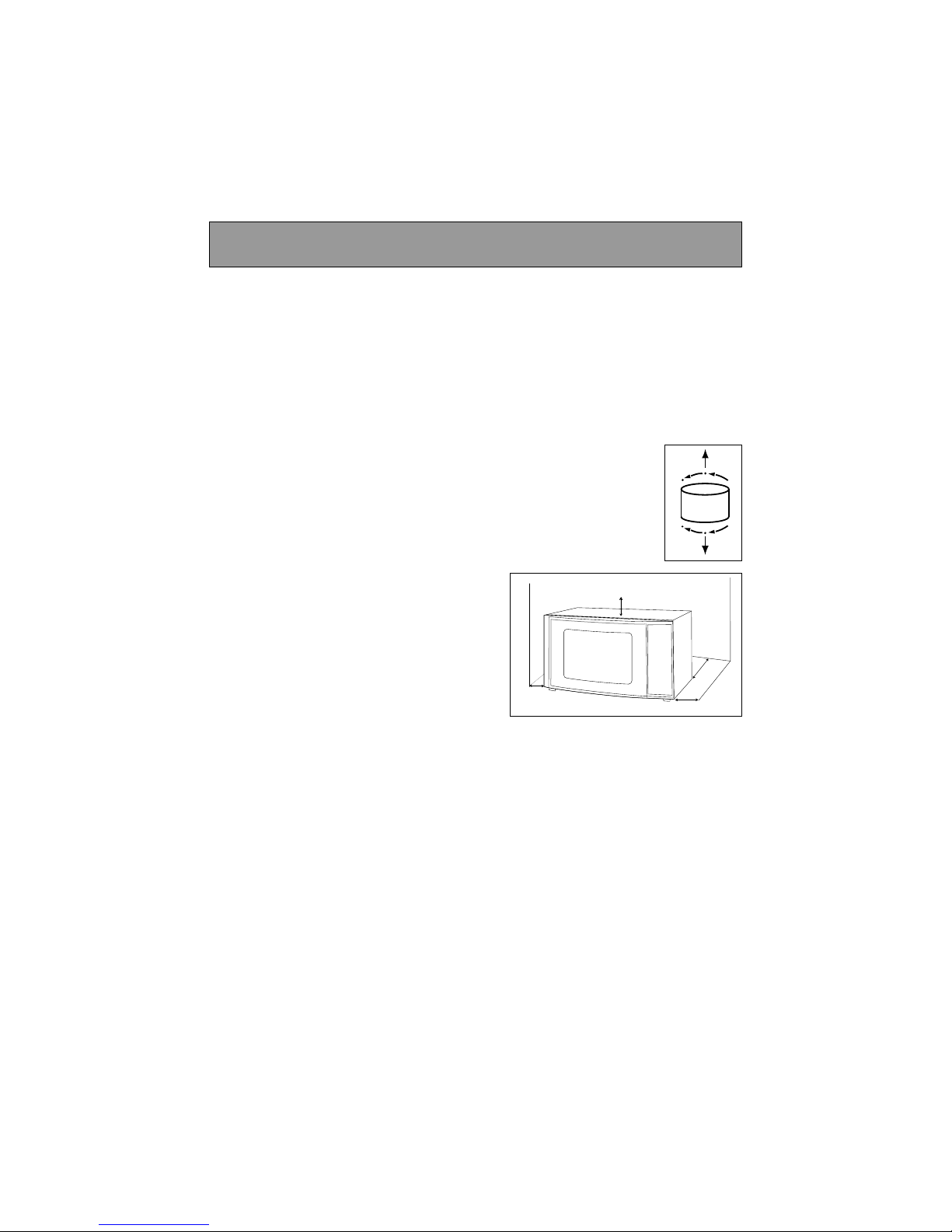

Leave sufficient space around the oven :
- 5 cm between the sides of the oven
and any walls or objects
- 14 cm above the oven
- 10 cm behind the oven.
LOCATION
BEFORE CONNECTION
• The oven must be set on a work surface at least 85 cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or
steam. To ensure the stability of the microwave oven, the front left foot is
adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air may circulate freely around the oven.
• Allow nothing to obstruct the ventilation
louvers at the back of the appliance.
• Make sure the electrical plug will be accessible after installation.
• Check whether your oven has suffered any damage during transport (deformed door or
door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your
electrical installer.
• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with
current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of
separating the appliance from the mains power and whose contact opening is at least 3 mm
at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged. In case of damage,
call in a specialised technician trained by the manufacturer.
ELECTRICAL CONNECTION
5 cm
14 cm
10 cm
5 cm

81
Important instructions
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or
cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Only use ustensils that are suitable for use in microwave ovens.
• To avoid deterioration of your microwave oven, never operate it empty or without the turn-
table.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage
requiring repair by an authorised technician.
• When heating food in plastic or paper containers, keep an eye on the oven due to the pos-
sibility of ignition.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for deep-
freeze bags.
• The contents of feeding bottles are baby food jars shall be stirred or shaken and the tempe-
rature checked before consumption in order to avoid burns.
• WARNING : Only allow children to use the oven without supervision when adequate ins-
tructions have been given so that the child is able to use the oven in a safe way and unders-
tands the hazards of improper use.
• WARNING : Liquids and other foods must not be heated in sealed containers they are liable
to explode.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must
be taken when handling the container.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water alongside
the food item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents,
never use the same cooking times as those recommended for traditional ovens.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
•I
n order to evacuate moisture, your appliance is fitted with a delayed ventilation func-
tion. Depending on the applied cooking mode (solo / grill / combination), the oven ven-
tilation will continue to operate after the cooking end.

82
General description
•THE TURNTABLE :
ensures equal cooking of food throughout with no need to stir or turn the dish.
- It may be used as a cooking platter.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable revolves in both directions.
- If it does not turn, verify that all components are properly positioned.
- For easy removal, wells are provided on either side.
•TURNTABLE OFF :
stops the turntable from revolving in order to use platters which require the entire oven
space.
•THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system.
If it does not turn smoothly, make sure that there is nothing in the well beneath the
turntable.
TurntableDrive shaft Wheel
support
Identification
label

83
Control panel
A Display window :
to simplify programming, the display indi-
cates : the time of day, the types of food
and functions, the minutes / seconds, or
weight programmed.
B The selector knob :
to choose the food type or function.
C The selector knob :
to choose the programme time or weight.
D-E-F The “AUTO” keys :
automatically set the appropriate pro-
gramme time according to the weight
and the selected food type.
G The MODE key :
to choose the appropriate function.
H The GRILL/PIZZA key :
to directly programme the grill / microwave
+ grill / pizza function.
K The KEEP WARM key :
to keep your dish warm.
J The PAUSE/CANCEL key :
to interrupt (press once) or cancel a pro-
gramme (press twice).
Also used to set the clock.
K STOP-TURNTABLE key :
to stop the turntable from revolving.
L START key :
to start all programmes.
M DOOR OPEN button :
press this button to open the door or stop
the appliance.
B
G
F
A
K
DE
C
H
J
I
1 2 : 3 0
L
M

84
POWER SETTING APPLICATION
Setting the clock
After first plugging in your microwave oven or after a power outage,
the clock reads 00:00 and the two dots flash.
To set the clock :
- Press the PAUSE / CANCEL key for 5 seconds.
"0000::0000"flashes, and a tone sounds requesting the hour be set.
- Turn the selector knob to display the correct time.
- Validate by pressing the PAUSE / CANCEL key .
Your clock is set.
Microwave power settings
DEFROST To defrost all frozen food or to top off cooking
of delicate dishes or to cook very slowly.
SIMMER
To cook fish and poultry. To finish programmes
begun with the HIGHCOOK power setting,
for instance beans, lentils, or dairy products.
(This power setting is available when you pro-
gramme the function using the mode key ).
HEAT To heat up all liquids and all fresh or frozen
pre-cooked dishes.
HIGH COOK To cook vegetables and soup.
Microwave output power : 900 W
0000::0000
1122::0000
0000::0000

85

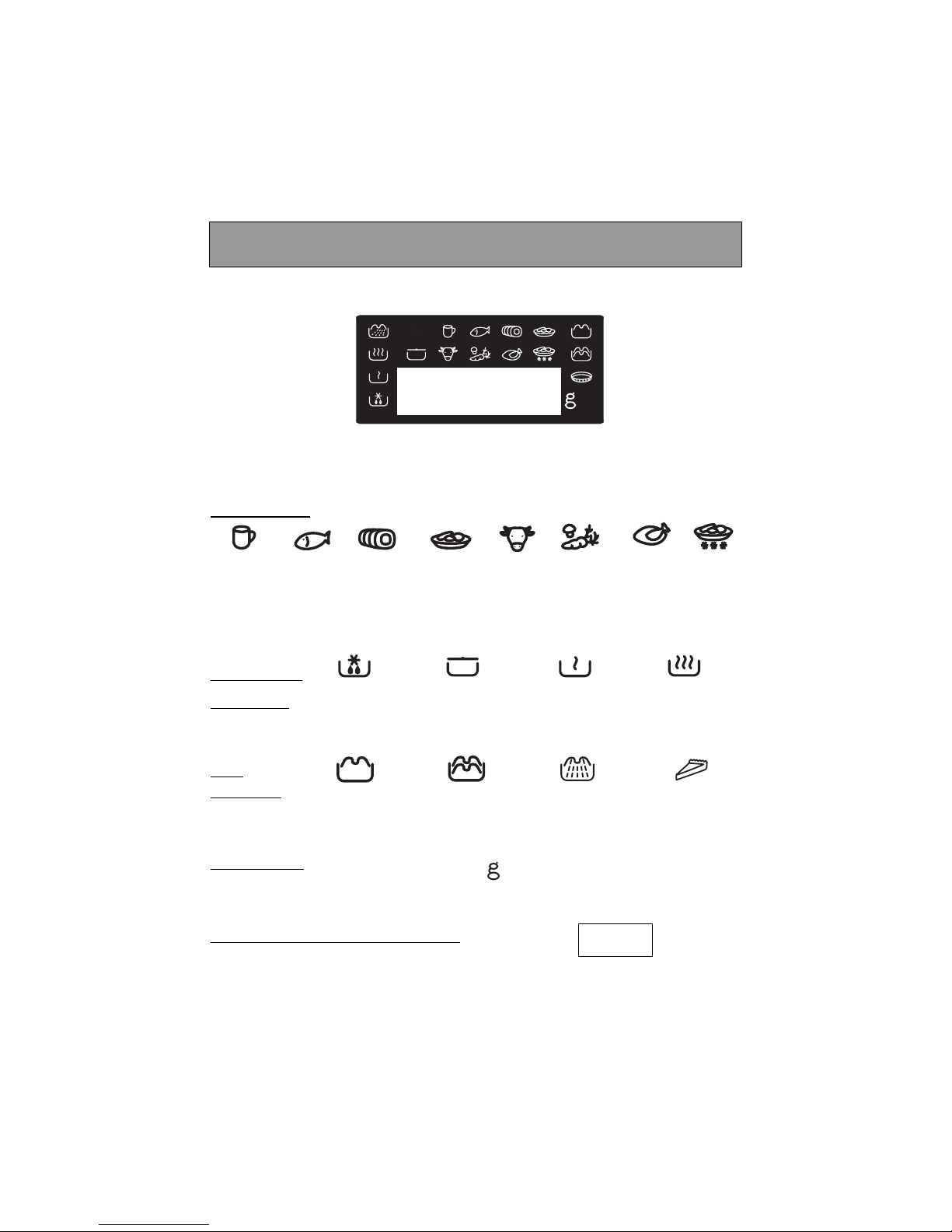

The display and the selector knobs guide you in your choice of :
les aliments
microwave
DEFROST SIMMER REHEAT COOK
functions KEEP WARM
grill
function LOW GRILL HIGH GRILL MICROWAVE PIZZA
+ GRILL
the weight for an AUTO programme
the length of the programme (or time of day)
The food type or function being selected will flash in the display.
12:00
beverages beef,
lamb vegetables poultry frozen
ready-
made
dishes
fresh
ready-
made
dishes
pork,
veal
turkey
fish
The display
12:30

86
The 2 selector knobs are used for the various programmes:

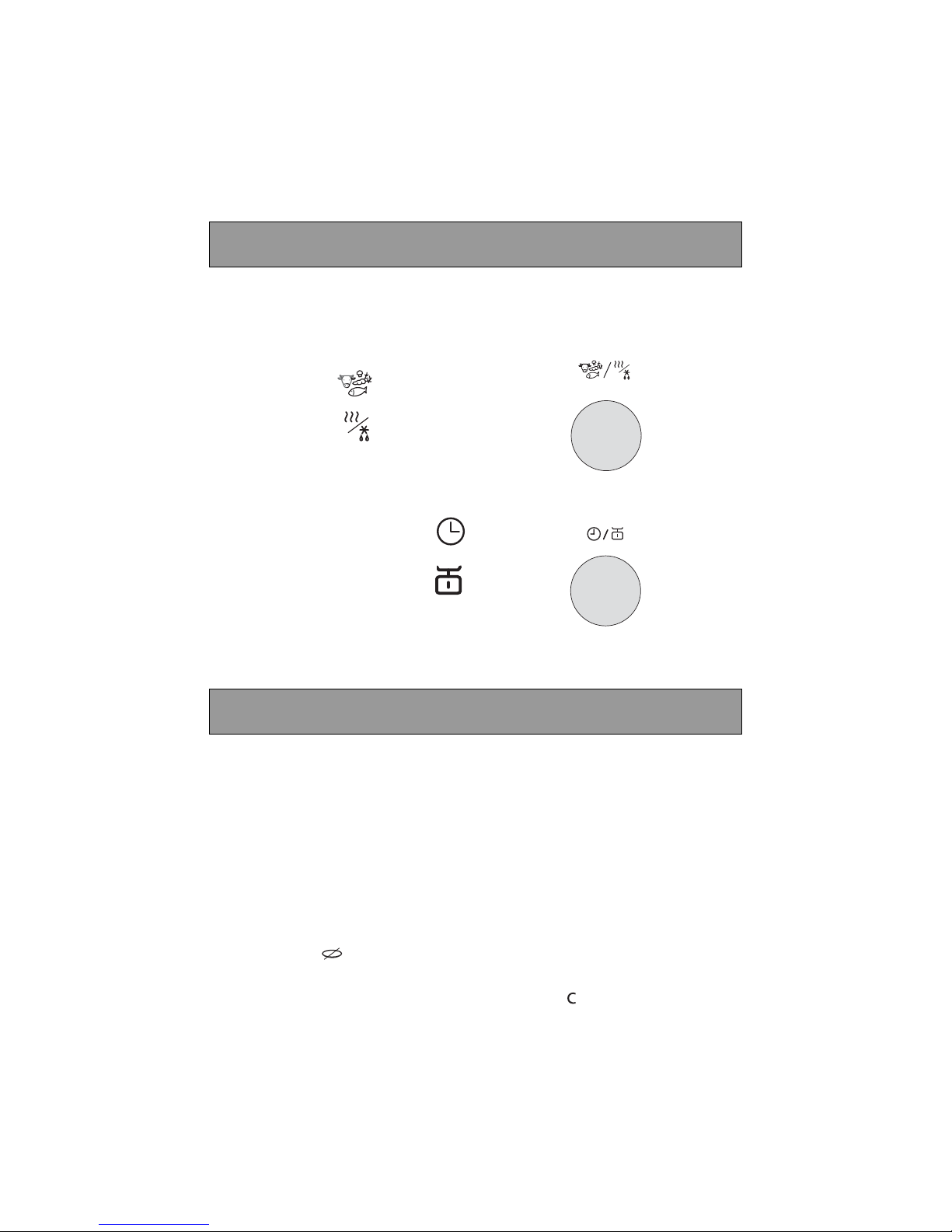

The first to select :
- the food type
- the function
the second to programme :
- the length of the programme
- the weight of the food
Programming
Your microwave oven is now plugged in and the clock is set.
Open the door. Set the dish inside, close the door. If the door is nor properly shut, the appliance
will not operate.
•
3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes
until you open the door.
•
If you think there is insufficient space for the dish to turn freely inside the oven, press the STOP
TURNTABLE key before or during the programme.
•
If there is an error in the programming, press the CANCEL key twice.
The selector knobs
FOOD TYPE / FUNCTION
TIME / WEIGHT

87
Automatic programming by weight :
with the AUTO keys , the programme length is calculated automatically.
▼▼Choose the food type with the selector knob (ex. fish).
▼▼Press one of the microwaving keys , or (ex. COOK ).
▼▼50g blinks;programme the weight of your food item using the selector knob
(ex. 500 g).
▼▼Press start . The appropriate power level is programmed, the adequate pro-
gramme length is displayed automatically (ex. 7 min) and the programme begins.
Automatic programming by function
▼▼Press the MODE key to select the desired function, ex. press 4 times for the
SIMMER function. The SIMMER symbol is displayed.
▼▼Set the desired programme length (ex. 5 minutes), with the selector knob .
▼▼Press start .
Available programmes :
Express programming
▼▼Set the desired programme length (ex. 2 minutes) with the selector knob .
▼▼Press start . The maximum power setting is programmed directly
for quick reheating.
55::0000
22::0000
77::0000
Microwave programming
550000
Programming the keep warm function
▼▼Press the KEEP WARM key, 10:00 is displayed, the symbol flashes.
You may shorten the time with the selector knob .
▼▼Press start . Your dish is kept warm for ten minutes.
1100::0000
