Smeg MI20X Setup guide

1
18 Litre Electronic Microwave
Owner’s Instruction Manual
MI20X
Read the Instructions carefully and Keep for Future Reference

2
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- WARNING: when the appliance is operated in the combination mode,
children should only use the oven under adult supervision due to the
temperatures generated;
- WARNING: if the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person;
- WARNING: it is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the removal of a
cover which gives protection against exposure to microwave energy;
- WARNING: liquids and other foods must not be heated in sealed
containers since they are liable to explode
- WARNING: Only allow children to use the oven without supervision when
adequate instructions have been given so that the child is able to use the
oven in a safe way and understands the hazards of improper use;
- only use utensils that are suitable for use in microwave ovens
- when heating food in plastic or paper containers, keep an eye on the oven
due to the possibility of ignition;
- if smoke is observed, switch of or unplug the appliance and keep the door
closed in order to stifle any flames;
- microwave heating of beverages can result in delayed eruptive boiling,
therefore care must be taken when handling the container;
- the contents of feeding bottles and baby food jars shall be stirred or
shaken and the temperature checked before consumption, in order to
avoid burns;
- eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating
has ended;
- the oven should be cleaned regularly and any food deposits removed;
- failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation;
- if the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
The temperature of accessible surfaces may be high when the appliance
is operating.

3
SPECIFICATIONS
Power consumption:
Output:
Grill heater:
Operating Frequency:
Outside Dimensions:
Oven Cavity Dimensions:
Oven Capacity:
Net Weight:
2 0V~50Hz,1 0W
700W
1000W
2,450MHz
320mm(W) X 288mm(D) X 183mm(H)
592mm(W) X 320mm(D) X 390mm(H)
18litres
Approx. 15.5 kg
BEFORE YOU CALL FOR SERVICE
1. If the oven will not perform at all, the display does
not
appear or the display disappears:
a) Check to ensure that the oven is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds and plug it in again
securely.
b) Check the premises for a blown circuit fuse or a
tripped main circuit breaker. If these seem to be
operating properly, test the outlet with another
appliance.
2. If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely
closed to engage the safety interlocks.
Otherwise, the microwave energy will not flow
into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE
AGENT.
Note:
The appliance is for household use for heating food and beverages using electromagnetic energ y and for
indoor use only.
RADIO INTERFERENCE
Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs,
it may be
eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

4

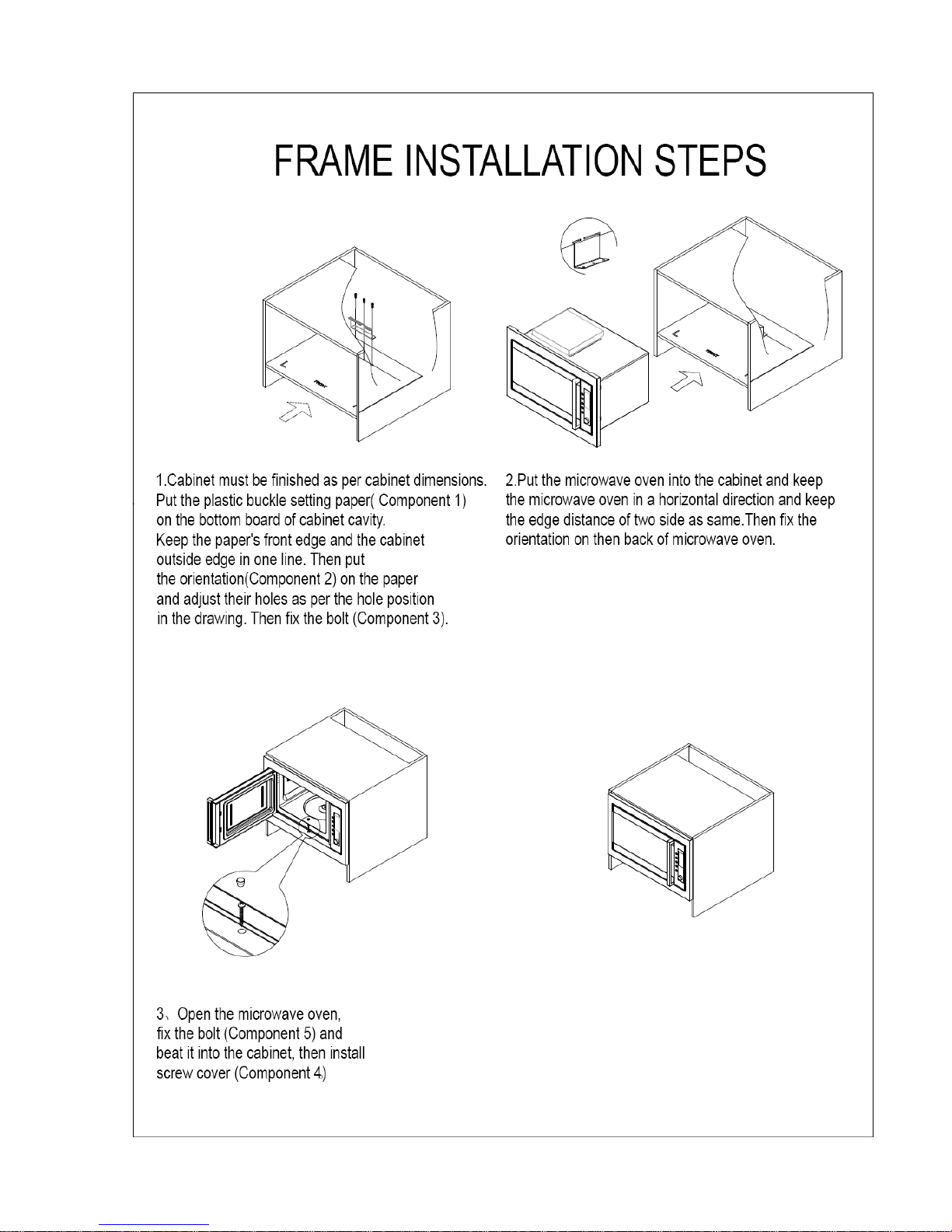

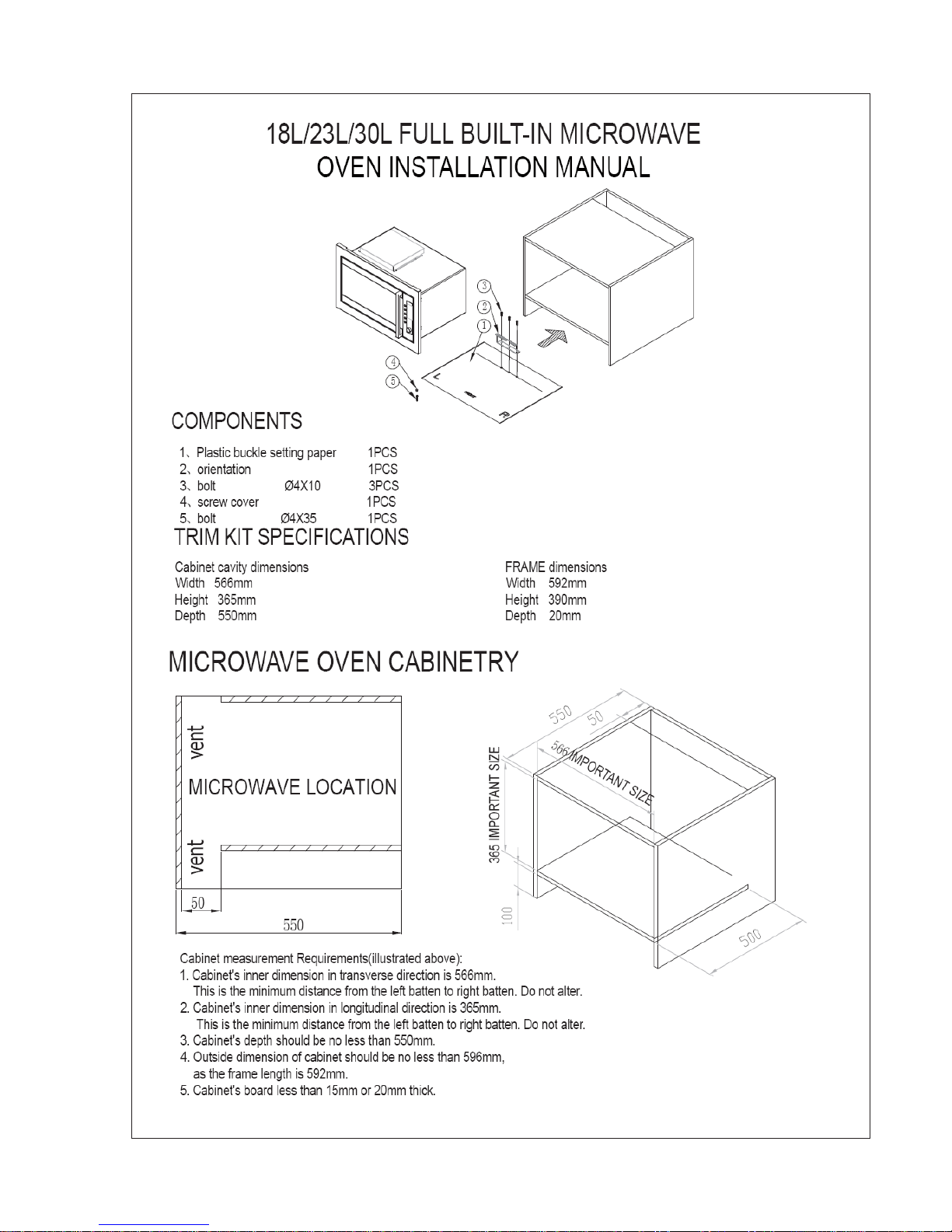

INSTALLATION
1. Make sure all the packing materials are removed
from the inside of the door.
2. Inspect the oven after unpacking for any visual
damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the
oven..
3. This Microwave Oven weighs 15.5 kg and must
be placed on a horizontal surface strong enough
to support this weight.
4. The oven must be placed away from high
temperature and steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn -table drive shaft.
7. As with any appliance, close supervision is
necessary when used by children.
WARNING-THIS APPLIANCE MUST BE EARTHED.
1. The plug socket should be within easy
reach of the power cord
2. This oven requires 1.5 KVA for its input.
consultation with service engineer is
suggested when installing the oven.
CAUTION:This oven is protected internally by
ac 250V, 8 Amp Fuse.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains leads of the appliance may not correspond with the coloured
markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked
with the letter E or by the earth symbol coloured green of green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.

5
IMPORTANT SAFETY INSTRUCTIONS
- WARNING: When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated; (Only for the model with grill
function)
- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been
repaired by a competent person;
- WARNING: It is hazardous for anyone other than a competent person to carry out any service or
repair operation that involves the removal of a cover which gives protection against exposure to
microwave energy;
- WARNING: liquids and other foods must not be heated in sealed containers since they are liable to
explode.
- WARNING: Only allow children to use the oven without supervision when adequate instructions have
been given so that the child is able to use the oven in a safe way and understands the hazards of
improper use;
- The oven must have sufficient air flow. Keep 10 cm space at back;15 cm at both sides and 30cms
from top of the oven. Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of
ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any
flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken
when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they
may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance
from
this oven:
1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or
any other non-food items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.

6
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc.
without first being pierced several times with a fork.

7
6. Do not insert any object into the openings on the
outer case.
7. Do not at any time remove parts from the oven
such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray.
Place food in/on proper cooking utensil before
placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN
YOUR MICROWAVE OVEN
Do not use metal pans or dishes with metal
handles.
Do not use anything with metal trim.
Do not use paper covered wire twist-ties on
plastic bags.
Do not use melamine dishes as they contain a
material which will absorb microwave
energy.This m ay cause the dishes to crack or
char and will slow down the cooking speed.
Do not use Centura Tableware. The glaze is not
suitable for microwave use. Corelle Livingware
closed handle cups should not be used.
Do not cook in a container with a restricted
opening, such as a pop bottle or salad oil bottle,
as they may explode if heated in a microwave
oven.
Do not use conventional meat or candy
thermometers.
There are the thermometers available
specifically for microwave cooking. These may
be used.
10. Microwave utensils should be used only in
accordance with manufacturer's instructions.
11. Do not attempt to deep-fry foods in this oven.
12. Please remember that a microwave oven only
heats the liquid in a container rather than the
container itself. Therefore, even though the lid
of a container is not hot to the touch when
removed from the oven,
please remember that the food/liquid inside will
be releasing the same amount of steam and/or
spitting when the lid is removed as in
conventional cooking.
13. Always test the temperature of cooked food
yourself especially if you are heating or cooking
food/liquid for babies. It is advisable never to
consume food/liquid straight from the oven but
allow it to stand for a few minutes and stir food/
liquid to distribute heat evenly.
14. Food containing a mixture of fat and water, e.g.
stock, should stand for 30-60 seconds in the
oven after it has been turned off. This is to allow
the mixture to settle and to prevent bubbling
when a spoon is placed in the food/liquid or a
stock cube is added.
15. When preparing/cooking food/liquid and
remember that there are certain foods, e.g.
Christmas puddings, jam and mincemeat, which
heat up very quickly. When heating or cooking
foods with a high fat or sugar content do not use
plastic containers.
16. Cooking utensil may become hot because of
heat transferred from the heated food.This is
especially true if plastic wrap has been covering
the top and handles of the utensil. Potholders
may be needed to handle the utensil.
17.To reduce the risk of fire in the oven cavity:
(a)Do not overcook food. Carefully attend
microwave oven if paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
(b) Remove wire twist-ties from bags before placing
bag in oven.
(c)If materials inside the oven should ignite, keep
oven door closed, turn the oven off at the wall
switch, or shut off power at the fuse or circuit
breaker panel.

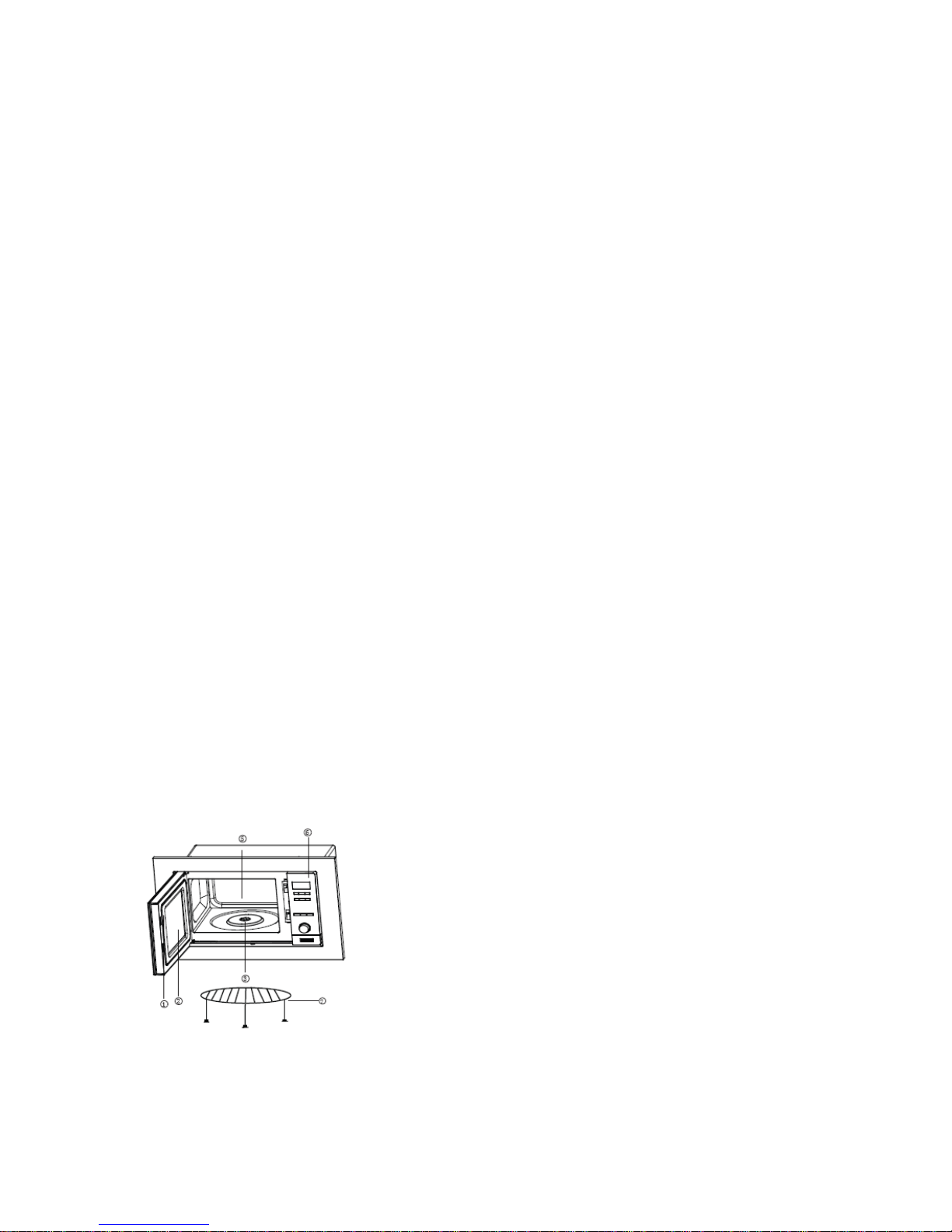

FEATURE DIAGRAM
(1) Door safety Lock system
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

8

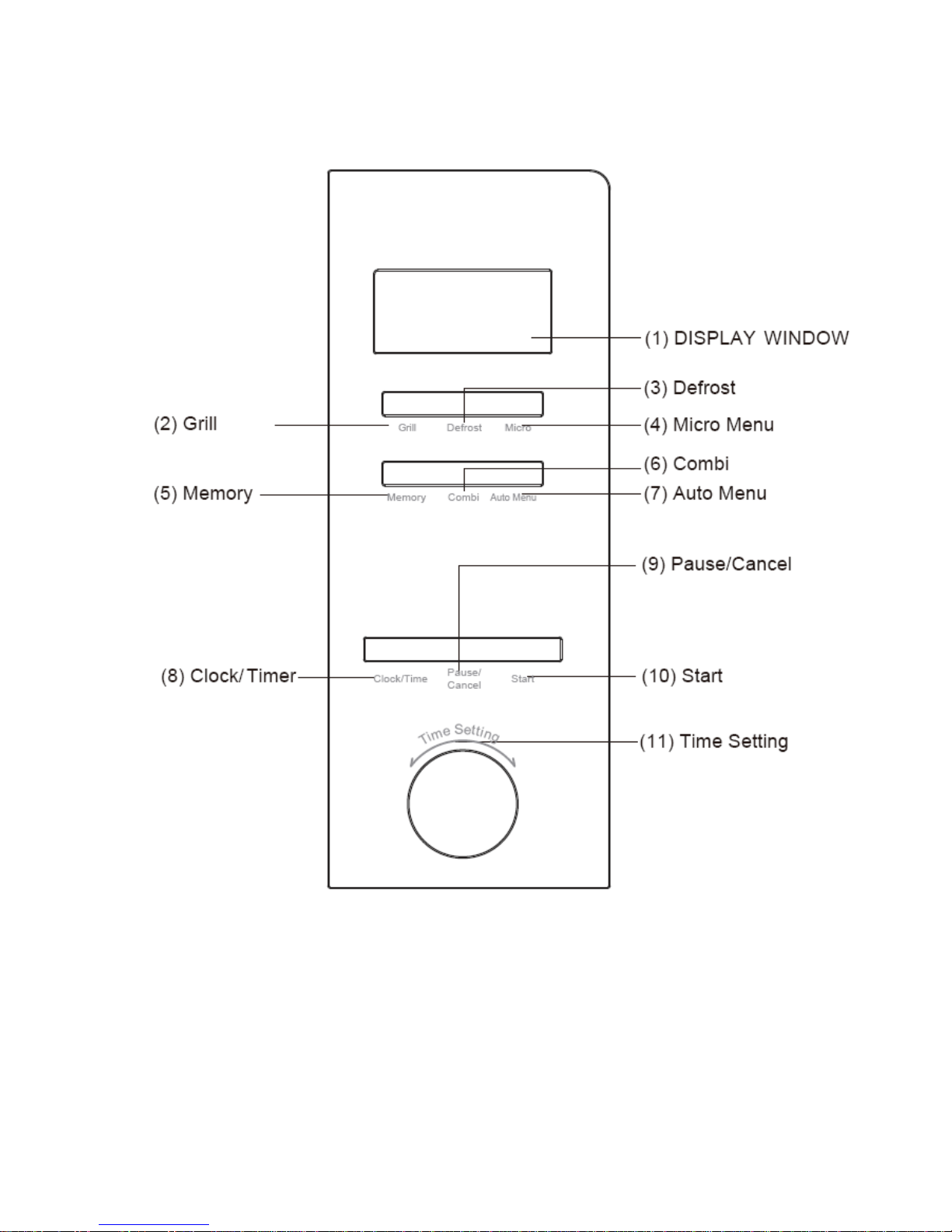

MICROWAVE CONTROL PANEL

9

10

11

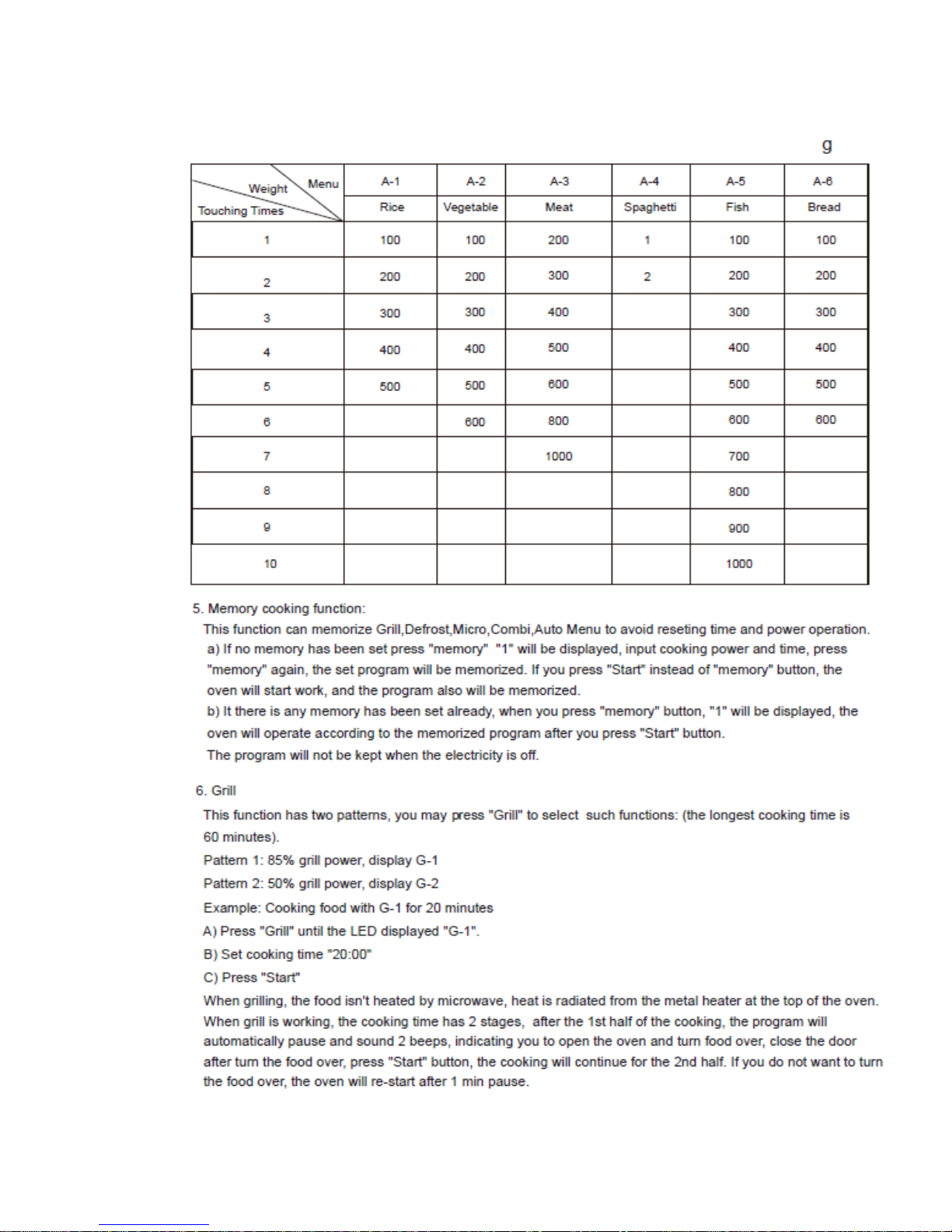

7. Combination Cooking
This appliance offers you a choice of two methods of combination cooking.
Option 1 : 55% Micro + 45% Grill), display "C-1"
Option 2 : 30% Micro + 70% Grill), display "C-2"
Example : Cooking food using option 2 for 30 minutes.
a) Press "Combi" button to select "C-2"
b) Set cooking time for 30 minutes
c) Press "Start "
8. Clock
The oven can be used as a clock.
Example: to input current time 16:30
A) Press “Clock”, the clock symbol will flash in display. Rotate the “Time setting” knob to set “16:00”.
B) Press “Clock” again, rotate the “Time setting” knob to set “16:30”
C) Press “Clock” again, the clock setting is finished, the clock starts to work.
9. Timer
The timer function helps the microwave oven begin automatic cooking at set time, and automatically
stop operation after finishing cooking. (You should set the clock before using timer function).
Example: the current time of microwave oven is 16:30, to set cooking at 18:15 on 70% power for
10 minutes.
A) Press "Timer" and set time to 18:15 (same procedure as setting clock).
B) Press "Micro" to set 70% power;
C) Input cooking time 10 minutes by rotating the knob "Time Setting".
D) Press "Start"
If you don’t set power and cooking time (omit B and C steps) and directly press "Start" button, the
microwave oven will work only as a clock, there will be 10 beeps at 18:15, but no other function will run.
10. Child-safety lock
To activate the child safety lock, press "Auto Menu" and "Combi" button at the same time for 2
seconds.
Press "Auto Menu" and "Combi" button at the same time for 2 seconds again, it will unlock this function.
11. Pause/Cancel
a) In the course of operation, pressing "Pause/Cancel" button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel all the set program.

12
CARE OF YOUR MICROWAVE OVEN
1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with
a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may
occur when the microwave oven is operated under high humidity conditions and in no way indicates
malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water
or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe
the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring
may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in
no way affect the bottom surface or roller ring wheels.
When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a
deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

13

14

15
Smeg Spa, Guastalla (RE), Italy
