Smeg DOSCA36X User manual

3
Contents
EN
INSTRUCTIONS FOR THE USER: these instructions contain user
recommendations, a description of the controls and the correct
procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
authorized person who must install the appliance, set it functioning and
carry out an inspection test.
Further product information is available from the website www.smeg.com
@
1. INSTRUCTIONS FOR USE ........................................................................... 4
2. SAFETY PRECAUTIONS .............................................................................. 6
3. ENVIRONMENTAL RESPONSIBILITY .......................................................... 8
4. GET TO KNOW YOUR OVEN........................................................................ 9
5. AVAILABLE ACCESSORIES ....................................................................... 10
6. FRONT PANEL ............................................................................................ 11
7. ELECTRONIC PROGRAMMER .................................................................. 14
8. USING THE OVEN ...................................................................................... 19
9. COOKING WITH THE OVEN....................................................................... 22
10. CLEANING AND MAINTENANCE ............................................................... 28
11. EXTRAORDINARY MAINTENANCE ........................................................... 30
12. INSTALLING THE APPLIANCE ................................................................... 34

General instructions
EN
4
1. INSTRUCTIONS FOR USE
This manual is an integral part of the appliance and must therefore be kept in its
entirety and in an accessible place for the whole working life of the appliance.
It is important to carefully read this manual and all the instructions contained
herein before using the appliance. Installation must be carried out by competent
persons in accordance with the regulations in force. This appliance is intended
for household use and complies with te eec directives currently in force. The
appliance has been built to carry out the following functions: cooking food; any
other use is considered improper.
The manufacturer cannot be held liable for use other than as indicated.
This appliance has been manufactured to cook food, do not use the appliance to
heat rooms.
Do not obstruct ventilation openings and heat dispersal slits.
Do not rest any weight or sit on the open door of the appliance.
The identification plate bearing the technical data, serial number and brand
name is visibly applied on the appliance.
Do not remove this plate for any reason.
Before the appliance is put into operation, all the protective films applied inside
or outside must be removed.
Take care that no objects are stuck in the door of the oven.
The appliance becomes very hot during use. Suitable heat-proof gloves should
be worn for all operations.
Do not use metallic sponges or sharp scrapers as they will damage
the surface.
Use normal non-abrasive products, including wooden or plastic
utensils if necessary. Rinse thoroughly and dry using a soft cloth or
chamois leather.
Do not allow residues of sugary foods (such as jam) to set inside the
oven. If they are allowed to set for too long, they could ruin the enamel
covering the inside of the oven.

General instructions
EN
5
Do not use plastic kitchenware or containers. The high temperatures inside the
oven could melt the plastic, damaging the appliance.
Do not use sealed tins or containers in the appliance. Overpressure may occur
inside the containers during cooking, creating a danger of explosion.
Do not leave the appliance unattended during cooking processes where fats or
oils could be released.
Fats and oils may catch fire.
Do not cover the bottom of the oven with aluminium or tinfoil sheets during
cooking and do not place pans or trays on it to avoid damage to the enamelled
surface.
If the surfaces are still very hot during cooking, do not pour water directly onto
the trays. The steam could cause severe burns and damage to enamelled
surfaces.
All cooking operations must be take place with the door closed.

General instructions
EN
6
2. SAFETY PRECAUTIONS
Refer to the installation instructions for the safety regulations for electric or gas
appliances and ventilation functions.
In your interests and for your safety the law requires that the installation and
servicing of all electrical appliances is carried out by qualified personnel in
accordance with the regulations in force.
Our approved installers guarantee a satisfactory job.
Gas or electrical appliances must always be disconnected by suitably skilled
people.
Before connecting the appliance to the power grid, check the data on the plate
against the data for the grid itself.
Before carrying out installation/maintenance work, make sure that the appliance
is not connected to the power grid.
The plug to be connected to the power supply cable and its socket must be of
the same type and conform to the regulations in force.
The socket must be accessible after the appliance has been built in.
Never disconnect the plug by pulling on the cable.
If the power supply cable is damaged, contact the technical support service
immediately and they will replace it.
It is obligatory for all electrical equipment to be earthed according to the
methods laid down by safety regulations.
Immediately after installation, carry out a brief inspection test, following the
instructions below. Should the appliance not function, disconnect it from the
electricity supply and call the nearest technical support centre.
Never attempt to repair the appliance.
Do not use or leave flammable materials near the appliance or in the food
warming compartment.
During use the appliance becomes very hot. take care not to touch the heating
elements inside the oven.
This appliance must not be used by people (including children) of reduced
physical and mental capacity, or lacking in experience in the use of electrical
appliances, unless they are supervised or instructed by adults who are
responsible for their safety.

General instructions
EN
7
Do not let children go near the appliance when it is in operation or play with it at
any time.
Do not insert pointed metal objects (cutlery or utensils) into the slits in the
appliance.
If the appliance is installed on caravans or boats, it must not be used to heat
rooms.
Do not use steam jets for cleaning the appliance.
The steam could reach the electronics, damaging them and causing short-
circuits.
Do not modify this appliance.
Do not spray any spray products near the electrical appliance while it is in
operation.
Do not use spray products while the product is still hot.
The manufacturer cannot be held liable for damage to persons or things caused
by failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.

Instructions for disposal
EN
8
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Your environmental responsibility
Our product’s packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.

Instructions for the user
EN
9

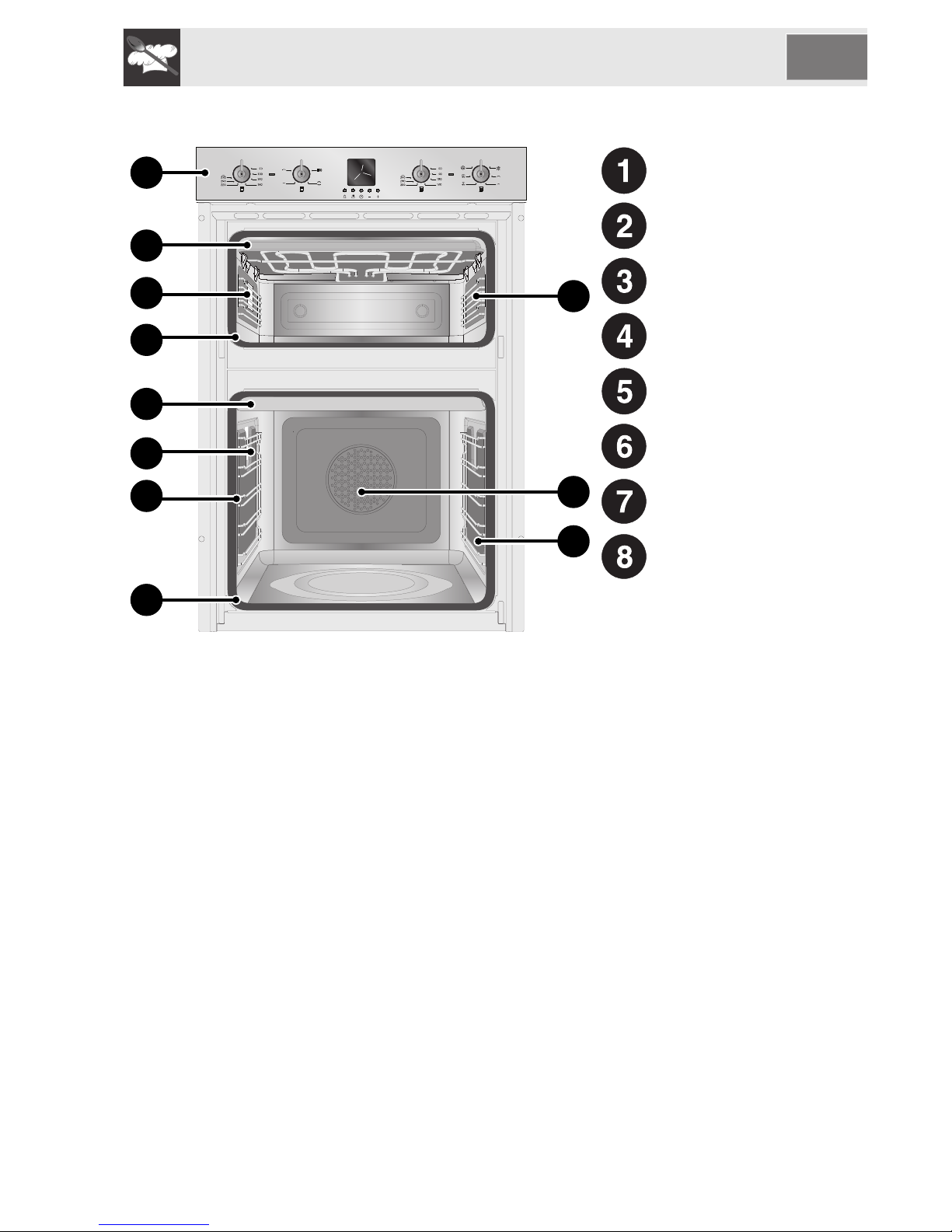

4. GET TO KNOW YOUR OVEN
Control panel
Roof liner
(mobile)
Bulb
Oven seal
Roof liner
(fixed)
Pan and rack runners
Oven fan
Self-cleaning panels
11
12
1
8
9
10
4
3
2
765
1
2
3
4
5
3
6
4
6
7
8

Instructions for the user
EN
10
5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all accessories.

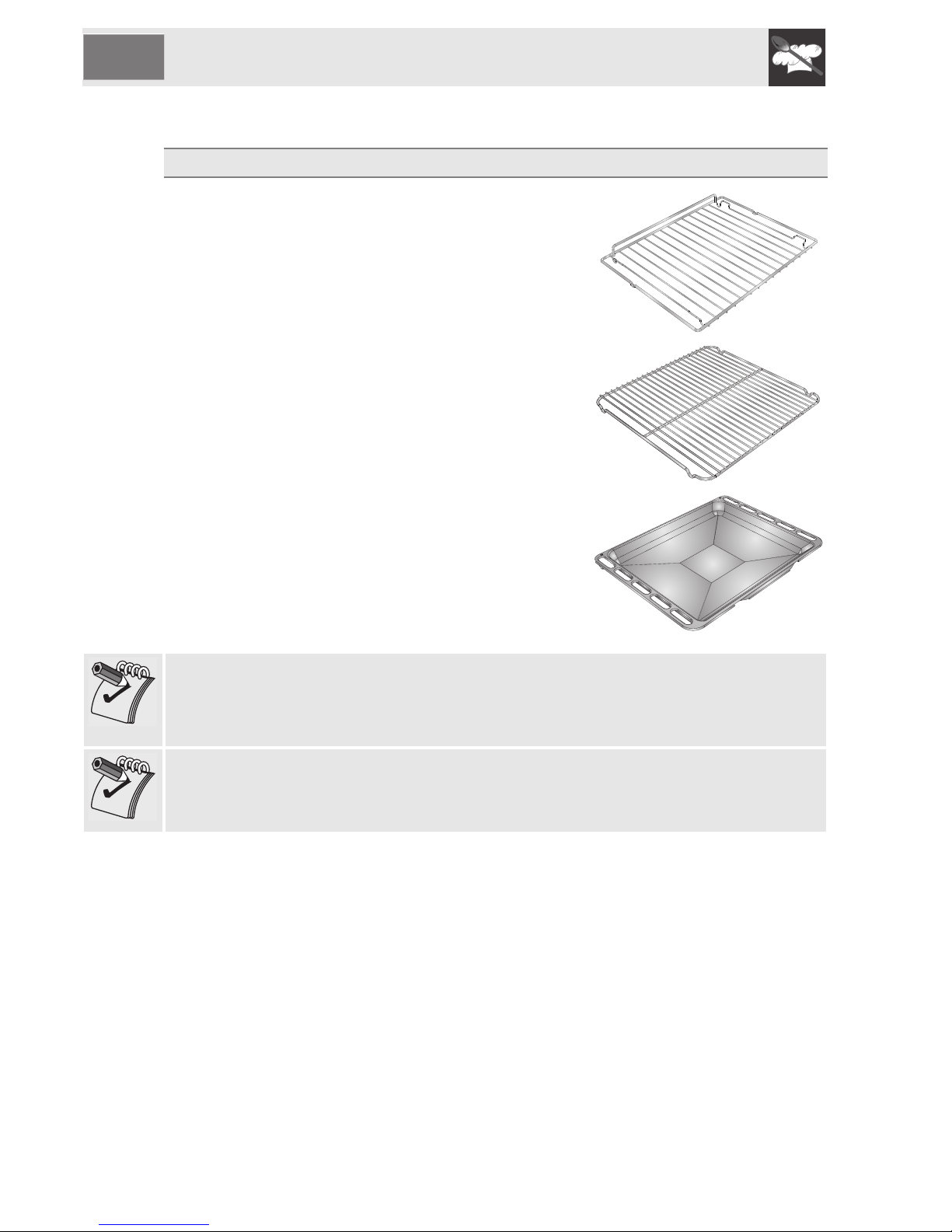

Rack: for holding cooking containers.
Tray rack: to be placed over the top of the oven
tray; for cooking foods which may drip.
Oven tray: for collecting fat from foods placed on
the rack above.
Accessories available on request:
Original supplied and optional accessories may be ordered from any Authorised
Support Centre.
Use original SMEG accessories only.
For the functions of the available accessories and their use, see chapter "8.
USING THE OVEN".

Instructions for the user
EN
11
6. FRONT PANEL
All the controls and indicator lights can be seen on the front panel. The symbol
under each knob indicates the oven which it controls. The tables below describe
the symbols used.
SMALL OVEN THERMOSTAT KNOB
The cooking temperature is selected by turning the
knob clockwise to the desired setting, between 50°C
and 270°C.
SMALL OVEN FUNCTION KNOB
Turn the knob clockwise or anti-clockwise to select a
function for the small oven from the following options:
GRILL FUNCTION
+ TOP RESISTANCE
+ BOTTOM RESISTANCE
SMALL GRILL FUNCTION
TOP RESISTANCE
+ BOTTOM RESISTANCE LARGE GRILL FUNCTION
In the small oven the function with the least energy consumption is
11 12 1
8
9
10
4
3
2
765
134
2 6
8 8

Instructions for the user
EN
12
LARGE OVEN THERMOSTAT KNOB
The cooking temperature is selected by turning the
knob clockwise to the desired setting, between 50°C
and 250°C.
LARGE OVEN FUNCTION KNOB
Turn the knob clockwise or anti-clockwise to select a
function for the large oven from the following options:
THAWING FUNCTION SMALL GRILL FUNCTION
+ VENTILATION
LARGE GRILL FUNCTION LARGE GRILL FUNCTION
+ VENTILATION
SMALL GRILL FUNCTION CIRCULAR FUNCTION
In the large oven the function with the least energy consumption is

Instructions for the user
EN
13

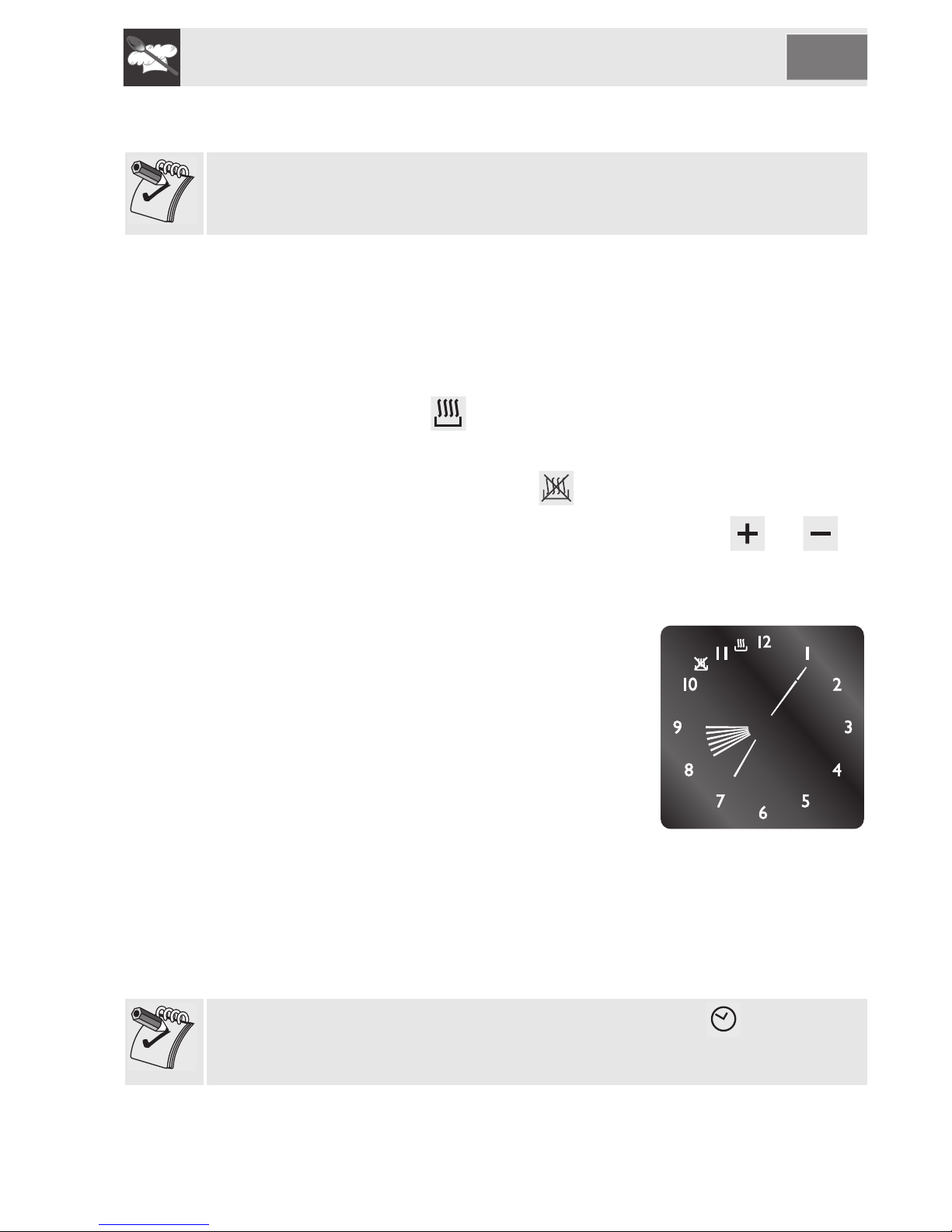

ELECTRONIC PROGRAMMER - ANALOGUE CLOCK
The programming clock can be used
to display the current time or to set a
timer or cooking programme.
TIMER BUTTON VALUE DECREASE BUTTON
TIMED COOKING AND
SCHEDULED COOKING
BUTTON
VALUE INCREASE BUTTON
CLOCK ADJUSTMENT AND
RESET
THERMOSTAT INDICATOR LIGHT (orange)
During the oven heating phase the thermostat light remains on. Once
the oven has reached the set temperature the light turns off.

Instructions for the user
EN
14
7. ELECTRONIC PROGRAMMER
FUNCTION KEY LIST
TIMER BUTTON
TIMED COOKING AND
SCHEDULED COOKING
BUTTON
CLOCK ADJUSTMENT AND
RESET
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
THE ELECTRONIC PROGRAMMER ONLY CONTROLS THE LARGE OVEN
AND HAS NO CONTROL OVER THE SMALL OVEN
At the end of each completed programming operation, 10 beeps will sound 3
times at intervals of about 1 minute. This sequence can be stopped at any time
by pressing any key.
7.1 Setting the time
When the oven is used for the first time, or after an interruption in the electricity
supply, the display flashes at regular intervals.
To set the time proceed as follows:
• Press to stop the display flashing;
• Press and hold for 2 seconds. A flashing dot will be seen between 2 and
3. The time can now be set;
• Press the value modification buttons or to increase or decrease the
setting by one minute for each pressure until reaching the desired time;
• Press or wait 5 seconds to exit the time setting mode.

Instructions for the user
EN
15
7.2 Timer
The timer does not stop the cooking process. It only warns the user that the
preset number of minutes have passed.
• Press and the display will light up as
shown in figure 1;
• Within 5 seconds press the value modification
buttons or in order to increase or
decrease by one minute for each pressure until
reaching the desired time (1 hour and 10
minutes is shown in figure 2);
• Press or wait 5 seconds to exit the timer
setting mode;
• The display will show the current time and the
symbol between 9 and 10;
• To view the remaining time, press and
press it again to return to the current time view;
1)
2)
• To silence the buzzer at the end of the time, press any button on the
programmer.
If the user wants to end cooking at the end of the time, the thermostat and oven
function knobs must be controlled manually.
A time longer than 4 hours cannot be set.
If is pressed accidentally and no time setting is desired, press and hold
for about 5 seconds to cancel the settings.

Instructions for the user
EN
16
7.3 Cooking duration
This function allows a cooking operation to be started and then stopped after a
specific length of time set by the user.
To set the cooking duration, proceed as follows:
• Rotate the oven thermostat knob to the desired
temperature
• Rotate the oven function knob to the desired
function
• Press . The indicator will move to the 12
position and the symbol between 11 and
12 will flash (Fig. 1).
• Within 5 seconds press the value modification
buttons or in order to increase or
decrease by one minute for each pressure until
reaching the desired cooking time. For every
12 minutes a new internal segment will light up
(1 hour and 12 minutes is shown in figure 2)
• Wait about 5 seconds to start the function;
1)
2)
• The display shows the current time, the symbol appears between 11
and 12, the remaining minutes to complete cooking operation are
represented by the flashing internal segments (each internal segment
indicates 12 minutes);
• Press to view the remaining time;
• At the end of the cooking operation the timer will deactivate the oven heating
elements and the buzzer will sound. The numbers on the dial will flash.
Warning: it is not possible to set cooking durations of more than 12 hours.
The set programming can be reset by pressing and holding for 2 seconds.
By doing this the set duration will be cancelled and the oven must be turned off
manually if a cooking operation is in progress.

Instructions for the user
EN
17
7.4 End of cooking
This function allows, as well as setting a cooking duration, a cooking end time to
be set (with a maximum delay of 12 hours in relation to the current time).
To set the cooking end time, proceed as follows:
• Rotate the oven thermostat knob to the desired temperature
• Rotate the oven function knob to the desired function
• Set the cooking duration as described in the previous point ("Cooking
duration");
• Within 5 seconds press to access the end cooking setting;
• The current time will appear on the display with internal segments illuminated
to show the end of cooking time. The symbol flashed between 10 and 11;
• Within 5 seconds press the value modification buttons or to
increase or decrease the setting by one minute for each pressure until
reaching the desired cooking end time;
• After about 5 seconds from the last adjustment
the display will show the current time, the
cooking end time and the cooking duration
which will be represented by the illuminated lit
segments.
(here we can see a programming
example: the current time is 07:06 and cooking
is programmed to start at 08.06 and to end at
09.06);
• When the current time coincides with the cooking start time the internal
segments on the display will begin to flash indicating that the oven has started
cooking;
• At the end of the cooking time, the timer will switch the oven heating elements
off, the buzzer will start to sound and the numbers on the dial will flash;
The set programming can be reset by pressing and holding for 2 seconds.
By doing this the set duration will be cancelled and the oven must be turned off
manually if a cooking operation is in progress.

Instructions for the user
EN
18
7.5 Modifying the set data
The set cooking data can be modified at any time by pressing the function button
and then pressing the buttons or to change the value.
7.6 Reduced display brightness
In order to reduce energy consumption in stand-by, the brightness of the display
can be set to reduced mode by briefly pressing . To return to normal
brightness, press again.

Instructions for the user
EN
19
8. USING THE OVEN
8.1 Before using the appliance
Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
Remove any protective film from the outside or inside of the appliance, including
from accessories such as trays, dripping pans, the pizza plate or the base
cover.
Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “10. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
8.2 General Description

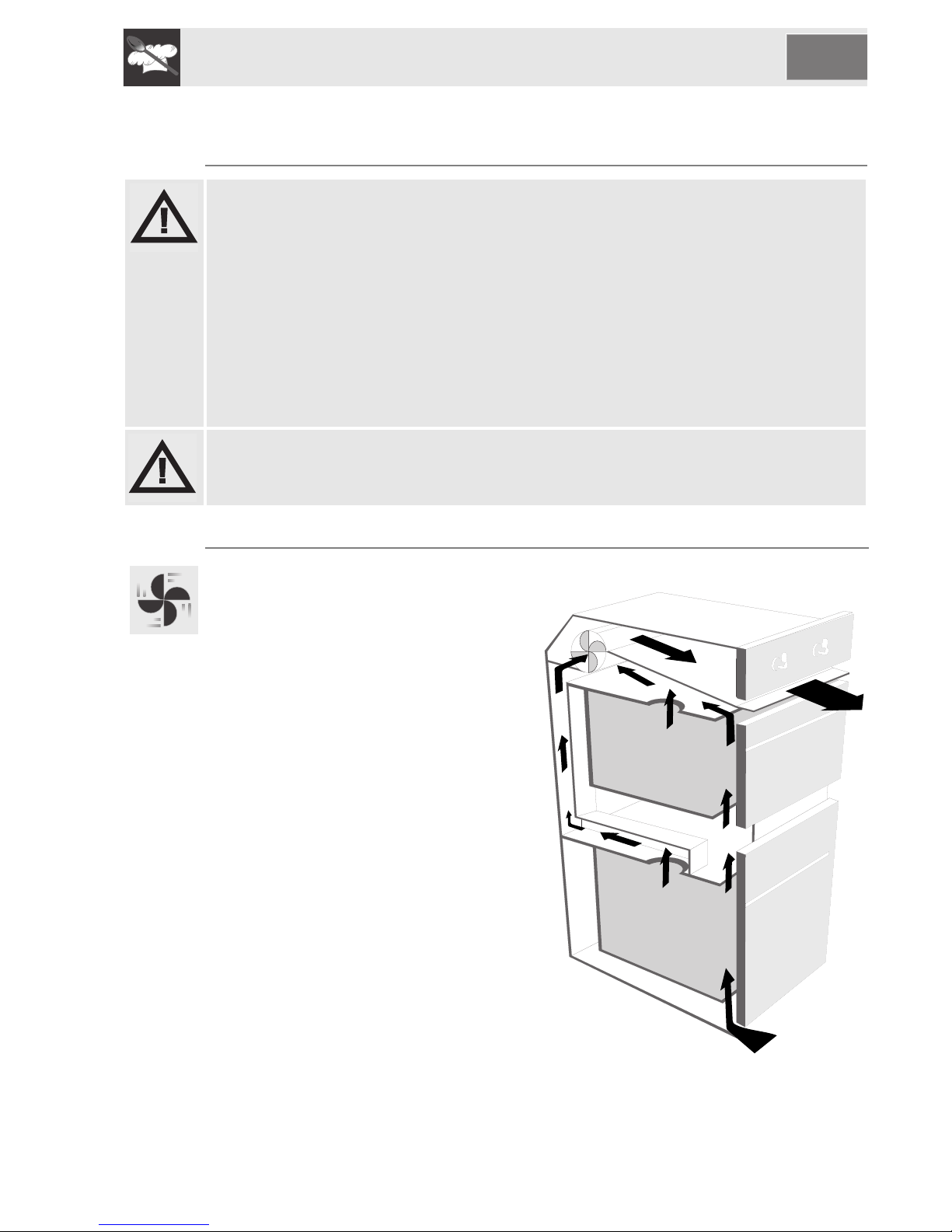

8.2.1 Cooling system
The appliance is equipped with a
cooling system which comes into
operation as soon as a cooking
function starts. The fan causes a
steady outflow of air from above the
door which may continue for a brief
period of time even after the oven has
been turned off.

Instructions for the user
EN
20
8.2.2 Oven inside lights
The oven lights come on when the door is opened or any function is selected.
If the oven light fails, replace it as described in “11.1 Replacing the light bulb”.

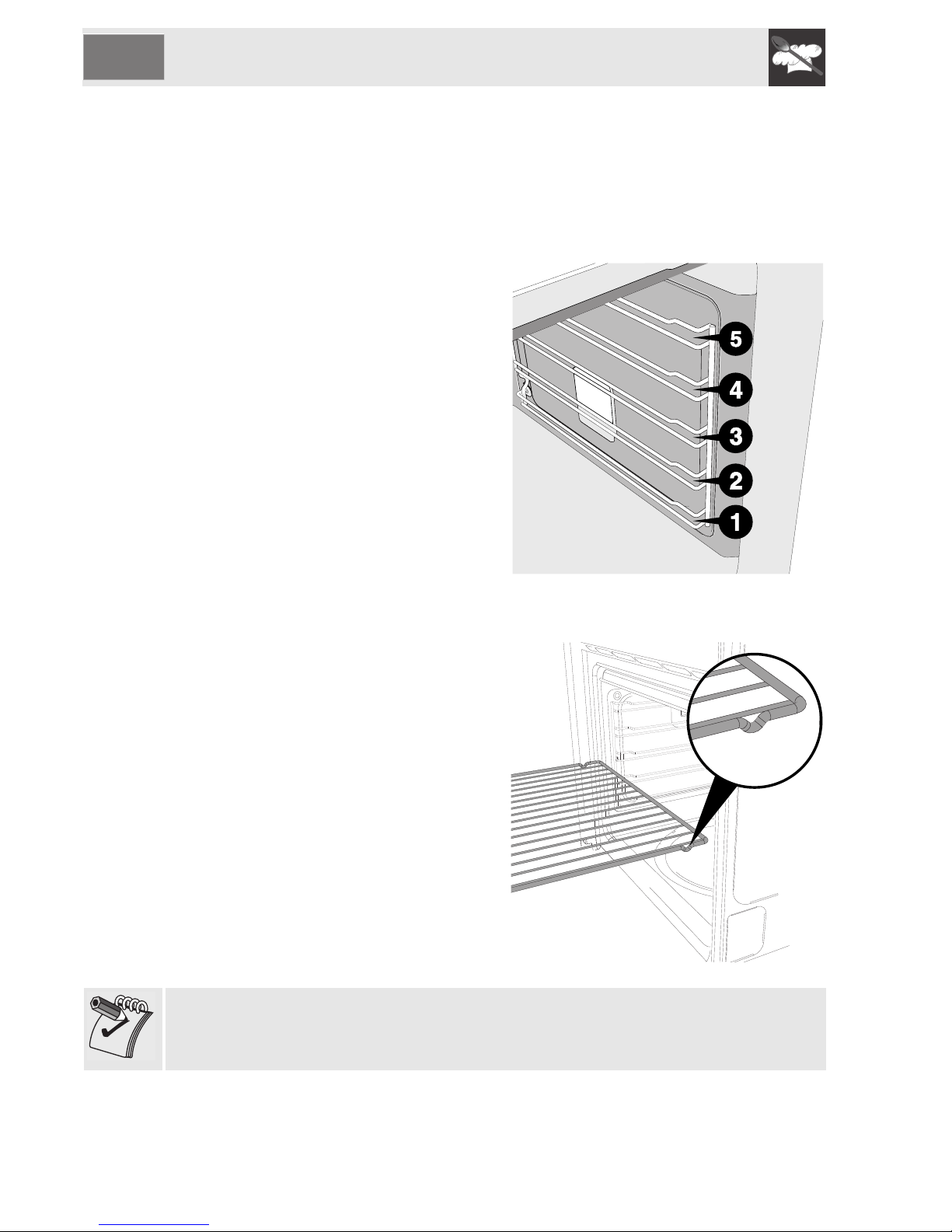

8.2.3 Oven runners
The oven features 5 runners and 3
shelves for positioning trays and racks
at different heights. The insertion
heights are numbered from the bottom
upwards (see the example in the
figure).
8.2.4 Using the rack
The racks are equipped with a
mechanical safety lock which prevents
them from being taken out accidentally.
To insert the rack correctly, check that
the lock is facing downwards (as
shown in the figure).
To take it out, lift the front edge of the
rack slightly while sliding it out on the
side runners.
The mechanical lock must always
face the back of the oven.
Insert racks and trays fully into the oven until they come to a stop.

Instructions for the user
EN
21

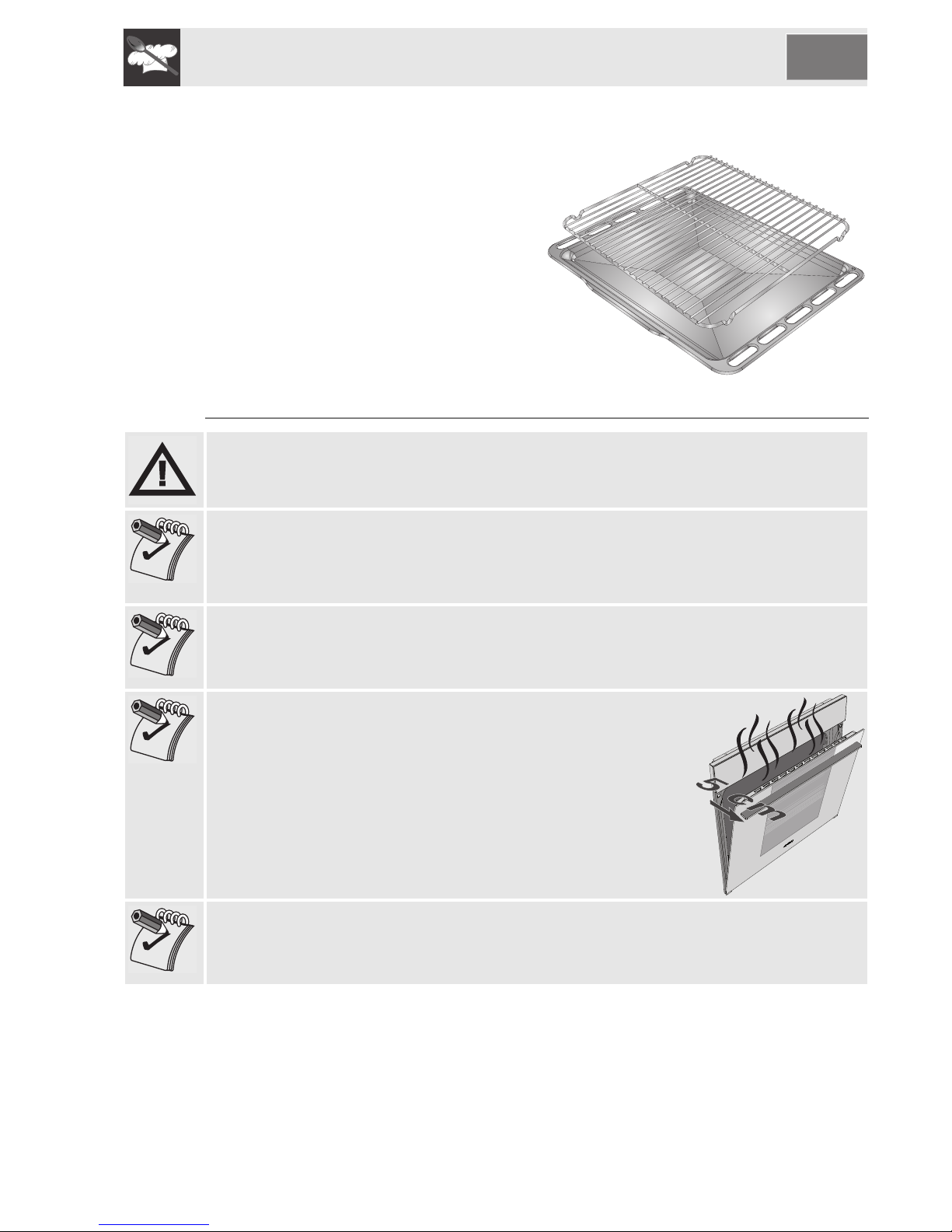

8.2.5 Using the support rack
The support rack is inserted into the
tray (as shown in the figure).
Using this, foods can be cooked and
the fat can be collected separately from
the food which is being cooked.
8.3 Warnings and general advice for usage
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend placing cookware in the centre of
the rack.
To prevent any steam in the oven from creating
problems, open the door in two stages: half open (5 cm
approx.) for 4-5 seconds and then fully open. If you need
to access the food, always leave the door open for as
short a time as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal
glass, hot food should not be left inside the oven for too long after cooking.

Instructions for the user
EN
22
9. COOKING WITH THE OVEN
ECO:
Using the grill and the lower heating element in combination is particularly
suitable for cooking on a single runner only, as it provides low energy
consumption.
STATIC:
As the heat comes from above and below at the same time, this system is
particularly suitable for certain types of food. Traditional cooking, also known as
static or thermal radiation cooking, is suitable for cooking just one dish at a time.
Perfect for all types of roasts, bread and cakes and in any case particularly
suitable for fatty meats such as goose and duck.
GRILL:
The heat coming from the grill element gives perfect grilling results, especially
for thin and medium thickness meat and, in combination with the rotisserie
(when present), it allows the food to be browned evenly at the end of cooking.
Perfect for sausages, ribs and bacon. This function enables large quantities of
food, particularly meat, to be grilled evenly.
SMALL GRILL:
Using only the heat released from the central element, this function enables
small portions of meat and fish to be grilled for making kebabs, toasted
sandwiches and all types of grilled vegetable side dishes.
FAN-ASSISTED GRILL:
The air produced by the fan softens the strong heat wave generated by the grill,
giving perfect grilling results even with very thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
FAN-ASSISTED SMALL GRILL:
Through the combined action of the fan and the heat of the central element only,
this function is perfect for rapid cooking and cooking au gratin of small quantities
of food (particularly meats), by bringing together the dietary advantages of the
grill and the even cooking of the fan.
DEFROSTING:
Rapid defrosting is helped by switching on the fan and the top heating element
to ensure uniform distribution of low-temperature air inside the oven.
