Smeg F608SN User manual

33
Contents
INSTRUCTIONS FOR THE USER: these contain user advice, description of
the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended for
the qualified technician who must perform the installation, put it into
operation and test the appliance.
1. INSTRUCTIONS FOR USE .............................................................. 34
2. SAFETY PRECAUTIONS ................................................................. 36
3. ENVIRONMENTAL RESPONSIBILITY ............................................ 38
4. GET TO KNOW YOUR OVEN.......................................................... 39
5. AVAILABLE ACCESSORIES............................................................ 40
6. FRONT PANEL................................................................................. 41
7. USING THE OVEN ........................................................................... 43
8. COOKING WITH THE OVEN ........................................................... 45
9. CLEANING AND MAINTENANCE.................................................... 52
10. EXTRAORDINARY MAINTENANCE................................................ 54
11. INSTALLING THE APPLIANCE........................................................ 58

General instructions
34
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS
ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF
THE APPLIANCE.
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN
BEFORE USING THE APPLIANCE IS ESSENTIAL. INSTALLATION MUST BE CARRIED
OUT BY COMPETENT PERSONS IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES
WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN
BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING FOOD; ALL OTHER
USES ARE CONSIDERED UNSUITABLE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
IF THE APPLIANCE IS INSTALLED ON BOATS OR IN CARAVANS, DO NOT USE IT AS
A ROOM HEATER.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND
HEAT DISPERSAL.
DO NOT REST ANY WEIGHT OR SIT ON THE OPEN DOOR OF THE APPLIANCE.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
TAKE CARE THAT NO OBJECTS ARE STUCK IN THE DOOR OF THE OVEN.
THE APPLIANCE BECOMES VERY HOT INSIDE DURING USE. SUITABLE HEAT-
PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

General instructions
35
DO NOT USE STEEL SPONGES AND SHARP SCRAPERS AS THEY WILL
DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR A MICROFIBRE CLOTH.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET
INSIDE THE OVEN. IF THEY ARE ALLOWED TO SET FOR TOO LONG,
THEY COULD RUIN THE ENAMEL COVERING THE INSIDE OF THE OVEN.
DO NOT USE PLASTIC KITCHENWARE OR CONTAINERS. THE HIGH
TEMPERATURES INSIDE THE OVEN COULD MELT THE PLASTIC, DAMAGING THE
APPLIANCE.
DO NOT USE SEALED TINS OR CONTAINERS IN THE APPLIANCE.
OVERPRESSURE MAY OCCUR INSIDE THE CONTAINERS DURING COOKING,
CREATING A DANGER OF EXPLOSION.
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
DO NOT COVER THE BOTTOM OF THE OVEN WITH ALUMINIUM OR TINFOIL
SHEETS DURING COOKING AND DO NOT PLACE PANS OR TRAYS ON IT TO AVOID
DAMAGE TO THE ENAMELLED SURFACE.
IF THE SURFACES ARE STILL VERY HOT DURING COOKING, DO NOT POUR
WATER DIRECTLY ONTO THE TRAYS. THE STEAM COULD CAUSE SEVERE BURNS
AND DAMAGE TO ENAMELLED SURFACES.
ALL COOKING OPERATIONS MUST TAKE PLACE WITH THE DOOR CLOSED.

General instructions
36
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES ARE CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL
SUPPORT SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: IF IT IS SWITCHED ON BY
ACCIDENT, IT MAY CAUSE A FIRE.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH
THE HEATING ELEMENTS INSIDE THE OVEN.
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.

General instructions
37
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT INSERT POINTED METAL OBJECTS (CUTLERY OR UTENSILS) INTO THE
SLITS IN THE APPLIANCE.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
DO NOT USE SPRAY PRODUCTS WHILE THE PRODUCT IS STILL HOT.
The manufacturer cannot be held liable for damage to persons or things caused by
failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.

Instructions for disposal
38
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Our environmental responsibility
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to
the reduction of the use of hazardous substances in electrical and electronic
appliances, as well as to the disposal of refuse, the crossed out bin symbol on
the appliance indicates that at the end of the useful life of the product, it must be
collected separately from other refuse. Therefore, at the end of the product's
working life, the user must deliver it to the appropriate differentiated collection
centres for electrical and electronic waste, or deliver it back to the retailer when
purchasing an equivalent product, on a one-for-one basis. Adequate
differentiated collection for the subsequent forwarding of the decommissioned
product to recycling, processing and ecologically compatible disposal
contributes to avoiding possible negative effects on the environment and on
health, and promotes recycling of the appliance's constituent materials. Illicit
disposal of the product by the user will lead to the application of administrative
sanctions.
The product does not contain substances in quantities sufficient to be
considered hazardous to health and the environment, in accordance with
current European directives.
3.2 Your environmental responsibility
Our product's packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.

Instructions for the user
39

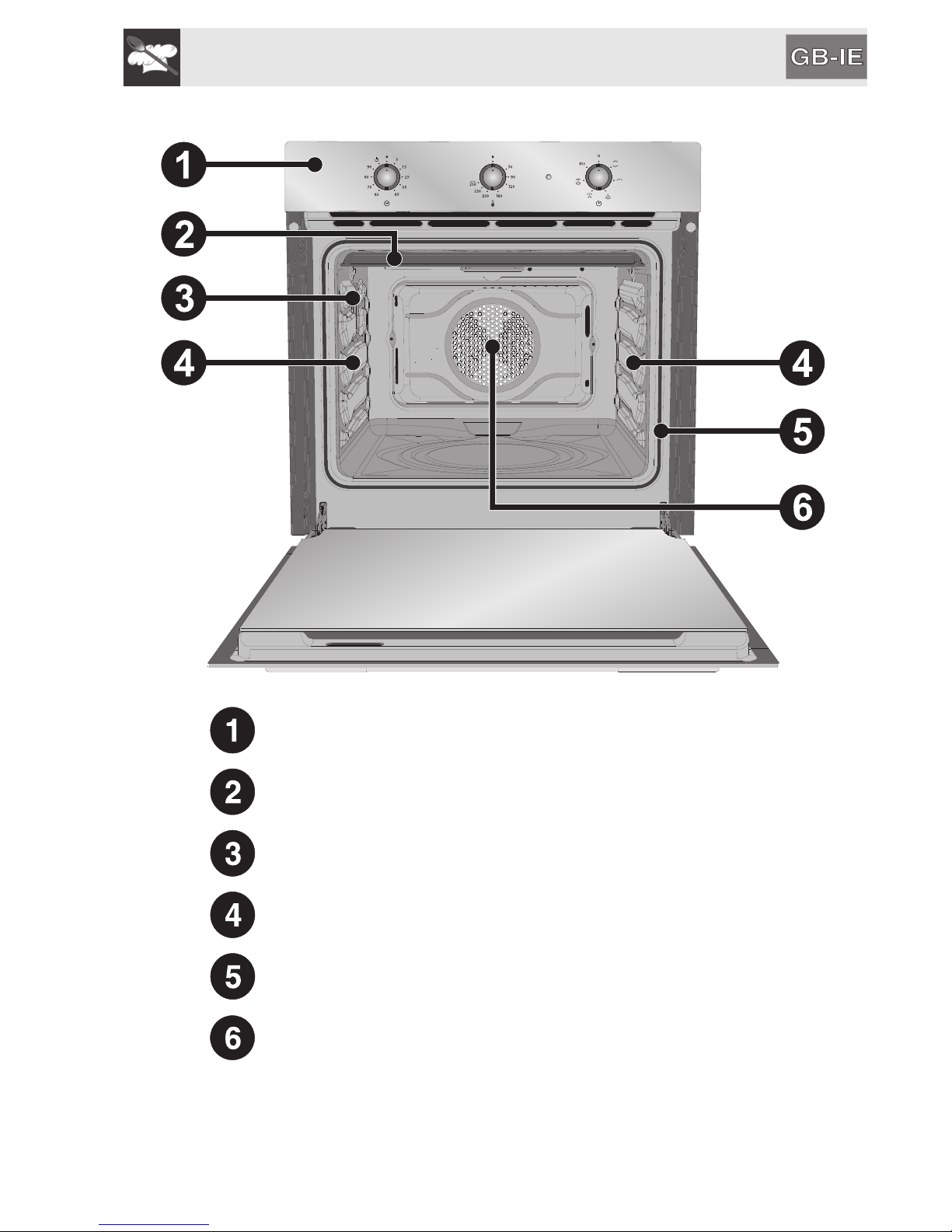

4. GET TO KNOW YOUR OVEN
Control panel
Roof liner (on some models only)
Oven light
Rack and tray support runners
Oven seal
Oven fan (on some models only)

Instructions for the user
40
5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all
accessories.

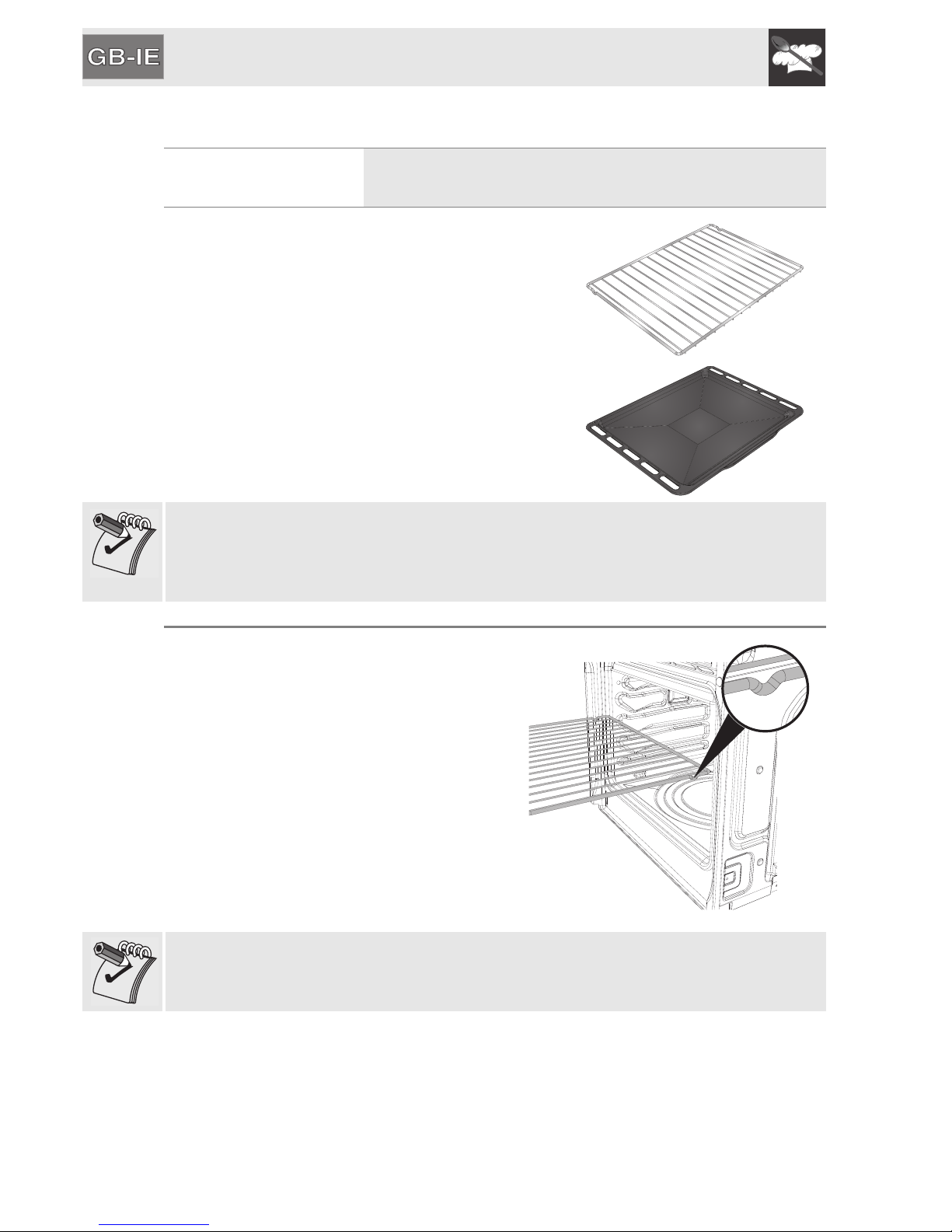

Rack: for holding cooking containers.
Oven tray: for collecting fat from foods placed
on the rack above.
• Accessories available on request:
Original supplied and optional accessories may be ordered from any
Authorised Support Centre.
• Use original SMEG accessories only.
5.1 Using the rack or tray
The racks and trays are equipped with a
mechanical safety lock which prevents
them from being taken out accidentally.
To insert the rack or tray correctly, check
that the lock is facing downwards (as
shown in the figure at the side).
To remove the rack or tray, lift the front
slightly.
The mechanical lock must always face
the back of the oven.
Insert racks and trays fully into the oven until they come to a stop.

Instructions for the user
41
6. FRONT PANEL
All the controls and indicator lights can be seen on the front panel. The tables
below describe the symbols used.
TIMER KNOB
This knob enables manual cooking or the timer to be
selected; the timer switches off the oven
automatically at the end of cooking. If no cooking
time is selected, the timer knob must be
positioned on .
To set the cooking time, turn the knob clockwise until it reaches the “90” position
and then set the desired cooking time. The numbers from 5 to 90 correspond to
minutes. Adjustment is progressive so that the time can also be set to any
intermediate value between these numbers. At the end of the programmed
cooking time, a buzzer will sound and switch off automatically after 4-5 seconds.
THERMOSTAT KNOB
The cooking temperature is selected by turning the
knob clockwise to the desired setting, between 50°
and 250°C.

Instructions for the user
42
THERMOSTAT INDICATOR LIGHT (RED)
When this light comes on, the oven is heating up.
When this light goes out, the preset heating temperature has been
reached.
When the light flashes, the temperature inside the oven is steady.
FUNCTION SELECTOR KNOB
Turn the knob clockwise or anti-clockwise to select a
function from the following options:
(See 8. COOKING WITH THE OVEN).
STATIC OVEN FUNCTION
LARGE GRILL FUNCTION
FAN-ASSISTED BOTTOM FUNCTION
LARGE FAN-ASSISTED GRILL FUNCTION
FAN-ASSISTED STATIC FUNCTION
ECO FUNCTION

Instructions for the user
43
7. USING THE OVEN
7.1 Before using the appliance
• Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
• Remove any protective film from the outside or inside of the appliance,
including from accessories such as trays, dripping pans, the pizza plate or
the base cover.
• Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “9. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
7.2 General Description

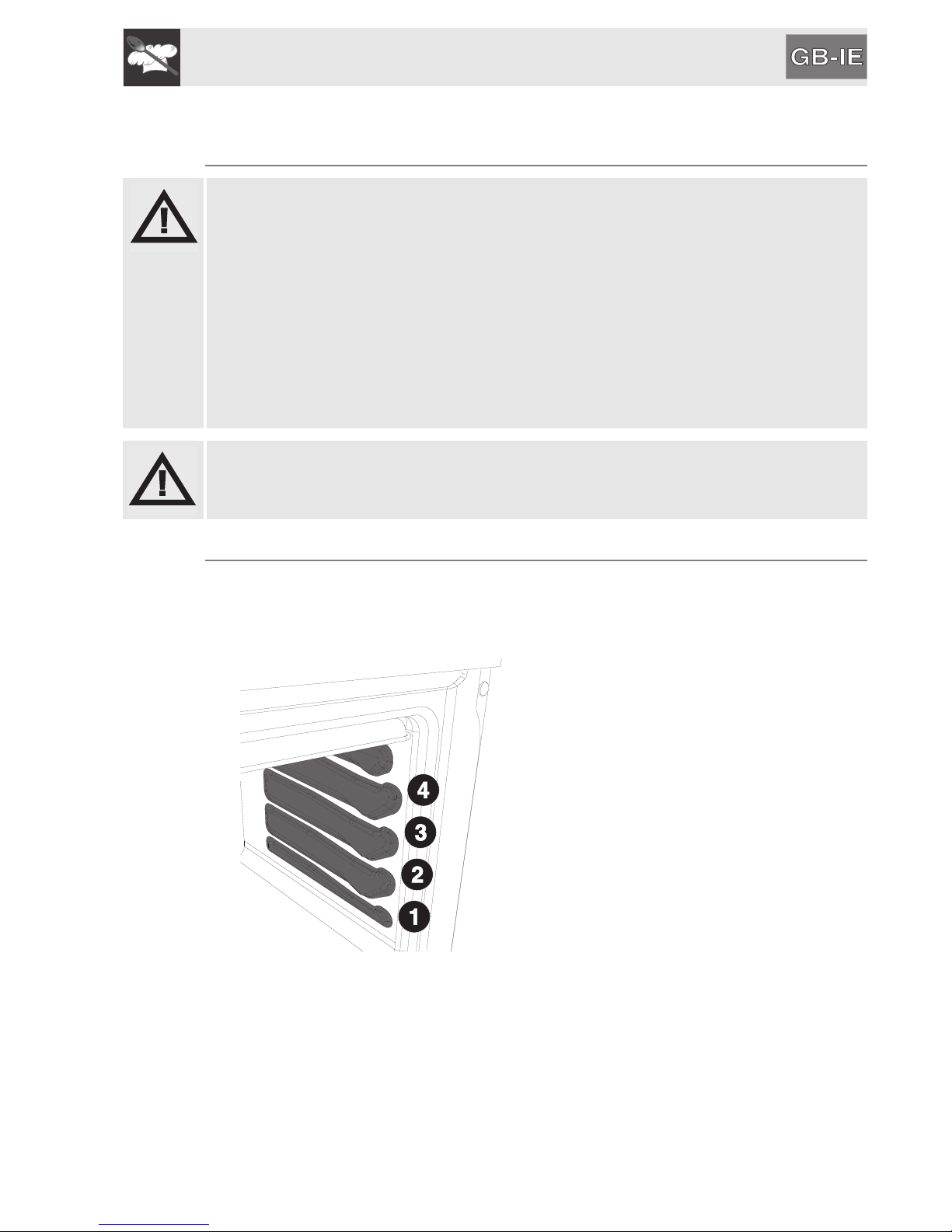

7.2.1 Oven runners
The oven features 4 runners for positioning trays and racks at different heights.
The insertion heights are numbered from the bottom upwards (see figure).

Instructions for the user
44

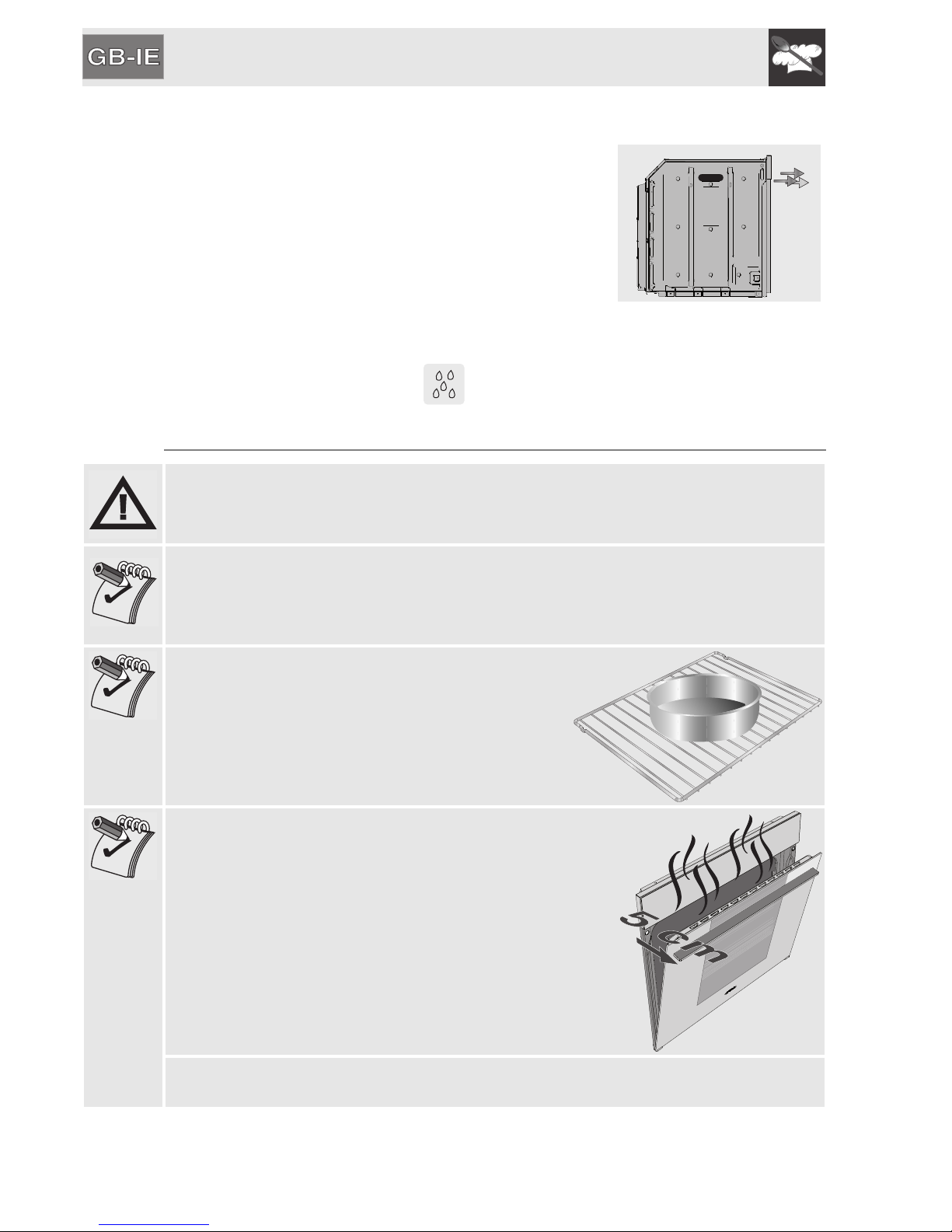

7.2.2 Cooling system
The appliance is equipped with a cooling system
which comes into operation as soon as a cooking
function starts. The fan causes a steady outflow of
air from above the door which may continue for a
brief period of time even after the oven has been
turned off.
7.2.3 Oven inside lights
The oven lights come on when the door is opened (only on some models) or any
function is selected, except for (where present).
7.3 Warnings and general advice for usage
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend
placing cookware in the centre of the rack.
To prevent any steam in the oven from causing
problems, open the door in two stages: half open (5
cm approx.) for 4-5 seconds and then fully open. To
access food, always leave the door open as short a
time as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal
glass, hot food should not be left inside the oven for too long after cooking.

Instructions for the user
45
8. COOKING WITH THE OVEN
STATIC:
As the heat comes from above and below at the same time, this
system is particularly suitable for certain types of food. Traditional
cooking, also known as static or thermal radiation cooking, is
suitable for cooking just one dish at a time. Perfect for all types of
roasts, bread and cakes and in any case particularly suitable for
fatty meats such as goose and duck.
GRILL:
The heat coming from the grill element gives perfect grilling results,
especially for thin and medium thickness meat and, in combination
with the rotisserie (when present), it allows the food to be browned
evenly at the end of cooking. Perfect for sausages, ribs and bacon.
This function enables large quantities of food, particularly meat, to
be grilled evenly.
FAN-ASSISTED BOTTOM:
The combination of the fan with just the lower heating element
allows cooking to be completed more rapidly. This system is
recommended for sterilising or for finishing off the cooking of foods
which are already well-cooked on the surface, but not inside, which
therefore need a little more heat. Perfect for any type of food.
FAN-ASSISTED GRILL:
The air produced by the fan softens the strong heatwave generated
by the grill, giving perfect grilling results even with very thick foods.
Perfect for large cuts of meat (e.g. shin of pork).
FAN-ASSISTED STATIC:
The operation of the fan, combined with traditional cooking,
ensures uniform cooking even with complex recipes. Perfect for
biscuits and cakes, even when simultaneously cooked on several
levels. (For multiple-level cooking, you are advised to use the 2nd
and 4th runners.)
ECO:
Using the grill and the bottom heating element plus the fan is
particularly suitable for cooking small quantities of food, as it
provides low energy consumption.

Instructions for the user
46
8.1 Cooking advice and instructions
8.1.1 General advice
For cooking on several levels, we recommend using a fan-assisted function
()to achieve uniform cooking at all heights.
In general, it is not possible to shorten the cooking times by increasing the
temperature (the food could be well-cooked on the outside and undercooked on
the inside).
8.1.2 Advice for cooking meat
Cooking times, especially for meat, vary according to the thickness and quality
of the food and to consumer taste.
We recommend using a meat thermometer for meat when roasting it.
Alternatively, simply press on the roast with a spoon: if it is hard, it is ready; if
not, it needs another few minutes cooking.
8.1.3 Advice for cooking desserts and biscuits
• Use dark metal moulds for desserts: they help to absorb the heat better.
• The temperature and the cooking duration depend on the quality and
consistency of the dough.
• Check whether the dessert is cooked all the way through: at the end of the
cooking time, put a toothpick into the highest point of the dessert. If the
dough does not stick to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of the oven, on the next occasion
reduce the set temperature by about 10°C, selecting a longer cooking time if
necessary.
8.1.4 Advice for defrosting and proving
• We recommend positioning frozen foods in a lidless container on the first
runner of the oven.
• The food must be defrosted without its wrapping.
• Lay out the foodstuffs to be defrosted evenly, not overlapping.
• When defrosting meat, we recommend using a rack positioned on the
second runner with the food on it and a tray positioned on the first runner. In
this way, the liquid from the defrosting food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom
of the oven.

Instructions for the user
47
8.1.5 Advice for cooking with the Grill and the Fan-assisted grill
• Using the Grill function , meat can be grilled even when it is put into the
oven cold; preheating is recommended if you wish to change the effect of
the cooking.
• With the Fan-assisted grill function , however, we recommend that you
preheat the oven before grilling.
We recommend placing the food at the centre of the rack.
8.2 To save energy
To save energy during use of the appliance, the following instructions may be
followed:
• Stop cooking a few minutes before the time normally used. Cooking will
continue for the remaining minutes with the heat which has accumulated
inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Use the ECO function for cooking on a single runner.
Keep the inside of the appliance clean at all times.

Instructions for the user
48
8.3 Cooking process information table
DISHES WEIGHT FUNCTION
FIRST COURSES
LASAGNE 3 kg Static
OVEN-BAKED PASTA Static
MEAT
ROAST VEAL 1 kg Fan-assisted static
LOIN OF PORK 1 kg Fan-assisted static
TURKEY BREAST 1 kg Fan-assisted static
GRILLED MEATS
PORK CHOPS Fan-assisted grill
FILLET OF PORK Grill
FILLET OF BEEF Grill
LIVER Fan-assisted grill
SAUSAGES Fan-assisted grill
MEAT BALLS Grill
FISH
SALMON TROUT 0.7 kg Fan-assisted static

Instructions for the user
49
RUNNER POSITION
FROM BOTTOM
TEMPERATURE
°C TIME IN MINUTES
1 or 2 220 - 230 40 - 50
1 or 2 220 - 230 40
2 180 - 190 70 - 80
2 180 - 190 70 - 80
2 180 - 190 110 - 120
1ST SURFACE 2ND SURFACE
4 250 - 280 7 - 9 5 - 7
3 250 - 280 9 - 11 5 - 9
3 250 - 280 9 - 11 9 - 11
4 250 - 280 2 - 3 2 - 3
3 250 - 280 7 - 9 5 - 6
3 250 - 280 7 - 9 5 - 6
2 160 - 170 35 - 40

Instructions for the user
50
DISHES WEIGHT FUNCTION
PIZZA Fan-assisted static
DESSERTS
DOUGHNUT Fan-assisted static
FRUIT TART Fan-assisted static
FRUIT TART Static
PARADISE CAKE Fan-assisted static
PARADISE CAKE Static
RICE PUDDING Static
APPLE PIE Static
CROISSANTS (on multiple runners) Fan-assisted static
SHORT PASTRY BISCUITS (on multiple runners) Fan-assisted static

Instructions for the user
51
RUNNER POSITION
FROM BOTTOM
TEMPERATURE
°C TIME IN MINUTES
1280 8
2 160 - 170 50 - 55
2 160 - 170 30 - 35
2 170 35 - 40
2 160 - 170 50 - 60
2 170 50 - 60
2 170 50 - 60
3180 60
1 and 3 160 - 170 16 - 20
1 and 3 160 - 170 16 - 20

Instructions for the user
52
9. CLEANING AND MAINTENANCE
NEVER USE A STEAM JET FOR CLEANING THE APPLIANCE.
We recommend the use of cleaning products distributed by SMEG.
9.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly after
use. Let it cool first.
9.2 Ordinary daily cleaning
To clean and preserve the stainless steel surfaces, always use only specific
products that do not contain abrasives or chlorine-based acids.
How to use: pour the product onto a damp cloth and wipe the surface, rinse
thoroughly and dry with a soft cloth or a microfibre cloth.
9.3 Food stains or residues
Do not use steel sponges or sharp scrapers as they will damage the
surface.
Use normal non-abrasive products and a wooden or plastic tool if
necessary. Rinse thoroughly and dry with a soft cloth or a microfibre
cloth.
Do not allow residues of sugary foods (such as jam) to set inside the
oven. If left to set for too long, they might damage the enamel lining of
the oven.
9.4 Cleaning the door glazing
The glass in the door should always be kept thoroughly clean. Use absorbent
kitchen roll; remove stubborn dirt with a damp sponge and an ordinary
detergent.
Do not use abrasive or corrosive cleaners for cleaning the door glazing.
(e.g. powder products, oven-cleaner sprays, stain removers and metal scouring
pads).
Do not use rough or abrasive materials or sharp metal scrapers to clean the
oven's glass doors since they may scratch the surface.
