Smeg SC361X User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 30
2. INSTALLATION _________________________________________ 32
3. DESCRIPTION OF CONTROLS ____________________________ 35
4. USE OF THE OVEN______________________________________ 41
5. AVAILABLE ACCESSORIES _______________________________ 42
6. COOKING HINTS________________________________________ 43
7. CLEANING AND MAINTENANCE ___________________________ 48
8. ADDITIONAL MAINTENANCE______________________________ 53
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician who must install the appliance, set it functioning
and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the controls and the correct procedures for cleaning and
maintenance of the appliance.
29

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS
THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE
REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC
USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES
ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE EARTHED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT
BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE
COMPLYING WITH APPLICABLE REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN
BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
DO NOT OBSTRUCT VENTILATION OUTLETS AND HEAT DISPERSAL SLITS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD
THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND
CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
30

Introduction
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)
POSITION WHEN YOU FINISH USING THE OVEN.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE
ACCIDENTALLY CATCH LIGHT AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.
THE PLATE MUST NOT BE REMOVED.
THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN
TO GO NEAR OR PLAY WITH IT.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above guidlines or by
interference with any part of the appliance or by the use of non-original
spares.
31

Instructions for the installer
32
2. INSTALLATION
2.1 Electrical connection
Check that the mains voltage and power cable ratings are as per the
information provided on the label attached to the oven door frame.
This label must never be removed.
It is obligatory for the electrical system to be earthed according to the
methods required by safety rules.
If a plug and socket connection is being used make sure that the plug
and socket are compatible. Avoid use of adapters and shunts as these
could cause overheating and risk of burns.
If a fixed connection is being used fit cable line with an omnipolar circuit
breaker with a contact opening gap equal to or greater than 3 mm in an
easily accessible position in proximity to the oven.
For operation on 220-240V ∼ :use an
H05RR-F / H05RN-F type three-core cable
(3 x 1.5 mm2).
The cable end to be connected to the
appliance must be provided with an ground
wire (yellow-green) at least 20 mm longer.

Instructions for the installer
33

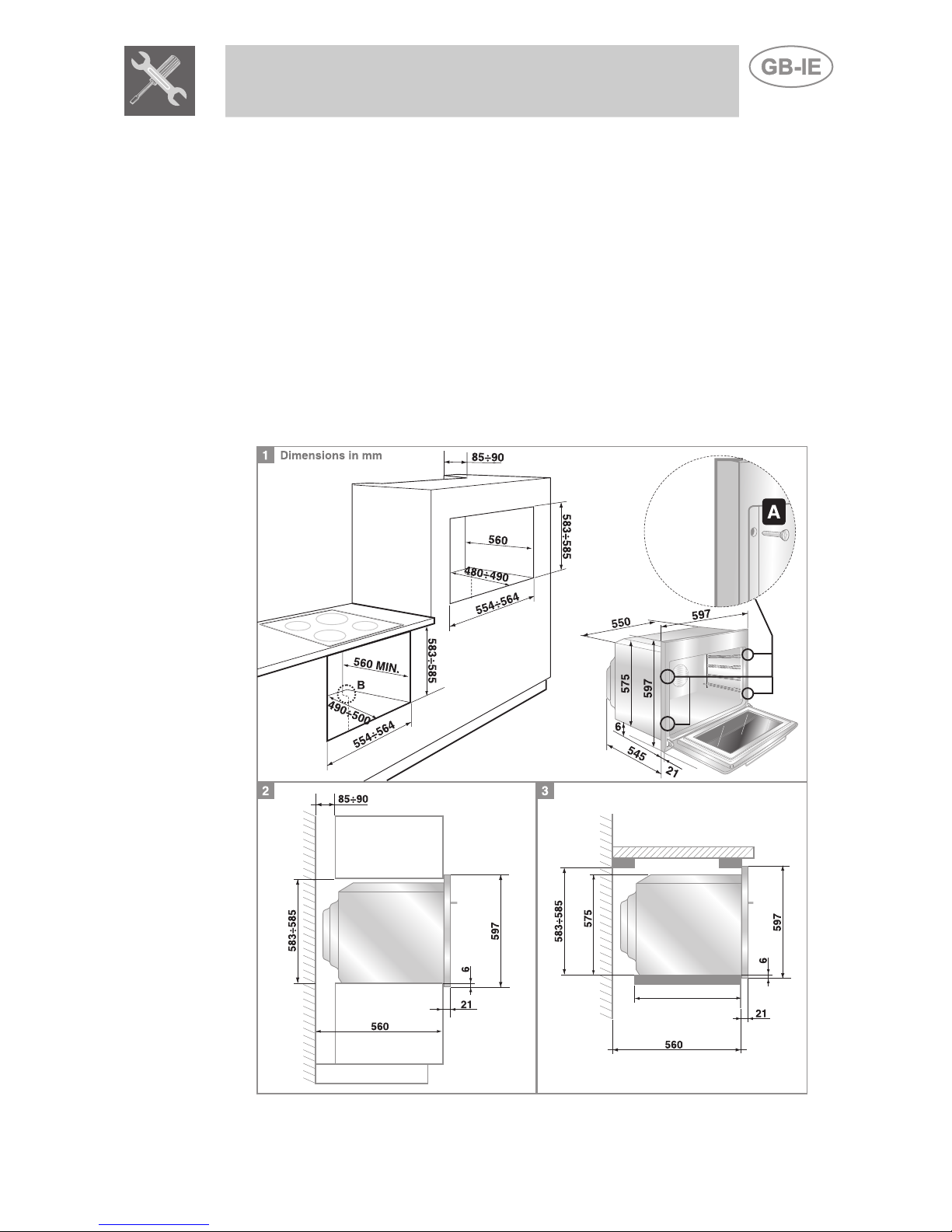

2.2 Installing the oven
The oven is designed for installation into any piece of furniture as long as
it is heat-resistant. Proceed according to the dimensions shown in Figures
1, 2and 3. For installing under a work top, follow the dimensions given in
Figure 3. For installing under a work top beneath a hob with controls
connected to the oven, ensure a minimum clearance from any side walls
of at least 110 mm as shown in Figure 1.
For installing in a column, follow the dimensions given in Figure 2allowing for a
clearance of 80 to 90 mm at the top and sides of the column. Tighten the four
screws (ref.A) inside the frame to secure (Fig. 1).
For installing beneath a separate hob, allow for a rear and bottom
clearance as shown in Figure 1(ref. B). See relevant instructions for fitting
and securing the hob.

Instructions for the installer
34

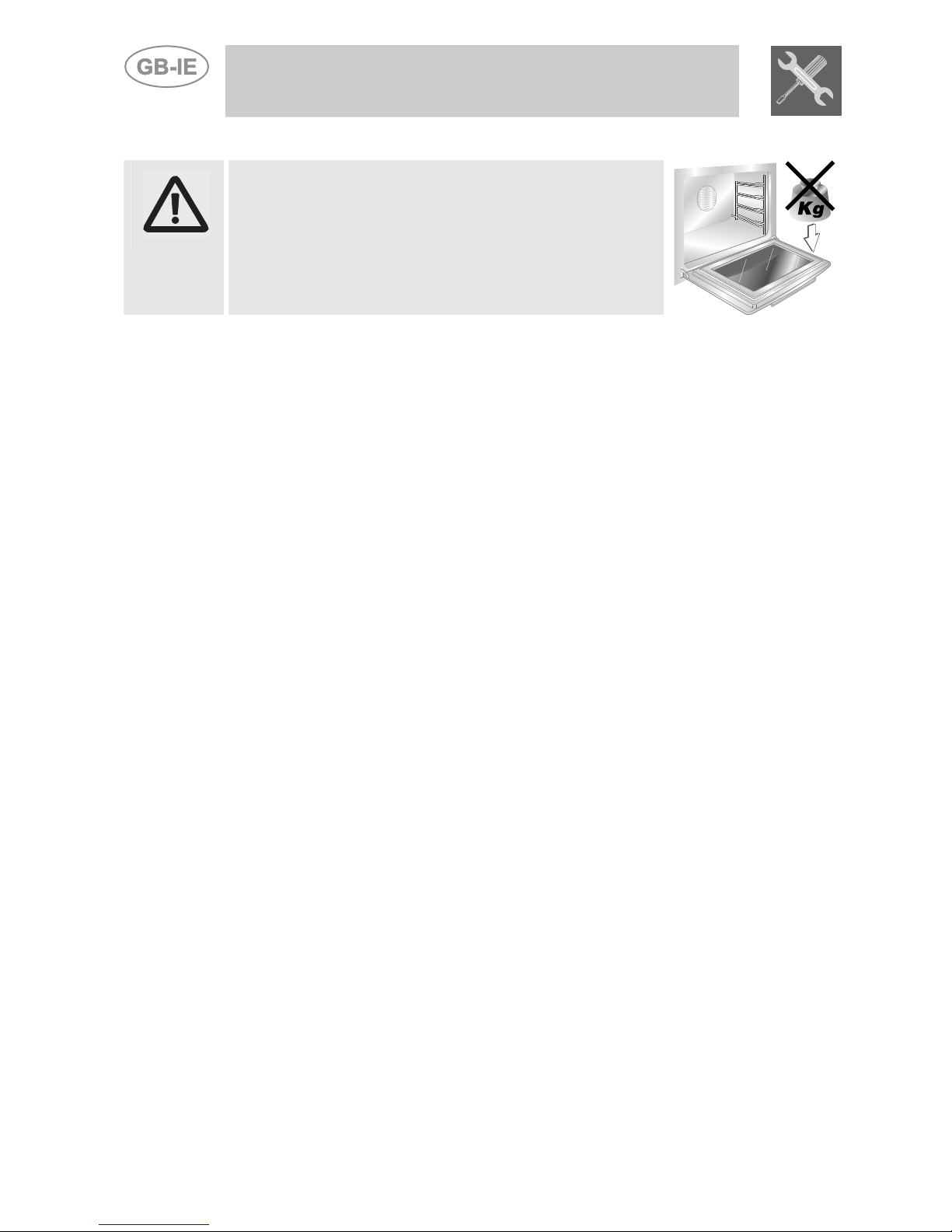

Never use the oven door to lever the oven into
place when fitting.
Avoid exerting too much pressure on the oven door
when open.

Instructions for the user
3. DESCRIPTION OF CONTROLS

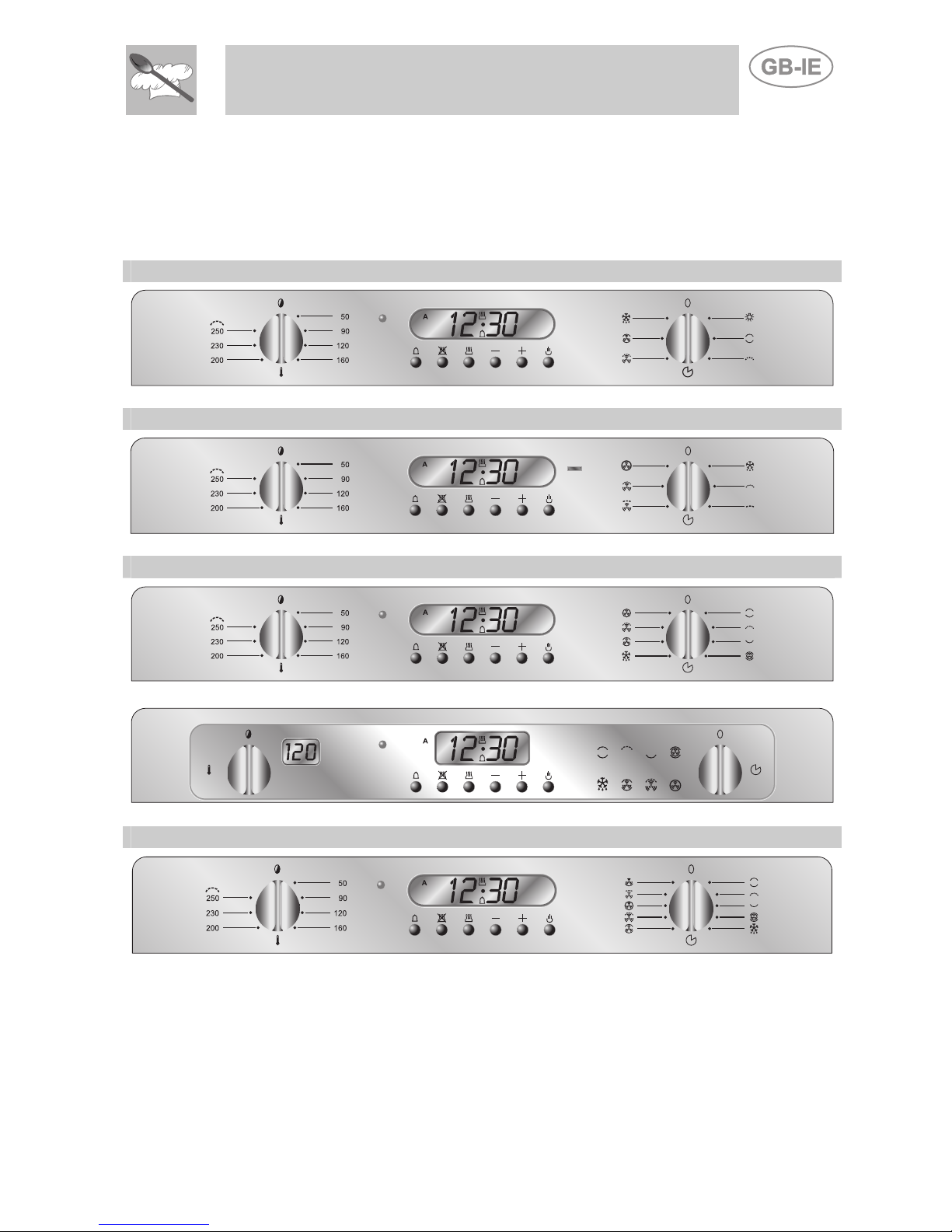

3.1 Front control panel
All the oven controls are grouped together on the front panel.
5- FUNCTION MODEL
6- FUNCTION MODEL
8- FUNCTION MODEL
10- FUNCTION MODEL
35

Instructions for the user
36
FUNCTION CONTROL KNOB
(5/6/8/10 functions)
Rotate the knob in either direction to select
desired function from the following:
NO FUNCTION SET DEFROSTING
OVEN LIGHT (NO ELEMENT
ENGAGED)
UPPER AND LOWER
HEATING ELEMENT +
VENTILATION
UPPER AND LOWER
HEATING ELEMENT
FULL GRILL ELEMENT +
VENTILATION
WIDE GRILL ELEMENT VENTILATED
HEATING ELEMENT
GRILL ELEMENT GRILL ELEMENT +
VENTILATION
LOWER HEATING
ELEMENT
LOWER HEATING
ELEMENT +
VENTILATION
UPPER AND LOWER
HEATING ELEMENT +
VENTILATED HEATING
ELEMENT
THERMOSTAT CONTROL KNOB
(multifunction oven)
Cooking temperature is selected by turning the
knob clockwise to the desired setting, between
50° and 250°C.
Maximum temperature in models with front glass
panel is 260°C.

Instructions for the user
THERMOSTAT INDICATOR LIGHT
When this light comes on, the oven is heating up.
When this light goes out, the preset heating
temperature has been reached.
When the light flashes, the temperature inside the
oven is steady.
Important
(in models with flush controls only)
To access to the control knobs simply press them and
they will spring out into the operating position (fig. A).
They must remain out in this position while the oven is in
operation to prevent them from overheating. To return
them to the retrected position, simply press down until the
catch engages.
To open the oven door, press the handle and it will spring
out into the operating position (fig. B). It must remain in
this position while the oven is in operation to prevent it
from overheating.
A
B
37

Instructions for the user
38
3.2 Electronic programmer
LIST OF FUNCTIONS
MINUTE-COUNTER KEY
END-OF-COOKING KEY
COOKING TIME KEY
TIME BACK KEY
TIME FORWARD KEY
MANUAL OPERATION KEY
3.2.1 Clock adjustment
When using the oven for the first time, or after a power failure, the display
flashes regularly and indicates . To stop flashing, press key on
the display. By pressing keys or each single press changes the
time by 1 minute either up or down.
Press one of the two keys until the right time appears.
Before setting the programmer activate the desired function and
temperature.
3.2.2 Semiautomatic cooking
Use this setting for automatic oven switch-off at the end of cooking time.
By pressing key , the display lights up, showing ; keep the key
pressed and at the same time, press keys or to set the cooking time.

Instructions for the user
Release key to start the programmed cooking time count. The display
will now show the right time together with symbols Aand .
3.2.3 Automatic cooking
Use this setting to automatically start and stop the oven.
By pressing key , the display lights up showing ; keep the key
pressed and at the same time, press keys or to set the cooking
time.
By pressing key the sum of the right time + cooking time will appear;
keep the key pressed and at the same time, press keys or to
regulate the end of cooking time.
Release key to start the programmed count and the display will show
the right time together with symbols Aand .
After setting, to see how much cooking time is left, press key ; to see
end of cooking time, press key .
3.2.4 End of cooking
When cooking is over, the oven will automatically switch off and, at the
same time, an intermittent alarm will sound. After switching off the alarm,
the display will once again show the right time together with the symbol
, indicating that the oven has returned to manual operation mode.
3.2.5 Adjusting alarm volume
The acoustic alarm has three different settings. These can be operated,
while the alarm is sounding, by pressing key .
3.2.6 Switching off the alarm
The alarm switches off automatically after seven minutes. It can be
manually turned off by pressing key .
3.2.7 Minute-counter
The programmer can also be used as a simple minute counter.
The use of the minute-counter will not interrupt oven operation at the end
of the set time.
39

Instructions for the user
40
By pressing key , the display shows ; keep the key pressed
and at the same time press keys or . By releasing the key , the
programmed count starts and the symbols and appear on the
monitor.
After programming the minute-counter, the display will show the right
time. to display remaining time, press key .
Wrong settings are prevented logically (e.g., any conflict between end of
cooking time and a longer time will not be accepted by the programmer).
3.2.8 Cancellation of set data
Once the programme has been set, keep the key of the function to be
cancelled pressed, while at the same time is reached by means
of variation keys or . Time cancellation will be considered as end-
of-cooking time by the programmer.
3.2.9 Changing the set data
The cooking data entered can be changed at any time by keeping the
function key pressed and at the same time adjusting the keys or .

Instructions for the user
4. USE OF THE OVEN
Before using the oven make sure that the electronic programmer displays
the symbol (see "3.2.1 Clock adjustment").
4.1 Warnings and general advice
Before using the oven for the first time, pre-heat it to maximum
temperature (250°C) long enough to burn any manufacturing oily
residues which could give the food a bad taste.
In the models featuring an electronic programmer, a power failure causes
the display to start flashing at regular intervals and the symbol to
appear. To re-adjust, see "3.2 Electronic programmer ".
During cooking, do not cover the bottom of the oven with aluminium or
tin foil and do not place pans or oven trays on it as this may damage the
enamel coating. If you wish to use greaseproof paper, place it so that it
will not interfere with the hot air circulation inside the oven.
To prevent any steam in the oven creating
problems, open the door in two stages: half open
(5 cm approx.) for 4-5 seconds and then fully
open. To access food, always leave the door
open as short a time as possible to prevent the
temperature in the oven from falling and ruining
the food.
4.2 Cooling system (certain models only)
The appliance is equipped with 2 cooling fans
which come into operation when the oven is
switched on.
Fans cause a steady outflow of air from above
the door which may continue for a brief period of
time even after the oven has been turned off.
4.3 Oven light
To turn on the oven light in models with static oven, rotate the
temperature knob clockwise to the first setting aligned with the lamp
symbol ( ). The light will remain on throughout entire cooking operation.
In the multifunction models, the inside oven light may be turned on by
simultaneously rotating the function selector knob and the timer knob.
When the oven is not working, the light comes on by simply opening the
door.
41

Instructions for the user
42

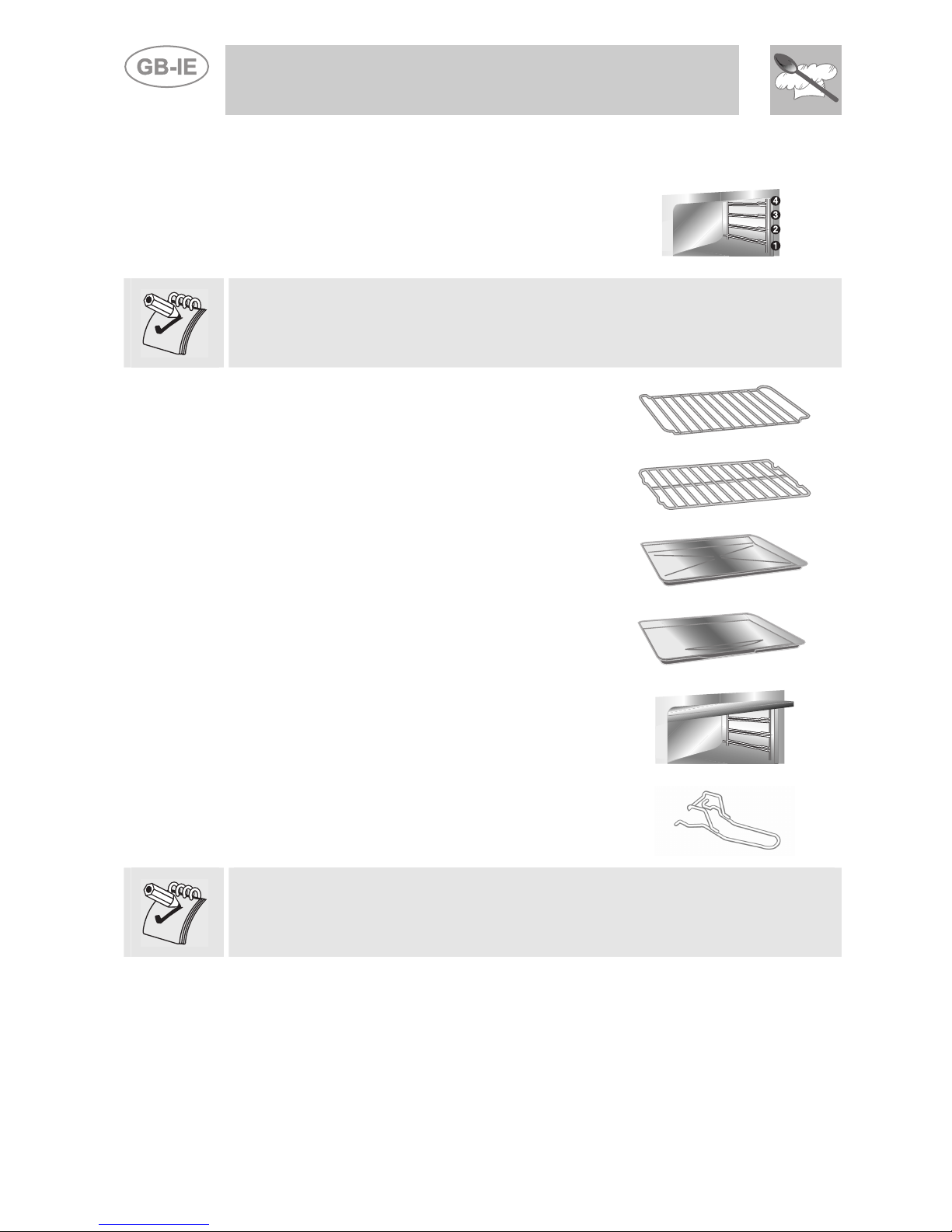

5. AVAILABLE ACCESSORIES
The oven features 4 support positions for
shelves and pans of different height.
Some models do not feature all accessories.
Chrome shelf: useful for holding cooking
vessels.
Grill mesh: for placing above grill pan to
allow juices to drip into pan below .
Roasting/Grill pan: to be used for roasting
or grilling.
Enamel tray: for baking cakes, pizza and
oven desserts.
Roof liner/Grill guard: removing this
simplifies cleaning procedures inside the
oven.
Chromium-plated handle: for removing hot
shelves and pans from the oven. Be sure to
wear oven gloves when in use.
Accessories available on request
Original accessories may be ordered from any Authorised Service
Centre.

Instructions for the user
6. COOKING HINTS
In fan-assisted mode preheating should be carried out at 30/40°C above
the cooking temperature. This considerably shortens cooking times and
reduces power consumption, as well as giving better cooking results.
Keep the oven door closed during cooking
6.1 Traditional cooking (multifunction models)
FUNCTION SWITCH
THERMOSTAT SWITCH
50 ÷250°C
This traditional cooking method, in which heat comes from above and
below, is suitable for cooking food on a single level. You have to pre-
heat the oven until the set temperature is reached. Place the food in the
oven only after the thermostat indicator light has turned off. very fatty
meats may be put in when the oven is still cold. Put frozen meat in
immediately, without waiting for it to thaw. The only precaution you need
to take is to set the temperature about 20°C lower and cooking time
about 1/4 longer than you would for fresh meat.
6.2 Fan cooking (multifunction models)
FUNCTION SWITCH
THERMOSTAT SWITCH
50 ÷250°C
This system is suitable for cooking on several levels, including different
types of food (fish, meat etc.), without the tastes and smells mingling. Air
circulation in the oven ensures a uniform distribution of heat.
43

Instructions for the user
44
Multiple cooking is possible as long as the cooking temperature of the
different foods is the same.

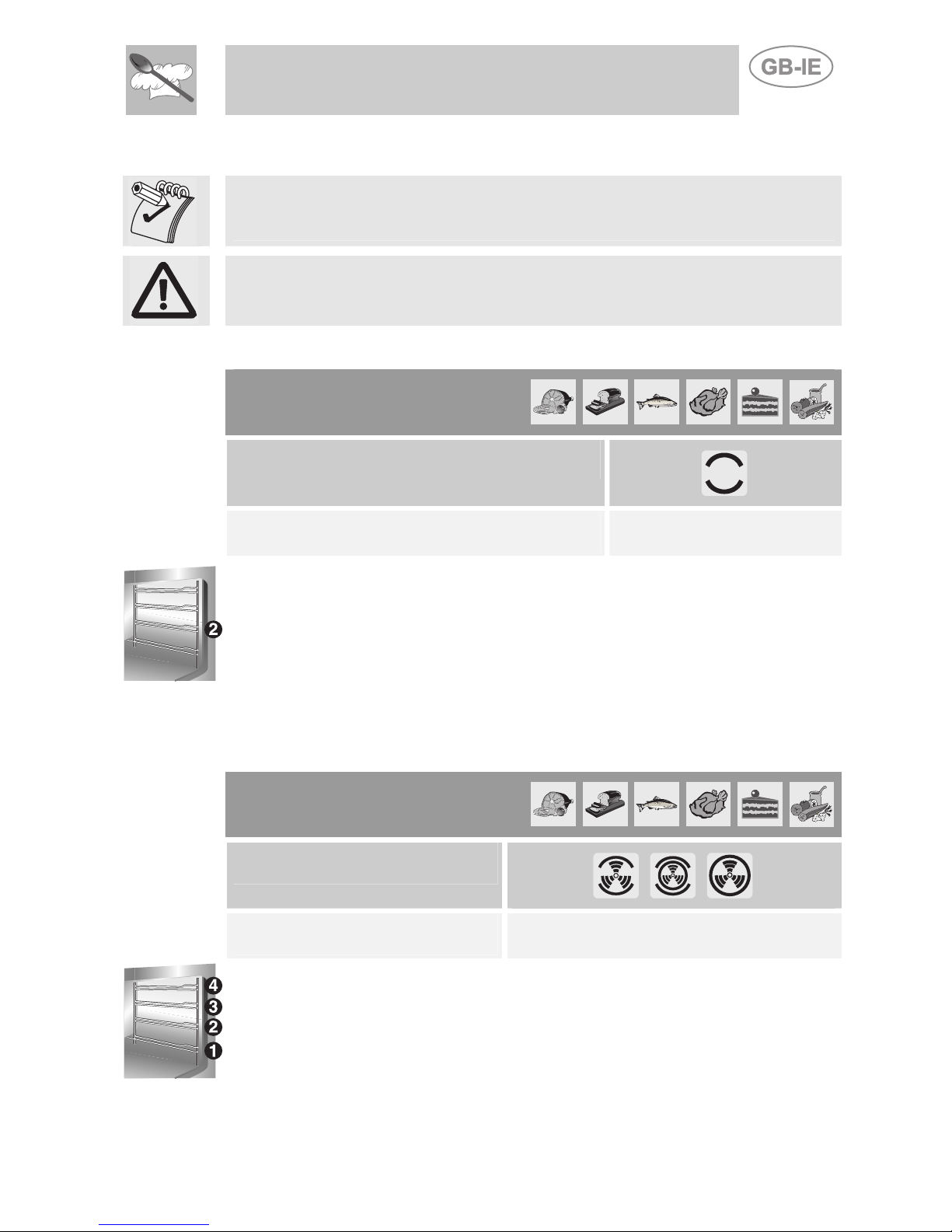

6.3 Grill cooking
FUNCTION SWITCH
THERMOSTAT SWITCH
.
Permits rapid browning of foods. You are advised to place the pan in the
highest position. When cooking small items for a short time the pan
should be in the highest position. For larger items requiring longer
cooking times, the pan should be lowered to avoid food being burned on
top before being throughly cooked.
Grill function must be used only with the door closed.
Keep the oven door closed during grilling. Grilling with the door
open could permanently damage the oven and affect safety of
operation.
6.4 Fan grilling (multifunction models)
FUNCTION SWITCH
THERMOSTAT SWITCH
200
Ensures uniform heat distribution with greater heat penetration into the
food. Food will be lightly browned on the outside and remain soft inside.
Keep the oven door closed during cooking. Heating up time must
not exceed 60 minutes.
Keep the oven door closed during grilling. Grilling with the door
open could permanently damage the oven and affect safety of
operation.

Instructions for the user
6.5 Delicate cooking (in some models only)
FUNCTION SWITCH
THERMOSTAT SWITCH
50 ÷250°C
Ideal for pastries and cakes with a liquid surface and little sugar and
moist desserts in moulds. Excellent results can also be achieved in
completing cooking at the base and with dishes requiring heat in the
lower area in particular. The pan is best inserted in the lowest position.
6.6 Defrosting (multifunction models)
FUNCTION SWITCH
THERMOSTAT SWITCH IN POSITION
0
The flow of air produced by the fan ensures quicker defrosting.
The air circulating inside the oven is at room temperature.
The advantage of defrosting at room temperature is that it does not alter
the taste and appearance of the food.
45

Instructions for the user
46
6.7 Recommended cooking table
Cooking times, especially meat, vary according to the thickness and
quality of the food and to consumer taste.
TRADITIONAL COOKING
SHELF POSITION
( 1 IS LOWEST) TEMPERATURE (°C) TIME IN MINUTES (*)
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
2 - 3
2 - 3
210 - 230
210 - 230
30
40
MEAT
ROAST VEAL
ROAST BEEF
ROAST PORK
CHICKEN
DUCK
GOOSE - TURKEY
RABBIT
LEG OF LAMB
2
2
2
2
2
2
2
2
170 - 200
210 - 240
170 - 200
170 - 200
170 - 200
140 - 170
170 - 200
170 - 200
30 - 40 / KG.
30 - 40 / KG.
30 - 40 / KG.
45 - 60
45 - 60
45 - 60
50 - 60
40 - 50
FISH 1 - 2 170 - 200 ACCORDING TO
SIZE
PIZZA 1 - 2 210 - 240 40 - 45
DESSERTS
SHORT PASTRY
CIAMBELLA
BRIOCHES
FRUIT CAKE
PARADISE CAKE
APPLE CAKE
RICE CAKE
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
170 - 200
165
170 - 200
170 - 200
170
190
180
15 - 20
35 - 45
40 - 45
20 - 30
60
60
60
(*) = WITH PREHEATED OVEN
GRILLING
SHELF POSITION
( 1 IS LOWEST) TIME IN MINUTES
FIRST SIDE SECOND SIDE
PORK CHOPS
FILLET OF PORK
FILLET OF BEEF
LIVER
VEAL ESCALOPES
HALF CHICKEN
SAUSAGES
MEAT-BALLS
FISH FILLETS
TOAST
4
3
3
4
4
3
4
4
4
4
7 - 9
9 - 11
9 - 11
2 - 3
7 - 9
9 - 14
7 - 9
7 - 9
5 - 6
2 - 4
5 – 7
5 – 9
9 – 11
2 – 3
5 – 7
9 – 11
5 – 6
5 – 6
3 – 4
2 – 3

Instructions for the user
FAN COOKING
SHELF POSITION
( 1 IS LOWEST) TEMPERATURE (°C) TIME IN MINUTES
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
CREOLE RICE
2
2
2
190 - 210
190 - 210
190 - 220
20 - 25
25 - 30
20 - 25
MEAT
ROAST VEAL
ROAST PORK
ROASTED BEEF
FILLET OF BEEF
ROAST LAMB
ROAST BEEF
ROAST CHICKEN
ROAST DUCK
ROAST TURKEY
ROAST RABBIT
ROAST HARE
ROAST PIGEON
2
2
2
2
2
2
2
2
2
2
2
2
150 - 170
150 - 160
160 - 170
160 - 180
130 - 150
170 - 180
170
160 - 170
150 - 160
150 - 160
160 - 170
140 - 170
65 - 90
70 - 100
65 - 90
35 - 45
100 - 130
40 - 45
70 - 90
100 - 160
160 - 240
80 - 100
30 - 50
15 - 25
FISH 2 - 3 150 - 170 ACCORDING
TO SIZE
PIZZA
BREAD
TOAST
2 - 3
2 - 3
1 - 2
210 - 240
190 - 210
220 - 240
30 - 50
40
7
DESSERTS
CIAMBELLA
FRUIT CAKE
BRIOCHES
SHORT PASTRY
RICE CAKE
APPLE CAKE
PARADISE CAKE
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
150 - 170
170 - 190
160 - 170
170 - 180
170
180
160
35 - 45
40 - 50
40 - 60
20
60
60
60
47

Instructions for the user
48

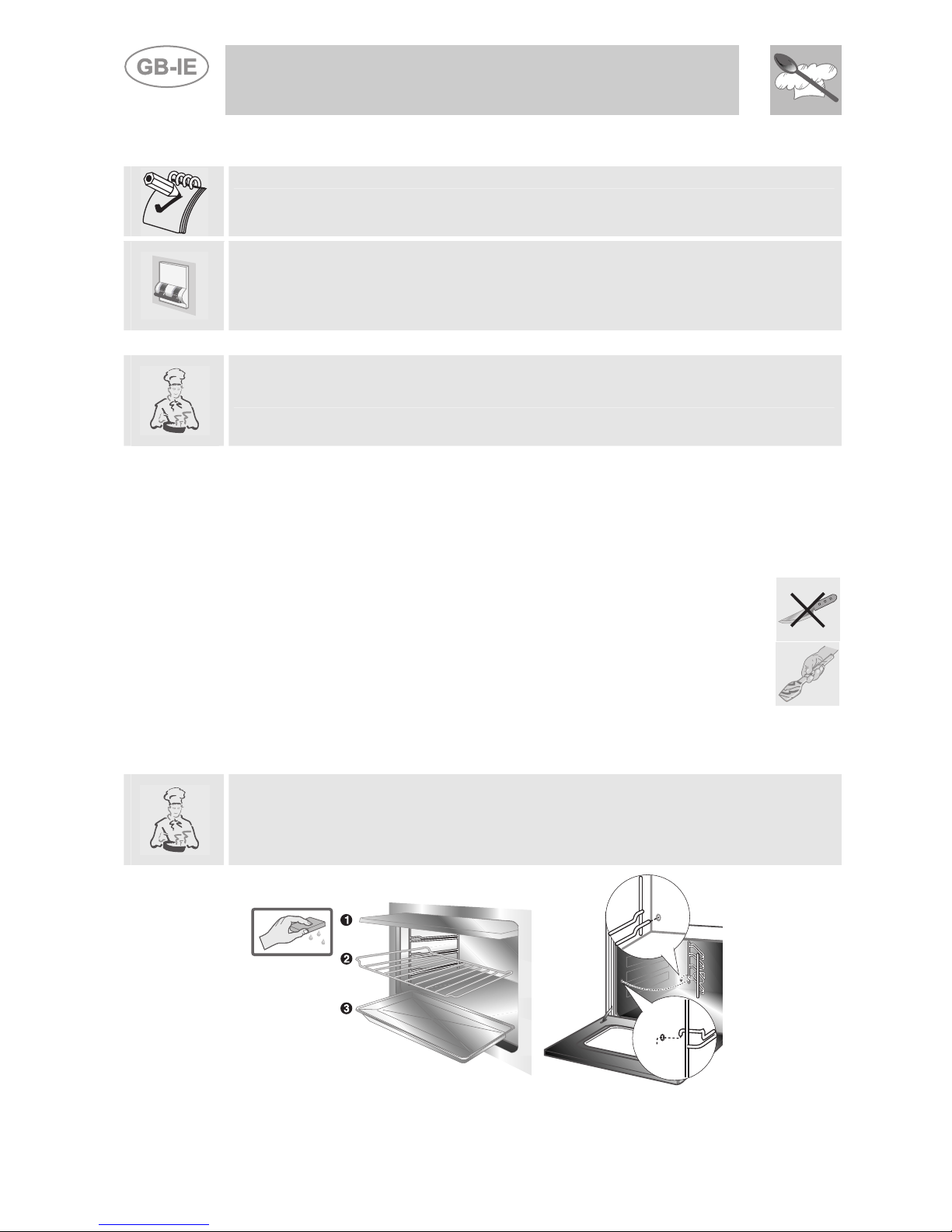

7. CLEANING AND MAINTENANCE
NEVER USE A STEAM JET TO CLEAN THE APPLIANCE.
Before carrying out any maintenance, switch off the power supply
to the machine.
7.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly
after use. Let it cool first.
7.1.1 Ordinary Daily Cleaning
To clean and preserve the stainless steel surfaces, always use only
specific products that do not contain abrasives or chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface,
rinse thoroughly and dry with a soft cloth or leather.
7.1.2 Food stains or residues
Do not use metallic sponges or sharp scrapers: they will
damage the surface.
Use normal non-abrasive products for steel, and a wooden or
plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or leather.
Do not allow residues of sugary foods (such as jam) to set
inside the oven. If left to set for too long, they might damage
the enamel lining of the oven.
7.2 Cleaning of the oven (without self-cleaning panels)
For best oven upkeep clean regularly after having allowed to cool. Take
out all removable parts.
