Smeg SF6381X User manual

Contents
29
EN
1 Instructions 30
1.1 How to read the user manual 30
1.2 This user manual 30
1.3 Appliance purpose 30
1.4 General safety instructions 30
1.5 Manufacturer liability 31
1.6 Identification plate 31
1.7 Disposal 31
2 Description 32
2.1 General Description 32
2.2 Control panel 34
2.3 Other parts 35
2.4 Available accessories 36
3 Use 38
3.1 Instructions 38
3.2 First use 38
3.3 Using the accessories 38
3.4 Using the oven 40
3.5 Cooking advice 43
4 Cleaning and maintenance 46
4.1 Instructions 46
4.2 Cleaning the surfaces 46
4.3 Ordinary daily cleaning 46
4.4 Food stains or residues 46
4.5 Removing the door 46
4.6 Cleaning the door glazing 47
4.7 Removing the internal glass panels 47
4.8 Cleaning the inside of the oven 48
4.9 Vapor Clean: assisted oven cleaning (on some models only) 49
4.10 Extraordinary maintenance 51
5 Installation 52
5.1 Electrical connection 52
5.2 Cable replacement 52
5.3 Positioning 53
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
30
1 Instructions
1.1 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
1.2 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
1.3 Appliance purpose
This appliance is intended for cooking food
in the home environment. Every other use is
considered improper.
This appliance must not be used by people
(including children) of reduced physical
and mental capacity, or lacking in
experience in the use of electrical
appliances, unless they are supervised or
instructed by adults who are responsible for
their safety.
1.4 General safety instructions
For your safety and to avoid damage to the
appliance, always respect the general
safety instructions indicated below. In
general
• have qualified personnel carry out
installation and assistance interventions
according to the standards in force.
• Read this user manual carefully before
using the appliance.
• Do not modify this appliance.
• Do not attempt to repair the appliance
yourself or without the intervention of a
qualified technician.
• If the power supply cable is damaged,
contact the technical assistance centre
immediately and they will replace it.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: installation, operation
and inspection.
Safety instructions
Information
Advice

Instructions
31
EN
For this appliance
• Do not obstruct ventilation openings and
heat dispersal slots.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
• Do not use the appliance to heat rooms
for any reason.
1.5 Manufacturer liability
The manufacturer declines all responsibility
for damage to persons or property caused
by:
• use of the appliance other than the one
envisaged,
• non-observance of the user manual
provisions.
• tampering with a single part of the
appliance,
• use of non-original spare parts.
1.6 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.7 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Remove the doors and leave the
accessories (racks and trays) in their
normal working positions, so that
children cannot get stuck in the oven
compartment.
• Cut the power supply cable and remove
it along with the plug.
• Consign the appliance to the
appropriate selective collection centres
for electrical and electronic equipment
waste, or deliver it back to the retailer
when purchasing an equivalent product,
on a one for one basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Consign the packing materials to the
appropriate selective collection centres.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.

Description
32
2 Description

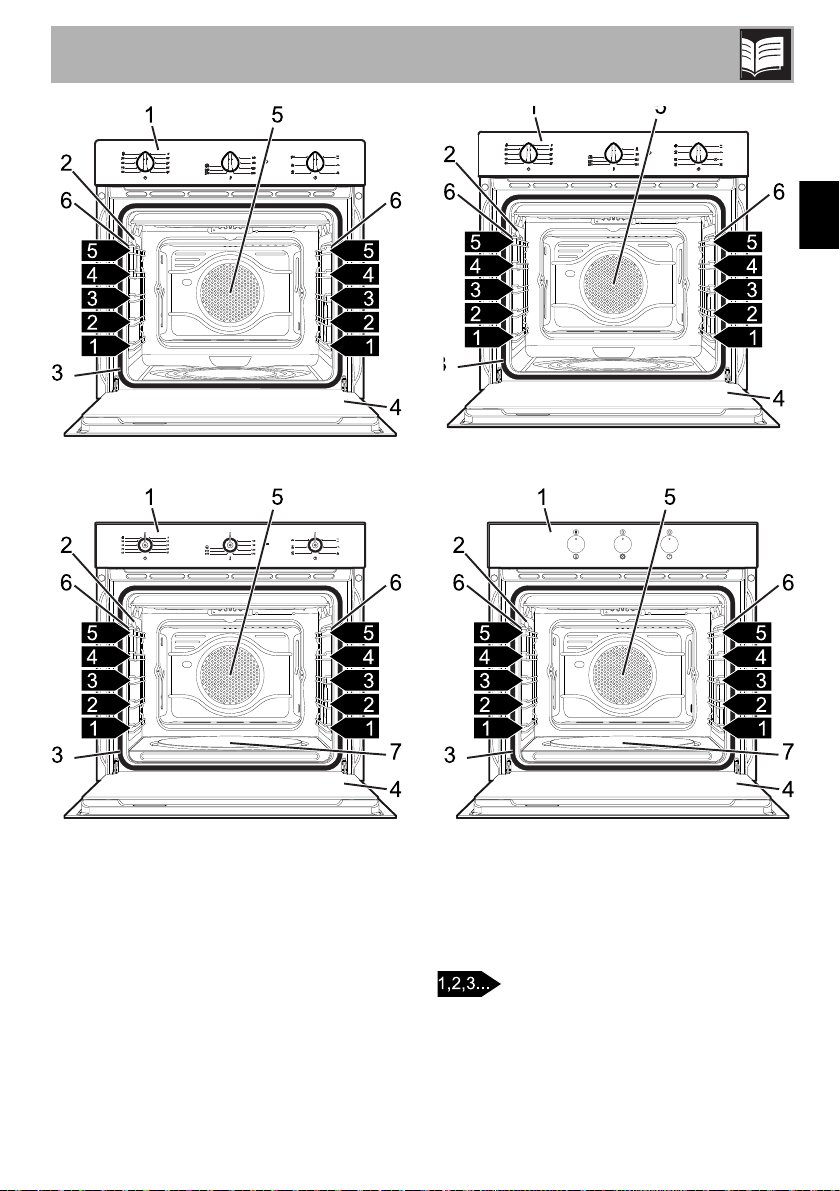

2.1 General Description
Multifunction models

Description
33
EN
Multifunction models
Models with pizza plate
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
7 Pizza plate
Frame shelf

Description
34
2.2 Control panel
Multifunction models

Description
35
EN
Models with pizza plate
Timer knob (1)
It allows you to use the timer or to perform
manual cooking.
Temperature knob (2)
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
settings.
Thermostat indicator light (3)
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It will then
turn on and off regularly, indicating that the
temperature set inside the oven is being
kept constant.
Function knob (4)
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2.3 Other parts
Oven shelves
The oven features shelves for positioning
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.

Description
36
Internal light
The oven light comes on when the door is
opened or any function is selected.
2.4 Available accessories
Rack
useful for holding cooking containers.
Tray rack
to be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray
useful for collecting fat from foods placed
on the rack above.
Deep tray
useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Pizza plate
specially designed for cooking pizza and
similar dishes.
Some models are not provided
with all accessories.

Description
37
EN
Pizza spatula
for easy placement of the pizza on the
pizza plate.
Pizza plate cover
To be placed in the recess on the bottom of
the oven, replacing the pizza plate when it
is not being used.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
38
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from trays, dripping
pans and the cooking compartment.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands using heat resistant
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly on very hot
trays.
• Do not allow children to get near the
oven when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove from the oven compartment all
trays and racks not used during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven with
aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the cooking compartment.
• Do not pour water directly on very hot
trays.

Use
39
EN
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Cover and pizza plate (on some models
only)
With the oven cold, remove the cover from
the bottom and insert the pizza plate. Make
sure that the plate is inserted correctly in the
recess provided.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Improper use
Risk of damage to surfaces
• Do not use the pizza plate other than as
described, for example do not use it on
gas or glass ceramic hobs or in ovens
which are not designed for this purpose.
• If you like oil on your pizza, it is best to
add it after removal from the oven since
oil stains on the pizza plate are unsightly
and may reduce its efficiency.
• If the pizza plate is not in use, cover the
bottom of the oven with the cover
provided.

Use
40
For cooking use the special pizza function
.
Pizza spatula (on some models only)
Always grip the pizza spatula on the
wooden handle to put food in and take it
out of the oven. You are advised to dust the
steel surface lightly with flour to make it
easier to slide fresh products on and off, as
they could stick to the steel due to their
moisture content.
3.4 Using the oven
Switching on the oven
To switch the oven on:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
3. Select cooking with the timer or manual
cooking using the timer knob. Turn the
knob clockwise to set the buzzer. The
numbers indicated are minutes.
Adjustment is progressive and
intermediate positions between the
figures can be used. The end of cooking
buzzer does not interrupt oven
operation. Turn the knob anticlockwise to
to perform manual cooking.
Retractable knobs (on some models only)
To access the control knobs you have to
press the knobs to extract them from their
housings.
During normal appliance operation you
can push them down until the final stop to
make them enter into their housing.

Use
41
EN
Functions list
Eco
Using the grill and the lower heating
element in combination is
particularly suitable for cooking on
a single shelf, as it provides low
energy consumption.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and in combination
with the rotisserie (where present)
gives the food an even browning at
the end of cooking. Perfect for
sausages, ribs and bacon. This
function enables large quantities of
food, particularly meat, to be grilled
evenly.
Fan-assisted bottom
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrosting and proving functions are
brought together under the same
function
Fan-assisted grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan-assisted static
The operation of the fan, combined
with traditional cooking, ensures
uniform cooking even with complex
recipes. Perfect for biscuits and
cakes, even when simultaneously
cooked on several levels. (For
multiple-level cooking, we
recommend using the 2nd and 4th
shelves.)

Use
42
Bottom
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Turbo
The combination of fan-assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
Fan-assisted circular
The combination of the fan and the
circular element (incorporated in the
rear of the oven) allows you to cook
different foods on several levels, as
long as they need the same
temperatures and same type of
cooking. Hot air circulation ensures
instant and uniform distribution of
heat. It will be possible, for instance,
to cook fish, vegetables and biscuits
simultaneously (on different levels)
without mixing odours and flavours.
Defrosting
Rapid defrosting is helped by
switching on the fan provided and
the top heating element that ensure
uniform distribution of low
temperature air inside the oven.
Pizza
The operation of the fan, combined
with the grill and the lower heating
element, ensures uniform cooking
even with complex recipes. Perfect
not just for pizzas, but also for
biscuits and cakes.
Vapor Clean
This function makes cleaning easier
using the steam produced by a little
quantity of water poured onto the
appropriate drawing placed on the
bottom.

Use
43
EN
3.5 Cooking advice
General advice
• Use a fan-assisted function to achieve
uniform cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; if not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan-assisted grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan-assisted grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the symbol to
optimise cooking.
Advice for cooking desserts and biscuits
• Use dark metal moulds: they help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: at the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.

Use
44
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.

Use
45
EN
Cooking information table
Food Weight (Kg) Function
Runner
position from
the bottom
Temperature
(°C) Time (minutes)
Lasagne 3 - 4 Static 1 220 - 230 45 - 50
Pasta bake 3 - 4 Static 1 220 - 230 45 - 50
Roast veal 2 Turbo 2 180 - 190 90 - 100
Pork 2 Turbo 2 180 - 190 70 - 80
Sausages 1.5 Fan with grill 4 250 15
Roast beef 1 Turbo 2 200 40 - 45
Roast rabbit 1.5 Circulaire 2 180 - 190 70 - 80
Turkey breast 3 Turbo 2 180 - 190 110 - 120
Roast pork neck 2 - 3 Turbo 2 180 - 190 170 - 180
Roast chicken 1.2 Turbo 2 180 - 190 65 - 70
1st surface 2nd surface
Pork chops 1.5 Fan with grill 4 250 15 5
Spare ribs 1.5 Fan with grill 4 250 10 10
Bacon 0.7 Grill 5 250 7 8
Pork fillet 1.5 Fan with grill 4 250 10 5
Beef fillet 1 Grill 5 250 10 7
Salmon trout 1.2 Turbo 2 150 - 160 35 - 40
Monkfish 1.5 Turbo 2 160 60 - 65
Turbot 1.5 Turbo 2 160 45 - 50
Pizza 1 Turbo 2 250 8 - 9
Bread 1 Circulaire 2 190 - 200 25 - 30
Focaccia 1 Turbo 2 180 - 190 20 - 25
Sponge cake 1 Circulaire 2 160 55 - 60
Jam tart 1 Circulaire 2 160 35 - 40
Ricotta cake 1 Circulaire 2 160 - 170 55 - 60
Jam tarts 1 Turbo 2 160 20 - 25
Paradise cake 1.2 Circulaire 2 160 55 - 60
Cream puffs 1.2 Turbo 2 180 80 - 90
Light sponge cake 1 Circulaire 2 150 - 160 55 - 60
Rice pudding 1 Turbo 2 160 55 - 60
Brioches 0.6 Circulaire 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided as a guide only.

Cleaning and maintenance
46
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the surfaces
To keep the oven surfaces in good
condition, they should be cleaned regularly
after use. Let them cool first.
4.3 Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
4.4 Food stains or residues
Do not use metallic sponges or sharp
scrapers as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
4.5 Removing the door
For easier cleaning, the door can be
removed and placed on a canvas.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
Improper use
Risk of damage to surfaces
• Do not use steam jets for cleaning the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on the
surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents on glass parts (e.g. powder
products, stain removers and metallic
sponges).
• Do not use rough or abrasive materials
or sharp metal scrapers.

Cleaning and maintenance
47
EN
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections Aare resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.6 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
4.7 Removing the internal glass
panels
For easier cleaning the door internal glass
panels can be disassembled.
1. Remove the internal glass panel by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). In
this way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Clean the external glass panel and the
panels previously removed. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
4. Replace the panels in the reverse order in
which they were removed.
We recommend the use of
cleaning products distributed by
the manufacturer.

Cleaning and maintenance
48
5. Reposition the internal glass panel. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
4.8 Cleaning the inside of the oven
For the best oven upkeep, clean it regularly
after having allowed it to cool.
Take out all removable parts.
Clean the oven racks with warm water and
non-abrasive detergent. Carefully rinse and
dry the damp parts.
Removing racks/trays support frames
Removing the guide frames enables the
sides to be cleaned more easily. This
operation should be performed each time
the automatic cleaning cycle is used (only
on some models).
To remove the guide frames. Pull the frame
towards the inside of the oven to unhook it
from its groove A, then slide it out of the
seats Bat the back.
When cleaning is complete, repeat the
above procedures to put the guide frames
back in.
On pizza models only:
Remove in sequence the pizza plate cover
(1) and the base (2) on which it is placed.
The base has to be lifted a few millimetres,
then pulled outwards.
The oven should be operated at
the maximum temperature for
about 15-20 minutes after the use
of specific products, to burn off the
residues left inside the oven.
For easier cleaning, remove the
door.
