Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
3
1 Your refrigerator 4
2 Important Safety
Warnings 5
Intended use ................................. 5
For products with a water
dispenser; ..................................... 7
Child safety.................................... 7
HCA Warning ................................ 7
Things to be done for energy saving8
3 Installation 9
Preparation.................................... 9
Points to be considered when re-
transporting your refrigerator ......... 9
Before operating your refrigerator ..9
Electric connection ...................... 10
Disposing of the packaging ......... 10
Disposing of your old refrigerator . 10
Adjusting the legs ........................ 11
Reversing the doors .................... 12
CONTENTS
4 Using your refrigerator 13
LED indicators and control panel . 13
5 Maintenance and
cleaning 16
Protection of plastic surfaces ...... 16
6 Recommended solutions
for the problems 17

EN
4
5
1
3
3
5
5
5
5
6
4
2
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
1. Control Panel
2 Fan
3. Flap (Fast-Freeze compartment)
4. Ice cube tray & Ice bank
5. Drawers
6. Adjustable front feet

EN
5
2Important Safety Warnings
Please review the following
information. Failure to observe this
information may cause injuries or
material damage. Otherwise, all
warranty and reliability commitments
will become invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
This product is intended to be used
– indoors and in closed areas such as
homes;
– in closed working environments such
as stores and offices;
– in closed accommodation areas such
as farm houses, hotels, pensions.
• This product should not be used
outdoors.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled
and canned liquid beverages in the
freezer compartment. Otherwise,
these may burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains

EN
6
supply by either turning off the
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher
proofs tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of
the product
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may
cause fire. Never place heavy objects
on power cable. Do not touch the
plug with wet hands when plugging
the product.
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed directly
on inner or outer parts of the product
for safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with
water on top of the refrigerator,
otherwise this may cause electric
shock or fire.
• Do not overload your refrigerator
with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage
refrigerator when you open the
door. Never place objects on top
of the refrigerator; otherwise, these
objects may fall down when you
open or close the refrigerator's door.

EN
7
• As they require a precise temperature,
vaccines, heat-sensitive medicine
and scientific materials and etc.
should not be kept in the refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be regularly
cleaned; otherwise, it may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key
should be kept away from reach of
children.
• Children must be supervised to
prevent them from tampering with
the product.
HCA Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage
and transportation. In the event of
damage, keep your product away
from potential fire sources that can
cause the product catch a fire and
ventilate the room in which the unit is
placed.
Ignore this warning if your
product's cooling system
contains R134a.
Type of gas used in the product is
stated in the type plate which is on
the left wall inside the refrigerator.
Never throw the product in fire for
disposal.

EN
8
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is
not prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the food
quality.

EN
9
3Installation
Please remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and
etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please remember…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?

EN
10

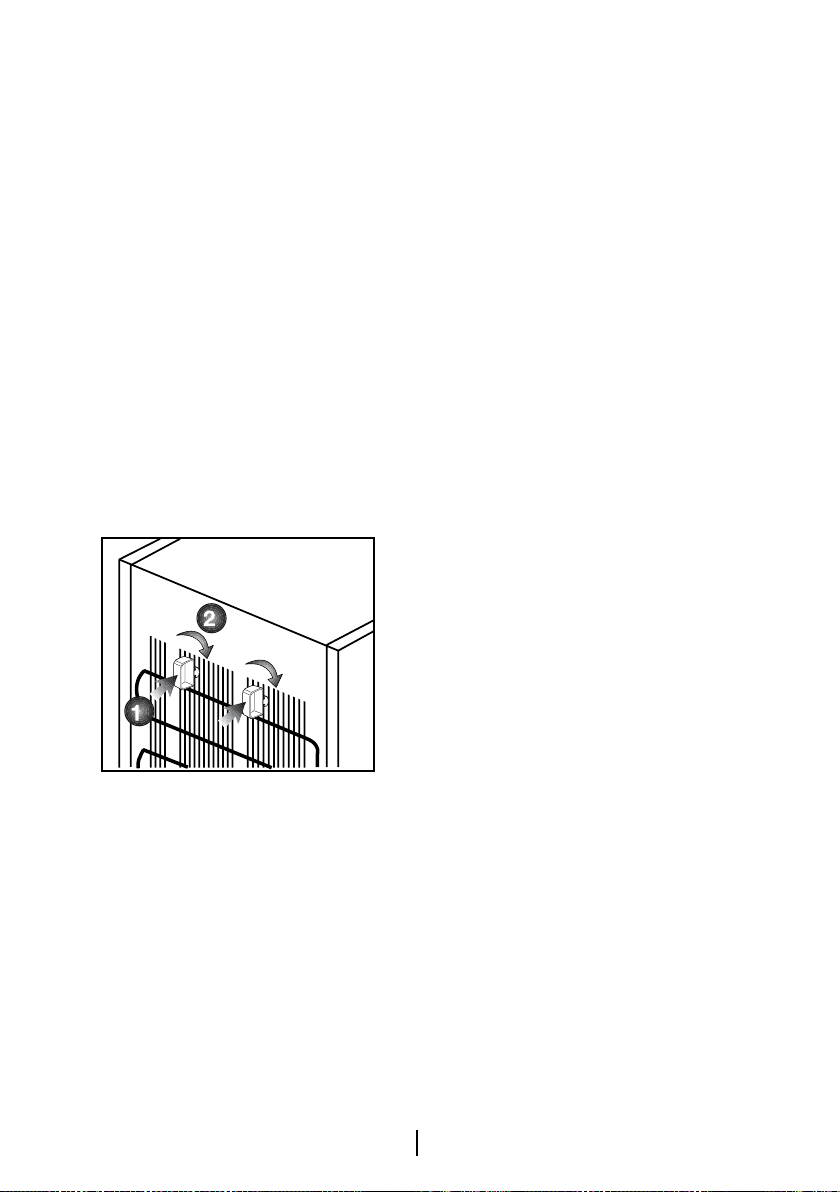

2. Insert the 2 plastic wedges onto
the rear ventilation as illustrated in
the following figure. Plastic wedges
will provide the required distance
between your refrigerator and the wall
in order to allow the air circulation.
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the fridge door is open
the fridge compartment interior light
will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
Voltage and permitted fuse protection
are indicated in the “Specifications”
section.
The specified voltage must be equal to
your mains voltage.
Extension cables and multiway plugs
must not be used for connection.
A damaged power cable must be
replaced by a qualified electrician.
Product must not be operated before it
is repaired! There is danger of electric
shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
You may consult your authorized dealer
or waste collection center of your
municipality about the disposal of
your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
The power cable plug must be easily
accessible after installation.

EN
11
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.

EN
12
9
180°
4
3
2
7
5
10
8
11
12
14
13
17
17
13
16
19
18
21
22
45 °
1
6
15
20
Reversing the doors
Proceed in numerical order .

EN
13
4Using your refrigerator
Setting the operating temperature
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting (Warmest
setting)
4 = Highest cooling setting (Coldest
setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
Please choose the setting according to
the desired temperature.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature of
your appliance should be -18 °C (0 °F).
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position 4 (or Max.).
We recommend checking the
temperature with a thermometer to
ensure that the storage compartments
are kept to the desired temperature.
Remember to take the reading
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.
LED indicators and control
panel
There are three coloured indicator
lights located on the front of the
appliance which shows the operating
mode of the freezer.
Amber Indicator (1)
Illuminates when the fast-freeze
switch (4) is turned on and stays on
for maximum 34 hours or until the fast
freeze button is turned off. Fast-freeze
operation is for freezing fresh food (see
Freezing Fresh Food section).
Green Indicator (2)
Illuminates when the appliance is
connected to the mains and will glow
as long as there is electricity present.
The green indicator does not give any
indication of the temperature inside the
freezer.
Red Indicator (3)
Illuminates
a. When the internal temperature rises
above -5 °C. (The light turns off when
the temperature cools down to - 9 °C)
b. If the appliance is overloaded with
fresh food.
c. If the appliance door is left open
accidentally.
Warm Cold

EN
14
Note: Red indicator light has a built-in
delay.
Once the appliance is energized red
indicator light will not illuminate for 24
hours.
Thermostat knob (5)
The thermostat knob is located on the
indicator light frame.
Important:
When you press the fast-freeze switch
or adjust the set temperature, there
may be a short delay before the
compressor starts to operate. This is
normal and not a compressor fault.
- E0 blinks on display if there is a
freezer sensor failure.
- E1 blinks on display if there is a
defrost sensor failure.
- E4 blinks on display if there is a
heater failure.
Freezing
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.
• Attention
Do not freeze fizzy drinks, as the
bottle may burst when the liquid in it is
frozen.
Be careful with frozen products such
as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not be
exceeded, and the temperature inside
the freezer will not rise.
• Attention
Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.
Do not close air flow channels while
loading.

EN
15
Making ice cubes
Fill the ice-cube tray 3/4 full with water
and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
Never use sharp objects such as
knives or forks to remove the ice
cubes. There is a risk of injury!
Let the ice cubes slightly thaw instead,
or put the bottom of the tray in hot
water for a short moment.
Fast freeze
If large amounts of fresh food are
going to be frozen, push the fast
freeze switch 24 hours before putting
the fresh food in the fast freeze
compartment.
It is strongly recommended to keep
fast freeze switch on at least 24 hours
to freeze maximum amount of fresh
food declared as freezing capacity.
Take special care not to mix frozen
food and fresh food.
When fast freeze switch is on, -27
degrees C will flash for 5 seconds on
display (6). Fast-freeze operation is for
freezing fresh food (see Freezing Fresh
Food section).
Defrosting of the appliance
The appliance defrosts automatically.

EN
16
5Maintenance and cleaning
ANever use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
CNever use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
CTo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your refrigerator
in unsealed containers as they
damage the plastic surfaces of your
refrigerator. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part of
the surface at once with warm water.

EN
17
6Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate
• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse
blown out? Check the fuse.
Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL
CONTROL ve FLEXI ZONE)
• Very cold ambient conditions. Frequent opening and closing of the door. Highly
humid ambient conditions. Storage of food containing liquid in open containers.
Leaving the door ajar.
• Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or
plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator
has not been balanced yet.
• Your refrigerator will start running approximately after 6 minutes. Please call the
service if your refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that he plug is inserted
tightly to the wall socket.
• Are the temperature adjustments correctly made? There is a power failure. Call
your electricity supplier.

EN
18
The fridge is running frequently or for a long time.
• Your new refrigerator may be wider than the previous one. This is quite normal.
Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high.This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded
with food. Cooling down of the refrigerator completely may last for a couple of
hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot
food causes longer running of the refrigerator until they reach the safe storage
temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm
air that has entered into the refrigerator causes the refrigerator to run for longer
periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors
are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to
run for a longer period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high degree. Fridge adjustment has an
effect on the temperature of the freezer. Change the temperature of the fridge or
freezer until the fridge or freezer temperature reaches to a sufficient level.
• The door might be left ajar. Close the door completely.
• Large amounts of hot food might have been put in the refrigerator recently. Wait
until the fridge or freezer reaches the desired temperature.
• Refrigerator might have been plugged in recently. Cooling down of the refrigerator
completely takes time because of the size.

EN
19
Noise similar to the sound of seconds heard from an analog clock is coming from
the refrigerator.
• This noise is coming from the solenoid valve of the refrigerator. Solenoid valve
functions for the purpose of ensuring coolant passage through the compartment
which can be adjusted to cooling or freezing temperatures, and performing cooling
functions. This is normal and is not fault cause.
The operation noise increases when the refrigerator is running.
• The operating performance characteristics o f the refrigerator may change
according to the changes in the ambient temperature. It is normal and not a fault.
Vibrations or noise.
• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make
sure that the floor is level, strong and capable to carry the refrigerator.
• The noise may be caused by the items put onto the refrigerator. Such items should
be removed from the top of the refrigerator.
There are noises like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your
refrigerator. It is normal and not a fault.
There is a noise like wind blowing.
• Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is
normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• The doors are ajar. Make sure that the doors are closed completely.
• Doors might have been opened very frequently or they might have been left open
for along time. Open the door less frequently.
Humidity occurs on the outside of the refrigerator or between the doors.
• The weather may be humid. This is quite normal in humid weather. When the
humidity is less, condensation will disappear.
Bad odor inside the refrigerator.
• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a
sponge, warm water or carbonated water.
• Some containers or packaging materials might be causing the smell. Use a different
container or different brand packaging material.
The door(s) is (are) not closing.

EN
20
• Food packages may prevent the door’s closing. Replace the packages that are
obstructing the door.
• The refrigerator is probably not completely vertical on the floor and it might be
rocking when slightly moved. Adjust the elevation screws.
• The floor is not level or strong. Make sure that the floor is level and capable to carry
the refrigerator.
Crispers are stuck.
• The food might be touching the ceiling of the drawer. Rearrange food in the drawer.
