FA 120 E

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
 Read the manual before installing and operating the product.
 Make sure you read the safety instructions.
 Keep the manual in an easily accessible place as you may need it later.
 Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
CONTENTS
1 Your cooler/freezer 3
2 Important Safety Warnings 4
Intended use .....................................4
General safety ...................................5
For products with a ..........................9
water dispenser;................................9
Child safety........................................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Package information........................10
HC warning .....................................10
Things to be done for energy saving 10
3 Installation 12
Points to be paid attention to when the
relocation of the cooler/freezer.........12
Before you start the cooler/freezer, ..12
Electrical connection........................12
Disposing of the packaging .............13
Disposing of your old cooler/freezer.13
Placing and Installation ....................13
Adjusting the legs ............................14
Changing the illumination lamp .......14
4 Preparation 15
Reversing the doors ........................17
5 Using your cooler/freezer 19
Freezing food...................................19
Making ice cubes ............................20
Defrosting of the appliance ..............20
Cooling............................................21
Food storage...................................21
Defrosting of the appliance ..............21
6 Maintenance and cleaning 22
Protection of plastic surfaces ..........22
7 Troubleshooting 23

EN
4
1Your cooler/freezer

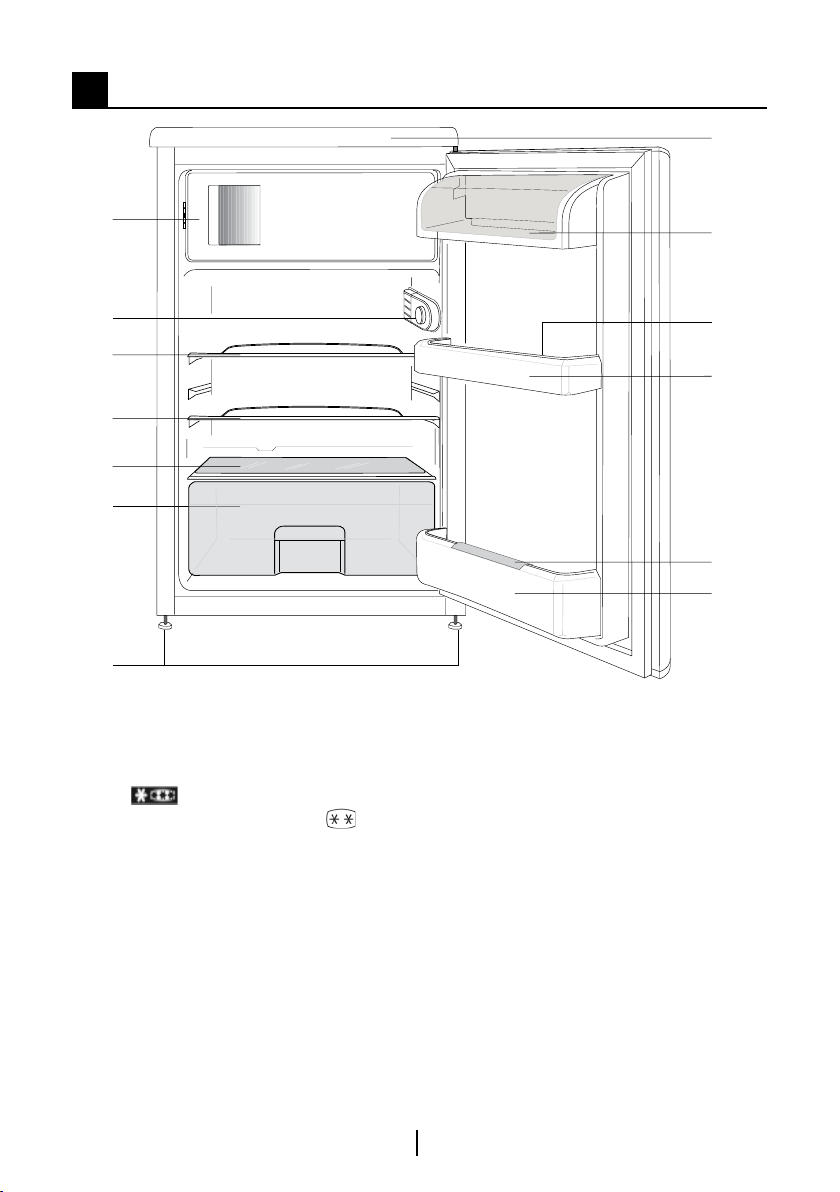

1. a.) Freezing compartment & ice tray
(for models) b.) Frozen food
compartment & ice tray (for
models)
2. Interior light & Thermostat knob
3. Movable shelves
4. Crisper cover
5. Crisper
6. Adjustable front feet
7. Dairy compartment
8. Door shelf
9. Egg tray
10. Bottle shelf
11. Bottle gripper
12. Top t ri m
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
2
3
4
5
3
6
1
10
7
9
8
11
12

EN
5
2Important Safety Warnings
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
Original spare parts will be
provided for 10 years, following
the product purchasing date.
Intended use
A
WARNING:
Keep ventilation
openings, in the appliance
enclosure or in the built-
in structure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means
to accelerate the
defrostingprocess, other
than those recommended
by the manufacturer.
A
WARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments
of the appliance, unless
they are of the type
recommended by the
manufacturer.
A
WARNING:
Do not store explosive
substances such as
aerosol cans with a
flammable propellant in
this appliance.
This appliance is intended to be
used in household and similar
applications such as
– staff kitchen areas in shops,
offices and other working
environments;
– farm houses and by clients
in hotels, motels and other
residential type environments;
– bed and breakfast type
environments;
– catering and similar non-retail
applications.
General safety
 When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
 Consult your authorized
service for all your questions
and problems related to the
refrigerator. Do not intervene or
let someone intervene to the
refrigerator without notifying the
authorised services.
 For products with a freezer
compartment; Do not eat
cone ice cream and ice
cubes immediately after you
take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
 For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise,
these may burst.

EN
6
 Do not touch frozen food by
hand; they may stick to your
hand.
 Unplug your refrigerator before
cleaning or defrosting.
 Vapor and vaporized cleaning
materials should never be
used in cleaning and defrosting
processes of your refrigerator.
In such cases, the vapor may
get in contact with the electrical
parts and cause short circuit or
electric shock.
 Never use the parts on your
refrigerator such as the door as
a means of support or step.
 Do not use electrical devices
inside the refrigerator.
 Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
 Do not cover or block the
ventilation holes on your
refrigerator with any material.
 Electrical devices must be
repaired by only authorised
persons. Repairs performed by
incompetent persons create a
risk for the user.
 In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s
mains supply by either
turning off the relevant fuse or
unplugging your appliance.
 Do not pull by the cable when
pulling off the plug.
 Ensure highly alcoholic
beverages are stored securely
with the lid fastened and
placed upright.
 Never store spray cans
containing flammable and
explosive substances in the
refrigerator.
 Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
 This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned or
inexperienced people (including
children) unless they are
attended by a person who
will be responsible for their
safety or who will instruct them
accordingly for use of the
product
 Do not operate a damaged
refrigerator. Consult with the
service agent if you have any
concerns.
 Electrical safety of your
refrigerator shall be guaranteed
only if the earth system in
your house complies with
standards.
 Exposing the product to
rain, snow, sun and wind is
dangerous with respect to
electrical safety.
 Contact authorized service
when there is a power cable
damage to avoid danger.

EN
7
 Never plug the refrigerator
into the wall outlet during
installation. Otherwise, risk of
death or serious injury may
arise.
 This refrigerator is intended
for only storing food items. It
must not be used for any other
purpose.
 Label of technical specifications
is located on the left wall inside
the refrigerator.
 Never connect your refrigerator
to electricity-saving systems;
they may damage the
refrigerator.
 If there is a blue light on the
refrigerator, do not look at the
blue light with optical tools.
 For manually controlled
refrigerators, wait for at least 5
minutes to start the refrigerator
after power failure.
 This operation manual should
be handed in to the new owner
of the product when it is given
to others.
 Avoid causing damage on
power cable when transporting
the refrigerator. Bending cable
may cause fire. Never place
heavy objects on power cable.
Do not touch the plug with
wet hands when plugging the
product
 Do not plug the refrigerator if
the wall outlet is loose.
 Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
 Do not spray substances
containing inflammable gases
such as propane gas near the
refrigerator to avoid fire and
explosion risk.
 Never place containers filled
with water on top of the
refrigerator; in the event of
spillages, this may cause
electric shock or fire.
 Do not overload the refrigerator
with food. If overloaded, the
food items may fall down
and hurt you and damage
refrigerator when you open the
door.
 Never place objects on top
of the refrigerator; otherwise,
these objects may fall down
when you open or close the
refrigerator’s door.
 As they require a precise
temperature, vaccines,
heat-sensitive medicine and
scientific materials and etc.
should not be kept in the
refrigerator.
 If not to be used for a long
time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
 Refrigerator may move if
adjustable legs are not properly
secured on the floor. Properly
securing adjustable legs on
the floor can prevent the
refrigerator to move.

EN
8
 When carrying the refrigerator,
do not hold it from door
handle. Otherwise, it may be
snapped.
 When you have to place
your product next to another
refrigerator or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side walls
may be humidified.
 The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board box
cover) (1) is open.
1
1
For products with a
water dispenser;
 Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
 If there is risk of water
hammer effect in your
installation, always use a
water hammer prevention
equipment in your installation.
Consult Professional
plumbers is you are not
sure that there is no water
hammer effect in your
installation.
 Do not install on the hot
water inlet. Take precautions
against of the risk of
freezing of the hoses. Water
temperature operating
interval shall be 33°F (0.6°C)
minimum and 100°F (38°C)
maximum.
 Use only potable water.
Child safety
 If the door has a lock, the key
should be kept away from
reach of children.
 Children must be supervised to
prevent them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE
Directive (2012/19/EU).
This product bears a
classification symbol
for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high quality
parts and materials which can

EN
9
be reused and are suitable for
recycling. Therefore, do not
dispose the product with normal
domestic waste at the end of its
service life. Take it to a collection
point for the recycling of electrical
and electronic equipment. Please
consult your local authorities to
learn the nearest collection point.
Help protect the environment and
natural resources by recycling
used products. For children’s
safety, cut the power cable and
break the locking mechanism of
the door, if any, so that it will be
non-functional before disposing
of the product.
Package information
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature
and our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or
the municipalities where you are
located.
HC warning
If your product's cooling
system contains R600a:
This gas is flammable. Therefore,
pay attention to not damaging
the cooling system and piping
during usage and transportation.
In the event of damage, keep
your product away from potential
fire sources that can cause the
product catch a fire and ventilate
the room in which the unit is
placed.
Ignore this warning if your
product's cooling system
contains R134a.
Type of gas used in the product
is stated in the type label which
is on the left wall inside the
refrigerator.
Never throw the product in fire
for disposal.
Things to be done for energy
saving
 Do not leave the doors of your
refrigerator open for a long
time.
 Do not put hot food or drinks in
your refrigerator.
 Do not overload your
refrigerator so that the air
circulation inside of it is not
prevented.
 Do not install your refrigerator
under direct sunlight or near
heat emitting appliances
such as ovens, dishwashers
or radiators. Keep your
refrigerator at least 30cm away
from heat emitting sources and
at least 5cm from electrical
ovens.

EN
10
 Pay attention to keep your food
in closed containers.
 For products with a freezer
compartment; You can store
maximum amount of food
items in the freezer when
you remove the shelf or
drawer of the freezer. Energy
consumption value stated
for your refrigerator has been
determined by removing
freezer shelf or drawer and
under maximum load. There
is no harm to use a shelf
or drawer according to the
shapes and size of food to be
frozen.
 Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the
food quality.

EN
11
3Installation
BThe manufacturer will not be liable
for any event caused by disregarding
the information supplied in this user
manual.
Points to be paid attention
to when the relocation of the
cooler/freezer
1. Your cooler/freezer should be
unplugged.Before transportation
of your cooler/freezer, it should be
emptied and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside
your cooler/freezer should be fixed
with adhesive tape and secured
against impacts. Package should
be bound with a thick tape and the
transportation rules on the package
should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the cooler/
freezer,
Check the following before you start
to use your cooler/freezer:
1. Attach 2plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will
ensure the air circulation between
your cooler/freezer and the wall.
(The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the cooler/
freezer as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the cooler/
freezer to the wall socket. When the
fridge door is opened, fridge internal
lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the cooler/freezer
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
 The power plug must be easily
accessible after installation.
 Electrical safety of your cooler/freezer
shall be guaranteed only if the earth
system in your house complies with
standards.

EN
12
 The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
 Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BFaulty product must not be operated
before it is repaired! There is the risk
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your cooler/freezer is
produced from recyclable materials.
Disposing of your old cooler/
freezer
Dispose of your old cooler/freezer
without giving any harm to the
environment.
 You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your cooler/freezer.
Before disposing of your cooler/
freezer, cut out the electric plug and, if
there are any locks on the door, make
them inoperable in order to protect
children against any danger.
Placing and Installation
AIf the entrance door of the room
where the cooler/freezer will be installed
is not wide enough for the cooler/
freezer to pass through, then carefully
remove the doors of your cooler/freezer
and pass it sideways through the door.
1. Install your cooler/freezer to a place
that allows ease of use.
2. Keep your cooler/freezer away from
heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your cooler/
freezer in order to achieve an efficient
operation. If the cooler/freezer is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your cooler/freezer on an even
floor surface to prevent jolts.
WARNING:
Do not locate extension
sockets or charging transformers/
power supplies or Lithium-Iron battery
operated products adjacent to the
compressor as they could overheat.
If your appliance is equipped with an
air grille, please refer for installation of
the air grille.
1
2
33
3
1

EN
13
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)

EN
14
4Preparation
 Your cooler/freezer should be
installed at least 30 cm away from
heat sources such as hobs, ovens,
central heater and stoves and at least
5 cm away from electrical ovens and
should not be located under direct
sunlight.
 The ambient temperature of the room
where you install your cooler/freezer
should at least be 10°C. Operating
your cooler/freezer under cooler
conditions is not recommended with
regard to its efficiency.
 Please make sure that the interior
of your cooler/freezer is cleaned
thoroughly.
 If two cooler/freezers are to be
installed side by side, there should be
at least 4 cm distance between them.
 When you operate your cooler/freezer
for the first time, please observe the
following instructions during the initial
six hours.
 The door should not be opened
frequently.
 It must be operated empty without
any food in it.
 Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
 Original packaging and foam
materials should be kept for future
transportations or moving.

EN
15

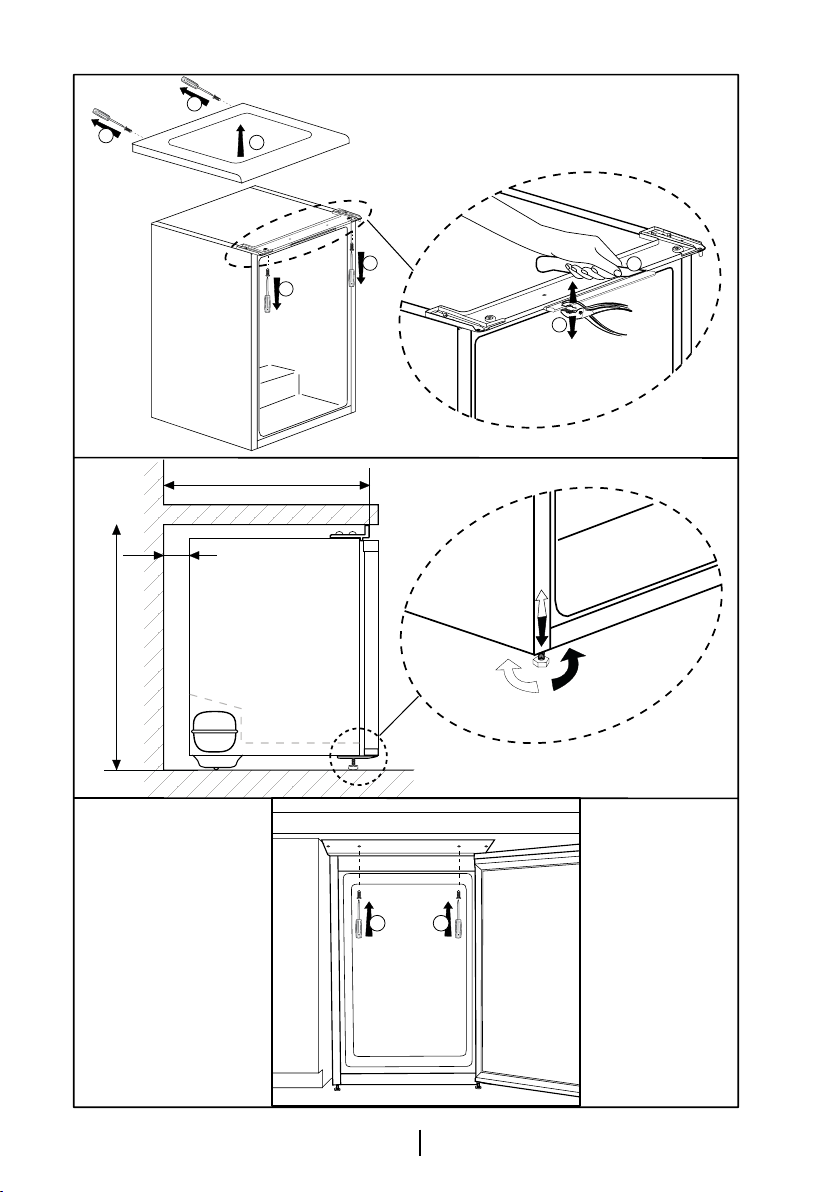

1
55 mm
595 mm
820 mm
23
4
a
ac
b
bd
e
b b

EN
16
Reversing the doors
Proceed in numerical order
a
H
G
D
E
I
F



EN
17

EN
18
5Using your cooler/freezer
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting
(Warmest setting)
5 = Highest cooling setting
(Coldest setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge should be around +4°C.
Recommended thermostat knob
position is 4 .It's recommended 1
at cold ambient conditions such as
10 °C.
Please choose the setting according
to the desired temperature.
You can stop operation of your
appliance by turning the thermostat
knob to “0” position.
Please note that there will be different
temperatures in the cooling area.
The coldest region is immediately
above the vegetable compartment on
crisper cover.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of food kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.

Do not freeze fizzy drinks, as the bottle
may burst when the liquid in it is frozen.
Be careful with frozen products such
as coloured ice-cubes.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.

Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.

EN
19
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.
Making ice cubes
Fill the ice-cube tray 3/4 full with water
and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
Never use sharp objects such as
knives or forks to remove the ice cubes.
There is a risk of injury!
Let the ice cubes slightly thaw instead,
or put the bottom of the tray in hot
water for a short moment.
Defrosting of the appliance
Excessive build-up of ice will affect the
freezing performance of your device.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your device when there is only
little or no food in it.
Take out the deep-frozen food. Wrap
the deep-frozen food in several layers
of paper, or a blanket, and keep it in a
cold place.
Unplug the appliance or switch off the
circuit breaker to start the defrosting
process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
Use a sponge or a soft cloth to
remove thawing water if necessary at
the freezing compartment and
frozen food compartment
Keep the door open during defrosting.
For quicker defrosting, place
containers with warm water inside the
appliance.
Never use electrical devices,
defrosting sprays or pointed or sharp-
edged objects such as knives or forks
to remove the ice.
After the defrosting is done, clean
interior walls of the compartment.
Reconnect the appliance to the mains.
Place the frozen food into the drawers
and slide the drawers into the freezer.

EN
20
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Store milk products in the intended
compartment in the cooler/freezer.
Bottles can be stored in the bottle
holder or in the bottle shelf of the door.
Raw meat is best kept in a polyethylene
bag in the compartment at the very
bottom of the cooler/freezer.
Allow hot food and beverages to cool
to room temperature prior to placing
them in the cooler/freezer.

Store concentrated alcohol in a
container only standing upright and
tightly closed.

Do not store explosive substances or
containers with flammable propellant
gases (canned cream, spray cans etc.)
in the appliance.
There is a danger of explosion.
Defrosting of the appliance
The fridge compartment defrosts
automatically. The thawing water
flows through the drain channel into a
collection container at the back of the
appliance.
During defrosting, water droplets form
at the back wall of the fridge due to the
evaporation.
If not all of the drops run down,
they may freeze again after defrosting
completes. Remove them with a soft
cloth dampened with warm water. Do
not use hard or sharp objects.

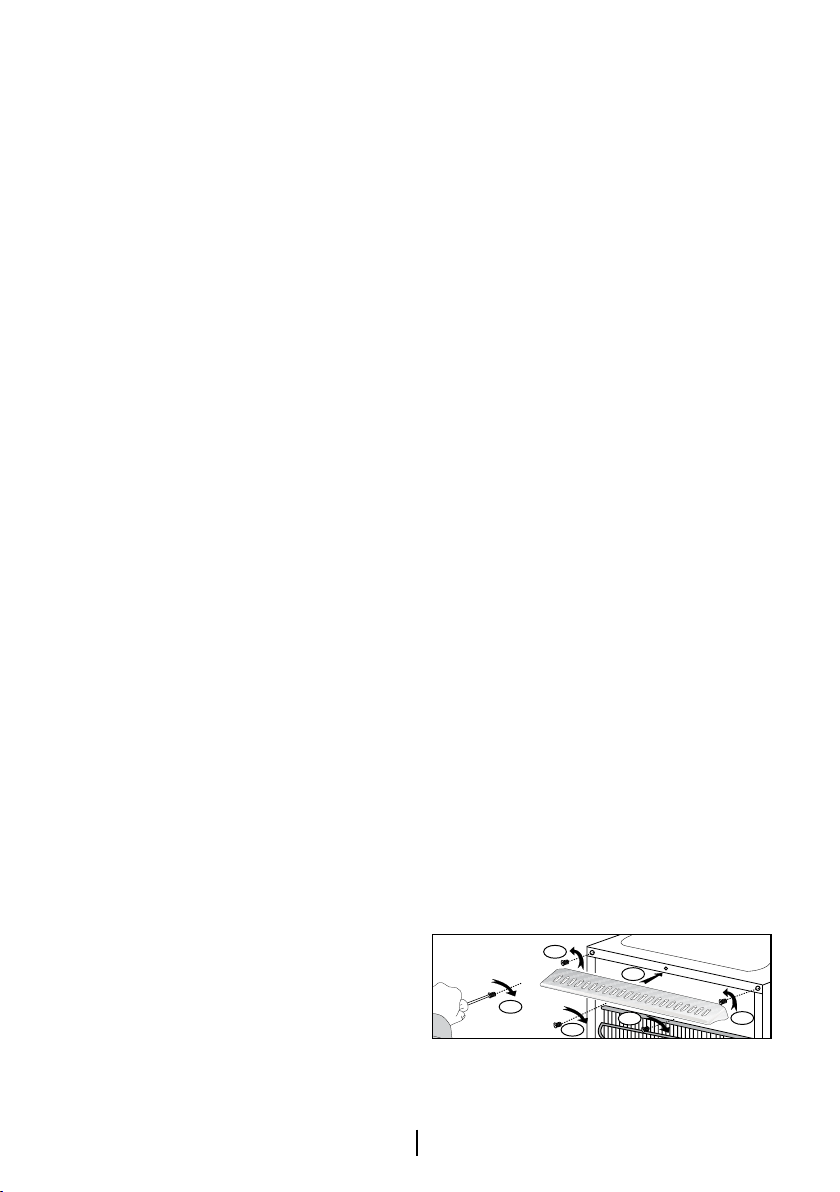

Check the flow of the thawed water
from time to time. It may become
blocked occasionally. Clean it with a
pipe-cleaner or similar implement as
shown below.
