Smeg FD541MNED User manual
EN NO FROST REFRIGERATOR
Freezer - Fridge
User manual
FD541MNED
DE NO-FROST-KÜHLSCHRANK
Gefrierschrank - Kühlschrank
Bedienungsanleitung
FR RÉFRIGÉRATEUR SANS GIVRE
Congélateur - Réfrigérateur
Manuel d’utilisation
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg
FD541MNED o cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori
EN
1
Index
BEFORE USING YOUR FRIDGE.....................................3
General warnings...................................................................... 3
Old and out-of-order fridges...................................................... 5
Safety warnings ........................................................................ 6
Installing and operating your fridge........................................... 7
Before Using your Fridge.......................................................... 8
Information about NO FROST Technology ............................... 8
PARTS AND PIECES OF YOUR FRIDGE ....................... 9

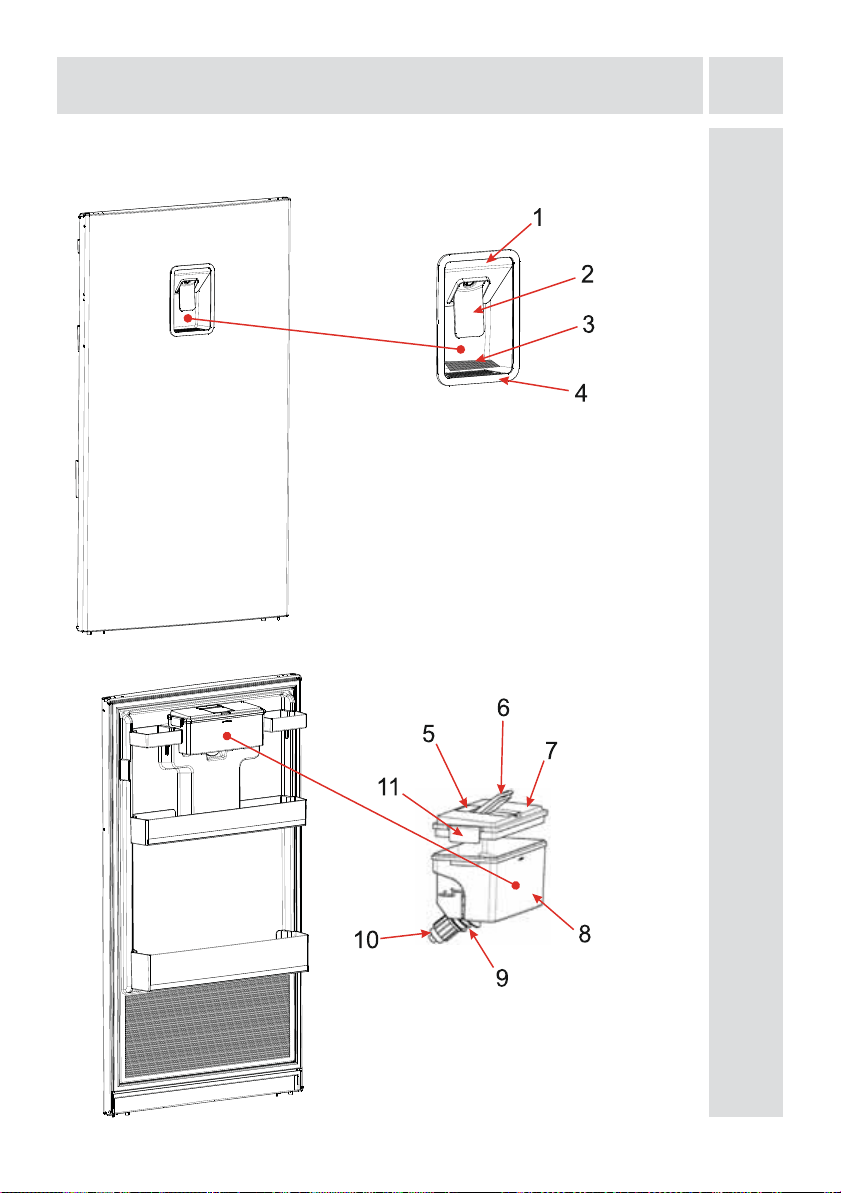

Parts of the water dispenser.....................................................11
(A ) Outside the door (water dispenser's tank group) ...........11
(B) Inside the door (Water dispenser's tank group) ..............11
USAGE INFORMATION..................................................12

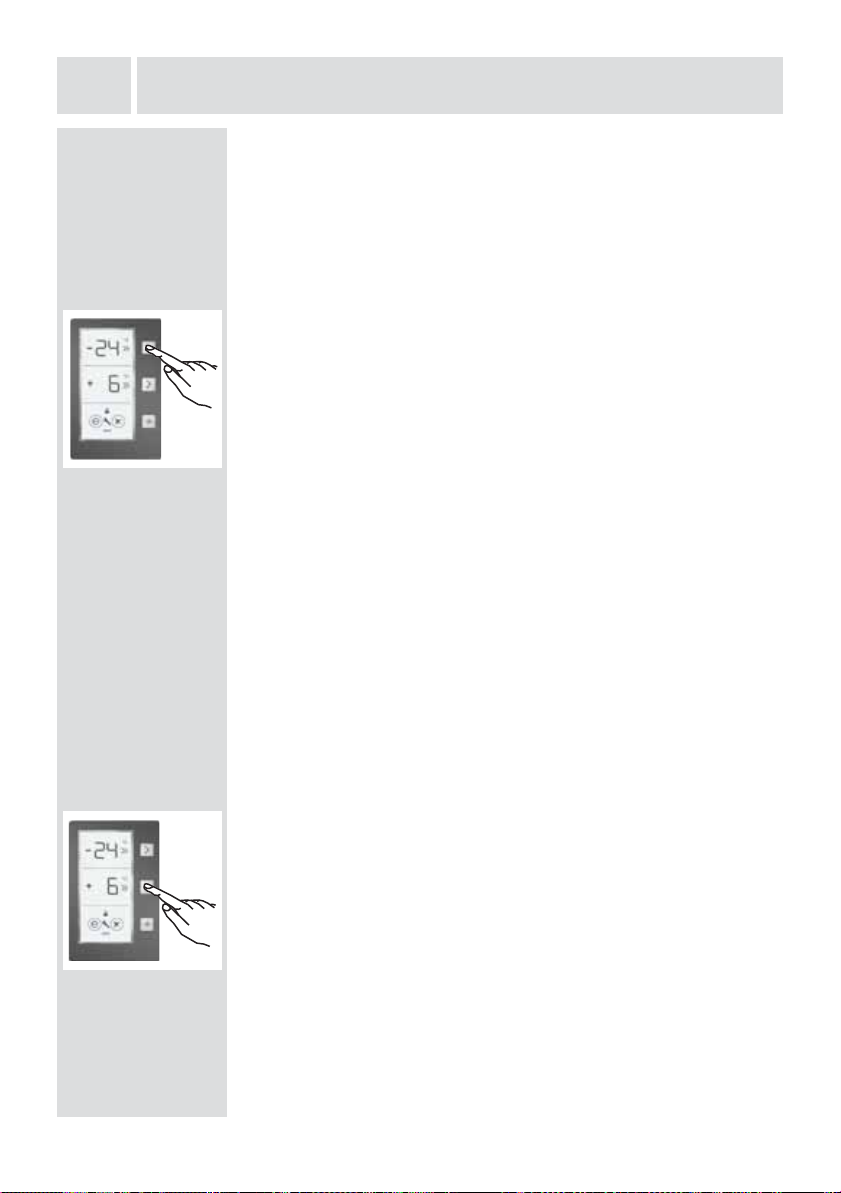

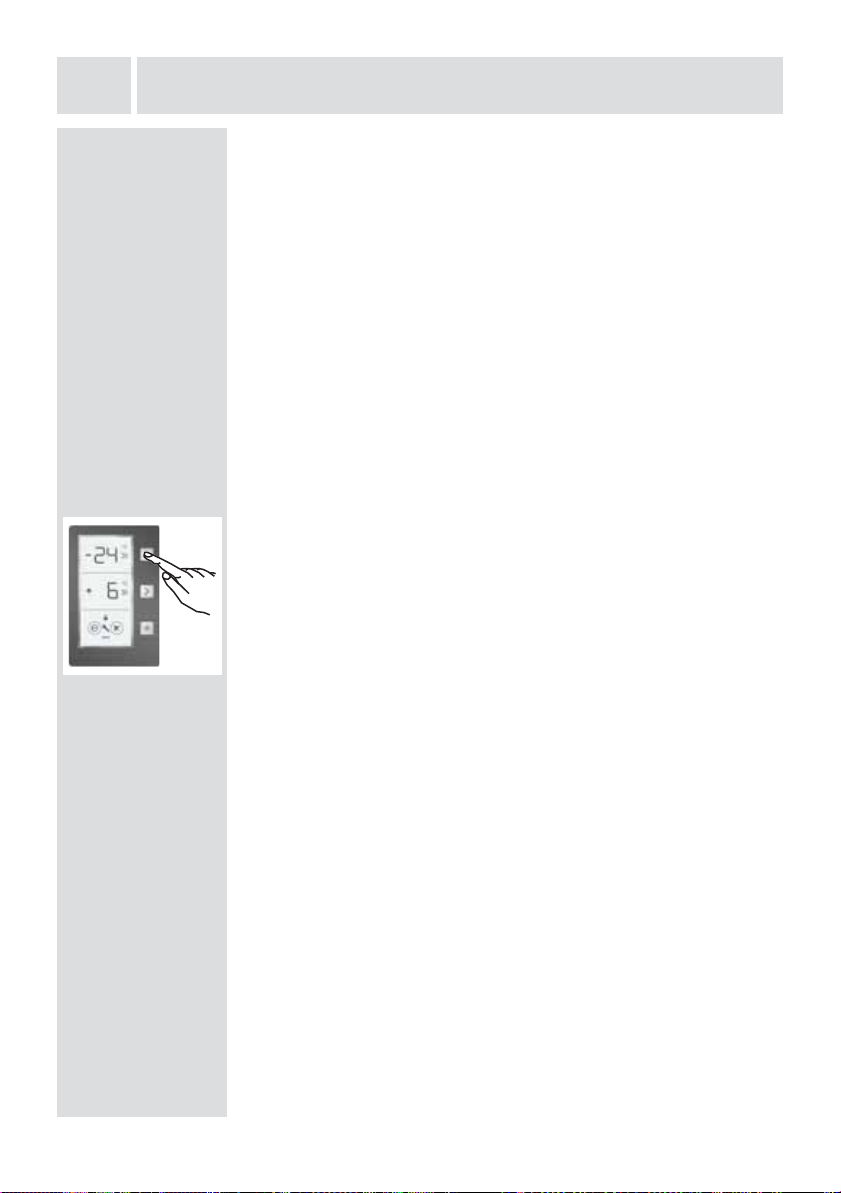

Display and control panel ........................................................ 12
Operating your fridge............................................................... 14
Super freeze mode .............................................................. 14
Super cool mode ................................................................ 14
Economy mode.................................................................... 15
Holiday mode....................................................................... 15
Drink cool mode................................................................... 16
Screen saver mode.............................................................. 17
Function of Child lock ......................................................... 17
Freezer temperature settings................................................... 18
Cooler temperature settings .................................................... 18
Warnings about temperature adjustments............................... 19
Accessories ............................................................................. 20
Icemaker .............................................................................. 20
Quick Freezer Compartment ............................................... 20
Chilled Room Compartment ................................................ 21
Water dispenser (If available) .................................................. 22
Mounting of the water tank group ....................................... 22
Cleaning the Water Tank...................................................... 23
EN
2
CLEANING AND MAINTENANCE.................................. 25
Replacing the bulb................................................................... 26
PLACING THE FOODS................................................... 27
Where to place in the............................................................... 27
Freezer Compartment.............................................................. 28
SHIPMENT AND REPOSITIONING................................ 33
Repositioning the Door ............................................................ 33
BEFORE CALLING SERVICE........................................ 34
TIPS FOR SAVING ENERGY.......................................... 39
EN
3
BEFORE USING YOUR FRIDGE
General warnings
WARNING: Keep vantilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside
the food storage compartments of the
appliance, unless they are of the type recommended
by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability
the instructions.
If your appliance uses R600 as a refrigerant –
you can learn this information from the label on
the cooler- you should be careful during shipment
and montage to prevent your appliance’s cooler
elements from being damaged. Although R600a
is a environmental friendly and natural gas, as it
due to a damage in the cooler elements move
ventilate the room where the appliance is located
for a few minutes.
While carrying and positioning the fridge, do not
give damage to the cooler gas circuit.
appliance.
This appliance is intended to be used in
EN
4
household and similar applications such as;
-
environments
- farm houses and by clients in hotels, motels and other
residential type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
If the socket does not match the refrigerator plug, it must
be replaced by the manufacturer, its service agent or
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be used
with a specially grounded socket of 16 amperes. If there is
no such socket in your house, please have it installed by
an authorized electrician.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
they have been given supervision or instruction concerning
use of the appliance in a safe way and understandt the
hazard involved. Children shall not play with the appliance.
Cleaning and user maintenance, shall not be made by
children without supervision.
If the supply cord is demaged, it must be replaced by the
in order to avoid a hazard.
BEFORE USING YOUR FRIDGE
EN
5
Old and out-of-order fridges
If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of
the WEEE for the reuse, recycle and recovery purposes.
Notes:
Please read the instruction manual carefully before
installing and using your appliance. We are not responsible
of the damage occurred due to misuse.
Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
This appliance is produced to be used at houses and it can
is not suitable for commercial or common use. Such use
will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for the losses to
be occurred.
This appliance is produced to be used in houses and it is
only suitable for cooling / storing foods. It is not suitable for
commercial or common use and/or for storing substances
losses to be occurred in the contrary case.
BEFORE USING YOUR FRIDGE
EN
6
Safety warnings
Do not plug in damaged, torn or old plugs.
Do not pull, bend or damage the cord.
This appliance is designed for use by adults, do not allow
children to play with the appliance or let them to hang over
the door.
Do not plug-in or out the plug from the receptacle with wet
hands to prevent electrocution!
Do not place glass bottles or beverage cans in the freezer
for your safety. Place drinks with higher alcohol amount
vertically and by closing their necks tightly in the fridge
department.
When taking ice made in the freezer department, do not
touch it, ice may cause ice burns and/or cuts.
Do not touch frozen goods with wet hands! Do not eat ice-
cream and ice cubes immediately after you take them out
of the freezer department!
Do not re-freeze the frozen goods after being melted. This
may cause health issues like food poisoning.
Do not cover the body or top of fridge with lace. This affects
the performance of your fridge.
prevent damage to accessories.
BEFORE USING YOUR FRIDGE
EN
7
BEFORE USING YOUR FRIDGE
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to
the following points:
Operating voltage for your fridge is 220-240 V at 50Hz.
Mains cord of your fridge has a grounded plug. This plug
should be used with a grounded receptacle that has a
16 ampere fuse minimum. If you don’t have a receptacle
electrician.
We do not take the responsibility of the damages that
occur due to ungrounded usage.
to direct sunlight.
Your appliance should be at least 50 cm away from stoves,
Gas ovens and heater cores, and should be at least 5 cm
away from electrical ovens.
Your fridge should never be used outdoors or left under
the rain.
should be at least 2 cm between them to prevent humidity
on the outer surface.
Do not place anything on your fridge, and install your fridge
in a suitable place so that at least 15 cm is available on the
upper side.
The adjustable front legs should stabilized in an appropriate
height to allow your fridge operate in a stable and proper
way. You can adjust the legs by turning them clockwise
(or in the opposite direction). This should be done before
placing food in the fridge.
Before using your fridge, wipe all parts with warm water
added with a tea spoonful of sodium bicarbonate, and
then rinse with clean water and dry. Place all parts after
cleaning.
Install the distance adjustment plastic (the part with black
to prevent the condenser from touching the wall.
EN
8BEFORE USING YOUR FRIDGE
Before Using your Fridge
keep your fridge in the upright position for 3 hours and
damage the compressor.
Your fridge may have a smell when it is operated for the
to cool.
Information about NO FROST Technology
No-Frost fridges differ from other static fridges in their operating
principle.
In normal fridges, the humidity entering the fridge in the door
openings and the humidity of the food causes freezing in
the freezer compartment. To defrost the snow and ice in the
freezer compartment, you should turn off the fridge, take the
food that needs to be kept in a constant temperature off the
fridge, and remove the ice gathered in the freezer compartment
periodically.
The situation is completely different in no-frost fridges. Dry
and cold air is blown to the fridge and freezer compartments
homogeneously from several points via a blower fan. Cold air
dispersed homogeneously even between the shelves cools all
your food equally and uniformly, thus prevents humidity and
freezing.
Therefore your no-frost fridge allows you ease of use, besides
its huge volume and stylish appearance.
EN
9
PARTS AND PIECES OF YOUR FRIDGE
The purpose of this presentation is informing you about the parts of
your appliance.
The parts may vary depending on the model of the appliance.
EN
10 PARTS AND PIECES OF YOUR FRIDGE
A) Freezer compartment
B) Fridge compartment
1) Freezer lamp and its cover
2) Quick freezing shelf
3) Icemaker
4) Ice tray
5) Freezer compartment shelf
6) Chilled room shelves
7) Fridge compartment lamp and its cover
8) Fridge compartment shelf
9) Crisper cover
10) Crisper
11) Leveling feet
12) Fridge compartment door bottle shelf
13) Fridge compartment door shelf
14) Fridge compartment door litle shelves
15) Water dispenser's water tank
16) Egg holder
17) Freezer compartment door shelves
18) Fridge compartment lamp switch
19) Freezer compartment lamp switch
The purpose of this presentation is informing you about the
parts of your appliance.
The parts may vary depending on the model of the
appliance.
EN
11
PARTS AND PIECES OF YOUR FRIDGE
Parts of the water dispenser
(A ) Outside the door (water dispenser's tank group)
(B) Inside the door (Water dispenser's tank group)
1) Top cover of the water dispenser
2) Valve lever
3) Drip tray
4) Water dispenser casing
5) Filter cover
6) Top cover of the water tank
7) Tank cover
8) Water tank
9) Gasket ring
10) Tap detail
11) Side locking covers
EN
12 USAGE INFORMATION
Display and control panel
1
2
3
4
5
6
7
8
9
10
11
EN
13
USAGE INFORMATION
freeze mode to be activated if desired. Freezer may be set to -16,
-18, -20, -22, -24 °C, SF.
mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C,
SC.
3. It enables the modes (economy, holiday…) to be activated if desired.
4. It is freezer set value screen.
5. It is cooler set value screen.
6. It is super freeze indicator
7. It is super cooling indicator
8. It is holiday mode symbol
9. It is child-lock symbol
10. It is economy mode symbol
11. It is alarm symbol
EN
14 USAGE INFORMATION
Operating your fridge
Super freeze mode
How would it be used?
Press freezer set button until SF letters will be seen on the
screen. Buzzer will sound beep beep. Mode will be set.
Freezer temperature segment will show "SF".
During this mode ;
Temperature of cooler and super cool mode may be
adjusted. In this case super freeze mode continues.
Economy and Holiday mode can not be selected.
Super freeze mode can be cancelled by the same
operation of selecting.
Note:
within 24 hours is shown on the appliance label.
capacity, set the appliance to active SF mode 3 hours
before you put the fresh food into the freezer.
At the end of this period, the fridge will release an audible
alarm notifying that it is ready.
Super Freeze mode will be automatically cancelled after 24
hours or when freezer sensor temperature drops beneath -32
°C.
Super cool mode
How would it be used?
Press cooler set button until SC letters will be seen on the
screen. Buzzer will sound beep beep. Mode will be set.
Cooler temperature segment will show "SC".
During this mode:
Temperature of freezer and super freeze mode may be
adjusted. In this case super cool mode continues.
Economy and Holiday mode can not be selected.
Super cool mode can be cancelled by the same operation
of selecting.
Note: Super Cool mode will be automatically cancelled after
EN
15
USAGE INFORMATION
4 or 6 hours depending on the environmental temperature
temperature.
Economy mode
How would it be used?
Push "mode button" till a circle appears around economy
symbol.
If no pressed any button for 1 sec. Mode will be set. Circle
will blink 3 times. When mode is set, buzzer will sound
beep beep.
Freezer and refrigerator temperature segments will show
"E".
During this mode;
Freezer may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
Cooler may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
Super cool and super freeze modes can be selected.
Economy mode is automatically cancelled and the selected
mode is activated.
Holiday mode can be selected after cancelling the
economy mode. Then the selected mode is activated.
To cancel, you will just need to press on mode button.
Holiday mode
How would it be used?
Push "mode button" till a circle appears around plane
symbol.
If no pressed any button for 1 sec. Mode will be set. Circle
will blink 3 times. When mode is set, buzzer will sound
beep beep.
Freezer temperature segment will show "H".
During this mode;
Freezer may be adjusted. When holiday mode will be
EN
16 USAGE INFORMATION
cancelled , the selected setting values will proceed.
Cooler may be adjusted. When holiday mode will be
cancelled, the selected setting values will proceed.
Super cool and super freeze modes can be selected.
Holiday mode is automatically cancelled and the selected
mode is activated.
Economy mode can be selected after cancelling the
holiday mode. Then the selected mode is activated.
To cancel, you will just need to press on mode button.
Holiday mode should be activated when the cooler will
not be used for a long period of time. By doing this, you
will be using your fridge in a more economic manner. The
cooler must be completely emptied before vacation mode
is activated.
Drink cool mode
When would it be used?
This mode is used to cool the drinks within adjustable time.
How would it be used?
Press freezer button for 3 seconds.
dc letters will be seen on freezer screen and the 05 blinks
on cooler screen.
Press cooler button to adjust the time (05 - 10 - 15 - 20 -
25 - 30 minutes).
When you select the time the numbers will blink 3 times on
screen and sound beep beep.
If no button is pressed within 2 seconds the time will be
set.
The countdown starts from the adjusted time minute by
minute.
The rest time blinks on the screen.
To cancel this mode press freezer set button for 3 seconds.
Note: You must adjust the time according to the temperature
of the bottles before you put them in.
might set another 5 or 10 minutes.
EN
17
USAGE INFORMATION
While using this mode, you must check the temperature
of the bottles regularly. When the bottles are cool enough,
you must take them out of the appliance.
In the event that you leave the bottles in when the Drink
Screen saver mode
How to use?
This mode will be activated when you press on mode
button for 5 seconds.
If pressed on no button in 5 seconds when he mode is
active, lights of the control panel will go off.
If you press any button when lights of control panel are off,
the current settings will appear on the screen, and then
you can maket he adjustment as you want. If you neither
cancel screen saver mode nor press on any button in 5
seconds, the control panel will go off again.
To cancel screen saver mode press on mode button for 5
seconds again.
When screen saver mode is active you can also activate
child lock.
If you do not press any button for 5 seconds after activating
child lock, the lights of the control panel will go off. Then,
you can view the previous settings and that child lock
symbol is active when you pres any button, and you can
cancel child lock as is described in the instruction of that
mode.
Function of Child lock
When would it be used?
To prevent children from playing with the buttons and changing
the settings you have made, child lock is available in the
appliance.
Activating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5
seconds.
EN
18 USAGE INFORMATION
Deactivating Child Lock
Press on Freezer and Cooler buttons simultaneously for
5 seconds.
Note: Child lock will also be deactivated if electricity is
interrupted or the fridge is unplugged.
Freezer temperature settings
Initial temperature value for Freezer Setting Indicator is
-18°C.
Press freezer set button once.
on screen.
Whenever you press on this button, lower temperature will
be set. (-16°C, -18°C, -20°C, -22°C, -24°C , superfreeze)
When you push the freezer set button until superfreeze
symbol appears on the Freezer Setting Indicator, and if
you do not push any button in 1 seconds Super Freeze
If you continue to press, it will restart from -16°C.
The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy Mode
is activated will remain the same when the mode is over
or cancelled. The appliance continues to operate with this
temperature value.
Cooler temperature settings
Initial temperature value for Cooler Setting Indicator is
+4°C.
Press cooler button once.
the setting indicator of the cooler.
Whenever you press on this button, lower temperature will
be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
When you push the cooler set button until supercool
symbol appears on the Cooler Setting Indicator, and if you
If you continue to press, it will restart from +8°C.
EN
19
USAGE INFORMATION
The temperature value selected before Holiday Mode, Super Freeze
Mode, Super Cool Mode or Economy Mode is activated will remain the
same when the mode is over or cancelled. The appliance continues
to operate with this temperature value.
Freezer Partition Refrigerator
Compartment
Remarks
-18°C 4°C For regular use and best performance.
-20°C,-22°C or -24°C 4°C Recommended when environmental
SF 4°C Must be used when you wish to freeze
food in a short period of time.
-18°C, -20°C,-22°C
or -24°C
2°C These temperature settings must
be used when the environmental
temperature is high or if you think
the refrigerator compartment is not
cool enough becuse the door is being
opened frequently.
-18°C, -20°C,-22°C
or -24°C
SC Must be used when the refrigerator
compartment is overloaded with food
or when there is food to be cooled
instantly.
Warnings about temperature adjustments
Your temperature adjustments will not be deleted when an energy
breakdown occurs.
It is not recommended that you operate your fridge in environments
Temperature adjustments should be made according to the frequency
of door openings and the quantity of food kept inside the fridge.
Do not pass to another adjustment before completing an adjustment.
Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to be
completely cooled. Do not open doors of your fridge frequently and do
not place much food inside it in this period.
A 5 minute delaying function is applied to prevent damage to the
compressor of your fridge, when you take the plug off and then plug
it on again to operate it or when an energy breakdown occurs. Your
fridge will start to operate normally after 5 minutes.
Your fridge is designed to operate in the ambient temperature intervals
stated in the standards, according to the climate class stated in the
Table of contents
Other Smeg Refrigerator manuals
