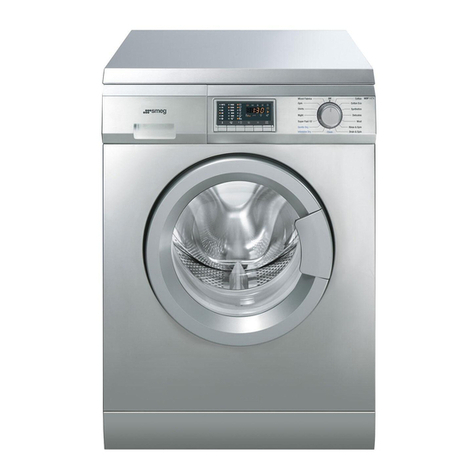

Smeg WDF12C User manual

1
WASHER DRYER
INSTRUCTIONS MANUAL EN

2
GB
Contents
1. The new washing system 3
2. Safety warnings 4
3. Insta ation instructions 7
4. Description of contro s 9
5. Washing instructions 13
6. Drying instructions 19
7. C eaning and maintenance 21
8. Troub eshooting 23
9. Contro pane symbo s 25
This app iance is marked according to the European directive 2002/96/EC on Waste E ectrica and E ectronic Equipment
WEEE).
By ensuring this product is disposed of correct y, you wi he p prevent potentia negative consequences for the
environment and human hea th, which cou d otherwise be caused by inappropriate waste hand ing of this product.
The symbo on the product, or on the documents accompanying the product, indicates that this app iance may not
be treated as househo d waste. Instead it sha be handed over to the app icab e co ection point for the recyc ing of
e ectrica and e ectronic equipment.
Disposa must be carried out in accordance with oca environmenta regu ations for waste disposa .
For more detai ed information about treatment, recovery and recyc ing of this product, p ease contact your oca city
office, your househo d waste disposa service or the shop where you purchased the product.

GB
3
1. THE NEW WASHING SYSTEM
This new washer dryer is the outcome of years of research.
The eading-edge design and the qua ity of the production processes used to
manufacture this product ensure it wi give you many years of exce ent service.
Its concept satisfies a current and future washing and drying requirements.
Its low water, power and detergent cons mption help protect the environment
and red ce r nning costs to a minim m.
Water and power cons mption has been red ced in all programmes.
These resu ts were achieved by means of a special washing system va id for a
programmes and a fabrics.
The drum is fitted with three externa vanes that keep the water constant y circu ating,
thereby offering intensive and uniform washing whi st consuming ess water.
This ensures your aundry is washed and treated with utmost care.
The new washing system is so effective that normally dirty la ndry can even be
cleaned witho t a pre-wash cycle.
Washing times have a so been reduced.
Pre-washing is on y recommended for very dirty aundry.
P ease read the operating instructions with care in order to take fu advantage of a
the features offered by this washer dryer.
Warning!
Please read all the instructions contained in this manual in order to understand how
to operate this appliance correctly and safely.
This manual is divided into paragraphs which provide a step-by-step description of
all the functions of the appliance. The instructions are easy to understand and are
accompanied by detailed illustrations.
This manual provides a quic and easy reference for answering all your questions
concerning the use of your new washer dryer.
Keep this manual near the machine for future consultation.
When selling or moving the appliance, ma e sure this manual remains with the
machine.

GB
4
2. SAFETY WARNINGS
Attention!
These warnings are given for safety reasons.
Please read them caref lly before installing and sing the appliance.
This manua forms an integra part of the app iance and must therefore be kept intact together with the
machine. Before using the app iance, carefu y read a the instructions contained in this manua .
Insta ation must be performed by a qua ified technician in comp iance with the regu ations in force. It
has been designed for domestic use and comp ies with EEC Directives 72/23, 89/336 (inc uding 92/31
and 93/68) current y in force. The app iance is designed for the fo owing purpose: washing and drying
inen or fabrics dec ared by their manufacturers to be suitab e for machine washing by means of an
appropriate symbo . Any other use sha be considered improper. The man fact rer declines all
responsibility for ses other than those described above.
The name p ate featuring the technica data, seria number and markings is visib y positioned on the
inner edge of the door. This name plate m st never be removed.
Do not eaving discarded packaging materia s unsupervised within the home. Separate the various
packaging materia s and take them to the nearest sorted waste co ection centre.
The electrical and pl mbing work req ire to install the appliance may only be performed by
q alified technicians.
The app iance must be provided with an earth connection in accordance with the e ectrica safety
regu ations in force. The man fact rer declines all responsibility for damage to persons or
property res lting from fail re to earth the appliance or from a defective earth connection.
If the app iance is not connected to the e ectrica power supp y by means of a p ug, it is necessary to
insta an iso ation switch with a contact opening gap of at east 3 mm.
The p ug on the power cord and the corresponding socket must be of the same type and must conform
to the regu ations in force. Check that the vo tage and frequency of the e ectrica power supp y match
the ratings on the name p ate. Avoid using adaptors or shunt connections. Never unp ug the app iance
by pu ing the power cord.
The machine is only disconnected from the electrical power s pply if the pl g has been
removed from the socket or if the general switch has been t rned off. After installation, the
pl g m st remain accessible.
The app iance must a ways be connected to the water supp y with new hoses (supp ied with the
app iance). O d hoses must never be reused.
Make sure the app iance does not ie on the power cord.
Before use, make sure the tub assemb y has been re eased (see instructions).
If the tub assemb y has not been re eased, it may damage the app iance or adjacent furniture or
app iances during the spin cyc e.
The washer dryer must never be used in vehic es, on ships or p anes, or in specia environmenta
conditions such as exp osive or corrosive (powder, vapour and gas) atmospheres or near exp osive
and/or corrosive iquids.
Do not insta the washer dryer in areas subject to frosting. Frozen pipes may burst under pressure.
Make sure that the drain hose is sec rely attached to the basin and cannot move.
If it is not secure y fitted, the repu sive force of the water may detach it from the basin and cause
flooding.
When attaching the hose to the basin, make s re the water drains away rapidly and does not fill
the basin p.
Do not over oad the app iance.
Never use detergents containing so vents or chemica s.
These may damage the machine and form poisono s f mes.
They may also catch fire and explode.

GB
5
Do not wash petro -soaked garments in the washer dryer. Make sure there are no inf ammab e items
(e.g.: ighters, matches, etc.) in pockets before washing.
If vo ati e f uids have been used to c ean garments, make sure that the substances have been removed
before oading them in the washing machine.
Before oading garments for washing, make sure the pockets are empty, the buttons secure y fixed and
the zips c osed.
Do not wash frayed or torn garments.
The g ass of the door wi heat up considerab y when washing at e evated temperatures.
Make s re all the water has drained away before yo open the door.
If water is present, on y open the door after draining it. If in doubt, read the instructions manua .
The water in the machine is not drinkable!
Swa owing washing machine detergents can cause esions in your mouth and throat.
Before removing aundry from the washer dryer, make s re the dr m has stopped moving.
A ways switch off the app iance after use to avoid wasting e ectricity.
Leave the door ajar between one wash and the next in order to keep the gasket in good condition.
Prolonged inactivity.
If the machine is eft inactive for a ong period: disconnect the machine from the e ectricity and water
supp ies and eave the door ajar to prevent bad sme s from forming.
In the event of a fau t, never attempt to repair the machine yo rself. Disconnect the app iance from
the e ectrica power supp y and shut off the water tap. Then ca a qua ified technician. Repairs may
only be performed by q alified technicians.
Repairs performed by unqua ified peop e may be hazardous for users.
Obsolete appliances m st be rendered n sable: make s re that the door cannot be closed (to
prevent children from getting trapped inside while playing and risking their lives) and c t off
the power cord after npl gging it.
The appliance m st then be taken to a sorted waste collection centre.
This appliance is intended for se by ad lts.
Do not a ow chi dren to tamper with the contro s or p ay with the washer dryer.
Do not allow children to approach the appliance while it is working.
Keep children away from the appliance.
Sma anima s or chi dren may get inside the washer dryer.
A ways check the inside of the drum before use and do not allow children to play with the
appliance.
Packaging materia s (p astic bags, po ystyrene, meta profi es, etc.) must not be eft within reach of
chi dren.
Keep chi dren away from the machine when the door or detergent tray is open; the app iance may
contain residues of detergent which can cause irreversib e damage to the eyes, mouth and throat, as
we as possib e death by suffocation.
Important !
This app iance is easy to use.
In order to obtain the best resu ts, however, read this manua with care and fo ow a the instructions
before starting.
The manua gives instructions and usefu advice on how to insta , use and service the app iance
correct y.
The manufacture declines all responsibility for damage to persons or property resu ting
from fai ure to observe the above precautions, from tampering with even just a sing e
component of the app iance, or from the use of unorigina spare parts.

GB
6
For Great Britain only
Warning: this app iance must be earthed.
Fuse rep acement
If the mains ead of this app iance is fitted with a
BS 1363A 13amp fused p ug, to change a fuse in
this type of p ug use an A.S.T.A. approved fuse to
BS 1362 type and proceed as fo ows:
1. Remove the fuse cover (A) and fuse (B)
2. Fit rep acement 13A fuse into fuse cover
3. Refit both into p ug
Important:
The fuse cover must be refitted when changing a
fuse and if the fuse cover is ost the p ug must not
be used unti a correct rep acement is fitted.
Correct rep acement are identified by the co our
insert or the co our embossed in words on the
base of the p ug.
Rep acement fuse covers are avai ab e from your
oca e ectrica store.
If the app iance is provided with a p ug ess supp y cord:
• It is necessary to insta in the fixed wiring an a -po e disconnection device having a gap
between contacts of at east 3,5mm. After insta ation the disconnection device has to be easy
to reach.
• The connection to the mains must be carried out by a qua ified technician in accordance to the
scheme shown be ow and the regu ations in force
L = brown
N = b ue
= ye ow-green
• In the event of damage to the supp y cord, it has to be rep aced by the manufacturer or an
authorized technica service center in order to avoid any risk.

GB
7
3. INSTALLATION INSTRUCTIONS
Important !
The appliance m st be installed by a specialised technician according to c rrent reg lations.
This washer dryer is very heavy. Take care when lifting it.
3.1 UNPACKING
The inside of the machine comprises a moving assemb y which is b ocked for transport purposes by the screws
(A) ocated at the rear of the washer dryer.
1. Re ease the assemb y by removing these screws with a 13 mm wrench.
2. Remove the screws (A) and re ative spacers (B) from the back of the washer dryer.
3. To prevent water from entering the machine or peop e from touching ive components with their fingers, close
the fo r holes left open by the screws with the s pplied plastic pl gs (C).
Attention!
• Do not turn the machine upside down and do not p ace it on its side.
• Keep a the components used to b ock the drum assemb y as they wi be needed if you decide to move the
app iance in future.
3.2 POSITIONING AND LEVELLING
1. P ace the app iance in the
chosen position.
2. Carefu y eve the machine in
a directions using a spirit
eve and adjusting the height
of the feet if necessary. After
adjusting the machine, ock
the feet with the re ative ock
nuts.
The water in et and drain hoses can be turned to the right or eft depending on insta ation requirements.
Attention!
• Carry o t this operation caref lly to prevent the washing machine from vibrating, generating noise or
moving d ring operation.
• If the appliance is installed on a carpeted floor, ens re that the openings on its nderside are not
obstr cted.
• Make sure the washing machine does not touch wa s, furniture, etc., whi e it is working.
• The app iance must not be insta ed behind a ockab e door, or s iding door, or a door with hinge on the
opposite side to the tumb e dryer

GB
8
3.3 WATER SUPPLY CONNECTION
1. Check that in et pressure ies between the fo owing va ues: 50-900kPa. For higher
pressures, insta a pressure reducer.
2. Connect the cold water in et hose (light bl e ring nut) to the co d water tap with a ¾
gas thread, taking care to screw it firm y into p ace in order to prevent eaks. The water
in et hose must not be bent or crushed and must not be rep aced or cut.
3. If a hot water in et is used, in et water temperature must not exceed 60°C and the
hose with the red ring nut must be connected to the hot water tap.
Attention!
• If the water pipe is new or has not been used for a ong time, et a certain amount of water run before
attaching the in et hose. This stops any deposits of sand and other impurities from c ogging the fi ters used
by the machine to protect the water in et va ves.
• The new hose-set supp ied with the app iance are to be used and the o d hose-set shou d not be reused
3.4 DRAIN CONNECTION
1. Insert the end of the drain hose into a drain pipe having an interna diameter of at east 4 cm and a height
ranging between 50 and 90 cm, or attach it (using the re ative curved p astic profi e) to a basin or bath tub.
2. A ways check that the end of the drain hose is secure y attached in order to prevent the repu sive force of the
water from moving it out of position.
Attention!
• Do not bend or obstruct the hose as this wi reduce the f ow of water.
• Any extensions to the drain hose must not exceed 1 metre, they must have the same interna diameter and
must not be obstructed in any way.
• In no case may the end of the drain hose be submerged in water.
3.5 ELECTRICAL CONNECTION
Before fitting the p ug into the socket, make sure that:
1. Input vo tage matches that indicated on the name p ate attached to the inner edge of the door.
2. The contactor, pressure re ief va ves, power ine and socket are capab e of withstanding the maximum
rated power input indicated on the name p ate.
3. The socket is compatib e with the p ug supp ied with the machine without the need to fit mu tip e sockets,
adaptors or extension eads that cou d cause overheating or burning.
If the socket does not correspond to the supp ied p ug, rep ace the socket with one of a suitab e type.
Attention
• The p ug must be accessib e after insta ation.
• The appliance m st be earthed. P ug the machine into a socket fitted with an efficient earth connection.
The man fact rer declines all responsibility for damage to persons or property res lting from
fail re to earth the appliance or from a defective earth connection. Correct electrical
connections g arantee maxim m safety.
• This app iance comp ies with EEC directive 89/336 of 3.5.89 (modified by EEC directive 92/31) re ative to the
e imination of radio interference.
• If the power cord is damaged, on y rep ace it with an origina spare part avai ab e from our service
department.
• Do not insert/remove the pl g from the socket if yo r hands are wet.
• Remove the pl g from the socket by gripping the pl g and not the cord.

GB
9
4. DESCRIPTION OF CONTROLS
4.1 CONTROL PANEL
A the commands and contro s of the app iance are assemb ed together on the front pane .
Description of controls
A Open door button
B ON-OFF and programme selection knob
C Delay timer shown on disp ay LED – (only for models with this option)
D Time remaining shown on disp ay LED
E Spin speed shown on disp ay LED
F Drying programme for normal garments shown on disp ay LED
G Drying programme for delicates shown on disp ay LED
H Disp ay
I Select spin speed and drying time for delicates button
L Drying programme button and drying time
M Options button – for models with delay timer: selection of time delay
N Options buttons
O Start-Pa se button
P Timed drying shown on disp ay LED
R Button activation and Start-Pause shown on LED

GB
10
A
Open door b tton
Press the button to open the door. Chapter 5 – Washing
instructions – exp ains how the door works and how to use it.
B
ON-OFF and washing and
drying programme
selection knob
This knob ets you:
• switch the machine on and off by moving it in either
direction from the OFF position (knob indicator
vertica )
• se ect washing temperat res within the various
fabric sectors by turning it in both directions
• se ect the drying programme
The knob does not rotate whi e the programme is running.
The programme is e ectronica y contro ed by the machine.
C
Delay timer shown on
display LED – (on y for
mode s with this option)
This LED indicates that the disp ay is showing the time
se ected for the de ay timer.
D
Time remaining shown on
display LED
This LED indicates that the disp ay is showing the tota
duration of the se ected programme before the programme
starts, and the time remaining whi e the programme is
running.
E
Spin speed shown on
display LED
This LED indicates that the disp ay is showing the maximum
spin speed for the se ected programme. It stays on whi e spin
speed is being se ected with the re ative button.
F
D rying programme for
normal garments shown on
display LED
This LED indicates the se ection of the norma drying
programme (drying temperat re 90°C – for resistant
items, cottons).
G
Drying programme for
delicates shown on display
LED
This LED indicates the se ection of the de icate drying
programme (drying temperat re 60°C – for synthetics,
delicates).
H
Display
The disp ay shows the fo owing information:
1. time remaining for the se ected programme, given
in hours/minutes.
2. delayed start (for mode s featuring this option).
Given in hours/minutes. When the time remaining
before the programme starts is ess than 60 minutes,
this information is given in minutes/seconds.
3. spin speed
4. drying times given in hours/minutes
5. cycle pa se - f ashing STOP
6. end of cycle - END
7. error codes

GB
11
I
Select spin speed and
drying time for delicates
b tton
Press the button repeated y to se ect the required spin
speed. The fo owing spin speeds are avai ab e:
• 0000: spin disab ed and stop with tub fu . The
machine does not perform the fina spin and ends the
washing programme with water in the tub. To drain
the water, see the exp anations shown in paragraph
5.13
• from 600 rpm to the maximum speed indicated for
the mode : for cotton and co oured programmes,
speed increases by 100 rpm starting from 600 rpm
up to the maximum speed indicated for the mode
• from 600 to 900 rpm: for synthetics, de icates and
woo ens programmes, speed increases by 100 rpm
starting from 600 rpm up to 900 rpm.
A so, se ect the de icates drying programme (see G).
L
Drying programme b tton
and drying time
Press the button repeated y to se ect the drying programme.
As regards the drying time, it ranges from 2:00 hours down to
0:00 hours.
M
N
Options b ttons
The options that may be avai ab e on the washer dryer are
shown be ow.
Quick wash Button
This button reduces the overa duration of the washing cyc e. This
option is used to wash sma oads or ess dirty washing in ess time.
The b each stage is skipped when the Quick Wash button is
pressed (for mode s with b each function).
(M)
Select delayed start
b tton
– (on y for
mode s with this option)
Press the button repeated y to se ect the required time from
that moment to start the washing/drying programme se ected.
The va ue set by the machine is 0 hours 0 minutes and, using
the button, this va ue can be increased by 60 mins up to 12
hours and by 120 mins for the next 12 hours, up to 24 hours.
Increase water button
This washer dryer is programmed to use a certain quantity of water
and consume a certain amount of power considered to be sufficient
for a norma washing cyc e.
Only press this b tton for specific req irements, e.g.: for very
de icate fabrics (curtains or woo ).
The water eve for washing and rinsing rises and power
cons mption for heating increases.
Easy-iron button
This option reduces creasing on garments at the end of the
programme. The machine performs a more de icate spin cyc e and
moves the garments at the end of the programme. Spin speed for
a programmes is 600 rpm.

GB
12
Economy cycle button
- e
Press this button for cottons programmes, the machine will
perform an extended wash at 35°C (biological step) thereby
offering good washing performance combined with power
saving.
The machine then contin es the cycle at the selected
temperat re.
.B.:
Press the economy cycle button to obtain a maximum washing
temperature of 60° C and the e imination of the pre wash cyc e.
Extra Rinse button
In areas with soft water or to improve rinsing, press this button
(optiona for intensive programmes) to enab e the extra rinse
function (about 20% more water).
Delicates button
Press this button to reduce movement of the drum and,
consequent y, of the washing. Suitab e for particu ar y de icate
garments (shirts, si k, curtains, etc.)
Half load button
1/2
If the machine is used with a sma er amount of washing than that
indicated in the “Programme Chart”, press this button to save water,
detergent and e ectricity.
This option shou d not be used for synthetics or woo ens.
The recommended doses of detergents sho ld be red ced in
proportion to the load.
O
“Start/Pa se” b tton
Press this button to start the se ected washing programme.
During washing, press the “Start/Pause” button for about 3
seconds to pause the washing cyc e. During the pause, the
“Time remaining” Led f ashes and STOP appears on the
disp ay. To resume the washing cyc e from where it eft off,
simp y press the “Start/Pause” button again.
P
Timed drying shown on
display LED
This LED indicates that drying is carried out with the se ected
drying time.
R
B tton activation shown on
LED
This LED indicates that the corresponding buttons have been
pressed.

GB
13
4.2 DETERGENT TRAY
This is ocated to the eft of the contro pane . Pu it out to
open.
The tray comprises four compartments which are marked as
fo ows
“1”: pre-wash detergent
“2”: main wash detergent
“” or “3”: fabric softener, starch, etc. (treatment products).
Compartment “4” is used for b each. If there is a cover marked
, this means that b each cannot be used with this mode of
machine. If b each can be used with the machine, there is no
cover.
5. WASHING INSTRUCTIONS
5.1 PREPARING THE WASHING
1. Separate the washing according to the type and co ourfastness of the fabrics.
2. Wash whites and co oureds separate y. Wash new co oured garments separate y for the first time. A abe is
norma y app ied to garments giving information on how to c ean them. A brief description of these abe s is
shown be ow.
WASHING BLEACHING
Machine wash at max. 90°C
Machine wash at max. 60°C
B eaching a owed
Do not b each
IRONING
Machine wash at max. 40°C
Machine wash at max. 30°C
Hot iron Warm iron Coo iron
Do not iron
DRY CLEANING
Machine wash, de icate cyc e
at max. 60°C
Machine wash, de icate cyc e
at max. 40°C
Machine wash, de icate cyc e
at max. 30°C
Any so vent
Any so vent
except
trich oroethy ene
Petro eum
so vent and
R113
Do not dry c ean
DRYING
Hand wash
Do not wash
High
temperature
Less than 60°C
Do not tumb e dry
Attention!
• Do not wash unhemmed or torn garments as they may fray.
• Foreign bodies may damage garments or machine components. Therefore, empty a pockets and turn them
inside out, remove ro ers from curtains or put them in a string bag.
• Put very sma artic es (be ts, handkerchiefs, socks, bras with stiffeners, etc.) into a white canvas bag. C ose
push buttons and zips and sew on dang ing buttons.
• Modern detergents and correct washing temperatures are genera y sufficient to remove stains from fabrics.
However, some stubborn stains, such as grass, fruit, egg, b ood, rust and biro, shou d be pre-treated before
washing. Depending on the type of fabric, many stain removers can be fo nd in the shops. Stains
sho ld always be cleaned or dil ted immediately as the older they get, the more diffic lt they are to
remove.
• Garments may be damaged if fabric care symbols are not observed.
Wool – On y pure woo , identified by or with the abe <<shrink-proof machine washab e and dryab e>> can
be machine washed with the specific programme, other types of woo shou d be hand-washed or dry-c eaned.

GB
14
5.2 OPENING THE DOOR
The machine is fitted with a safety device that prevents the door from opening whi e it is working.
1. Before opening the door, wait 1 or 2 min tes after the programme ends (“End” LED on) to a ow the
safety device to disengage.
2. Make s re there is no water in the t b and that the dr m is not moving. Open the door by pressing the
“Open door” button on the front pane and pu ing it open.
Attention!
• If the washing programme is interrupted, you wi have to wait from 3 to 15 minutes, depending on the
temperature of the water, before the door opens.
Attention!
The water may still be boiling if the washing cycle was performed at high temperat res.
If there is still water inside the dr m, do not open the door!
5.3 PREPARING THE WASHING
Where possib e, save electricity by washing f ll loads divided by type of fabric. Introduce oose washing and
a ternate arge items with sma ones. For the first few times, weigh the oads of washing and then re y on your
judgement. Average weights of common garments are shown be ow:
5.4 LOADING THE WASHING
1. Open the door and oad the washing taking care to distribute it uniform y, oose y and not packed into the
drum; a ternate arge items with sma ones if possib e.
2. The washer dryer described in this manua can be loaded with p to 5kg of washing. Heavier oads wi
ead to unsatisfactory washing resu ts and may cause the machine to work incorrect y.
3. To save energy, wash f ll loads divided by type of fabric, according to the quantities indicated in the
“Programmes chart” supp ied with this manua .
4. C ose the door by pressing it against the body of the app iance unti you hear a c ick. Make sure no
garments have got caught between the door and the rubber gasket.
Attention!
• If the door is not c osed proper y, a safety device prevents the washer dryer from working.
• Do not se more than the recommended amo nt of detergent: too m ch may deteriorate washing
res lts.
5.5 ADDING DETERGENT AND ADDITIVES
Fo ow the instructions shown in the “Programme Chart” provided
together with the manua and add detergent and any additives to the
re ative compartment before starting the programme.
Pour the pre-wash powder detergent into the compartment marked
“1”.
Pour main wash detergent into compartment “2”. Machine accessories
inc ude a red insert “A” that can be p aced inside compartment “2” to
a ow iquid detergent to be used. The additives are automatica y
introduced into the tub during fina rinsing.
Pour iquid additives such as starch and fabric softener into “3”,
marked with .
If b each can be used with the machine (no cover marked with ) add b each to compartment “4” if you wish.
The level of the liq ids m st not exceed the maxim m limit, otherwise the trays wi be emptied too soon.
Before pouring thick additives into the tray, di ute them with a itt e water to prevent them from obstructing the trap.
On y use foam-contro ed detergent suitab e for use in washer dryers.
Determine the q antity of detergent according to the hardness of the water, and the type, q antity and
dirtiness of the washing.
This wi a ow you to obtain the required effect using as itt e detergent as possib e.
Detergent packs indicate the quantities to use according to 4 eve s of hardness and for norma y dirty oads of 4-5
kg.
Ask your oca water board to te you how hard your water is.

GB
15
Water hardness
Hardness level French degree fH German degree dH
Soft Up to 15° Up to 8°
Moderate y hard 15° - 25° 8° - 14°
Hard 25° - 40° 14° - 22°
Very hard Over 40° Over 22°
5.6 DOSING POWDER DETERGENTS
Normally dirty washing
1. Choose a programme without prewash.
2. Pour the tota quantity of detergent indicated on the packs into compartment “2” of the detergent tray.
Very dirty washing
1. Choose a programme with prewash.
2. Add ¼ of the recommended quantity of detergent into compartment “1” of the detergent tray and ¾ of the
detergent into compartment “2”.
Attention!
• If there are no dosage indications for de icate synthetics, add from ½ to 2/3 of the recommended quantity for
resistant cottons.
• For the woo programme, on y use neutra detergents for woo ens.
• Base your doses according to the detergent manufacturer's recommendations.
5.7 DOSING LIQUID DETERGENTS
1. Pour the recommended dose into the batcher supp ied with the iquid detergent and p ace it inside the drum;
otherwise, pour it into compartment “2” of the detergent tray after fitting the re ative red insert “A” (see
paragraph 5.5).
2. The sca e on the red insert wi he p you to use the right quantity of iquid detergent.
Attention!
• Liquid detergents can be used according to the manufacturer's recommended dose only for the main
washing cycle, that is, in all programmes witho t prewash.
• When compartment “2” is used for powder detergent, the red insert “A” must be removed.
5.8 SCALE-REMOVERS
Sca e-removers can be introduced into compartments “1” and “2” according to the manufacturer's indications.
First, add the detergent and then the sca e-remover.
5.9 SWITCHING ON THE MACHINE AND SELECTING THE WASHING PROGRAMME
To switch on the machine and se ect programmes, proceed as fo ows:
1. Turn the programme knob in either direction.
2. Se ect the washing temperature, within the sectors marked on the front pane by the fo owing words:
• Cotton, coloureds
• Wool
• Synthetics, delicates
The washer dryer has the fo owing basic washing programmes which, by adjusting the temperature and
using the various button functions, a ow a wide range of programmes to be set for a requirements.

GB
16
Intensive washing programme
for resistant cotton, co oured or hemp fabrics.
Delicate washing programmes
for de icate artificia synthetic fibres, b ends or inen fabrics.
They prevent the formation of creases that are difficu t to remove during
ironing.
Wool programme
on y for garments marked “pure woo ” washab e, treated, shrink proof.
Other types of woo shou d be hand washed or dry-c eaned.
To select programmes according to the type of fabric, cons lt the “Programme chart” s pplied
together with this man al.
Display information
When the machine is switched on, the disp ay visua ises
the duration (hours/minutes) and maximum spin speed
envisaged for the programme. These two parameters are
disp ayed a ternative y for 3 seconds each, together with
their re ative LED's, unti the se ected programme starts.
Attention!
• The fo owing partia washing programmes can be set
using the programmes knob:
-Rinse with additive
-Drain and spin
-Fabric softener
These partia programmes are inside the Cotton, Synthetics and Woo sectors, except for the drain and spin
programme (Drain
) .
• If the indicated temperature shows 0°, this means that the programme performs a co d wash cyc e. The same
co d wash is a so performed by the Hand wash programme in the Woo sector.
• The fabric treatment abe s show which washing temperature must be set.
• If vario s garments in the same load req ire different washing temperat res, choose the lowest
washing temperat re of all.
• If the aundry is on y s ight y dirty and does not need the b eaching effect of high temperatures, a lower
temperat re can be chosen to save power. In spite of the ow temperature and consequent saving of
e ectricity, an automatic time contro keeps the duration of the main washing unvaried compared with that of a
high temperature programme. It is therefore possib e to successfu y wash normally dirty la ndry at lower
washing temperat res than the maximum temperatures shown on the fabric care abe s.
5.10 MODIFYING STARTING PARAMETERS
5.10.1 SPIN SPEED
Press the se ect spin speed button ( ), the re ative LED ights up and the disp ay visua ises the maximum speed
envisaged for the se ected washing programme.
Press the button repeated y. Speed decreases by 100 rpm every time unti the spin cyc e reaches 0 rpm and is
disab ed.
5.10.2 OPTIONS
Use the options buttons (indicated in chapter 4 – Description of contro s, etter M) to enab e machine options. A
se ected option is high ighted by the option LED ocated above the button in question.
3 seconds 3 seconds

GB
17
5.10.3 DELAYED START (O LY FOR MODELS FEATURI G THIS FU CTIO )
Press the de ayed start button ( ). The re ative LED ocated above the button ights up.
The disp ay visua ises the time remaining (hours/minutes) before the se ected washing
programme starts: the disp ay initia y shows 0 hours 0 minutes for a programmes.
Press the button repeated y. The Start de ay increases by 30 minutes each time it is
pressed for the first 12 hours. After that it increases to 60 minutes up to 24 hours.
5.11 STARTING THE WASHING PROGRAMME
1. Before starting the se ected programme, carefu y c ose the door, open the water tap and add the
detergent and additive
2. Press the “Start-Pause” button. The LED ocated above the Start-Pause button remains it throughout the
cyc e.
After starting, the disp ay shows the time remaining unti the end of the programme. The LED remains on
throughout the cyc e.
If de ayed starting has been set (on y for mode s featuring this option), the disp ay visua ises the time
remaining before the cyc e starts. When de ayed starting is set, the re ative LED f ashes on and off.
5.12 INTERRUPTING OR CHANGING THE WASHING PROGRAMME
The washing programme may be interrupted at any time whi e it is running:
1. press “Start/Pause” for approximate y 3 seconds: the disp ay a ternates between STOP (for 1 second)
and three horizonta ines (for 1 second) and the Start/Pause LED f ashes.
The programme can a so be stopped by turning the programme/temperature se ection knob whi e the
cyc e is running.
2. If you wish to change the washing programme, simp y se ect the new programme by turning the
programme knob without pausing the machine first. The new washing cyc e wi be performed starting
from the beginning. If the tub is a ready fu of water, the new programme wi omit the fi ing phase.
3. To resume the cyc e, press Start-Pause again.
Examp e
Examp e
Whi e se ecting the de ayed start time,
you can reset the timer by pressing the
button for at east 3 seconds.

GB
18
5.13 END OF PROGRAMME
The washing programmes are automatica y comp eted, the disp ay shows END and the
“Time remaining” LED ights up.
1. T rn the programmes knob to OFF to switch off the machine.
2. Open the door.
3. Remove the washing from the drum.
4. Leave the door ajar in order to a ow the inside of the washer dryer to dry.
5. T rn off the water tap.
If the no-spin option was se ected during the initia spin speed set up phase and the machine stops with the tub fu
(spin speed 0), STOP appears on the disp ay at the end of the washing programme, a ternating with 0000 (spin
speed 0) and the spin LED ights up.
To continue draining and spinning, press the spin se ect button twice. The machine resumes the cyc e by draining
the water and spinning. To se ect spin speed, press the button unti the required speed is disp ayed. If you wish to
drain the water in the tub without spinning, press the spin se ect button unti 0000 appears on the disp ay. This
indicates that the machine wi drain the water without spinning.
5.14 END OF PROGRAMME BEEPER
When a washing and/or drying cyc e finishes, the message END appears on the disp ay and a beepers sounds
twice. To disab e this signa , press the second and third button from the eft simu taneous y. The message OFF
immediate y appears on the disp ay to indicate that the beeper has been disab ed.
To enab e the end of programme beeper, repeat the operation. This time, the message ON wi appear on the
disp ay.
The app iance is supp ied with the end of programme beeper enab ed.

GB
19
6. USING THE MACHINE FOR DRYING PURPOSES
6.1 GENERAL INFORMATION
D ring drying cycles it is essential that the water tap is open and that the drain hose is correctly
positioned.
With this machine it is possib e to set wash-on y programmes, dry-on y programmes and wash-dry programmes.
For the atter programmes, the cyc e shifts automatica y from washing to drying without the contro s being
touched and the cyc e continues after washing.
Warnings
• On y dry inen or garments washed in a water-based so ution and suitab e for tumb e drying.
•
• The q antity of washing that can be introd ced into the washer dryer for drying m st not exceed
2.5kg. This washer dryer has been bui t to offer maximum performance with dry oads weighing not more
than 2.5 kg.
• When intensive washing programmes are set, drying is automatica y performed at 90°C (norma drying).
• For de icate programmes, drying is automatica y performed at 60°C (de icate drying). Therefore, for an
automatic washing programme p us drying, the drying programme is dictated by the washing programme
se ected.
• In order to carry out a dry-on y programme, the inen must a ready have been washed and spun.
• After drying particu ar y soft inen, e.g. new towe ing underwear, it is advisab e to carry out the “Rinse”
programme in order to ensure that any sma fabric deposits are drained away and are not deposited on
the inen in the next wash oad.
Important – do not dry de icate fabrics that cannot withstand temperatures of 60°C or in any case fabrics that
cannot withstand the se ected temperatures.
6.1.1 TABLE OF APPROXIMATE DRYING TIMES AND TEMPERATURES
Weight of
washing
Resistant fabric
drying at 90°
De icate fabric
drying at 60°
Drying
resu t
1,5kg
40 minutes 80 minutes Damp for ironing
80 minutes
100 minutes Dry
2.5kg
80 minutes 120 minutes Damp for ironing
100 minutes
- Dry
6.1.2 EXTRA DRYING
If the washing is sti too wet when the programme finishes, set a short timed drying cyc e.
Ca tion! Do not dry garments too much as they may crease or shrink.
6.2 TIMED DRYING
The ength of drying time corresponds to the time se ected with the drying se ection button.
6.3 WASH-DRY PROGRAMME
It is possib e to use a wash-dry programme for intensive programmes (cotton, co oureds) and for
synthetics/de icates. With the woo wash programme it is not possib e to se ect automatic drying after washing.
To automatica y wash and dry the washing, its weight m st not exceed 2.5kg for cotton or 1.5kg for
synthetics.
Therefore, if the weight of washing to be washed and dried exceeds the above imits, it is not advisab e to carry
out a wash-dry programme as, at the end, it wi be necessary to ha f the oad and carry out the drying process in
two ha ves.
To carry out a wash-dry programme, fo ow the fo owing steps:
1. Se ect the wash programme as indicated in paragraph 5.9;
2. Se ect the required spin speed as indicated in paragraph 5.10.1;
3. Press the se ect drying programme and times button (b tton L) to set the required drying
programme:
Time LED disp ay showing: With this programme it is sufficient to repeated y press the button to se ect the
required drying time. After about 5 seconds the programme setting c oses and the va ue set is shown. The
drying time can be anything from 2:00 hours to 0:00 hours.

GB
20
During the se ection of the drying programme the LED of the normal drying programme stays on. This
programme indicates an intense drying cyc e and is meant for resistant items and cottons.
If a delicate drying cycle is required ( ess intensive drying, suitab e for de icates and synthetics), press the
De icate Drying button. In this case the de icate drying programme LED is shown.
After se ecting a drying programme (norma or de icate), press the Drying se ection button within 5 seconds.
6.4 DRY-ONLY PROGRAMME
After a washing cyc e has finished, fo ow the fo owing steps to program a drying cyc e:
1. Switch off the machine by turning the se ect washing/drying programme knob to OFF.
2. Position the knob on the drying program indicated with the symbo ;
3. Repeated y press the se ect drying button (button L) unti the programme is set. If you wish to reduce
the drying temperature, press the De icate Drying button.
4. Press the “Start-Pause” button to start the drying programme. The disp ay shows the time remaining.
Warnings
• As there has been no washing cyc e se ected, the se ection of the programme for drying (norma or
de icate) is tota y free. Remember that norma drying is advisab e for cottons and co oureds, whereas
de icate drying is advisab e for synthetics and de icates.
• In order to obtain good drying resu ts, the weight of the washing m st not exceed 2.5kg for cotton or
1.5kg for synthetics.
6.5 INTERRUPTION OR CHANGE OF DRYING PROGRAMME
1. For the interruption or change of the drying programme, fo ow the instructions indicated in paragraph
5.12 – interruption or change of washing programme. When the machine is paused, it is possib e to
change drying programme and/or times by pressing the se ect drying button.
2. If you need to stop the programme and take out the inen, it is advisab e to coo the inen down first.
Using the se ect button, set the drying time to 20 minutes. Restart the machine as indicated in the
fo owing point and at the end it is possib e to take out the inen.
