Smith's Heating First SBBQS500 User manual

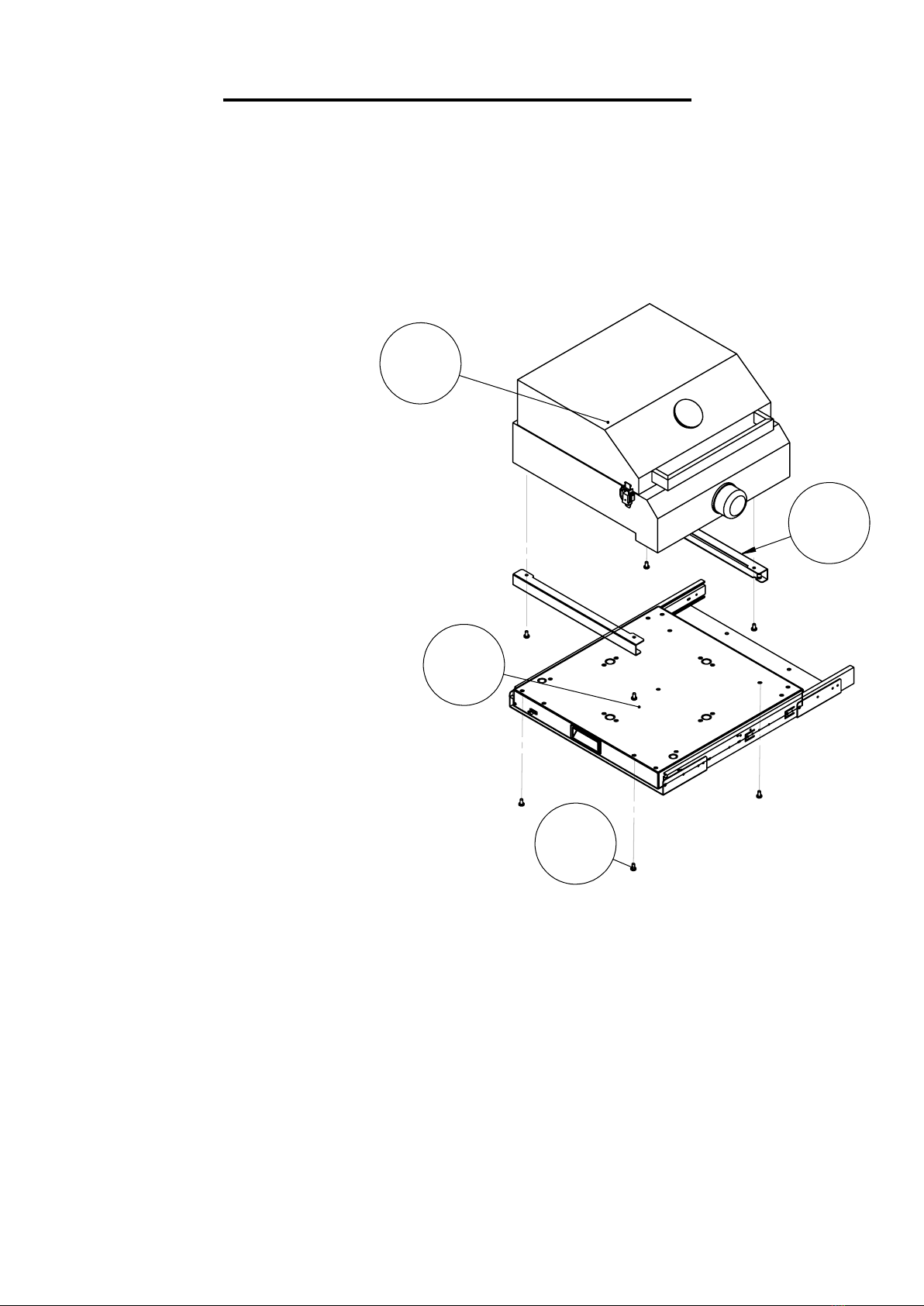

Item 1
1x
Item 2
2x
Item 4
1x
Item 3
8x
Item 1 . Barbeque Slide System assembly
Item 2 . Left and Right Mounting Brackets
Item 3 . 6mm x 12mm Screws - Slide
System to Mounting Brackets and
BBQ
Item 4 . Smiths portable barbeque
model SPB304FF. This barbeque is
sold separately and is NOT part of
the slide kit.
SMITHS BARBEQUE SLIDE SYSTEM
MODEL NO. SBBQS500 (500mm) & MODEL NO. SBBQS600 (600mm)
To Suit SMITHS PORTABLE BARBEQUE MODEL SPB304FF
PART IDENTIFICTION SHEET
NOTE, THE 8MM BOLTS, NUTS AND WASHERS (MINIMUM 4 TO BE USED) ARE NOT
SUPPLIED AND TO BE SUPPLIED BY THE INSTALLER. THESE ARE USED TO SECURE THE SLIDE
SYSTEM TO THE CARAVAN, RV OR CAMPER TRAILER. THESE MAY BE DIFFERENT DEPENDING
ON THE MAKE AND MODEL OF THE CARAVAN, RV OR CAMPER TRAILER.
1. Read and Follow all of the instructions completely.
2. The Smiths Barbeque Slide System must be installed in accordance with the full set
of instructions listed and meet the regulations laid down by the Caravan and
RV industry requirements of state and local government authorities.
3. For safe use of the Smiths Barbeque, DO NOT modify or alter any part of this slide system.
CAUTION

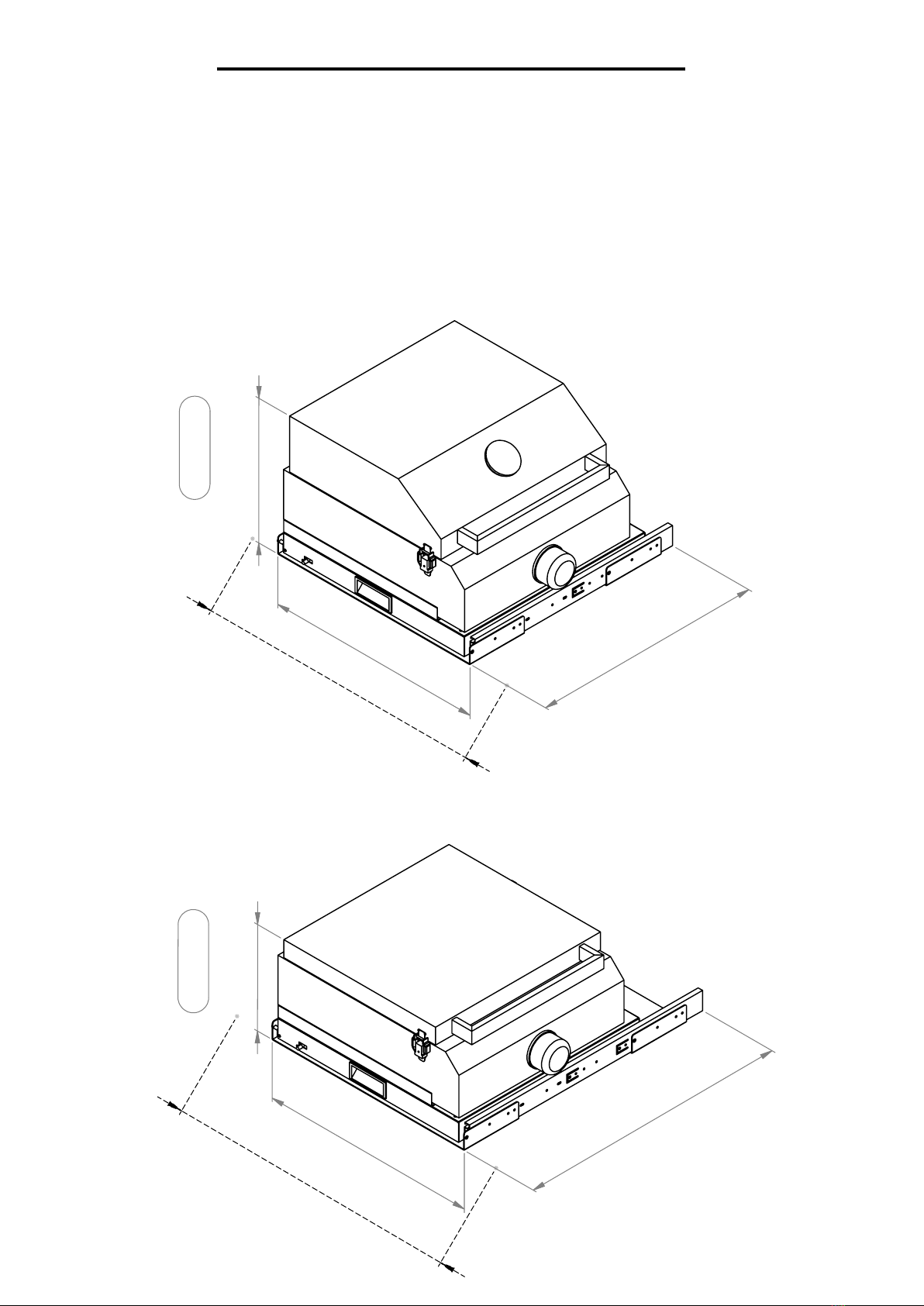

515mm FULLY IN
1025mm FULLY OUT
500mm
315mm
HOODED LID
HEIGHT
570mm WITH BARBEQUE
615mm FULLY IN
1230mm FULLY OUT
500mm
235mm
FLAT LID
HEIGHT
570mm WITH BARBEQUE
SBBQS500
HOOD
SBBQS600
FLAT LID
SMITHS BARBEQUE SLIDE SYSTEM
MODEL NO. SBBQS500 (500mm) & MODEL NO. SBBQS600 (600mm)
To Suit SMITHS PORTABLE BARBEQUE MODEL SPB304FF
DIMENSIONS

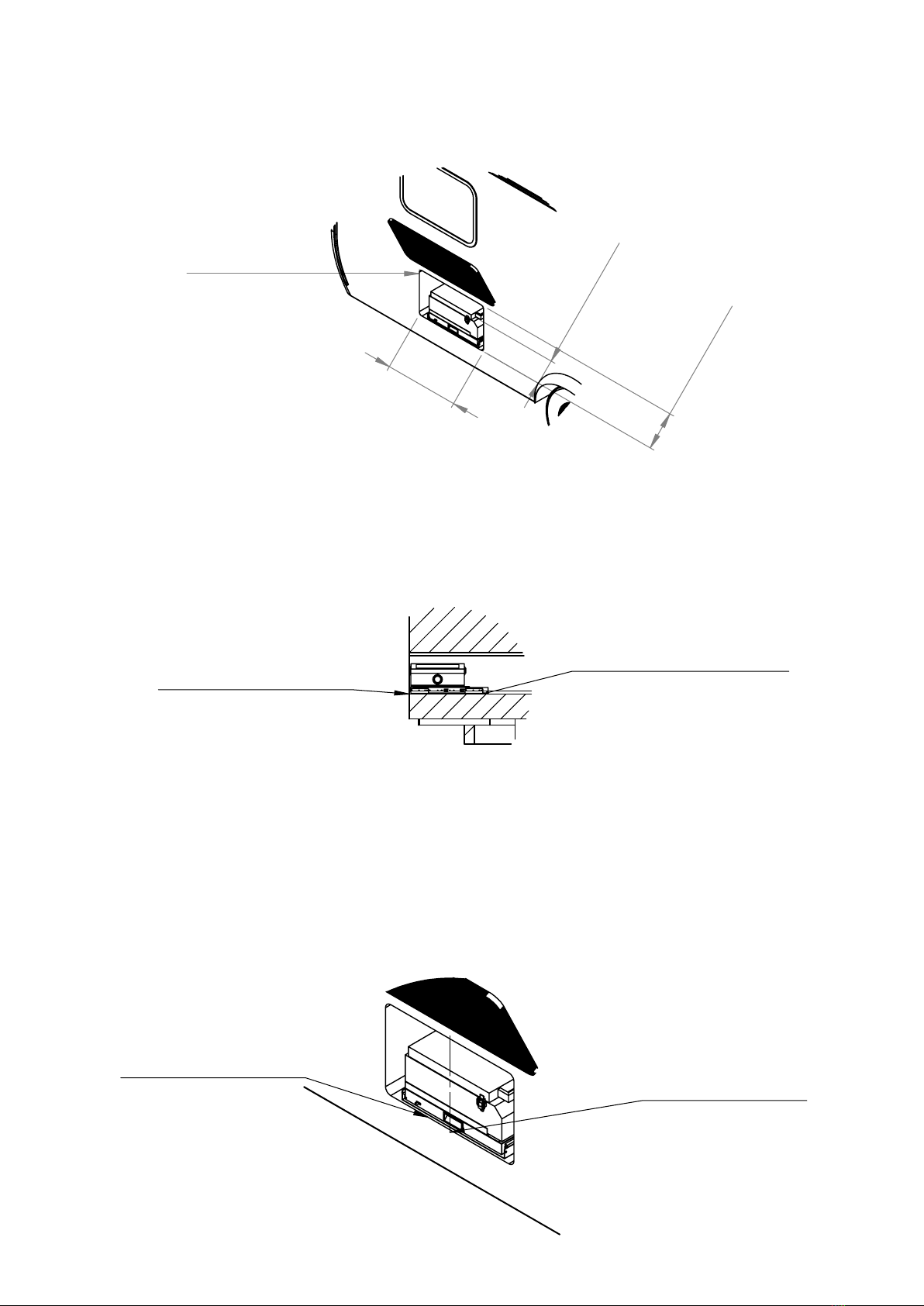

G
G
J
H
I
Radius
Maximum
is 25mm
330mm
Minumum
Hood Lid
570mm
250mm
Minumum
Flat Lid
measure and
mark 10mm in
from edge of boot
opening
mark the center
of opening
Make sure the slide
system bottom is flush
with the tunnel boot
opening bottom
horizontal edge
Packing may be
required so slide system
can protrude past boot
door / opening
The slide system must be mounted
only on kerb side of the caravan.
INSTALLATION PROCEDURE
STEP 1
Check the Tunnel Boot opening sizes to ensure the Smiths Barbeque and Smiths Slide System will fit.
STEP 2
The Smiths Slide System is designed to be installed flush with the bottom of the tunnel boot opening.
If the floor is lower than this opening, packing such as melamine/mdf/ply will be required to be placed
between the floor and the slide system to raise the slide system to the correct height.
STEP 3
Measure in 10mm and mark. Position the slide system in place and align the front with the mark. The slide
system needs to be in 10mm so the barbeque spring clip lever does not hit the tunnel boot door when closed.
Also position the slide system so it is centred. Ensure the slide system is in place and the arrows in the
brackets face towards the tunnel boot door.

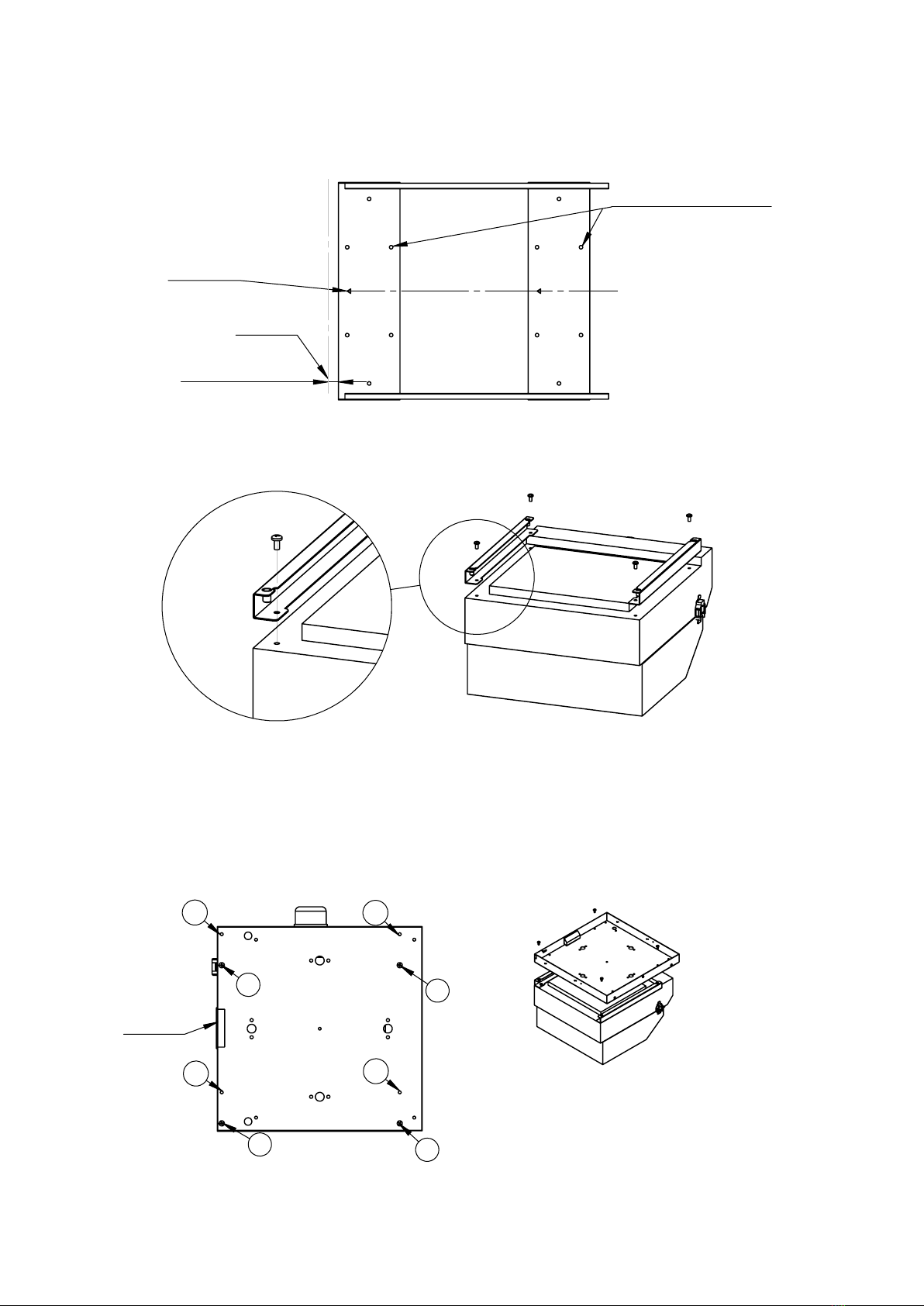

10mm
M8 BOLT POSITIONS x 12
BOOT
OPENING
CENTER
ARROW TO
BOOT
OPENING
AA
A
A
BB
B
B
HANDLE
FRONT
The gas connection must be carried out by an authorised
and licensed gas fitter and the installation must meet the the Australian and
New Zealand Standards AS/NZS5601 and AS/NZS5263.
See Smiths Barbeque user manual and install instruction.
BBQ TO FACE FRONT OF CARAVAN
SCREW M6x12 SCREWS INTO HOLES MARKED A
BBQ TO FACE REAR OF CARAVAN
SCREW M6x12 SCREWS INTO HOLES MARKED B
INSTALLATION PROCEDURE
STEP 4
Mark four holes minimum. Two at the rear and two at the front and on opposite sides. Remove the slide system
to drill minimum four holes through the tunnel boot floor.Position the slide system back into place and align all
holes. Bolt the slide system into place and use low head 8mm bolts. Use large washers and either Nyloc nuts,
Locking Nuts and loctite. The washers and nuts must be on the bottom side - under the tunnel boot floor.
STEP 5
Place the barbeque upside down onto carpet, towel or something that will not mark and damage the stainless steel hood.
Screw the two mounting brackets to each side of the barbeque using four M6x12 Screws provided.
STEP 6
Unclip the bbq slide system and pull it out to it’s fullest extension. Position the barbeque onto the slide system so
that the barbeque sides are parallel with the caravan side. You must not fit the barbeque so the front of the barbeque
is parallel to the caravan side as the hood will hit on the caravan side. If you want to mount the barbeque so the front
is parallel with the caravan side, you must install the Smiths Slide System SBBQS800 - 800mm model.
Align the slide system tray holes with the Barbeque mounting brackets. Do this from underneath the slide system.
Use the four M6x12 screws provided and screw together. We recommend to use loctite.
