Snapper 19 User manual

Parts Manual fo
r
Revision B,
2
1" STEEL DECK WALK BEHIND MOWER
S
SERIES 19
TP 400-5187-B-WB-N7/8/2008
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967 Manual No. 7006149
MODEL
2167519B (7800031)
2167519B (7800174)
2167519B (7800217)
N2167519B (7800133)
NP2167519B (7800134)
NP2187519BV (7800131)
P216019KWV (7800034)
P216019KWV (7800193)
P2167519B (7800032)
P2167519B (7800175)
P2167519B (7800218)
P217019BV (7800033)
P217019BVE (7800035)
P2187519BV (7800176)
P2187519BVE (7800178)
RP216019KWV (7800029)
RP216019KWV (7800199)
RP2167519B (7800027)
RP2167519BDV (7800066)
RP217019BV (7800028)
RP217019BVE (7800030)
RP2187519BV (7800172)
RP2187519BVE (7800173)

Table Of Content
s
TP 400-5187-B-WB-N
21" STEEL DECK WALK BEHIND MOWERS
SERIES 19 3
Manual No. 7006149
PAGE GROUP
4HANDLES & CONTROLS
8CUTTING DECKS, BLADES
10 WHEEL BRACKETS, LATCHES (Push)
12 WHEEL BRACKETS, LATCHES (Self-Propelled)
14 WHEELS, FRONT & REAR
16 DRIVE SYSTEM SELF-PROPELLED
20 TRANSMISSION (DIFFERENTIAL)
22 SIDE CHUTE ADAPTER
24 GRASS BAG COMPONENTS
26 DECALS
28 ELECTRIC START COMPONENTS
30 RECYCLING KITS ACCESSORY
32 SNAPPERIZER ACCESSORY
34 THATCHERIZER ASSEMBLY

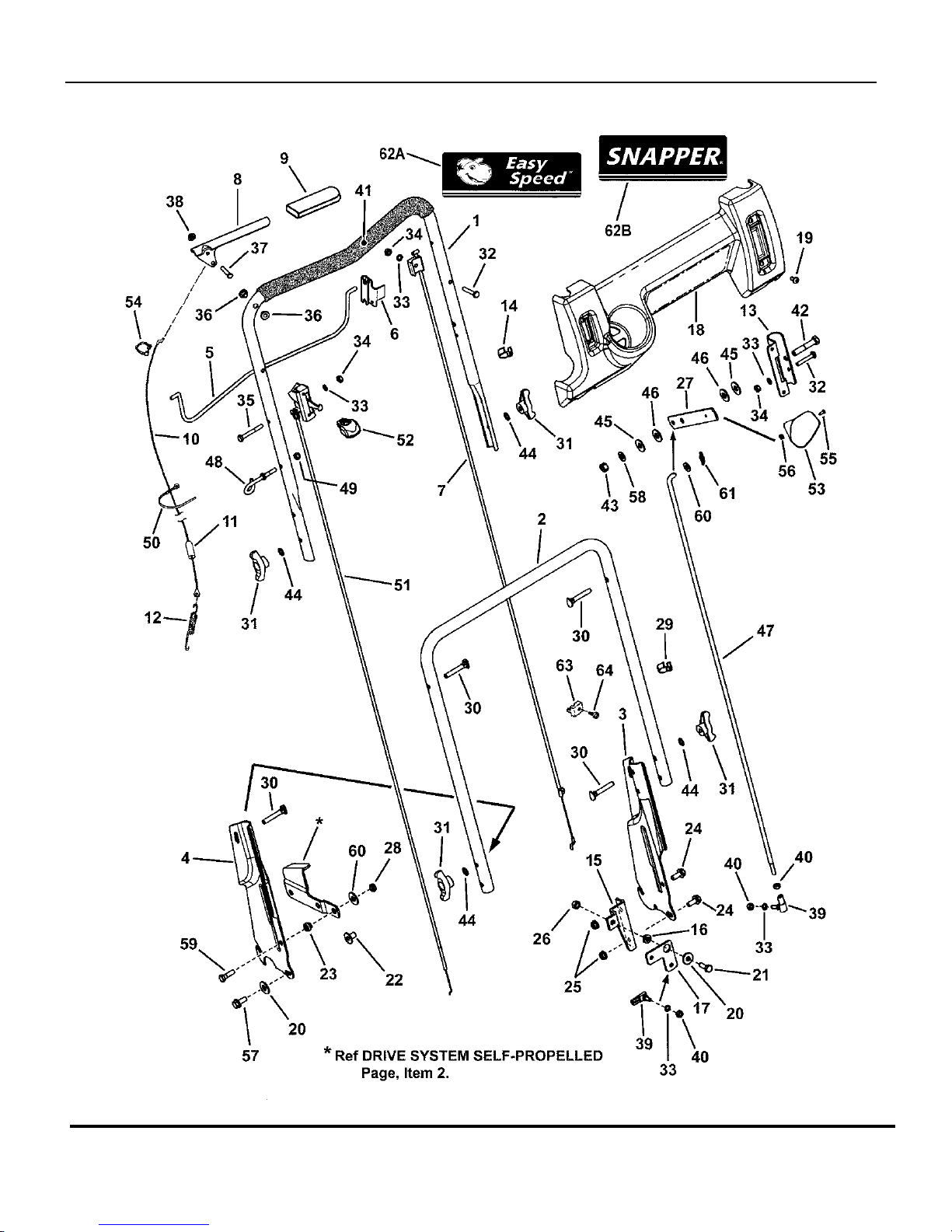

HANDLES & CONTROLS
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
4
Manual No. 7006149

HANDLES & CONTROLS
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 5
Part No Descri
p
tionItem Qt
y
Note
1 7074411 1 HANDLE, Upper
2 7074156 1 HANDLE, Middle
3 7033985 1 HANDLE, Lower LH (Adjustable)
4 7033986 1 HANDLE, Lower RH (Adjustable)
5 7074418 1 BAIL, OPC Control
6 7034872 1 CLIP, Zone Control
7 7034608 1 * CABLE, Zone Control (52-63/64” Long)
7 7074141 1 * CABLE, Zone Control (56-5/16” Long)
7 7078078 1 * CABLE, Zone Control (50-31/64” Long)
7 7100976 1 * CABLE, Zone Control (53-47/64” Long)
8 7074473 1 HANDLE, Clutch
9 7028407 1 GRIP, International Symbol
10 7034604 1 CABLE, Clutch Control (41-1/4” Long)
11 7012121 1 COVER, Vinyl
12 7012122 1 SPRING, Clutch - 21S
13 7074003 1 BRACKET, Shift
14 7024641 2 TIE, Wire, 1.29 long, black
15 7073822 1 BRACKET, Bell Crank
16 7013849 1 SPACER, .33 x .63 x .156
17 7073913 1 BELL CRANK
18 7074140 1 CONTROL PANEL (w/o Electrical Switch Hole) Used on Manual Start Models
18 7074469 1 CONTROL PANEL (w/Electrical Switch Hole) Used on electric start models
18 7073826 1 CONTROL PANEL (w/o wheel drive slot) used on 2167519BFC &
2167519B
19 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx)
20 7091130 2 WASHER, .33 x .88 x .09 Flat
21 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5
22 7090895 1 TEENUT, 5/16-18 or 7090538
23 7012114 1 BUSHING, Differential, .328 x .625 x .41
24 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5
25 7091070 2 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7090585 or 7091601
26 7091067 1 NUT, 5/16-18 Hex Center Lock
27 7074113 1 LEVER, Shift
28 7091606 1 NUT, 5/16-24 Hex Center Lock GR 5 or 7091074
29 7023813 1 CLIP, Wiring Harness
30 7091189 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR 2 or 7091740
31 7035744 4 KNOB, 5/16-18 Wing (Black)
31 720727 4 KNOB, 5/16-18 Wing (Black) Briggs part
NOTE: * Part number and revision is stamped on cable.

HANDLES & CONTROLS
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
6
Manual No. 7006149

HANDLES & CONTROLS
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 7
Part No Descri
p
tionItem Qt
y
Note
32 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR 5
33 7090053 5 WASHER, 1/4” Internal Tooth Lock or 7091023
34 7091100 3 NUT, 1/4-20 Hex or 7091576
35 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
36 7014343 2 BUSHING, .27 x .35 x .4 Flange
37 7023792 1 PIN, 1/4 x 1-1/2”
38 7091020 1 PUSH-NUT, 1/4”
39 7015753 2 BALL JOINT, 1/4-28
40 7090095 4 NUT, 1/4-28 Hex
41 7023810 1 FOAM GRIP, 18.75” long
42 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5
43 7091585 1 NUT, 3/8-16 Hex Center Lock
44 7090391 4 WASHER, 5/16” Internal Tooth Lock
45 7031961 8 WASHER, 7/16” Flat
46 7028465 2 WASHER, Nylon
47 7074133 1 ROD, Speed Control (1/4-28 thread)
48 7028488 1 GUIDE, Rope (1/4-20 thread)
49 7076978 1 NUT, 1/4-28 Hex GR 5 or B
50 7012080 1 CABLE-TIE, 7”
51 7074460 1 THROTTLE CONTROL, (48.5”) used on Briggs models
51 7074138 1 THROTTLE CONTROL, 6.0 KWV (53.25”) used on Kawasaki models
51 7100975 1 THROTTLE CONTROL, RP, D.O.V. Engine (50.0”) used on Briggs DOV engines
52 7075308 1 THROTTLE KNOB (Red)
53 7075182 1 KNOB, Shift (Red)
54 7026219 1 CLAMP, 7/8” Double Cable
55 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine
56 7091018 1 NUT, #8-32 Hex
57 7091151 1 SCREW, 5/16-18 x 1-1/4” Hex Washer Head Self-Tap
58 7028568 1 WASHER, Belleville
59 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR 5
60 7090188 1 WASHER, 11/32” Flat
61 7034162 1 COTTER PIN, 5/16 Self Lock
62A 7100183 1 DECAL, Easy Speed, Control Panel
62B 7100182 1 DECAL, Snapper Control Panel used on Push models
63 7023153 1 CLAMP, Casing
64 7023154 1 SCREW, #10-32 x 5/8” Self-Tap
NOTE: * Part number and revision is stamped on cable.

CUTTING DECKS, BLADES
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
8
Manual No. 7006149

CUTTING DECKS, BLADES
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 9
Part No Descri
p
tionItem Qt
y
Note
-- 1 * ENGINE, Kawasaki 6.0 HP, Mod. FJ180V-DS13-R used on RP216019KWV
-- 1 * ENGINE, Kawasaki 6 HP Mod. FJ180V-BS23-R used on P216019KWV
-- 1 * ENGINE, B&S 675 Series Mod. 126L02-0113-F1 used on N2167519B &
NP2167519B
-- 1 * ENGINE, B&S 675 Series XRM, B1 Mod. 126T02-0200-B1 used on 2167519B &
P2167519B
-- 1 * ENGINE, DOV 700 Series Mod. 100602-0121-B1 used on RP2167519BDV
-- 1 * ENGINE, B&S 875 Series XIC, F1 Mod. 12S602-0110-F1 used on NP2187519BV
-- 1 * ENGINE, B&S 875 Series, Intek 12S502-0112-B1 used on RP2187519BV &
P2187519BV
-- 1 * ENGINE, B&S 875 Series, Intek, ES, 12S507-0115-B1 used on RP2187519BVE &
P2187519BVE
1 7400026 1 WELDMENT, Deck, 21” Non-Adjust Air finish: red painted but w/o decals
1 7400027 1 WELDMENT, Deck, 21” S.P., HV, Core Model finish: red painted but w/o decals
1 7400029 1 WELDMENT, Deck, 21” Push, HV, Core Model finish: red painted but w/o decals
2 7091070 3 NUT, 5/16-18 Hex Flange Lock, GR 5
3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5
4 7046780 2 PLUG, Hole, Polyethylene
5 7011791 1 RETAINER, 5/16” Bolt
6 7090001 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 or 7091508
7 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping engine mount bolts
8 7074568 1 COVER, Belt
9 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)
10 7090201 1 SET SCREW, 5/16-18 x 5/16” Hex Socket
11 7091214 1 KEY, Woodruff #HP-506 Hi-Pro
12 7015626 1 HUB, Blade Drive, 25 mm I.D.
13 7101414 1 HUB, Blade, 21” WBM, RD, 2 Position
14 7012063 2 WASHER, Cone
15 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
16 7026691 1 BLADE, 21” Standard Lift
17 7026407 1 BLADE, 21” Ninja (Quad Edge) Used on Recycling Models
NOTE: * Purchase engine parts from engine manufacturer dealer.

WHEEL BRACKETS, LATCHES (Push)
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
10
Manual No. 7006149

WHEEL BRACKETS, LATCHES (Push)
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 11
Part No Descri
p
tionItem Qt
y
Note
1 7054228 1 ASSY, Wheel Arm, Right Rear (Push)
2 7054229 1 ASSY, Wheel Arm Left Rear Long (Push)
3 7051886 1 ASSEMBLY, Right Wheel Arm
4 7051885 1 ASSEMBLY, Left Wheel Arm
5 7100633 4 GRIP, Height Latch
6 7035717 2 LATCH, Height Adjusting (long)
7 7033776 1 ARM, Wheel, Right Rear
8 7033775 1 ARM, Wheel, Left Rear
9 7011078 2 BOLT, 5/16-18 x 1” Hex Washer Face Shoulder
10 7011791 4 RETAINER, 5/16” Bolt
11 7035741 1 FOOT GUARD, Long Rear (21 Push)
12 7021119 2 AXLE, 21”
13 7091070 4 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7090585 or 7091601
14 7015761 2 BOLT, 5/16-18 x 3/4” Hex Washer Face Shoulder
15 7012325 2 LATCH, Height
16 7031017 1 WHEEL ARM, R.H. Front (Round Hole)
17 7031016 1 WHEEL ARM, L.H. Front (Square Hole)

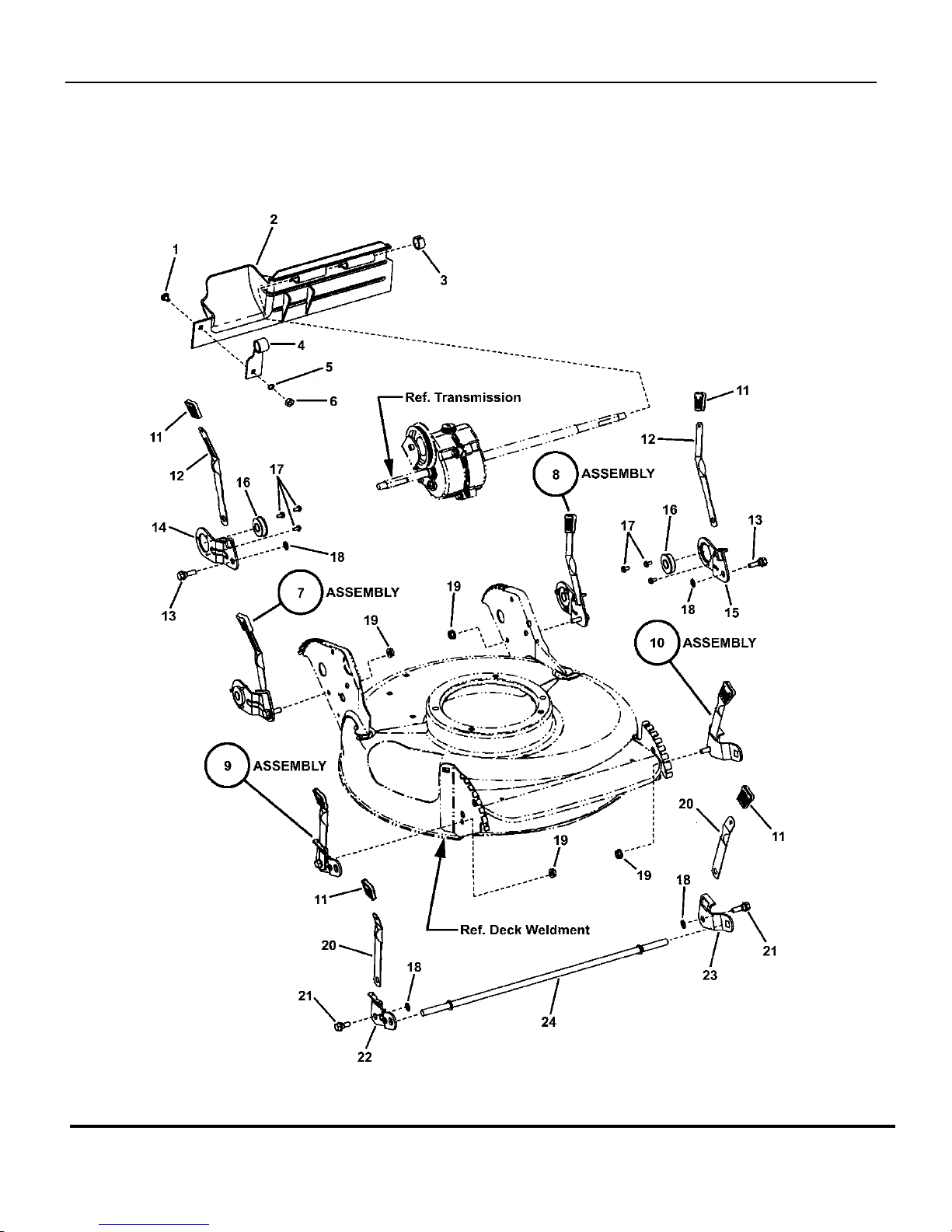

WHEEL BRACKETS, LATCHES (Self-Propelled)
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
12
Manual No. 7006149

WHEEL BRACKETS, LATCHES (Self-Propelled)
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 13
Part No Descri
p
tionItem Qt
y
Note
1 7090005 1 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR 5 or 7091604
2 7029008 1 FOOT GUARD, Rear
3 7023791 1 RING, Split (Black)
4 7012616 1 SUPPORT, Foot Guard
5 7090053 1 WASHER, 1/4” Internal Tooth Lock or 7091023
6 7090063 1 NUT, 1/4-20 Hex, GR 5 or B
7 7054230 1 ASSY, Wheel Arm, Right Rear (S.P.)
8 7054231 1 ASSY, Wheel Arm Left Rear Long SP21S
9 7051886 1 ASSEMBLY, Right Wheel Arm
10 7051885 1 ASSEMBLY, Left Wheel Arm
11 7100633 4 GRIP, Height Latch replaces 7027702 (voided)
12 7035717 2 LATCH, Height Adjusting (long)
13 7011078 2 BOLT, 5/16-18 x 1” Hex Washer Face Shoulder
14 7032722 1 ARM, Wheel, Right Rear
15 7032723 1 ARM, Wheel, Left Rear
16 7012312 2 BEARING, 9/16” I.D.
17 7091012 6 SCREW, #10-32 x 3/8” Hex Washer Self-Tap
18 7011791 4 RETAINER, 5/16” Bolt
19 7091070 4 NUT, 5/16-18 Hex Flange Lock, GR 5
20 7012325 2 LATCH, Height
21 7015761 2 BOLT, 5/16-18 x 3/4” Hex Washer Face Shoulder
22 7031017 1 WHEEL ARM, R.H. Front (Round Hole)
23 7031016 1 WHEEL ARM, L.H. Front (Square Hole)
24 7021119 1 AXLE, 21”

WHEELS, FRONT & REAR
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
14
Manual No. 7006149

WHEELS, FRONT & REAR
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 15
Part No Descri
p
tionItem Qt
y
Note
1 7029010 2 WHEEL, 8 x 1.75” Plastic
2 7090377 4 NUT, 7/16-20 Hex Center Lock Jam
3 7012309 2 BUSHING, Axle
4 7031961 10 WASHER, 7/16” Flat
5 7017829 4 PLUG, Wheel
6 7074924 2 WHEEL, 10 x 1.75” Plastic (push)
6 7029011 2 WHEEL, 10 x 1.75” Plastic (self-propelled)

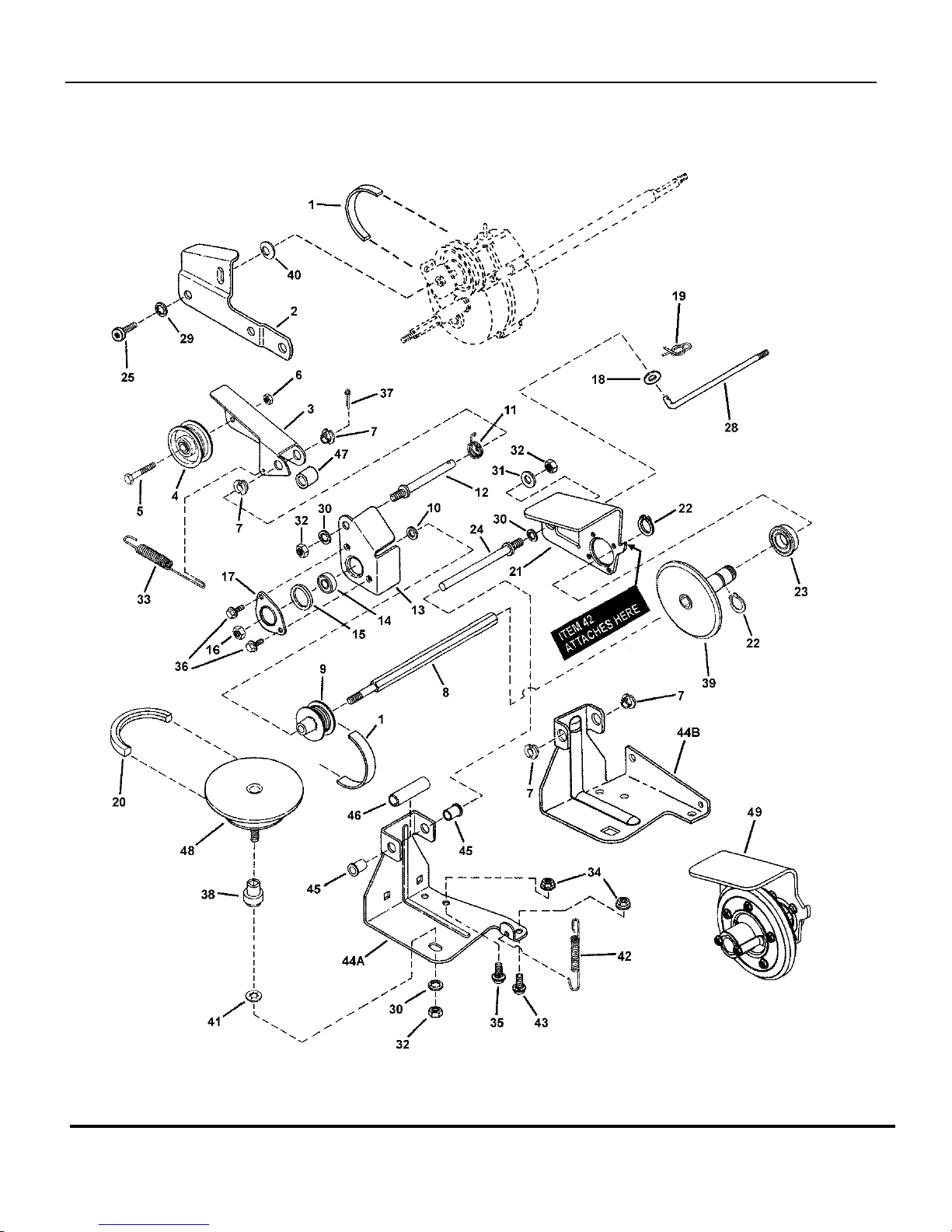

DRIVE SYSTEM SELF-PROPELLED
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
16
Manual No. 7006149

DRIVE SYSTEM SELF-PROPELLED
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 17
Part No Descri
p
tionItem Qt
y
Note
1 7012354 1 BELT, Poly-V
2 7034179 1 LINK, Differential (Comm.)
-- 7051921 ASSEMBLY, Clutch Idler (Includes items 3 thru 7)
3 7032832 1 ARM, Clutch Idler
4 7012124 1 PULLEY, Idler, V21
5 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap, GR 5
6 7090303 1 NUT, 1/4-28 Hex Top Lock
7 7012117 4 BUSHING, 3/8” I.D. Nylon
8 7072284 1 SHAFT, Hex Drive
9 7024521 1 PULLEY, Poly-V (2” O.D.) for non-Commercial models
10 7090188 1 WASHER, 11/32” Flat
11 7012126 1 SPRING, Idler- Torsion
12 7012111 1 STUD, Idler (3/8-24 thread)
13 7031873 1 HOLDER, Bearing (Inner Half)
14 7028014 1 BALL BEARING, Spherical O.D., .38 I.D.
15 7011025 1 O-RING, V21
16 7090289 1 NUT, 3/8-24 Hex Center Lock, GR 5
17 7031809 1 HOLDER, Bearing (Outer Half)
18 7091294 1 WASHER, .28 x .63 x .06 Flat
19 7091629 1 COTTER PIN, .06 x .50 YZ or 7090673
20 7046784 1 BELT, Engine Drive (Stretch)
21 7300977A 1 THRUST PLATE, Short was 7034281
22 7010746 2 RETAINING RING, .625 External
23 7026693 1 BALL BEARING- 3/4” Bore
24 7012125 1 GUIDE, Thrust Plate (3/8-24 thread)
25 7091542 1 SCREW, 5/16-18 x 1/2” Pan Head Self-Tap (Torx)
26 7015753 1 BALL JOINT, 1/4-28 (not shown) see Handles & Controls page
(item 39)
27 7090095 2 NUT, 1/4-28 Hex (not shown) see Handles & Controls page
(item 40)
28 7074145 1 LINK, Transfer (1/4-28 thread)
29 7090391 1 WASHER, 5/16” Internal Tooth Lock
30 7090390 3 WASHER, 3/8” Internal Tooth Lock
31 7090122 1 WASHER, 3/8” Flat
32 7091630 3 NUT, 3/8-24 Hex
33 7012122 1 SPRING, Clutch - 21S
34 7090585 2 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7091601
35 7090731 1 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5
36 7090539 2 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap or 7091122
NOTE: * Includes Steel Drive Disc Assy (7073528), Bushing (7013893), 3/8-16 Hex Nut (7091302) & item 38.

DRIVE SYSTEM SELF-PROPELLED
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
18
Manual No. 7006149

DRIVE SYSTEM SELF-PROPELLED
Footnotes:
TP 400-5187-B-WB-N
Manual No. 700614921" STEEL DECK WALK BEHIND MOWERS
SERIES 19 19
Part No Descri
p
tionItem Qt
y
Note
37 7090555 1 COTTER PIN, 3/32 x 1/2” or 7091597
38 7017696 1 BUSHING, Powdered Metal
39 7041855 1 DISC, Driven (Cantilever)
40 7011724 1 WASHER, 44 x .78 x .025 Curved
41 7013847 1 RETAINER, 3/8” Bolt
42 7029025 1 SPRING, Wheel Drive
43 7091026 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5 or 7090799
-- 7059462 1 ASSEMBLY, Deck Bracket (Incl. items 7 & 44A) Used on RP2167519B,
RP2167519BDVFC,
RP217019BV, RP2187519BV,
RP216019KWV &
RP2167519BDV
-- 7052987 1 ASSEMBLY, Deck Bracket (Incl. items 44B, 45 & 46) Used on RP217019BVE,
P2167519B, P2167519BFC,
P2187519BV, P2187519BVE,
P2187519BVFC &
RP2187519BVE
44A -- 1 BRACKET, Deck, (Use 7033774 & 7017696) used on early models
44B 7033774 1 BRACKET, Deck
45 7012306 2 BUSHING, Flange, .381 x .625 x .62
46 7021758 1 SPACER, .500 x .65 x 1.75
47 7100447 1 SPACER, Idler Arm
48 7061275 * KIT, Drive Disc Assembly
49 7501000 ASSEMBLY, Driven Disc (replaces items 21-24, 30-32, & 39) was 7073390 or 7053225
NOTE: * Includes Steel Drive Disc Assy (7073528), Bushing (7013893), 3/8-16 Hex Nut (7091302) & item 38.

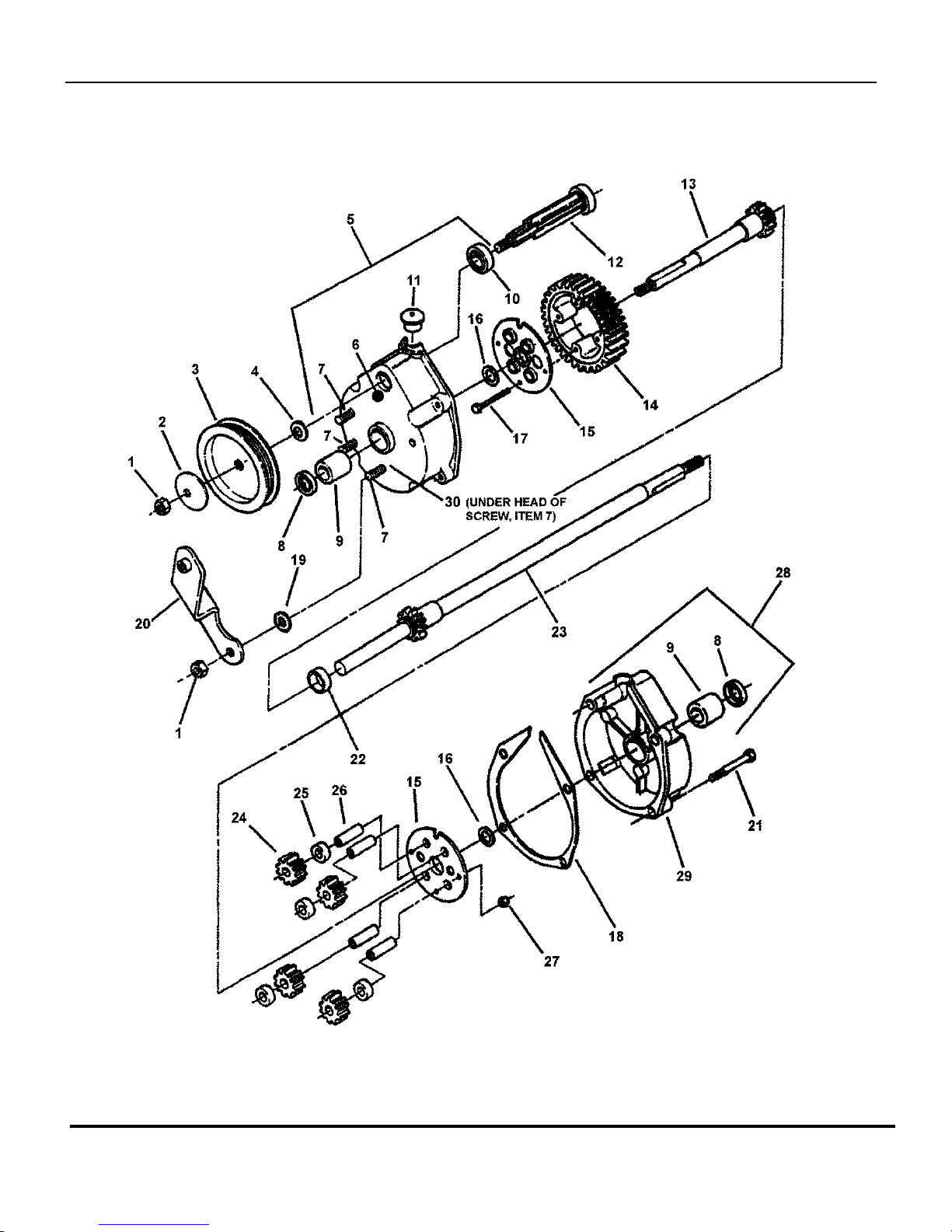

TRANSMISSION (DIFFERENTIAL)
TP 400-5187-B-WB-N 21" STEEL DECK WALK BEHIND MOWERS SERIES 19
20
Manual No. 7006149
