Parts Manual for
REAR ENGINE RIDING MOWER
HYDRO DRIVE
SERIES 0 & 1
MODELS
381450HBVE
381451HBVE
CONTENTS
DESCRIPTION PAGE(S) DESCRIPTION PAGE(S)
DECALS............................................................................... 2-3
FRONT AXLE & WHEEL ASSEMBLIES ............................. 4-5
FRAME ASSEMBLY ............................................................ 6-9
STEERING ASSEMBLY .................................................. 10-11
SEAT & SEAT MOUNT ASSEMBLIES............................ 12-13
ENGINE PLATE ASSEMBLY .......................................... 14-15
ENGINE & FUEL TANK ASSEMBLIES........................... 16-17
BRAKE & FORWARD/REVERSE CONTROL ASSY’S .... 18-19
HYDRO DRIVE & REAR WHEEL ASSEMBLIES ............. 20-21
DECK LIFT & BLADE ENGAGEMENT ASSEMBLIES..... 22-23
38” CUTTING DECK ASSEMBLY .................................... 24-27
CENTER SPINDLE ASSEMBLY ....................................... 28-29
ELECTRICAL COMPONENTS............................................... 30
WIRING SCHEMATIC ............................................................ 31
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
(REV. 3, 06/30/02) MANUAL No. 06123

2

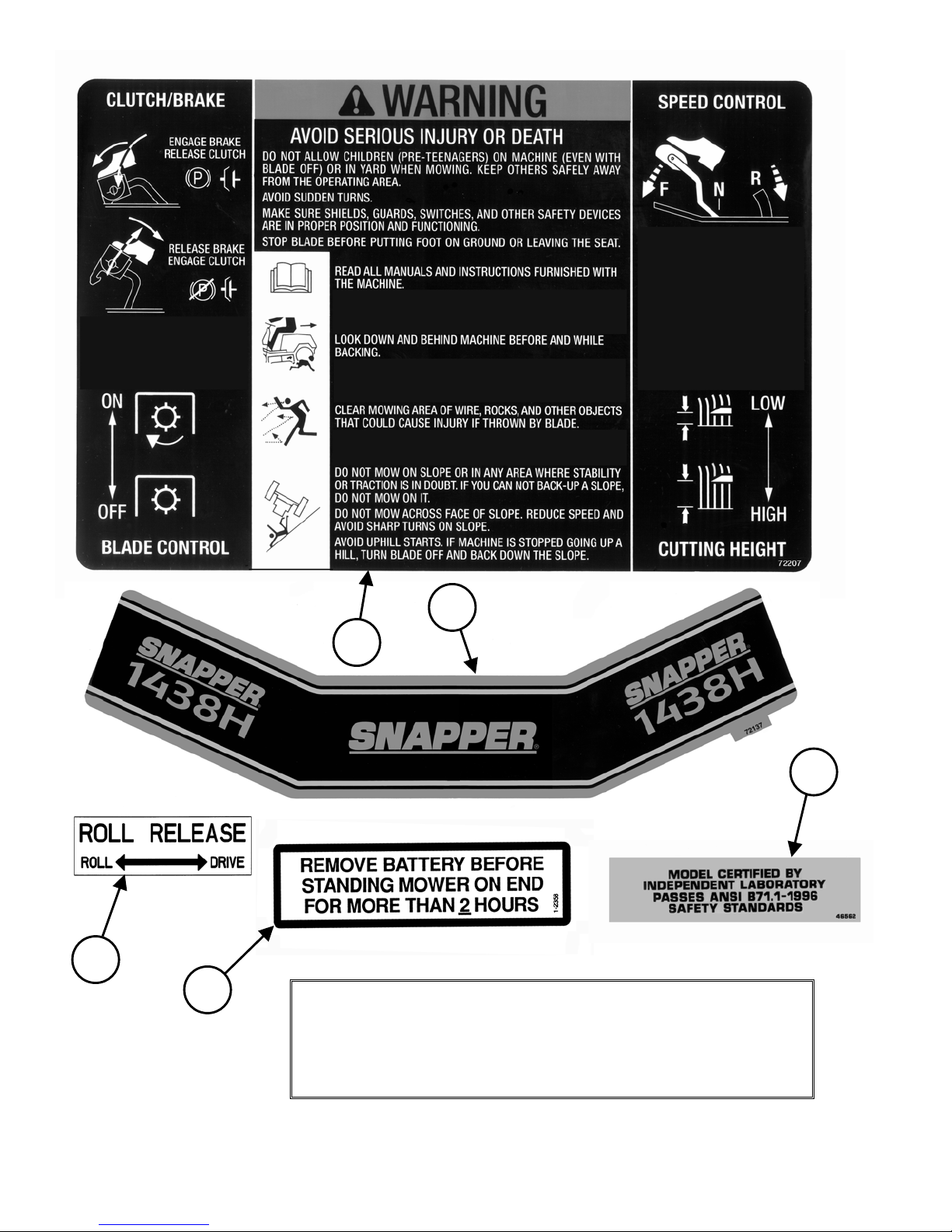

DECALS
ITEM PART NO. DESCRIPTION
1 7-2207 DECAL, Control/Warning
2 7-2137 DECAL, Steering Column
3 7-2420 DECAL, Roll Release
4 1-2358 DECAL, Battery
5 4-6562 DECAL, Certification
MANUAL No. 06123 R. E. RIDER (HYDRO) SERIES 0 & 1
1
2
5
4
3

3
DECALS
ITEM PART NO. DESCRIPTION
6 7-2136 DECAL, Seat Pedestal
7 4-6720 DECAL, Chute/Deflector
8 7-2213 DECAL, Throttle Control
9 2-6831 DECAL, CPSC (Heavy Adhesive)
10 2-6154 DECAL, 38 Inch Deck
11 7-3335 DECAL, OPEI (Ride On)
R. E. RIDER (HYDRO) SERIES 0 & 1 MANUAL No. 06123
6
78
9
10 11

4
17
17
24
24
25
CAST AXLE PART
NUMBER APPEARS
IN THIS LOCATION
FRONT AXLE & WHEEL ASSEMBLIES
MANUAL No. 06123 R. E. RIDER (HYDRO) SERIES 0 & 1
25 24
27
28
23
3
5
29
23
420
7
20
19 21
22 21
5
29
26
2
24
14
10
15 16
15
18
8 ASSEMBLY
22
21
1
6
26

5
FRONT AXLE & WHEEL ASSEMBLIES
ITEM PART NO. DESCRIPTION
1 7-2411 AXLE, Cast OPPLT (Series 1) (shown)
-- 2-8647 AXLE, Cast (Series 0)
2 4-7111 TIE ROD (2)
3 4-6954 STOP, R.H. Steering
4 4-6953 STOP, L.H. Steering
5 4-7077 SPACER, Steering Stop (2)
6 7-2204 WELDMENT, R.H. Spindle
7 4-6715 WELDMENT, L.H. Spindle
8 5-7924 ASSEMBLY, Front Wheel (Incl. items 9 thru 13) (2)
9 5-4684 ASSEMBLY, Wheel (Incl. items 10 & 11)
10 1-3876 FITTING, Lube 1/4-28 Tapered Thread
11 2-8722 BEARING, Front Wheel (2)
12 4-7116 TIRE, 13 x 5.00-6 Square Shoulder
13 1-2234 VALVE STEM
14 3-4453 WASHER, 3/4” I.D.x 1-1/2” O.D. x 1/8” Thick Flat (4)
15 2-9617 WASHER, 3/4” I.D. x 1-5/16” O.D. x 1/16” Thick Flat (2)
16 2-9618 WASHER, Hub Cap Retaining (2)
17 9-1516 PIN, 5/32 x 1” Cotter (2)
18 1-1022 HUB CAP (2)
19 2-8689 SPACER, 1/2” I.D. x 3/4” O.D. x 1.78 Long
20 1-2706 BEARING, .875 O.D. x .7 Sleeve (2)
21 1-4669 FITTING, 3/16 Lube (3)
22 9-0700 BOLT, 5/16-18 x 1-1/2” Flange Head Lock, Grade 5 (2)
23 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (2)
24 9-1315 WASHER, 5/16 Split Lock (6)
25 9-1297 NUT, 5/16-24 Hex, Grade 5 (2)
26 3-1036 WASHER, Thrust (2)
27 1-0935 WASHER, 3/4” I.D. x 1-1/8” O.D. x 1/16” Thick Flat (2)
28 1-0746 RING, 3/4” External Retaining (2)
29 9-1296 WASHER, .344 I.D. x 11/16 O.D. x 1/16” Thick Flat (4)
R. E. RIDER (HYDRO) SERIES 0 & 1 MANUAL No. 06123

6
FRAME ASSEMBLY
MANUAL No. 06123 R. E. RIDER (HYDRO) SERIES 0 & 1
16
11
18
19
4B
12
10
8
11
7
13
10
10
12
13
6
14
5A
7
2
7
7
3
5B
1
7
8
7
7
9
4A
7
1
10
10
93
7
10
8
17 10
15
11
20
21
11
11
7
10

7
FRAME ASSEMBLY
ITEM PART NO. DESCRIPTION
1 4-5299 FRAME RAIL, L.H. & R.H. (2)
2 4-6725 WELDMENT, Frame Reinforcement Tube
3 4-1853 SPACER BLOCK, Hydro (2)
4A 5-8288 GUIDE, Deck R.H.
4B 7-4219 GUIDE, Deck R.H.
5A 5-8289 GUIDE, Deck L.H.
5B 7-4220 GUIDE, Deck R.H.
6 5-8257 CHANNEL, Belt Finger
7 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (20)
8 9-1058 SCREW, 5/16-18 x 3-3/4” Hex Head Cap (4)
9 9-1510 BOLT, 5/16-18 x 5/8” Hex Flange Lock, Grade 5 (10)
10 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage, Grade 5 (15)
11 1-1791 RETAINER, 5/16” Bolt (8)
12 1-6116 NUT, 5/16” Push On (2)
13 9-1084 SCREW, 1/4-20 x 3/8” Hex Washer Self-Tap (6)
14 5-8366 BELT GUIDE, Rear
15 4-5336 FLOOR PAN
16 9-0530 BOLT, #10-24 x 1/2” Short Neck Carriage, Grade 2 (2)
17 9-1000 SCREW, 5/16-18 x 7/8” Truss Head Torx (2)
18 7-2124 STOP, Park Brake
19 9-1079 NUT, #10-24 Hex Flange Lock (2)
20 7-2217 FLOOR MAT- R.H.
21 7-2172 FLOOR MAT- L.H.
R. E. RIDER (HYDRO) SERIES 0 & 1 MANUAL No. 06123

8
FRAME ASSEMBLY (continued)
MANUAL No. 06123 R. E. RIDER (HYDRO) SERIES 0 & 1
44
(SEE PAGE 16,
ITEMS 28 & 29)
47
37
38
45
46
39
40
41
42
9
9
7
35
(SEE PAGE 18
ITEM 1)
29
30
34
10
36
13
24
23
10
28
2733
27
25
23
22
26
32
31
36
10
40

9
FRAME ASSEMBLY (continued)
ITEM PART NO. DESCRIPTION
22 4-5309 ATTACHMENT PLATE, Front Frame
23 9-0613 NUT, 3/8-16 Hex Flange Lock (9)
24 3-4724 BRACKET, Switch
25 4-5324 ATTACHMENT PLATE, Front Axle
26 7-1925 BRACKET, Attachments
27 9-0795 SCREW, 3/8-16 x 2-3/4” Hex Head Cap, Grade 5
28 2-8666 SPACER, .19 I.D. x .5 O.D. x 1.8 Long (2)
29 7-6979 NUT, 3/8-16 Hex Nyloc (2)
30 9-0122 WASHER, 3/8” SAE Flat (2)
31 9-0250 WASHER, 1/2” SAE Flat
32 9-1121 NUT, 1/2-13 Hex Nyloc
33 9-1694 SCREW, 1/2-13 x 3” Hex Head Cap, Grade 5
34 9-0612 BOLT, 3/8-16 x 3/4” Hex Flange Lock (2)
35 4-7222 SHAFT, Forward/Reverse/Brake Pedals
36 7-1953 RING, External Retaining (5/8” Shaft) (2)
37 4-5301 ATTACHMENT PLATE, Rear Frame
38 5-8133 BRACKET, Fuel Tank
39 3-3587 BUMPER, Rear
40 9-1270 SCREW, 5/16-18 x 1-3/4” Hex Washer Self-Tap (4)
41 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap (3)
42 7-2420 DECAL, Roll Release
44 7-2533 BRACKET, Fuel Tank
45 9-0803 BOLT, 1/4-20 x 5/8” Flat Head Square Neck, Grade 2 (2)
46 9-1584 NUT, 1/4-20 Hex Flange Lock, Grade 5 (2)
47 1-4755 COVER, Vinyl
R. E. RIDER (HYDRO) SERIES 0 & 1 MANUAL No. 06123

10
STEERING ASSEMBLY
MANUAL No. 06123 R. E. RIDER (HYDRO) SERIES 0 & 1
22
7
6
8
9
13
15
14
16
12
10
18
4
16
19
3
26
17
25
23
24
5
11
2
21
1
TIE ROD (Ref.)
SEE PAGE 4, ITEM 2
21
20
