Parts Manual for
REAR ENGINE RIDER
42” MOWER
SERIES 22
MODELS
421622BVE
CONTENTS
DESCRIPTION PAGE(S) DESCRIPTION PAGE(S)
WHEELS- TIRES ................................................................. 2-3
FRONT END, STEERING. ................................................... 4-5
MAIN CASE.......................................................................... 6-7
DIFFERENTIAL, R. H. FENDER .......................................... 8-9
CHAIN CASE, L.H. FENDER ............................................10-11
SMOOTH CLUTCH ASSEMBLY ......................................12-13
RAILS, LIFT ARMS, CAM LIFT ........................................14-15
CUTTING DECK, DEFLECTOR........................................16-19
DECK COVER, BELTS, BLADE BRAKES.......................20-21
SPINDLE ASSEMBLY........................................................... 22
DRIVE DISC ASSEMBLY...................................................... 23
FUEL TANK & OPERATOR’S SEAT .................................... 24
EXHAUST MUFFLER, ENGINE ............................................ 24
THROTTLE CONTROL ......................................................... 25
ELECTRICAL SYSTEM....................................................26-27
WIRING SCHEMATIC28
DECALS .............................................................................29-31
ACCESSORIES & ATTACHMENTS ..................................... 36
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
(Rev. 1, 06/30/02) MANUAL No. 06130

2

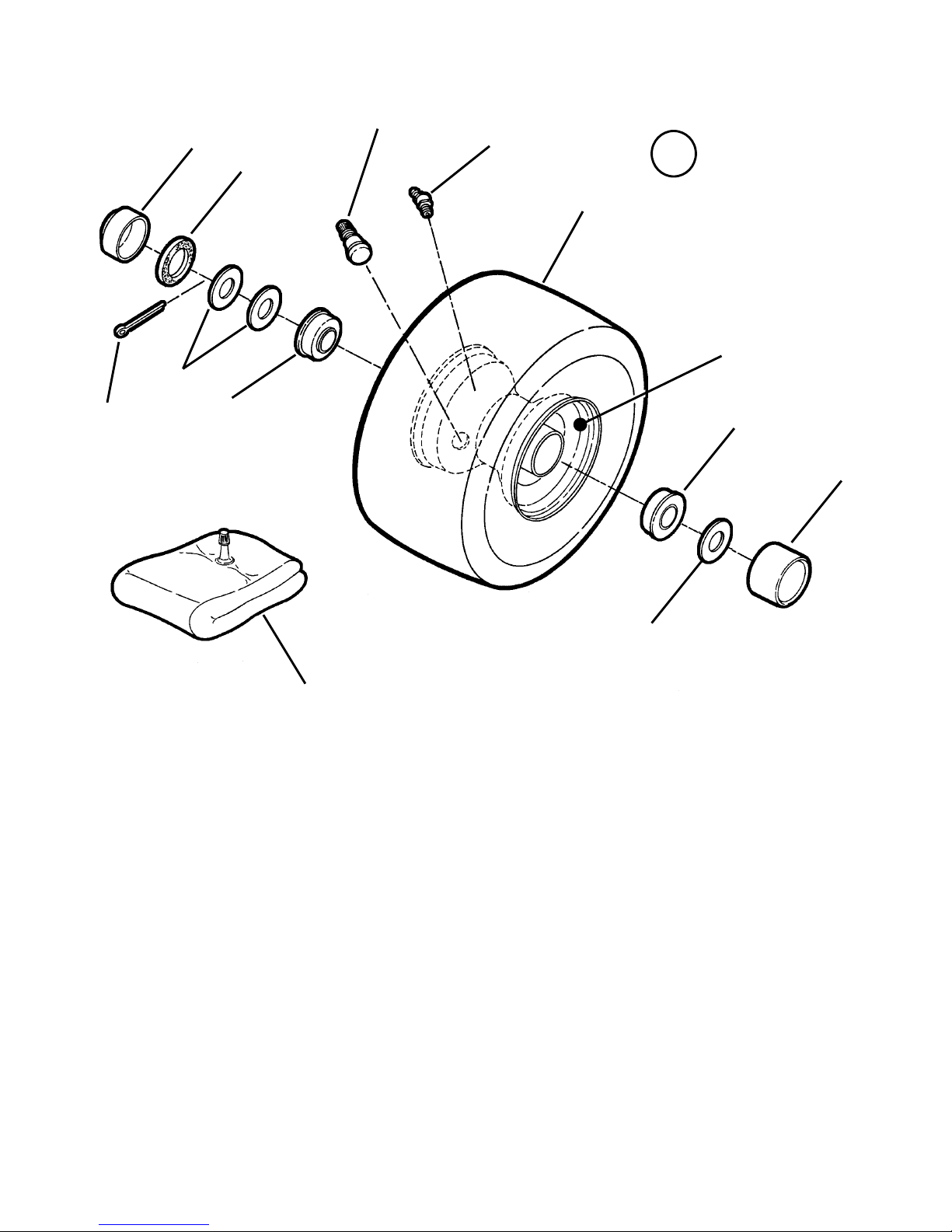

WHEELS - FRONT
ITEM PART NO. DESCRIPTION
1 5-8943 ASSEMBLY, Front Tire & Rim (11.0”) (Includes Items 2 Thru 6)
2 7-3563 TIRE, Pneumatic 11 x 4.00-4 (Kenda)
3 1-7146 RIM (For 11.0 x 4.0 x 4 Tire)
4 1-1807 BEARING, Ball
5 1-2234 VALVE, Air (Snap-In)
6 1-4669 FITTING Lube
7 1-0935 WASHER (3)
8 1-1022 CAP, Hub
9 1-1032 SEAL, Felt
10 3-1038 CAP, Dust
11 9-1516 COTTER-PIN, 5/32 x 1"
12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
5
6
12
4
7
11
9
10
1 ASSEMBLY
8
7
4
3
2

3
WHEELS - REAR
ITEM PART NO. DESCRIPTION
1 5-8951 ASSEMBLY, Rear Tire & Rim (Includes Items 2, 3, & 4)
2 7-3584 TIRE, 16 x 6.50-8 (Kenda)
3 1-7147 RIM, Ext. Wide, (For 16/7.50 x 8 Tire)
4 1-2234 VALVE, Air (Snap-in)
5 1-2332 CLAMP, Right Hand
6 9-1502 BOLT, 1/2-20 x 3/4" Lug (Grade 5) (6)
7 3-1732 BOOT, Right Hand
8 1-1817 SEAL, Oil
9 4-0433 HUB, Rear Wheel (Right Hand)
10 2-3895 CAP, Hub
11 2-3522 CAP, Hub (Left Hand)
12 4-0434 HUB, Rear Wheel (Left Hand)
13 1-1201 NUT, 5/16-24 Hex Center Lock
14 1-1035 BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
15 1-1013 BOLT, 5/16-24 x 2" Tapered (Right Hand)
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
1 ASSEMBLY
13
12
14
11
15
9
513
7
8
4
6
3
2
10

4
FRONT END, STEERING
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
28
12
6
30
14
31
10
12
15
17
10
31
16
12
6
30
2138
39
37
35
5
34
33
26
27
7
9
12
40
36
20
21
8
20
11
41
25
13
29
31
10
19
18
22
4
3
23
32
24
45

5
42 43
44
FRONT END, STEERING
ITEM PART NO. DESCRIPTION
1 5-8030 STEERING WHEEL (for 5/8”
shaft) (includes item 2)
2 2-3781 LOGO, Steering Wheel
3 1-3862 PIN, 1/4" x 1-1/2" Roll
4 3-8243 LATCH, Parking Brake
5 7-4131 CABLE, Clutch (55” long)
(for 33” & 42” Decks)
6 9-0122 WASHER, 3/8 Flat (2)
7 1-1815 PAD, Clutch/Brake Pedal
8 1-0694 BUSHING, Nylon
9 4-7888 PEDAL, Clutch/Brake (weldment)
10 1-0986 BEARING, Nylon (4)
11 4-6232 SHAFT, Steering (weldment)
12 1-3321 BUSHING, Tie-Rod (4)
13 1-2541 TIE-ROD, Left Hand (9.91” long)
14 4-1687 KING-PIN Weldment, Left Hand
15 1-2540 TIE-ROD, R. H. (9.91” long)
16 4-1688 KING-PIN, Weldment Right Hand
17 5-9197 WELDMENT, Front Axle, Wide
18 1-4048 FOOT PAD, Long (2)
19 1-5444 SPRING, Parking Brake
20 9-0183 WASHER, 21/32 I. Dia.(2)
21 4-6158 BUSHING, Nylon (2)
22 1-1714 PIN, Hair
ITEM PART NO. DESCRIPTION
23 2-3667 FOAM COVER, Steering Shaft
24 9-0296 PIN, 3/16 x 1" Cotter
25 9-1514 WASHER, 3/8” Flat (2)
26 1-2867 PIN, Hair (.125” Dia. Wire)
27 2-2881 SPACER, 1/2" (5)
28 1-0776 RING, 1/2” External Retaining
(Heavy Duty)
29 1-0746 RING, 3/4” Ext. Retaining (2)
30 9-0365 PIN, 1/8 x 3/4" Cotter (2)
31 1-0935 WASHER, 5/8 Flat (6)
32 2-3671 COVER, Steering Shaft
33 2-8395 SPACER, Pivot
34 2-8332 STUD, Shoulder (3/8-24 Thread)
35 9-0854 NUT, 3/8-24 Hex Nyloc
36 7-2648 CABLE, Brake (29” long)
37 3-4174 CONNECTOR, Cable (2)
38 9-1495 SCREW, 1/4-20 x 3/4", Gr. 5
39 9-0372 NUT, 1/4-20 Hex Center Lock
40 9-0753 PIN, 3/16" x 1-1/2" Cotter
41 9-0364 PIN, 5/32” x 1” Cotter (2)
42 7-4560 HOLDER, Wire- Bottle
43 9-0913 SCREW, #10-24 x 1/2”
Hex Washer Self-Tap (2)
44 7-4561 BOTTLE, Water
45 7-4599 PLATE, Thrust
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22

6
MAIN CASE
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
13
12
11
10
9
8
7
4
3
2
1
9
36
35
34
33
32
32
31
30
23
22
31
36
37
43
41
40
39
39
39
38
38
38
38
39
49
48
45
45
44
42
44
50
51
38
35
45
29
29
29
36
CONNECTS TO ITEM 15
ON PAGE 7

7
MAIN CASE
ITEM PART NO. DESCRIPTION
1 5-9202 CASE, Main (Weldment)
2 3-3587 BUMPER, Rear (42" Models)
3 3-7285 FENDER, Left Hand (See Page
10 for Related Parts)
4 9-0595 BOLT, 5/16-18 x 3/4” Hex
Flange Lock, Grade 5 (2)
5 2-8990 COVER, Battery
6 7-3268 COVER, Solenoid
7 4-7189 BRACKET, Drive Support
8 9-0585 NUT, 5/16-18 Flange Lock (2)
9 9-0793 SCREW, 5/16-18 x 3/4" Hex
Washer Self-Tap (4)
10 2-3676 LINK, Shift (Long)
11 4-1384 ARM, Shift (Weldment)
12 3-3799 BRACE, Cross
13 1-1018 LINK, Shift (Short)
14 9-0196 NUT, 5/16-18 Hex (2)
15 4-0598 ARM, Shift Handle (Weldment)
16 1-0754 SPRING, Shift Handle
17 5-8763 ASSEMBLY, Shift Detent
(Incl. spring, part no. 2-6292)
18 5-9212 HANDLE, Shift (Weldment)
19 1-5761 BOLT, 5/16-18 Shoulder
20 2-3656 KNOB, Shift Handle
21 7-3289 LEVER, Over-Ride
22 7-4650 BUSHING, Pivot
23 9-0391 WASHER, 5/16” Int. Tooth Lock
24 9-0037 COTTER-PIN, 3/32 x 3/4"
25 2-3914 PIN, 1/4 x 1-3/4" Tapered Clevis
26 1-9245 BUSHING, Nylon
27 3-1036 WASHER, Thrust (2)
28 1-9246 BUSHING, Nylon (2)
ITEM PART NO. DESCRIPTION
29 9-0361 SCREW, 5/16-18 x 5/8" Hex
Washer Self-Tap (10)
30 1-2652 CLIP, Wire
31 3-4299 WING, Rear Deck (2)
32 2-8200 SWIVEL (2)
33 9-1272 FASTENER, Ratchet (7)
34 9-1506 SCREW, 5/16-18 x 1-1/2" Self-
Tapping (4)
35 9-0238 SCREW, 5/16-24 x 1" Hex Head
Cap (4)
36 1-1791 RETAINER, 5/16 Bolt (4)
37 9-0324 SCREW, 3/8-16x1" Self Tap (4)
38 9-1315 WASHER, 5/16" Split Lock (7)
39 9-1297 NUT, 5/16-24 Hex, Grade 5 (7)
40 2-7972 ASSEMBLY, Oil Drain
41 2-8769 GUIDE, Belt (42" Models)
42 1-0969 NUT, 5/16-24 Hex Flange Lock
43 7-4190 PLATE, Engine
44 9-1503 HAIRPIN, 3/32 x 1-1/2” (2)
45 9-1296 WASHER 11/32 I.D.
46 9-1595 WASHER, 7/16” Flat
47 9-1298 NUT, 5/16-18 Nyloc
48 9-0206 SCREW, 5/16-18 x 3/4" Hex
Head Cap (2)
49 9-1513 SCREW, 5/16-24 x 1-3/4” Hex
Head Cap, Grade 5
50 7-3735 BRACKET, Switch
51 9-0981 SCREW, #10-32 x 1/4” Hex
Washer Head, Self-Tap
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
SPRING (2-6292)
PART OF ITEM 17
15
29
25
24
6
18
20
21
46
47
17
26
27
28
27
16
5
19
14
38
39

8

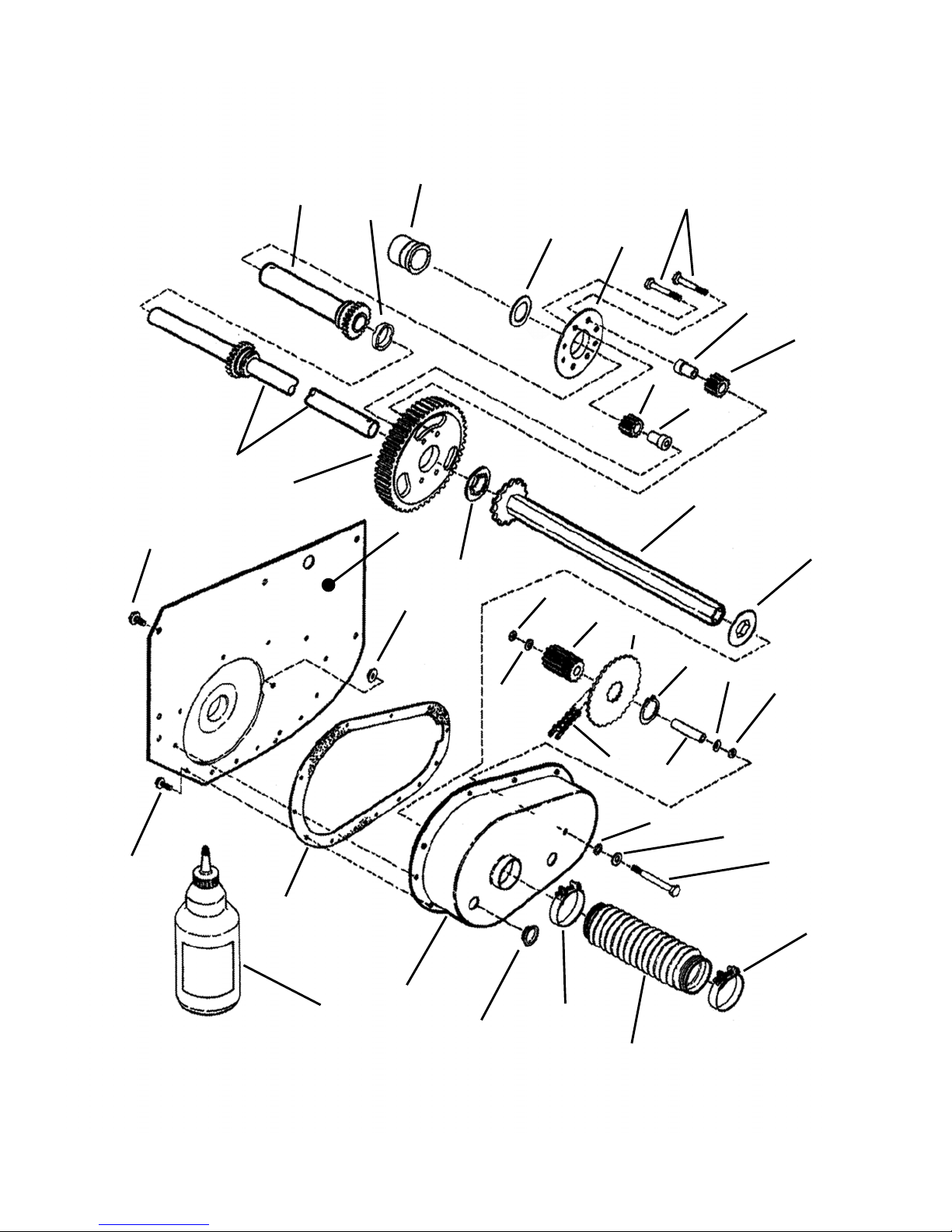

DIFFERENTIAL, R. H. FENDER
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
10
9
8
28
15
12
13
11
27
14
27
28
20
2
32 21
4
19
18
29
30
31
33
22
23
17
16
16
25 26
1
5
3
7
7
6
6
24

9
DIFFERENTIAL, R.H. FENDER
ITEM PART NO. DESCRIPTION
1* 5-4372 ASSEMBLY, R.H. Fender Bearing & DX Bearing
2 9-0362 SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap (13)
3 3-1079 WASHER, Thrust
4 1-0969 NUT, 5/16-24 Hex Flange Lock
5 3-8067 PLATE, Differential
6 2-2115 SPACER, Pinion (8)
7 2-1127 GEARS, Differential Pinion (8)
8 1-1072 WASHER, Thrust
9 5-1584 ASSEMBLY, Drive Hex Tube
10 1-0988 WASHER, Hex Insert
11 1-0964 GEAR, 11 Teeth-10 Pitch
12 1-0941 CHAIN, 46 Pitch (#35)
13 2-1129 SPROCKET
14 1-0965 RING, 1-13/16” External Retaining
15 2-1128 SPACER
16 1-2332 CLAMP, Boot (for 2” Hose) (2)
17 1-7083 BOOT, Oil Seal
18 1-1024 PLUG, Oil Fill & Check
19 3-7279 CASE, Transmission
20 2-8762 GASKET, Transmission Case
21* 3-7280 FENDER, Right Hand
22 2-7644 GEAR, 63 Teeth-10 Pitch
23 4-7763 AXLE, Long (Includes Gear)
(Use Only With Short Axle #5-7398)
24 7-4431 SPACER
25 5-7398 AXLE, Short (Includes Gear)
(Use Only With Long Axle #4-7763)
26 1-2333 SCREW, 5/16-24 x 1-5/8" Hex Cap Special Lock (8)
27 1-1156 O-RING, 5/16 (2)
28 1-1782 WASHER, Belleville (2)
29 9-0395 WASHER, 5/16” External Tooth Lock
30 9-0188 WASHER, 5/16” Flat
31 1-1042 BOLT, 5/16-24 x 2-5/8" Idler
32 9-0361 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap (11)
33 6-1017 GREASE, SNAPPER Transmission (24 oz. Required)
-- 5-7260 ASSEMBLY, Differential (Includes items 5, 6, 7, 23,
24, 25, & 26)
-- 6-0662 KIT, Differential (Incl.1-8822, Ball Bearing & 3-7957, Fender)
-- 6-0411 KIT, Differential (Includes 1-2296, Powdered Metal Bearing for item 1 and
3-7280, Fender)
*NOTE: 5-9203 Cover & Fender Assembly is composed of items 1 & 21.
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130

10
CHAIN CASE, L.H. FENDER
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
2
3
9
10
11
10 9
16
15
14
13
12
6
7
33
32
5
8
30
31
18
22
29
24
23
20
26
28
25
27
4
5
32
1 ASSEMBLY
17 ASSEMBLY
19 ASSEMBLY
26
21
23

11
CHAIN CASE, L. H. FENDER
ITEM PART NO. DESCRIPTION
1 5-2683 ASSEMBLY, Chain Case (Includes Items 2 Thru 13,
& 15, 16, 31, 30)
2 4-1136 CASE, Sprocket (Weldment)
3 2-8761 GASKET, Case Cover
4 1-1121 WASHER, Belleville
5 1-0756 BEARING, Ball (2)
6 1-8963 SPROCKET & SHAFT
7 1-0614 KEY, 1/8 x 5/8" Woodruff
8 3-9778 COVER, Chain Case
9 1-0942 BEARING, Needle (2)
10 1-1086 WASHER, Nylon Thrust (2)
11 4-0355 HUB & SPROCKET (Weldment)
12 1-0941 CHAIN
13 9-0307 SCREW, #10-24 x 5/8" Hex Washer Self-Tap (10)
14 1-1024 PLUG, Oil Fill & Check
15 2-2785 ROLLER
16 1-0776 RING, 1/2” External Retaining
17 5-9183 ASSEMBLY, Left Hand Fender (Includes items 18 & 19)
18 3-7285 FENDER, Left Hand
19 5-2827 ASSEMBLY, Axle Bearing (Incl. items 20 thru 23)
20 7-4184 BEARING, Left Hand Fender
21 1-3324 FITTING, Lube (for 3/16” diameter hole)
22 7-4500 SEAL, Dust/Grease Axle
23 7-4182 BEARING, 3/4” I. D. DX (2)
24 1-2271 WASHER, Shim (As Required)
25 1-1070 ROD, Cross-Tie
26 1-2332 CLAMP, Boot (2)
27 1-7084 BOOT, Oil Seal
28 1-1071 WASHER, Thrust Nylon
29 1-1072 WASHER, Thrust
30 9-1505 NUT, 5/8-18 Hex Nyloc
31 1-0969 NUT, 5/16-24 Hex Flange Lock
32 1-9260 O-RING (2)
33 2-7981 WASHER, Wave
-- 6-1017 GREASE , SNAPPER Transmission (4 oz. Required)
-- 5-1451 ASSEMBLY, Left Hand Fender (Includes Left Hand Fender
P.N. 3-7958 & Ball Bearing P.N. 1-4624)
NOTE: See Pages 12 &13 For Illustration Of Brake Lever Assembly And Related Parts.
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130

12
SMOOTH CLUTCH ASSEMBLY
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
See page 4, Item 36
14
13
12
11
10
7
6
5
4
3
1
2
9
8
19
15
21
18
17
16
21
20
18
17
16
30
29
29
27
23
22
34
32
31
28
26
25
24
33

13
SMOOTH CLUTCH ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-3114 ASSEMBLY, Smooth Clutch (Includes Items 2 thru 6)
2 5-4243 HUB, Driven Disc (assembly)
3 5-3103 DISC, Driven (rubber tire bonded to rim)
4 1-4523 WASHER, Thrust
5 3-2331 PLATE, Drive Disc
6 9-0585 NUT, 5/16-18 Hex Flange Lock (4)
7 5-2497 ASSEMBLY, Brake Lever (Includes Brake Lining & Rivet)
8 1-2313 RING, 3/8” External Retaining
9 9-0303 NUT, 1/4-28 Hex Top Lock
10 9-1294 WASHER, 1/4” Flat
11 7-2593 SPACER
12 9-1504 SCREW, 1/4-28 x 1" Hex Head Cap, Grade 5 (washer face)
13 7-2406 SPRING, Brake Return
14 1-3885 SPRING, Clutch Brake
15 4-6162 LIFT, Yoke
16 1-1048 BEARING, Yoke (2)
17 1-1201 NUT, 5/16-24 Hex Center Lock (2)
18 9-0238 SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5 (2)
19 9-1198 SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
20 3-3291 COLLAR, Yoke
21 1-1763 WASHER, 5/16” Flat (2)
22 7-3733 ARM, Yoke
23 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
24 1-5464 STUD (3/8-24 thread)
25 9-0390 WASHER, 3/8” Internal Tooth
26 9-1630 NUT, 3/8-24 Hex, Grade 5 or B
27 4-7190 BRACKET, Slide
28 9-0037 PIN, 3/32 x 3/4” Cotter
29 1-4663 SLIDE HALF (2)
30 1-4664 BOLT, 5/16-18 Shoulder
31 9-0187 WASHER, 5/16” Split Lock
32 9-0196 NUT, 5/16-18 Hex, Grade 5 or B
33 9-0122 WASHER, 3/8” SAE Flat (2)
34 5-9068 ASSEMBLY, Leaf Spring
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
NOTE:
Brake Return Replacement Kit (6-1197)
is made up of items 11 and 13.

14

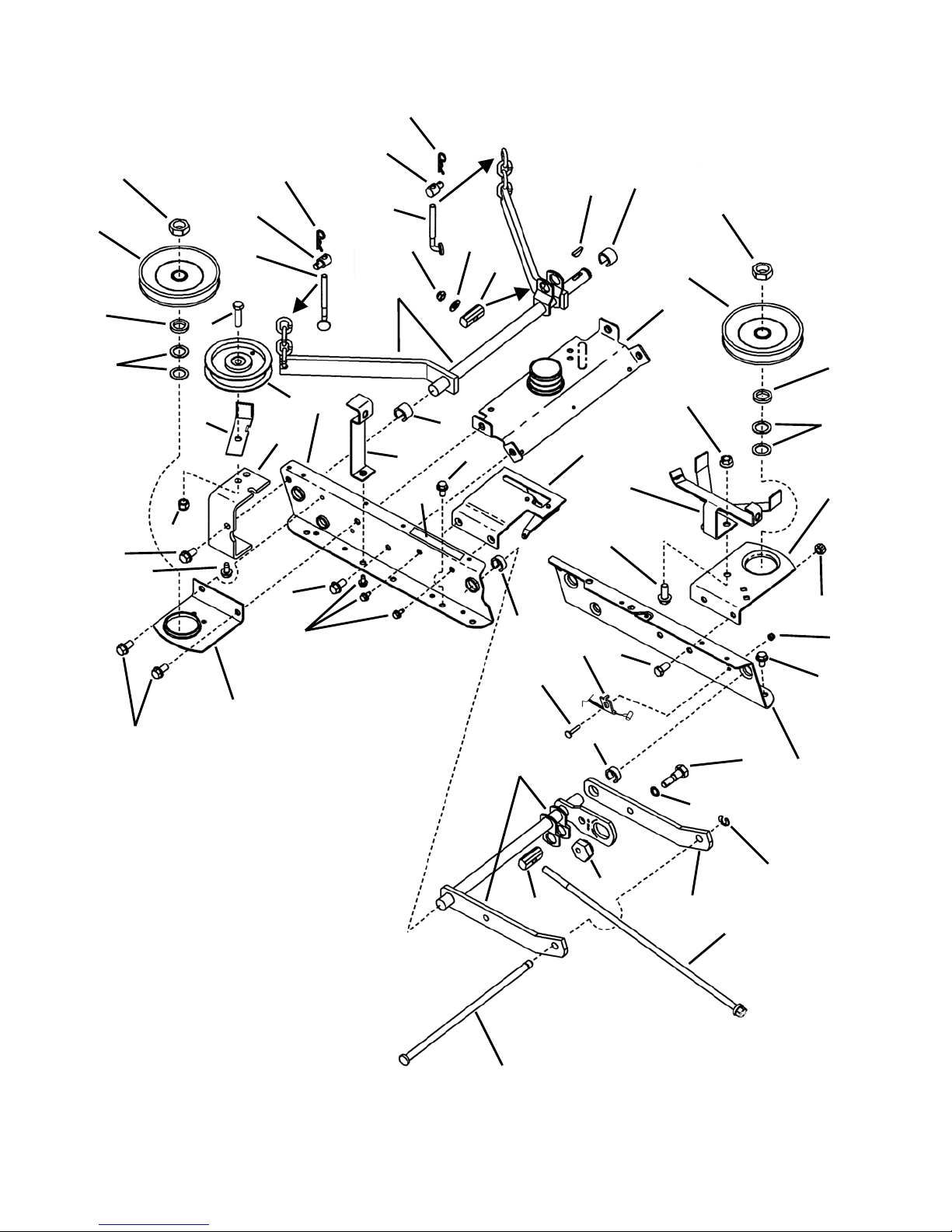

RAILS, LIFT ARMS, CAM LIFT
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
32
11
7
57
9
38
59
13
12
36
30
5
33
23
21
40
3
24
60
37
27
4
34
40
16
25
10
56
31
8
22
30
22
22
28
1
48
26
49
54
53
52
51
6
58
49
26
48
17
39
34
19
14 50
12
52
53
54
55
51

15
RAILS, LIFT ARMS, CAM LIFT
ITEM PART NO. DESCRIPTION
1 4-1248 ASSEMBLY, Rear Lift Arm
2 5-3300 LEVER, Height Adjustment Lift
3 7-3269 RAIL, Left Half
4 4-3848 RAIL, Right Half
5 4-1578 STRUCTURE, Front Lift Arm
6 4-0502 BRACE, Weldment
7 1-8574 IDLER, 4-1/8” Flat (2)
8 3-4759 SPINDLE, Brace (Right)
9 3-8096 SPINDLE, Brace (Left)
10 3-4763 BRACE/IDLER Mtg. Bracket
11 9-1497 SCREW, 3/8-16 x 1-1/2” Hex
12 3-4213 PIVOT
13 2-7944 ROD, Leveling
14 9-0499 NUT, 3/8-24 Hex Top Lock (3)
15 9-0390 WASHER, 3/8 Int. Tooth Lock
16 3-4857 GUIDE, Belt (Rod)
17 4-2613 GUIDE, Belt, 42” RER (Weldm’t)
18 3-4069 QUADRANT, Lift Lever
19 1-3861 KEY, 3/16 x 7/8" Woodruff
20 2-7920 RING, 3/4 Retaining
21 9-1290 NUT, #10-24 Hex Nyloc
22 9-0815 SCREW, 3/8-16 x 3/4" Tap (6)
23 9-0546 NUT, 3/8-16 Hex Center Lock (3)
24 9-0134 SCREW, 3/8-16 x 3/4" Hex (2)
25 9-1299 NUT, 3/8-16 Hex Nyloc
26 2-8200 SWIVEL, Adjustable (2)
27 9-0390 WASHER, 3/8 Int. Tooth Lock
28 9-0613 NUT, 3/8-24 Hex Lock
29 9-0844 PIN, 3/16 x 3/4" Roll
30 1-2067 RING, Red (2)
ITEM PART NO. DESCRIPTION
31 9-0858 SCREW, 5/16-18 x 1/2" Tap (4)
32 2-2717 SUPPORT, Rod
33 1-7847 RING, Retaining (2)
34 1-2068 RING, Blue (2)
35 2-3658 GRIP, Height Adjustment Lever
36 1-5447 ECCENTRIC, Leveling
37 1-5495 BOLT, 3/8-24 x 3/4" Shoulder
38 3-2997 ARM, Front Lift (Left Side)
39 2-7198 BOLT, 3/8-16 x 1” Hex Flange
Lock, Grade 5
40 9-0606 BOLT, 5/16-18 x 5/8" Hex (4)
41 2-4914 SPRING, Extension
42 1-2122 SPRING, Latch
43 9-0753 COTTER-PIN, 3/16 x 1-1/2" (2)
44 4-1581 LATCH Weldment
45 2-6286 GRIP, Lift Latch
46 1-1021 PIN, 1/4 x 1-1/4" Clevis
47 9-0360 COTTER-PIN, 1/16 x 3/4"
48 9-1503 HAIRPIN, 3/32 x 1-1/2” (2)
49 2-8728 ADJUSTER, Chain (2)
50 9-0122 WASHER, 3/8 Flat
51 1-0935 WASHER, 3/4 Flat (2)
52 1-4526 SPACER, 3/4” I.D. (2)
53 1-4532 PULLEY, 5” O.D. (2)
54 7-4467 NUT, 3/4-16 Hex Jam Lock (2)
55 7-3066 DECAL, Blade ON/OFF
56 9-0361 BOLT, 5/16-18 x 5/8” Self-Tap
57 3-2368 GUIDE, Belt
58 5-8969 ASSEMBLY, Clutch Plate
59 7-3216 CABLE, No-Reverse-In-Mow
60 9-2051 BOLT, #10-24 x 1” Flat Head
Square Neck
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
22
44
45
47
42
20
29 35
15
18
2
41
43
46
43
15
22

16
42” CUTTING DECK ASSEMBLY (page 1 of 4)
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
*
*
* NOTE: THE HEADS OF THESE FASTENERS ARE LOCATED INSIDE THE DECK.
32
28
18
16
31
11
33
10
12
29
30
2
14
30
29
16
18
8
38
9
1
27
26
3
15
4
24
25
13
13
15
34
19
18
17
20
21
7
22
23
5
6
37
36
35

17
42” CUTTING DECK ASSEMBLY (page 2 of 4)
ITEM PART NO. DESCRIPTION
1 4-2645 WELDMENT, 42” Deck
2 5-1401 ASSEMBLY, Side Chute (Includes Decal, Item 14)
3 5-9628 ASSEMBLY, Spindle (2)
4 2-6691 BLADE, 21” Standard Lift (2)
5 1-4168 SPRING, Belt
6 1-2055 ROD, Idler
7 3-8021 MOUNT, Handle
8 4-6874 GRIP, Handle
9 5-3034 ASSEMBLY, Spindle Ring (2)
10 2-9264 WHEEL, Gage (4)
11 3-5835 POST, Anti-Scalp (4)
12 2-9265 BOLT, Gage Wheel, 3/8-16 x 3-3/8” Hex Head Shoulder (4)
13 1-4852 DECAL, Caution
14 2-6831 DECAL, Danger
15 9-0613 NUT, 3/8-16 Hex Flange Lock (6)
16 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage, Grade 5 (4)
17 2-9303 STAND-OFF, 3-1/2” long, 5/16-18 top, 3/8-16 bottom threads (2)
18 9-0613 NUT, 3/8-16 Hex Flange Lock (6)
19 5-9254 WELDMENT, Blade Engage Lever
20 9-0299 SCREW, #10-32 x 1” Hex Washer Self-Tap, Grade 2
21 1-8524 SWITCH, Deck Interlock (NO)
22 9-0055 WASHER, 1/4” Flat
23 9-0037 PIN, 3/32 x 3/4” Cotter
24 1-2063 WASHER, Cone (4)
25 9-0824 SCREW, 3/8-24 x 1” Hex Head Cap, Grade 5
26 1-2670 RING, Tolerance (2)
27 1-4526 SPACER (2)
28 1-1791 RETAINER, 5/16” Bolt (2)
29 9-1537 WING-NUT, 5/16-18 Lock (2)
30 9-1296 WASHER, 5/16” Flat (2)
31 9-1585 NUT, 3/8-16 Hex Center Lock (4)
32 9-1049 WING-NUT, 3/8-16 Nyloc (4)
33 9-1328 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, Grade 5 (4)
34 4-6567 HANDLE, Blade Engagement
35 9-1974 PIN, 3/16 x 1” Clevis
36 4-6648 SPRING, Torsion
37 9-0555 PIN, 3/32 x 1/2” Cotter
38 9-0362 SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap (2)
NOTE: DECK ASSEMBLY IS CONTINUED ON THE FOLLOWING TWO PAGES.
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130

18
42” CUTTING DECK ASSEMBLY (page 3 of 4)
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
58
See Page 14, Item 59
59
43
64 49
65
40
55
56
44
53
52
49
49
51
46
47
45
48
42
45
**
45
50
49
60
61
57
62
63
46
51
41
54
*NOTE: SOME PREVIOUSLY
ASSEMBLED COMPONENTS SUCH
AS DECK, IDLERS, BELT GUIDES
AND THE HEIGHT ADJUSTMENT
ASSEMBLY ARE NOT SHOWN HERE
IN ORDER TO CLARIFY PLACEMENT
OF COMPONENTS IN THIS
ASSEMBLY.
**NOTE: THIS SHOULDER BOLT,
INTERNAL TOOTH LOCK WASHER &
LEVELING ECCENTRIC ARE SHOWN
ON PAGE 14 AS ITEMS 27, 36 & 37 .
39 ASSEMBLY*

19
42” CUTTING DECK ASSEMBLY
(page 4 of 4)
ITEM PART NO. DESCRIPTION
39 -- ASSEMBLY, Rail (See Pages 14 & 15 for Parts Breakdown)
40 7-3267 PEDAL, Blade Stop Control
41 3-4758 ARM, Idler
42 2-8200 SWIVEL, Adjustable (with 5/16-18 internal thread)
43 7-3217 CLIP, Cable
44 1-5448 SPRING, Pedal
45 9-0606 BOLT, 5/16-18 x 5/8” Hex Flange Lock (5)
46 1-0740 RING, 2” External Retaining (4)
47 2-9244 EYE-BOLT, 5/16-18 x 3”
48 9-1503 HAIRPIN, 3/32 x 1-1/2”
49 9-0585 NUT, 5/16-18 Hex Flange Lock (5)
50 9-0289 NUT, 3/8-24 Hex Center Lock
51 1-4795 WASHER, 2” I. D. Nylon (2)
52 1-5446 BOLT, 3/8-24 x 9/16” Shoulder
53 9-0250 WASHER, 1/2” Flat (3)
54 2-4341 SPRING, Return
55 7-4649 SPRING, Latch
56 9-1514 WASHER, 3/8” Flat
57 3-4754 SPRING BRAKE PAD
58 9-0583 NUT, 1/4-20 Hex Flange Lock
59 9-0584 BOLT, 1/4-20 x 1/2” Hex Flange Lock (2)
60 2-8786 BUSHING, 3/8” Snap Plastic
61 7-6978 NUT, 1/4-20 Hex Nyloc
62 2-8754 LINK, Spindle Brake
63 9-0673 PIN, 1/16 x 1/2” Cotter
64 9-1776 BOLT, 1/4-20 x 3/4” Round Head Square Neck, Grade 5
65 9-1576 NUT, 1/4-20 Hex, Grade 5 or B
NOTE: DECK ASSEMBLY IS CONTINUED FROM THE PREVIOUS THREE PAGES.
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130

20
DECK COVER, BELTS, BLADE BRAKE
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
3
26
27
24 22
12
12
14
20
19
23
21
26
2
29
6
5
21
19
20
28
1
16
17
18
15
11
13
25
10
10
3
4
55
7
9
Page 18,
item 41
29
Page 14,
item 53
4
8
