Snapper MCRS215014KWV User manual

Parts Manual fo
r
Revision 7,
21" STEEL DEC
K
"MR" SERIES 14 & 15
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5160-7-WB-N
1/10/2006 Manual No. 7006064
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
WALK BEHIND MOWERS
PUSH MODELS PROPELLED
MODELS
MCRS215014KWV EMRP216014B
MR215014B EMRP216015B
MR215015
T
MCRP215014KWV
MR216015B MCRP215015KWV
MR216015BV MRP216014B
MR216015
T
MRP216015B
MRP216015BV

Table Of Content
s
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 3
PAGE GROUP
4Handles & Controls
8Handles & Controls (Swivel Wheel Model)
10 Cutting Deck, Blade
12 Front Wheel Bracket (Non-Swivel Wheel Models)
14 Front Wheel Bracket (Swivel Wheel Model)
16 Rear Wheel Brackets, Latches
18 Front Wheels (Non-Swivel Wheel Models)
20 Front Wheels (Swivel Wheel Model)
22 Rear Wheel
24 Drive System Self-Propelled
30 Transmission (Differential)
32 Throttle Controls
34 Decals (Part 1)
36 Decals (Part 2)
38 Grass Bag (Non-Swivel Wheel Models)
40 Grass Bag (Swivel Wheel Model)
42 Side Chute, Adapter
44 Accessory - Snapperizer
46 Accessory - Recycling Kits
48 Accessory - Thatcherizer

Handles & Controls
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
4

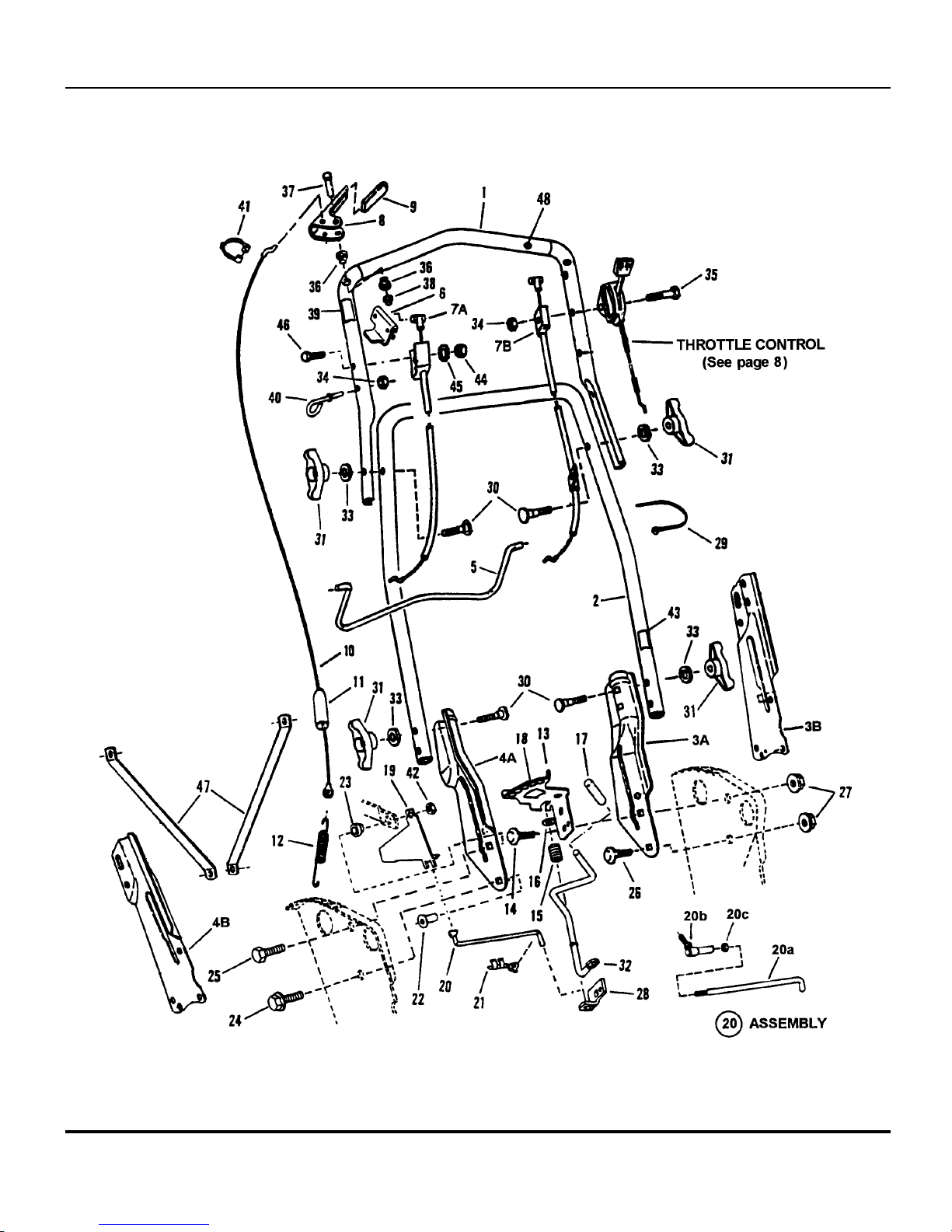

Handles & Controls
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 5
Part No Descri
p
tionItem Qt
y
Note
1 7074384 HANDLE, Upper Was 41933, Used on All Series
14
7074254 HANDLE, Upper Was 72931, Used on All Series
15
2 7036350 HANDLE, Middle Used on Non Commercial
7046737 HANDLE, Middle Used on Commercial
3A 7046502 HANDLE, Lower Left Hand Not used on "MCRP" Models
3B 7047121 HANDLE, Lower L.H. Adjustable Used on "MCRP" Models
4A 7035342 HANDLE, Lower Right Hand Not used on "MCRP" Models
4B 7033986 HANDLE, Lower R.H. Adjustable Used on "MCRP" Models
5 7047011 BAIL, OPC Control
6 7034872 CLIP, Blade Control
7A 7035808 CABLE, Blade Control (46-1/16") Used on Series 14 B&S
7046553 CABLE, Blade Control (55-3/4") Used on Series 14 Tecumseh
7073030 CABLE, Blade Control (54-13/16") Used on Series 15 Tecumseh
7072933 CABLE, Blade Control (49-1/4") Used on Series 15 B&S
7B 7073444 CABLE, Blade Control (52-13/16") Was 46702, Used on All Kaw
8 7032826 HANDLE, Wheel Drive Used on Self-Propelled
9 7014307 GRIP, Wheel Drive Handle Used on Self-Propelled
7029775 GRIP, Wheel Drive Handle Used on Self-Propelled (Euro)
10 7023134 CABLE, Clutch Pull (Z-Bend, 36-3/16" Long) Used on Propelled Ser. 14 B&S
7072932 CABLE, Clutch Pull (Z-Bend, 38-5/8" Long) Used on Propelled Ser. 15 B&S
7047092 CABLE, Clutch Pull (Z-Bend, 38-5/16" Long) Used on Propelled (All Kaw)
11 7012121 COVER, Vinyl Used on Self-Propelled
12 7012122 SPRING, Clutch Used on Self-Propelled
13 7041871 SECTOR, Speed Used on Self-Propelled
14 7091714 BOLT, 5/16 x 1" Round Head Carriage, Grade 5 Was 91238 (Used on All)
15 7012093 SPRING, Speed Control Used on Self-Propelled
16 7090188 WASHER, 3/8" Flat Used on Self-Propelled
17 7023801 GRIP, Speed Control Handle Was 29383, Used on Propelled
18 7024087 DECAL, Speed Select Used on Self-Propelled
7029783 DECAL, Speed Select Used on Self-Propelled (Euro)
19 7032408 GUIDE, Lower V-Belt Used on Self-Propelled
20 7023790 ROD, Transfer Used on Self-Propelled
7051698 ASSEMBLY, Transfer Rod Incl. indented items below. Used
on Propelled Euro
20A 7015752 LINK, Transfer Used on Propelled Euro
20B 7015753 BALL JOINT, 1/4-28 Used on Propelled Euro
20C 7090095 NUT, 1/4-28 Hex Used on Propelled Euro
21 7010937 CLIP, Transfer Rod Used on Self-Propelled

Handles & Controls
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
6

Handles & Controls
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 7
Part No Descri
p
tionItem Qt
y
Note
22 7090895 TEE-NUT, 5/16-18 Used on Self-Propelled
23 7012114 BUSHING, Differential Used on Self-Propelled
24 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5
25 7090238 SCREW, 5/16-24 x 1" Hex Cap, Grade 5
26 7090799 BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5 Was 91026 (Used on All)
27 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on All)
28 7046202 BRACKET, Speed Control Rod Used on Self-Propelled
29 7024641 TIE, Wire
30 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on All)
31 7035744 4 T-KNOB, 5/16-18
32 7041870 LEVER, Speed Control Used on Self-Propelled
33 7090391 4 WASHER, 5/16 Internal Tooth Lock
34 7076978 2 NUT, 1/4-20 Hex, Grade 5 or B (2 with Kawasaki Engine)
35 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5 Used on Commercial
36 7014343 2 BUSHING
37 7023792 PIN, Clutch Handle Used on Self-Propelled
38 7091020 PUSH-NUT, 1/4" (For handle pin). Used on
Propelled
39 7024211 DECAL, Blade Control (Right Hand Side) Used on All (Except Euro)
7029782 DECAL, Blade Control (Right Hand Side) Used on Euro
40 7046465 GUIDE, Rope
41 7026219 CLAMP
42 7091606 NUT, 5/16-24 Hex Center Lock, Grade 5 Was 91074 (Used on All
43 7041942 DECAL, Shift Warning Used on Self-Propelled
44 7091576 NUT, 1/4-20 Hex Was 91100 (Used on All)
45 7091022 WASHER, 1/4" Internal Tooth Locking
46 7091813 SCREW, 1/4-20 x 1-3/4 Hex Cap, Grade 5 Was 91222 (Used on All)
47 7046707 2 BRACE (See "Handles & Controls
(Swivel Wheel Model)"
illustration and parts list for
hardware). Used on Commercial
48 7075634 FOAM GRIP Was 73115 (Used on All)

Handles & Controls (Swivel Wheel Model)
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
8

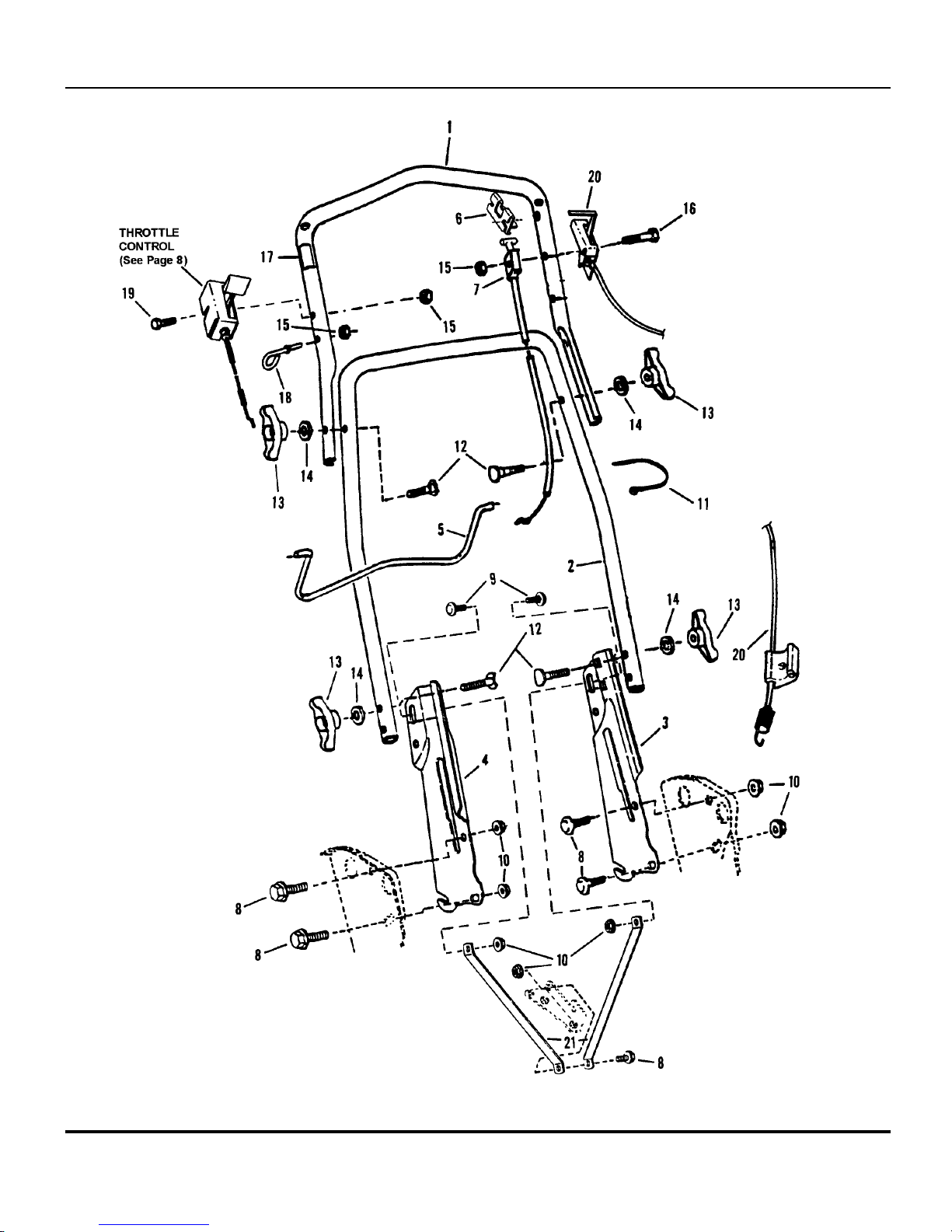

Handles & Controls (Swivel Wheel Model)
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 9
Part No Descri
p
tionItem Qt
y
Note
1 7074384 HANDLE, Upper Was 41933, Used on Swivel
2 7046737 HANDLE, Middle Used on Swivel
3 7033985 HANDLE, Lower Left Hand Used on Swivel
4 7033986 HANDLE, Lower Right Hand Used on Swivel
5 7047011 CONTROL, Blade Used on Swivel
6 7034872 CLIP, Blade Control Used on Swivel
7 7073444 CABLE, Blade Control (52-13/16") Was 46702, Used on Swivel
8 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5 Used on Swivel
9 7090799 2 BOLT, 5/16-18 x 5/8" Carriage, Grade 5 Was 91026 (Used on Swivel)
10 7091601 3 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on Swivel)
11 7024641 TIE, Wire Used on Swivel
12 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on Swivel)
13 7035744 4 T-KNOB, 5/16-18 Used on Swivel
14 7090391 4 WASHER, 5/16 Internal Tooth Lock Used on Swivel
15 7076978 3 NUT, 1/4-20 Hex, Grade 5 or B Used on Swivel
16 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5 Used on Swivel
17 7024211 DECAL, Blade Control (R.H. Side) Used on Swivel
18 7046465 GUIDE, Rope Used on Swivel
19 7079577 SCREW, 1/4-20 x 1-1/2" Hex Cap, Grade 5 Used on Swivel
20 7046669 CABLE, Swivel Lock Used on Swivel
21 7046707 2 BRACES, Handle Used on Swivel

Cutting Deck, Blade
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
10

Cutting Deck, Blade
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 11
Part No Descri
p
tionItem Qt
y
Note
1 7057884 DECK, Mower (Includes painted Deck with
Decals)
2 7091601 10 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 90585
3 7090731 10 BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr. 5)
4 7091169 BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
5 7090324 3 SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
6 7090483 SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
7 7012063 2 WASHER, Cone
8 7041939 BLADE, Cutter
9 7015626 HUB, Blade Drive 25mm (Non Commercial Models)
10 7091214 KEY, Woodruff (Briggs) (Non Commercial Models)
11 7090201 SCREW, 5/16-18 x 5/16" Hex Socket Set
12 7015780 PULLEY, Engine (25mm I.D. x 2-1/8" O.D.) (Non Commercial) Models
13 7031968 SHIELD, Belt Opening Cover (Push Models Only)
14 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 Was 90001 (Only 1 Shown)
15 7011791 2 RETAINER, 5/16 Bolt (Only 1 Shown)
16 7091601 3 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070
17 7010783 2 KEY, Woodruff (Kawasaki Only)
18 7021764 PULLEY, Engine (7/8" I.D. x 2-1/8" O.D.) (Kawasaki Only)
19 7012927 HUB, Blade Drive 7/8" (Kawasaki Only)
20 7026407 BLADE, Cutter (Mulching) (Quad Edge - Ninja) (Kawasaki
Only)
21 7046446 BAFFLE, Belt
22 7029000 SPACER
23 7090167 SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5 (Kawasaki Only)
24 7046471 PLUG, 5/16" Square Hole (qty 3 on Push) (Only 1 Shown)
25 7045264 PLUG, 5/16" Round Hole (qty 3 on Push; qty 2 on Self-
propelled) (1 Shown)
26 7091076 WASHER, 5/16" Flat (European)
27 7031961 2 WASHER, 7/16" Flat (European)
28 7033863 COVER, Belt (European)
29 7090534 SCREW, 5/16-18 x 1/2" Hex Head Cap Grade 5 (European)
30 7013320 BUSHING (European)
31 7090702 BOLT, 5/16-18 x 2-1/4" Hex Flange Lock (European)
32 7041400 STRUCTURE, Fender (European)
33 7091122 4 SCREW, 1/4-20 x 1/2" Hex Self-tapping Was 90539 (European)
34 7091192 WASHER, 1/2" Flat (For model MCRS215014KWV)
35 7029785 DECAL, Operator Safety (European)
36 7046780 2 PLUG, Hole

Front Wheel Bracket (Non-Swivel Wheel Models)
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
12

Front Wheel Bracket (Non-Swivel Wheel Models)
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 13
Part No Descri
p
tionItem Qt
y
Note
1 7051886 ASSEMBLY, Arm Right Wheel (Consists of Items 2, 3, 4, 5A, 6)
7051885 ASSEMBLY, Arm Left Wheel (Consists of Items 2, 3, 4, 5B, 6)
2 7015761 BOLT, 5/16-18 x 3/4" Shoulder
3 7012325 LATCH, Height
4 7027702 GRIP, Latch
5A 7031017 ARM, Right Wheel (Round Hole)
5B 7031016 ARM, Left Wheel (Square Hole) (Not shown)
6 7011791 RETAINER, 5/16" Bolt
7 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070
8 7074702 BRACKET, Front Wheel Was 41770
9 7021119 AXLE

Front Wheel Bracket (Swivel Wheel Model)
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
14

Front Wheel Bracket (Swivel Wheel Model)
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 15
Part No Descri
p
tionItem Qt
y
Note
1 7057782 WELDMENT, Front Bracket
2 7079577 SCREW, 1/4-20 x 1-1/2" Hex Cap, Grade 5
3 7090372 NUT, 1/4-20 Hex Lock
4 7046629 BRACKET, Swivel Lock
5 7046668 SPRING, Torsion
6 7090505 BOLT, 1/4-20 x 2" Hex, Grade 5
7 7027344 4 WASHER, 41/64" Flat Was 15992
8 7046628 4 BUSHING, 5/8" Nylon
9 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
10 7076978 NUT, 1/4-20 Hex Nylok
11 7014106 2 PIN, 1 /4 x 1-3/4" Roll
12 7057781 WELDMENT, L.H. Swivel Bracket
7072230 WELDMENT, R.H. Swivel Bracket Was 57789 (Not Shown)

Rear Wheel Brackets, Latches
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
16

Rear Wheel Brackets, Latches
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 17
Part No Descri
p
tionItem Qt
y
Note
1 7012312 BEARING, 9/16
7046983 BEARING, 9/16 Was 18767 (Commercial)
2 7091012 3 SCREW, #10-32 x 3/8" Self-Tapping (Torx)
3 7035717 LATCH, Height Adjusting (Long)
4 7091576 NUT, 1/4-20 Hex, Grade 5 Was 90063
5 7091601 6 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070
6 7054228 ASSEMBLY, Wheel Arm (Right Rear) (Push Models). (Round
Opening - Includes Items 3, 10,
14, 15, 16)
7 7054229 ASSEMBLY, Wheel Arm (Left Rear) (Push Models). (Square
Opening - Includes Items 3, 11,
14, 15, 16)
8 7054230 ASSEMBLY, Wheel Arm (Right Rear) Was 54230 (Self-Propelled
models)(Incl. 1, 2, 3, 12, 14, 15
& 16)
7054246 ASSEMBLY, Wheel Arm (Right Rear) Was 54224 (Commercial
Models)(Includes 1B, 2, 3, 12,
14, 15, 16)
9 7054247 ASSEMBLY, Wheel Arm (Left Rear) Was 54231 (Self-Propelled
Models)(Includes 1, 2, 3, 13, 14,
15, & 16)
7054247 ASSEMBLY, Wheel Arm (Left Rear) Was 54225 (Commercial
Models)(Includes 1B, 2, 3, 13,
14, 15, & 16)
10 7033776 ARM, Round Axle End (Round Opening) (Right Rear) (Push Models)
11 7033775 ARM, Square Axle End (Square Opening) (Left Rear) (Push Models)
12 7032722 ARM, Wheel Right Rear (Self Propelled Models)
13 7032723 ARM, Wheel Left Rear (Self Propelled Models)
14 7011078 BOLT, 5/16-18 x 1" Shoulder
15 7011791 RETAINER, 5/16 Bolt
16 7027702 GRIP, Latch
17 7033494 BRACKET, Right Rear Wheel
18 7033495 BRACKET, Left Rear Wheel
19 7021119 AXLE (Rear on Push Models - Also
Front on All)
20 7035741 GUARD, Rear Foot (Push Models)
21 7029008 GUARD, Rear Foot (Self-Propelled Models) (except
European)
7042918 GUARD, Rear Foot (European)
22 7023791 RING
23 7012616 SUPPORT, Foot Guard
24 7091604 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 Was 90005
25 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023

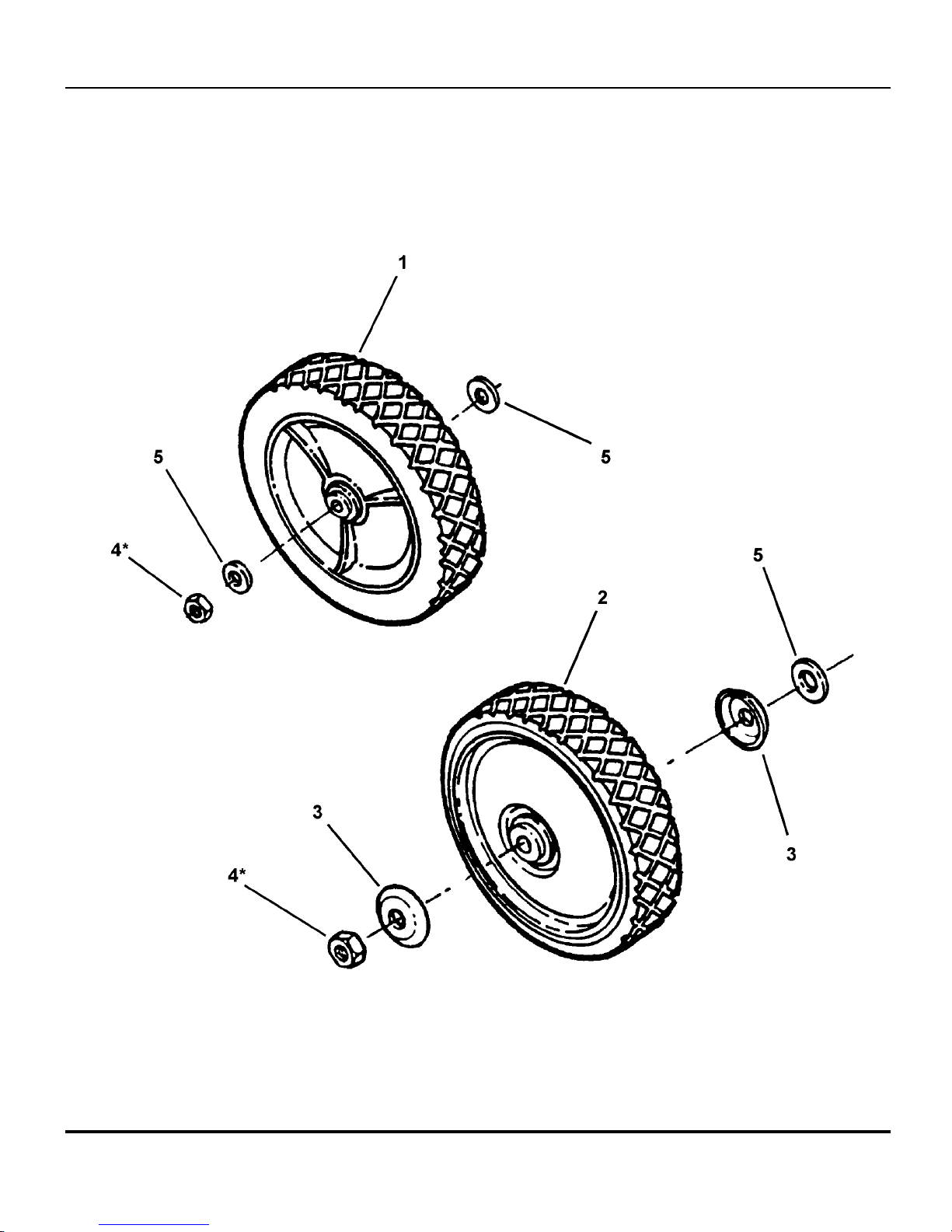

Front Wheels (Non-Swivel Wheel Models)
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
18

Front Wheels (Non-Swivel Wheel Models)
Footnotes:
TP 400-5160-7-WB-N
Manual No. 700606421" STEEL DECK
"MR" SERIES 14 & 15 19
Part No Descri
p
tionItem Qt
y
Note
1 7046990 WHEEL, 8 x 1.75 Plastic Was 41938 (Push & Self-
propelled)
2 7035727 WHEEL, 8 x 1.75 (Commercial)
3 7031121 2 HUB-CAP (Commercial)
4 7090377 NUT, 7/16-20 Hex (Thin)
5 7031961 WASHER, 7/16 x 1" O.D. Flat (Qty. of (2) for Push & Self-
Propelled & Qty. of 1 for
Commercial Models)
Always replace Wheel Nut P/N 90377 when removing or replacing wheel.

Front Wheels (Swivel Wheel Model)
TP 400-5160-7-WB-N
Manual No. 7006064 21" STEEL DECK
"MR" SERIES 14 & 15
20
