Snapper 84871 User manual

Not for
Reproduction
Parts Manual fo
r
28" & 33" Hi-Vac
SERIES 23
REAR ENGINE RIDER
Revision: B 12/6/2010
Briggs & Stratton Yard Power Products Group
Manual No. 7006279
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Descri
p
tionModel No.
84871 281023BVE
780010
2
281123BV
8487
2
281123BV
8494
0
281123BV
84874 281123BVE
84883 281123HVE
708494
0
2811523BV
780064
7
2811523BV
8562
2
2812253BVE
708562
2
2812523BVE
780010
4
2812523BVE
7800649 2812523BVE
8487
6
281323BVE
708562
4
2813523BVE
85624 2813523BVE
8488
5
331323HVE
8487
8
331523BVE
7084879 331523KVE
780010
6
331523KVE
84879 331523KVE
708495
4
331723BVE
780010
7
331723BVE
84954 331723BVE
780025
4
3317523BVE
780065
2
3317523BVE
84881 W280923BV
84884 W281023BVE

Not for
Reproduction

Not for
Reproduction
Table Of Contents
TP 400-5457-B-RE-N
28" & 33" Hi-Vac
SERIES 23 3
Manual No. 7006279
PAGE GROUP
4 WHEELS, FRONT & REAR
6 FRONT END, STEERING
8 MAIN CASE & L.H. FENDER
12 LEFT HAND FENDER & BEARING
14 DIFFERENTIAL, R. H. FENDER
16 YOKE LIFT COMPONENTS
18 PRIMARY CHAIN CASE & SMOOTH CLUTCH
20 GEAR SHIFTER ASSEMBLY
22 FUEL TANK & SEAT
24 ENGINE, MUFFLER & DRIVE DISC
26 CUTTING DECKS & DEFLECTOR (28" & 33" Hi-Vac)
28 BELTS, BRAKES & INTERLOCK
30 RAILS, LIFT ARMS & CAM LIFT
32 BLADE STOP PEDALS
34 SPINDLE
36 DECALS
38 ELECTRICAL SYSTEMS (Briggs Magneto Ground)
40 ELECTRICAL SYSTEMS (For 9, 11 & 11.5HP Briggs Recoil)
42 ELECTRICAL SYSTEMS (For 10, 11, 12, 12.5 & 13HP Briggs)
44 ELECTRICAL SYSTEMS (For 13.5, 15, 16, 17 & 17.5HP Briggs)
46 ELECTRICAL SYSTEMS (For 11 & 13HP Honda)
48 ELECTRICAL SYSTEMS (For 15HP Kohler)
50 ELECTRICAL SYSTEMS (Kohler Magneto Ground)
52 WIRING SCHEMATIC (9, 11 & 11.5HP Recoil Start Briggs)
54 WIRING SCHEMATIC (10, 11, 12, 12.5 & 13 HP Briggs)
56 WIRING SCHEMATIC (13.5, 15, 16, 17 & 17.5HP Briggs Engines)
58 WIRING SCHEMATIC (11 & 13 HP Honda Engines)
60 WIRING SCHEMATIC (14 & 15 HP Kohler Engines)
62 HARDWARE BAGS
66 ACCESSORIES & ATTACHMENTS

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
4
WHEELS, FRONT & REAR

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 5

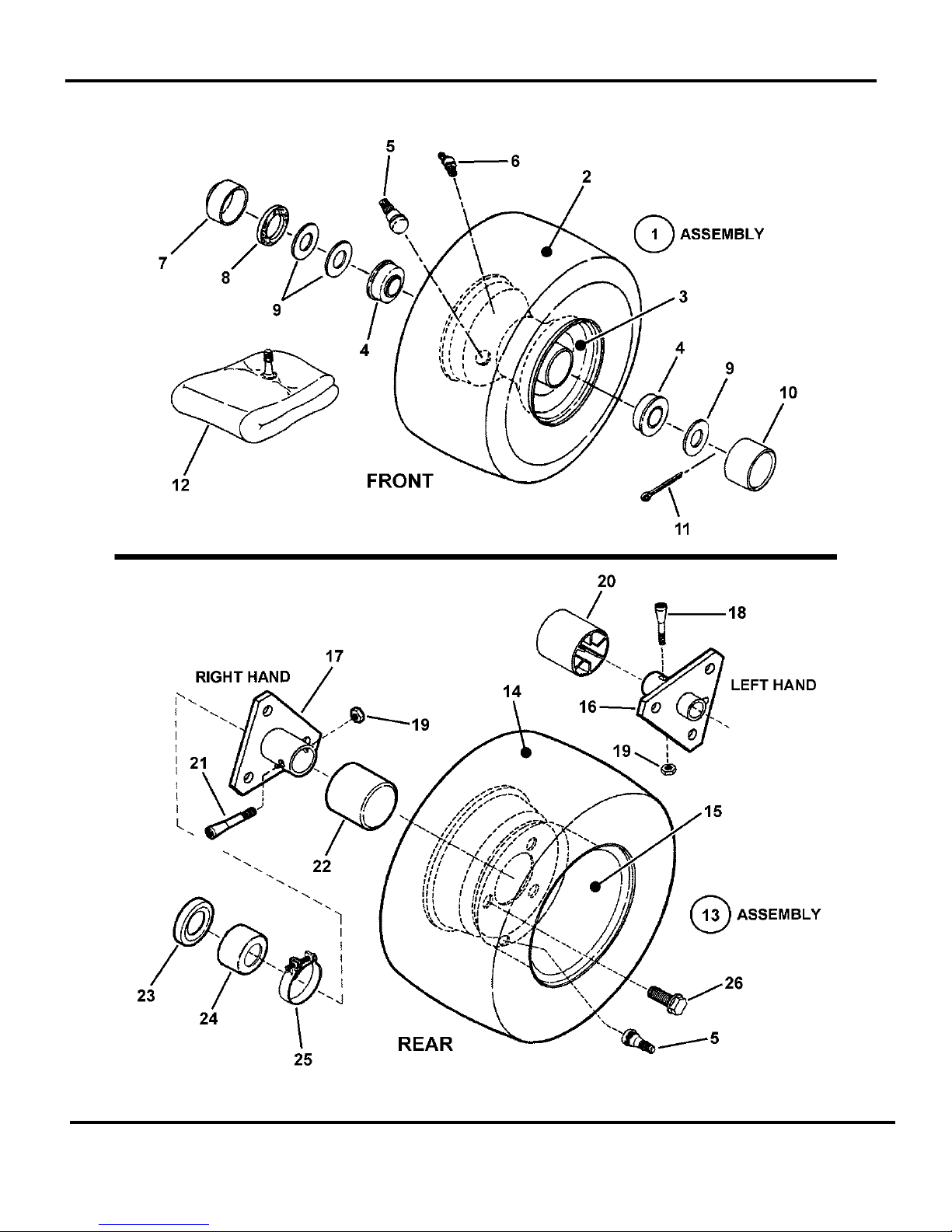

WHEELS, FRONT & REAR
Part No Descri
p
tionItem Qty
1 7058943 2 ASSEMBLY, Front Tire & Rim (Complete) (Includes Items 2, 3, 4, 5 & 6)
2 7073563 1 TIRE, 11 x 4.00-4 (Kenda)
3 7017146 1 RIM (For 4.10/3.50 x 4 Tire)
4 7011807 2 BALL BEARING, Flange (3/4” I.D.)
5 7012234 1 VALVE STEM, Snap In
6 7014669 1 * LUBE Fitting, Straight (for 3/16" hole)
6 7076998 1 * LUBE Fitting, Straight (for 1/4" hole)
6 7010909 1 * LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)
6 7104428 1 * LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)
7 7031038 1 CAP, Dust
8 7011032 1 FELT SEAL
9 7010935 3 WASHER, .77 x 1.13 x .06 Flat
10 7011022 1 HUB CAP
11 7091516 1 COTTER PIN, 5/32 x 1”
12 7010821 1 TUBE, Inner (For 4.10/3.50 x 4 Tire)
13 7058951 2 ASSEMBLY, Rear Tire & Rim (28” & 33” Models) (Includes Items 5, 14 & 15)
14 7073584 1 TIRE, 16-6.50 x 8
15 7012163 1 RIM, Extra Wide (For 16/7.50 x 8 Tire) (33” Models) was 7017147
16 7040434 1 HUB, Rear Wheel LH, 3 Hole 3/4" ID
17 7040433 1 HUB, Rear Wheel RH, 3 Hole 1" ID
18 7011035 1 AXLE BOLT, Left Hand (5/16-24 x 1-5/8” Tapered)
19 7092062 1 NUT, Wheel Bolt, 5/16-24 Hex Center Lock was 7011201
20 7023522 1 CAP, Hub, L. H. (Long Axle)
21 7011013 1 WHEEL BOLT, Right Hand (5/16-24 x 2” Tapered)
22 7023895 1 CAP, Hub
23 7011817 1 SEAL, 1.22” ID x 1.875” OD CAP, Seal 1.0” ID x 1.67” OD
24 7031732 1 CAP, Seal 1.0” ID x 1.67” OD, Right Hand (8 & 10 HP)
25 7012332 1 CLAMP, Right Hand 2” (used on 8, 10, 11.5, 12.5, 13 & 17 HP)
25 7014542 1 CLAMP, Right Hand 2.69” (used on 12, 14 & 15 HP)
26 7091502 3 BOLT, 1/2-20 x 3/4” Lug, GR 5
NOTE* Different size holes used, measure hole for proper fit.

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
6
FRONT END, STEERING

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 7
FRONT END, STEERING
Part No Descri
p
tionItem Qty
1 7058030 1 ASSEMBLY, Steering Wheel (for 5/8” shaft) (Includes item 2)
2 7023781 1 LOGO, Steering Wheel
3 7013862 1 ROLL PIN, 1/4 x 1-1/2”
4 7023667 1 FOAM COVER, Steering Shaft
5 7023671 1 COVER, Steering Shaft
6 7090296 1 PIN, 3/16 x 1” Cotter
7 7090183 2 WASHER, .66 x 1.31 x .09 Flat
8 7046158 1 BUSHING, Nylon
9 7101192 1 CABLE, Brake, Snap-In (replaces 7072648)
10 7022449 1 CABLE, Clutch/Brake (54.32” long) (used on 25” & 28” Decks)
10 7074131 1 CABLE, Clutch/Brake (55” long) (used on 33” Decks)
11 7090372 1 NUT, 1/4-20 Hex Center Lock, GR 5 or B
12 7034174 2 CONNECTOR, Cable
13 7091495 1 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5
14 7054378 1 WELDMENT, Front Axle, Narrow (used on 25” & 28” Decks)
14 7053266 1 WELDMENT, Front Axle, Wide (used on 33” Decks)
15 7074561 1 BOTTLE, Water
16 7074560 1 HOLDER, Bottle (Wire)
17 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
18 7011714 1 HAIR PIN 2-1/4”
19 7038243D 1 LATCH, Parking Brake
20 7015444 1 SPRING, Parking Brake Latch
21 7014049 2 FOOT PAD, Short (5.5” x 4.7”)
21 7014048 2 FOOT PAD, Long (5.5” x 9.5”)
22 7010776 1 RING, 1/2” External Retaining (Heavy Duty)
23 7047888BM 1 WELDMENT, Clutch Pedal
24 7011815 1 PAD, Pedal
25 7010694 1 BUSHING, Nylon
26 7046232 1 WELDMENT, Steering Shaft
27 7091515 1 PIN, 3/16 x 1-1/2” Cotter (Was 7090753)
28 7010746 2 RING, 5/8” External Retaining
29 7010935 6 WASHER, .77 x 1.13 x .06 Flat
30 7010986 4 BEARING, Nylon
31 7091516 2 PIN, 5/32 x 1” Cotter Was 7090364)
32 7090122 4 WASHER, 3/8” Flat SAE
33 7013321 4 BUSHING, Tie Rod
34 7041687 1 WELDMENT, King Pin, Left Hand
35 7041688 1 WELDMENT, King Pin, Right Hand
36 7091598 2 PIN, 1/8 x 3/4” Cotter (Was 7090365)
37 7013023 1 TIE ROD, Left Hand (7.41” long)
37 7012541 1 TIE ROD, Left Hand (9.91” long)
38 7012933 1 TIE ROD, Right Hand (7.41” long)
38 7012540 1 TIE ROD, Right Hand (9.91” long)

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
8
MAIN CASE & L.H. FENDER

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 9

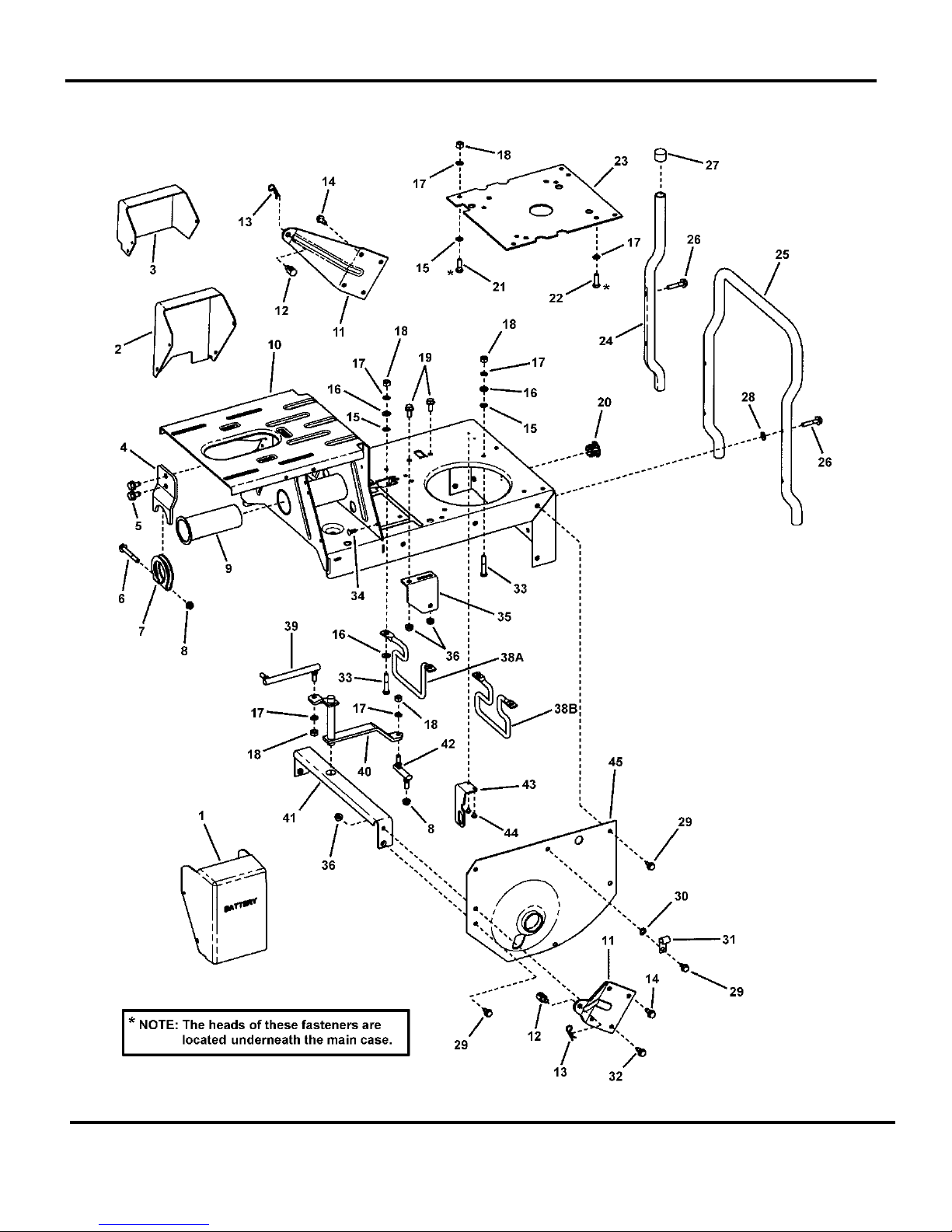

MAIN CASE & L.H. FENDER
Part No Descri
p
tionItem Qty
1 7028990 1 COVER, Battery
2 7028989 1 COVER, Switch
3 7073268 1 COVER, Solenoid
4 7074210 1 BRACKET, Belt Adjuster
5 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap
6 7090358 1 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, GR 5
7 7031100 1 TUBE CLAMP
8 7010969 2 NUT, 5/16-24 Flange Lock (Large)
9 7074650 1 BUSHING, Pivot (Was 7022509)
10 7053697 1 WELDMENT, Main Case (Standard) (shown)
11 7034299 2 WING, Rear
12 7028200 2 SWIVEL, Adjustable
13 7091503 2 HAIR PIN, 3/32 x 1-1/2”
14 7090793 4 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
15 7011791 4 RETAINER, 5/16” Bolt
16 7091296 4 WASHER, 5/16” Flat
17 7091315 7 WASHER, .32 x .58 x .08 Split Lock
18 7091297 7 NUT, 5/16-24 Hex, GR 5
19 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock, GR 5
20 7024998 3 PLUG, 1” Hole (Used on Euro models only)
21 7090238 4 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5
22 7077692 4 BOLT, M8-1.25 x 25mm, Self-Tap (Kohler)
23 7074946 1 PLATE, Engine (Kohler Engine)
24 7030798 2 BUMPER, Rear
25 7036367 1 BUMPER (1-Piece) (33” Deck)
26 7090484 4 SCREW, 5/16-18 x 1-1/2” Hex Washer Self-Tap
27 7010153 2 CAP, Bumper
28 7090188 2 WASHER, 11/32” Flat
29 7090361 14 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
30 7090391 1 WASHER, 5/16” Internal Tooth Lock
31 7012652 1 CLIP, Wire
32 7091318 1 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 (Was 7090206)
33 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap, GR 5
34 7091272 7 FASTENER, 1/4” Ratchet
35 7047189 1 BRACKET, Drive Support
36 7090585 6 NUT, 5/16-18 Hex Flange Lock, GR 5
38A 7017653 1 BELT GUIDE, 25 & 28 (5.74” Bolt Pattern, 4.74” Belt Gap)
38B 7036418 1 BELT GUIDE, 33” (5.74” Bolt Pattern, 5.0” Belt Gap) (used on 7800107 & 7800254 models)
39 7023676 1 SHIFT LINK, Long (5/16-24 both ends)
40 7041384 1 WELDMENT, Shift Arm
41 7033799 1 CROSS BRACE
42 7011018 1 SHIFT LINK, Short (5/16-24 thread)
43 7073735 1 BRACKET, Switch
44 7090981 2 SCREW, #10-32 x 1/4” Hex Washer Self-Tap

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
10
MAIN CASE & L.H. FENDER

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 11
MAIN CASE & L.H. FENDER
Part No Descri
p
tionItem Qty
45 7037285 1 FENDER, Left Hand (1.628” I. D. Hole)

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
12
LEFT HAND FENDER & BEARING

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 13
LEFT HAND FENDER & BEARING
Part No Descri
p
tionItem Qty
1 7012332 2 BOOT CLAMP, 2”
2 7075115 1 BOOT, Rear Axle, Thick Flange
3 7011072 1 WASHER, Thrust
4 7011071 1 THRUST WASHER
5 7052827 1 ASSEMBLY, DX Bearing (incl. next 3 items shown below)
6 7074182 2 BEARING, DX
7 7074500 1 SEAL, Axle (Dust/Grease)
8 7075848 1 FITTING, Lube, 45 Degree, 3/16” w/Hex (long shank) (or 7013324)
9 7011070 1 TIE ROD (5/16-24 thread - both ends)
10 7037285 1 FENDER, Left Hand (1.628” I. D. Hole)
11 7010969 1 NUT, 5/16-24 Flange Lock (Large)
12 7012271 1 WASHER, Shim (or quantity as required)

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
14
DIFFERENTIAL, R. H. FENDER

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 15

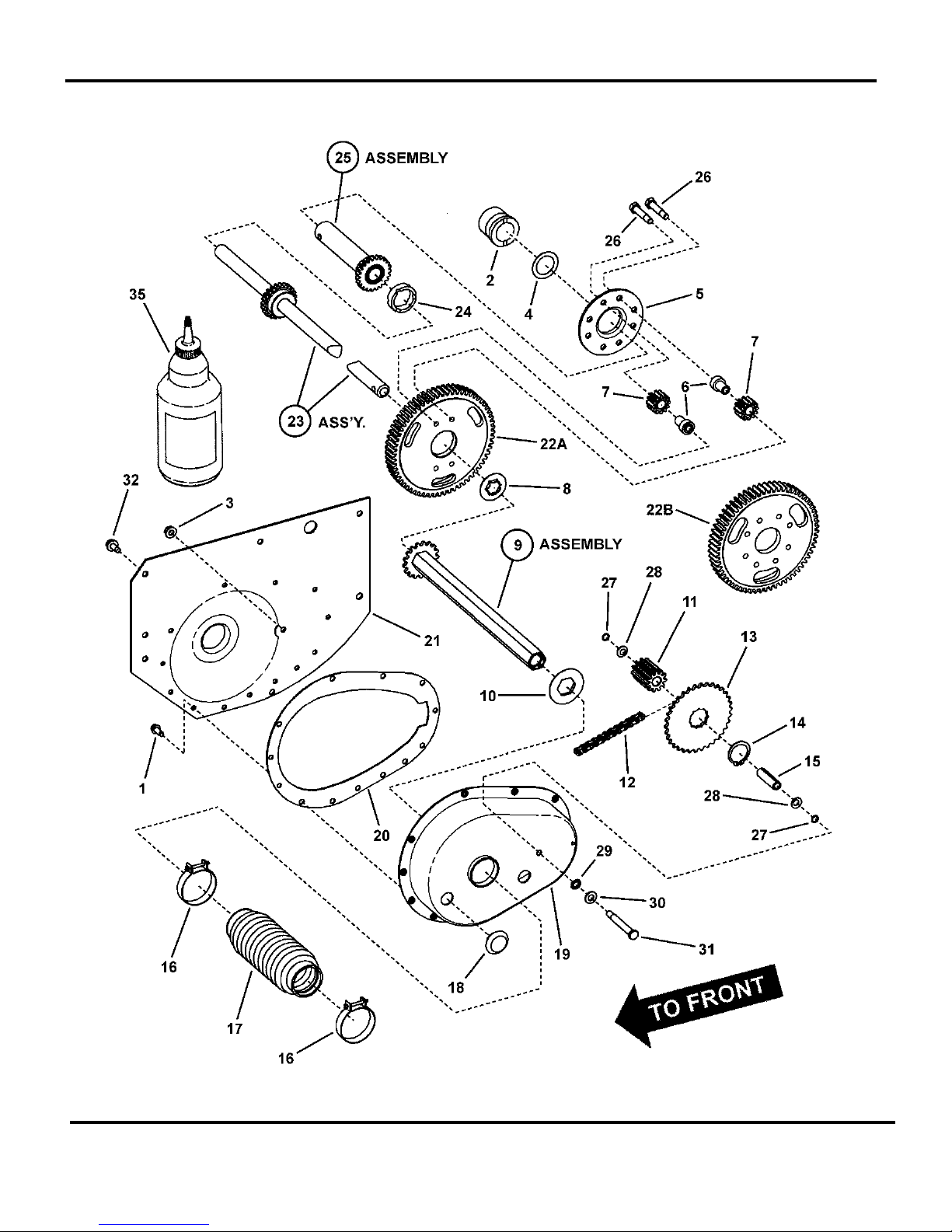

DIFFERENTIAL, R. H. FENDER
Part No Descri
p
tionItem Qty
1 7091819 13 SCREW, 1/4-20 x 5/8” Hex Washer Head Self-Tap (Was 7090362)
2 7012296 1 BEARING, Axle (R. H. Fender)
2 7054372 1 BEARING-DX, Axle (R. H. Fender) (includes 1-1/8” I.D. (DX) bearing)
3 7010969 1 NUT, 5/16-24 Flange Lock (Large)
4 7031079 1 WASHER, Thrust
5 7038067 1 PLATE, Differential (Note: 4 holes offset - align properly to prevent binding.)
6 7022115 4, 8 SPACER, Pinion
7 7021127 4, 8 GEAR, Differential Pinion (12T 12P)
8 7011072 1 WASHER, Thrust
9 7051584 1 * ASSEMBLY, Drive Hex Tube
10 7010988 1 WASHER, Nylon
11 7200128 1 GEAR, 11 Tooth, 10 Pitch (Was 7010964)
12 7010941 1 CHAIN, 46 Pitch (#35 Endless)
13 7021129 1 SPROCKET, 34T, 3/8P
14 7010965 1 RING, 1-3/16” External Retaining
15 7021128 1 SPACER, Differential Case
16 7012332 2 BOOT CLAMP, 2”
17 7075115 1 BOOT, Oil Seal (Short Axle)
18 7011024 2 PLUG, 1/2” Cup Insert
19 7037279 1 CASE, Transmission
20 7028762 1 GASKET, Transmission Case
21 7037280 1 FENDER, Right Hand (1.62” Dia. Hole)
22A 7021158 1 GEAR, 63 Tooth 10 Pitch (4 Hole)
22B 7027644 1 GEAR, 63 Tooth 10 Pitch (8 Hole)
23 7047763 1 KIT, Long Axle Structure (Includes spacer 7074431) (Was 7047763)
24 7074431 1 SPACER, Differential Case
25 7057398 1 ASSEMBLY, Short Axle, 23T (Includes Gear)
26 7012333 4, 8 BOLT, 5/16-24 x 1-5/8” Hex Special Lock (Vibresist)
27 7011156 2 O-RING, 5/16”
28 7011782 2 WASHER, 5/16” Belleville
29 7090395 1 WASHER, 5/16” External Tooth Lock
30 7090188 1 WASHER, .34 x .69 x .08 Flat
31 7011042 1 SCREW, 5/16-24 x 2-5/8” Hex Head Cap
32 7090361 11 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
35 7061017 GREASE, Transmission (24 oz. Required)
7060411 1 KIT, Differential (4 Pinion)
7060662 1 KIT, Differential (8 Pinion w/DX Bearing)
7060412 1 KIT, Long & Short Axle (Includes items 23, 24, & 25)
Note: * Assembly includes two bearings inside hex tube (p/n 7015140, not shown) & one nylon washer (p/n 7010988, item
10).

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
16
YOKE LIFT COMPONENTS

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 17
YOKE LIFT COMPONENTS
Part No Descri
p
tionItem Qty
1 7013885 1 SPRING, Clutch & Brake
2 7014664 1 BOLT, 5/16-18 Shoulder
3 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap
4 7090187 1 WASHER, 5/16” Split Lock
5 7091511 1 NUT, 5/16-18 Hex, GR 5 or B (Was 7090196)
6 7014663 2 SLIDE HALF
7 7047190 1 BRACKET, Slide
8 7090122 2 WASHER, 3/8” Flat SAE
9 7015464 1 STUD, Clutch Link (3/8-24 thread)
10 7091597 1 PIN, 3/32 x 3/4” Cotter (Was 7090037)
11 7090390 1 WASHER, 3/8” Internal Tooth Lock
12 7091630 1 NUT, 3/8-24 Hex, GR 5 or B (Was 7090155)
13 7091122 2 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap (Was 7090539)
14 7059068 1 ASSEMBLY, Leaf Spring
15 7073733 1 ARM, Yoke
16 7046162 1 LIFT, Yoke
17 7092062 2 NUT, 5/16-24 Hex Center Lock (Was 7011201)
18 7011048 2 BEARING, Yoke
19 7011763 2 FENDER WASHER, 5/16”
20 7090238 2 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5
21 7033291 1 COLLAR, Yoke

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
18
PRIMARY CHAIN CASE & SMOOTH CLUTCH

Not for
Reproduction
Footnotes:
Manual No. 700627928" & 33" Hi-Vac
SERIES 23 19
PRIMARY CHAIN CASE & SMOOTH CLUTCH
Part No Descri
p
tionItem Qty
1 7052683 1 ASSEMBLY, Primary Chain Case (Includes the following 16 items)
2 7041136 1 WELDMENT, Primary Chain Case Half, Right Hand
3 7028761 1 GASKET, Primary Chain Case
4 7011121 2 WASHER, 5/8” Belleville
5 7010756 2 BEARING, .625 x 1.37 x .435
6 7018963 1 WELDMENT, Sprocket & Shaft
7 7010614 1 KEY, #5 Woodruff
8 7039778 1 PRIMARY CHAIN CASE HALF, Left Hand
9 7010942 2 BEARING, Needle 1.355” ID x 1.6245” OD x .5” Wide
10 7011086 2 THRUST WASHER, Nylon
11 7040355 1 WELDMENT, Hub & Sprocket
12 7010941 1 CHAIN, 46 Pitch (#35 Endless)
13 7090917 10 SCREW, 10-24 x 1/2” Hex Washer Self-Tap (Was 7090307)
14 7022785 1 ROLLER, 1-3/8 Long
15 7010776 1 RING, 1/2” External Retaining (Heavy Duty)
16 7011024 1 PLUG, 3/4” Cup Insert
17 7091505 1 NUT, 5/8-18 Hex Nyloc
18 7019260 2 O-RING, 1/2 x 5/8”
19 7027981 1 WASHER, Shim .625 x .875
20 7053114 1 ASSEMBLY, Smooth Clutch (non-asbestos) (Includes the following 5 items)
21 7059443 1 HUB, Driven Disc (assembly) (Was 7054243)
22 7053103 1 DISC, Driven (rubber tire bonded to rim)
23 7014523 1 THRUST WASHER
24 7032331 1 PLATE, Drive Disc
25 7092081 4 NUT, 5/16-24 Hex Flange Lock (Was 7090480, center lock flange nut)
26 7052497 1 ASSEMBLY, Brake Lever (Includes brake pad & rivet)
27 7012313 1 RING, 3/8” External Retaining
28 7090303 1 NUT, 1/4-28 Hex Top Lock
29 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5
30 7072593 1 * SPACER, Brake Arm Pivot (.418/.403 long) (Was 7010916 (.300/.285 long))
31 7091504 1 SCREW, 1/4-28 x 1” Hex Head Cap, (Washer Face) GR 5
32 7072406 1 * SPRING, Torsional Brake Return
33 7061017 ** GREASE, Transmission (Use 2 oz. Maximum)
Note: * Brake return replacement kit (7061197) is made of items 30 & 32.
NOTE: ** Maximum capacity of chain case before causing leakage at bearing is 2 oz. DO NOT OVERFILL!

Not for
Reproduction
Manual No. 7006279 28" & 33" Hi-Vac
SERIES 23
20

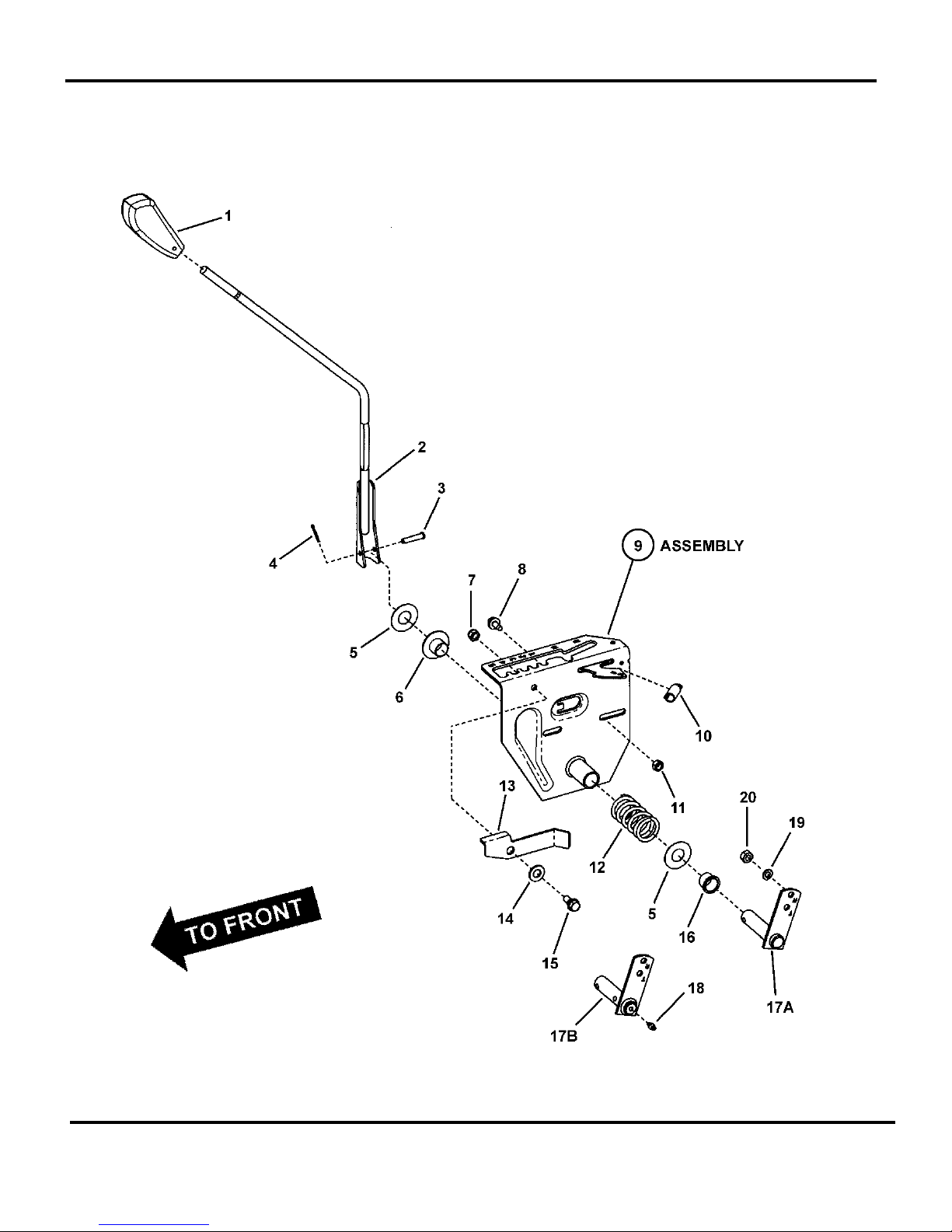

GEAR SHIFTER ASSEMBLY
