Snapper CP215519HV User manual

Parts Manual fo
r
21" STEEL DECK WALK BEHIND
SERIES 19 & 20
COMMERCIAL MOWERS
Revision A, TP 400-5189-A-WB-N5/19/2008
Briggs & Stratton Yard Power Products Group
Manual No. 7006155
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
MODEL
CP215519HV (7800038)
CP215520HV (7800372)
CP216019KWV (7800194)
CP216019KWV (7800037)
CRP216019KWV (7800200)
CRP216019KWV (7800036)
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
TP 400-5189-A-WB-N
21" STEEL DECK WALK BEHIND
SERIES 19 & 20 3
Manual No. 7006155
PAGE GROUP
4HANDLES & CONTROLS - Upper End
8HANDLES & CONTROLS - Lower End
10 CUTTING DECK, BLADE
12 WHEEL BRACKETS, LATCHES
14 WHEELS, FRONT & REAR
16 DRIVE SYSTEM SELF-PROPELLED
20 TRANSMISSION - DIFFERENTIAL
22 SIDE CHUTE ADAPTER
24 GRASS BAG & ACCESSORIES
26 DECALS
Not for
Reproduction

TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
4
Not for
Reproduction

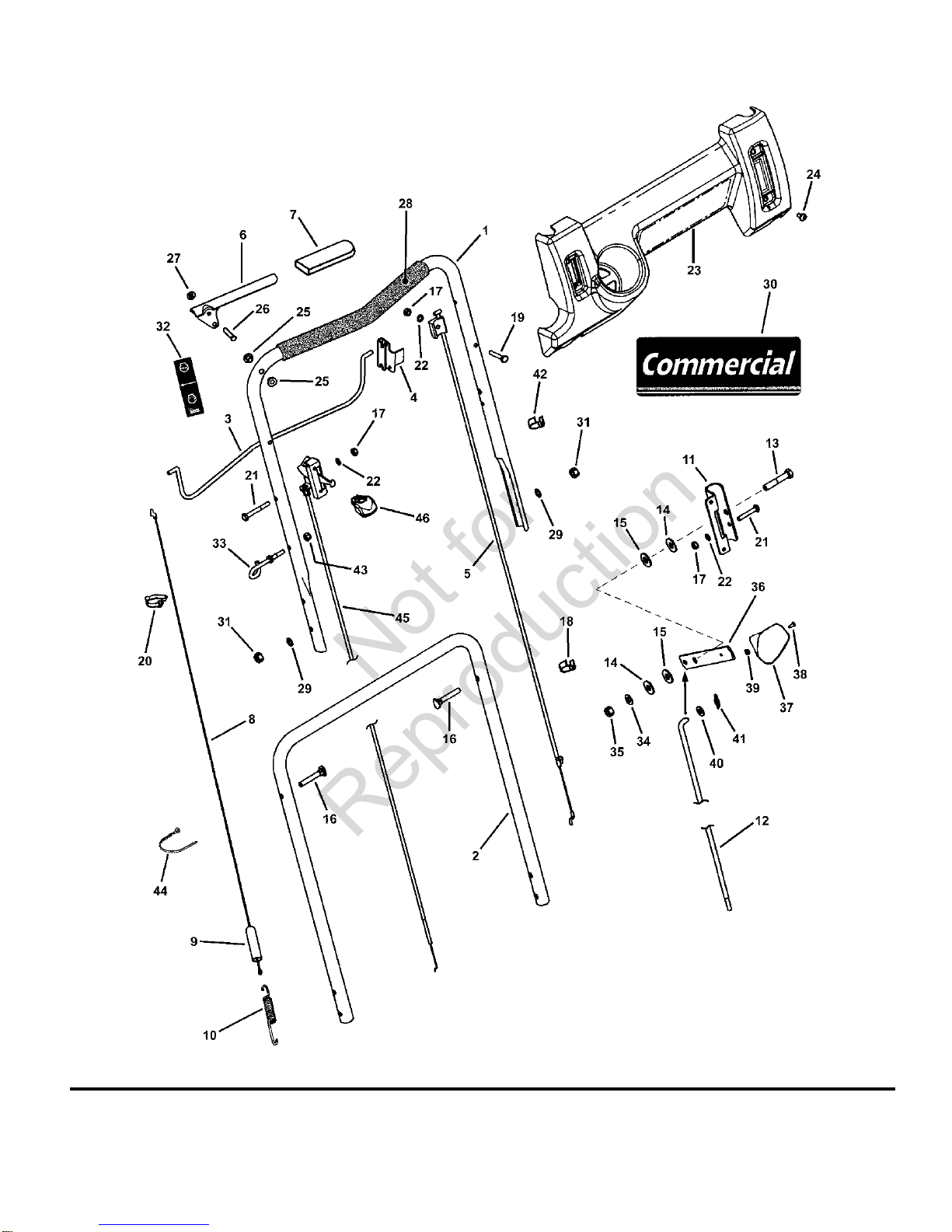

HANDLES & CONTROLS - Upper End
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 5
Part No Descri
p
tionItem Qt
y
Note
1 7074411 1 HANDLE, Upper
2 7074156 1 HANDLE, Middle
3 7074418 1 BAIL, OPC Control
4 7034872 1 CLIP, Zone Control
5 7074141 1 CABLE, Zone Control (56-5/16” Long) used on CP216019KWV &
CRP216019KWV
5 7029344 1 CABLE, Zone Control (49.98” Long) used on CP215519HV
5 7102235 1 CABLE, Zone Control (60.3” Long) used on CP215520HV
6 7074473 1 HANDLE, Clutch
7 7075305 1 COVER, Grip, Black 1.125” used on CP215519HV &
CP215520HV
7 7028407 1 GRIP, International Symbol, Black 4.6”
8 7034604 1 CABLE, Clutch Control (41-1/4” Long)
9 7012121 1 COVER, Vinyl
10 7012122 1 SPRING, Clutch- 21S
11 7074003 1 BRACKET, Shift
12 7074133 1 ROD, Speed Control (1/4-28 thread)
13 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5
14 7031961 2 WASHER, 7/16” Flat
15 7028465 2 WASHER, Nylon
16 7091190 2 BOLT, 5/16-18 x 1-1/2” Curved Head
17 7091576 2 NUT, 1/4-20 Hex was 7091100
18 7023813 3 CLIP, Wiring Harness
19 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR5
20 7026219 1 CLAMP, 7/8” Double Cable
21 7090505 2 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
22 7090053 2 WASHER, 1/4” Internal Tooth Lock was 7091023
23 7074140 1 CONTROL PANEL (w/o Electrical Switch Hole)
24 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx)
25 7014343 2 BUSHING, .27 x .35 x .4 Flange
26 7023792 1 PIN, 1/4 x 1-1/2”
27 7091020 1 PUSH-NUT, 1/4”
28 7023810 1 FOAM GRIP, 18.75” long
29 7090391 2 WASHER, 5/16” Internal Tooth Lock
30 7100181 1 DECAL, Commercial, Control Panel
31 7091069 2 NUT, 5/16-18 Hex, GR 5 or 7091511
32 7029782 1 DECAL, OPC Bail (International Symbol)
33 7028488 1 GUIDE, Rope (1/4-20 thread)
34 7028568 1 WASHER, Belleville
Not for
Reproduction

HANDLES & CONTROLS - Upper End
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
6
Not for
Reproduction

HANDLES & CONTROLS - Upper End
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 7
Part No Descri
p
tionItem Qt
y
Note
35 7091585 1 NUT, 3/8-16 Hex Center Lock
36 7074113 1 LEVER, Shift
37 7075182 1 KNOB, Shift
38 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine
39 7091018 1 NUT, #8-32 Hex
40 7090188 3 WASHER, 3/8” Flat
41 7034162 1 COTTER PIN, 5/16 Self Lock
42 7024641 1 TIE, Wire, 1.29 long, black
43 7076978 1 NUT, 1/4-28 Hex Nyloc
44 7012080 2 CABLE-TIE, 7”
45 7078026 1 THROTTLE CONTROL, 5.5 HP, Honda (50.81” long) used on CP215519HV &
CP215520HV
45 7074138 1 THROTTLE CONTROL, 6.0 HP Kawasaki (53.25” long) used on CP216019KWV &
CRP216019KWV
46 7075308 1 THROTTLE KNOB
Not for
Reproduction

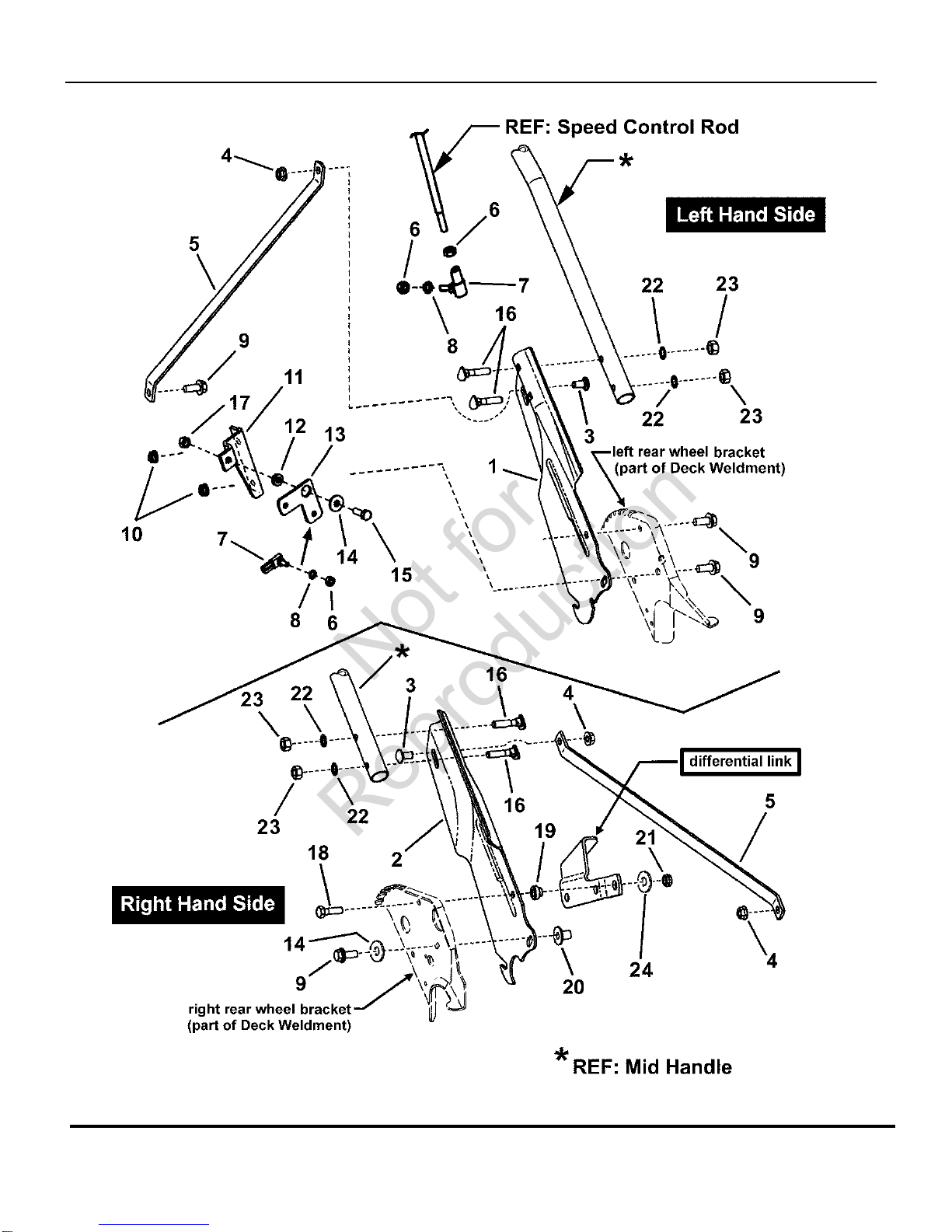

HANDLES & CONTROLS - Lower End
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
8
Not for
Reproduction

HANDLES & CONTROLS - Lower End
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 9
Part No Descri
p
tionItem Qt
y
Note
1 7033985 1 HANDLE, Lower LH (Adjustable)
2 7033986 1 HANDLE, Lower RH (Adjustable)
3 7091026 2 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5
4 7091601 3 NUT, 5/16-18 Hex Flange Lock GR 5 was 7091070
5 7046707 2 STRAP, Handle
6 7090095 4 NUT, 1/4-28 Hex, GR 5
7 7015753 2 BALL JOINT, 1/4-28
8 7090053 4 WASHER, 1/4” Internal Tooth Lock
9 7090595 5 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5
10 7090585 10 NUT, 5/16-18 Hex Flange Lock, GR 5
11 7073822 1 BRACKET, Bell Crank
12 7013849 1 SPACER, .33 x .63 x .156
13 7073913 1 BELL CRANK
14 7091130 2 WASHER, .33 x .88 x .09 Flat
15 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5
16 7091190 4 BOLT, 5/16-18 x 1-1/2” Curved Head
17 7091575 1 NUT, 5/16-18 Hex Center Lock was 7091067
18 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR5
19 7012114 1 BUSHING, Differential
20 7090895 1 NUT, 5/16-18 Tee
21 7091606 1 NUT, 5/16-24 Hex Center Lock, GR 5 was 7091074
22 7090391 4 WASHER, 5/16” Internal Tooth Lock
23 7091511 4 NUT, 5/16-18 Hex, GR 5 was 7091069
24 7090188 1 WASHER, 3/8” Flat
Not for
Reproduction

CUTTING DECK, BLADE
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
10
Not for
Reproduction

CUTTING DECK, BLADE
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 11
Part No Descri
p
tionItem Qt
y
Note
1 7500081 1 * WELDMENT, Deck, 21” Non-Adjust Air was 7400026, used on
CRP216019KWV
1 7400027 1 * WELDMENT, Deck, 21”, S.P., Hi-Vac used on CP216019KWV,
CP215519HV & CP215520HV
2 7091601 3 NUT, 5/16-18 Hex Flange Lock GR 5 was 7091070
3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5 or 7092061
4 7046780 2 PLUG, Hole, Polyethylene
5 7090001 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 or 7091508
6 7011791 1 RETAINER, 5/16” Bolt
7 7090700 1 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, GR5 engine mount bolts (Honda)
8 7091601 1 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070 or 7090585
9 7090238 2 SCREW, 5/16-24 x 1” Hex Head Cap GR 5 engine mount bolts (Honda)
10 7091315 2 WASHER, .32 x .58 x .08 Split Lock on engine mount bolts (Honda)
11 7074568 1 COVER, Belt
12 7015780 1 PULLEY- Engine (25mm I.D. x 2-1/8” O.D.) used on Kawasaki engines
12 7021822 1 PULLEY- Engine (1.085 I.D. x 2-1/8” O.D.) used on Honda engines
13 7090201 1 SCREW, 5/16-18 x 5/16” Hex Socket Head used with 7015780
13 7092086 1 SCREW, 5/16-18 x 1/2” Hex Socket Head used with 7021822
14 7091214 1 KEY, Woodruff #HP-506 Hi-Pro
15 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
16 7012063 2 WASHER, Cone
17 7026691 1 BLADE, Cutter (Standard Lift)
18 7026407 1 BLADE, 21” Ninja (Quad Edge)
19A 7101414 1 ** HUB, Blade Drive, 25mm I.D. RD 2 Position used on CRP216019KWV
19B 7015626 1 ** HUB, Blade Drive, 25mm I.D. used on CP216019KWV
19C 7012927 1 ** HUB, Blade Drive, 7/8” I.D. used on CP215519HV &
CP215520HV
20 7010783 2 KEY, #505 Hi-Pro
21 7090228 4 SCREW, 5/16-24 x 21/32” Oval Head Machine
22 7032558 2 AIR LIFT
23 7090391 4 WASHER, 5/16” Internal Tooth Lock
24 7090223 4 NUT, 5/16-24 Hex, GR 5
25 7300969A 1 RING, Engine Spacer used on CP215520HV model
26 7044770 3 SPACER, .06 Blade Hub used on CP215520HV model
1 *** ENGINE, 6 HP Kawasaki w/side recoil Model FJ180V-DS13-
R (not shown)
1 *** ENGINE, 6 HP Kawasaki w/side recoil Model FJ180V-BS23-
R (not shown)
1 *** ENGINE, 5.5 HP Honda Model GXV160, Type K1A1AS (not
shown)
used on CP215519HV
1 *** ENGINE, 5.5 HP Honda Model GXV160, Type UH2A1AS (not
shown)
used on CP215520HV model
NOTE: * FINISH: red painted but w/o decals
NOTE: ** Part number is inscribed on hub.
NOTE: *** Purchase engine parts from engine manufacturer dealer.
Not for
Reproduction

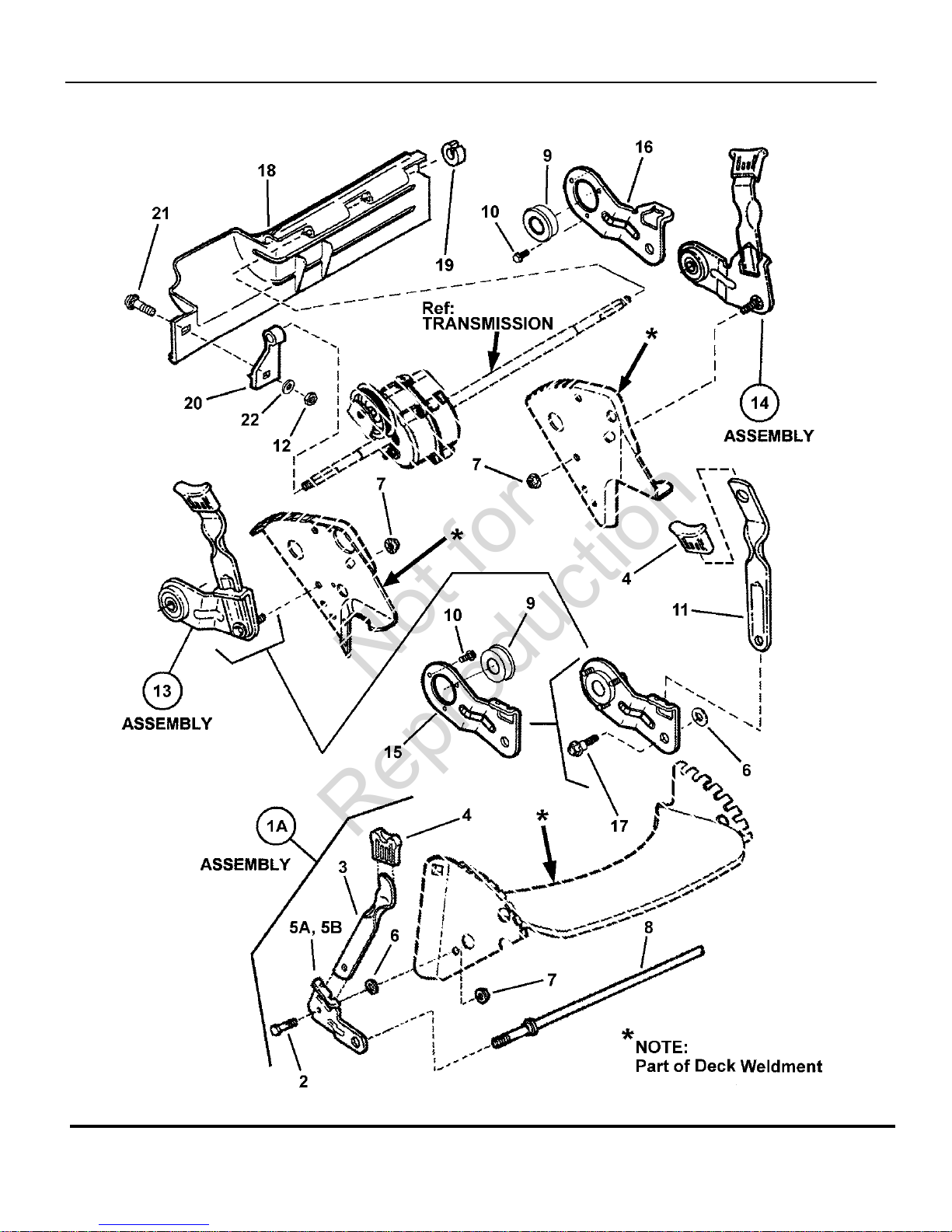

WHEEL BRACKETS, LATCHES
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
12
Not for
Reproduction

WHEEL BRACKETS, LATCHES
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 13
Part No Descri
p
tionItem Qt
y
Note
1A 7051886 1 ASSEMBLY, Right Wheel Arm
1B 7051885 1 ASSEMBLY, Left Wheel Arm not shown
2 7015761 1 BOLT, 5/16-18 x 3/4” Hex Washer Face Shoulder per wheel arm assembly
3 7012325 1 LATCH, Height per wheel arm assembly
4 7100633 1 GRIP, Height Latch replaces 7027702
5A 7031017 1 WHEEL ARM, R.H. Front (Round Hole)
5B 7031016 1 WHEEL ARM, L.H. Front (Square Hole) not shown
6 7011791 4 RETAINER, 5/16” Bolt
7 7091070 2 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7091601 or 7090585
8 7021119 1 AXLE, 21”
9 7012312 1 BEARING, 9/16” I.D. per Rear Wheel Arm
10 7091012 3 SCREW, #10-32 x 3/8” Hex washer Self-Tap per Rear Wheel Arm
11 7035717 1 LATCH, Height Adjusting (long) per Rear Wheel Arm
12 7091576 1 NUT, 1/4-20 Hex, GR 5 or B was 7090063
13 7054246 1 ASSY, Wheel Arm, Right Rear (S.P.) was 7054230, Incl. 4, 6, 9, 10,
11, 15 & 17
14 7054247 1 ASSY, Wheel Arm Left Rear Long (S.P.) was 7054231, Incl. 4, 6, 9, 10,
11, 16 & 17
15 7032722 1 ARM, Wheel, Right Rear
16 7032723 1 ARM, Wheel, Left Rear
17 7011078 1 BOLT, 5/16-18 x 1” Hex Washer Face Shoulder per wheel arm assembly
18 7029008 1 FOOT GUARD, Rear
19 7023791 1 RING, Split (Black)
20 7012616 1 SUPPORT, Foot Guard
21 7091604 1 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR 5 was 7090005
22 7090053 1 WASHER, 1/4” Internal Tooth Lock was 7091023
Not for
Reproduction

WHEELS, FRONT & REAR
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
14
Not for
Reproduction

WHEELS, FRONT & REAR
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 15
Part No Descri
p
tionItem Qt
y
Note
1 7035726 2 WHEEL, Rear 10.0 x 1.75 Diamond Grey
2 7035727 2 WHEEL, Front 8.0 x 1.75 Diamond Black
3 7031121 4 HUB-CAP (Front Wheels)
3 7031960 2 HUB-CAP (Rear Wheels)
4 7090377 4 NUT, 7/16-20 Hex Center Lock Jam
5 7031961 6 WASHER, 7/16” Flat
Not for
Reproduction

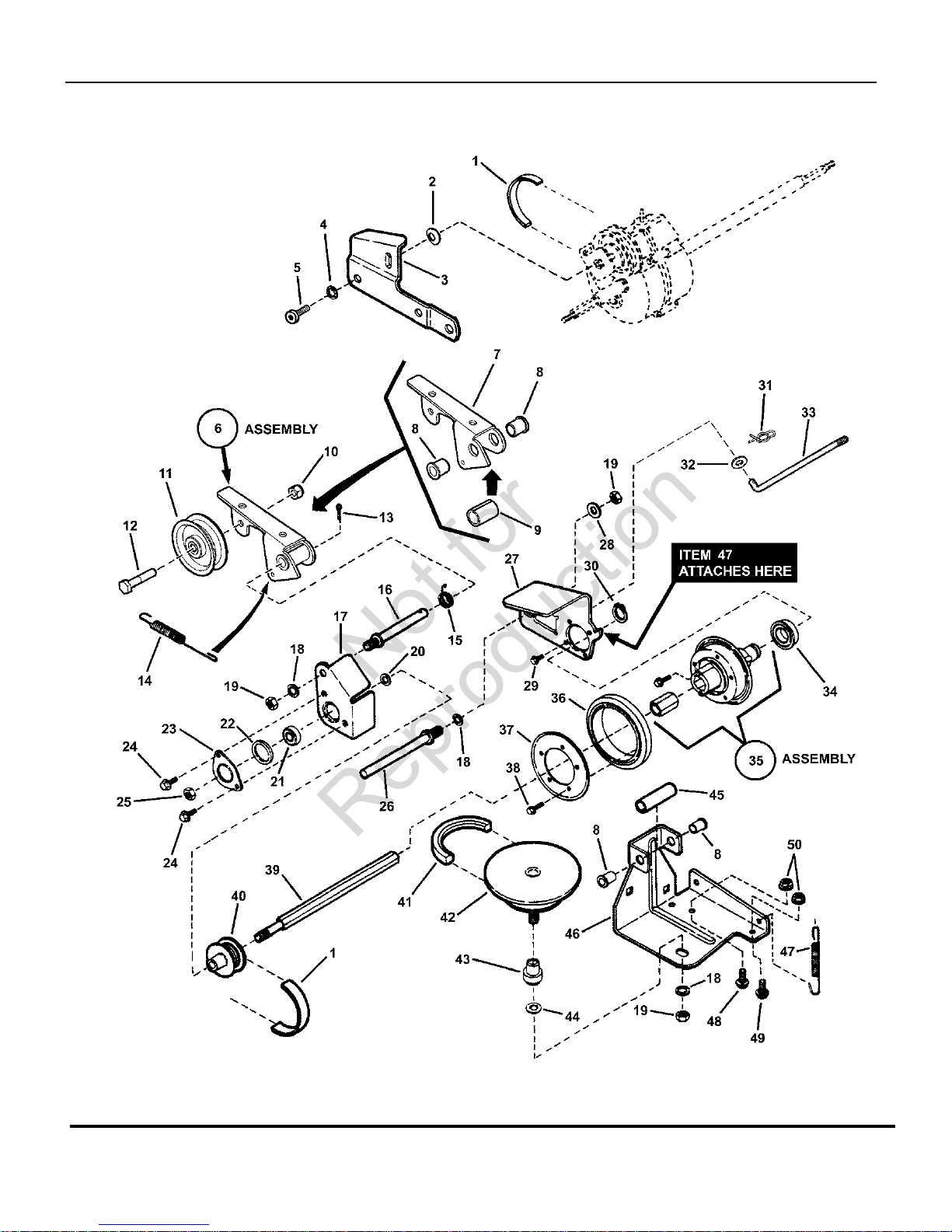

DRIVE SYSTEM SELF-PROPELLED
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
16
Not for
Reproduction

DRIVE SYSTEM SELF-PROPELLED
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 17
Part No Descri
p
tionItem Qt
y
Note
1 7012354 1 BELT, Poly-V
2 7011724 1 WASHER, 44 x .78 x .025 Curved
7051913 1 ASSEMBLY, Clutch Idler (incl. items 3 thru 6)
3 7034179 1 LINK, Differential
4 7090391 1 WASHER, 5/16” Internal Tooth Lock
5 7091542 1 SCREW, 5/16-18 x 1/2” Pan Head Self-Tap (Torx)
6 7500154 1 ASSEMBLY, Idler Arm, Bushing & Spacer
7 7032832 1 ARM, Clutch Idler
8 7012306 4 BUSHING, Flange (Powdered Metal)
9 7100447 1 SPACER, Idler Arm
10 7090303 1 NUT, 1/4-28 Hex Top Lock
11 7012124 1 PULLEY, Idler
12 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap, GR 5
13 7091597 1 COTTER PIN, 3/32 x 1/2” was 7090555
14 7012122 1 SPRING, Clutch- 21S
15 7012126 1 SPRING, Idler- Torsion
16 7012111 1 STUD, Idler (3/8-24 thread)
17 7031873 1 HOLDER, Bearing (Inner Half)
18 7090390 3 WASHER, 3/8” Internal Tooth Lock
19 7091630 3 NUT, 3/8-24 Hex
20 7012316 1 WASHER, 3/8” Flat
21 7028014 1 BALL BEARING, Spherical O.D., .38 I.D.
22 7011025 1 O-RING
23 7031809 1 HOLDER, Bearing (Outer Half)
24 7091122 2 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap was 7090539
25 7090289 1 NUT, 3/8-24 Hex Center Lock, GR 5
26 7012125 1 GUIDE, Thrust Plate (3/8-24 thread)
27 7300977A 1 THRUST PLATE, Short was 7034281
28 7090122 1 WASHER, 3/8” Flat
29 7090981 4 SCREW, #10-32 x 1/4” Self-Tap Machine
30 7010746 1 RETAINING RING, .625 External
31 7090673 1 COTTER PIN, .06 x .50 was 7091629
32 7091294 1 WASHER, .28 x .63 x .06 Flat
33 7074145 1 LINK, Transfer (1/4-28 thread)
34 7029027 1 BALL BEARING, 3/4” Bore- Commercial
35 7061276 1 * ASSEMBLY, Bushing & Hub was 7053217, Incl. Hub
(7017073), Bushing (7014678),
Hex, Drive Bushing (7011108) &
2 #10-24 x 1/2” Hex Self-Tap
Screws (7090913)
36 7023364 1 DRIVEN RING, 21P was 7010927
* NOTE: Driven Disc Ass'y (7501000) is composed of items 18, 19, 26-30, 32 & 34-38. Was 7073390
Not for
Reproduction

DRIVE SYSTEM SELF-PROPELLED
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
18
Not for
Reproduction

DRIVE SYSTEM SELF-PROPELLED
Footnotes:
TP 400-5189-A-WB-N
Manual No. 700615521" STEEL DECK WALK BEHIND
SERIES 19 & 20 19
Part No Descri
p
tionItem Qt
y
Note
37 7031013 1 PLATE, Ring Retaining
38 7090913 2 SCREW, #10-24 x 1/2” Self-Tap Machine
39 7072284 1 SHAFT, Hex (3/8-24 thread, one end)
40 7019383 1 PULLEY, Poly-V (2.00” O. D.)
41 7046784 1 BELT, Engine Drive (Stretch)
42 7073528 1 ASSEMBLY, Steel Drive Disc
43 7017696 1 BUSHING, Powdered Metal
44 7011791 1 RETAINER, 5/16” Bolt
7052987 1 ASSEMBLY, Deck Bracket (Incl. items 8, 45 & 46)
45 7021758 1 SPACER, .500 x .65 x 1.75
46 7033774 1 BRACKET, Deck, P21S
47 7029025 1 SPRING, Wheel Drive
48 7090731 1 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5 was 7090261
49 7090799 2 BOLT, 5/16-18 x 5/8” Short Neck Carriage, GR 5 was 7091026
50 7091070 2 NUT, 5/16-18 Hex Flange Lock GR 5
* NOTE: Driven Disc Ass'y (7501000) is composed of items 18, 19, 26-30, 32 & 34-38. Was 7073390
Not for
Reproduction

TRANSMISSION - DIFFERENTIAL
TP 400-5189-A-WB-N
Manual No. 7006155 21" STEEL DECK WALK BEHIND
SERIES 19 & 20
20
Not for
Reproduction
