Snapper E250816BE User manual

Parts Manual for
EUROPEAN REAR ENGINE RIDER
SERIES 16 & 18
MODELS:
E250816BE
E281016BE
E281216BE
E281318BE
E331316BVE
E331416KVE
E331518KVE
CONTENTS
DESCRIPTION PAGE(S) DESCRIPTION PAGE(S)
WHEELS, TIRES.................................................................... 2, 3 BELTS, BRAKES, INTERLOCK (28”/33”, Ser. 16).................25
FRONT END, STEERING....................................................... 4, 5 BELTS, BRAKES, INTERLOCK (28”/33”, Ser. 18)...........26, 27
MAIN CASE (Solid Seat Mount) ........................................... 6, 7 DRIVE DISC ASSEMBLY.........................................................28
MAIN CASE (Hinged Seat Mount)........................................ 8, 9 FUEL TANK & OPERATORS SEAT ........................................29

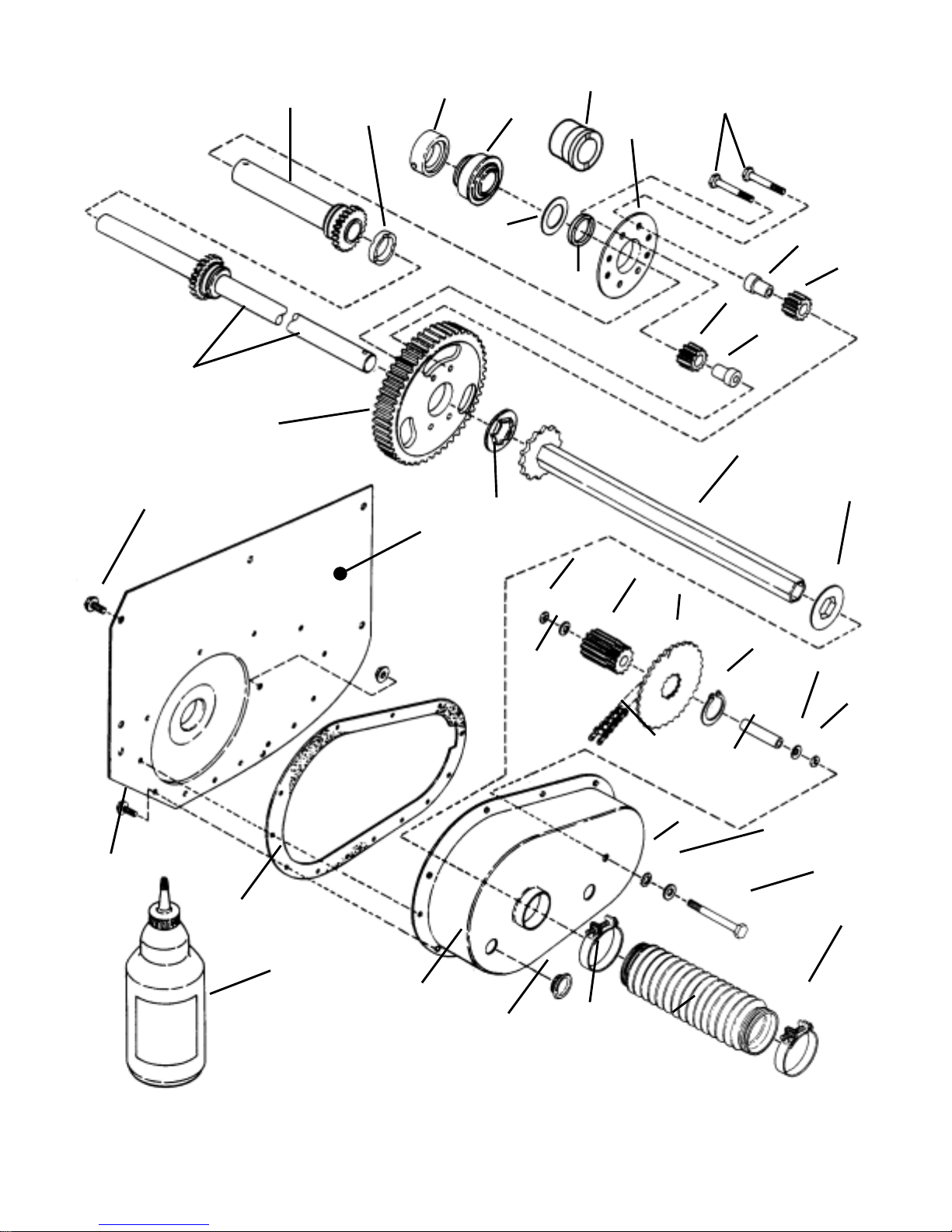

DIFFERENTIAL, R.H. FENDER ......................................... 10, 11 ENGINE & EXHAUST MUFFLER.............................................30

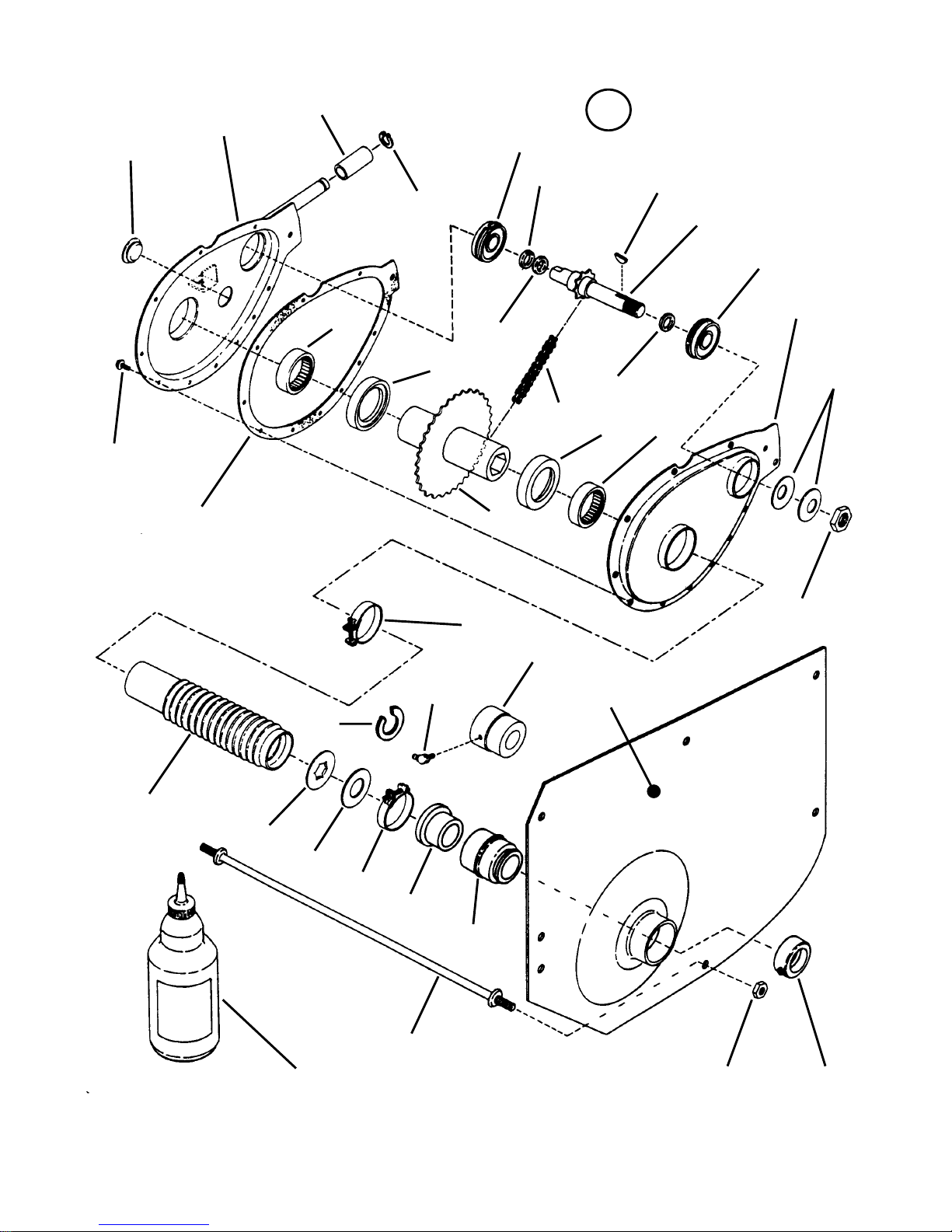

CHAIN CASE ASSEMBLY, L.H. FENDER ........................ 12, 13 THROTTLE CONTROLS..........................................................31
SMOOTH CLUTCH ASSEMBL
Y
........................................ 14, 15 ELECTRICAL SYSTEMS (Briggs).....................................32, 33

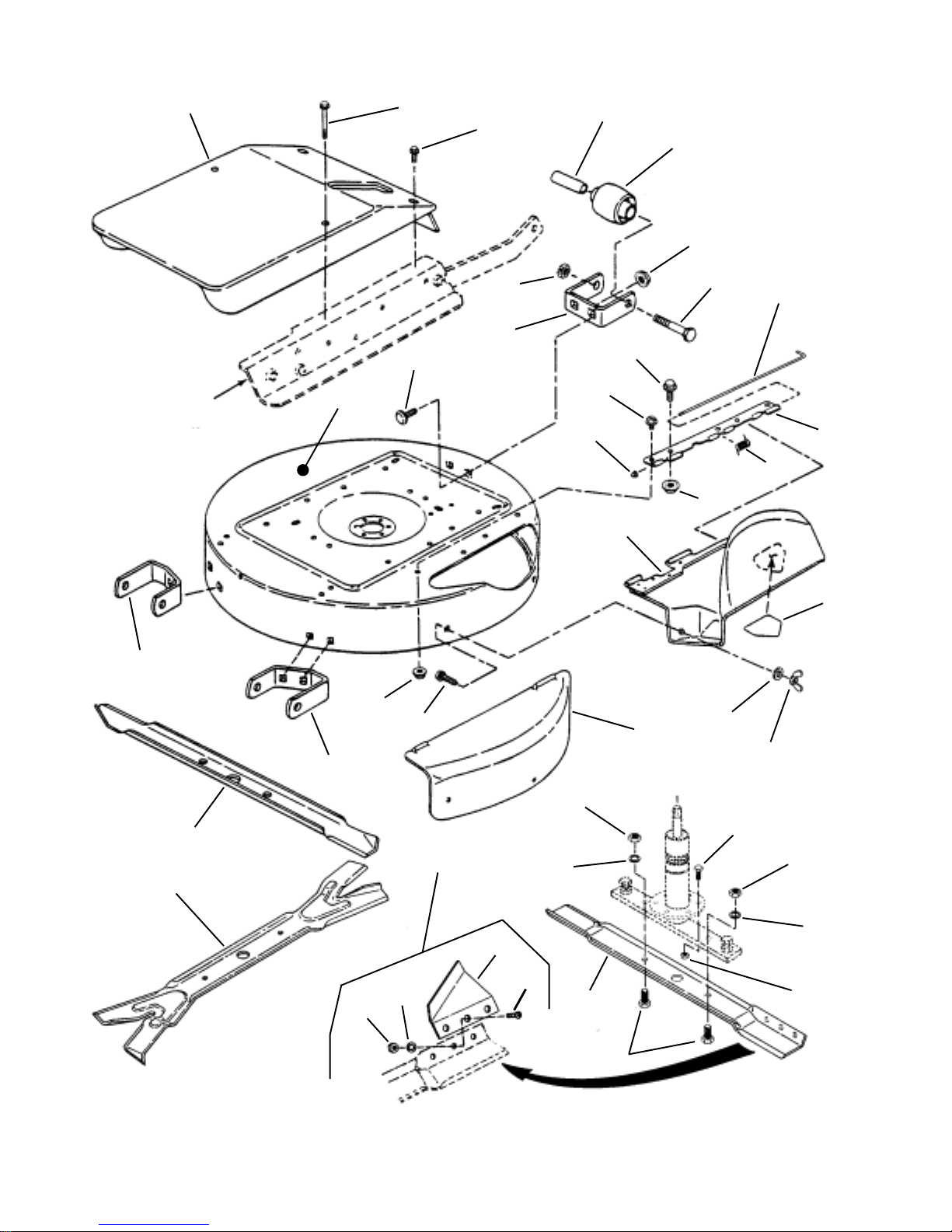

CUTTING DECKS, DEFLECTORS .................................... 16, 17 ELECTRICAL SYSTEMS (Kohler).....................................34, 35
RAILS, LIFT ARMS, CAM LIFT (Series 16) ...................... 18, 19 WIRING SCHEMATICS .....................................................36, 37
RAILS, LIFT ARMS, CAM LIFT (Series 18) ...................... 20, 21 DECALS ..............................................................................38-41
BLADE STOP PEDALS ........................................................... 22 ACCESSORIES & ATTACHMENTS.........................................42
SPINDLE ASSEMBL
Y
.............................................................. 23 HARDWARE BAGS..................................................................43
BELTS, BRAKES, INTERLOCK (25”, Series 16) ................... 24
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
(Rev 3, 9/22/99) MANUAL No. 06103

2
WHEELS - FRONT
ITEM PART NO. DESCRIPTION
1 5-2268 ASSEMBLY, Front Tire & Rim (Complete)
(Includes Items 2, 3, 4, 6, 12)
-- 5-2267 ASSEMBLY, Front Tire & Rim (Includes Items 2 Thru 6)
2 2-3828 TIRE, 4.10/3.50 x 4
3 1-7146 RIM (For 4.10/3.50 x 4 Tire)
4 1-1807 BEARING, Ball
5 1-2234 VALVE, Air (Snap-in)
6 1-4669 FITTING Lube
7 1-0935 WASHER
8 1-1022 CAP, Hub
9 1-1032 SEAL, Felt
10 3-1038 CAP, Dust
11 9-1516 PIN, 5/32 x 1" Cotter
12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
7
12
5
6
10
7
2
9
4
3
4
11 8
1 ASSEMBLY

3
WHEELS - REAR
ITEM PART NO. DESCRIPTION
1 5-2269 ASSEMBLY, Rear Tire & Rim (Includes Items 2A, 3A, & 4) (25" Models)
-- 5-2270 ASSEMBLY, Rear Tire & Rim (Includes Items 2B, 3B, & 4) (28" Models)
-- 5-2671 ASSEMBLY, Rear Tire & Rim (Includes Items 2C, 3C, & 4) (33" Models)
2A 2-3889* TIRE, Standard, 16-4.80 x 8 (25" Models)
2B 1-5968 TIRE, Wide, 16-6.50 x 8 (28" Models)
2C 2-2584 TIRE, Extra Wide, 16-7.50 x 8 (33" Models)
3A 1-2162 RIM, Standard, (For 16-4.80 x 8 Tire) (25" Models)
3B 1-2163 RIM, Wide, (For 16-6.50 x 8 Tire) (28" Models)
3C 1-7147 RIM, Extra Wide, (For 16/7.50 x 8 Tire) (33" Models)
4 1-2234 VALVE, Air (Snap-in)
5 1-2332 CLAMP, Right Hand (8, 10, 12, 13 & 15HP)
-- 1-4542 CLAMP, Right Hand (13 & 14 HP)
6 9-1502 BOLT, 1/2-20 x 3/4" Lug, Grade 5 (6)
7 3-1732 BOOT, Right Hand (8, 10, 12 & 13HP)
-- 1-4541 BOOT, Right Hand (13, 14 & 15 HP)
8 1-1817 SEAL, Oil
9 4-0433 HUB, Rear Wheel (Right Hand)
10 2-3895 CAP, Hub
11 4-0434 HUB, Rear Wheel
12 1-1201 NUT, 5/16-24 Hex Center Lock
13 1-1035 BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
14 1-1013 BOLT, 5/16-24 x 2" Tapered (Right Hand)
15 1-4662 SEAL, Oil (Left Hand)
16 1-2332 CLAMP, (Left Hand) (13 & 14 HP)
17 1-4658 BOOT, Ball Bearing Models (Left Hand) (13 14 & 15HP Engines)
17A 3-5918 BOOT, Standard Models (Left Hand) (8, 10, 12 & 13HP Engines)
18 2-3522 CAP, Hub (Left Hand)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
*NOTE: 2-3889 accepts part
# 1-0525 TUBE, 16-4.80
(optional)
4
1 ASSEMBLY
16
15
17, 17A
12
11
18 6
13
14
10
12
9
5
2A, 2B, 2C
3A, 3B, 3C

4

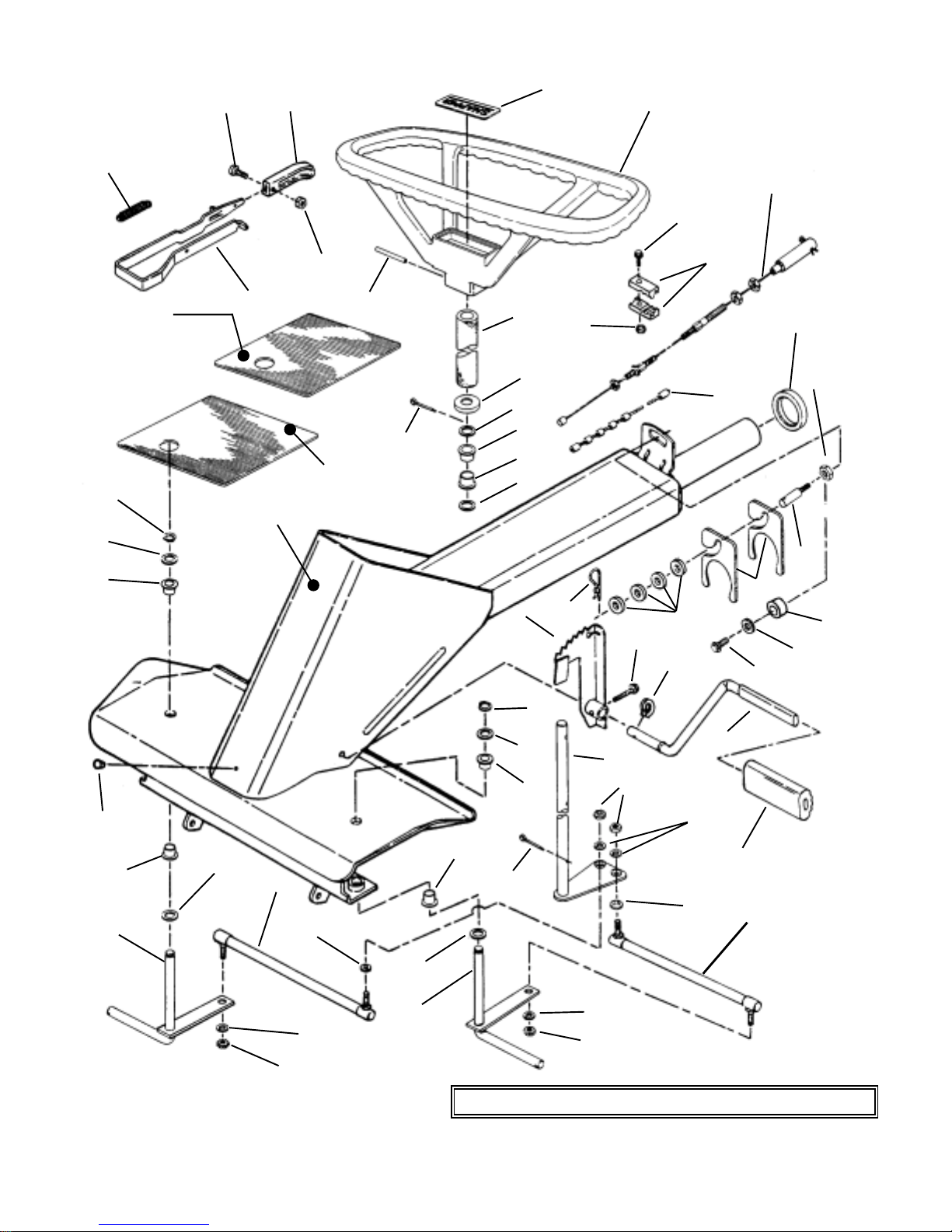

FRONT END STEERING
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
5
4
76
8
18
(33” MODELS)
16
14
15
20
51
50
49
31
39
9
30
32
20
14
19
20
14
19
26
*NOTE: These parts are used on the 25” Model Only.
14
20
11
17
41
10
40
45
42
43
1
2
46
23
22
23 29
22
23
27
14
16
20
29
23
22
23
14
13
12
3
44*
37*
OR
33*
38*
47*
18
(25” & 28”
MODELS)

5
FRONT END STEERING
ITEM PART NO. DESCRIPTION
1 5-1941 ASSEMBLY, Steering
Wheel (Includes Item 2)
2 2-3781 LOGO, SNAPPER
3 1-3862* PIN, 1/4 x 1-1/2" Roll
4 3-3882 LEVER, Clutch/Brake
5 2-3666 SPRING
6 2-3655 GRIP, Lever
7 9-1017 SCREW, #8-32 x 3/8"
Cross Recess
8 9-1018 NUT, #8-32 Hex
9 4-1476 ARM, Clutch/Brake
10 2-2372 SPACER, Main Tube
11 1-6704 FASTENER, Panel
12 2-3667* COVER, Steering Shaft
(Foam)
13 2-3671* COVER
14 1-0935 WASHER, 3/4 Flat
15 1-9166 BUSHING, 3/4" Steering
Shaft
16 9-1515* COTTER-PIN, 3/16 x
1-1/2” (2)
17 4-1654 WELDMENT, Front Frame
(25" & 28" Models)
-- 4-1653 WELDMENT, Front Frame
(33" Models)
18 2-3660 PAD, Foot (Right Side)
(25" & 28" Models Shown)
-- 2-3663 PAD, Foot (Right Side)
(33" Model Shown)
-- 2-3659 PAD, Foot (Left Side) (25”
& 28" Models - Not Shown)
-- 2-3662 PAD, Foot (Left Side) (33”
Model - Not Shown)
19 1-0746 RING, 5/8” Ext. Retaining (2)
20 1-0986 BEARING, Nylon (5)
21 4-1688 PIN, Narrow King (Right
Side)
22 9-1297* NUT, 5/16-24 Hex (4)
ITEM PART NO. DESCRIPTION
23 9-1315* WASHER, 5/16 Split Lock (4)
24 1-3321 BUSHING, Nylon (4)
25 4-1687 PIN, Narrow King (Left Side)
26 4-1686 PIN, Wide King (Right Side)
27 4-1685 PIN, Wide King (Left Side)
28 9-1516 COTTER-PIN, 5/32 x 1" (2)
29 2-4935 TIE-ROD (33” Models) (2)
30 2-4735 PEDAL, Clutch/Brake
31 1-0739 RING, 5/8” External Retaining
32 1-2661 PAD, Clutch/Brake Pedal
33 2-8395 SPACER, Pivot
34 4-1381 SHAFT, Steering (Narrow
Front End)
35 2-4915 TIE-ROD, Left Side
(25" & 28" Models)
36 2-4916 TIE-ROD, Right Side
(25" & 28" Models)
37 2-8332 STUD, 3/8-24 x 5/8"
Shoulder
38 2-2881 SPACER (2)
39 9-1151 SCREW, 5/16-18 x 1-1/4"
Hex Washer Self-Tapping
40 2-2344 CABLE, Brake (Series 16) (shown)
-- 7-1909 CABLE, Brake (Ser. 18)
41 2-9913 CABLE, Clutch
42 3-4174 UNION, Cable
43 9-1495 BOLT, 1/4-20 x 3/4" Hex
Flange Lock
44 9-0854 NUT, 3/8-24 Hex Nyloc
45 9-0372* NUT, 1/4-20 Hex Center Lock
46 4-1553 SHAFT, Steering (Wide
Front End)
47 1-2867 HAIRPIN, 1/8 x 2-9/16”
48 9-1514 WASHER, 3/8 Flat
49 9-1198 SCREW, 3/8-16 x 5/8”
Self-Tapping
50 9-0517 WASHER, 3/8 Flat
51 2-8774 SPACER, .39 x .625 x .19
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
*NOTE: These items are in 6-1792 Hardware Bag (see page 43 for complete list of hardware bag components).

6
18
36
37
38
39
34
2
4
6
36
37
38
39
1
9
43
7
5
35
37
10
33
29
30
23
3
42
29
38
39
15
28
8
27
29
14
16
17
26
27
25
20
24
29
41
38
39
11
39
38
22 32
31
21
13
19
12
5
9
7
34
40
35
43

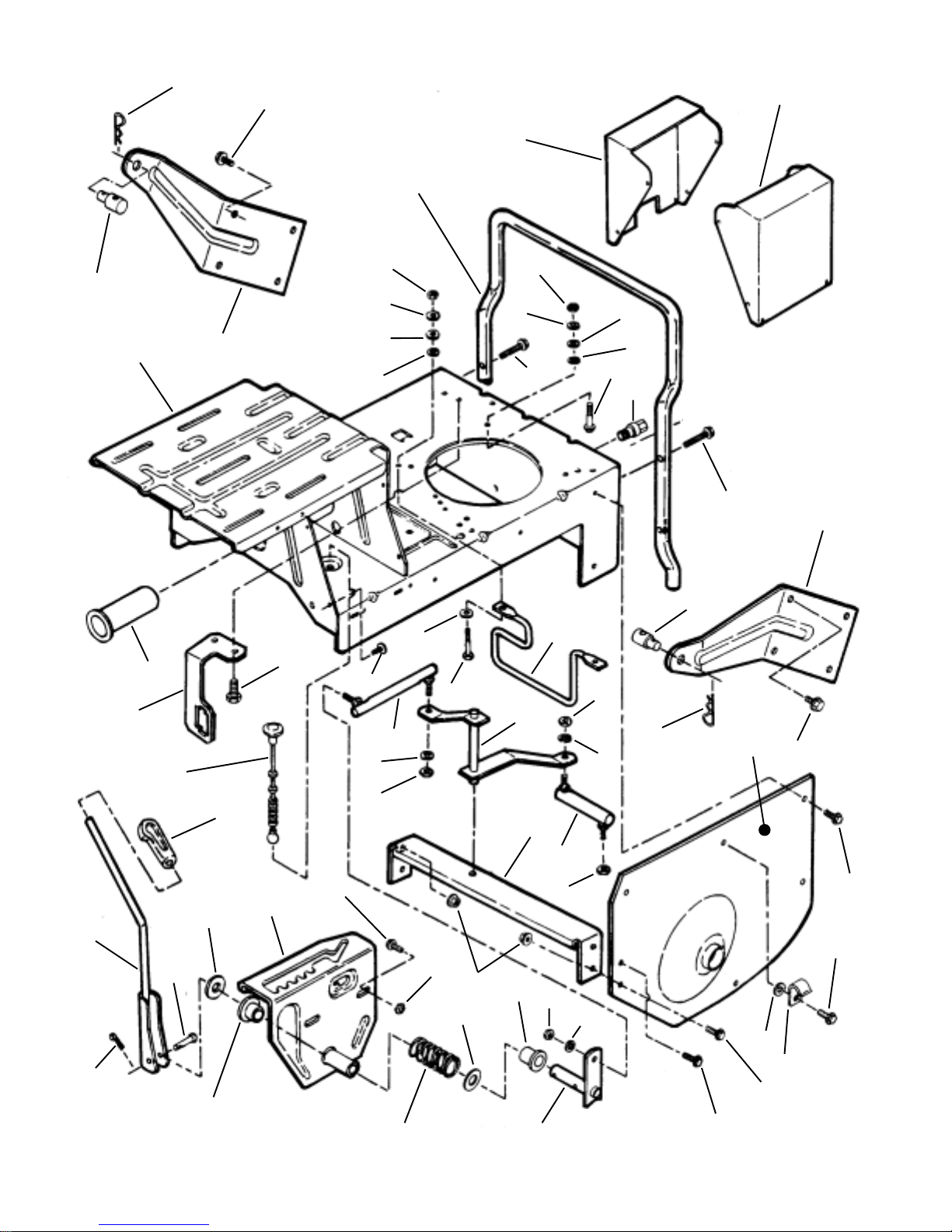

MAIN CASE (Solid Seat Mount)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18

7
MAIN CASE (Solid Seat Mount)
ITEM PART NO. DESCRIPTION
1 4-2701 CASE, Main (Standard) (8 & 10HP)
2 3-6367 BUMPER, Rear
3 -- FENDER, Left Hand (See page 12 for related parts)
4 2-8990 COVER, Battery
5 2-8200 SWIVEL (2)
6 2-8989 COVER, Switch
7 3-4299 WING, Rear (2) (Models 28” & 33” Only!)
8 9-0585 NUT, 5/16-18 Hex Flange Lock (2)
9 9-0793 SCREW, 5/16-18 x 3/4” Self-Tapping (4)
10 2-3676 LINK, Shift (Long)
11 4-1384 ARM, Shift
12 3-3799 BRACE, Cross
13 1-1018 LINK, Shift (Short)
14 9-0196 NUT, 5/16-18 Hex (2)
15 4-0598 ARM, Shift Handle
16 1-0754 SPRING, Shift Handle
17 4-1232 DETENT, Shift
18 4-0599 HANDLE, Shift
19 1-0969 NUT, Hex Large Flange Lock 5/16-24
20 2-3656 KNOB, Shift Handle
21 2-7429 CABLE, Deck Support (5.5”) (25” Models Only!)
22 2-2509 BUSHING, Pilot
23 9-0391 WASHER, 5/16 Internal Tooth Lock
24 9-0037 COTTER-PIN, 3/32 x 3/4"
25 2-3914 PIN, 1/4 x 1-3/4" Tapered Clevis
26 1-9245 BUSHING, Nylon
27 3-1036 WASHER, Thrust (2)
28 1-9246 BUSHING, Nylon (2)
29 9-0361 SCREW, 5/16-18 x 5/8" Self-Tapping (14)
30 1-2652 CLIP, Wire
31 3-4724 BRACKET, Switch
32 9-0981 SCREW, Self Tapping, 10-32 x 1/4”
33 9-1272 FASTENER, 1/4x3/4 Ratchet (6)
34 9-1506 SCREW, 5/16-18 x 1-1/2" Self-Tapping (4)
35 9-1513 SCREW, 5/16-24 x 1-3/4" Hex Head Cap (4)
36 1-1791 RETAINER, 5/16 Bolt (4)
37 9-1296 WASHER, 5/16" Flat (4)
38 9-1315 WASHER, 5/16" Split Lock (8)
39 9-1297 NUT, 5/16-24 Hex (8)
40 2-2486 DRAIN, Oil (Short)
41 1-7653 GUIDE, Belt (25" Models)
-- 3-5971 GUIDE, Belt (28” Models)
42 9-0206 SCREW, 5/16-18 x 3/4” Hex Cap (2)
43 9-1503 HAIRPIN, 3/32 x 1-1/2” (2)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

8
MAIN CASE (Hinged Seat Mount)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
54
29
30
42
35
34
36
6
4
51
34
31
2
1
19
45
41B
38
39
40
21
97
53
44
3
5
13
38
39
28
27
16
14
29
17
26
27
25
20
18
24
12
41A
35
37
46
47
33
10
11
39
38
8
22
29
23
37
38
39
36
37
38
39
36
50
49
52
48
32
38
44
938
7
53
43
39 6

9
MAIN CASE (Hinged Seat Mount)
ITEM PART NO. DESCRIPTION
1 4-2700 CASE, Main (13 HP Briggs)
-- 4-2702 CASE, Main (14 HP Kohler)
2 3-6367 BUMPER, Rear
3 3-7285 FENDER, Left Hand (See page
12 for related parts) (Briggs)
-- 3-7958 FENDER, Left Hand
(Kohler Engine)
4 2-8990 COVER, Battery
5 1-0969 NUT, 5/16-24 Hex Flange Lock
6 2-8989 COVER, Switch
7 3-4299 WING, Rear (Models 28” & 33”
Only!) (2)
8 9-0585 NUT, 5/16-18 Hex Fl. Lock (2)
9 9-0793 SCREW, 5/16-18 x 3/4” Hex
Washer Self-Tap (4)
10 2-3676 LINK, Shift (Long)
11 4-1384 ARM, Shift
12 3-3799 BRACE, Cross
13 1-1018 LINK, Shift (Short)
14 9-0196 NUT, 5/16-18 Hex (2)
15 4-0598 ARM, Shift Handle
16 1-0754 SPRING, Shift Handle
17 4-1232 DETENT, Shift
18 4-0599 HANDLE, Shift
19 2-3354 SWITCH, Seat
20 2-3656 KNOB, Shift Handle
21 3-4724 BRACKET, Switch
22 2-2509 BUSHING, Pilot
23 9-0391 WASHER, 5/16 Internal Tooth
Lock
24 9-0037 PIN, 3/32 x 3/4" Cotter
25 2-3914 PIN, 1/4 x 1-3/4" Tapered
Clevis
26 1-9245 BUSHING, Nylon
27 3-1036 WASHER, Thrust (2)
28 1-9246 BUSHING, Nylon (2)
29 9-0361 SCREW, 5/16-18 x 5/8" Hex
Washer Self-Tap (13)
ITEM PART NO. DESCRIPTION
30 1-2652 CLIP, Wire (7/16”)
31 2-7972 DRAIN, Oil (1/4 Turn) (Kohler)
32 7-7692 BOLT, M8-1.25 x 25mm, Self-
Tap (Kohler)
33 9-1272 FASTENER, 1/4 x 3/4 Ratchet
(6)
34 9-1506 SCREW, 5/16-18 x 1-1/2" Hex
Washer Self-Tap (4)
35 9-1513 SCREW, 5/16-24 x 1-3/4" Hex
Head Cap, Grade 5 (4)
36 1-1791 RETAINER, 5/16 Bolt (4)
37 9-1296 WASHER, 5/16" Flat (4)
38 9-1315 WASHER, 5/16" Split Lock (8)
39 9-1297 NUT, 5/16-24 Hex (8)
40 9-1080 SCREW, #10-24 x 1/4”Hex
Washer Self Tap (2)
41A 3-6419 GUIDE, Belt (33” Kohler)
41B 3-5971 GUIDE, Belt (28” Briggs)
42 9-0238 SCREW, 5/16-24 x 1” Hex
Head Cap, Grade 5 (4)
*43 3-4093 PLATE, Engine
44 2-8200 SWIVEL (2)
45 3-4664 PLATE, Seat
46 2-8656 PIN, Hinge
47 9-0360 PIN, 1/16 x 3/4”, Cotter
48 2-8540 CUSHION
49 2-8657 SPRING, Seat O.P.C.
50 9-0999 SCREW, 1/4-20 x 5/8” Self-
Tap, Truss Head, Torx
51 2-2486 DRAIN, Oil (Briggs)
52 9-1294 WASHER, 9/32” I.D. x 5/8”
O.D.
53 9-1503 HAIRPIN, 3/32 x 1-1/2” (2)
54 9-0206 SCREW, 5/16-18 x 3/4” Hex
Head Cap, Grade 5 (2)
* NOTE: ITEM 43 IS USED ON 14 HP KOHLER
ENGINES ONLY!
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

10
DIFFERENTIAL, R. H. FENDER
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
24
25
23
27
28
15
14
12
13
11
28
27
16
17
31
30
29
16
18
19
20
33
32
21
35
22
122
A
4
34
526
7
6
8
9
10
6
7

11
DIFFERENTIAL, R. H. FENDER
ITEM PART NO. DESCRIPTION
1 1-4401 COLLAR, Lock (Includes P.N. 9-0201 Set screw)
2 1-8822 BALL BEARING, Axle (R. H. Fender) (33” Models - 13 & 14 HP)
2A 1-2296 BEARING, Axle (R. H. Fender) (25” & 28” Models – 8, 10 & 13HP)
3 1-0969 NUT, 5/16-24 Hex Flange Lock
4 3-1079 WASHER, Thrust
5 3-8067 PLATE, Differential
6 2-2115 SPACER, Pinion (4)
7 2-1127 GEARS, Differential Pinion
8 1-1072 WASHER, Thrust
9 5-1584 ASSEMBLY, Drive Hex Tube
10 1-0988 WASHER, Hex Nylon Splash
11 1-0964 GEAR, 11 Teeth-10 Pitch
12 1-0941 CHAIN, 46 Pitch (#35)
13 2-1129 SPROCKET
14 1-0965 RING, Retaining
15 2-1128 SPACER
16 1-2332 CLAMP, Boot (2)
17 1-7083 BOOT, Oil Seal
18 1-1024 PLUG, Oil Fill & Check
19 3-7279 CASE, Transmission
20 2-8762 GASKET, Transmission Case
21 3-7957 FENDER, Right Hand ( 33” Ball Bearing Differential Models)
(2.498” hole)
-- 3-7280 FENDER, Right Hand (25” & 28” Bushing Differential Models)
(1.62” hole)
22 2-1158 GEAR, 63 Teeth-10 Pitch
23 4-7763 AXLE, Long (Includes Gear) (Use Only With Short Axle P.N. 5-7398)
24 1-1026 SPACER
25 5-7398 AXLE, Short (Includes Gear) (Use Only With Long Axle P.N. 4-7763)
26 1-2333 SCREW, 5/16-24 x 1-5/8" Hex Cap Special Lock (4)
27 1-1156 O-RING, 5/16 (2)
28 1-1782 WASHER, Belleville (2)
29 9-0395 WASHER, 5/16 External Tooth Lock
30 9-0188 WASHER, 5/16 Flat
31 1-1042 BOLT, 5/16-24 x 2-5/8" Idler
32 9-0361 SCREW, 5/16-18 x 5/8" Self-Tapping (11)
33 9-0362 SCREW, 1/4-20 x 5/8" Self-Tapping (13)
34 3-2107 SPACER, Short Axle
35 6-1017 GREASE, Transmission
-- 6-0411 KIT, Differential (Includes items 2A & 3-7280 Fender)
-- 6-0662 KIT, Differential (Includes items 2 & 3-7957 Fender)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

12
CHAIN CASE, L. H. FENDER
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
215
16
13
3
9
10
11
9
10
8
5
28
6
7
12
31
28
5
4
26
22
25 24
23
22 29
32
30
20
19
17
27 18
21
33
14
1 ASSEMBLY

13
CHAIN CASE, L. H. FENDER
ITEM PART NO. DESCRIPTION
1 5-2683 ASSEMBLY, Chain Case
(Includes Items 2 Thru 13,15,16, & 31 Thru 33)
2 4-1136 CASE, Sprocket
3 2-8761 GASKET, Case Cover
4 1-1121 WASHER, Belleville (2)
5 1-0756 BEARING, Ball (2)
6 1-8963 SPROCKET & SHAFT
7 1-0614 KEY, 1/8 x 5/8" Woodruff
8 3-9778 COVER, Chain Case
9 1-0942 BEARING, Needle (2)
10 1-1086 WASHER, Nylon Thrust (2)
11 4-0355 HUB & SPROCKET
12 1-0941 CHAIN
13 9-0307 SCREW, #10-24 x 5/8" Hex Washer Self-Tap (10)
14 1-1024 PLUG, Oil Fill & Check
15 2-2785 ROLLER
16 1-0776 RING, 1/2” External Retaining (Heavy Duty)
17 3-7285 FENDER, Left Hand (25” & 28” Models) (1.628” I. D. hole)
-- 3-7958 FENDER, Left Hand (33” Models ) (1.744” I. D. hole)
18 1-4625 COLLAR, Lock (Includes P.N. 9-0776 Set Screw, 1/4-20 x 1/4")
(Used with ball bearing, item 32, only)
19 5-0918 BEARING, Left Hand Fender (Includes Item 20)
(25” & 28” Models, 8 & 10 HP)
20 1-3324 FITTING, Lube
21 1-1070 ROD, Cross-Tie
22 1-2332 CLAMP, Boot (2)
23 1-7084 BOOT, Oil Seal
24 1-1071 WASHER, Thrust Nylon
25 1-1072 WASHER, Thrust
26 9-1505 NUT, 5/8-18 Hex Nyloc
27 1-0969 NUT, 5/16-24 Hex Flange Lock
28 1-9260 O-RING (2)
29 2-3447 SPACER
30 1-2271 WASHER, Shim (As Required)
31 2-7981 WASHER, Shim (6)
32 1-4624 BALL BEARING, Left Hand Fender (33” Models)
-- 5-1451 ASSEMBLY, Left Hand Fender (Includes Fender P.N. 3-7958 &
Bearing P.N. 1-4624) (33” Models, 13 & 14 HP)
33 6-1017 GREASE, Transmission (Use 2 oz. maximum)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
NOTE: See Pages 14 & 15 For Illustration Of Brake Lever Assembly & Related Parts.

14
SMOOTH CLUTCH ASSEMBLY
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
1 ASSEMBLY SILHOUETTE OF
BRAKE CABLE
See Page 4
CLUTCH CABLE
ATTACHMENT HOLE
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
16
17
21

15
SMOOTH CLUTCH ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-3114 ASSEMBLY, Smooth Clutch (Includes Items 2 Thru 6)
2 5-4243 HUB, Driven Disc
3 5-3103 DISC, Driven
4 1-4523 WASHER, Thrust
5 3-2331 PLATE
6 9-0585 NUT, 5/16-18 Hex Flange Lock (4)
7 5-2497 ASSEMBLY, Brake Lever (Includes Brake Lining & Rivet)
8 1-2313 RING, 3/8” External Retaining
9 9-0303 NUT, 1/4-28 Hex Top Lock
10 9-1294 WASHER, 1/4 Flat (3)
11 1-0916 SPACER
12 9-1504 SCREW, 1/4-28 x 1" Hex Head Cap, Grade 5
13 2-2371 SPRING, Brake Return
14 1-2264 SPRING, Clutch Brake
15 3-3292 LIFT, Yoke
16 1-1048 BEARING, Yoke (2)
17 1-1201 NUT, 5/16-24 Hex Center Lock (2)
18 9-0238 SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5 (2)
19 9-1198 SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
20 3-3291 COLLAR, Yoke
21 1-1763 WASHER, 5/16 Flat (2)
22 3-4725 ARM, Yoke
23 9-1084 SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap (2)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

16
CUTTING DECKS, DEFLECTORS
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
24
29
35
32
28
34
1
2
10
25
14
7
5
9
6
3, 11
4
36
13
SILHOUETTE OF
RAILS & LIFT ARMS
ASSEMBLY (See
Pa
g
es 18 & 19
)
23
8
33
33
26
38
39 27
21
22
37
21
22
20
15
17
16
18
19
40
12
30
31

17
CUTTING DECKS, DEFLECTORS
ITEM PART NO. DESCRIPTION
1 2-8994 COVER, Spindle
2 6-1969 DECK, 25” Replacement (Painted deck with decals)
-- 6-1970 DECK, 28” Replacement (Painted deck with decals)
-- 6-1972 DECK, 33” Replacement (Painted deck with decals)
3 5-2555 DEFLECTOR, Discharge (28" & 33" Deck) (Includes Items 4, 5, 6, 7 & 10)
4 2-2841 DECAL, DANGER (Cut Finger)
5 3-3780 HINGE, Deflector
6 1-6341 SPRING, Hinge
7 2-6234 PIN, Hinge
8 9-1070 NUT, 5/16-18 Hex Flange Lock
9 9-0583 NUT, 1/4-20 Hex Flange Lock
10 2-6483 NUT, Push (2)
11 5-1976 DEFLECTOR, Discharge (25" Deck) (Includes Item 4)
-- 5-7624 ASSEMBLY, Discharge (25" Deck)(Incl. 25” Side Chute, Hinge Ass’y & Decal)
12 9-1015 SCREW, 1/4-20 x 3-1/2” Hex Washer Self-Tap, Gr. 5 (2)
13 9-1296 WASHER, 5/16 Flat (2)
14 9-0584 BOLT, 1/4-20 x 1/2” Hex Flange Lock
15 6-0480 KIT, Air Lift (25", 28” & 33" Models) (Includes 16 Thru 19)
16 3-7723 AIR-LIFT (2) (25", 33" Models)
17 9-0228 SCREW, 5/16-24 x 11/16" Machine (6)
18 9-0391 WASHER, 5/16-24 Internal Tooth Lock (6)
19 9-0223 NUT, 5/16-24 Hex (6)
20 9-0392 SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5 (2)
21 9-0509 WASHER, 1/2 Internal Tooth Lock (2)
22 9-0559 NUT, 1/2-20 Hex Jam (2)
23 9-1508 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 (2)
24 9-1016 SCREW, 1/4-20 x 5/8" Hex Self-Tap w/ Captured Washer (4)
25 9-1510 BOLT, 5/16-18 x 1/2" Hex Flange Lock (3)
26 1-6968 COVER, 25" Mulcher
-- 1-6983 COVER, 28" Mulcher
-- 1-6984 COVER, 33" Mulcher
27 9-0613 NUT, 3/18-16 Hex Flange Lock (9)
28 9-1518 NUT, 3/8-24 Hex Nyloc (3)
29 9-1532 SCREW, 38-24 x 3-3/4” Hex Head Cap, Grade 5 (3)
30 1-9190 WHEEL, Gage (3)
31 1-5272 SPACER (3)
32 3-3570 BRACKET, Gage Wheel (Front)
33 3-3571 BRACKET, Gage Wheel (Rear) (2)
34 9-0731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5 (6)
35 9-1070 NUT, 5/16-18 Hex Flange Lock (8)
36 9-0492 NUT, 5/16-18 Wing (2)
37 9-0612 BOLT, 3/8-16 x 3/4” Hex Flange Lock (3)
38 1-6967 BLADE, 25" Mulcher
-- 1-6980 BLADE, 28" Mulcher
-- 1-6982 BLADE, 33” Mulcher
39 1-9518 25" BLADE
-- 1-9515 28" BLADE
-- 1-9523 33" BLADE
40 2-9143 BLADE, Ninja, 25”
-- 2-6453 BLADE, Ninja, 28”
-- 2-4741 BLADE, Ninja, 33”
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

18
RAILS, LIFT ARMS, CAM LIFT
(25”, 28”, & 33” Models) (Series 16)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
42
29A
21
46
49
47
50
23
18
24
25
32
21
36
54
3
19
28
53
10
41
821
43
30
13
17
11
26
22
7
6
12
2
29B
9A, 9B
51
43
52 42
26
28
45 31
44
20
16
14
1
27
15
33
5
38
34
4
39
37
35
50
47
49
31
44
20
48
40
55

19
(25”, 28” & 33” Models) (Series 16)
ITEM PART NO. DESCRIPTION
1 4-1389 ARM, Rear Lift (25” Deck Only)
2 1-6122 ROD, Leveling
3 4-2649 WELDMENT, Quadrant,5 Position
4 2-4914 SPRING, Extension
5 2-4878 LEVER, Lift
6 3-1838 BRACE, Top
7 3-1855 GUIDE, Belt
8 3-4918 RAIL, Left Hand
9A 3-6430 RAIL, R.H. (25” Deck)
9B 4-3848 RAIL, R.H. (28”, 30” & 33” Decks)
10 9-0815 SCREW, 3/8-16 x 3/4” Hex
Washer Head Self-Tap
11 4-0685 ARM, Front Lift, Adjustable (28”,
30 & 33” Decks)
12 2-2717 ROD, Support (Front Lift Arm to
Front End)
13 1-7847 SNAP RING, 7/16” External
14 3-3008 ARM, Leveling (25” Deck)
15 2-3658 GRIP, Height Adjustment Lever
16 9-1001 SCREW, 5/16-18 x 5/8” Truss
Head Self-Tap (Torx) (2)
17 9-0365 PIN, 1/8 x 3/4” Cotter
18 2-5049 HUB, Deck Lift
19 2-6394 COVER, Height of Cut
20 9-0854 NUT, 3/8-24 Hex Nyloc
21 9-1198 SCREW, 3/8-16 x 5/8”
Hex Washer Self-Tap (6)
22 9-0361 SCREW, 5/16-18 x 5/8” Hex
Washer Self-Tap
23 9-1164 BOLT, 5/16-24 x 1-5/8” Tapered
Axle
24 9-0480 NUT, 5/16-24 Hex Flange Lock
25 1-3550 PIN, 3/16 x 1” Roll
26 1-2067 RING, Red (2)
27 2-7429 CABLE, Rear Deck (25” Deck)
28 2-2112 RING, White (2) (25” Deck)
29A 2-4762 BRACKET, Deck Lift (25” Deck
Only!)
29B 3-4695 BRACKET, Lift Assist (28”, 30” &
33” Decks)
ITEM PART NO. DESCRIPTION
30 3-2997 ARM, Front Lift-Left (28, 30” &
33” Decks)
31 3-4213 PIVOT, Leveling
32 9-1084 SCREW, 1/4-20 x 3/4” Hex
Washer Self-Tap
33 9-0844 PIN, 3/16 x 3/4” Roll
34 1-9410 SPRING, Latch (Black)
35 4-1470 WELDMENT, Latch
36 2-6286 GRIP, Lift Latch
37 1-1021 PIN, 1/4 x 1-1/4” Clevis
38 9-0360 PIN, 1/16 x 3/4” Cotter
39 9-0753 PIN, 3/16 x 1-1/2” Cotter
40 9-0858 SCREW, 5/16-18 x 1/2” Hex
Washer Self-Tap
41 9-1016 SCREW, 1/4-20 x 5/8” Hex
Washer Self-Tap
42 9-0606 BOLT, 5/16-18 x 5/8” Hex Flange
Lock (3)
43 9-0585 NUT, 5/16-18 Hex Flange Lock(3)
44 9-0122 WASHER, 3/8” Flat
45 4-1627 WELDMENT, Rear Lift Arm
(28”, 30” & 33” Decks)
46 1-2068 RING, Blue
47 2-8200 SWIVEL
48 2-8021 COVER, Chain
49 9-1503 HAIRPIN, 3/32 x 1-1/2”
50 2-8728 ADJUSTER, Chain (2)
51 9-0584 BOLT, 1/4-20 x 1/2” Hex Flange
Lock
52 9-0583 NUT, 1/4-20 Hex Flange Lock
53 3-5787 ECCENTRIC, Height-of-Cut
54 9-0357 COTTER-PIN, 3/16 x 3/4”
55 5-3923 ASSEMBLY, Clutch Plate
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103

20
29A
21
46
49
47
50
23
18
24
25
32
21
36
54
3
19
28
53
10
41
821
43
30
13
17
11
26
22
76
12
2
29B
9A, 9B
51
52 42
26
28
45 31
44
20
16
14
1
27
15
33
5
38
34
4
39
37
35
50
47
49
31
44
20
48
40
59
42
56
55
58
57
RAILS, LIFT ARMS, CAM LIFT
(28” & 33” Models) (Series 18)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
