Parts Manual fo
r
24HP & 26HP HYDRO DRIVE ZTR
355Z, 360Z & 365Z SERIES
Revision: J 3/30/2011
Briggs & Stratton Yard Power Products Group
Manual No. 5101225
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Descri
p
tionModel No.
5900681 355ZB2444
5900775 355ZB2446
5900682 355ZB2450
5900685 355ZB2450CE
5900760 360ZB2450CE
590094
6
365ZB2652CE

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
TP 400-5275-J-HZ-N
24HP & 26HP HYDRO DRIVE ZTR
3
Manual No. 5101225
PAGE GROUP
4Wheel & Tire Group
6Main Frame & Front Suspension Group
8Seat & Floor Plate Group
10 Fuel Tank & Mount Group
12 Engine & PTO Group - 24 HP Briggs & Stratton
14 Engine & PTO Group - 26 HP Briggs & Stratton
16 Evap Canister Group

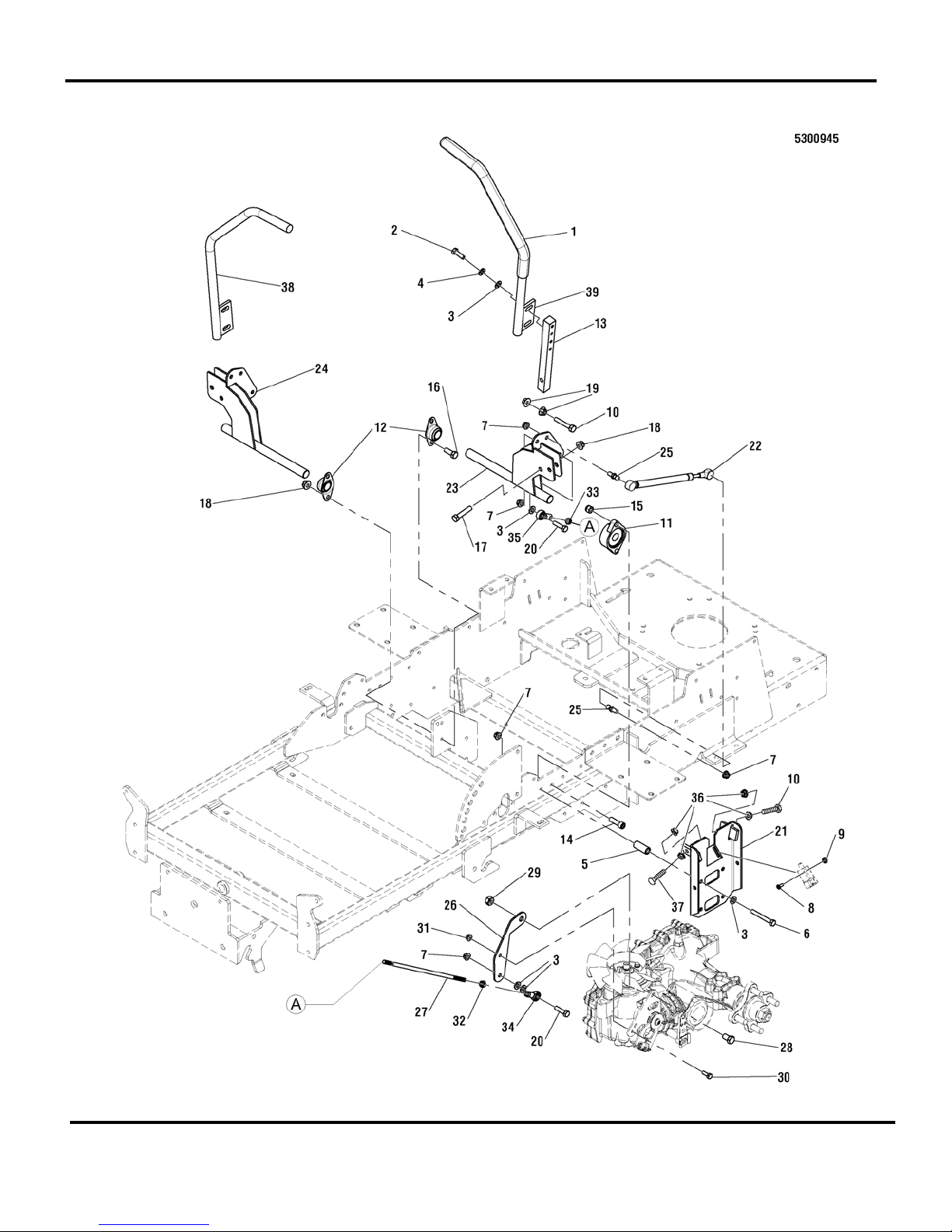

18 Motion Control Group
20 Parking Brake Group
22 Pump Drive Group
24 Hydraulic Group
26 Transmission SERVICE PARTS
28 Rear Bumper Group
30 Deck Lift Group
34 44" & 50" Mower Deck - Belt & Idler Group
36 44" & 50" Mower Deck - Housing, Arbors & Blades Group
40 44" & 50" Mower Deck - Rollers Group
42 46" Mower Deck Group - Pulleys, Belts & Idler Arm
44 46" Mower Deck Group - Housing, Covers, Spindles & Blades
46 46" Mower Deck Group - Rollers
48 52" Mower Deck - Pulleys, Belt & Idler Arm Group
50 52" Mower Deck - Housing, Spindles & Blades Group
52 52" Mower Deck - Rollers & Casters Group
54 Decal Group - Brand & Model
56 Decal Group - Safety & Common
58 Decal Group - Safety & Common (355Z & 360Z Export Models)
60 Decal Group - Safety & Common (365Z Export Models)
62 Instrument Control Panel Group
64 Electrical Group
66 Wiring Schematic - 24 HP Briggs & Stratton
68 Wiring Schematic - 26 HP Briggs & Stratton

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
4
Wheel & Tire Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
5
Wheel & Tire Group
Part No Descri
p
tionItem Qty
1 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
2 2172353 2 VALVE STEM & CAP ASSEMBLY (SV)
3 5101418X1 4 BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV) (Two per wheel)
4 5021043 4 BEARING, RETAINER (SV) (Two per wheel)
5 5045996 2 CASTER AXLE DDSH
6 5025158 2 WASHER, 1/2 SAE
7 5025017X52 2 BOLT, 1/2-13 X 6-1/2 GD8 YZ
8 5025056 2 NUT, Hex Nylon Lock, 1/2-13
9 5023095 2 WHEEL & TIRE ASSEMBLY, 20 X 8.0 - 10, Complete
10 5020601 8 NUT, 1/2-20, FOR WHEEL BOLT SILVER

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
6
Main Frame & Front Suspension Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
7
Main Frame & Front Suspension Group
Part No Descri
p
tionItem Qty
1 5025392 2 NUT, 5/16-18 HEX NYLOCK FLANGE (360Z & 365Z Models Only)
2 5025011X30 2 BOLT, 5/16-18 X 3-3/4 GD5 (360Z & 365Z Models Only)
3 5025155 4 WASHER, 5/16 SAE (360Z & 365Z Models Only)
4 5025057 6 NUT, 5/16-18 HEX NYLON LOCK (355Z Models Use Qty. 4)
5 5025011X14 2 BOLT, 5/16-18 X 1-3/4 GD5 YZ (360Z & 365Z Models Only)
6 5023213 2 SHOCK (360Z & 365Z Models Only)
7 5402816D 1 WELD, MAINFRAME, SIMPLICITY ZT (360Z & 365Z Models Only)
7 5402896D 1 WELD, MAINFRAME, SNAPPER ZT (355Z Models Only)
8 5025303 4 SCREW, 5/16-18 X 1 FLAT HD SC
9 5100930 2 PAD, FRICTION, .375 X 1.25 X 4.00
10 5025284 1 NUT, 3/4-16 HEX NYLON LOCK
11 5025160 1 WASHER, 3/4 SAE
12 5025265X56 1 BOLT, 3/4-16 X 7" YZ GD5
13 5047489 1 SPACER, .75 X 1.00 X 2.38
14 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
15 5100358 1 PIVOT BEARING, 1.00 X 1.125 OD X .50
16 5400756 1 SPACER, .76X 1.50 X .79
17 5023214 2 CAP, VINYL 1.687 X 1-1/2
18 5020602 2 COLLAR, 1" SPLIT
19 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT
20 5048775D 2 WELD,CASTER YOKE
21 5400962D 1 WELD, PIVOTING FRONT END - ORG
22 5021541 4 BUSHING, FLANGE

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
8
Seat & Floor Plate Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
9
Seat & Floor Plate Group
Part No Descri
p
tionItem Qty
1 5402937D 1 PLATE, SEAT SUPPORT, CONS Z - RED
2 5025011X8 8 BOLT, 5/16-18 X 1 GD 5 YZ
3 5025292 6 WASHER, 5/16 GD. 9 FLAT
4 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
5 7078299 2 SPRING, SEAT SUPPORT
6 5025156 2 WASHER, 3/8 SAE
7 5100999 1 SAFETY WALK, FLOOR PLATE, 17.38 X 11.50
8 5101007 1 SAFETY WALK, FLOOR REST, 17.38 X 6.00
9 5061599 1 SEAT, XB-180, NO LOGO, BLACK
10 5025057 4 NUT, 5/16-18 HEX NYLON LOCK
11 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
12 5402946D 1 WELD, SEAT PLATE - RED
13 5403043D 1 PLATE, FLOOR, CONSUMER Z - RED
14 5403044D 1 PLATE, FLOOR, FRONT, CONS Z - RED
15 35097 6 MOUNT, VIBRATION, 30 DURO
16 197546 4 MOUNT, VIBRATION, RUBBER
17 5025481 6 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD
18 5025013X28 2 BOLT, 3/8-16 X 3-1/2 GD5 YZ
19 5044617 2 WASHER, .34 X 1.25 X 10 GA
20 5025128 4 NUT, 3/8-18 HEX SERRATED FLANGE
21 5021500 1 CLAMP, VINYL INSULATED
22 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ
23 5025154 1 WASHER, 1/4 SAE
24 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE
25 1686907 1 ARM REST, SET OF TWO (SV)
26 5100636 1 SPRING, SEAT ADJUSTMENT (SV)
27 5061599X1 1 KIT, SEAT RAILS. COMPLETE (SV)
28 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
29 5025480 6 WASHER, 3/8" ID, INTERNAL TOOTH
30 5025011X6 1 BOLT, 5/16-18 X 3/4 GDS
31 5025392 1 NUT, 5/16-18 HEX NYLOCK FLANGE
32 5025155 1 WASHER, 5/16 SAE
33 5403372D 1 PLATE, SUPPORT, FRONT FLOOR - RED

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
10

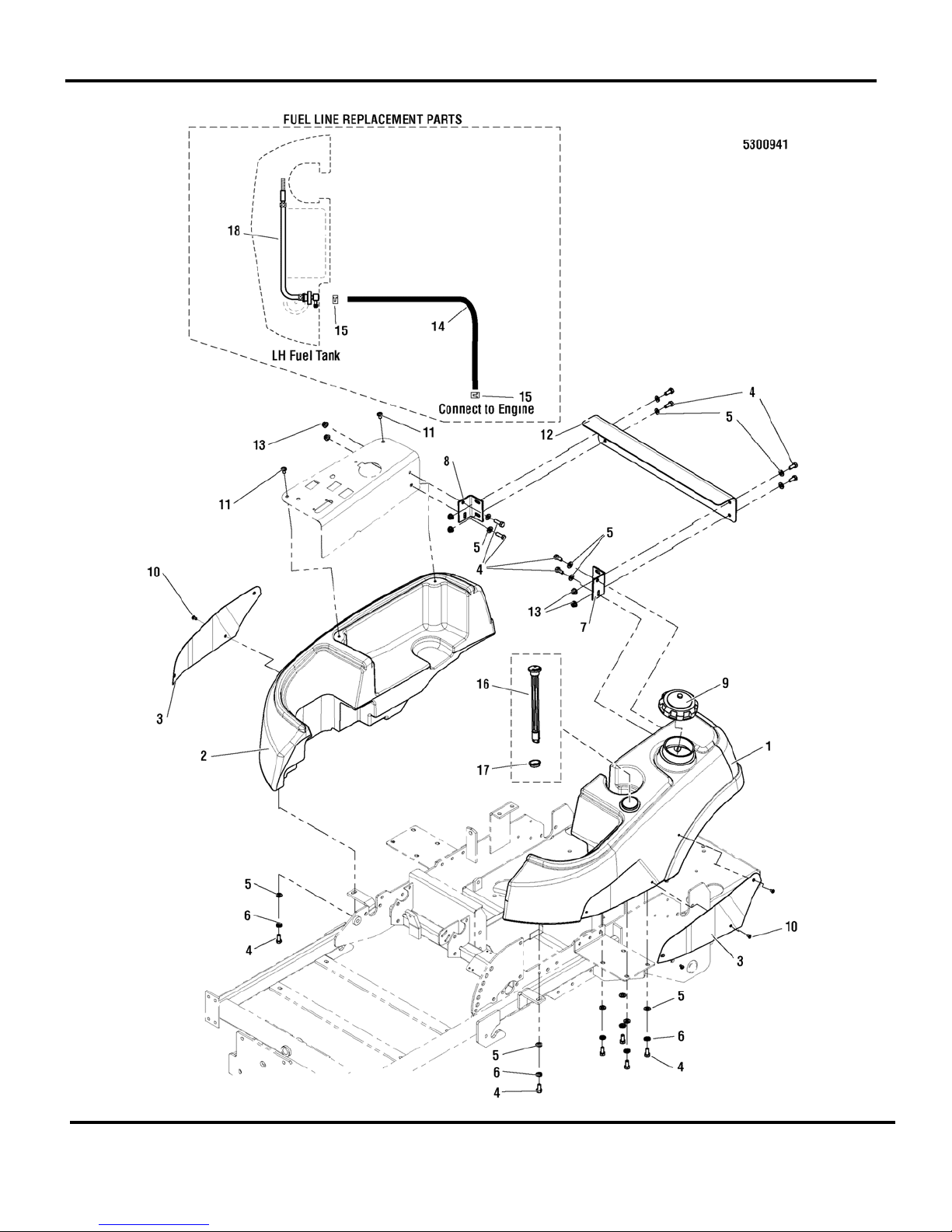

Fuel Tank & Mount Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
11
Fuel Tank & Mount Group
Part No Descri
p
tionItem Qty
1 5101181 1 TANK, FUEL, LH (S/N: 2014648788 & BELOW)
1 5102544 1 TANK, FUEL, LH (S/N: 2014648789 - 2014923025)
1 5102988 1 TANK, FUEL, LH (S/N: 2014923026 & ABOVE)
2 5048752 1 TANK, FUEL, RH
3 5048909D 2 PLATE, FUEL TANK BADGE
4 5025011X6 18 BOLT, 5/16-18 X 3/4 GD5
5 5025155 18 WASHER, 5/16 SAE
6 5025170 10 WASHER, 5/16 LOCK YZ
7 5400836D 1 BRACKET, REAR SUPPORT - LH - RED
8 5048763D 1 BRACKET, REAR SUPPORT - RH
9 5101651 1 FUEL CAP, 3.5", VENTED (S/N: 2014923025 & BELOW)
9 5103005 1 FUEL CAP, 3-1/2", MANAGED VENT OUT, 12" (S/N: 2014923026 & ABOVE)
10 5025386 6 SCREW, #10-24 X 3/8 ALLEN BHBZ
11 5025299X4 2 SCREW, 1/4-20 X 1/2 ALLEN BH
12 5403004D 1 PLATE, SUPPORT, REAR TANK - SNP RED
13 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE
14 5050831X28 1 HOSE, 1/4 FUEL 28" LONG
15 5020835 2 CLAMP, HOSE, EXTERNAL, 1/2 - RED
16 5023197 1 FUEL GAUGE (SV)
17 5022917X1 1 GROMMET (SV)
18 5101190 1 PICK UP TUBE ASSM, FUEL TANK (SV)

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
12

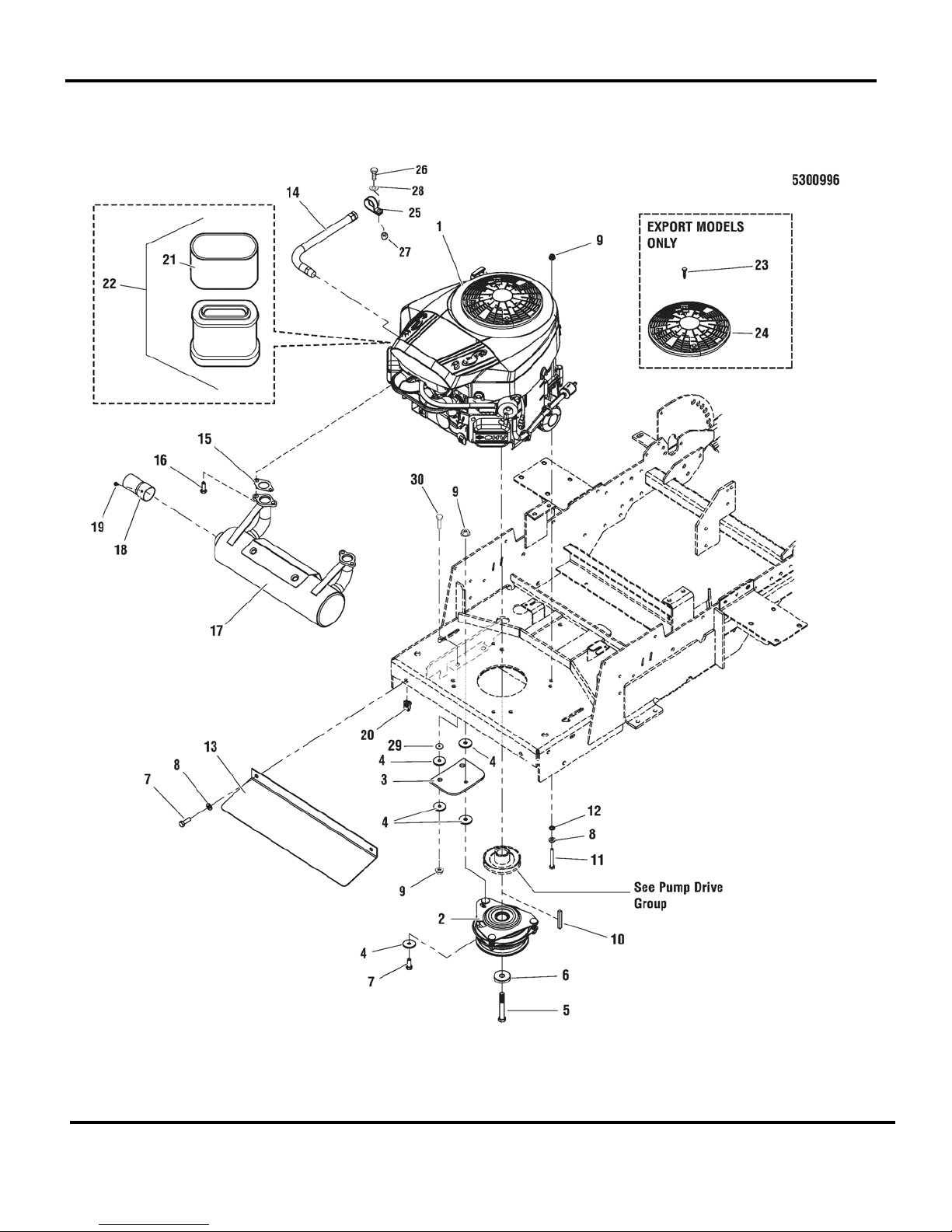

Engine & PTO Group - 24 HP Briggs & Stratton

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
13
Engine & PTO Group - 24 HP Briggs & Stratton
Part No Descri
p
tionItem Qty
1 44M777-0144-G1 1 * ENGINE, 24HP B&S, ELS (was 44M777-0121-E1)
2 5023100 1 CLUTCH, #51110100, ELECTRIC, 1" SHAFT
3 5043636 1 CLUTCH ANCHOR PAD
4 5044617 5 WASHER, .34 X 1.25 X 10 GA
5 5023253 1 CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ
6 5042132 1 SPACER, .45 X 1.62 X .37
7 5025011X8 1 BOLT, 5/16-18 X 1 GD5 YZ
8 5025155 6 WASHER, 5/16 SAE
9 5025392 7 NUT, 5/16-18 HEX NYLOCK FLANGE
10 5050407X18 1 KEY, 1/4" SQ. X 2 1/4
11 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD 5 YZ
12 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
13 5403059D 1 PLATE, HEAT SHIELD - RED
14 5048681 1 HOSE, OIL DRAIN
15 690970 2 GASKET, EXHAUST
16 690341 4 * SCREW, SEM HEX HEAD
17 5100907 1 MUFFLER, B&S-ELS 22-26HP
18 5100969 1 EXTENSION, TAILPIPE, 3"
19 5021808X8 2 SCREW
20 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
21 792303 1 * PRE CLEANER (SV)
22 792105 1 * AIR CLEANER W/ PRE CLEANER (SV) (INCLUDES REF NO 21)
23 95050 1 * SCREW, CROSS RECESSED THREAD (EXPORT MODELS ONLY)
24 793821 1 COVER, STATIC / LABEL ASSY (EXPORT MODELS ONLY)
25 5021500 1 CLAMP, VINYL INSULATED (NOT SHOWN - FOR OIL DRAIN HOSE)
26 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ (NOT SHOWN - FOR OIL DRAIN HOSE)
27 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE (NOT SHOWN - FOR OIL DRAIN HOSE)
28 5025154 1 WASHER, 1/4 SAE (NOT SHOWN - FOR OIL DRAIN HOSE)
29 5025139 2 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
30 5025011X10 2 BOLT, 5/16-18 X 1-1/4 GD5 YZ
31 696854 1 * OIL FILTER (SV) (NOT SHOWN)
NOTE* Purchase engine parts from engine manufacturer dealer.

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
14
Engine & PTO Group - 26 HP Briggs & Stratton

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
15
Engine & PTO Group - 26 HP Briggs & Stratton
Part No Descri
p
tionItem Qty
1 44P777-0124-G1 1 * ENGINE, 26HP ELS BRIGGS, Mod. 44P777-0124-G1
1 44Q777-0146-G1 1 * ENGINE, 27HP B&S, Mod. 44Q777-0146-G1 (* Decal, B&S 27HP, Not shown)
2 7075672 1 CLUTCH, ELECTRIC, OGURA GT2.5, NZM (S/N: 2013063777 & BELOW)
3 5043636 1 CLUTCH ANCHOR PAD
4 5044617 3 WASHER, .34 X 1.25 X 10 GA
5 5102865 1 BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ
6 5025011X8 5 BOLT, 5/16-18 X 1 GD5 YZ
7 5025155 6 WASHER, 5/16 SAE
8 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5050407X24 1 KEY, 1/4" SQ. X 3.00 (S/N: 2013063777 & BELOW)
10 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD5 YZ (S/N: 2013063777 & BELOW)
11 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
12 5403059D 1 PLATE, HEAT SHIELD - RED
13 5048681 1 HOSE, OIL DRAIN
14 273485 2 * GASKET, EXHAUST
15 690341 4 * SCREW, HEX SEMS LOCK WSHR 5/16-18X0.875
16 5100907 1 MUFFLER, B&S-ELS 22-26HP
17 5100969 1 EXTENSION, TAILPIPE, 3"
18 5021808X8 2 SCREW
19 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
20 5021500 1 CLAMP, VINYL INSULATED
21 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ
22 5025391 1 NUT, 1/4-20 HEX NYLON FLANGE
23 5025498 2 5/16" PUSH-ON NUT RETAINER, STL, CZ
24 5101529 1 CLUTCH, WARNER ELECTRIC, I-5219-104 (S/N: 2013063778 & ABOVE)
25 5050407X8 1 KEY, 1/4 SQ. X 1.00 (S/N: 2013063778 & ABOVE)
26 5025055X16 1 BOLT, 5/16-18 X 2 GD5 TFL (S/N: 2013063778 & ABOVE)
27 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE) (S/N: 2013063778 & ABOVE)
28 5101641 1 SCREEN, SPARK ARRESTER
29 797420 1 COVER, STATIC/LABEL ASSY (Not Shown)
30 95957 1 SCREW, PAN HEAD THREAD ROLLING (Not Shown)
NOTE* Purchase engine parts from engine manufacturer dealer.

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
16

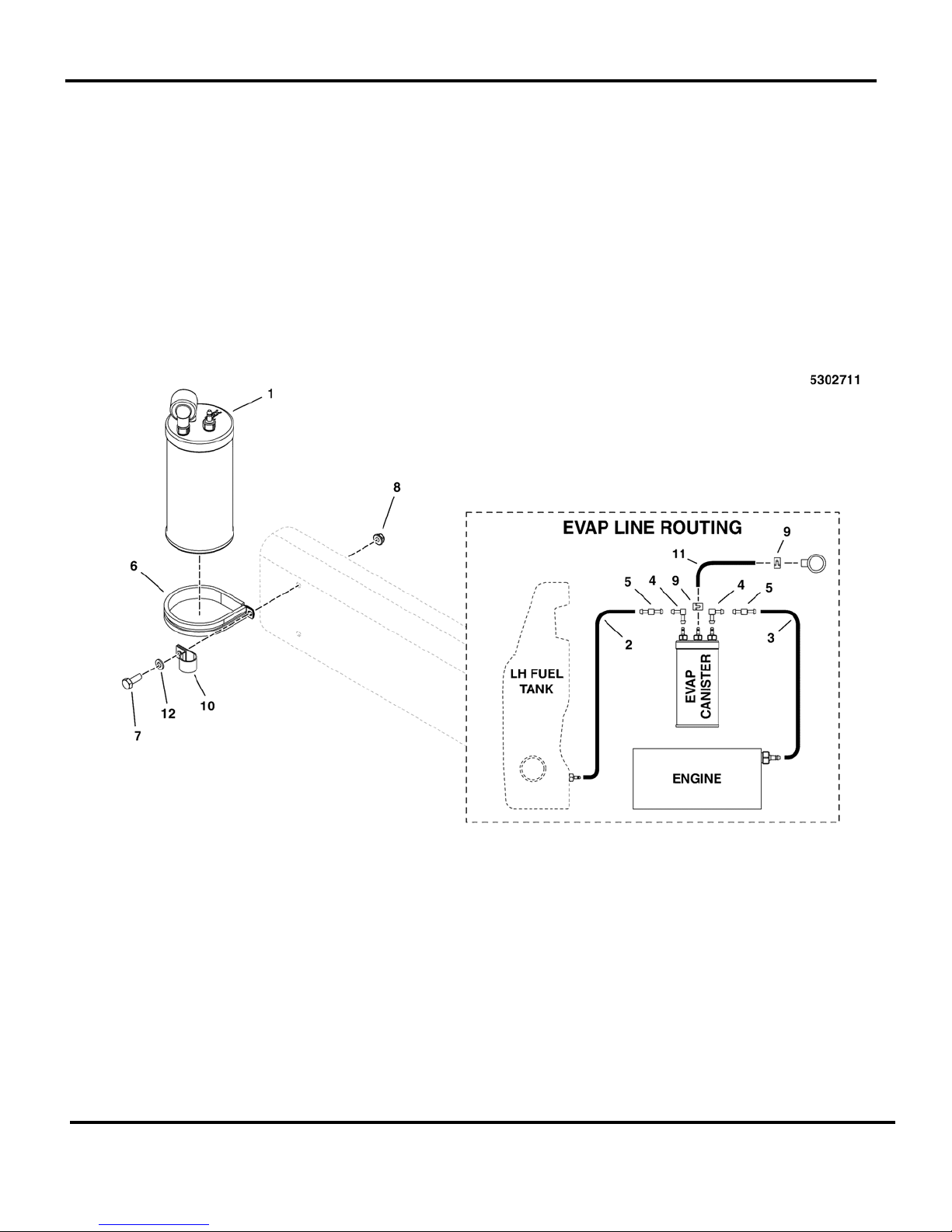

Evap Canister Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
17
Evap Canister Group
Part No Descri
p
tionItem Qty
1 313036 1 CNSTR, CARB, 6 GAL
2 7700552X27 1 HOSE, VAPOR, 5MM ID, 27.00 LG
3 7700552X11P5 1 HOSE, VAPOR, 5MM ID, 11.50 LG
4 5103082 2 FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
5 5103084 2 FITTING, STRAIGHT, 3/16X3/16, PLASTIC
6 5103055 2 CLAMP, 3" ID, CUSHIONED, STAINLESS
7 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
8 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
9 5023268 2 CLAMP, HOSE
10 5101932 1 CLAMP, VINYL COATED, 5/8 ID
11 5103092 1 HOSE, FORMED, EVAP CANISTER
12 5025154 2 WASHER, 1/4 SAE
13 - 1 DECAL, EPA CERT, ZTRS (Located on frame near Serial Tag)

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
18
Motion Control Group

Not for
Reproduction
Footnotes:
Manual No. 510122524HP & 26HP HYDRO DRIVE ZTR
19
Motion Control Group
Part No Descri
p
tionItem Qty
1 5022068 2 GRIP, FOAM, 3/4 ID, 16 LONG
2 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
3 5025155 18 WASHER, 5/16 SAE
4 5025170 4 WASHER, 5/16 LOCK YZ
5 5048264 8 SPACER, .39 X .63 X 1.50
6 5025011X20 8 BOLT, 5/16-18 X 2-1/2" GD5 YZ
7 5025392 16 NUT, 5/16-18 HEX NYLOCK FLANGE
8 5025179X4 4 SCREW, #10-24 X 1/2 ROUND PHILLIPS
9 5025029 4 NUT, #10-24 HEX
10 5025055X16 4 BOLT, 5/16-18 X 2 GD5 TFL
11 5021499 2 BEARING, FLANGE
12 5021098 2 BEARING, BRONZE FLANGE, 3/4
13 5047004 2 MOUNT, CONTROL ARM
14 5025327 4 BOLT, 3/8-16 X 1-1/4 SHCS
15 5025096 4 NUT, 3/8-16 HEX NYLON LOCK
16 5025013X8 2 BOLT, 3/8-16 X 1 GD5 YZ
17 5025013X14 4 BOLT, 3/8-16 X 1-3/4 GD5
18 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
19 5025139 4 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
20 5025011X10 4 BOLT, 5/16-18 X 1-1/4 GD5 YZ
21 5402852D 2 WELD, PLATE, NEUTRAL - RED
22 5100940 2 DAMPENER, CONTROL, #(P6709/P3610)
23 5402851D 1 WELD, CONTROL SHAFT, LH - RED
24 5402850D 1 WELD, CONTROL SHAFT, RH - RED
25 5100941 4 BALL STUD, 5/16 X .50, # PC-477-2)
26 5402872D 2 PLATE, CONTROL LINK, TRANSAXLE - RED
27 5101057 2 ROD, HYDRO LINKAGE - CONZ - YZ
28 5025015X6 2 BOLT, 7/16-14 X 3/4, GD 5 YZ
29 5025044 2 NUT, 7/16-14 HEX TOP LOCK
30 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
31 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
32 5023212 2 NUT, 5/16-24 HEX, LH
33 5023216 2 NUT, 5/16-24 JAM
34 5022628 2 BALL JOINT, 5/16-24, LH FEMALE
35 5021146 2 BALL JOINT, 5/16-24, FEMALE
36 5025127 8 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
37 5025055X12 2 BOLT, 5/16-18 X 1-1/2" GD5 TFL
38 5047055D 1 WELD, HANDLE MOTION CONTROL - LH
39 5047056D 1 WELD, HANDLE MOTION CONTROL - RH

Not for
Reproduction
Manual No. 5101225 24HP & 26HP HYDRO DRIVE ZTR
20
Parking Brake Group
