Snapper PRO SW20KAV1748 User manual

Parts
Rev. Date: 1/2008
SW20 Series
Walk-Behind Mower
Manual
5101265
5375 North Main Street
Munnsville, NY 13409 USA
800-933-6175
Briggs and Stratton Yard Power Products Group
TP 400-7338-IR-WD-SP
Models: Descri
p
tion:
5900702 SW20KAV1336, 36" 13HP Kawasaki Walk Behind Mower
5900700 SW20KAV1748, 48" 17HP Kawasaki Walk Behind Mower
IRRevision

Table Of Content
s
Tor
q
ue S
p
ecification Chart ............................................................................................. Inside Back Cover
MODEL COMPONENTS PAGE
Front Frame Group ............................................................................................................................................................
.
4
Handle Bar & Instrument Control Group ............................................................................................................................
.
6
Fuel Tank & Mount Group .................................................................................................................................................. 8
En
g
ine Deck Group ............................................................................................................................................................ 10
En
g

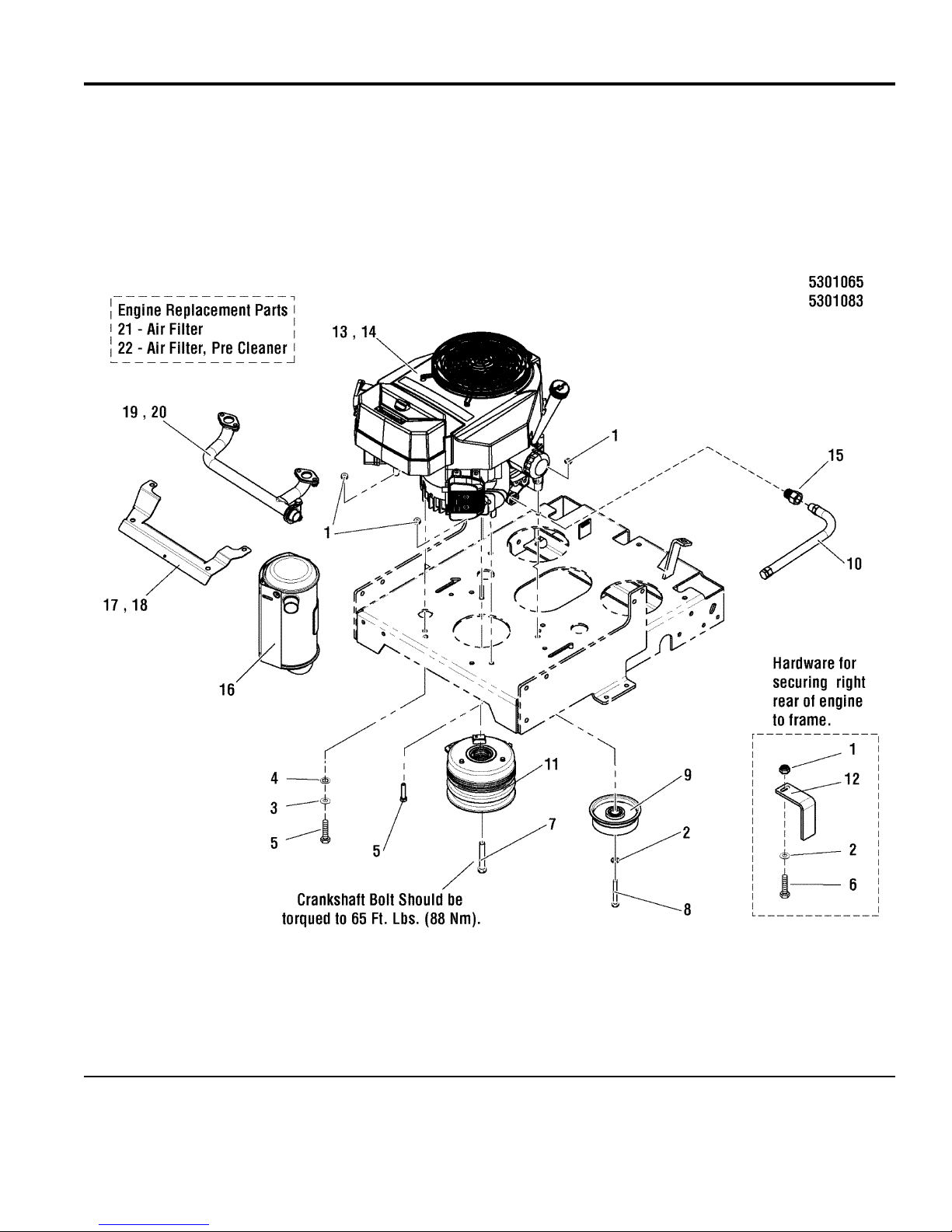

ine & PTO Group - 13 HP & 17 HP Kawasaki .............................................................................................................
.
12

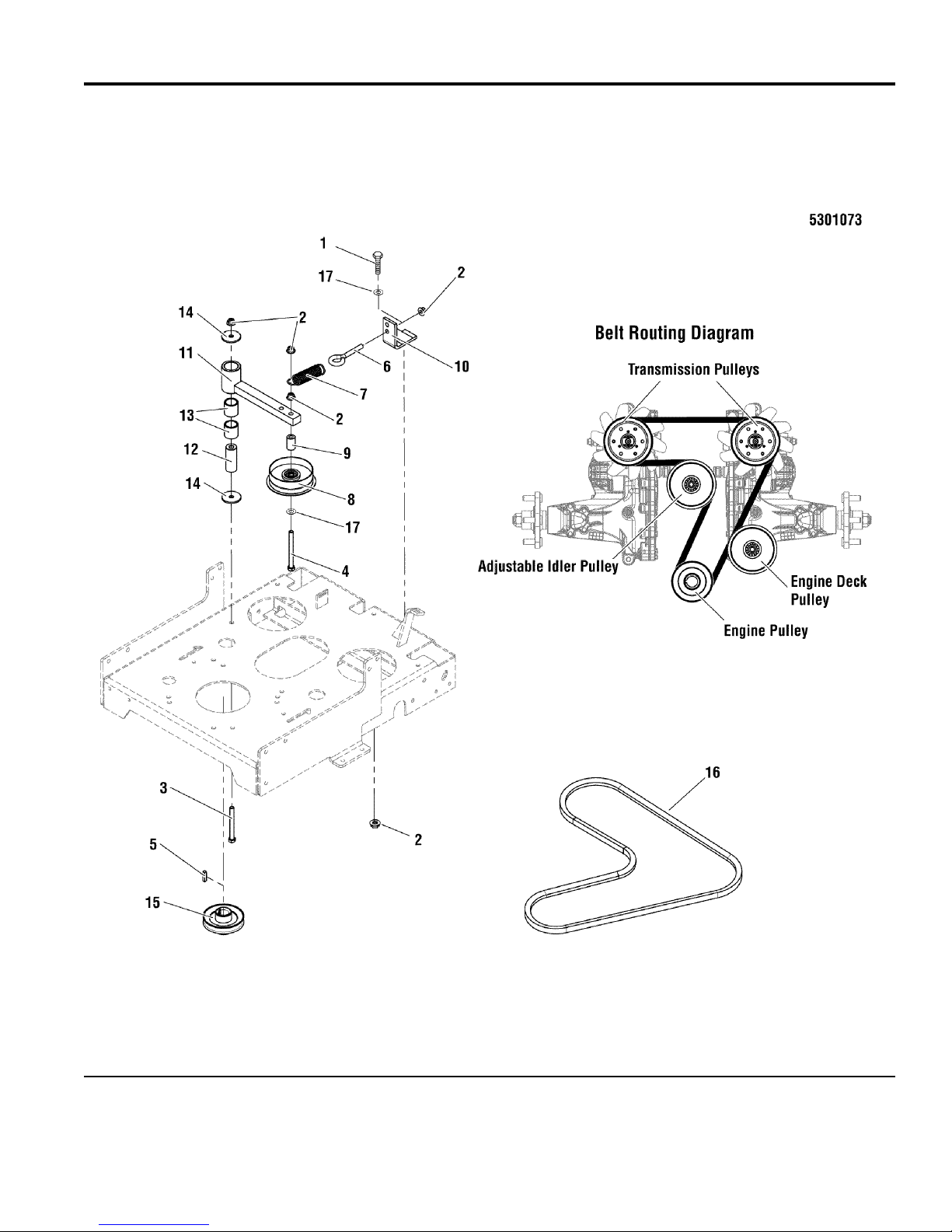

Pump Drive Group .............................................................................................................................................................
.
14

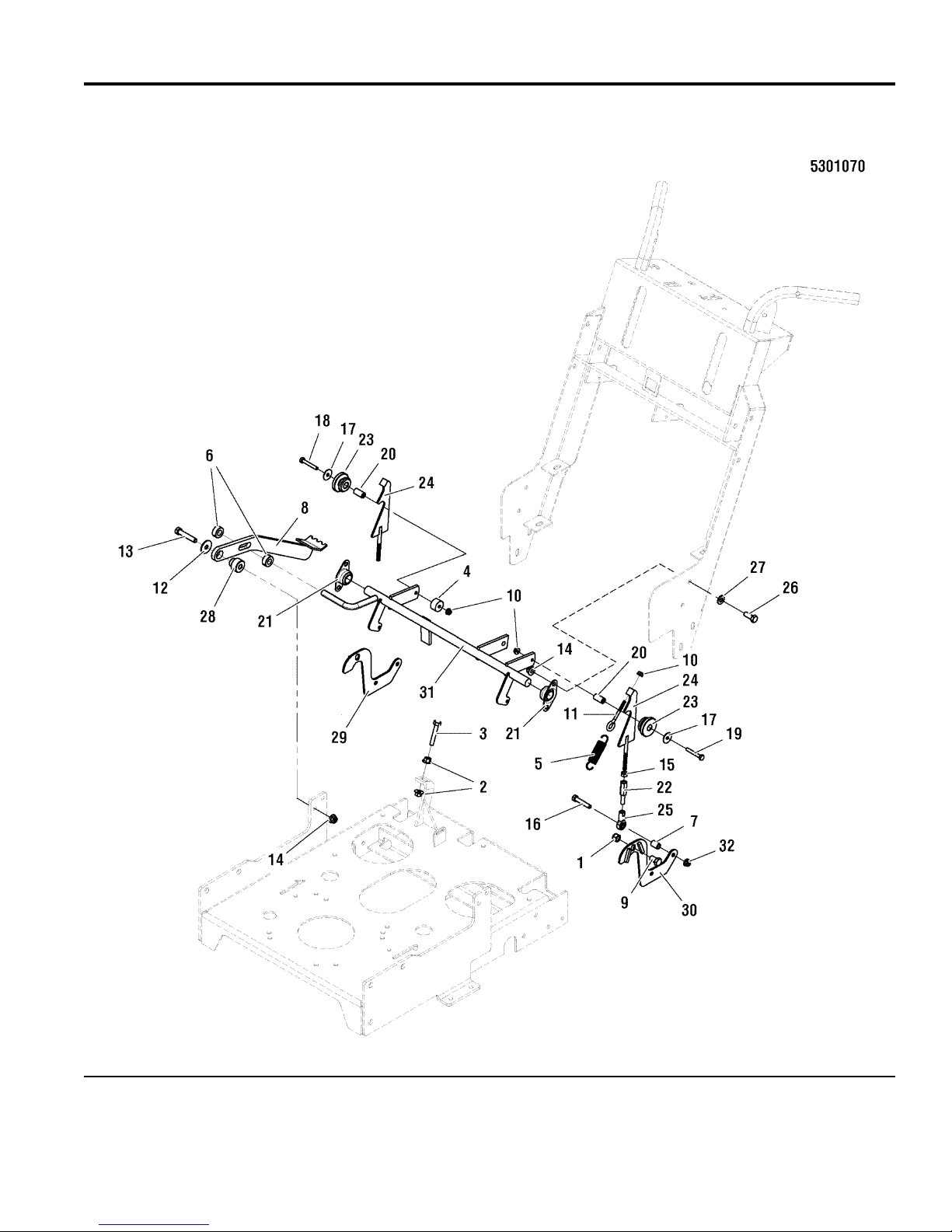

Motion Control Group - Upper ............................................................................................................................................ 16
Motion Control Group - Lower ............................................................................................................................................ 18
H
y
draulic Group ................................................................................................................................................................. 20
Parking Brake Group .........................................................................................................................................................
.
22
Deck Lift Group .................................................................................................................................................................. 24
Transmission SERVICE PARTS ........................................................................................................................................ 26
Tire & Wheel Group ...........................................................................................................................................................
.
28
Decal Group - Safety & Operation .....................................................................................................................................
.
30
Decal Group - Brand & Model ............................................................................................................................................ 32
36" & 48" Mower Deck - Spindle Service Parts .................................................................................................................. 34
48" Mower Deck - Rollers Group ........................................................................................................................................ 36
36" Mower Deck - Housing, Covers, Spindles & Blades .................................................................................................... 38
36" Mower Deck - Pulle
y
s, Belts & Idler Arm .....................................................................................................................
.
40
48" Mower Deck - Housin
g
, Covers, Spindles & Blades ....................................................................................................42
48" Mower Deck - Belts, Pulleys & Idler Arm .....................................................................................................................
.
44
Electrical Schematic - 13 HP & 17 HP Kawasaki Models ................................................................................................... 46

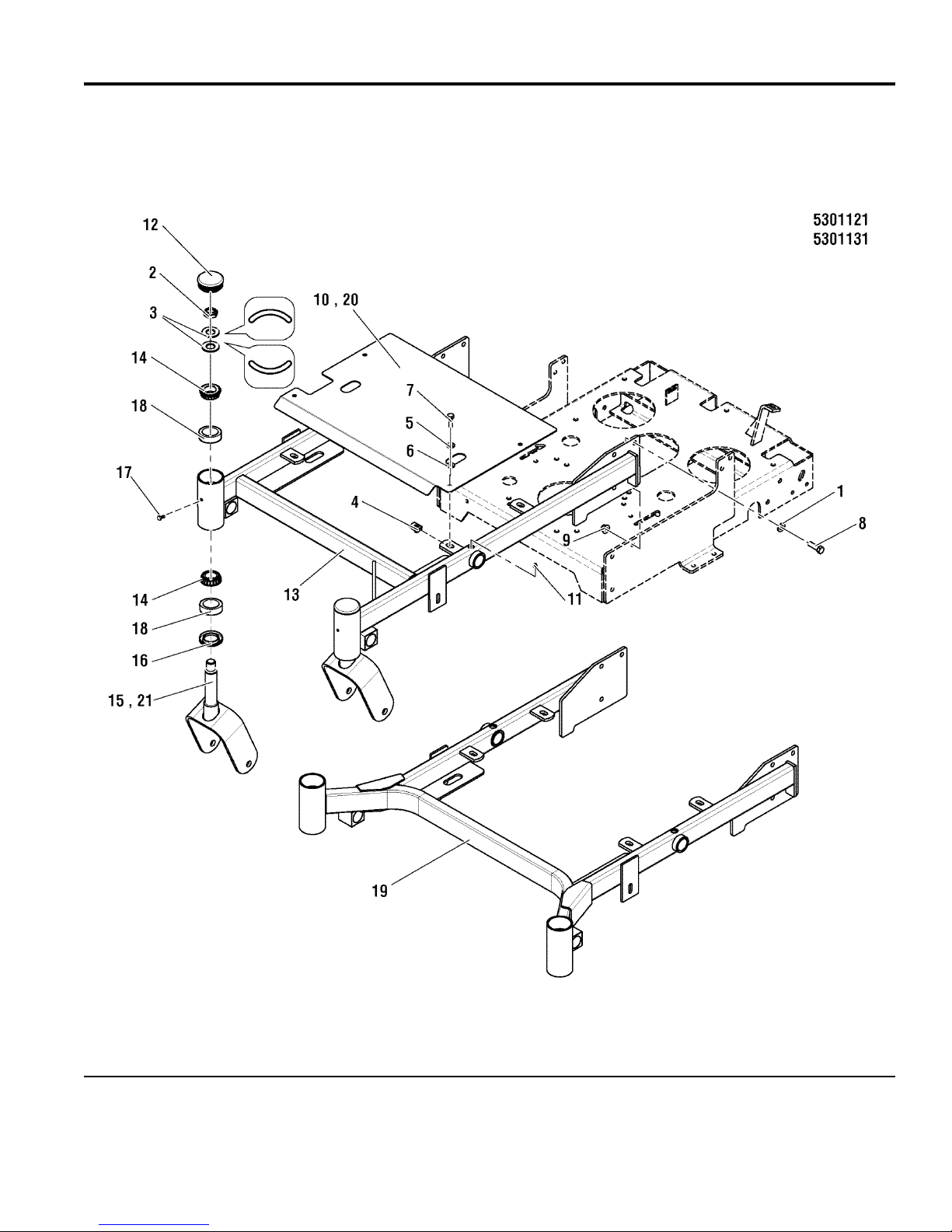

Front Frame Group
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2008 4 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

PART NO. DESCRIPTIONREF NO. QTY.
Front Frame Group
Footnotes
1 5025158 6 WASHER, 1/2 SAE
2 5025448 2 NUT, 3/4-16, HEX JAM NYLON LOCK
3 5025449 4 WASHER, BELLEVILLE - 1.500 X .755
4 5025452 4 BODY CLIP, 5/16-18 -1/4 MATERIAL
5 5025170 4 WASHER, 5/16 LOCK YZ
6 5025155 4 WASHER, 5/16 SAE
7 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
8 5025017X10 6 BOLT, 1/2-13 X 1-1/4 GD5
9 5025396 6 NUT, 1/2-13 HEX NYLOCK FLANGE
10 5403338D 1 PLATE, DECK GUARD - SNP PRO WB 36 (13 HP MODELS ONLY)
11 5021637 2 GREASE FITTING, PRESS, SHORT
12 5100882 2 CAP, CASTER SPINDLE, LOW PROFILE
13 5403289D 1 WELD,FRONT FRAME, 36 SNP PRO WB - RED (13 HP MODELS ONLY)
14 5020884 4 BEARING, TAPERED ROLLER, 1"
15 5402240D 2 WELD, CASTER YOKE, SW20 - 36" RED (13 HP MODELS ONLY)
16 5021072 2 SEAL GREASE
17 5025457 2 BOLT, 1/4-28 X 1/2, GD5 YZ
18 5020883 4 CUP, BEARING (SV)
19 5403626D 1 WELD, FRONT FRAME, 48 WB - RED (17 HP MODELS ONLY)
20 5403429D 1 GUARD, DECK LIFT (17 HP MODELS ONLY)
21 5403627D 2 WELD, CASTER YOKE, SW20 - 48" RED (17 HP MODELS ONLY)
The above parts group applies to the following Mfg. Nos.:
2008 5 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

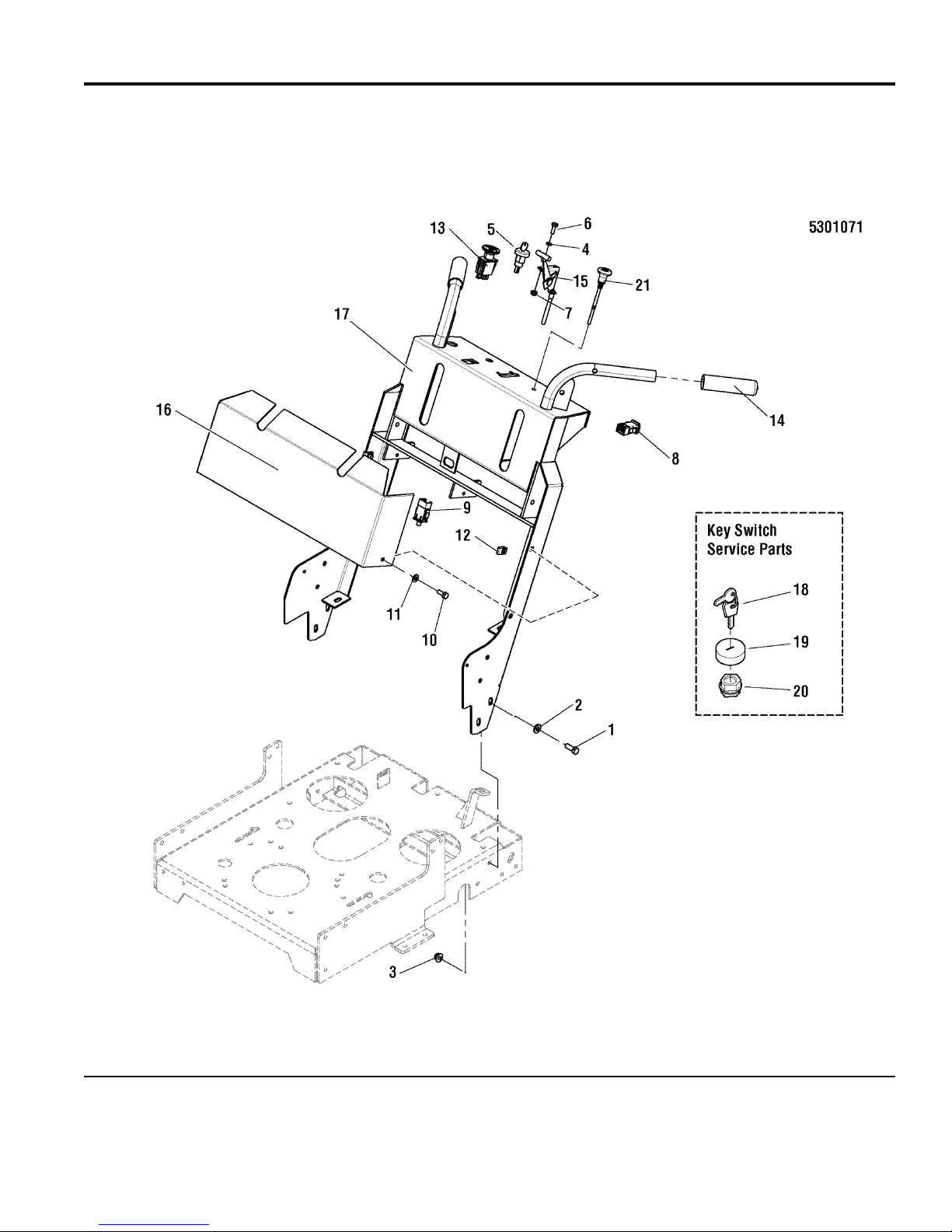

Handle Bar & Instrument Control Group
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2008 6 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

PART NO. DESCRIPTIONREF NO. QTY.
Handle Bar & Instrument Control Group
Footnotes
1 5025013X8 6 BOLT, 3/8-16 X 1 GD5 YZ
2 5025293 6 WASHER, 3/8 GD.9 FLAT
3 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
4 5025154 2 WASHER, 1/4 SAE
5 5021842 1 SWITCH, IGNITION, 2 POST (Includes Ref Nos 18 - 20)
6 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
7 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
8 5101280 1 SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
9 5101216 1 SWITCH, PLUNGER, NC, SINGLE POLE SNAP-IN
10 5025011X6 4 BOLT, 5/16-18 X 3/4 GD5
11 5025155 4 WASHER, 5/16 SAE
12 5022308 4 BODY CLIP, 5/16-18 X 1/2 DEEP
13 5022180 1 SWITCH, BLADE ENGAGEMENT
14 5021841 2 GRIP, FOAM, .940" X 5" X .187"
15 5101213 1 CABLE, THROTTLE, 54"
16 5403605D 1 COVER, FRONT HANDLEBAR - RED
17 5403094D 1 WELD, HANDLE BAR - RED
18 5022789 1 KEY, IGNITION, MOLDED SET (SV)
19 5022790 1 COVER (SV)
20 5022791 1 PLASTIC NUT (SV)
21 5047912 1 CABLE, CHOKE CONTROL, 56"
The above parts group applies to the following Mfg. Nos.:
2008 7 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

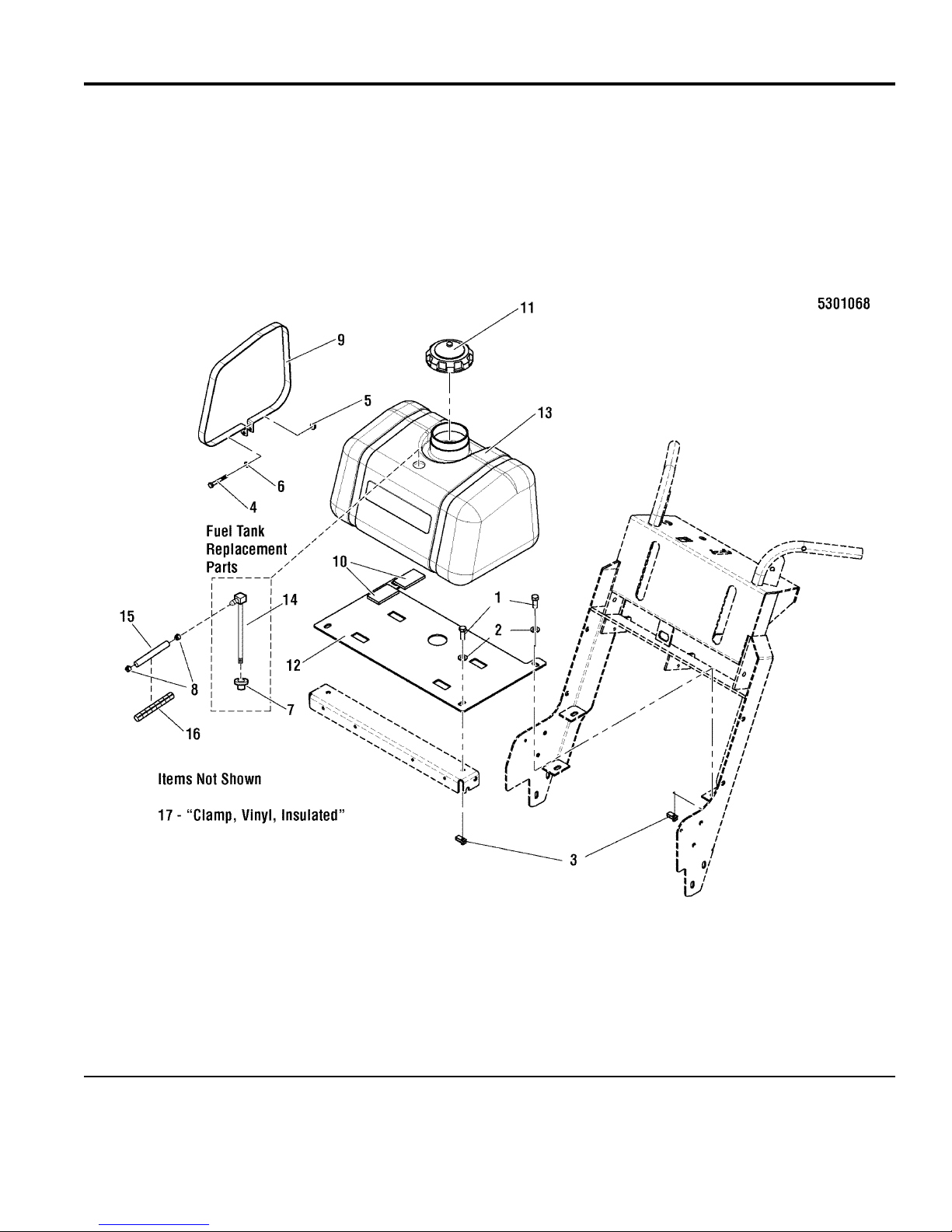

Fuel Tank & Mount Group
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2008 8 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

PART NO. DESCRIPTIONREF NO. QTY.
Fuel Tank & Mount Group
Footnotes
1 5025013X8 4 BOLT, 3/8-16 X 1 GD5 YZ
2 5025156 4 WASHER, 3/8 SAE
3 5022649 4 BODY CLIP, 3/8-16 X .688" DEEP
4 5025010X16 2 BOLT, 1/4-20 X 2", GD5
5 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
6 5025154 2 WASHER, 1/4 SAE
7 5600050 1 KIT, BUSHING (SV)
8 5020835 2 CLAMP, HOSE, EXTERNAL, 1/2 - RED
9 5403445A 2 STRAP, FUEL TANK - SNP PRO DDS - BLK
10 5101270 4 PAD, RUBBER MOUNT, 1/4 MAT
11 5101272 1 FUEL CAP, 3.5", VENTED
12 5403229D 1 PLATE, FUEL TANK MOUNT - RED
13 5101231 1 TANK, FUEL, SNAPPER PRO WALK BEHIND (Includes Ref Nos 7 & 14)
14 5101261 1 PICKUP TUBE ASM, FUEL TANK, 8.0" (SV)
15 5050831X19 1 HOSE, 1/4" FUEL, 19.00"
16 5050833X18 1 WIRE LOOM, 1/2" ID, 18" LONG
17 5021500 1 CLAMP, VINYL INSULATED (NOT SHOWN - ATTACHES TO ENGINE)
The above parts group applies to the following Mfg. Nos.:
2008 9 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP

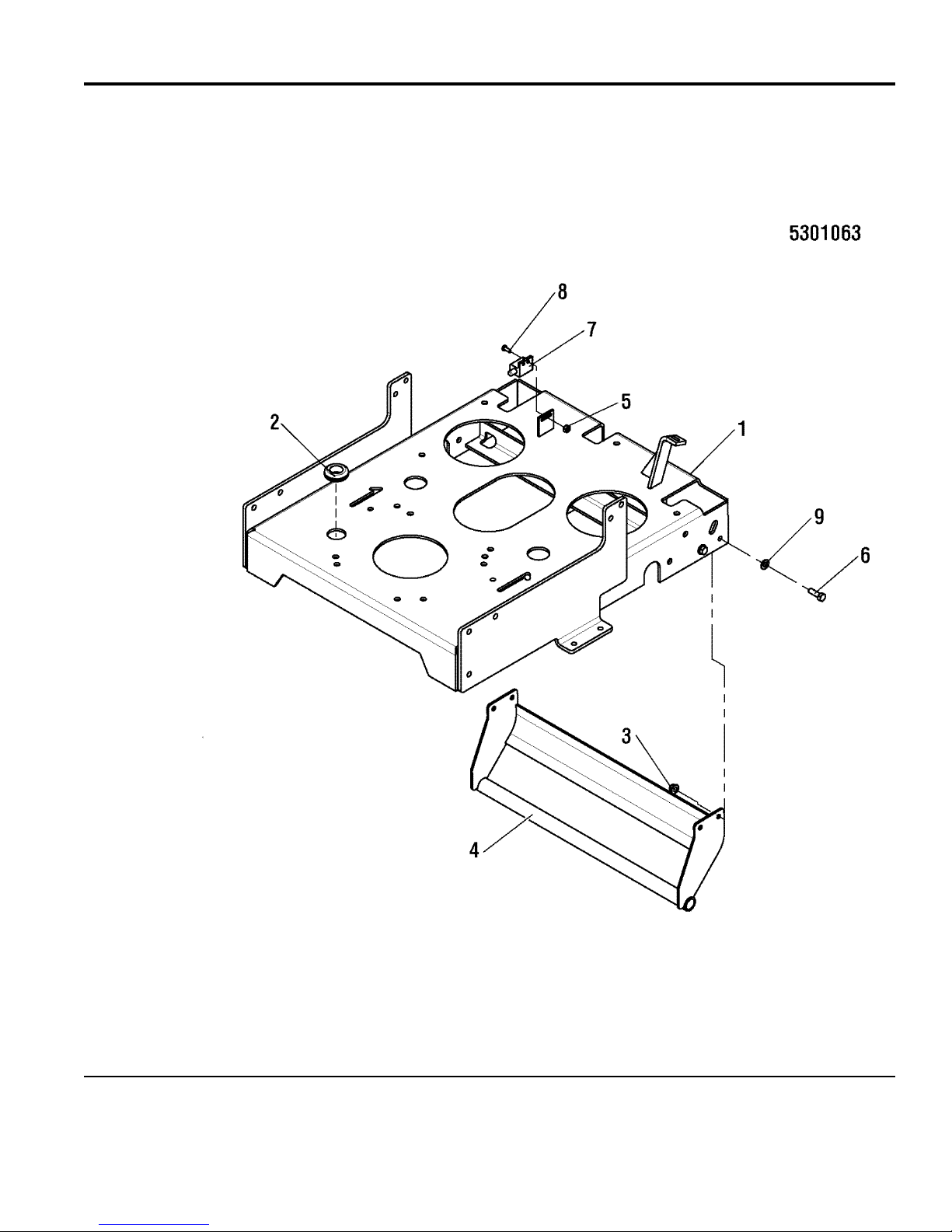

Engine Deck Group
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2008 10 © Copyright Briggs and Stratton. All Rights Reserved.
5900702
5900700
TP 400-7338-IR-WD-SP
